Modular Workbench Attachment - Open Shelf with 4 Drawers DXF Files

Name: Modular Workbench Attachment - Open Shelf with 4 Drawers DXF Files
Brand: Aribabox
Price: 4.95 USD
Availability: InStock

$4.95 USD

~~$9.95 USD~~ $4.95 USD

Sale Sold out

Taxes included.

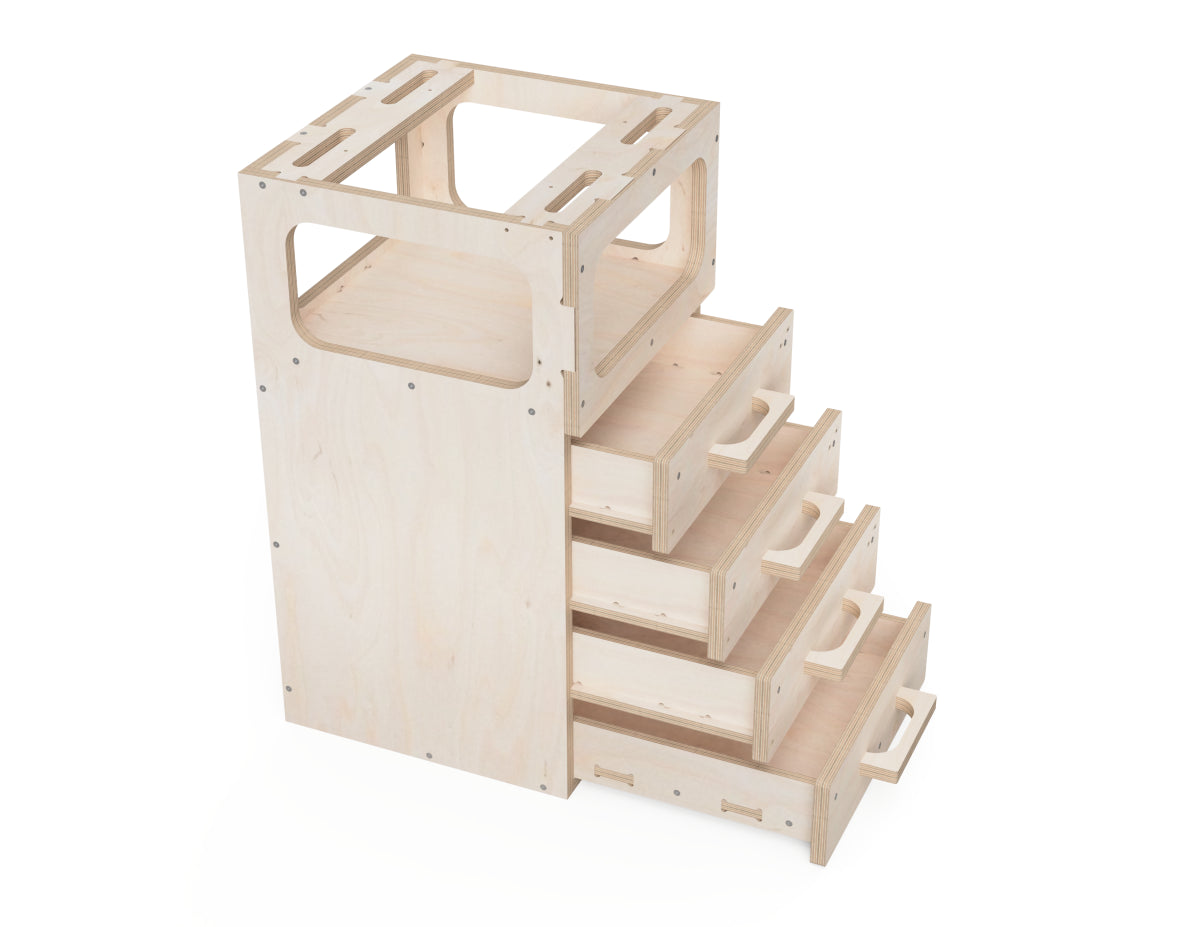

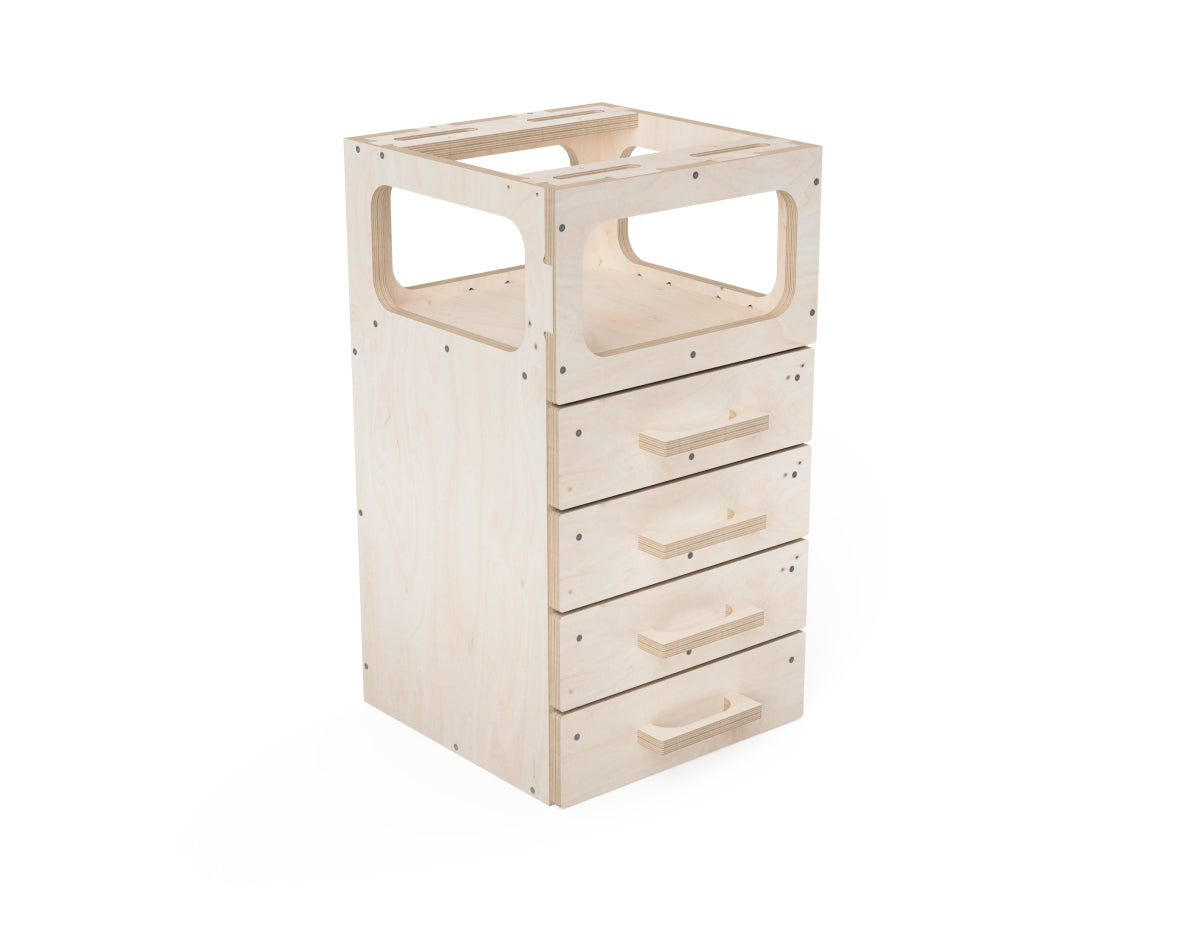

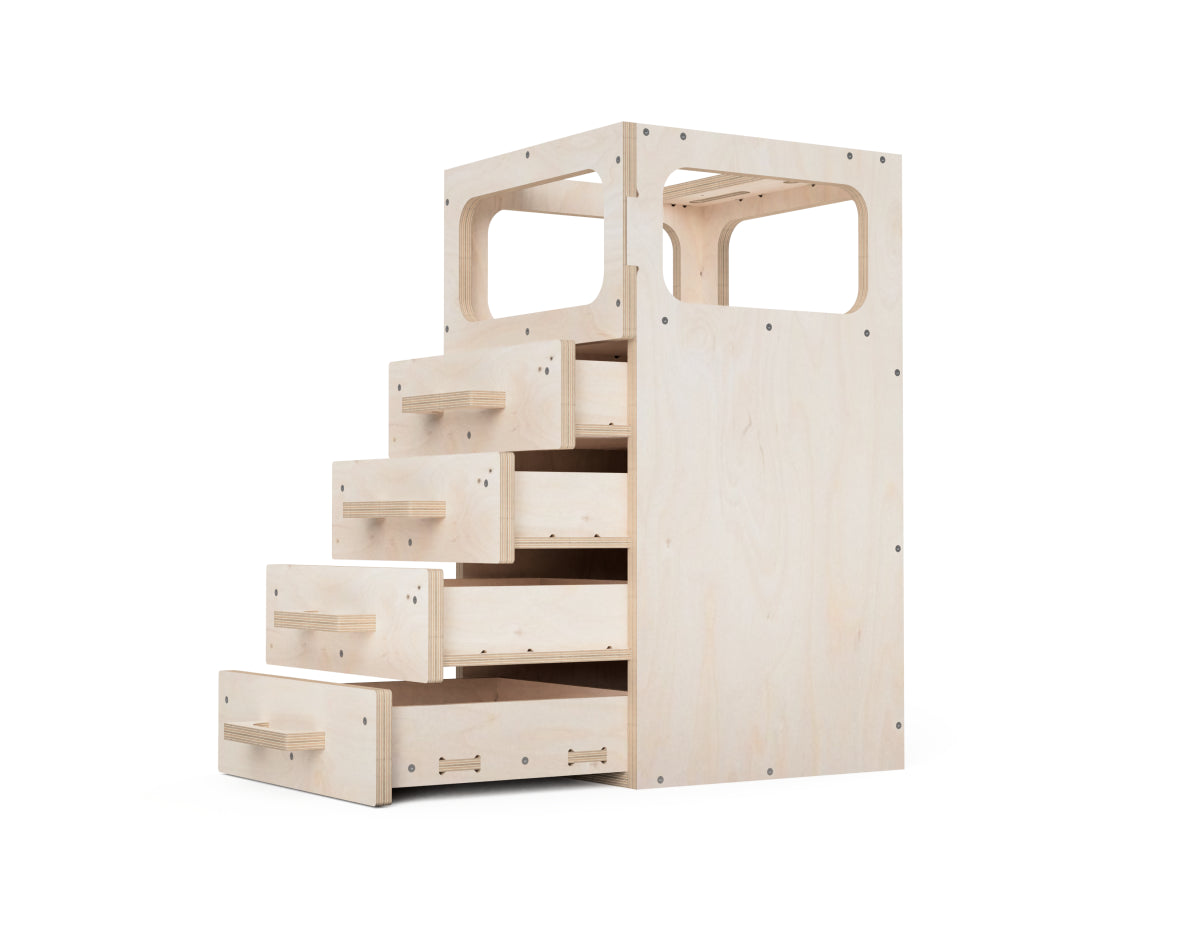

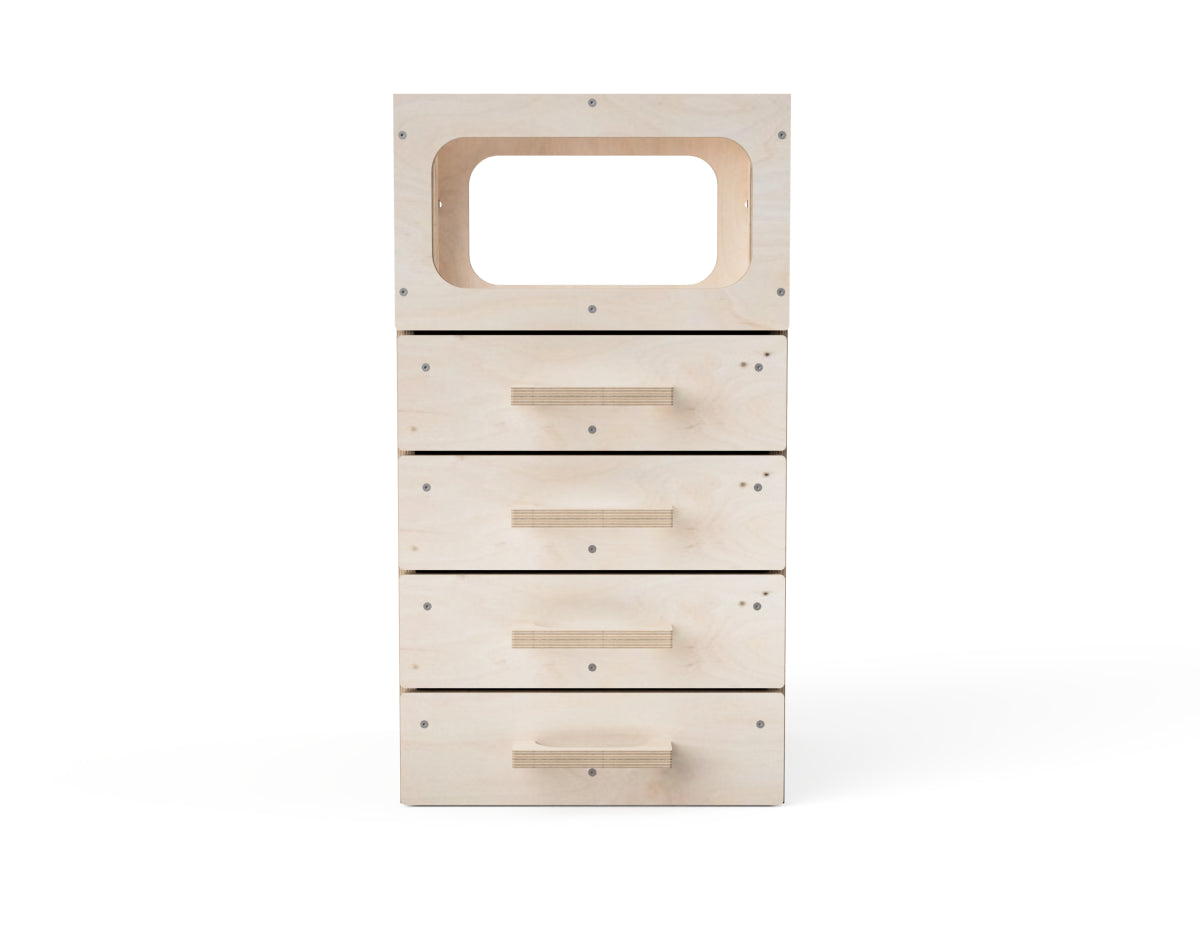

Organize your workshop with the Modular Workbench Attachment - Open Shelf with 4 Drawers.

This CNC-ready DXF project includes an open shelf for quick-access essentials and four larger drawers to keep tools dust-free.

Built-in drawer slides save money and simplify assembly. Fits one module on your base frame and includes work surface panel files.

Perfect for CNC woodworking enthusiasts looking to customize their workbench.

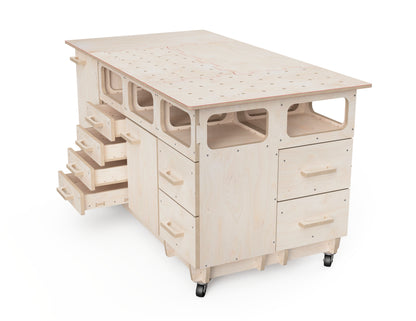

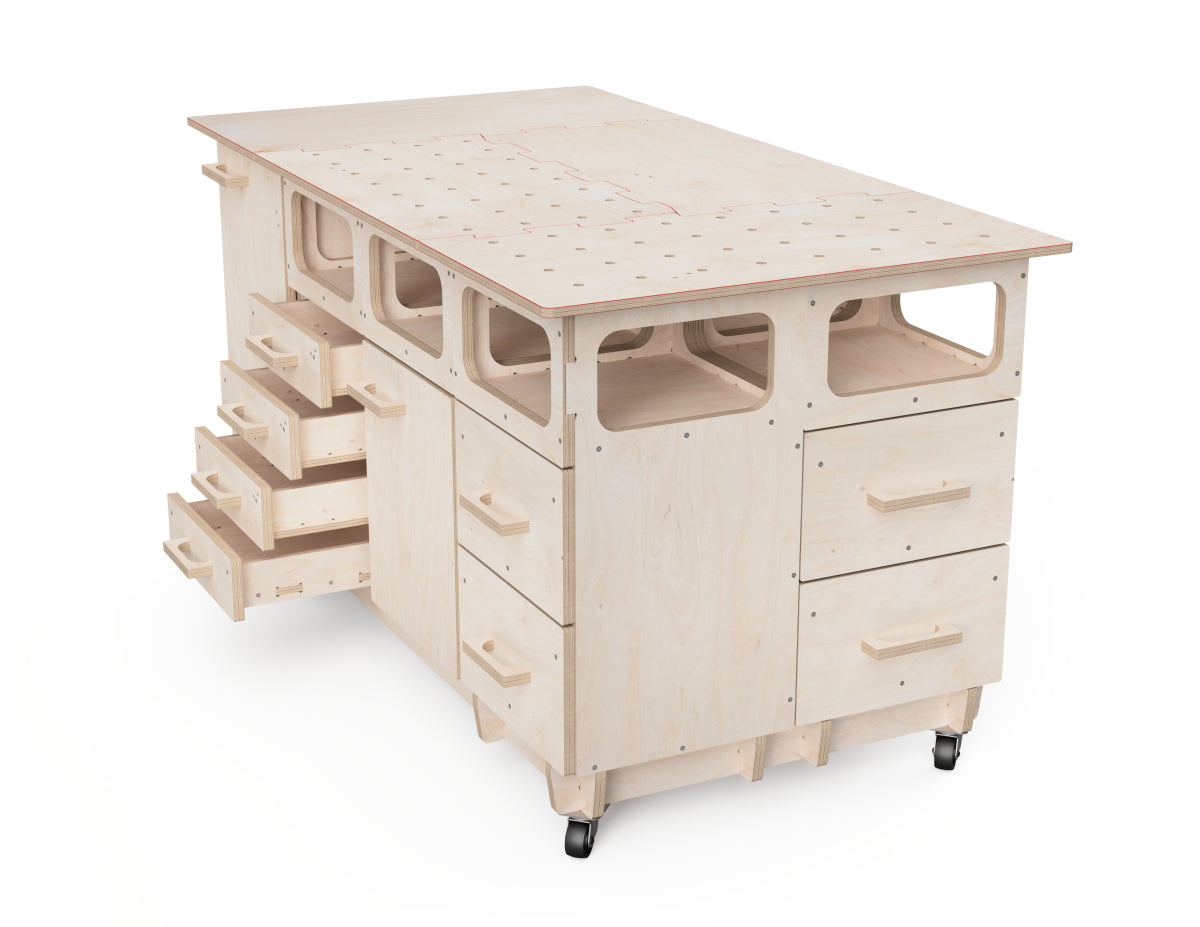

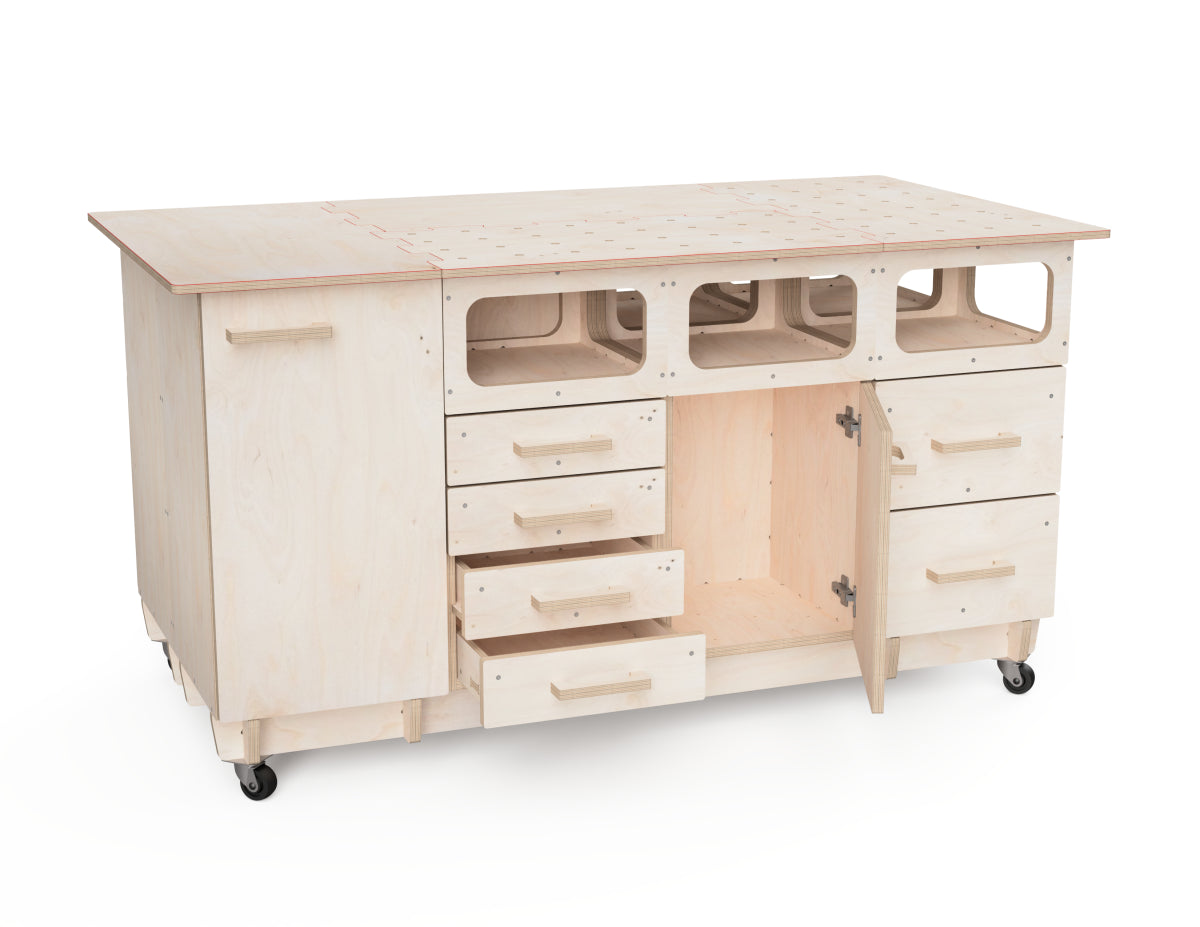

Small Workbench Setup
Dimensions: 900 × 900 × 900 mm (W × L × H)
≈ 35 × 35 × 35 in

Medium Workbench Setup
Dimensions: 900 × 1300 × 900 mm (W × L × H)
≈ 35 × 51 × 35 in

Large Workbench Setup
Dimensions: 900 × 1700 × 900 mm (W × L × H)
≈ 35 × 67 × 35 in

Supported CNC sizes

The project can be made on a 800 x 1200 mm (2.6 x 4 ft) CNC router and bigger.

Max single piece size

The biggest component is 730 x 400 mm (28.74 x 15.75 inches).
So if it can fit on your CNC router, you can build this project

Dimensions

Width	Length	Height
400 mm	400 mm	730 mm
15¾ inch	15¾ inch	28¾ inch

Required materials

For a 820 x 1220 (2.6 x 4 ft) CNC
- 1 sheet of 820 x 1220 x 18 mm (32 x 48 x 3/4 inches) plywood
- 1 sheet of 700 x 1220 x 18 mm (28 x 48 x 3/4 inches) plywood
- 1 sheet of 600 x 1220 x 12 mm (24 x 48 x 1/2 inches) plywood
- 1 sheet of 420 x 800 x 12 mm (16 x 31 x 1/2 inches) plywood
- 6 mm (1/4 inch) router bit
- 30 mm (1-1/4 inches) wood screws - 100 pieces
For a 1220 x 1220 mm (4 x 4 ft) CNC
- 1 sheet of 1220 x 1220 x 18 mm (48 x 48 x 3/4 inches) plywood
- 1 sheet of 450 x 300 x 18 mm (18 x 12 x 3/4 inches) plywood
- 1 sheet of 1220 x 1220 x 12 mm (48 x 48 x 1/2 inches) plywood
- 6 mm (1/4 inch) router bit
- 30 mm (1-1/4 inches) wood screws - 100 pieces
For a 1220 x 2440 mm (4 x 8 ft) CNC
- 1 sheet of 2440 x 820 x 18 mm (96 x 32 x 3/4 inches) plywood
- 1 sheet of 1220 x 1220 x 12 mm (48 x 48 x 1/2 inches) plywood
- 6 mm (1/4 inch) router bit
- 30 mm (1-1/4 inches) wood screws - 100 pieces
