Modular Workbench Attachment - Open Shelf with 2 Drawers DXF Files

Modular Workbench Attachment - Open Shelf with 2 Drawers DXF Files

Regular price $4.45 USD
Regular price $8.95 USD Sale price $4.45 USD
Sale Sold out
Taxes included.

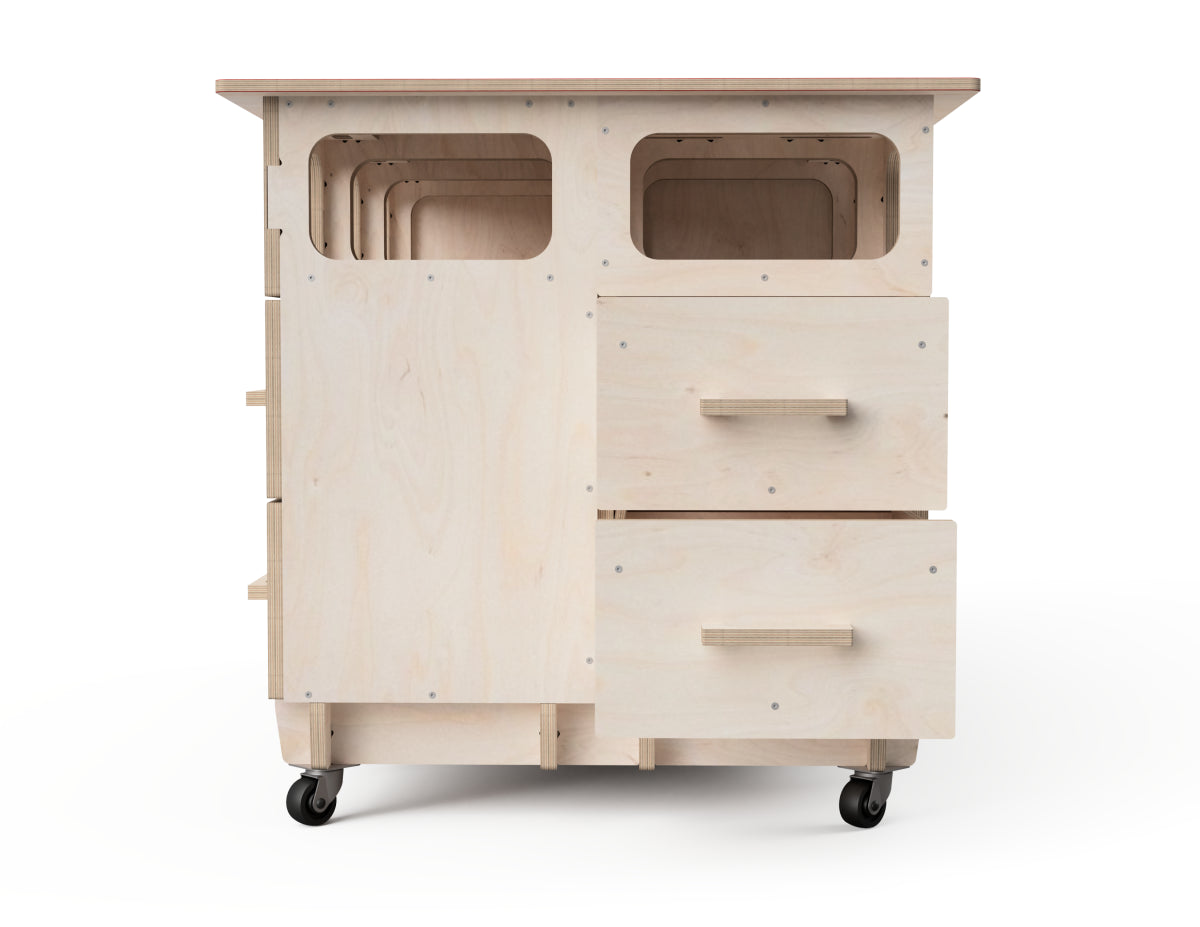

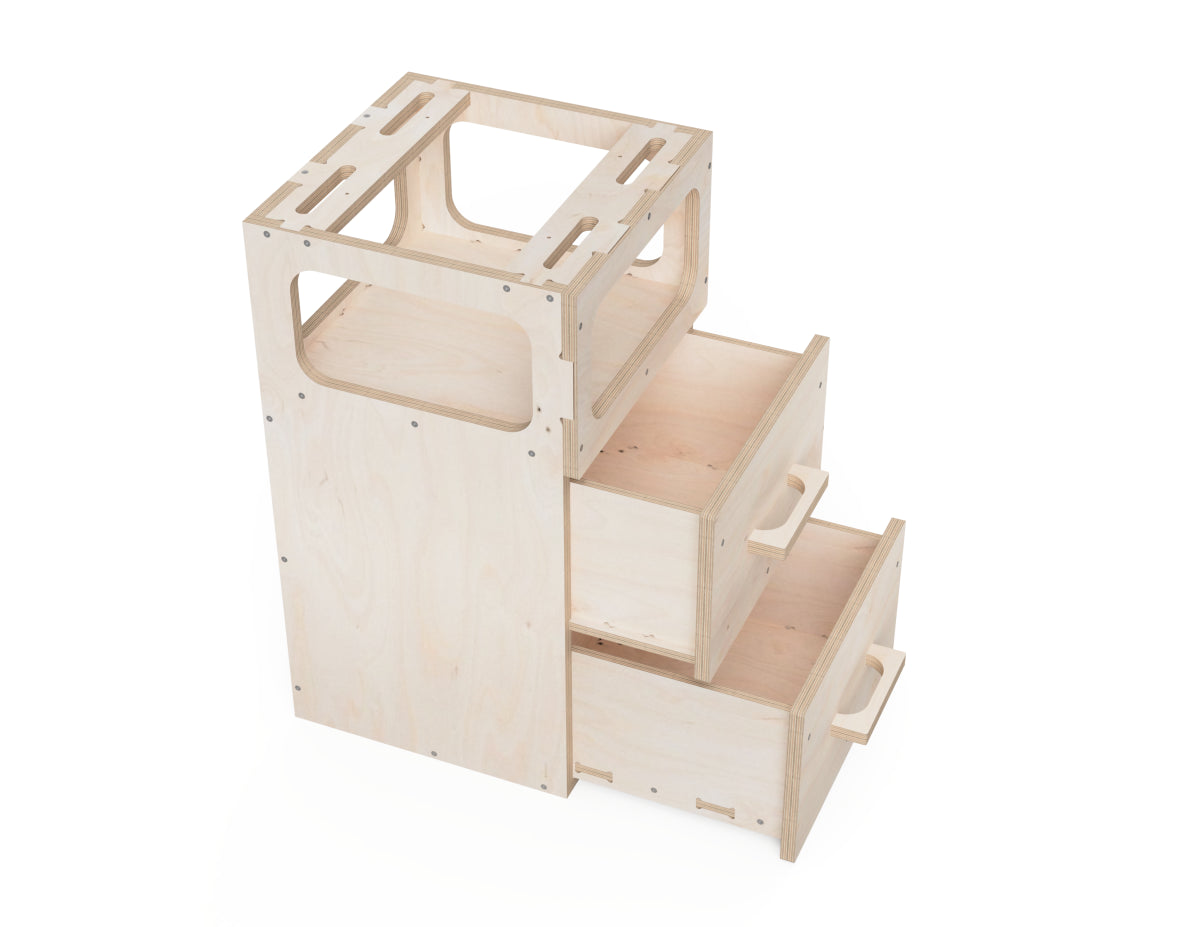

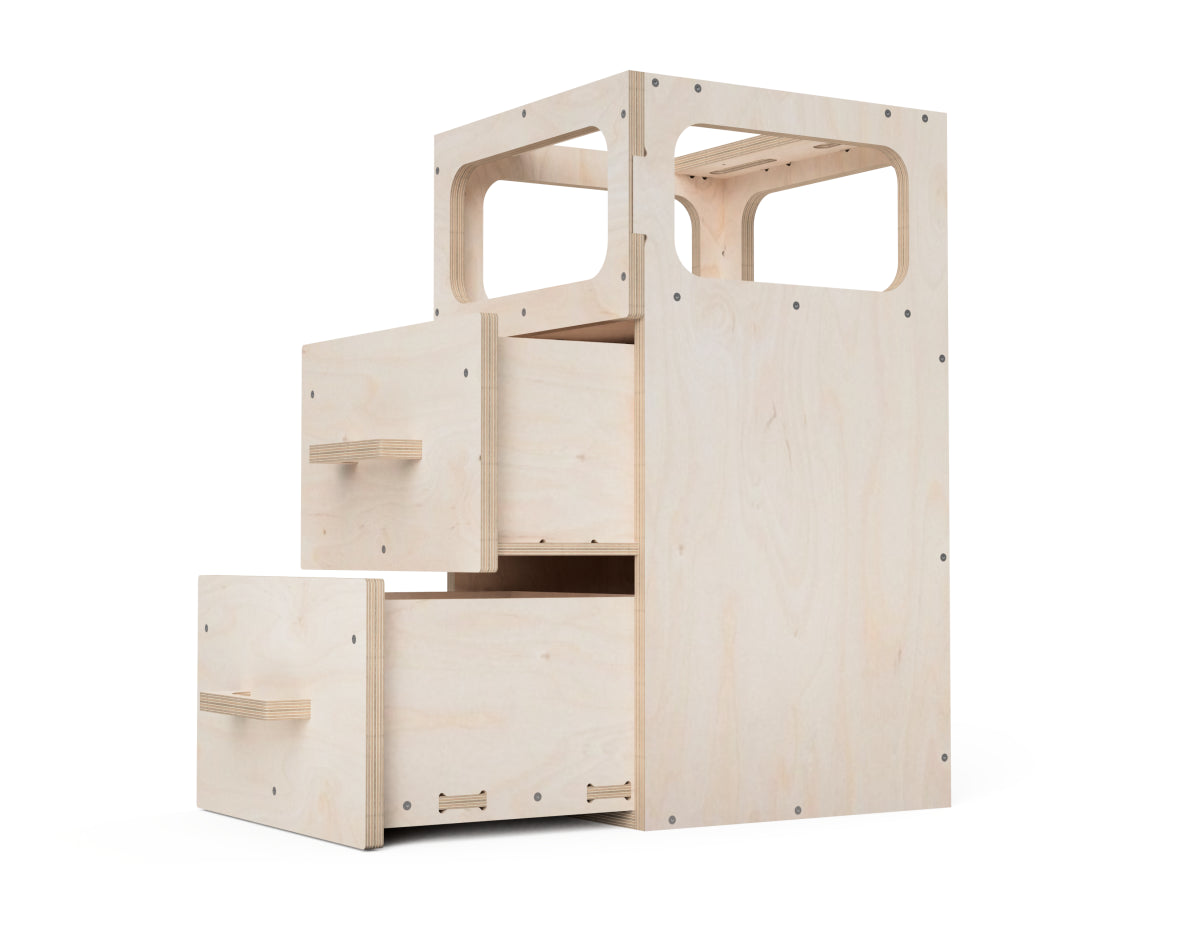

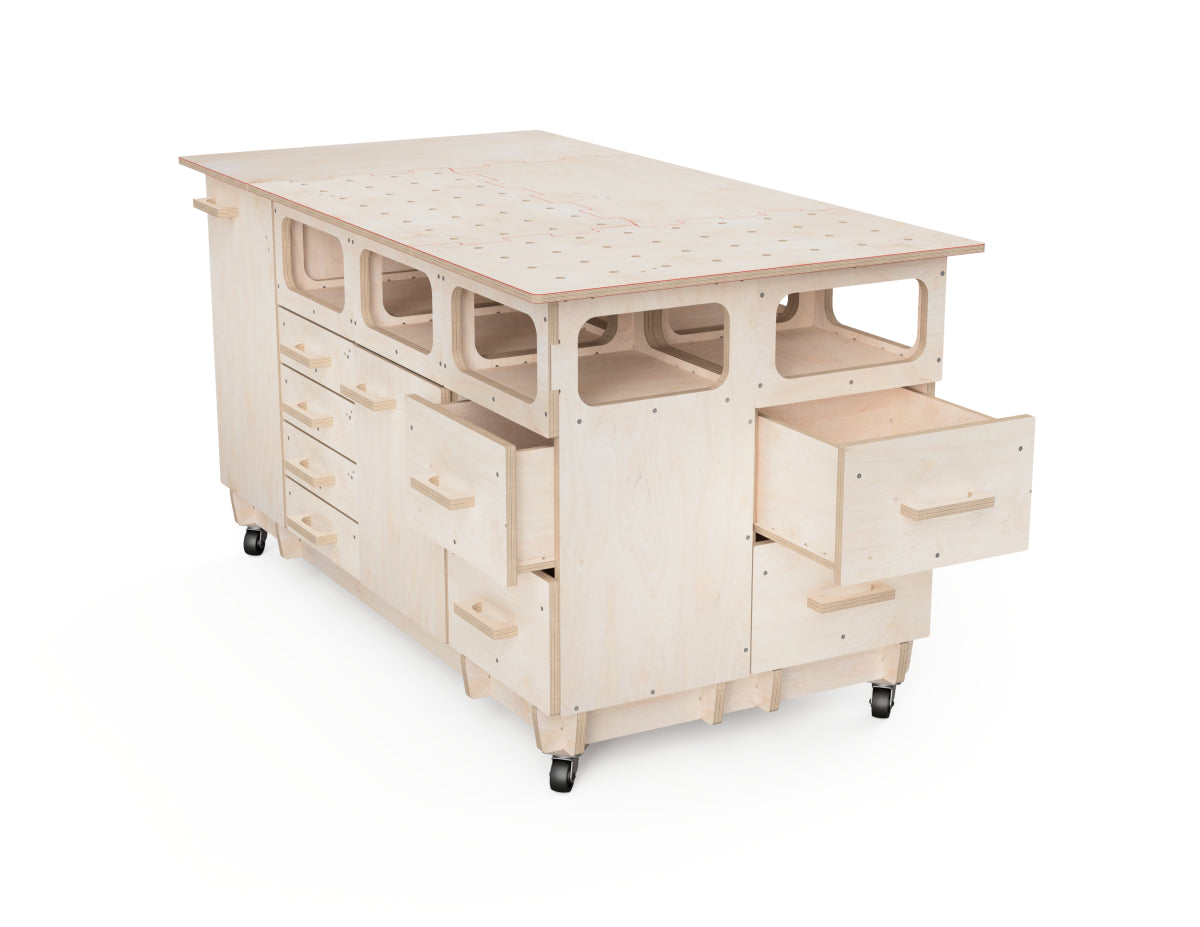

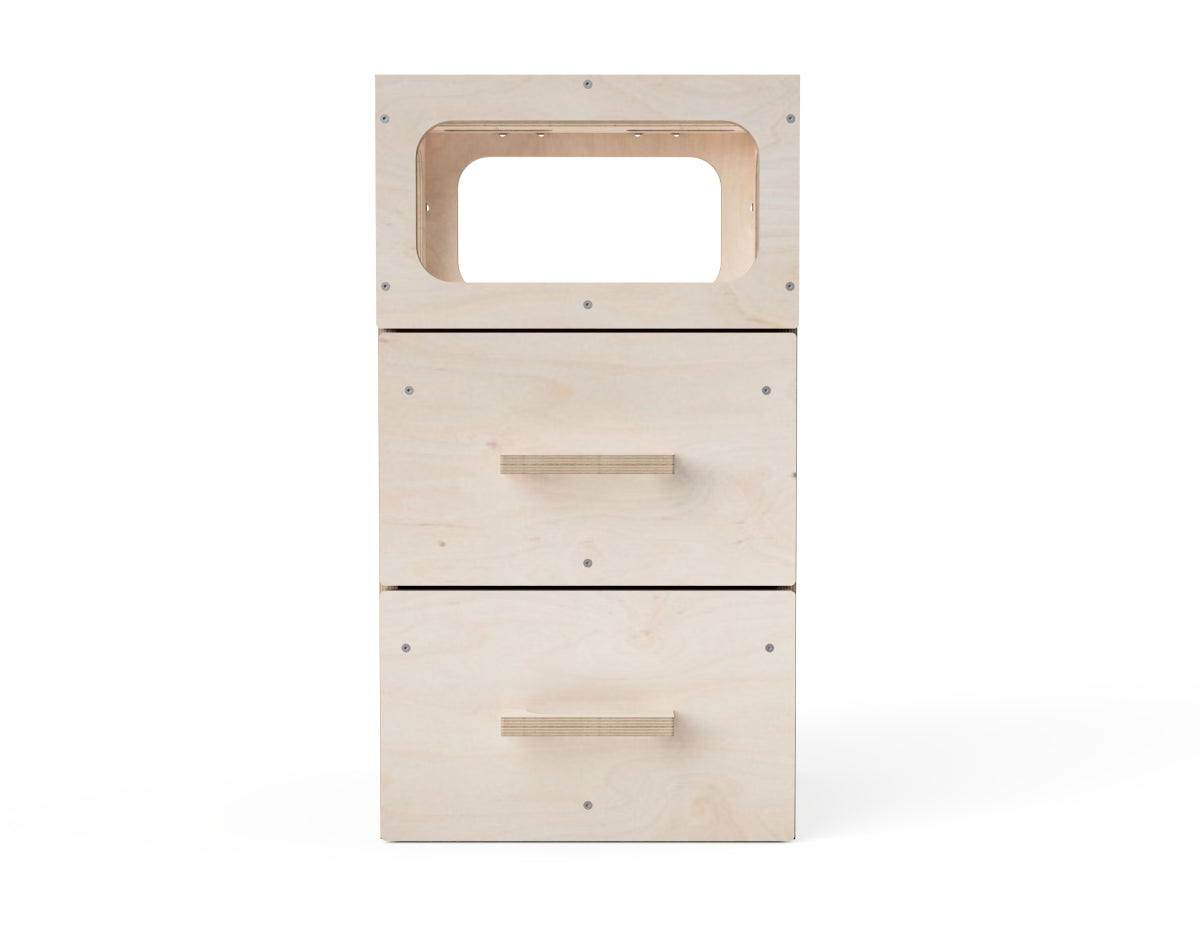

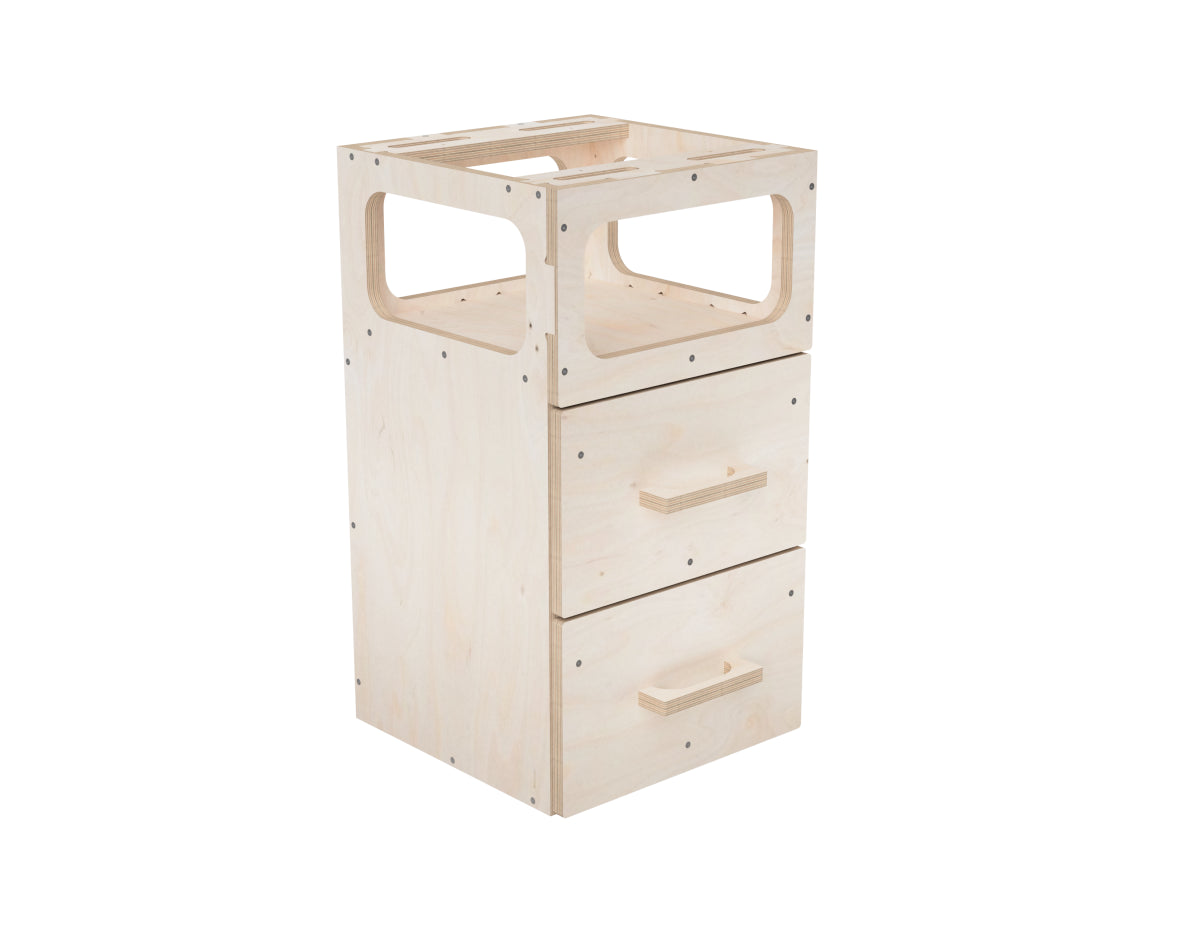

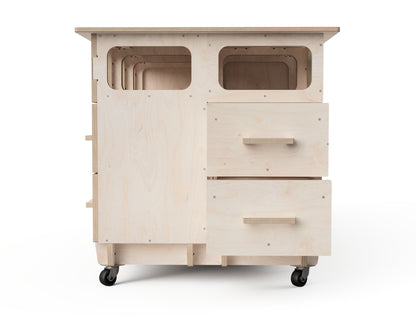

Create a versatile modular workbench attachment with an open shelf for easy access to your essentials and two large drawers to keep tools dust-free.



Built-in drawer slides save money and assembly is simple. Includes all DXF files for the cabinet, drawers, and work surface panels.



Perfect for CNC woodworking enthusiasts looking to expand their workbench setup.

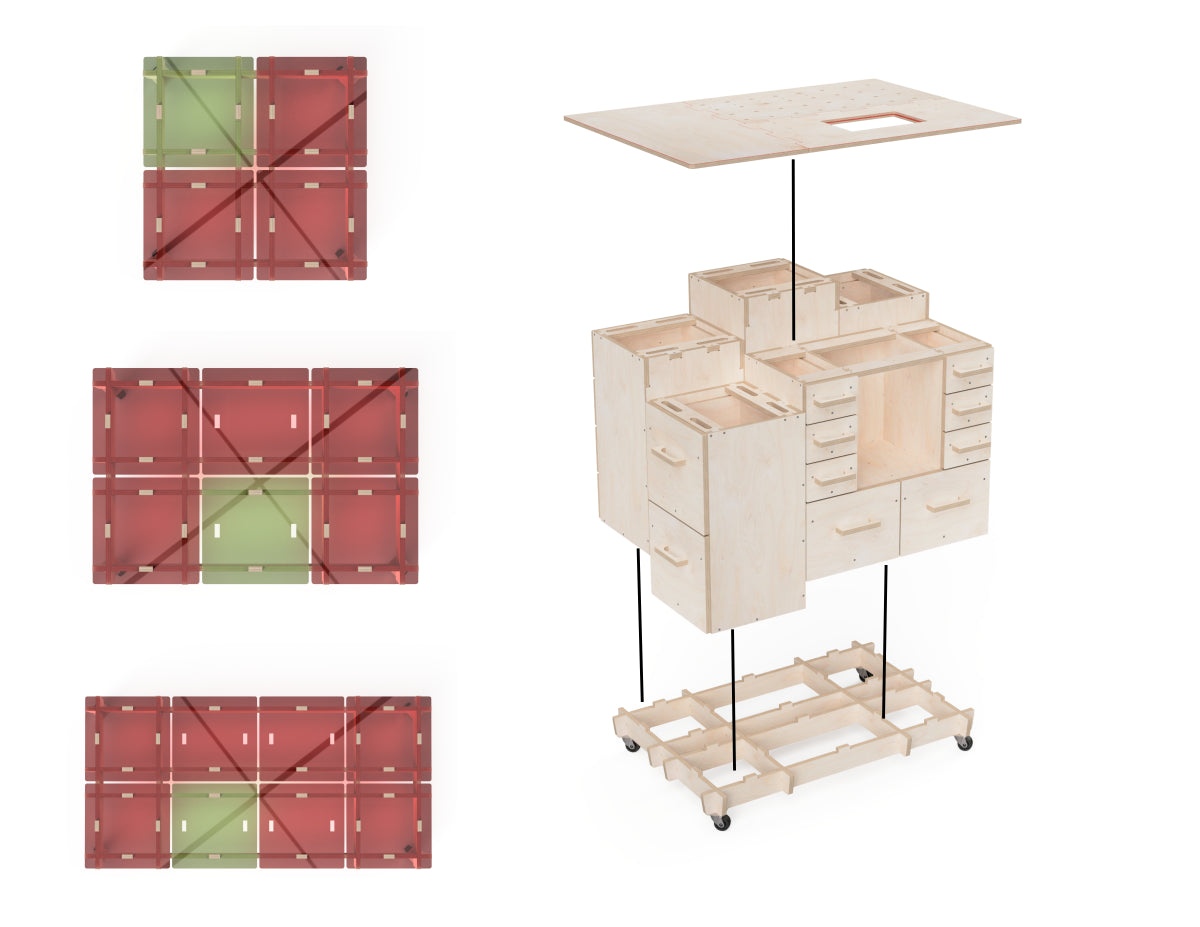

Supported CNC sizes

The project can be made on a 800 x 1200 mm (2.6 x 4 ft) CNC router and bigger.

Max single piece size

The biggest component is 730 x 400 mm (28.74 x 15.75 inches).
So if it can fit on your CNC router, you can build this project

Dimensions

Width Length Height
400 mm 400 mm 730 mm
15¾ inch 15¾ inch 28¾ inch

Required materials

For a 820 x 1220 (2.6 x 4 ft) CNC
- 1 sheet of 820 x 1220 x 18 mm (32 x 48 x 3/4 inches) plywood
- 1 sheet of 700 x 1220 x 18 mm (28 x 48 x 3/4 inches) plywood
- 1 sheet of 820 x 1220 x 12 mm (32 x 48 x 1/2 inches) plywood
- 6 mm (1/4 inch) router bit
- 30 mm (1-1/4 inches) wood screws - 75 pieces
For a 1220 x 1220 mm (4 x 4 ft) CNC
- 1 sheet of 1220 x 1220 x 18 mm (48 x 48 x 3/4 inches) plywood
- 1 sheet of 450 x 300 x 18 mm (18 x 12 x 3/4 inches) plywood
- 1 sheet of 820 x 1220 x 12 mm (32 x 48 x 1/2 inches) plywood
- 6 mm (1/4 inch) router bit
- 30 mm (1-1/4 inches) wood screws - 75 pieces
For a 1220 x 2440 mm (4 x 8 ft) CNC
- 1 sheet of 2440 x 820 x 18 mm (96 x 32 x 3/4 inches) plywood
- 1 sheet of 820 x 1220 x 12 mm (32 x 48 x 1/2 inches) plywood
- 6 mm (1/4 inch) router bit
- 30 mm (1-1/4 inches) wood screws - 75 pieces

Approximate CNC time

40 minutes

Assembling time

30 minutes
The product may differ from the representative images when cut and assembled. We hope you will enjoy your purchase from Aribabox!
