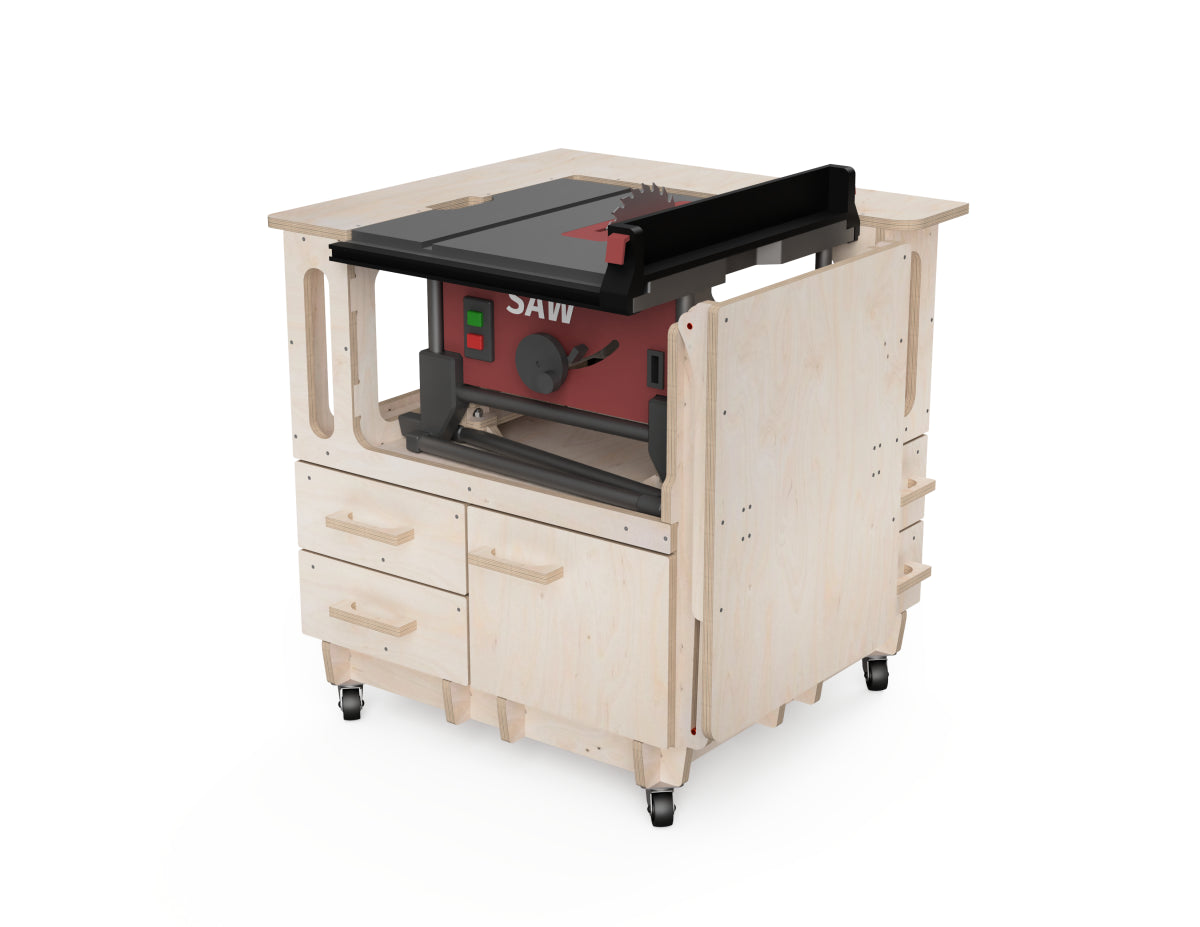

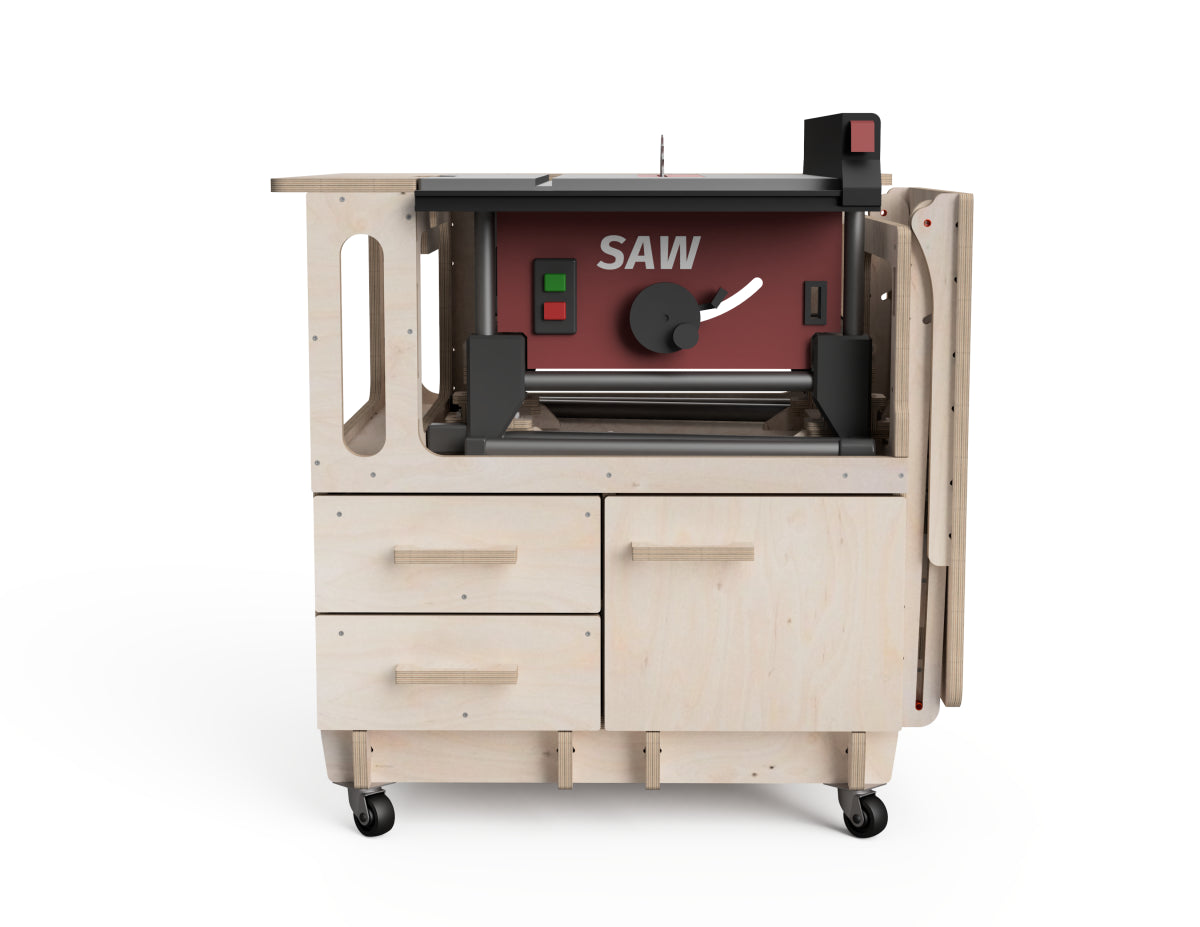

Turn your SKIL Model 1340 Jobsite Saw into a more capable and organized workshop setup with this modular CNC workstation.

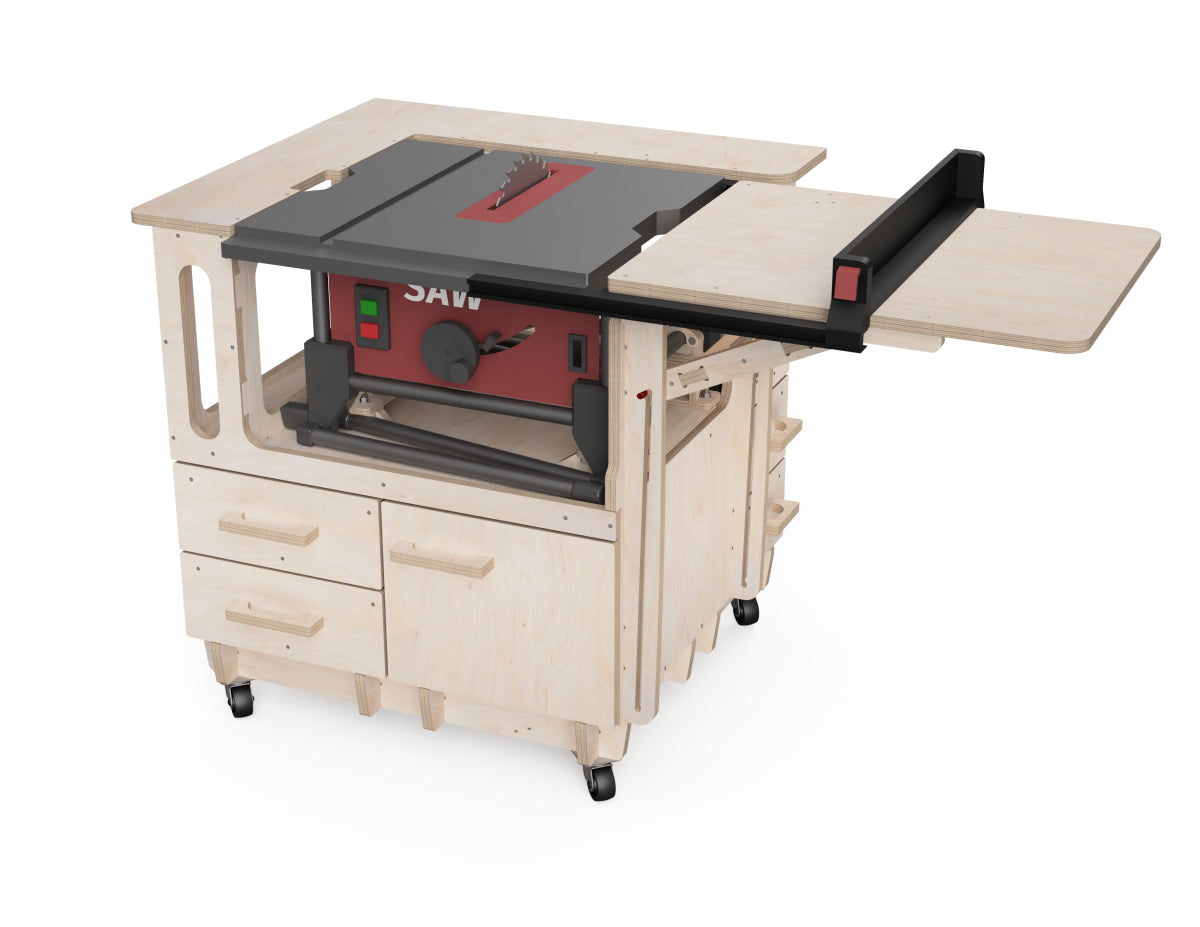

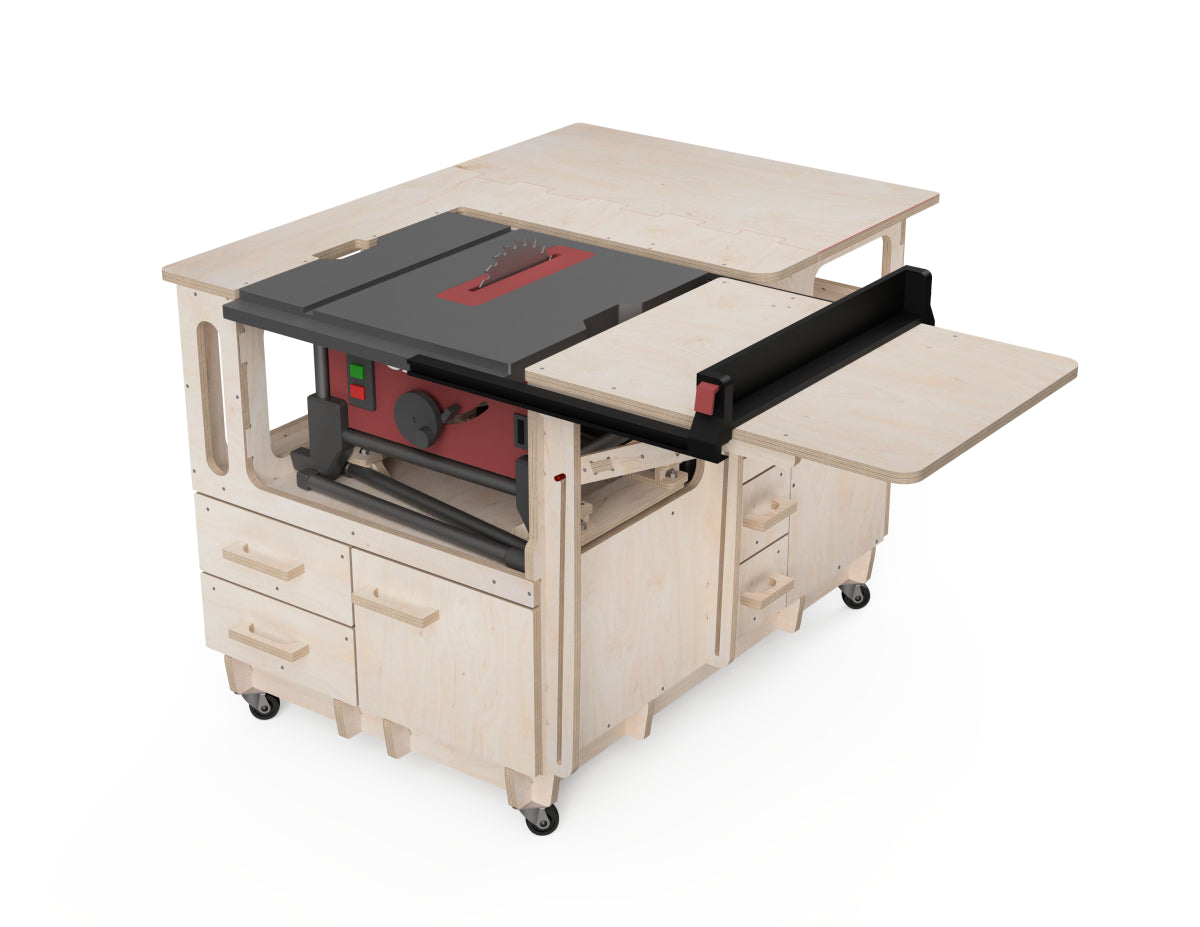

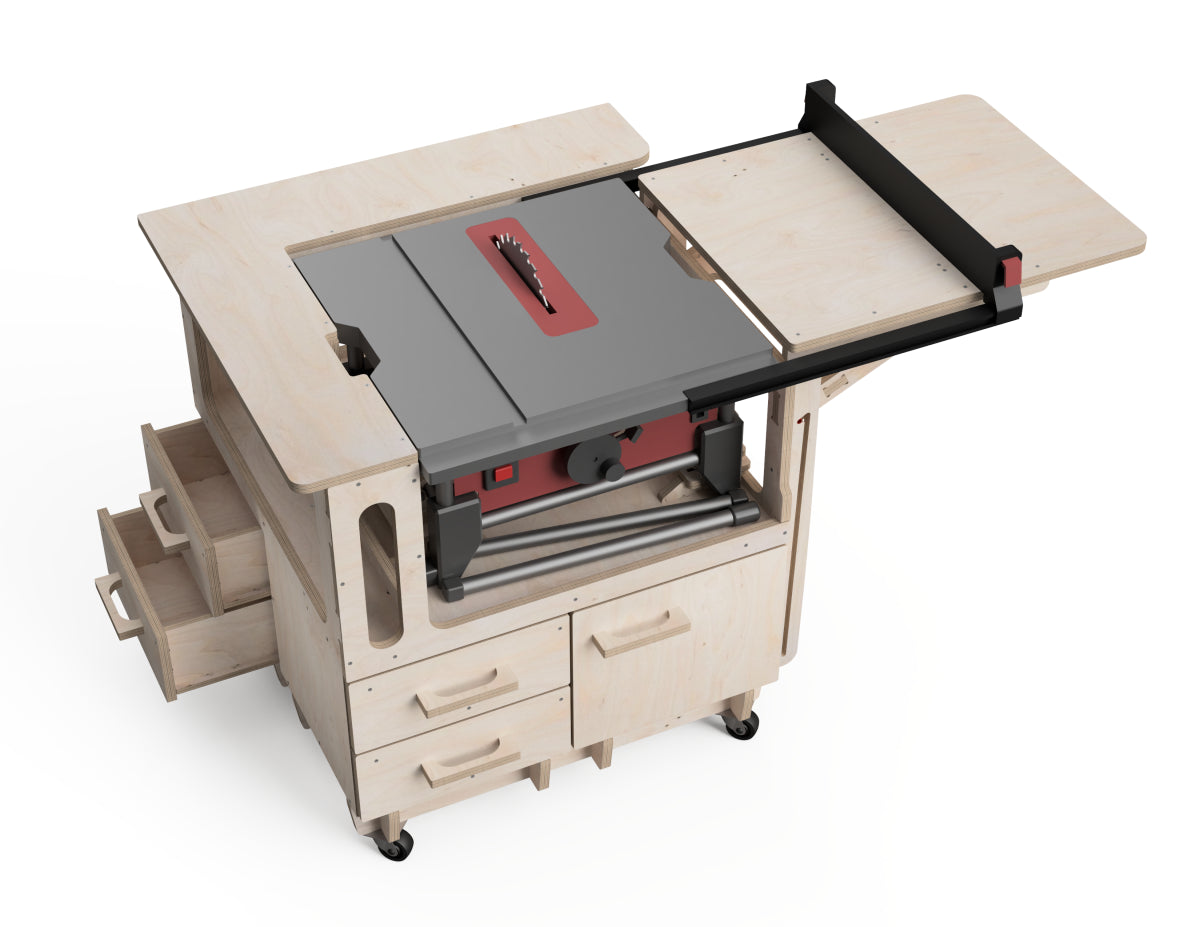

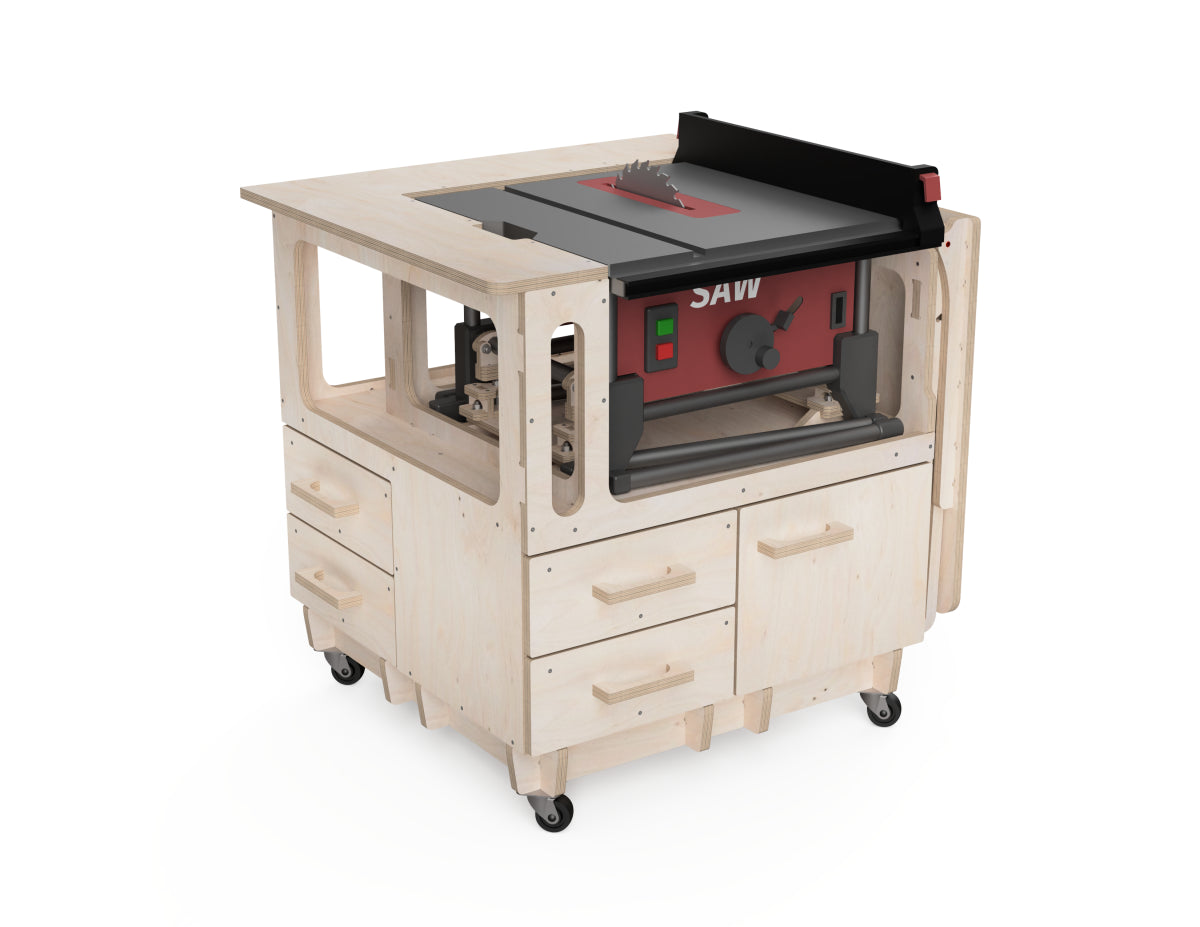

Designed specifically for the SKIL Model 1340, the workstation integrates the saw into the Modular Workbench System while providing additional work surface, storage, and support around the saw.
The modular design also makes it easy to expand and adapt the station as your workshop needs change.

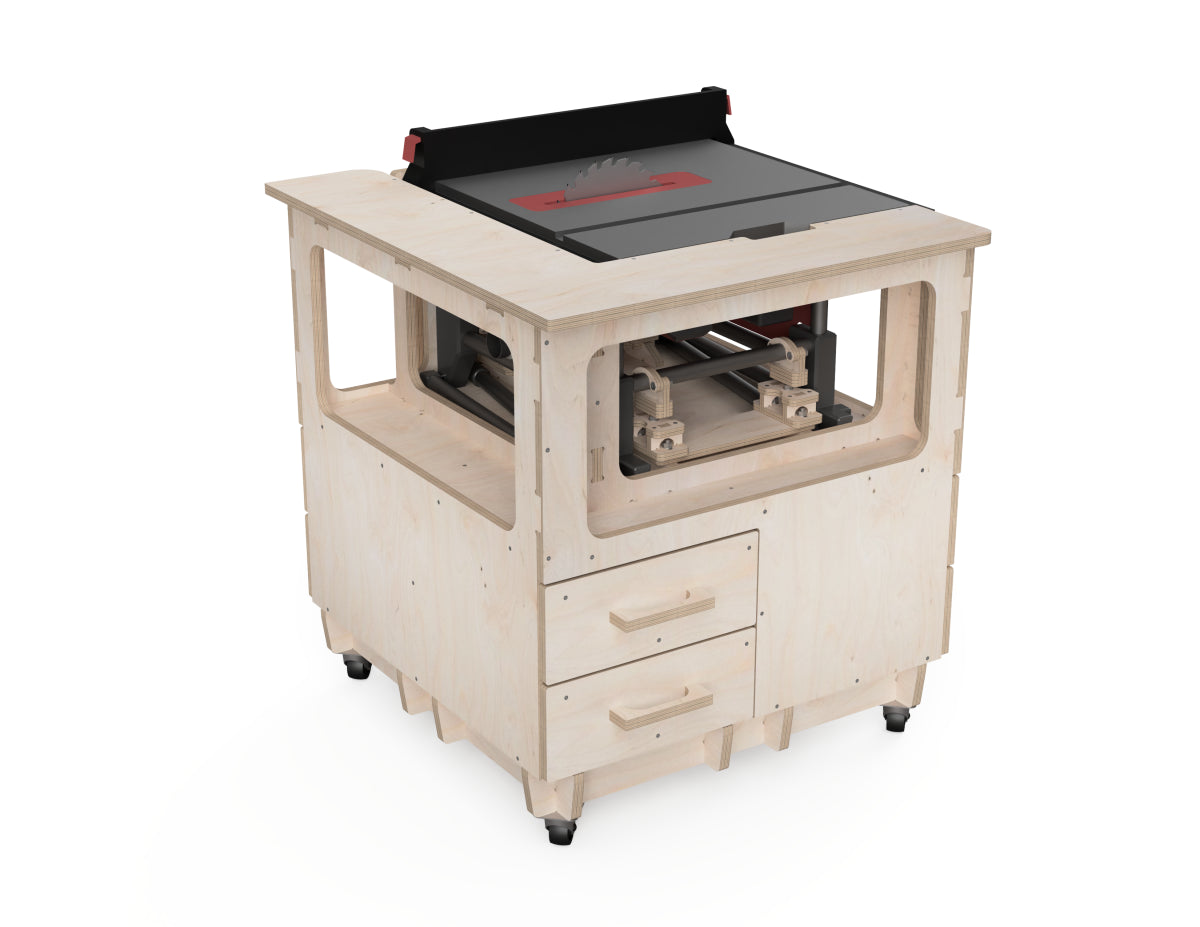

Small Workbench Setup
Dimensions: 900 × 900 × 900 mm (W × L × H)
≈ 35 × 35 × 35 in

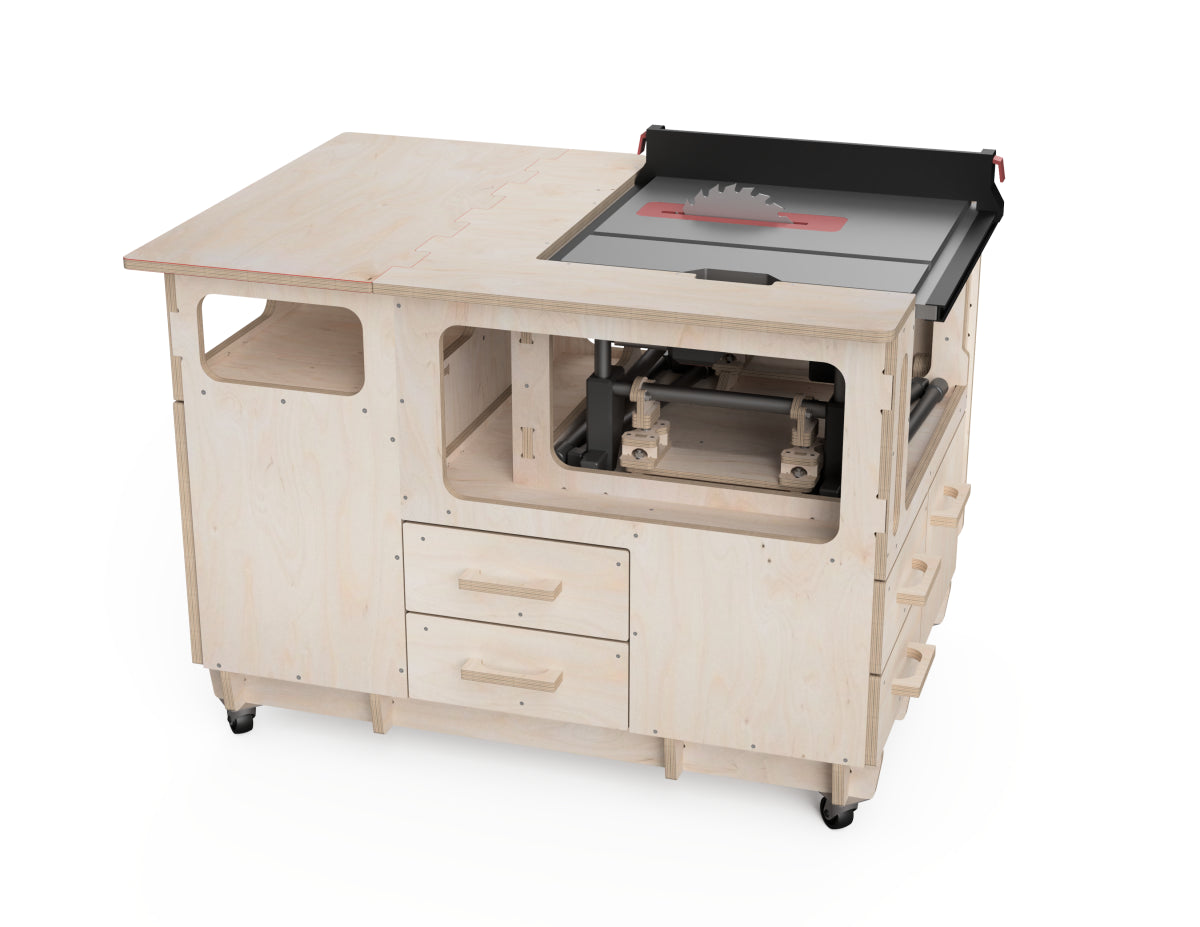

Medium Workbench Setup

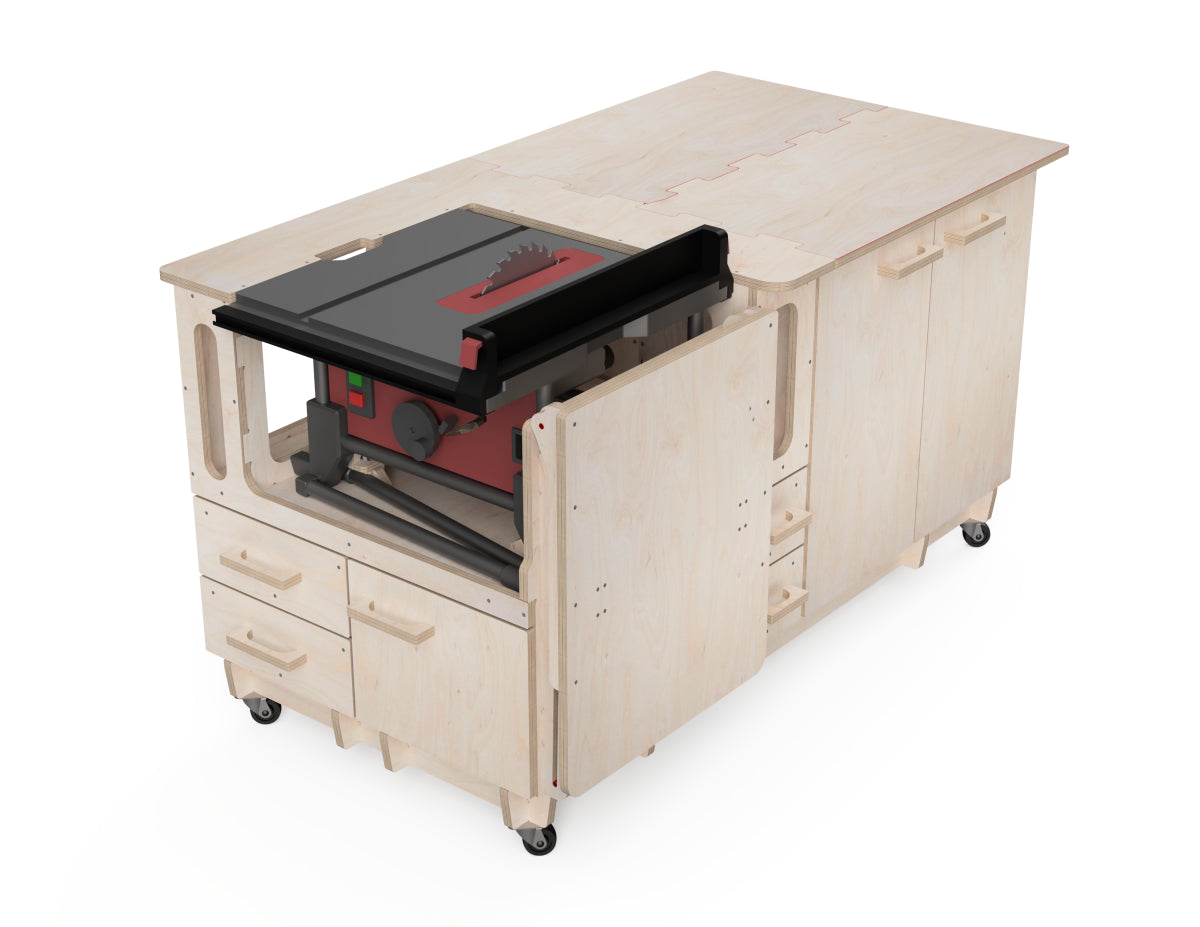

Dimensions: 900 × 1300 × 900 mm (W × L × H)
≈ 35 × 51 × 35 in

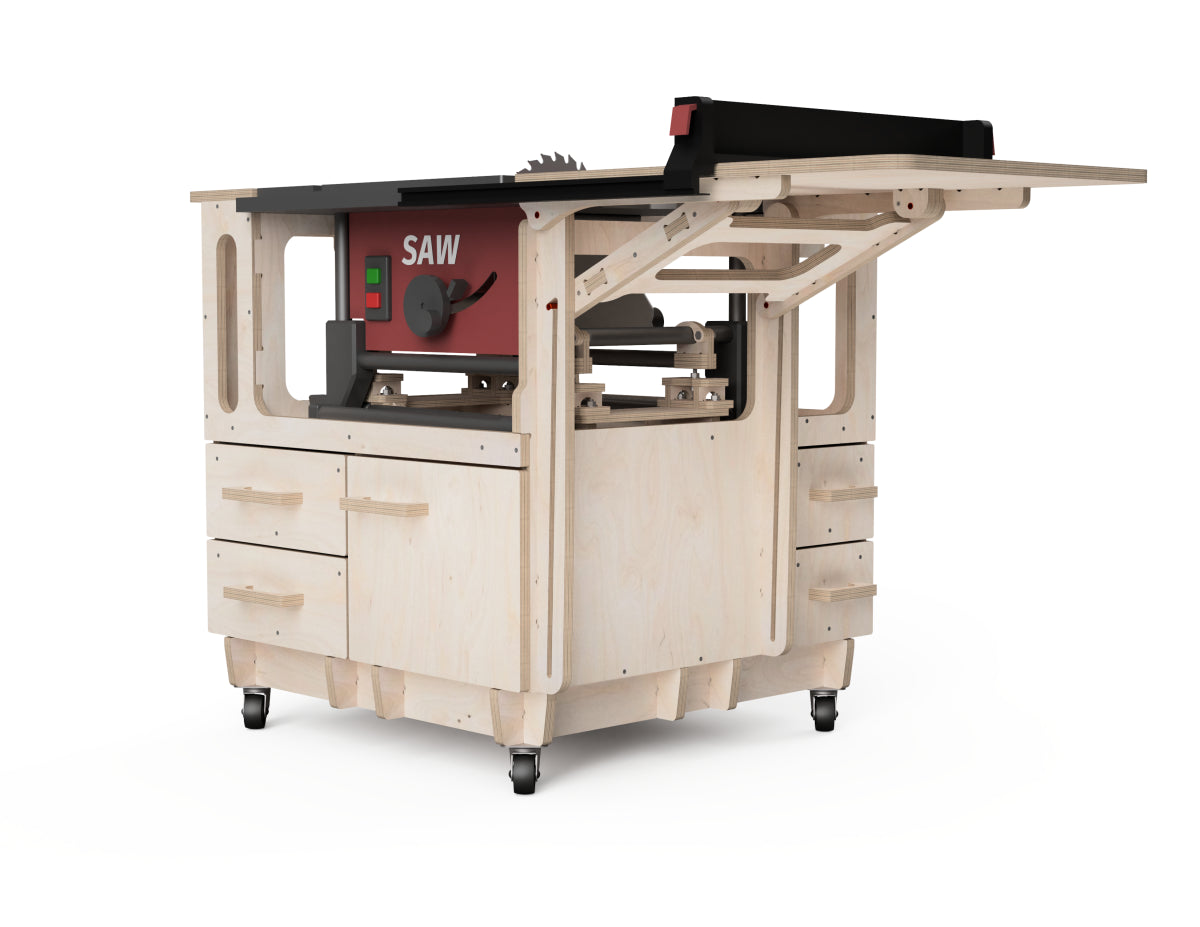

Large Workbench Setup

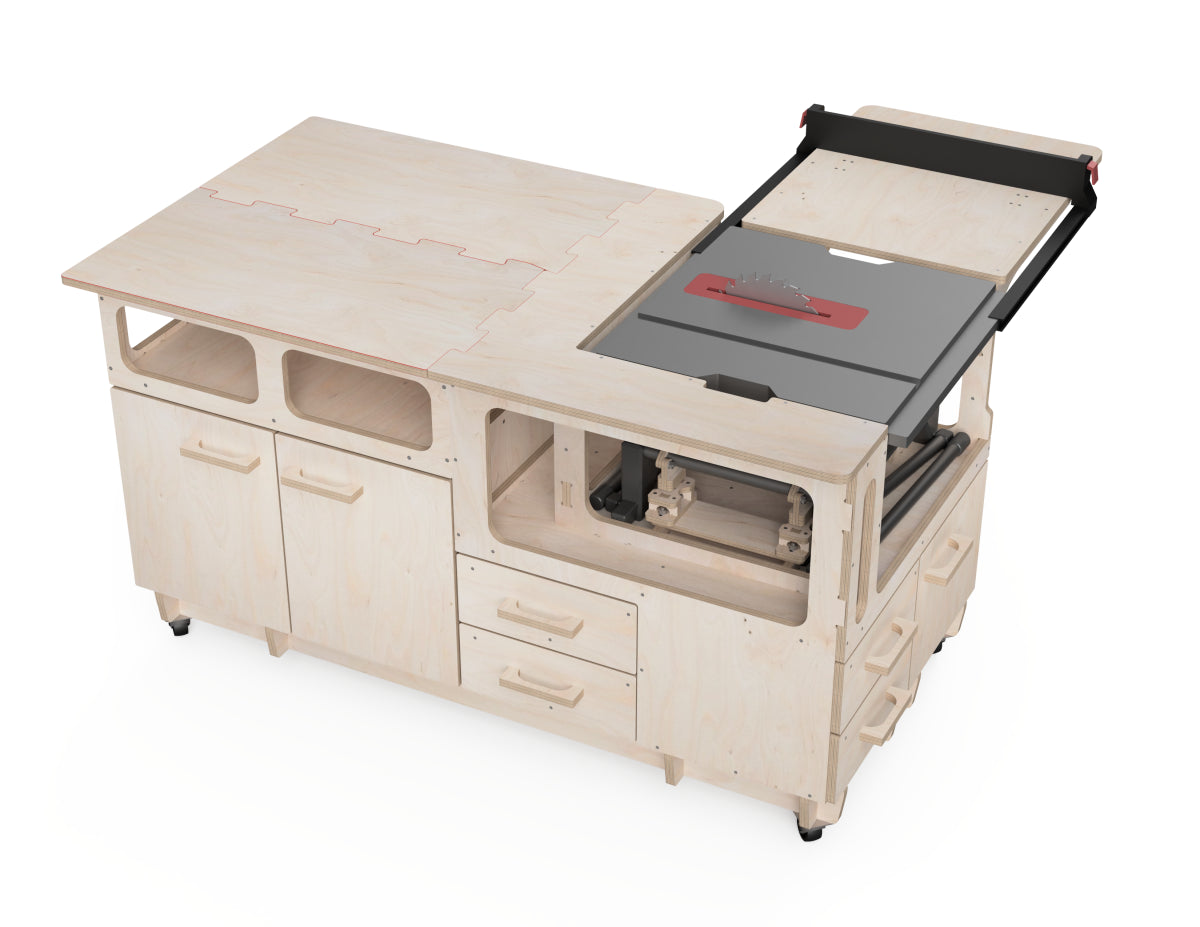

Dimensions: 900 × 1700 × 900 mm (W × L × H)
≈ 35 × 67 × 35 in
Designed for: SKIL Model 1340 Jobsite Saw
Digital files only - no physical parts are included.
Supported CNC sizes
Supported CNC sizes
Max single piece size
Max single piece size
So if it can fit on your CNC router, you can build this project
Dimensions
Dimensions
Minimum
| Width | Length | Height |
|---|---|---|
| 800 mm | 800 mm | 730 mm |
| 31½ inch | 31½ inch | 28¾ inch |
Maximum
| Width | Length | Height |
|---|---|---|
| 900 mm | 900 mm | 900 mm |
| 35⅜ inch | 35⅜ inch | 35⅜ inch |
Required materials
Required materials
- 2 Sheets of 1220 x 2440 x 18 mm (48 x 96 x 0.75 inches) plywood
- 1 Sheet of 1220 x 2440 x 12 mm (48 x 9 x 0.5 inches) plywood
- 40 mm (1.5 inches) wood screw - 8 pieces
- 15 mm (0.625 inches) wood screw - 8 pieces
- 30 mm (1.25 inches) wood screw - 210 pieces
- Cabinet Hinges - 2 pieces
- 10 mm diameter Aluminum Tube
- M8 x 30 Screws - 16 pieces
- M8 x 70 Screws - 4 pieces
- M8 Nut - 16 pieces
- M8 Washers - 16 pieces
- 6 x 30 mm Wooden Dowels - 6 pieces
Approximate CNC time
Approximate CNC time
Assembling time
Assembling time
