Modular Workbench Attachment - Four Drawer Cabinet DXF Files

Name: Modular Workbench Attachment - Four Drawer Cabinet DXF Files
Brand: Aribabox
Price: 4.25 USD
Availability: InStock

$4.25 USD

~~$8.45 USD~~ $4.25 USD

Sale Sold out

Taxes included.

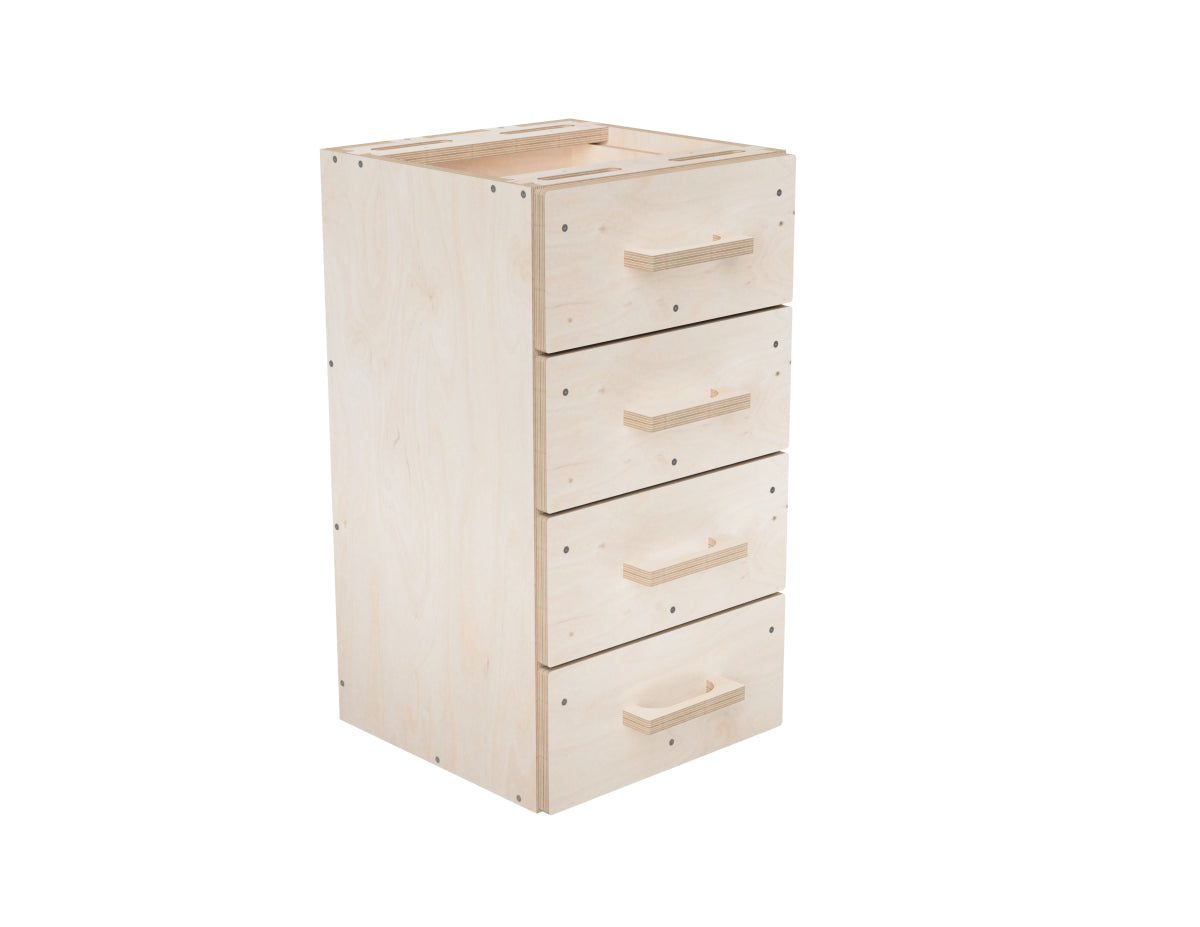

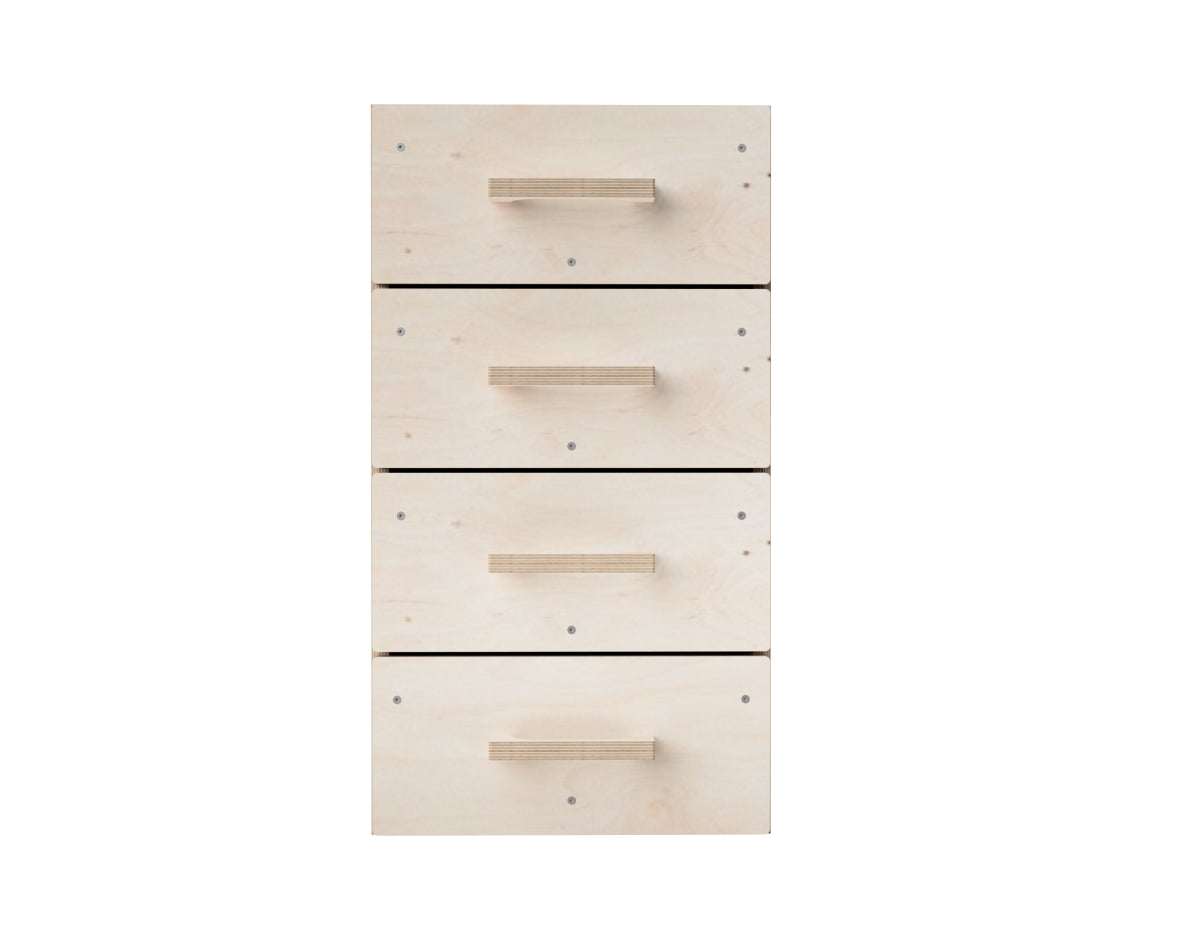

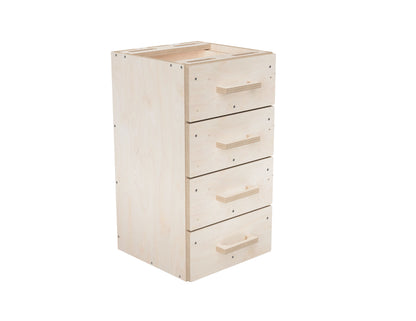

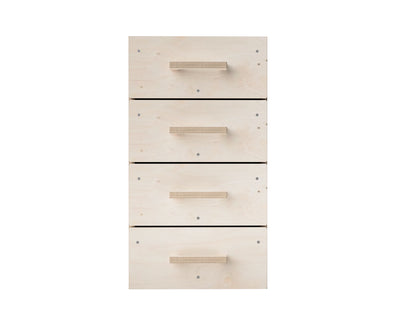

Upgrade your modular workbench with this Four Drawer Cabinet attachment.

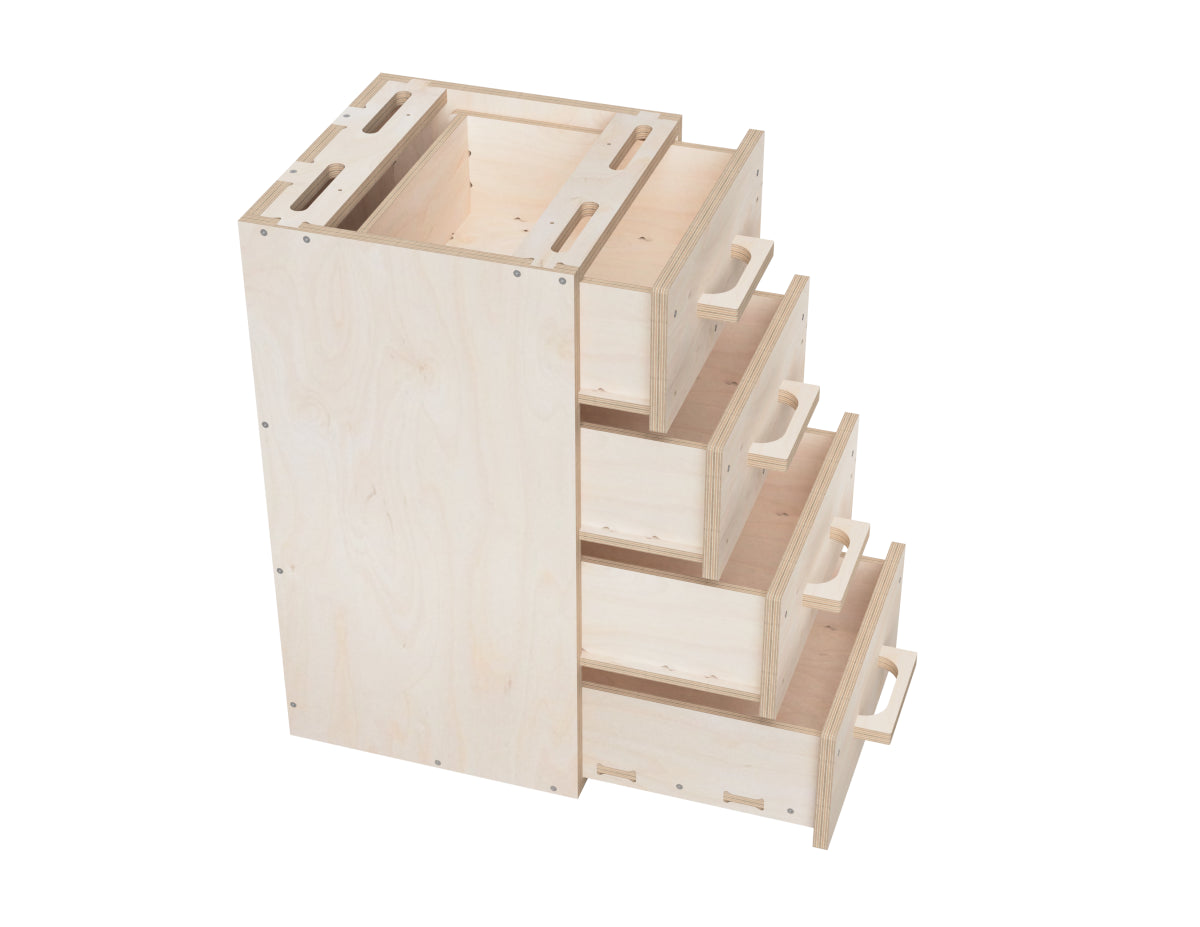

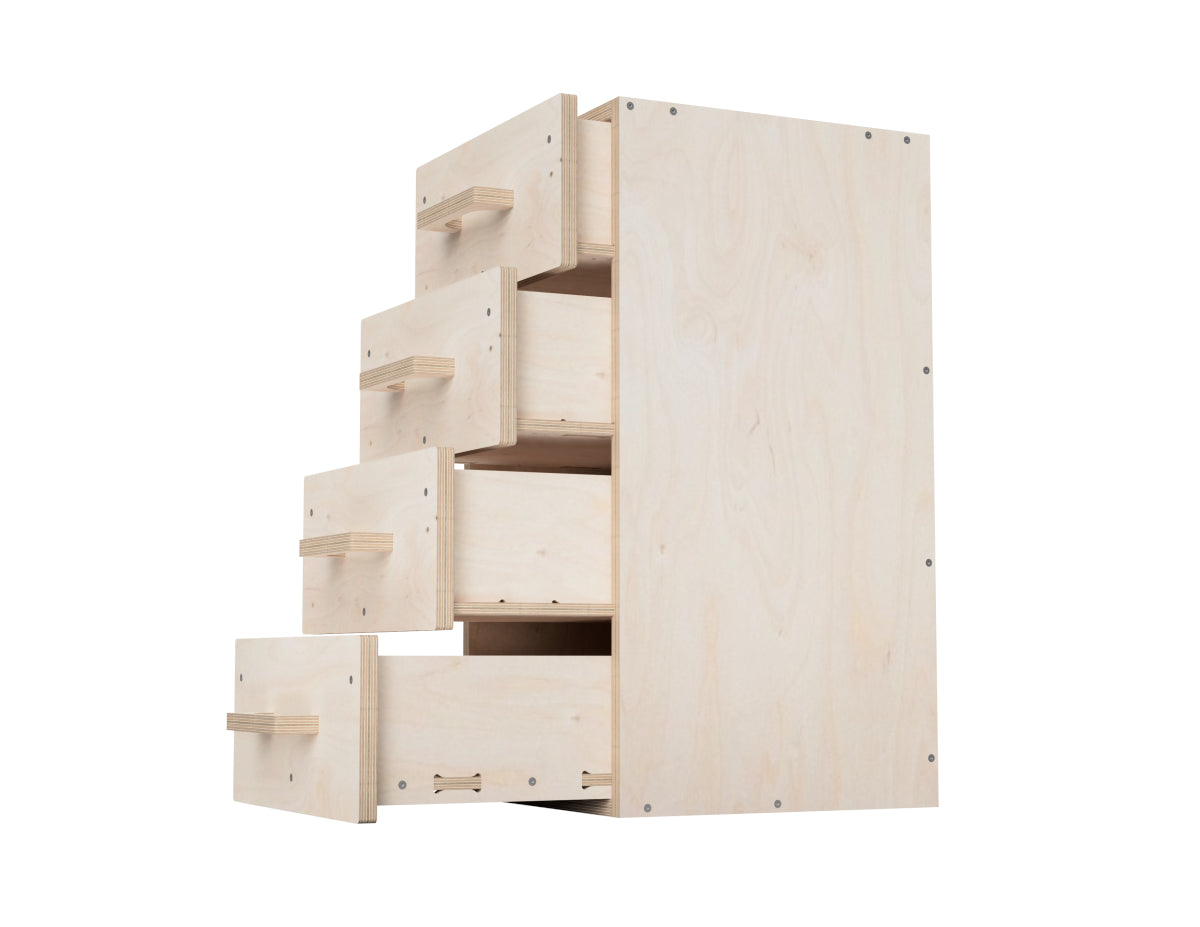

The DXF files let you create a simple, functional cabinet with four spacious drawers - perfect for storing larger tools, materials, or jigs.

Built-in drawer slides save money and effort, and the included work surface panel files make assembly fast.

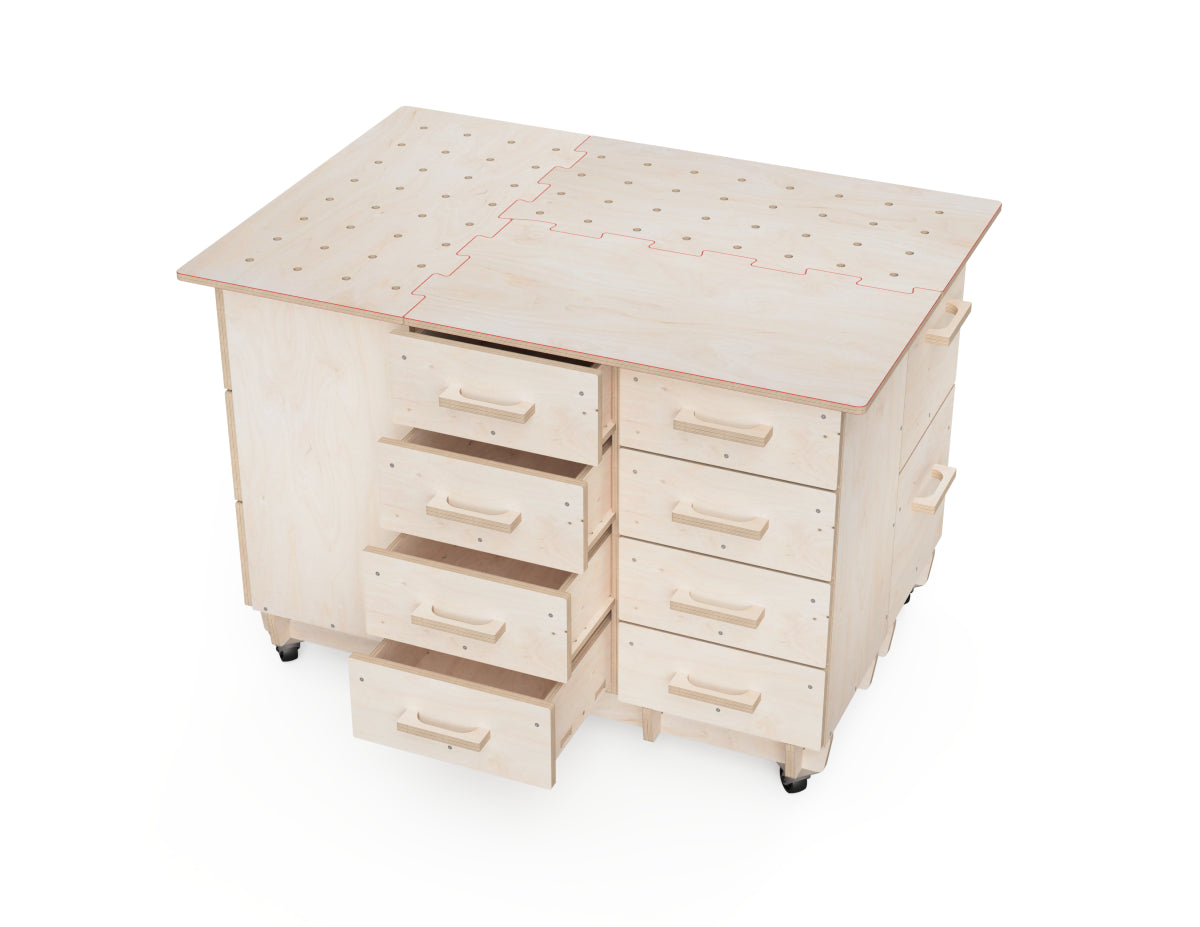

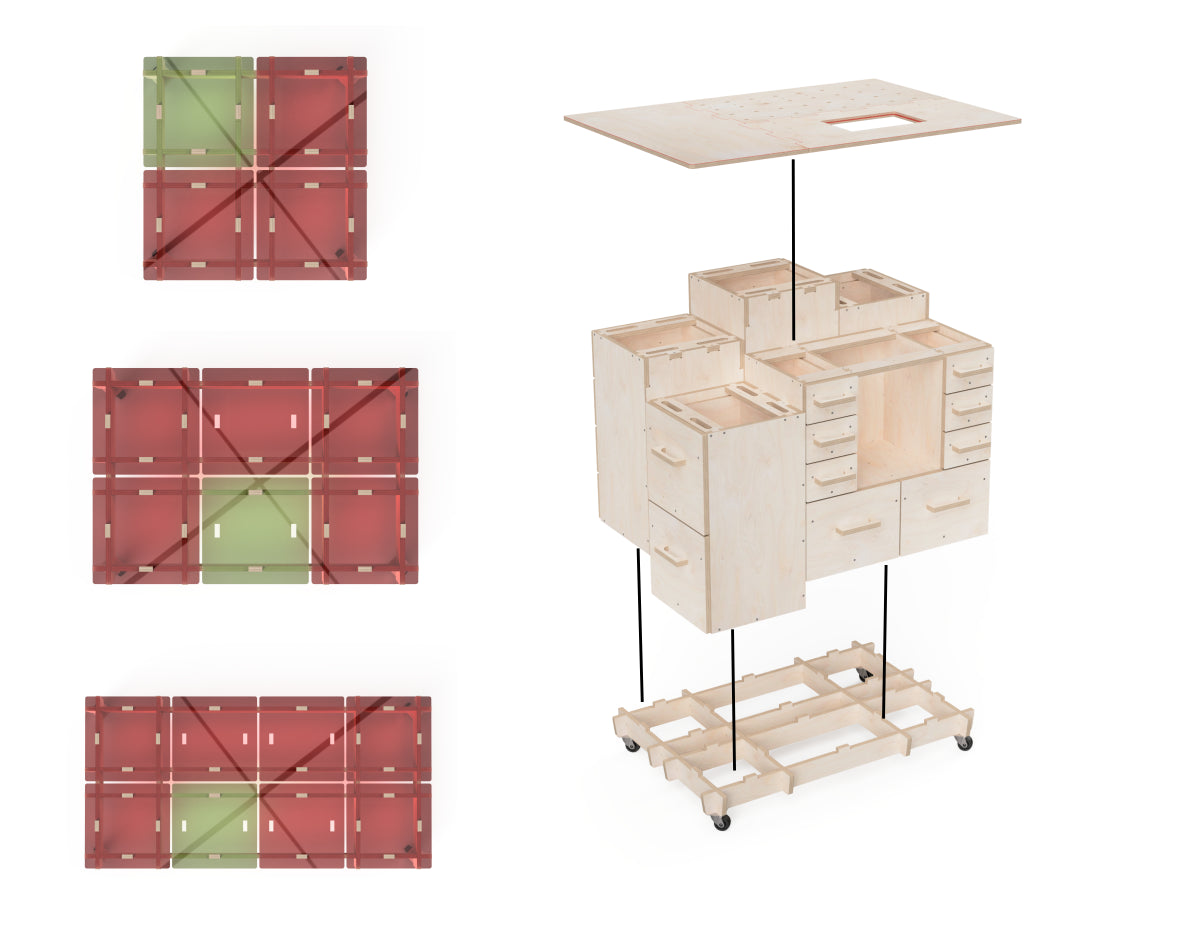

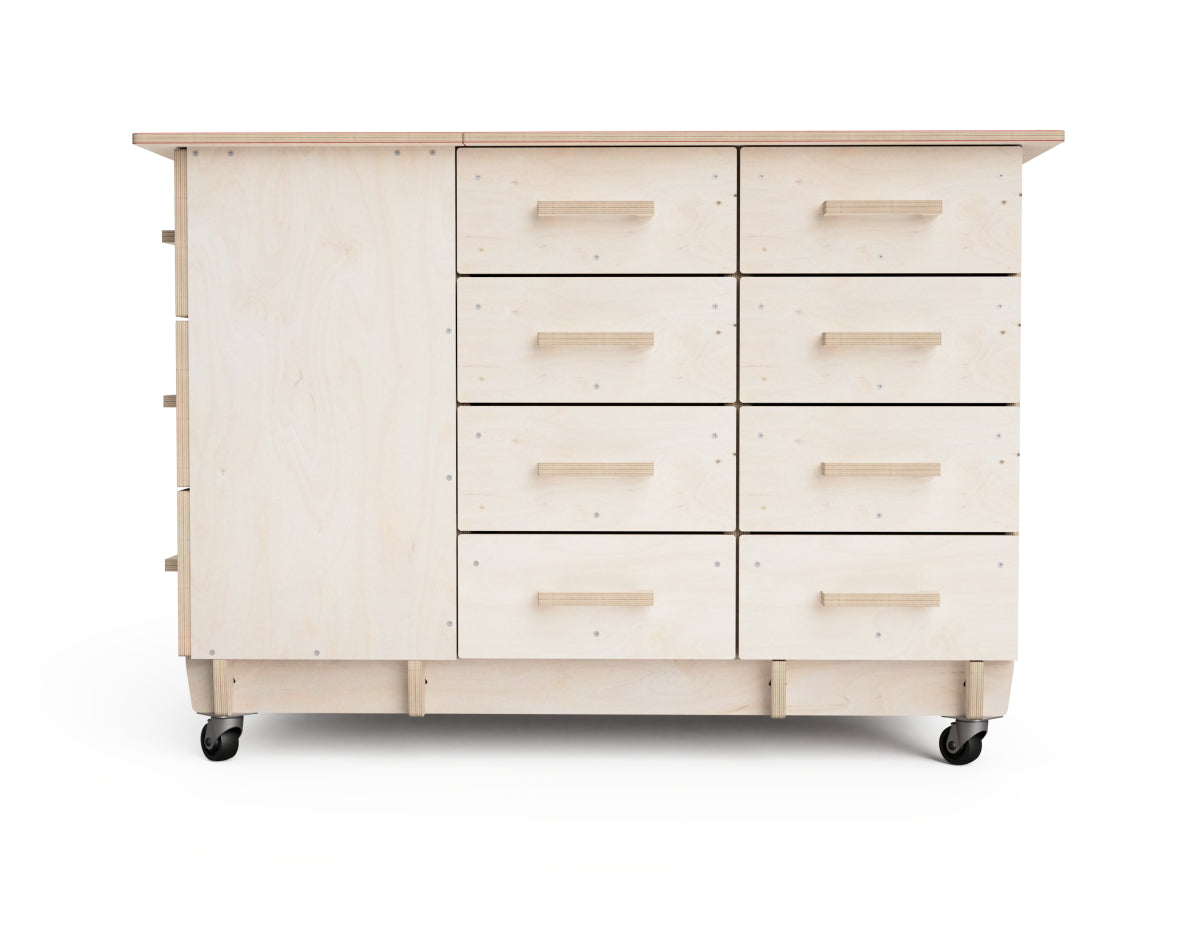

The attachment occupies one module on your base frame, seamlessly integrating into your existing setup.

Small Workbench Setup
Dimensions: 900 × 900 × 900 mm (W × L × H)
≈ 35 × 35 × 35 in

Medium Workbench Setup
Dimensions: 900 × 1300 × 900 mm (W × L × H)
≈ 35 × 51 × 35 in

Large Workbench Setup
Dimensions: 900 × 1700 × 900 mm (W × L × H)
≈ 35 × 67 × 35 in

Supported CNC sizes

The project can be made on a 800 x 1200 mm (2.6 x 4 ft) CNC router and bigger.

Max single piece size

The biggest component is 730 x 400 mm (28.74 x 15.75 inches).
So if it can fit on your CNC router, you can build this project

Dimensions

Width	Length	Height
400 mm	400 mm	730 mm
15¾ inch	15¾ inch	28¾ inch

Required materials

For a 820 x 1220 (2.6 x 4 ft) CNC
- 1 sheet of 820 x 1220 x 18 mm (32 x 48 x 3/4 inches) plywood
- 1 sheet of 520 x 1220 x 18 mm (21 x 48 x 3/4 inches) plywood
- 1 sheet of 520 x 1220 x 12 mm (21 x 48 x 1/2 inches) plywood
- 1 sheets of 820 x 1220 x 12 mm (32 x 48 x 1/2 inches) plywood
- 6 mm (1/4 inch) router bit
- 30 mm (1-1/4 inches) wood screws - 125 pieces
For a 1220 x 1220 mm (4 x 4 ft) CNC
- 1 sheet of 1220 x 1220 x 18 mm (48 x 48 x 3/4 inches) plywood
- 1 sheet of 450 x 300 x 18 mm (18 x 12 x 3/4 inches) plywood
- 1 sheet of 1220 x 1220 x 12 mm (48 x 48 x 1/2 inches) plywood
- 6 mm (1/4 inch) router bit
- 30 mm (1-1/4 inches) wood screws - 125 pieces
For a 1220 x 2440 mm (4 x 8 ft) CNC
- 1 sheet of 2440 x 820 x 18 mm (96 x 32 x 3/4 inches) plywood
- 1 sheet of 1220 x 1220 x 12 mm (48 x 48 x 1/2 inches) plywood
- 6 mm (1/4 inch) router bit
- 30 mm (1-1/4 inches) wood screws - 125 pieces
