Modular Workbench Attachment - Five Drawer Cabinet DXF Files

Name: Modular Workbench Attachment - Five Drawer Cabinet DXF Files
Brand: Aribabox
Price: 4.45 USD
Availability: InStock

$4.45 USD

~~$8.95 USD~~ $4.45 USD

Sale Sold out

Taxes included.

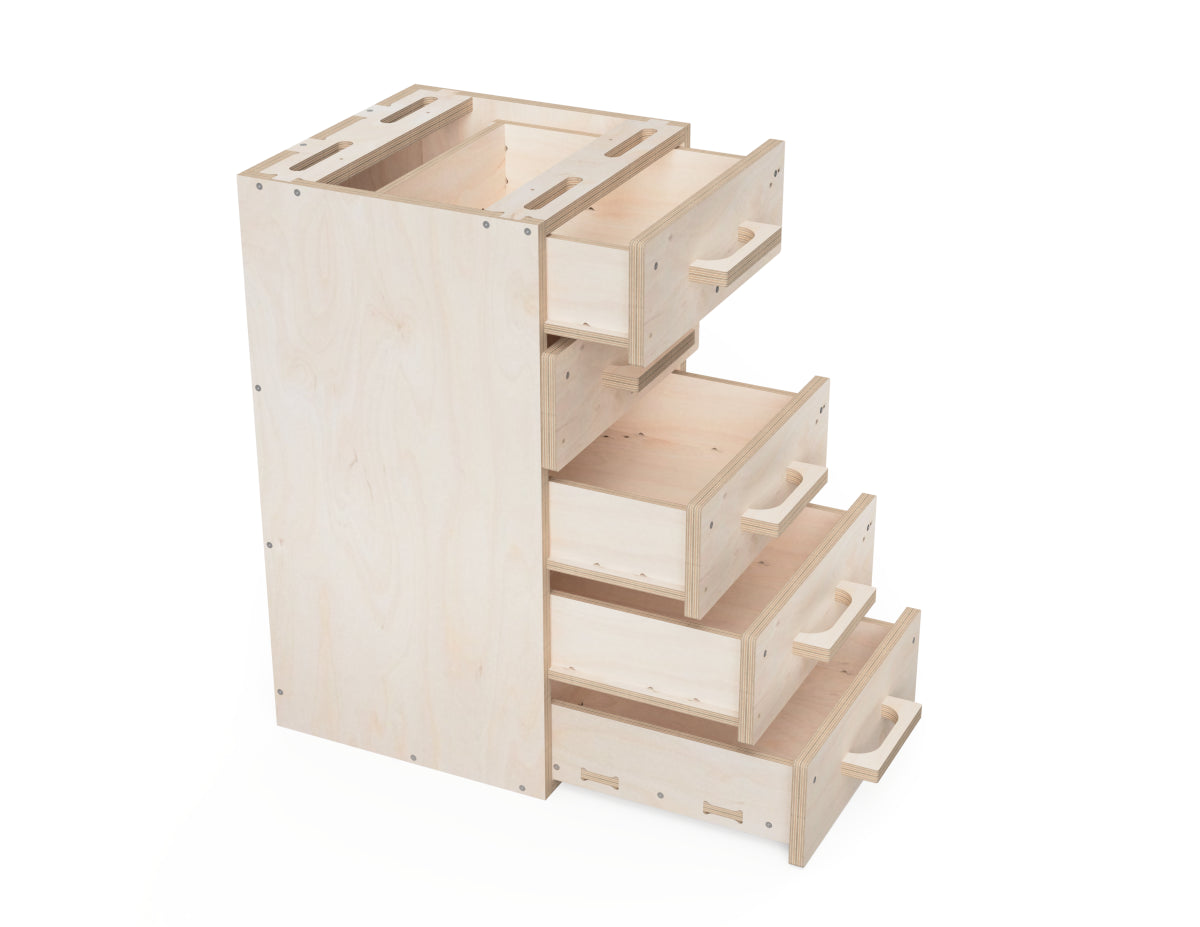

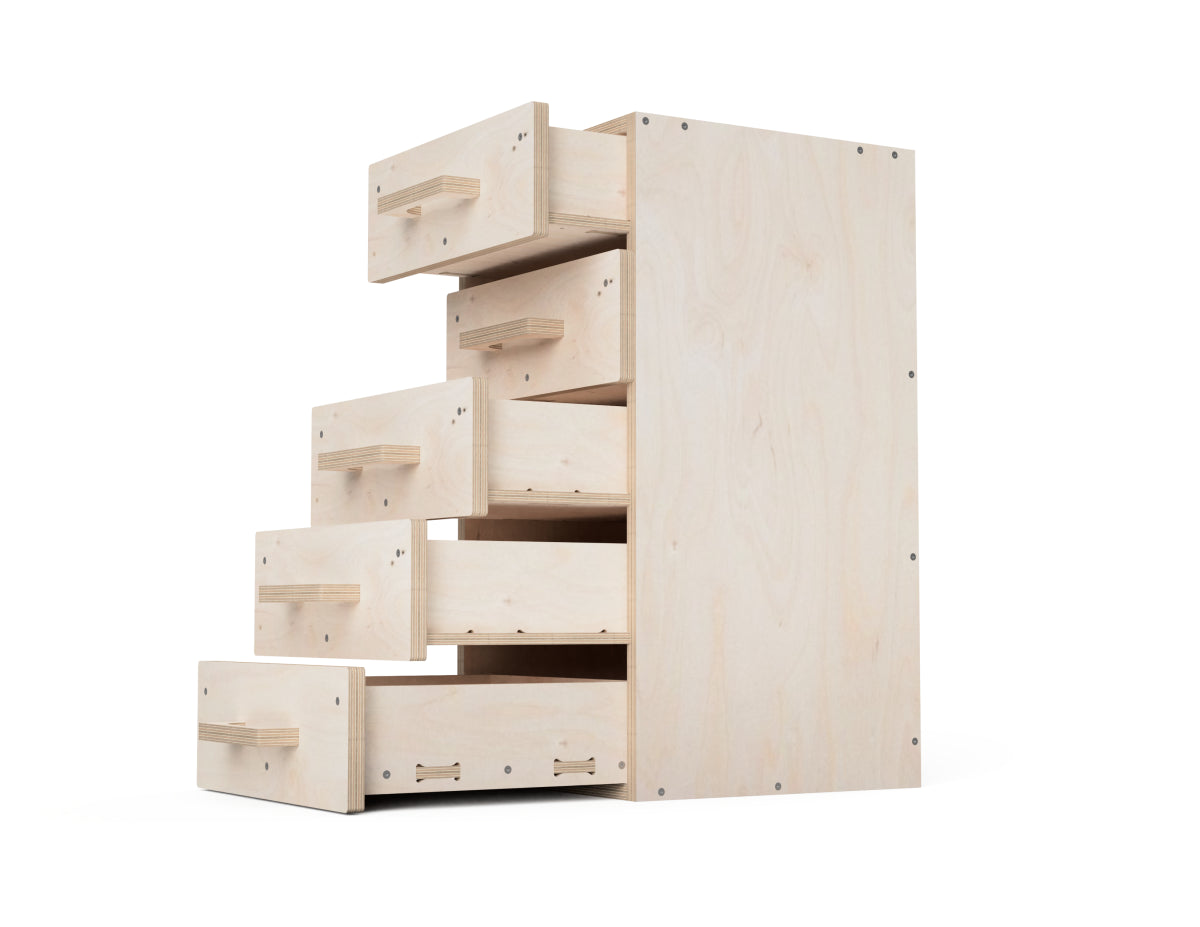

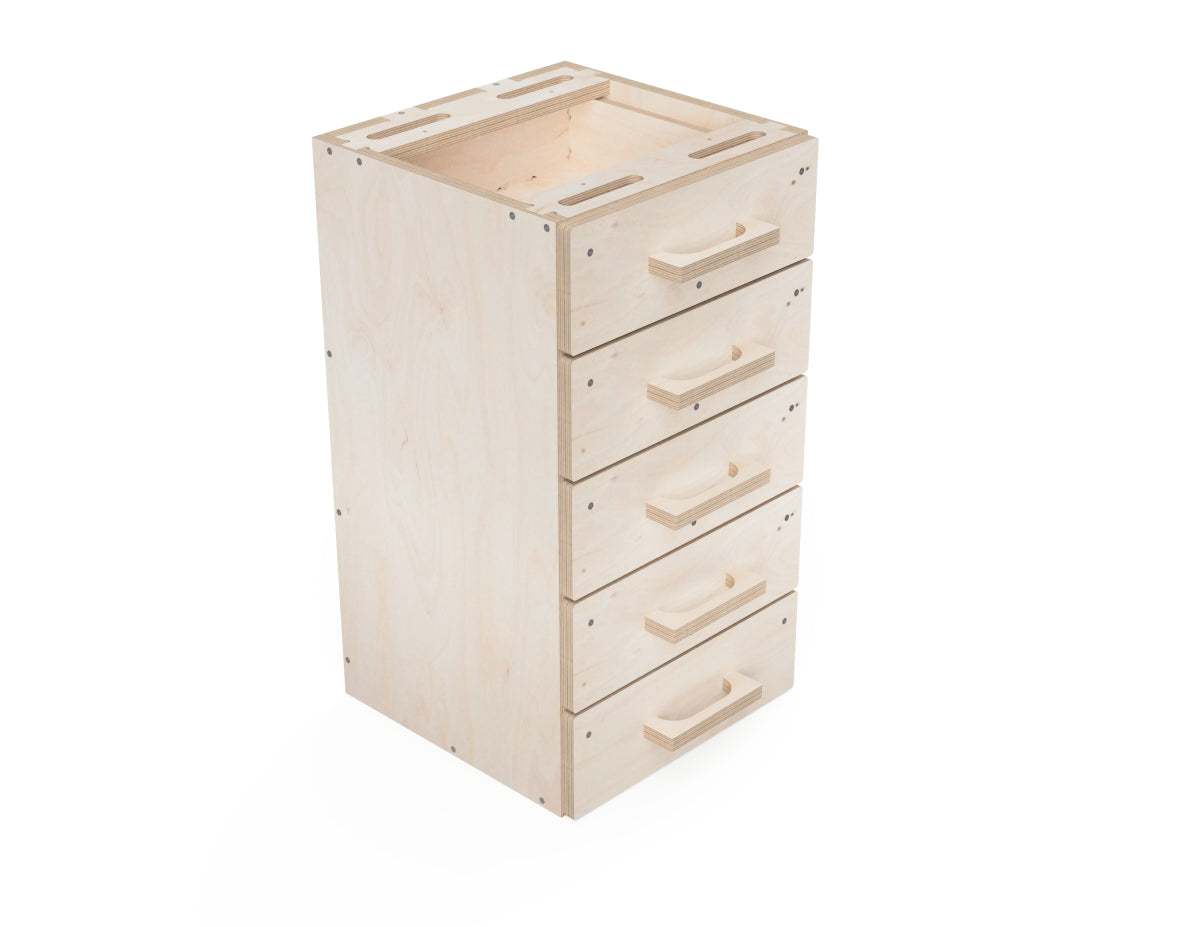

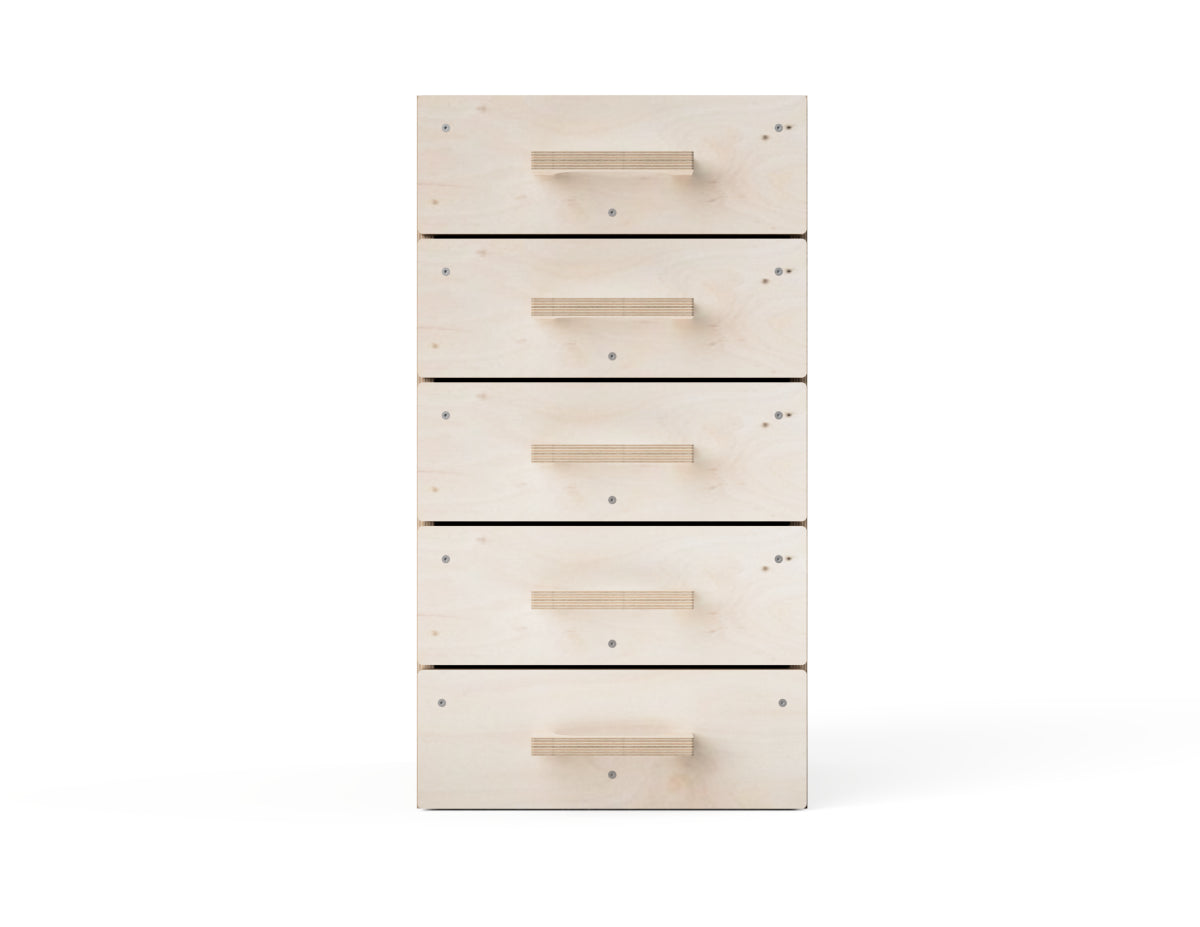

Easily expand your modular workbench with this Five Drawer Cabinet attachment.

The DXF files let you build a simple, sturdy cabinet with five spacious drawers - perfect for tools, materials, or jigs.

Built-in drawer slides save you money and time, and the design takes up just one module on your workbench base frame.

Files for the work surface panels are included, so you can complete the setup quickly and efficiently.

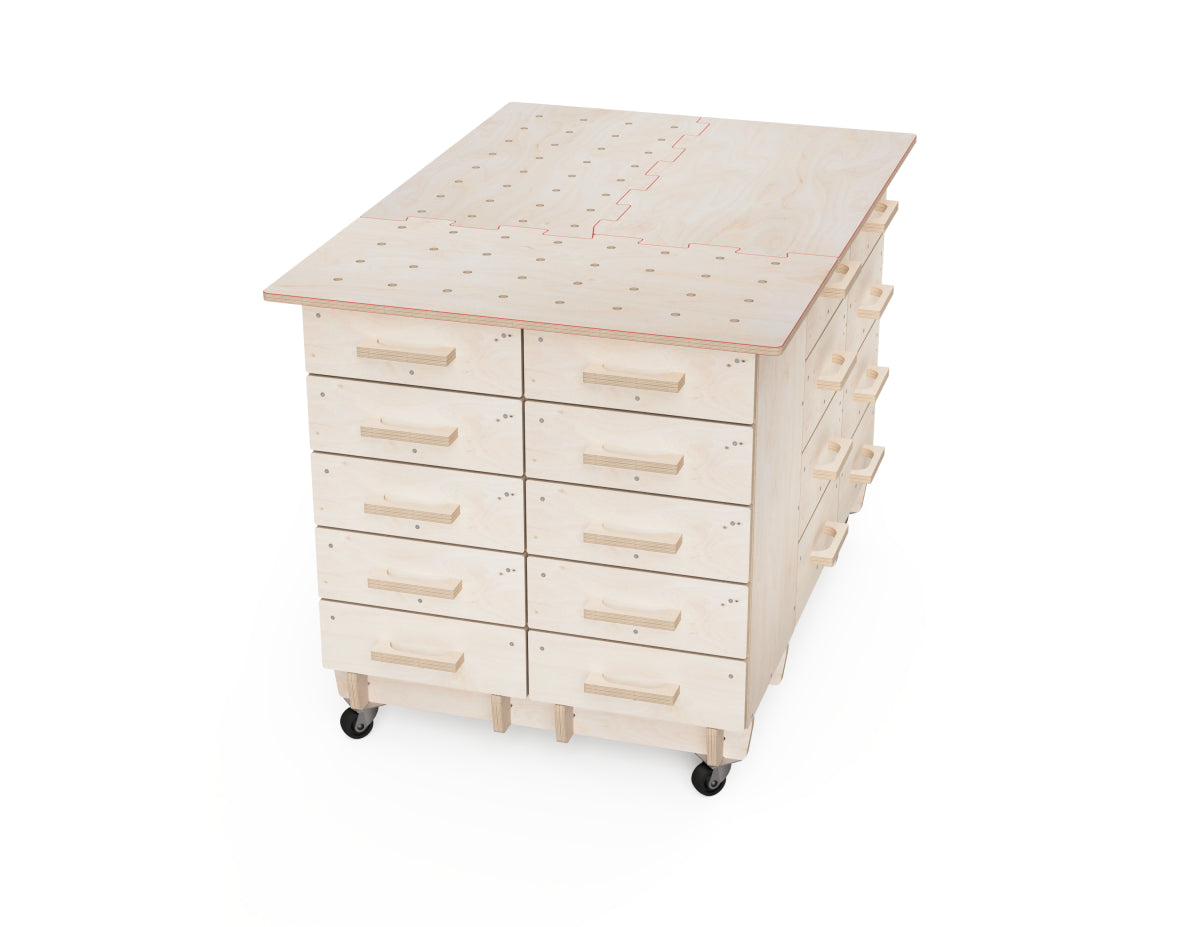

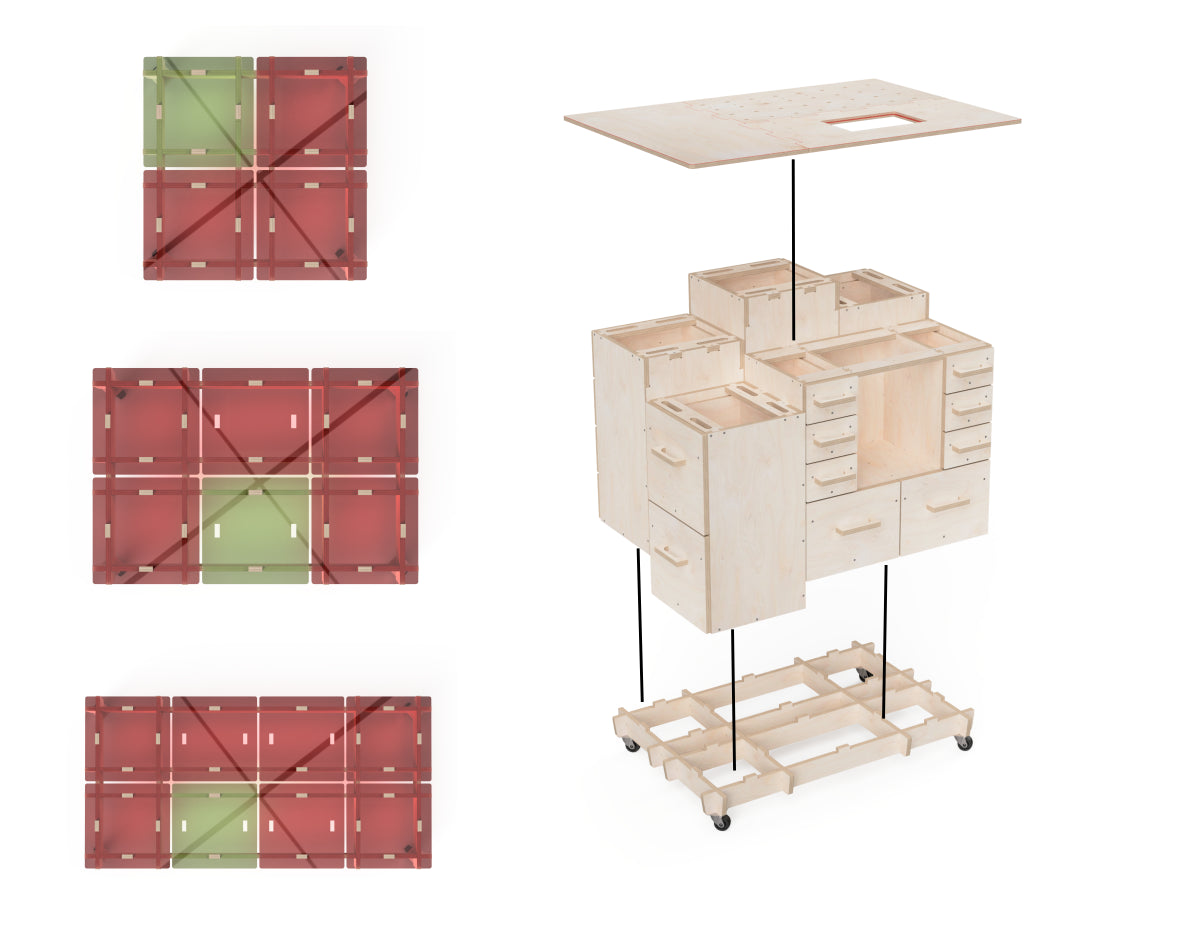

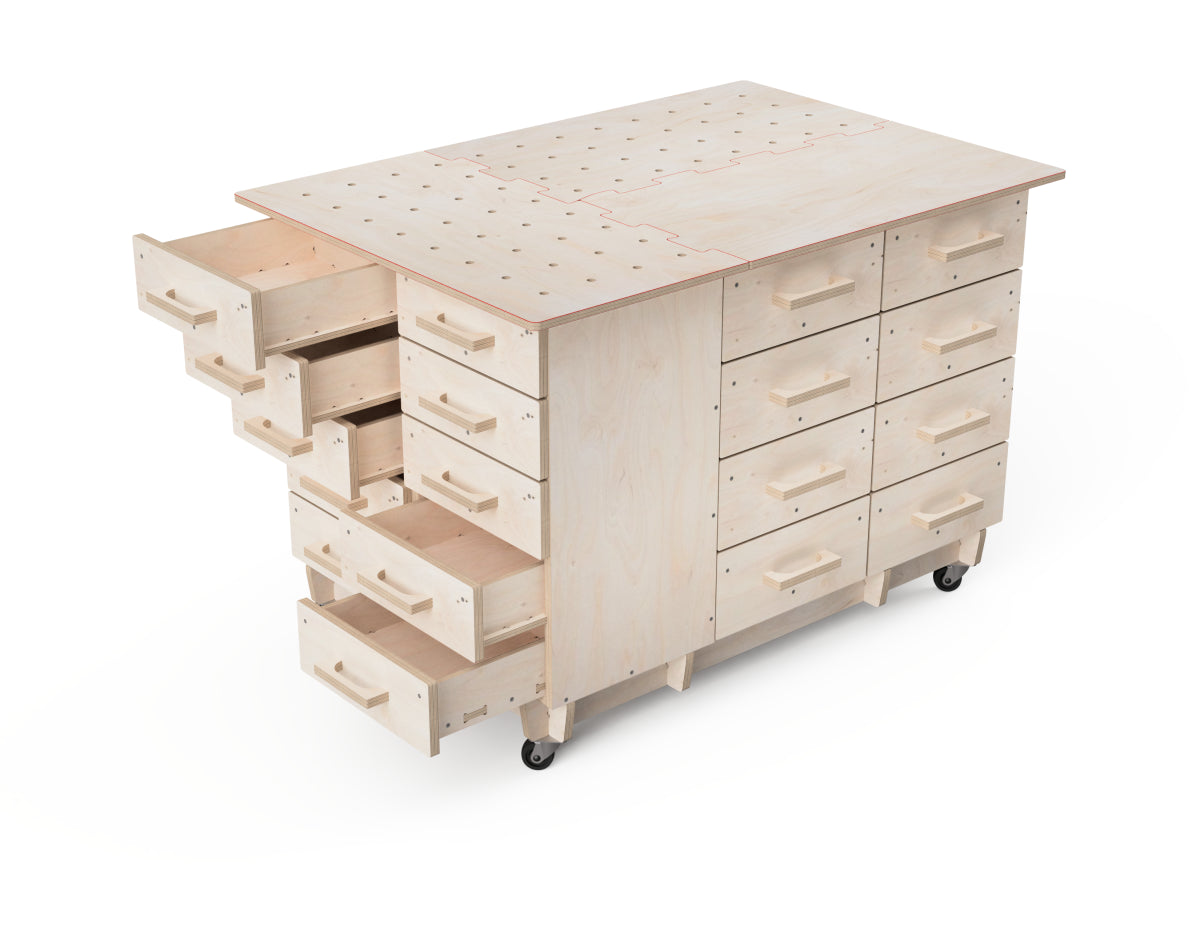

Small Workbench Setup
Dimensions: 900 × 900 × 900 mm (W × L × H)
≈ 35 × 35 × 35 in

Medium Workbench Setup
Dimensions: 900 × 1300 × 900 mm (W × L × H)
≈ 35 × 51 × 35 in

Large Workbench Setup
Dimensions: 900 × 1700 × 900 mm (W × L × H)
≈ 35 × 67 × 35 in

Supported CNC sizes

The project can be made on a 800 x 1200 mm (2.6 x 4 ft) CNC router and bigger.

Max single piece size

The biggest component is 730 x 400 mm (28.74 x 15.75 inches).
So if it can fit on your CNC router, you can build this project

Dimensions

Width	Length	Height
400 mm	400 mm	730 mm
15¾ inch	15¾ inch	28¾ inch

Required materials

For a 820 x 1220 (2.6 x 4 ft) CNC
- 1 sheet of 820 x 1220 x 18 mm (32 x 48 x 3/4 inches) plywood
- 1 sheet of 700 x 1220 x 18 mm (28 x 48 x 3/4 inches) plywood
- 1 sheet of 520 x 1220 x 12 mm (21 x 48 x 1/2 inches) plywood
- 1 sheets of 820 x 1220 x 12 mm (32 x 48 x 1/2 inches) plywood
- 6 mm (1/4 inch) router bit
- 30 mm (1-1/4 inches) wood screws - 125 pieces
For a 1220 x 1220 mm (4 x 4 ft) CNC
- 1 sheet of 1220 x 1220 x 18 mm (48 x 48 x 3/4 inches) plywood
- 1 sheet of 450 x 300 x 18 mm (18 x 12 x 3/4 inches) plywood
- 1 sheet of 1220 x 1220 x 12 mm (48 x 48 x 1/2 inches) plywood
- 1 sheet of 450 x 300 x 12 mm (18 x 12 x 1/2 inches) plywood
- 6 mm (1/4 inch) router bit
- 30 mm (1-1/4 inches) wood screws - 125 pieces
For a 1220 x 2440 mm (4 x 8 ft) CNC
- 1 sheet of 2440 x 820 x 18 mm (96 x 32 x 3/4 inches) plywood
- 1 sheet of 2440 x 800 x 12 mm (96 x 31 x 1/2 inches) plywood
- 6 mm (1/4 inch) router bit
- 30 mm (1-1/4 inches) wood screws - 125 pieces
