Modular Workbench Attachment - Cabinet with Two Drawers DXF Files

Modular Workbench Attachment - Cabinet with Two Drawers DXF Files

$3.95 USD
$7.85 USD $3.95 USD
Sale Sold out
Taxes included.

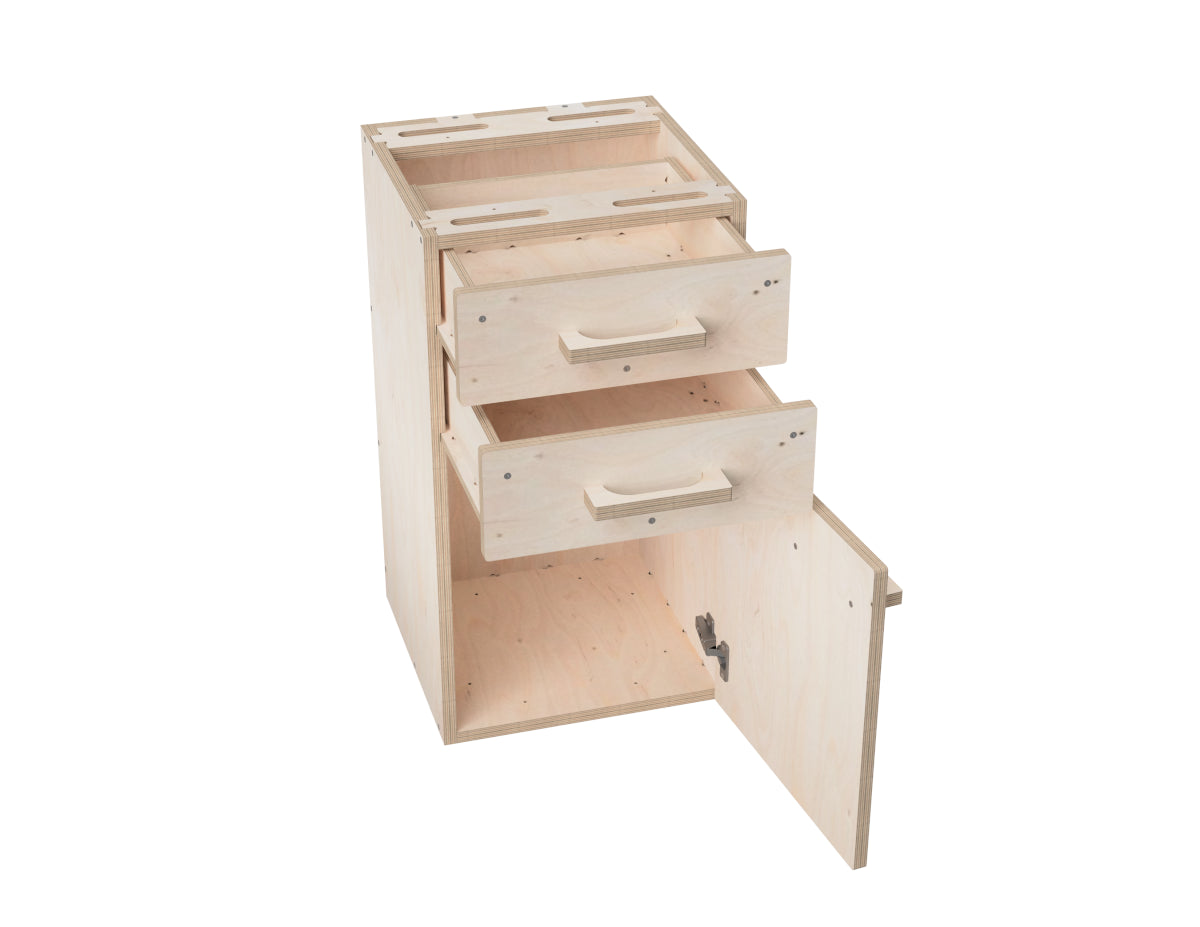

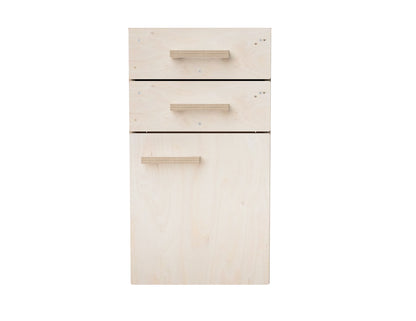

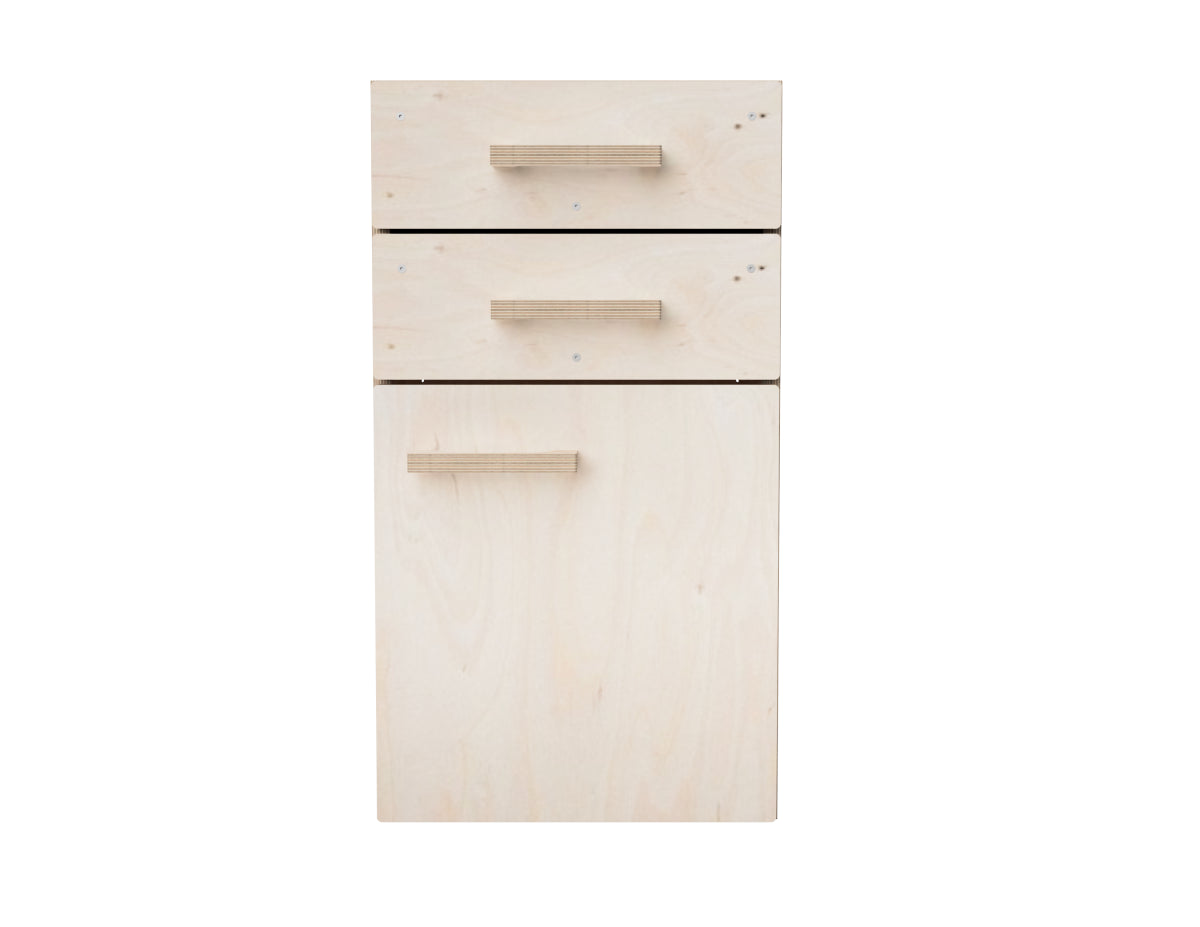

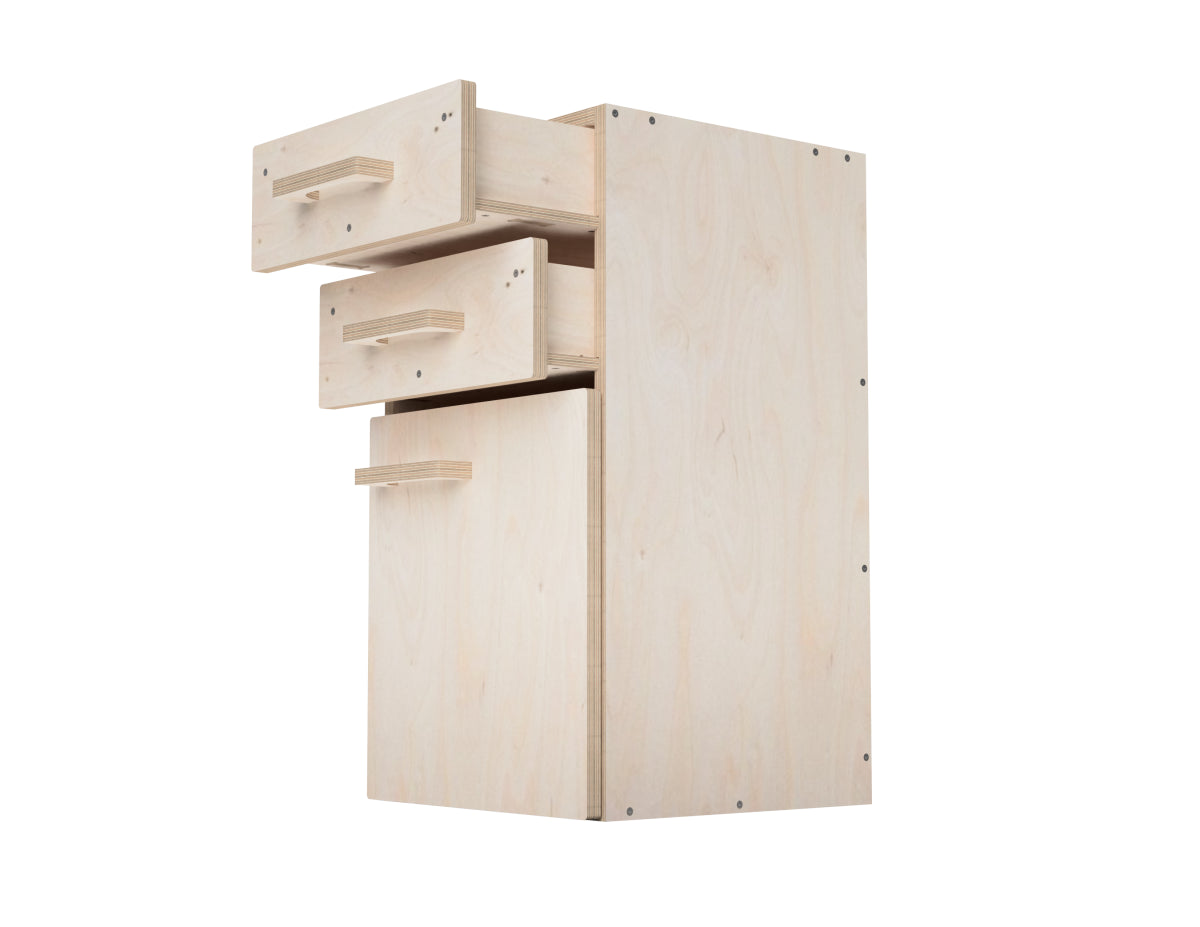

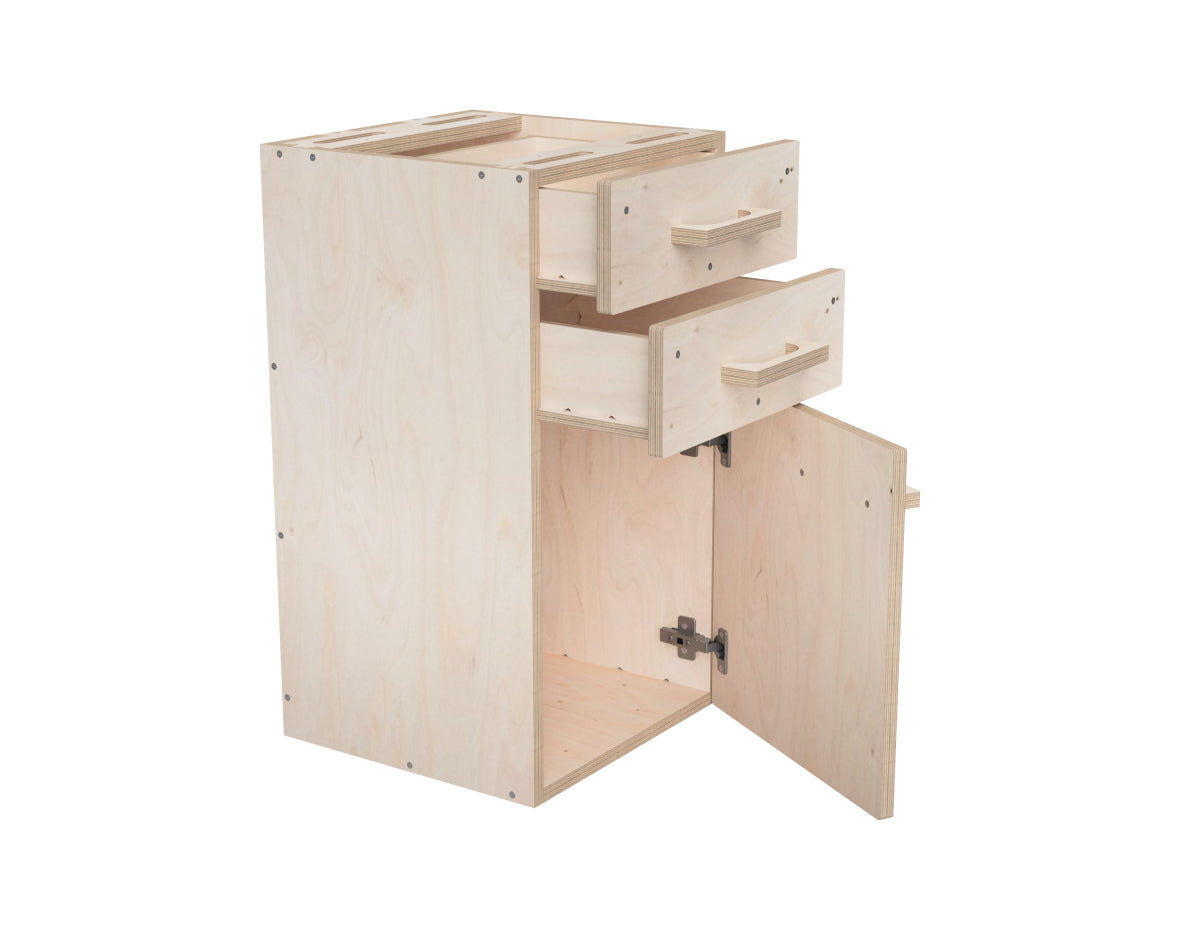

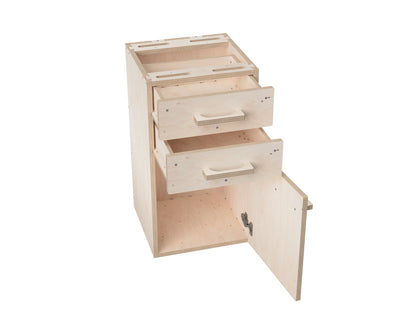

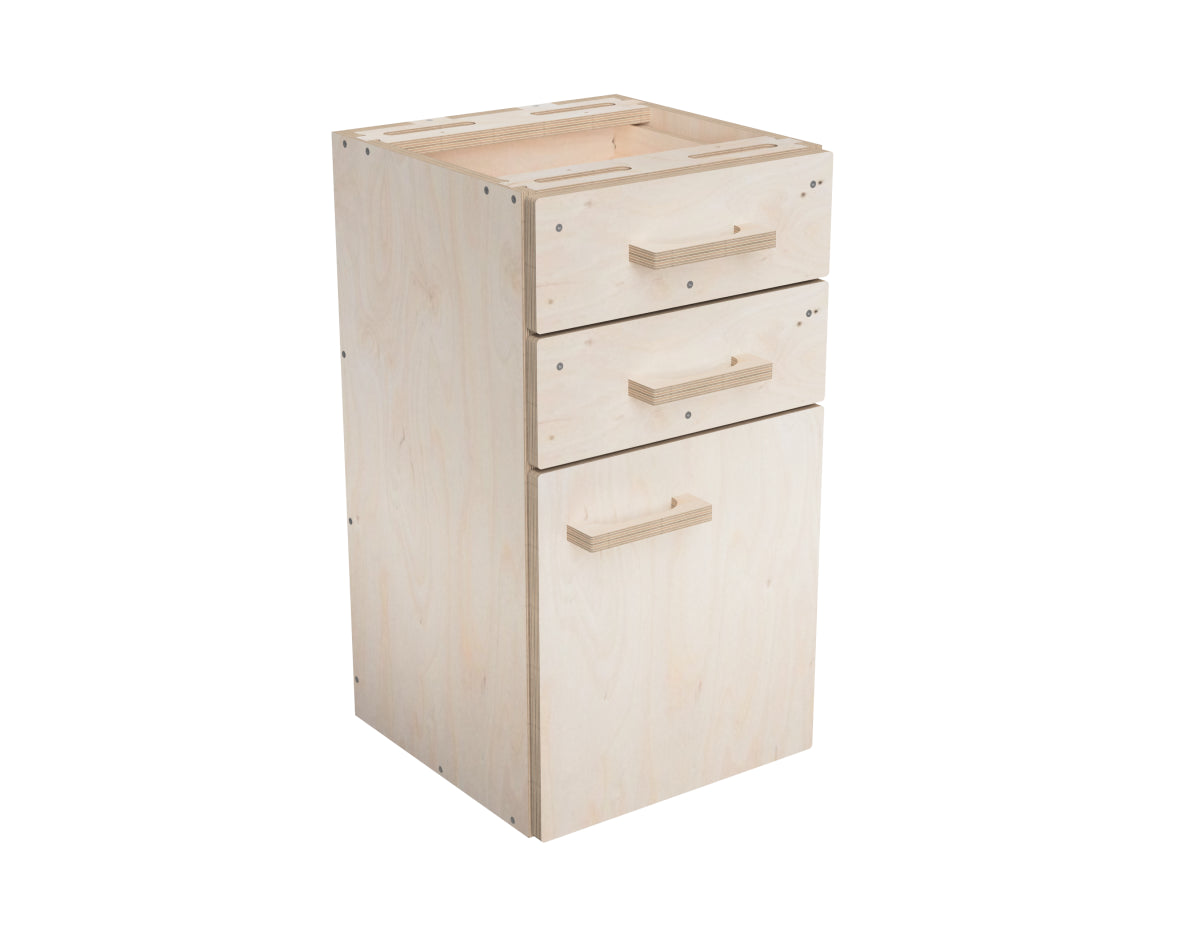

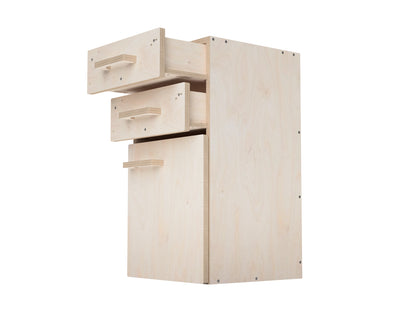

Organize your workshop with this modular workbench cabinet! Features two top drawers for essentials and a bottom cabinet for dust-free storage.



Built-in drawer slides save money and simplify assembly.

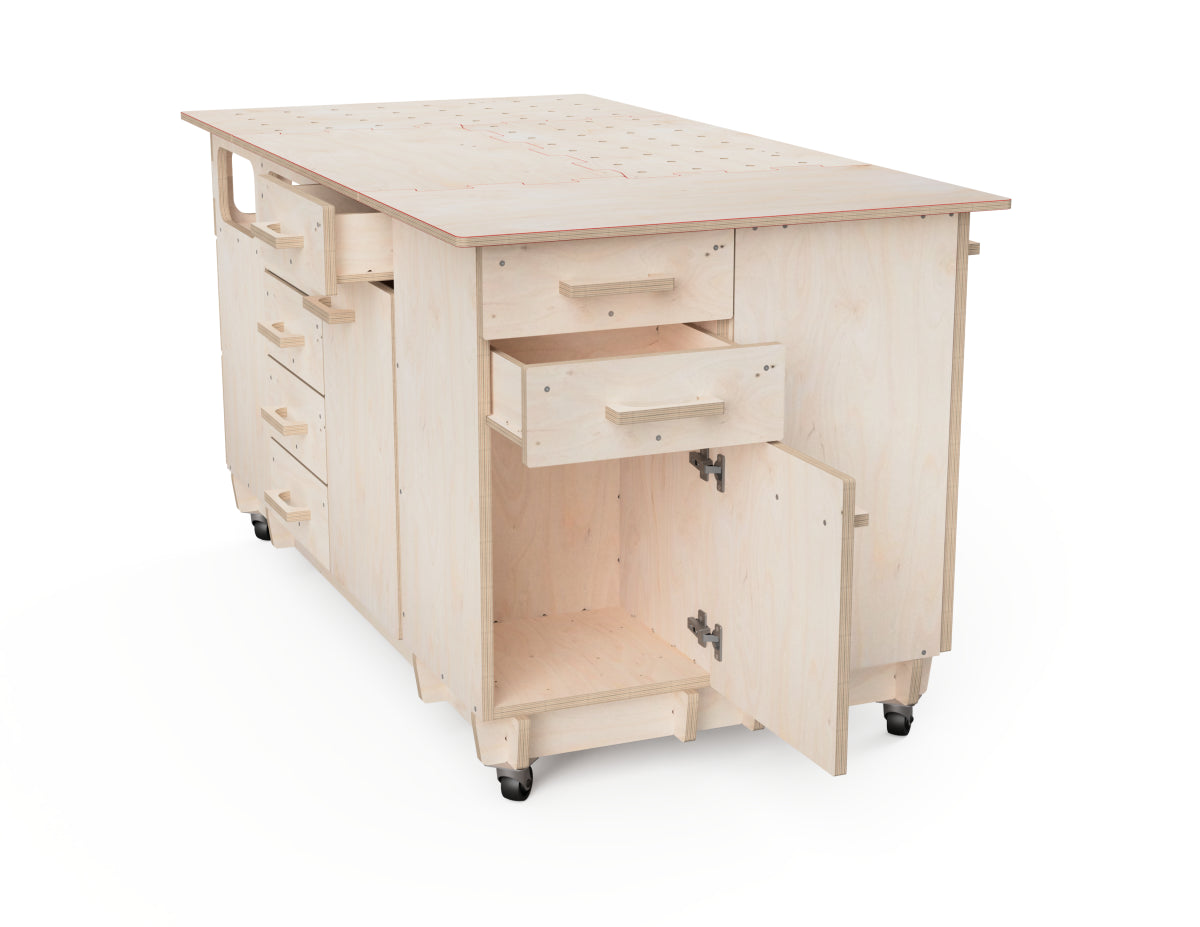

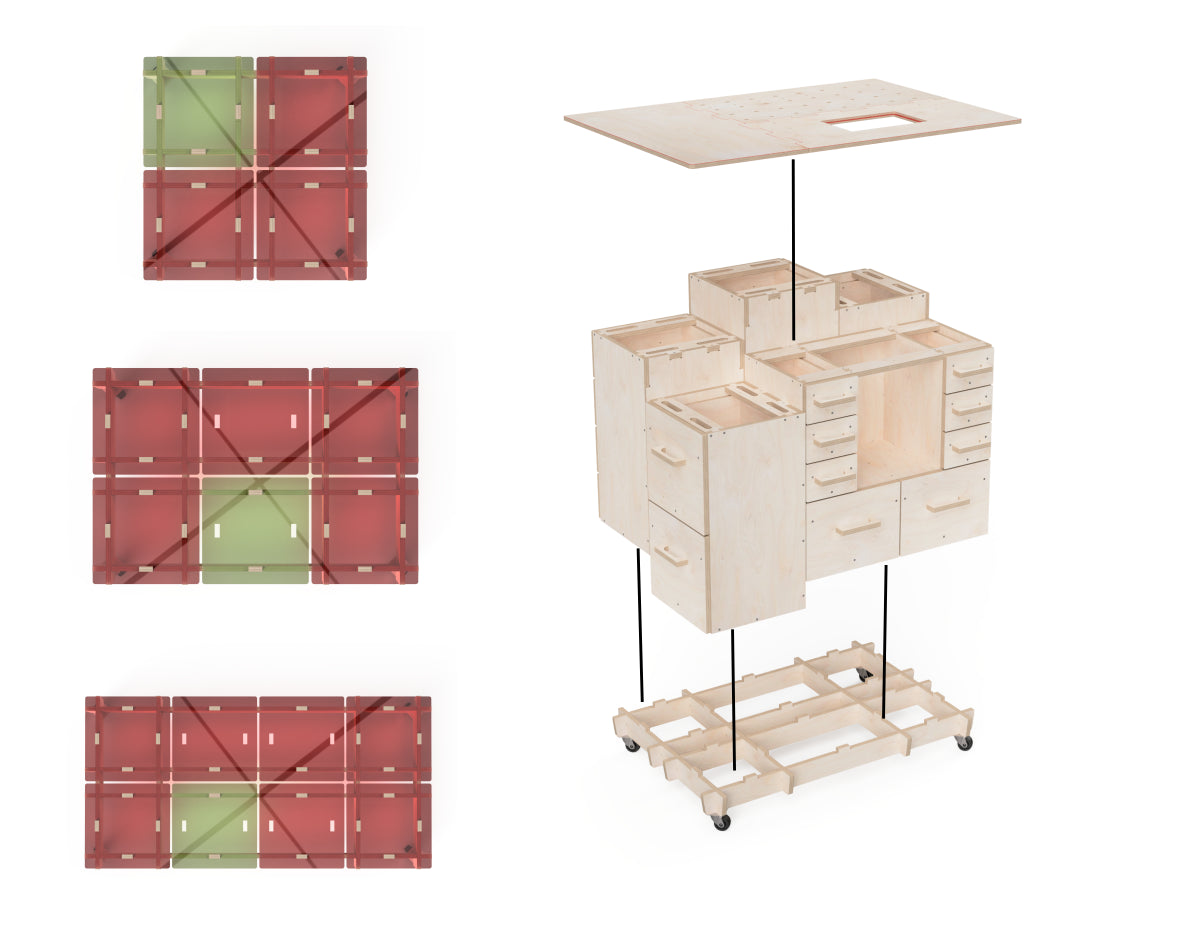

Takes up one base frame module, with included work surface panel files.



Small Workbench Setup
Dimensions: 900 × 900 × 900 mm (W × L × H)
≈ 35 × 35 × 35 in

Medium Workbench Setup
Dimensions: 900 × 1300 × 900 mm (W × L × H)
≈ 35 × 51 × 35 in

Large Workbench Setup
Dimensions: 900 × 1700 × 900 mm (W × L × H)
≈ 35 × 67 × 35 in

Supported CNC sizes

The project can be made on a 800 x 1200 mm (2.6 x 4 ft) CNC router and bigger.

Max single piece size

The biggest component is 400 x 730 mm (15.75 x 28.74 inches).
So if it can fit on your CNC router, you can build this project

Dimensions

Width Length Height
400 mm 400 mm 730 mm
15¾ inch 15¾ inch 28¾ inch

Required materials

For a 820 x 1220 (2.6 x 4 ft) CNC
- 1 sheet of 820 x 1220 x 18 mm (32 x 48 x 3/4 inches) plywood
- 1 sheet of 520 x 1220 x 18 mm (21 x 48 x 3/4 inches) plywood
- 1 sheet of 520 x 1220 x 12 mm (21 x 48 x 1/2 inches) plywood
- 6 mm (1/4 inch) router bit
- 30 mm (1-1/4 inches) wood screws - 75 pieces
- 15 mm (5/16 inches) wood screws - 8 pieces
- cabinet door hinges - 2 pieces
For a 1220 x 1220 mm (4 x 4 ft) CNC
- 1 sheet of 1220 x 1220 x 18 mm (48 x 48 x 3/4 inches) plywood
- 1 sheet of 420 x 320 x 18 mm (17 x 13 x 3/4 inches) plywood
- 1 sheet of 520 x 1220 x 12 mm (21 x 48 x 1/2 inches) plywood
- 6 mm (1/4 inch) router bit
- 30 mm (1-1/4 inches) wood screws - 75 pieces
- 15 mm (5/16 inches) wood screws - 8 pieces
- cabinet door hinges - 2 pieces
For a 1220 x 2440 mm (4 x 8 ft) CNC
- 1 sheet of 2440 x 820 x 18 mm (96 x 32 x 3/4 inches) plywood
- 1 sheet of 520 x 1220 x 12 mm (21 x 48 x 1/2 inches) plywood
- 6 mm (1/4 inch) router bit
- 30 mm (1-1/4 inches) wood screws - 75 pieces
- 15 mm (5/16 inches) wood screws - 8 pieces
- cabinet door hinges - 2 pieces

Approximate CNC time

45 minutes

Assembling time

30 minutes
The product may differ from the representative images when cut and assembled. We hope you will enjoy your purchase from Aribabox!
