Modular Storage Shelf - DXF Files
Modular Storage Shelf - DXF Files
Regular price
$8.20 USD
Regular price
$16.45 USD
Sale price
$8.20 USD
Unit price
/
per
Taxes included.
Couldn't load pickup availability

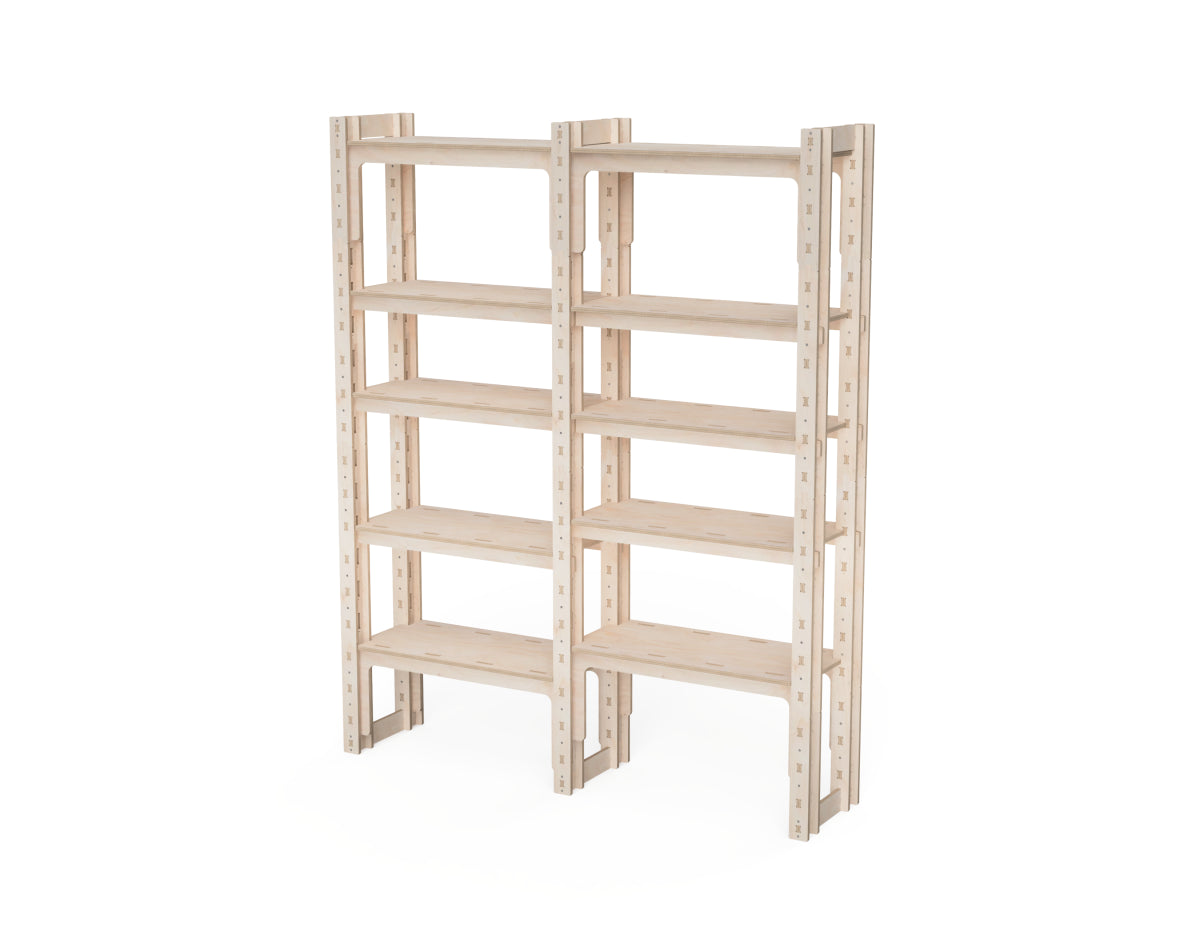

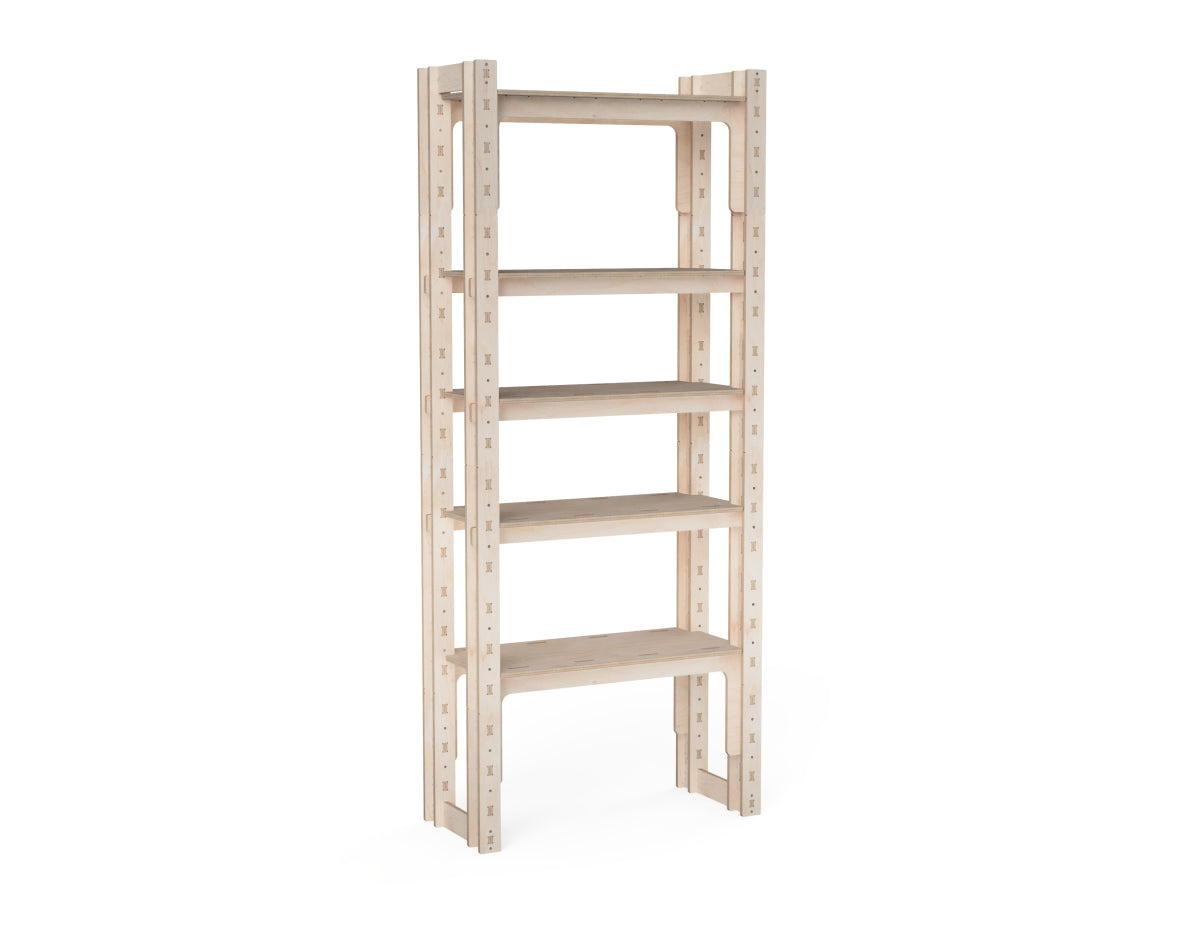

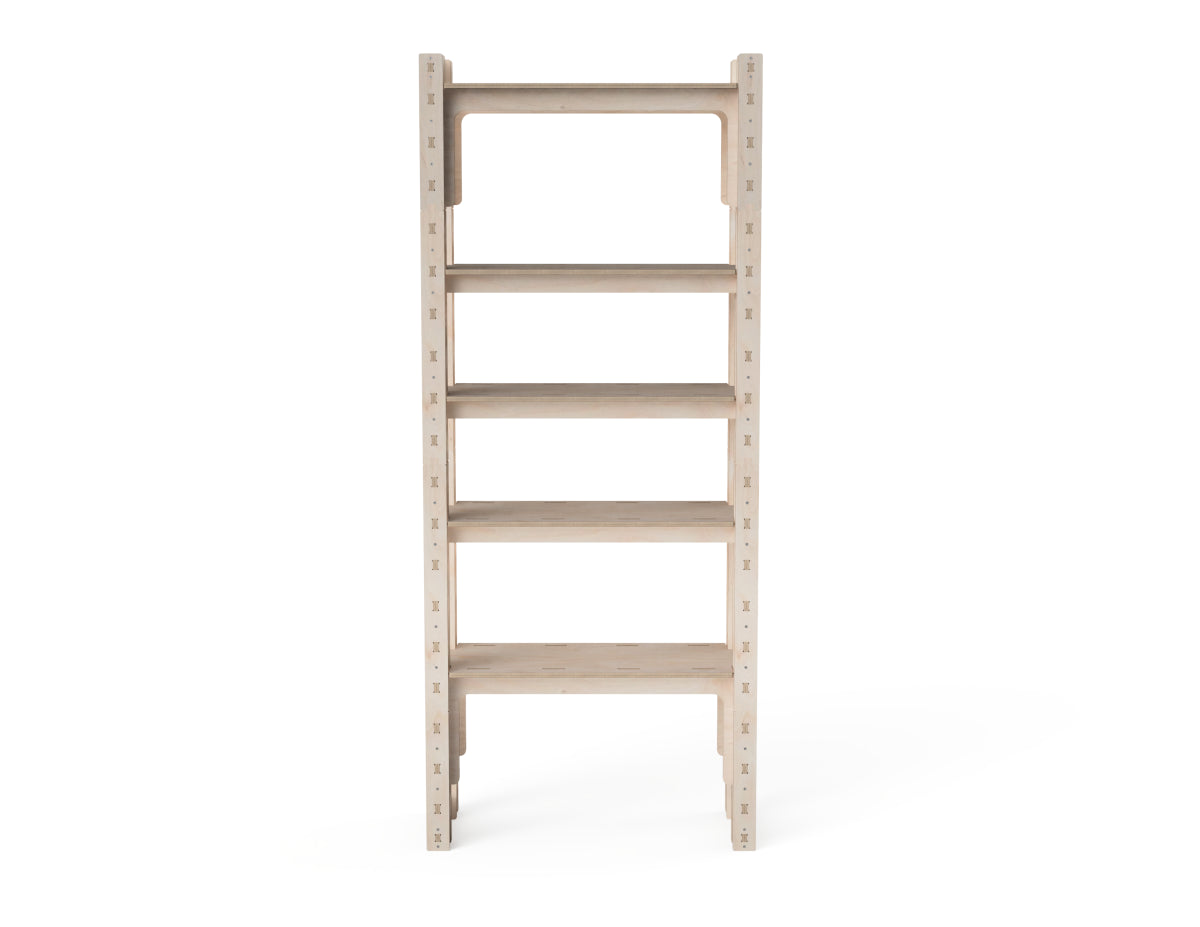

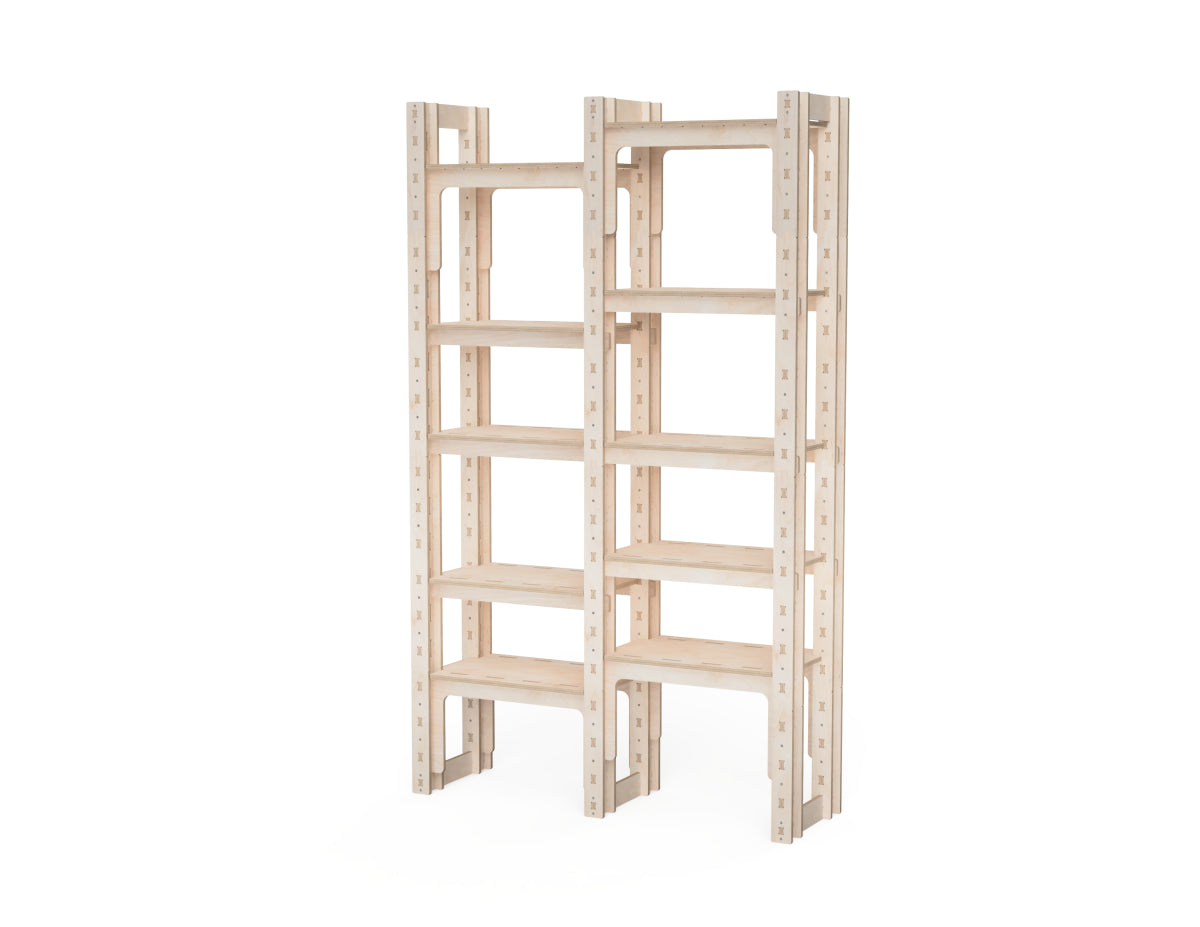

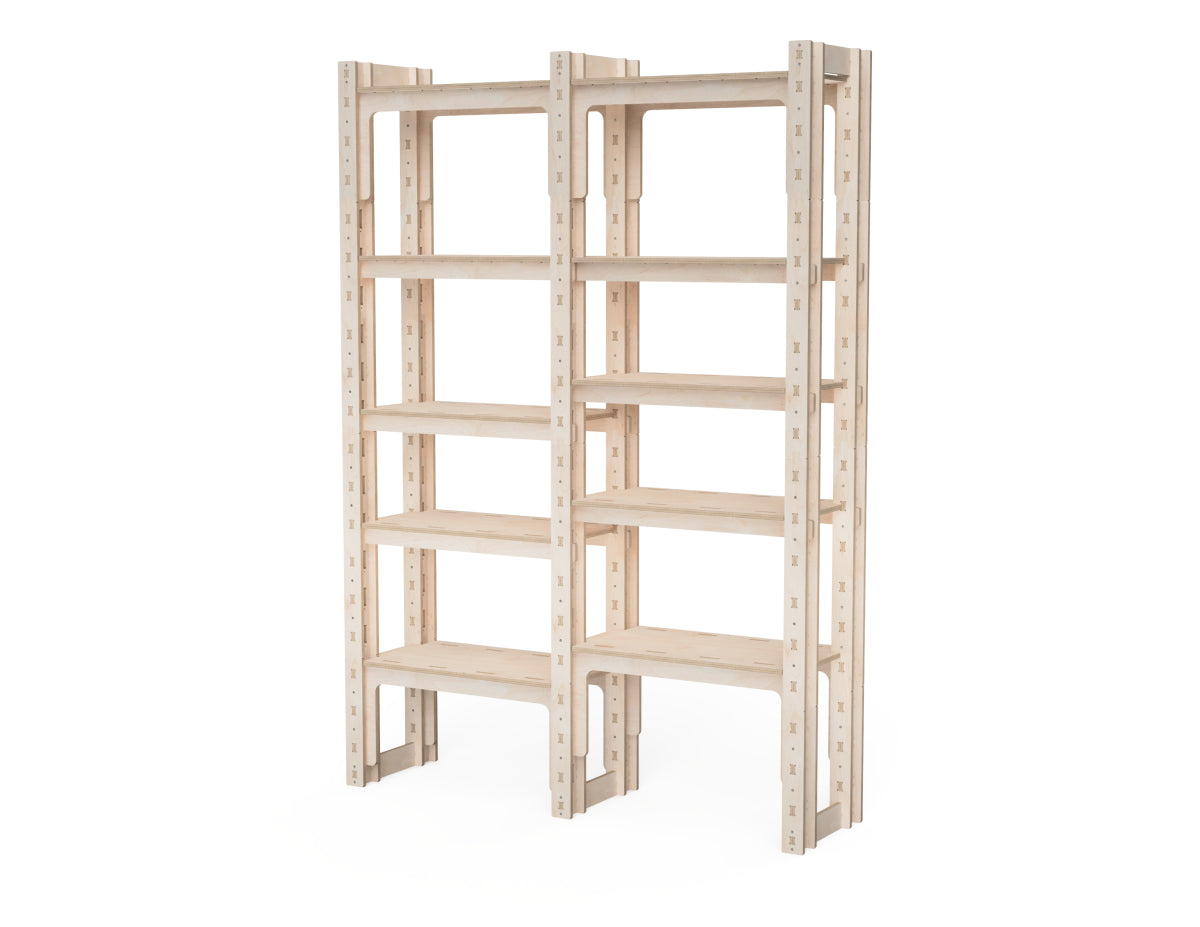

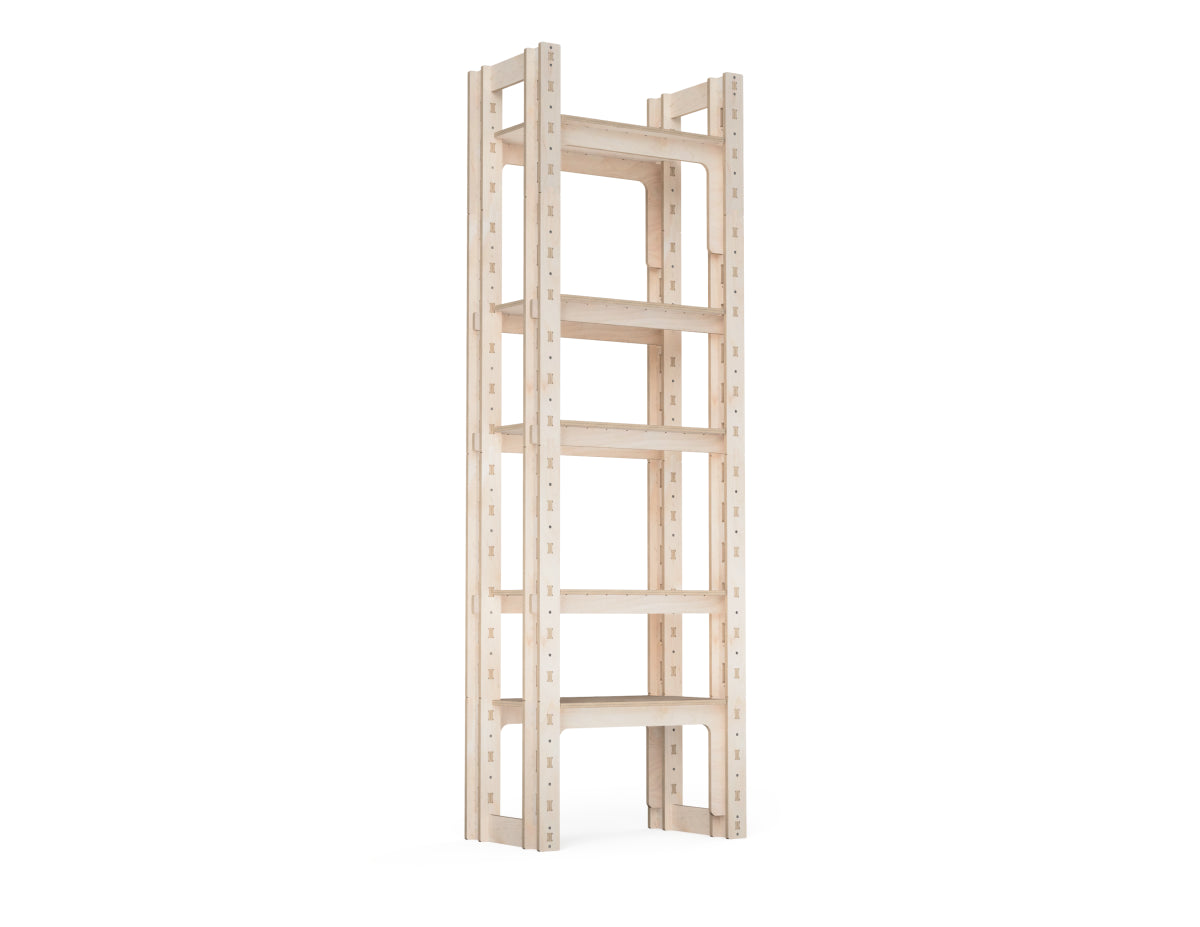

Build a strong, expandable storage shelf from plywood using these CNC-ready DXF files.

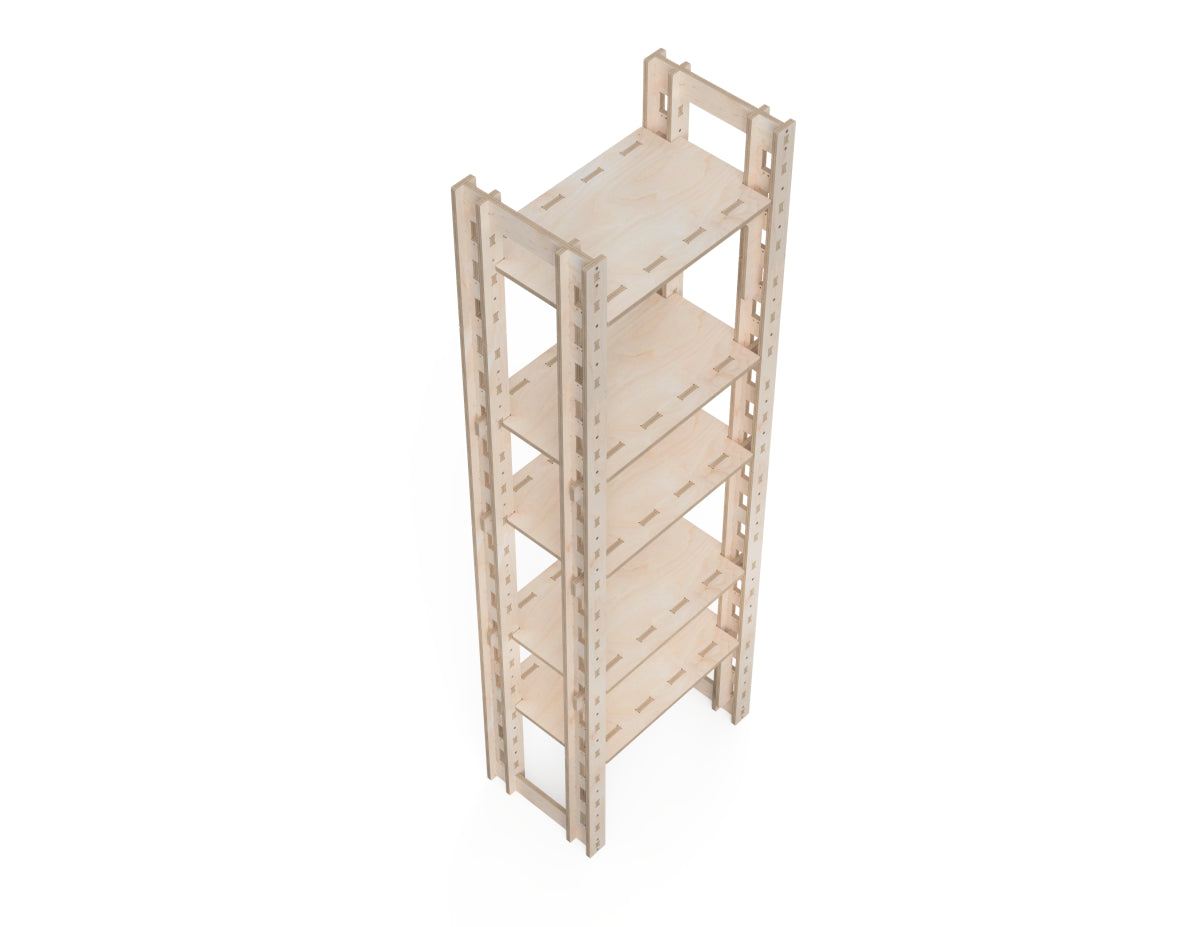

The modular design uses reinforced I-beam supports and compact parts, making it ideal for workshops, garages, and other storage spaces.

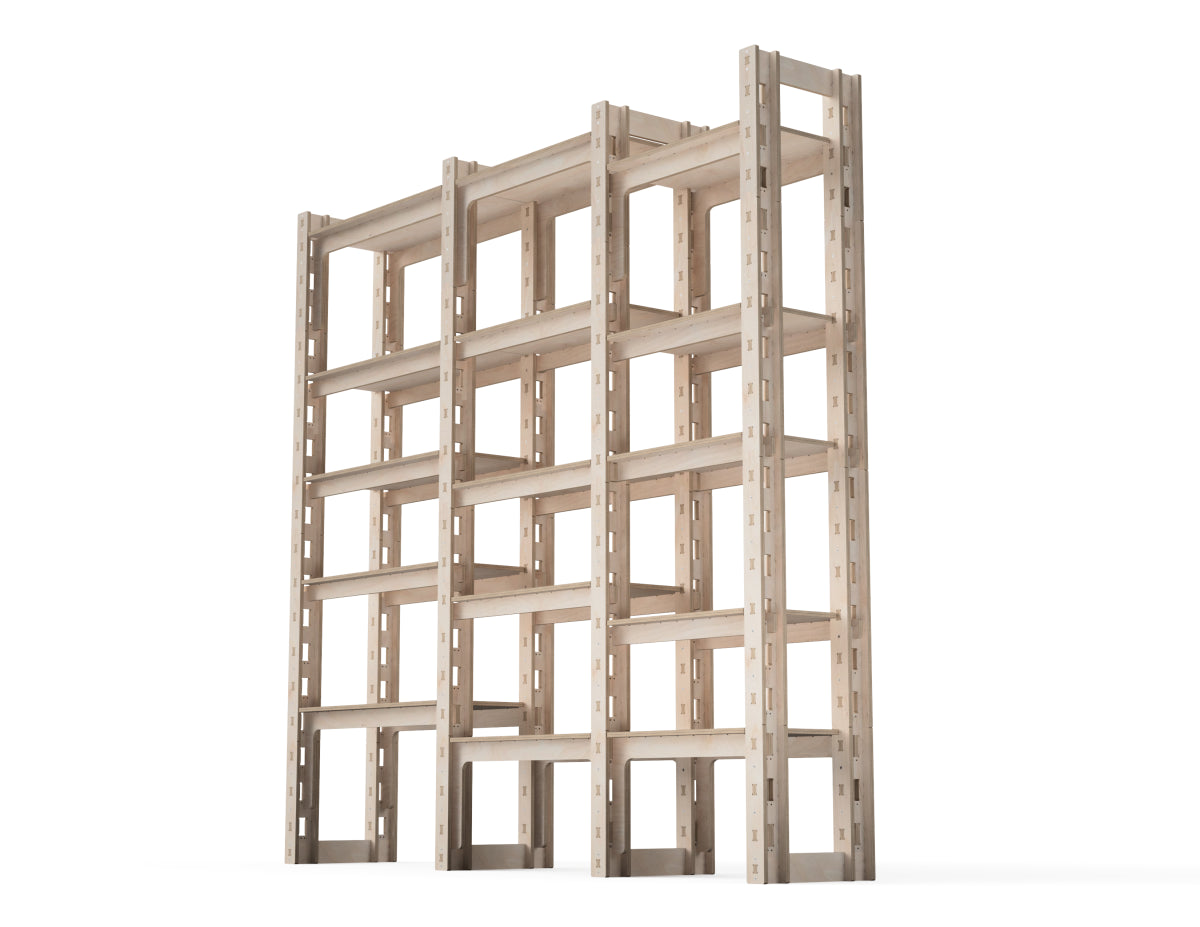

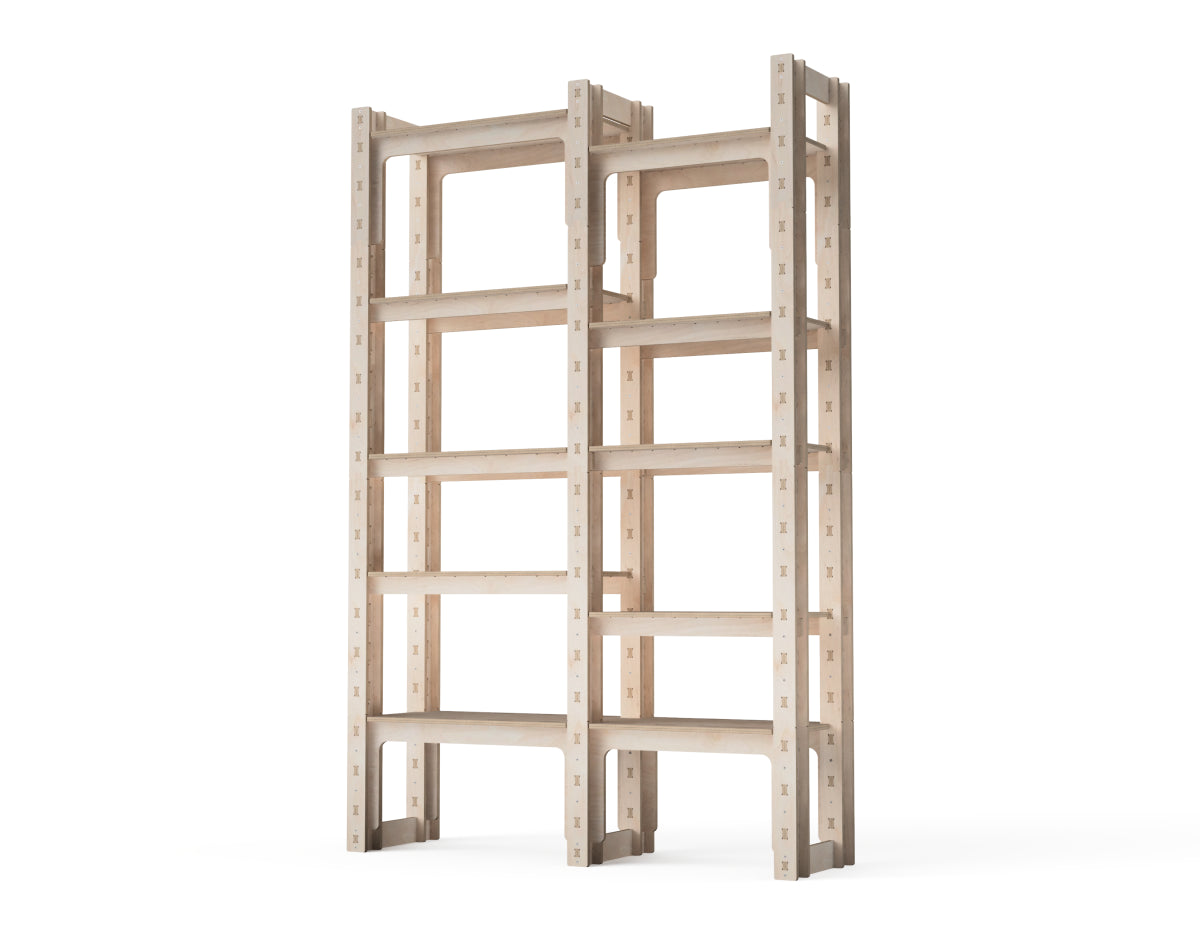

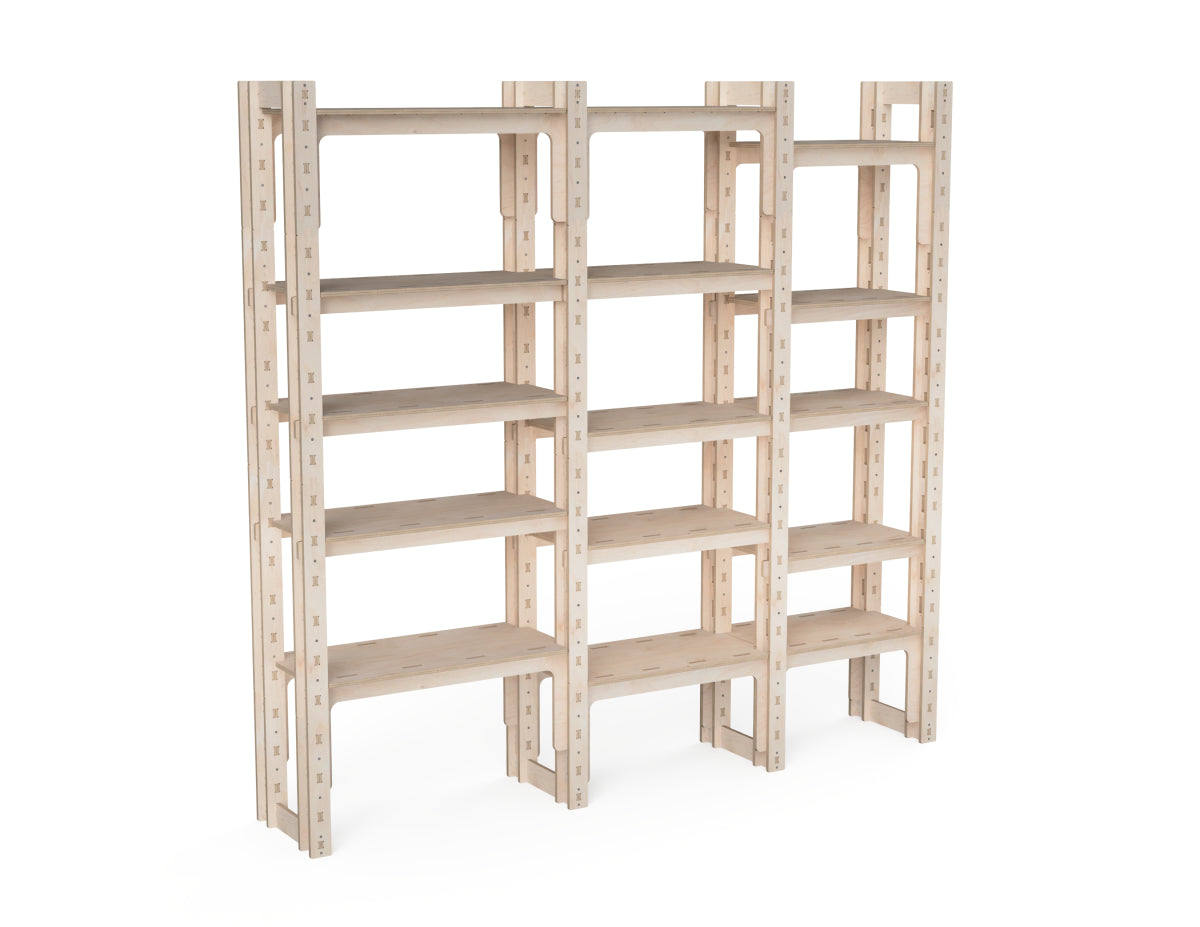

Easily add additional shelf sections as your storage needs grow.
Supported CNC sizes
Supported CNC sizes
The project can be made on a
600 x 900 mm (2 x 3 ft) CNC
router and bigger.
Max single piece size
Max single piece size
The biggest component is
800
x
350
mm (31.5
x
13.78
inches).
So if it can fit on your CNC router, you can build this project
So if it can fit on your CNC router, you can build this project
Dimensions
Dimensions
Minimum
| Width | Length | Height |
|---|---|---|
| 600 mm | 350 mm | 1900 mm |
| 23⅝ inch | 13¾ inch | 74¾ inch |
Maximum
| Width | Length | Height |
|---|---|---|
| 800 mm | 350 mm | 1900 mm |
| 31½ inch | 13¾ inch | 74¾ inch |
Required materials
Required materials
- 2 sheets of 2440 x 1220 x 12 mm (96 x 48 x 0.5 inches) plywood
- 30 mm (1-1/4-inch) wood screws - 180 pieces
- 3 mm (1/8 inch) router bit
Approximate CNC time
Approximate CNC time
2 hours
Assembling time
Assembling time
1 hour
20 minutes
The product may differ from the representative images when cut and assembled. We hope you will enjoy your purchase from Aribabox!
