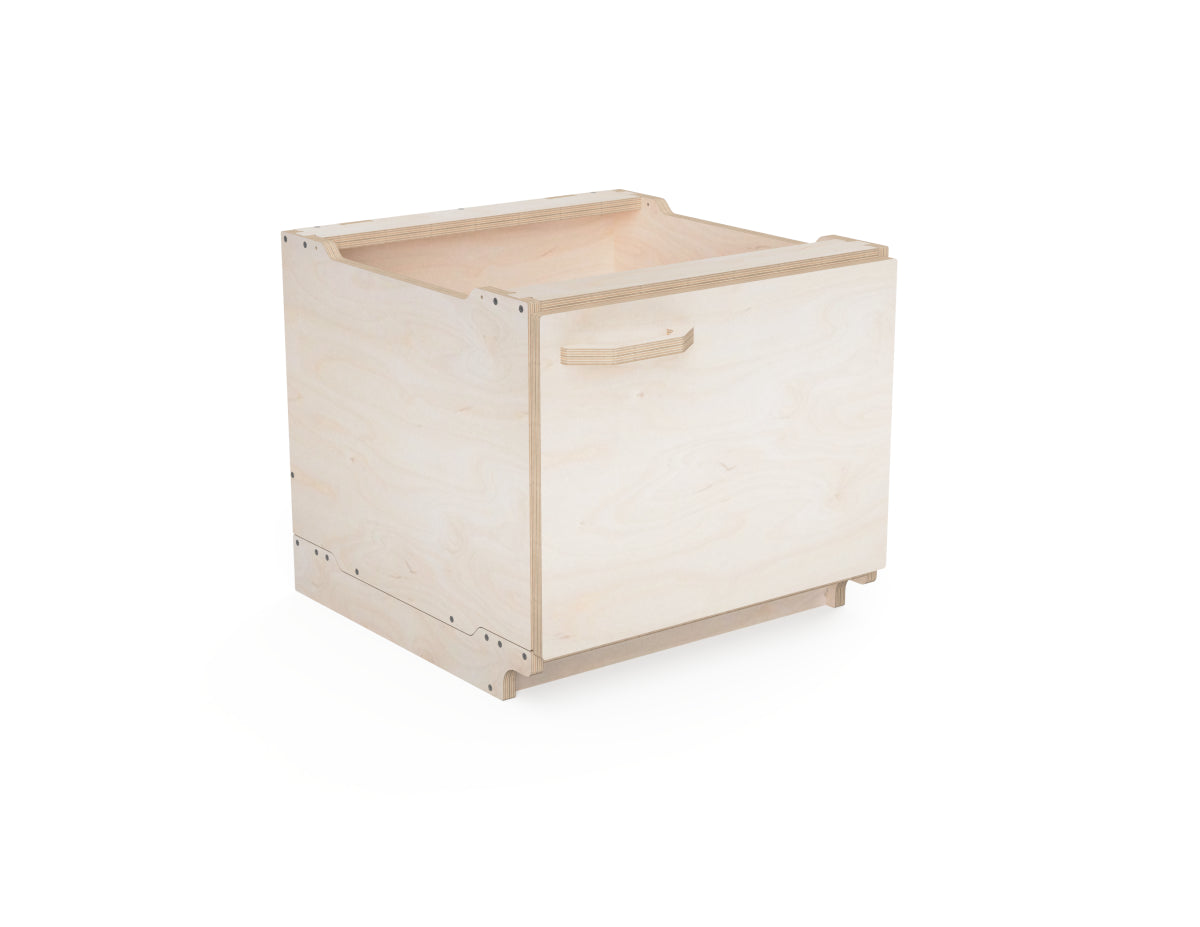

  • Medium modular workshop cabinet DXF file render front view

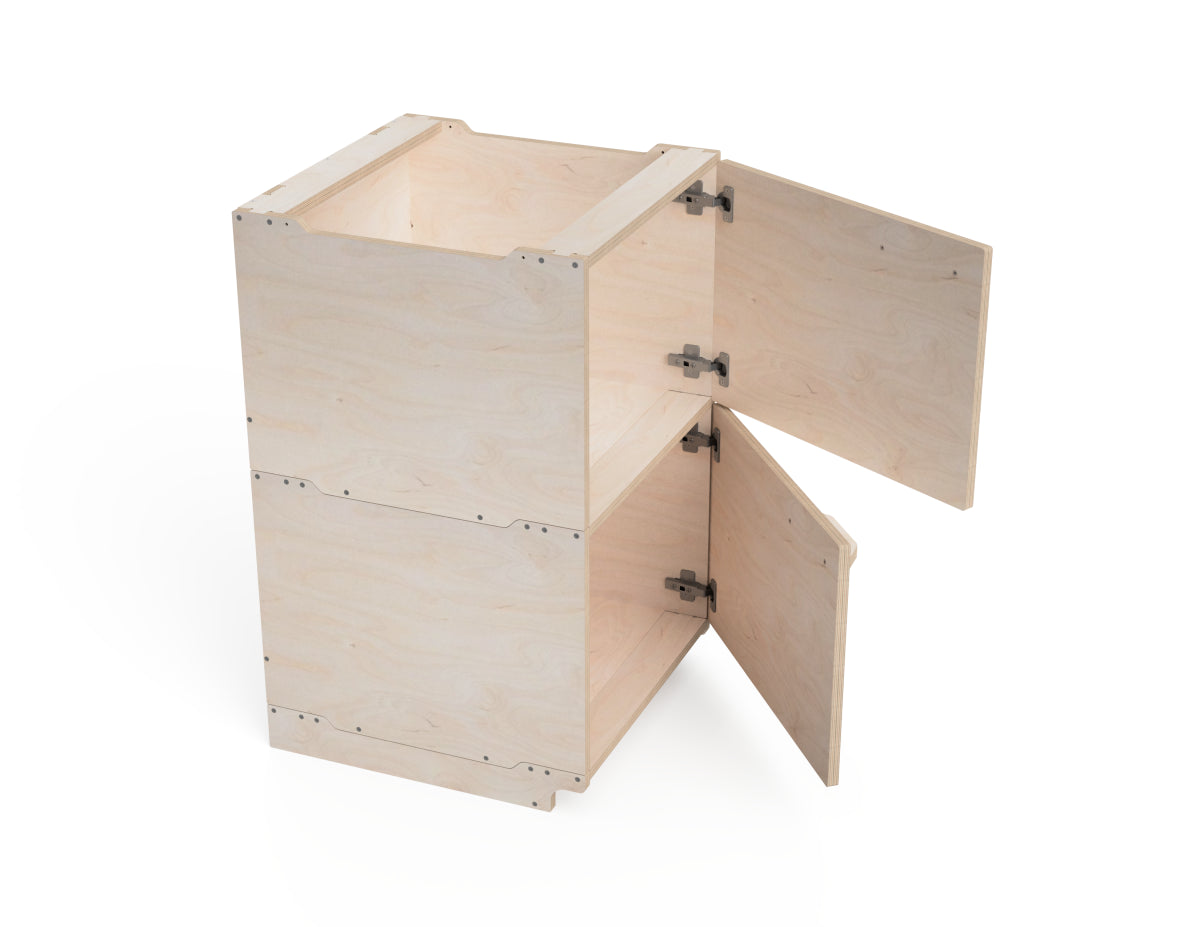

  • Workshop cabinet module with door open displaying storage space

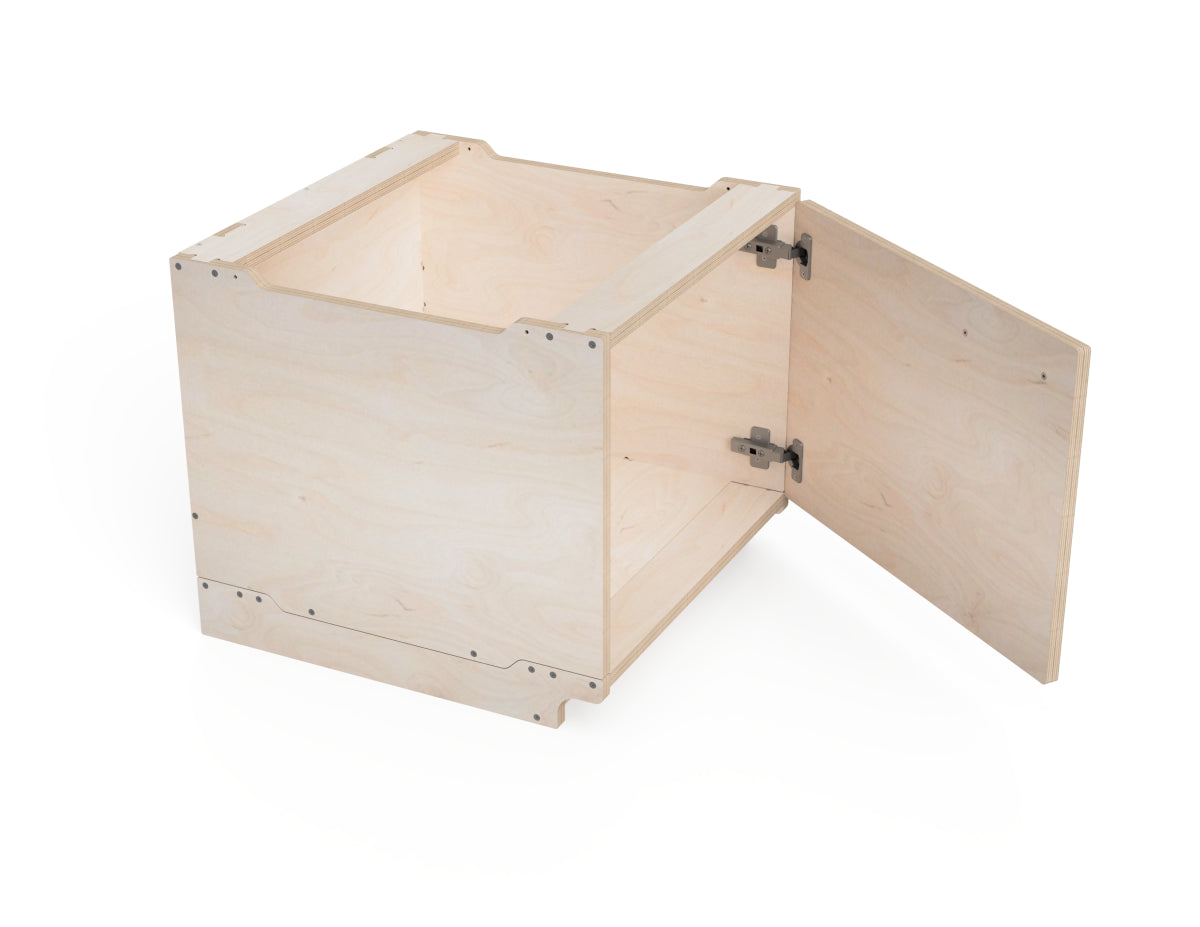

  • Render highlighting modular cabinet joints and assembly

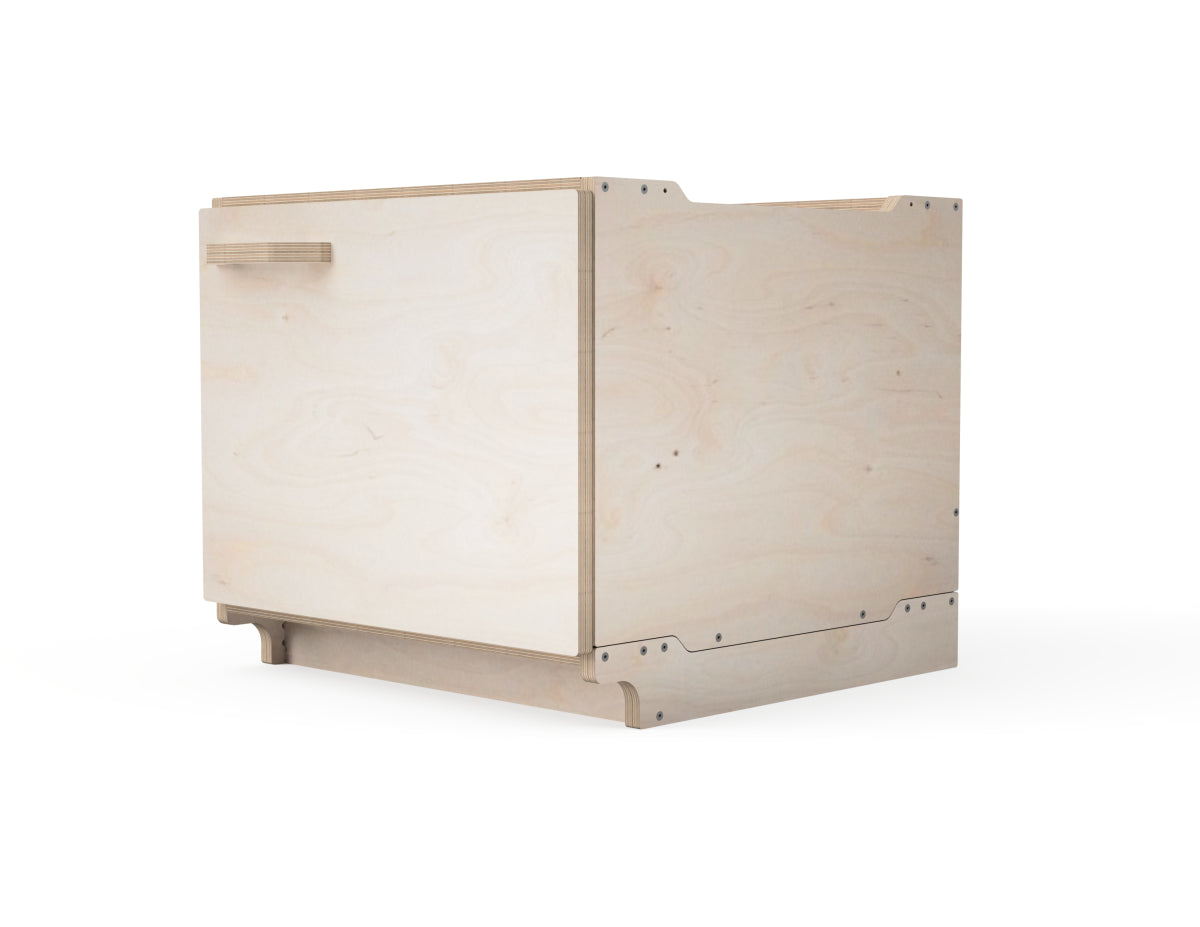

  • Modular workshop cabinet DXF file ready for CNC cutting

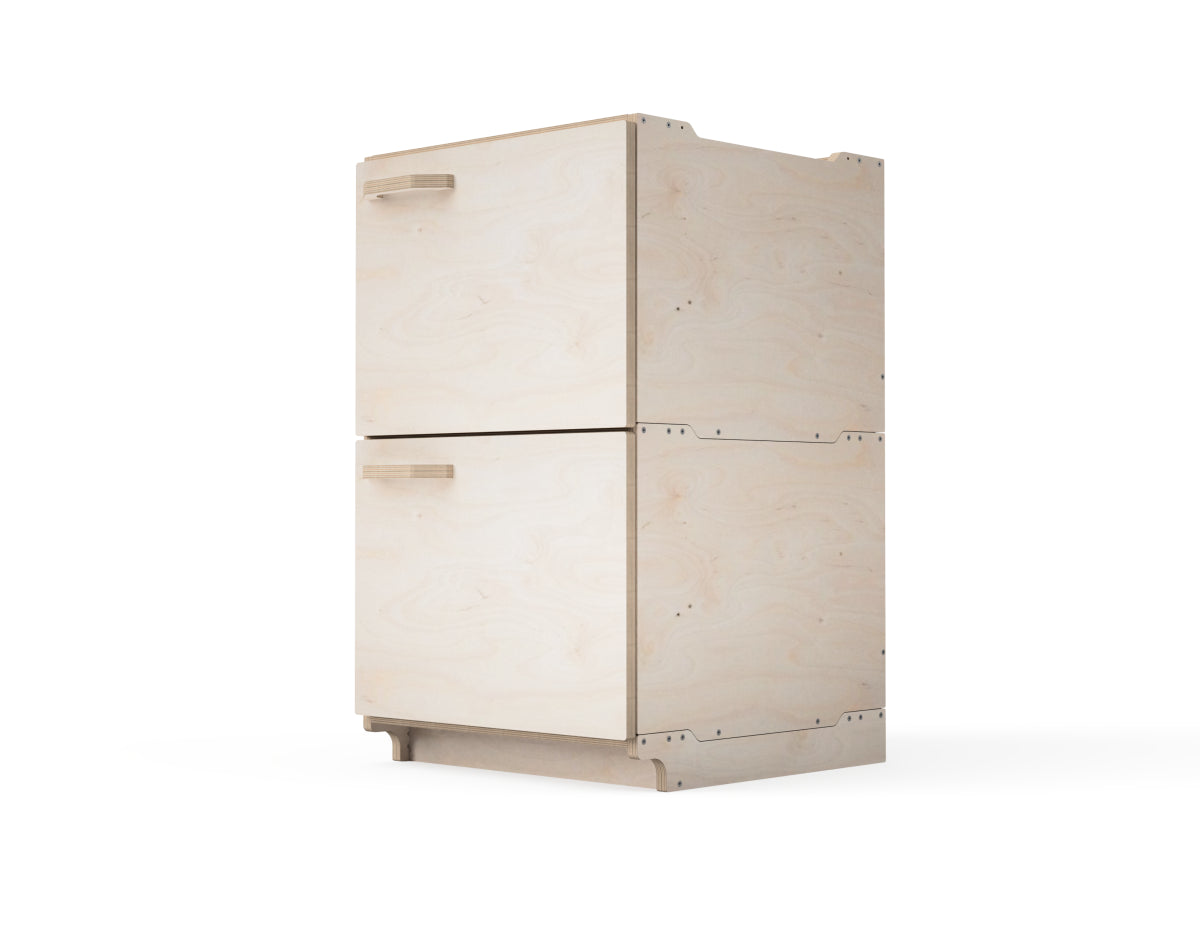

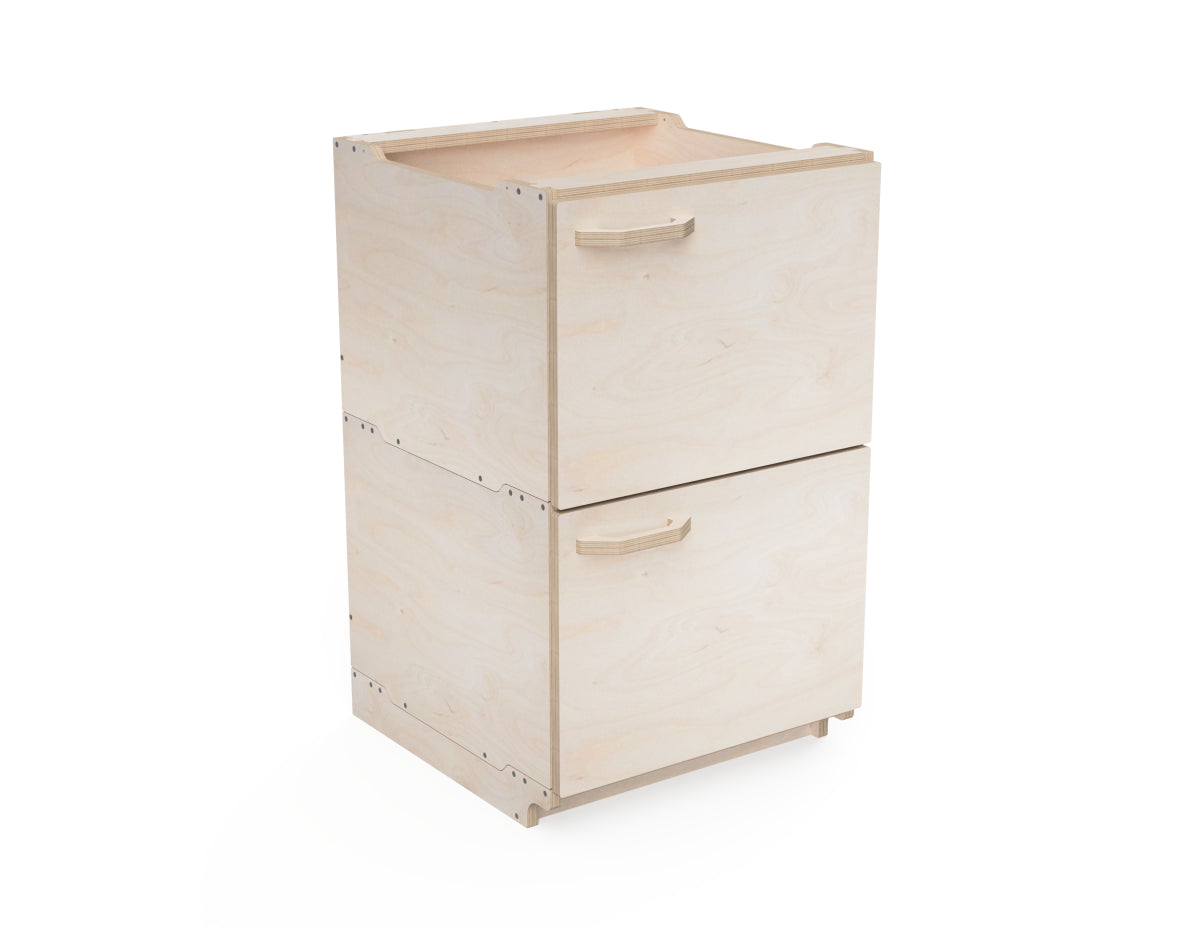

  • Multiple modular cabinet sections stacked together

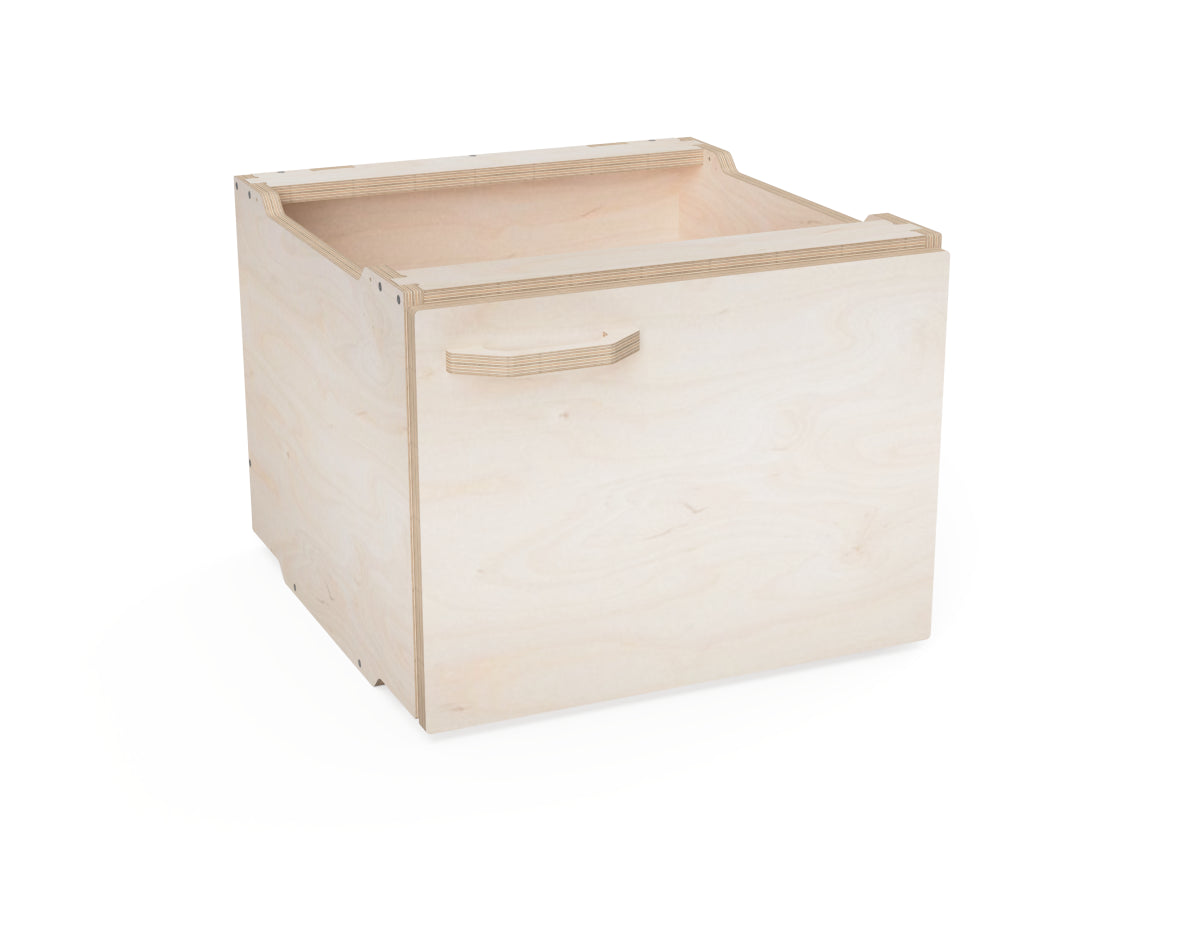

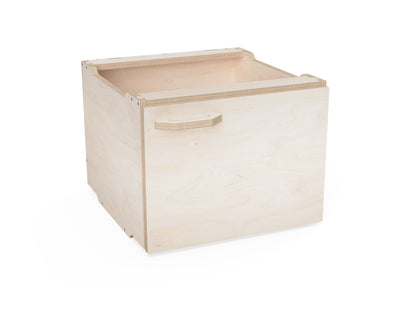

  • Render showing 550 mm medium workshop cabinet module

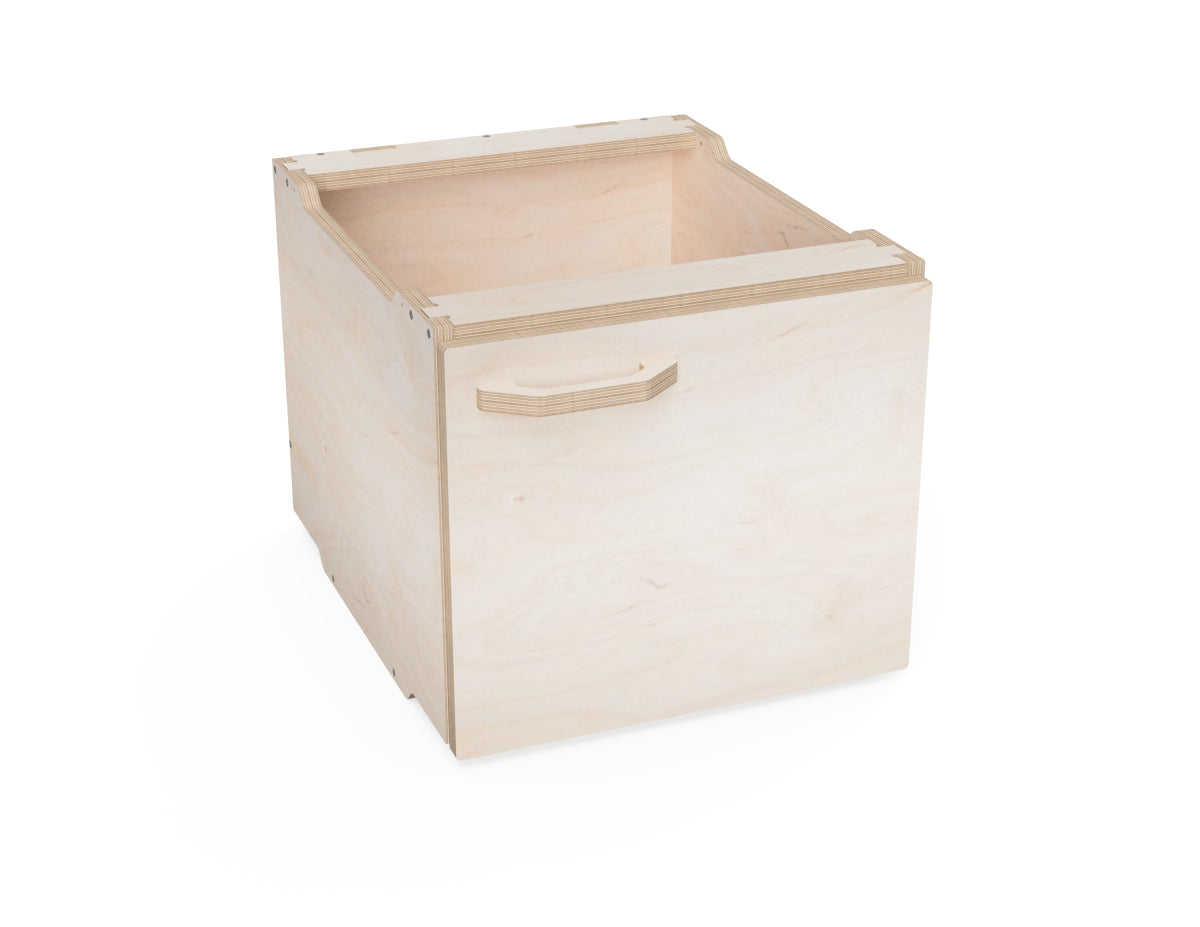

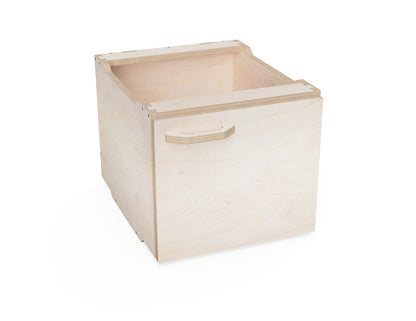

  • Render showing 475 mm medium workshop cabinet module

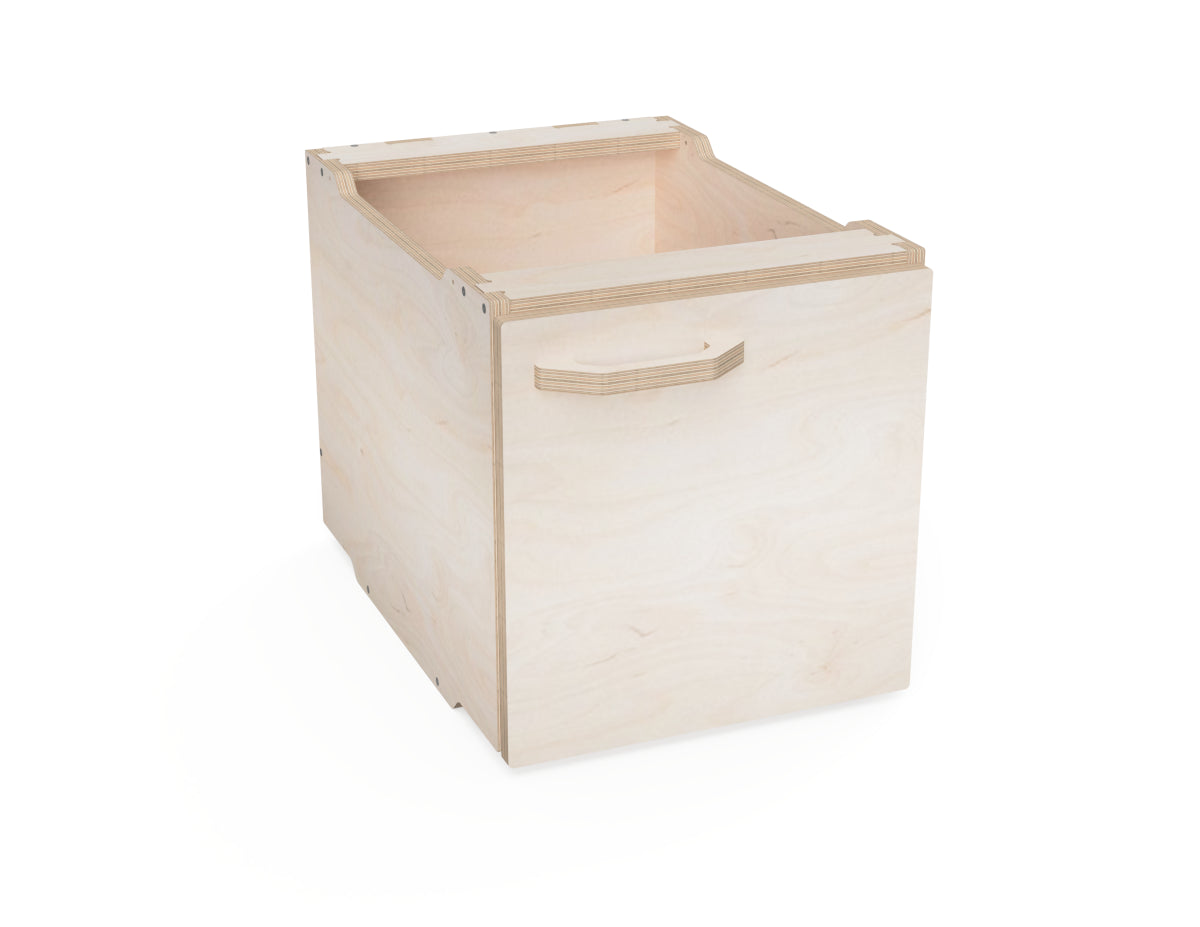

  • Render showing 400 mm medium workshop cabinet module
1 11

Medium Modular Workshop Cabinet - DXF Files

Medium Modular Workshop Cabinet - DXF Files

$3.25 USD
$6.45 USD $3.25 USD
Sale Sold out
Taxes included.

Create a versatile workshop storage solution with our Medium Modular Workshop Cabinet DXF files.



Designed for CNC routers, this modular cabinet allows you to build stackable sections tailored to your workspace. Each module is 2/4 the height of a standard 900 mm cabinet and includes a convenient built-in door for easy access.



Comes with three widths - 550 mm, 475 mm, and 400 mm - these cabinets are perfect for customizing your workshop setup, keeping tools and materials organized and accessible.



Ideal for DIY enthusiasts and makers looking to combine functionality and flexibility.

Supported CNC sizes

The project can be made on a 600 x 600 mm (2 x 2 ft) CNC router and bigger.

Max single piece size

The biggest component is 550 x 550 mm (21.65 x 21.65 inches).
So if it can fit on your CNC router, you can build this project

Dimensions


Minimum

Width Length Height
400 mm 550 mm 430 mm
15¾ inch 21⅝ inch 16⅞ inch

Maximum

Width Length Height
550 mm 550 mm 430 mm
21⅝ inch 21⅝ inch 16⅞ inch

Required materials

For a 600 x 900 mm (2 x 3 ft) CNC
- 2 sheets of 600 x 900 x 18 mm (24 x 36 x 3/4 inches) plywood
- 1 sheet of 300 x 600 x 18 mm (12 x 24 x 3/4 inches) plywood
- 1 sheet of 500 x 600 x 12 mm (24 x 20 x 1/2 inches) plywood
- 35 mm (1-1/2 inches) wood screws - 25 pieces
- 6 mm (1/4 inch) router bit
- Cabinet hinges - 2 pieces
For a 900 x 1220 mm (3 x 4 ft) CNC
- a sheet of 900 x 1220 x 18 mm (36 x 48 x 3/4 inches) plywood
- 1 sheet of 300 x 600 x 18 mm (12 x 24 x 3/4 inches) plywood
- 1 sheet of 500 x 600 x 12 mm (24 x 20 x 1/2 inches) plywood
- 35 mm (1-1/2 inches) wood screws - 25 pieces
- 6 mm (1/4 inch) router bit
- Cabinet hinges - 2 pieces
For a 1220 x 1220 mm (4 x 4 ft) CNC
- a sheet of 1000 x 1220 x 18 mm (40 x 48 x 3/4 inches) plywood
- 1 sheet of 500 x 600 x 12 mm (24 x 20 x 1/2 inches) plywood
- 35 mm (1-1/2 inches) wood screws - 25 pieces
- 6 mm (1/4 inch) router bit
- Cabinet hinges - 2 pieces

Approximate CNC time

20 minutes

Assembling time

15 minutes
The product may differ from the representative images when cut and assembled. We hope you will enjoy your purchase from Aribabox!
