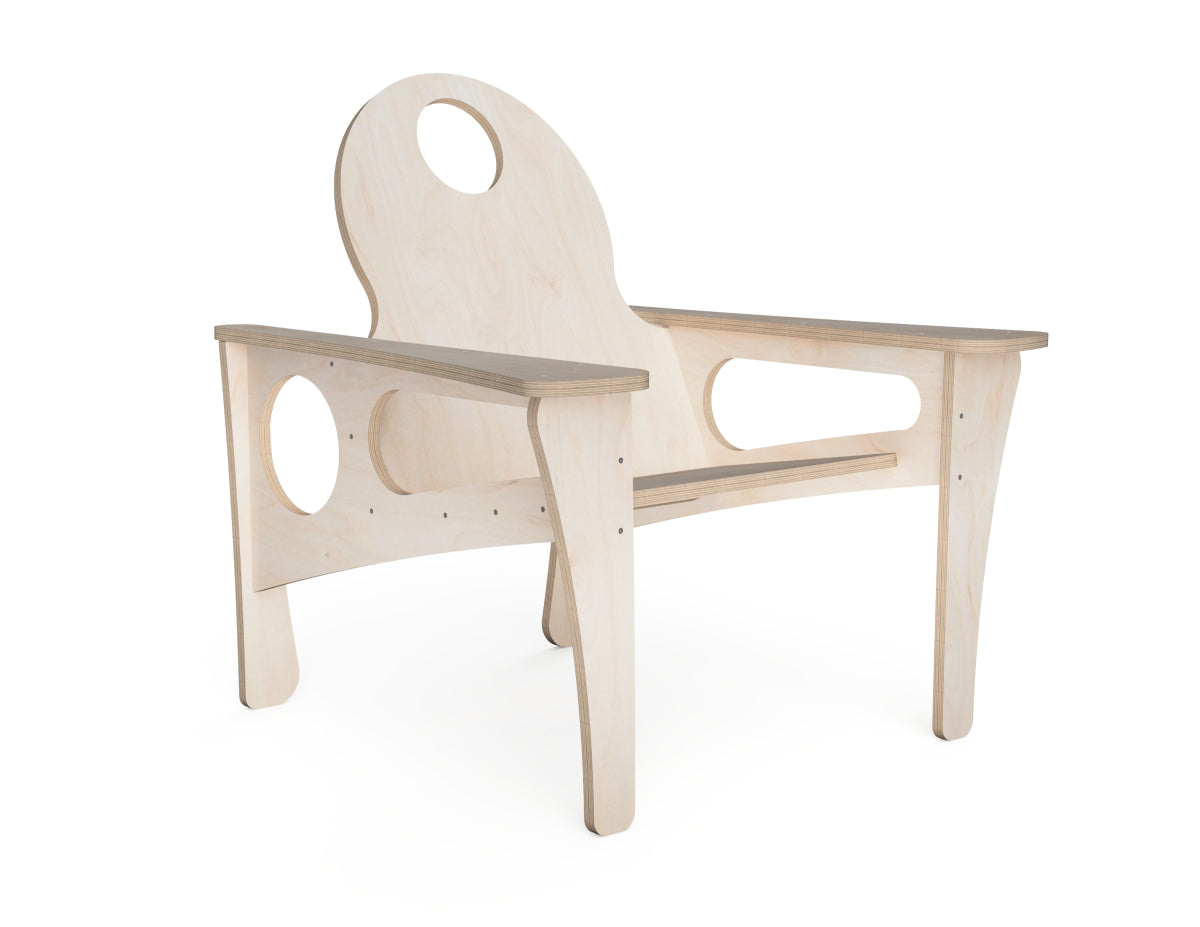

• CNC plywood lounge chair with curved backrest – Aribabox

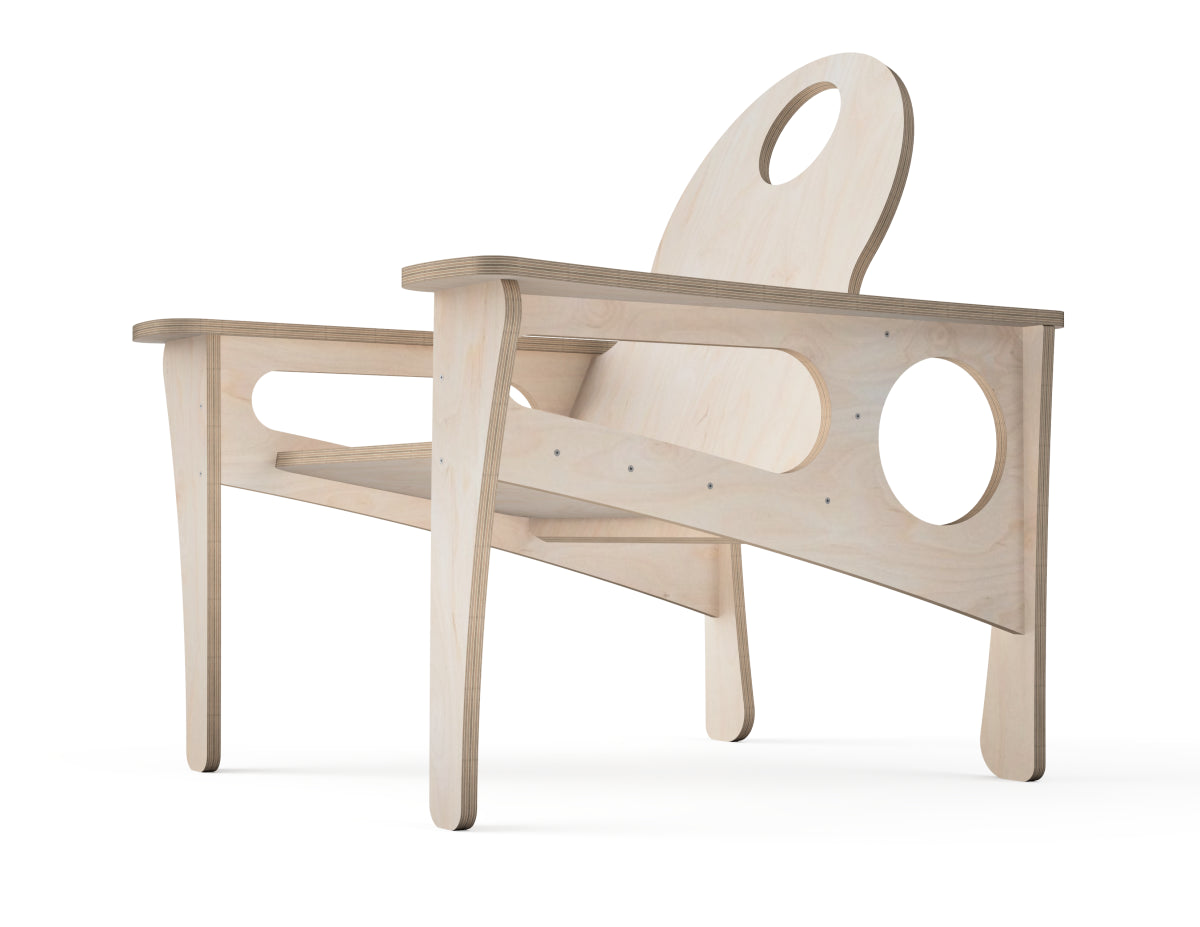

  • A minimalist light natural wood chair with a sculptural design, featuring circular cutouts in the backrest and side panel, set against a plain white background.

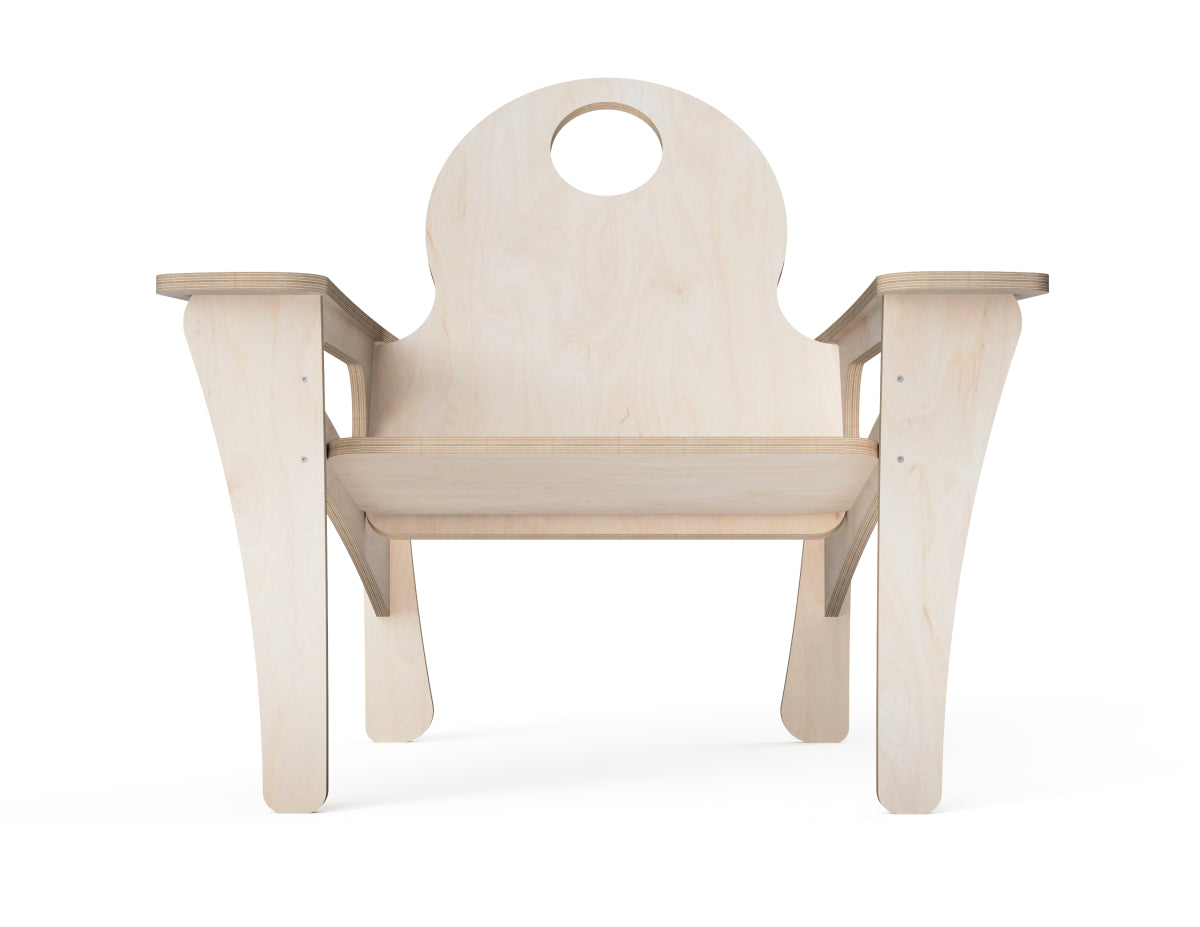

  • A light natural wood chair with a distinctive arched backrest featuring a circular cutout, shown from the front against a solid white background.

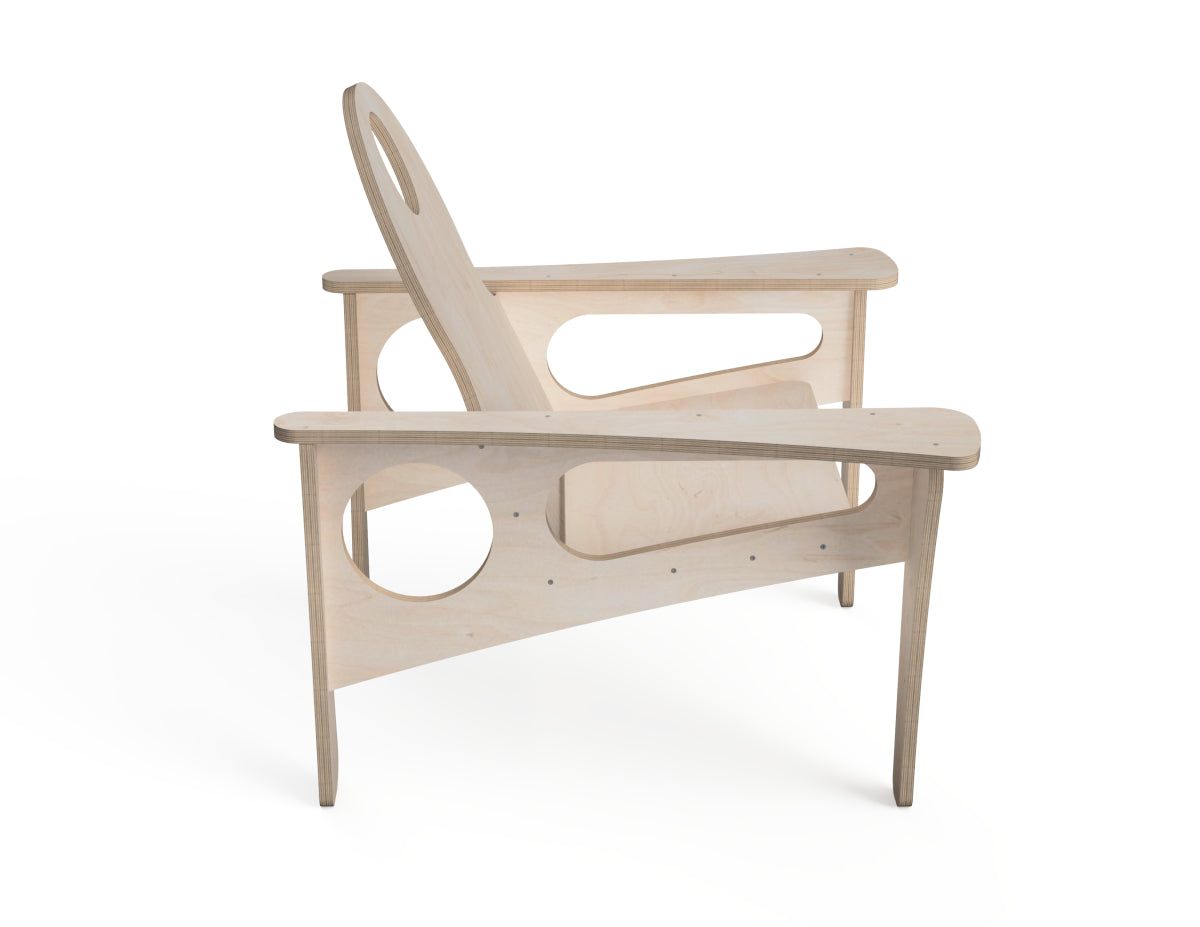

  • A light natural wood Adirondack-style chair with a curved backrest and cutout details, shown from a three-quarters angle on a white background.

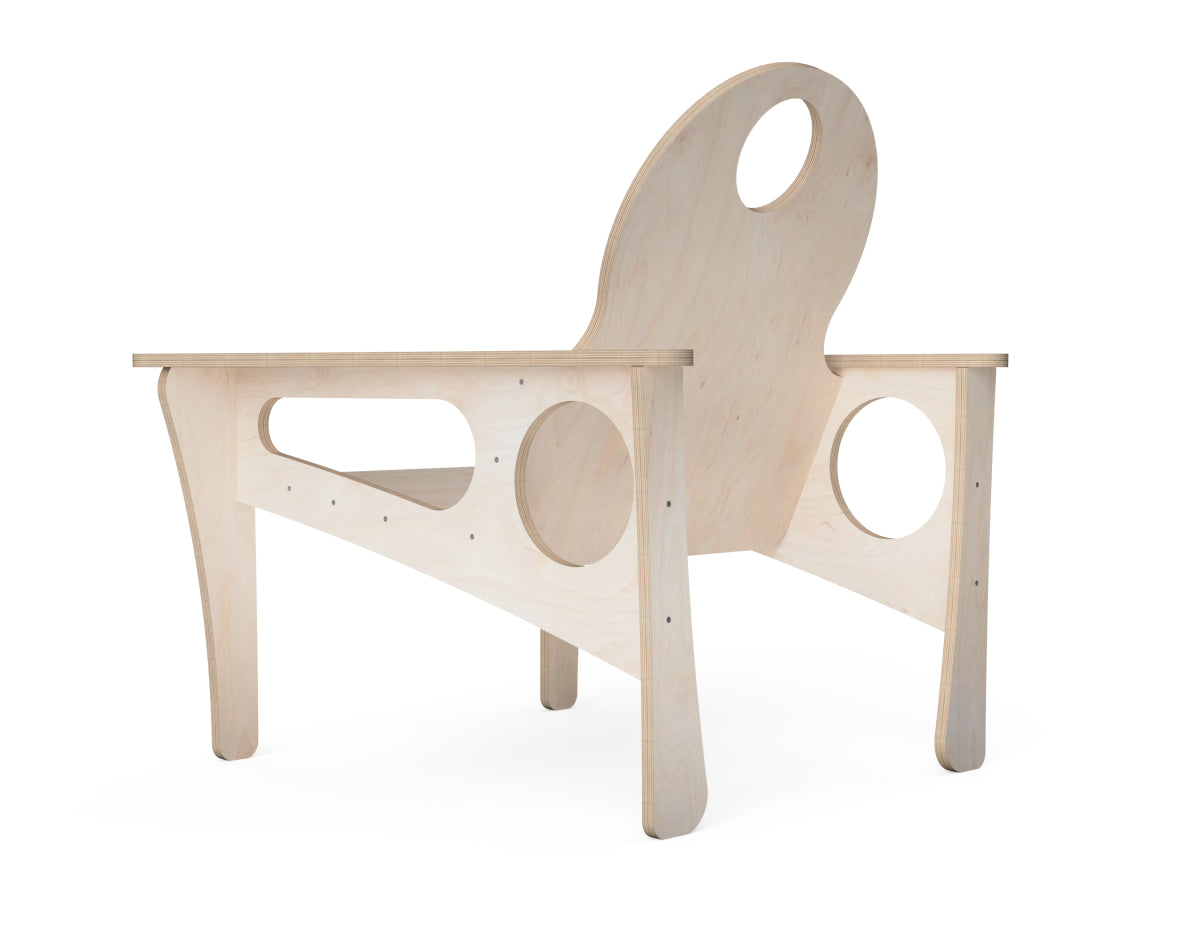

  • A minimalist, light natural wood chair with unique circular cutouts in the backrest, armrests, and base, shown on a solid white background.

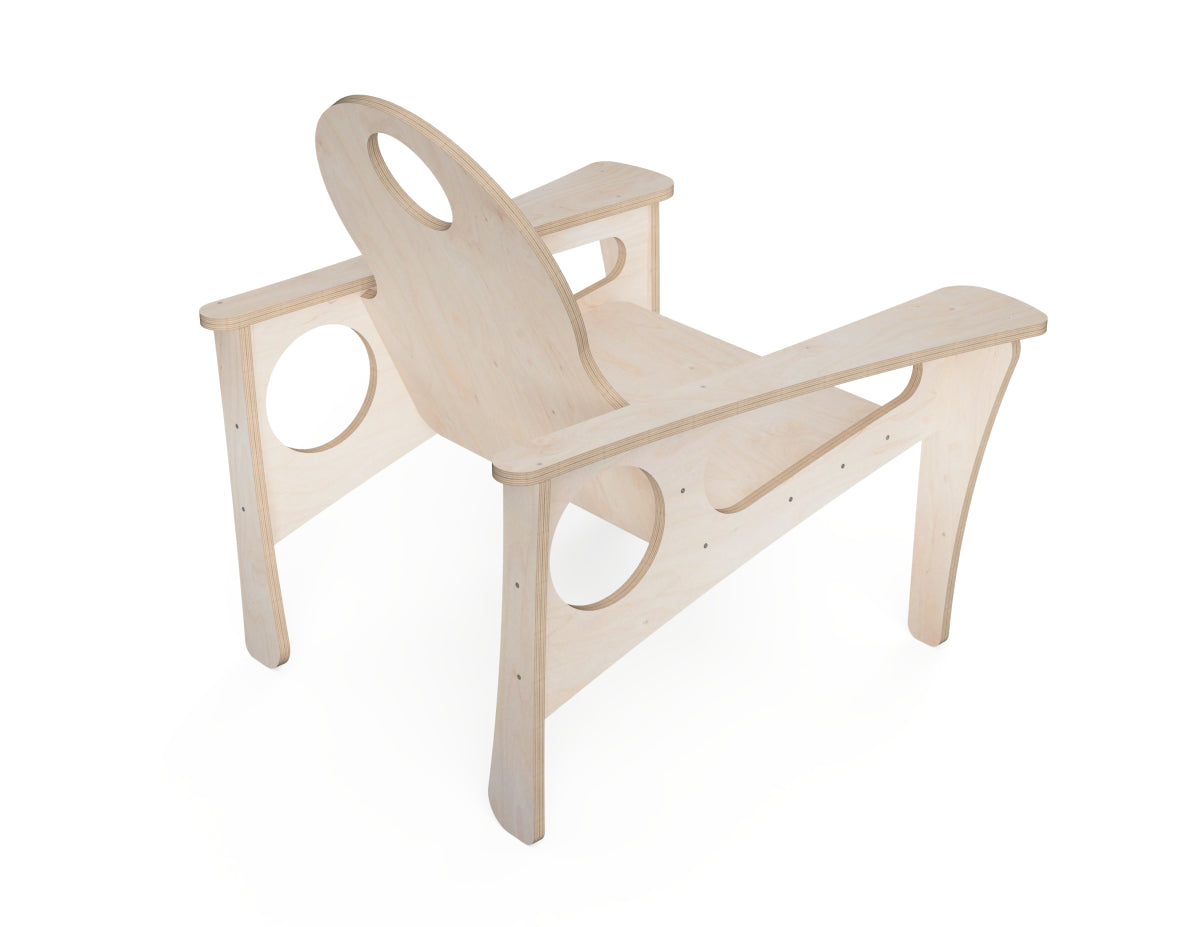

  • A light natural wood chair with a minimalist design, featuring circular cutouts in the backrest and side panels, shown on a solid white background.
1 6

Lounge Chair - Arches - DXF Files

Lounge Chair - Arches - DXF Files

$6.25 USD
$12.45 USD $6.25 USD
Sale Sold out
Taxes included.

A simple and modern plywood lounge chair designed to be made with a CNC router. The interlocking construction keeps the design clean and easy to assemble, while the curved backrest and angled legs provide a comfortable, relaxed seat.



The CNC files are designed for plywood and are suitable for DIY furniture makers and CNC enthusiasts. Perfect for adding a stylish lounge chair to your home, workshop, or outdoor space.

Supported CNC sizes

The project can be made on a 800 x 1200 mm (2.6 x 4 ft) CNC router and bigger.

Max single piece size

The biggest component is 875 x 625 mm (34.45 x 24.61 inches).
So if it can fit on your CNC router, you can build this project

Dimensions

Width Length Height
875 mm 910 mm 905 mm
34½ inch 35⅞ inch 35⅝ inch

Required materials

For a 800 x 1220 mm (2.6 x 4 ft) CNC
- 2 sheets of 820 x 1220 x 18 mm (32 x 48 x 0.75 inches) plywood
- 35 mm (1.5 inches) wood screws - 30 pieces
- 6 mm (0.25 inch) router bit
For a 1220 x 1220 mm (4 x 4 ft) CNC
- 1 sheet of 1220 x 1220 x 18 mm (48 x 48 x 0.75 inches) plywood
- 1 sheet of 950 x 320 x 18 mm (38 x 13 x 0.75 inches) plywood
- 35 mm (1.5 inches) wood screws - 30 pieces
- 6 mm (0.25 inch) router bit
For a 1220 x 2440 mm (4 x 8 ft) CNC
- 1 sheet of 2440 x 850 x 18 mm (96 x 34 x 0.75 inches) plywood
- 35 mm (1.5 inches) wood screws - 30 pieces
- 6 mm (0.25 inch) router bit

Approximate CNC time

1 hour

Assembling time

1 hour
The product may differ from the representative images when cut and assembled. We hope you will enjoy your purchase from Aribabox!
