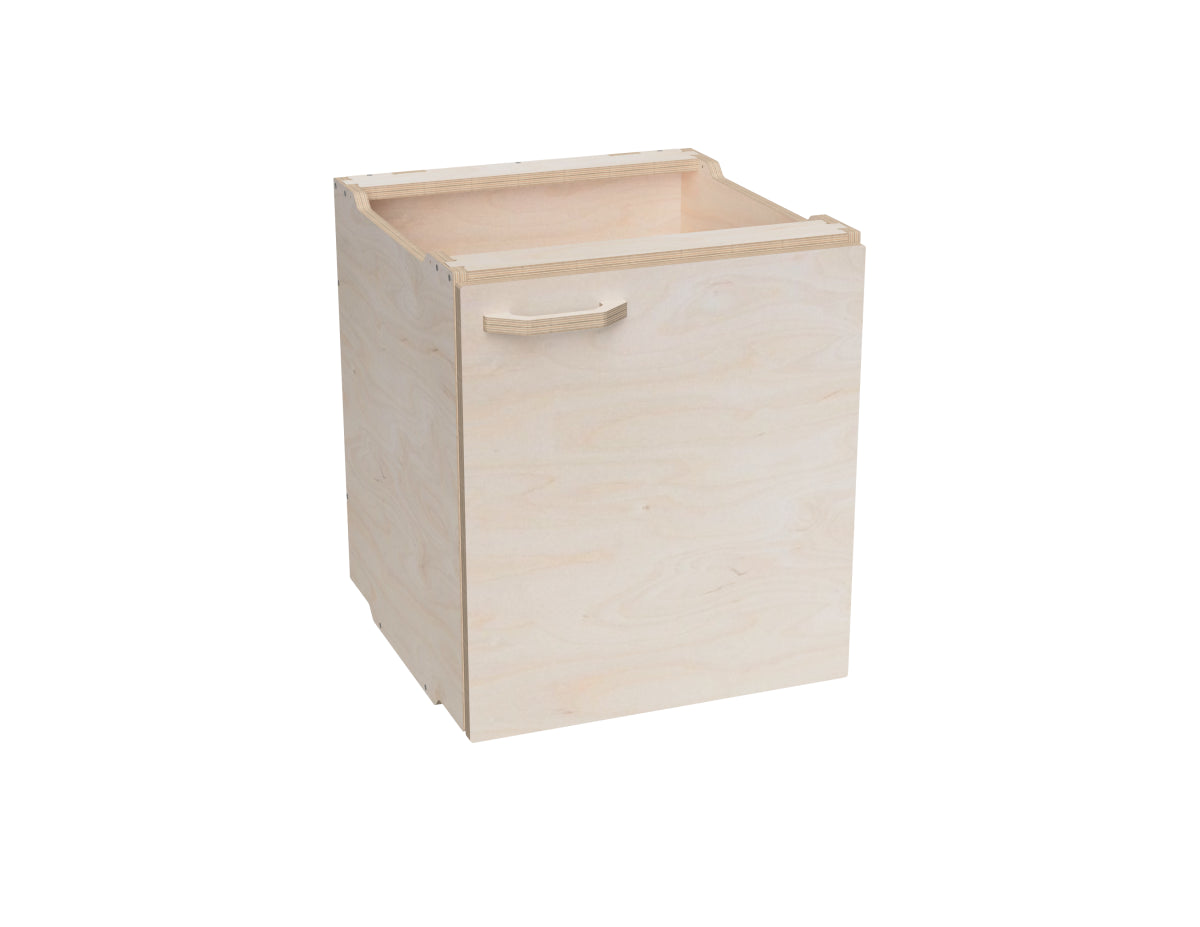

• Large modular workshop cabinet DXF render, 550 mm width, stacked module

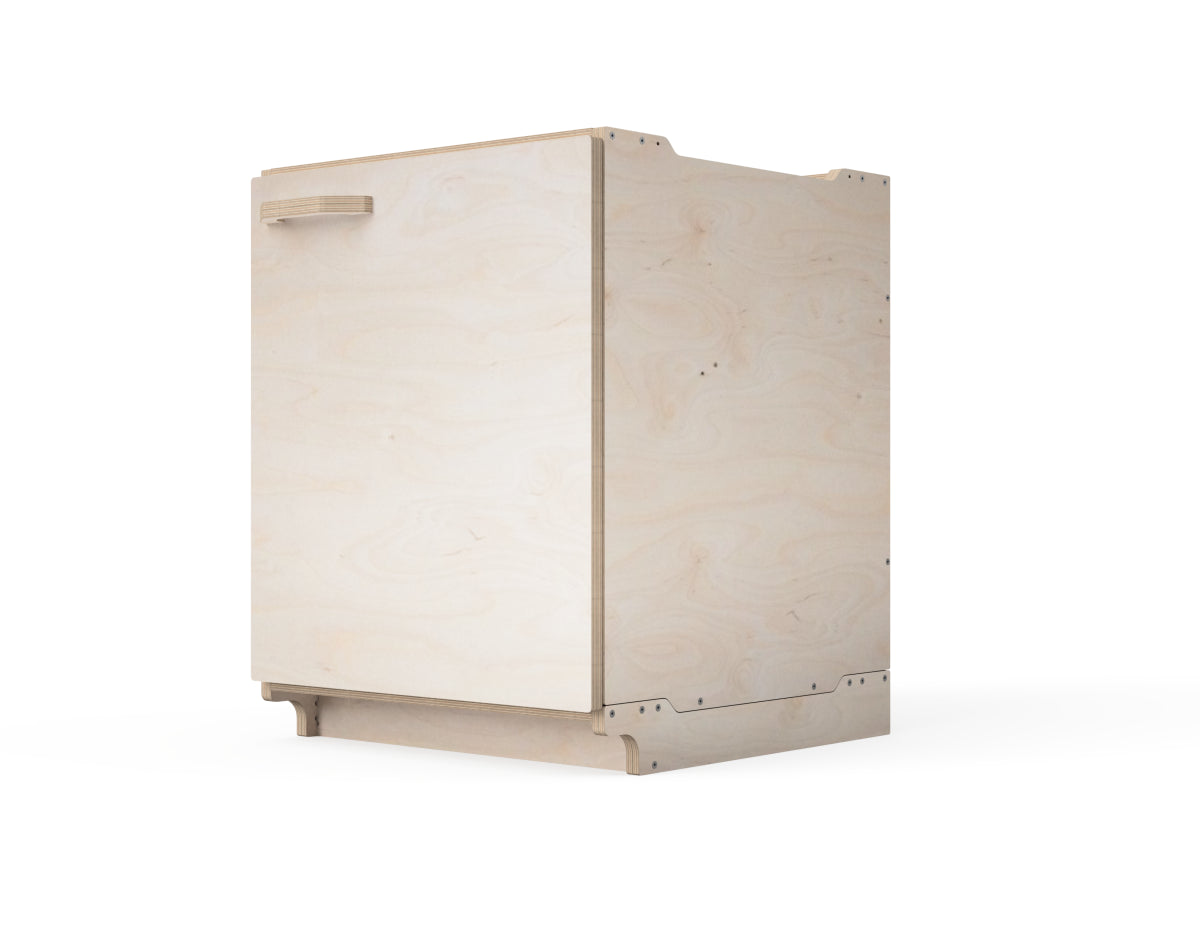

  • Render showing three cabinet modules stacked in a workshop setup

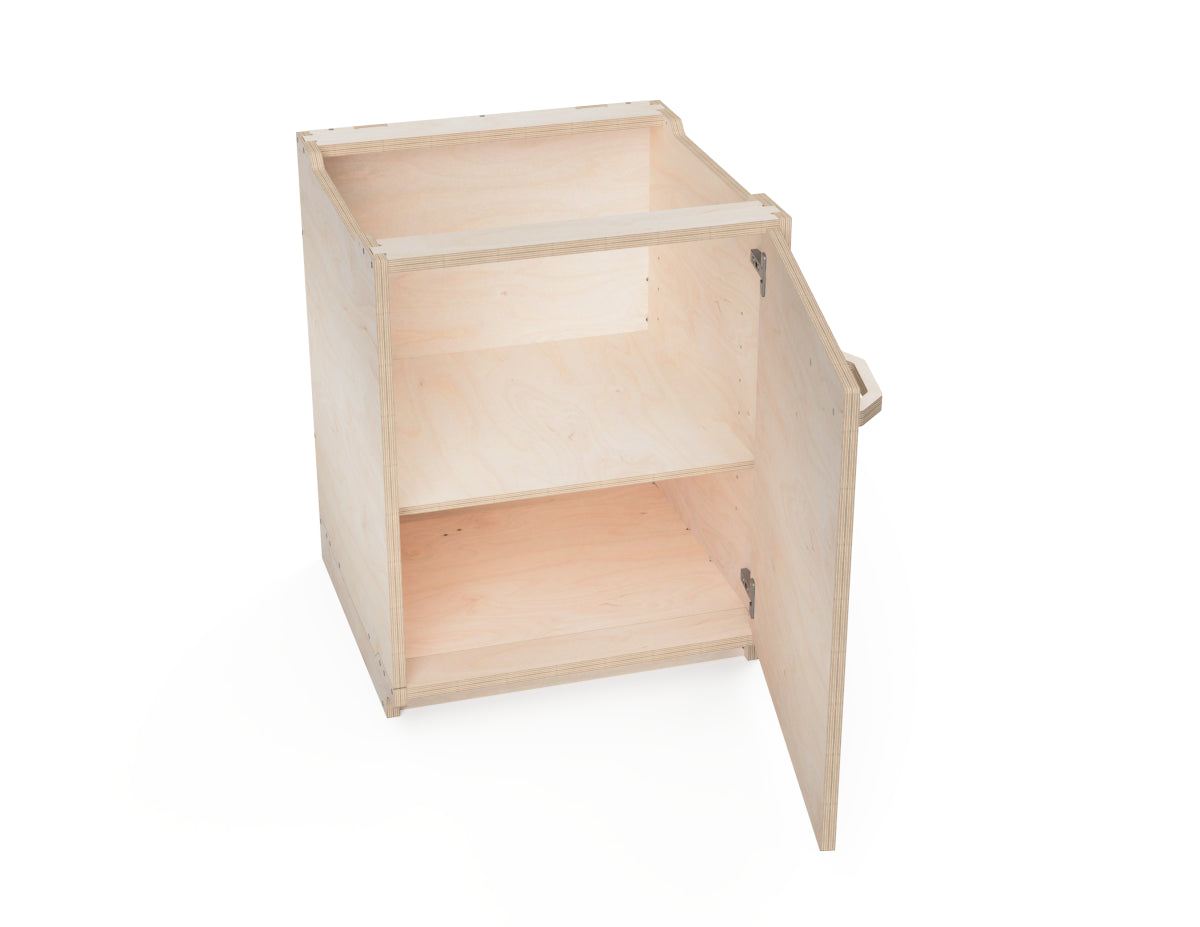

  • 3D view of a single 550 mm wide workshop cabinet module
  • Render showing easy assembly of modular workshop cabinet sections

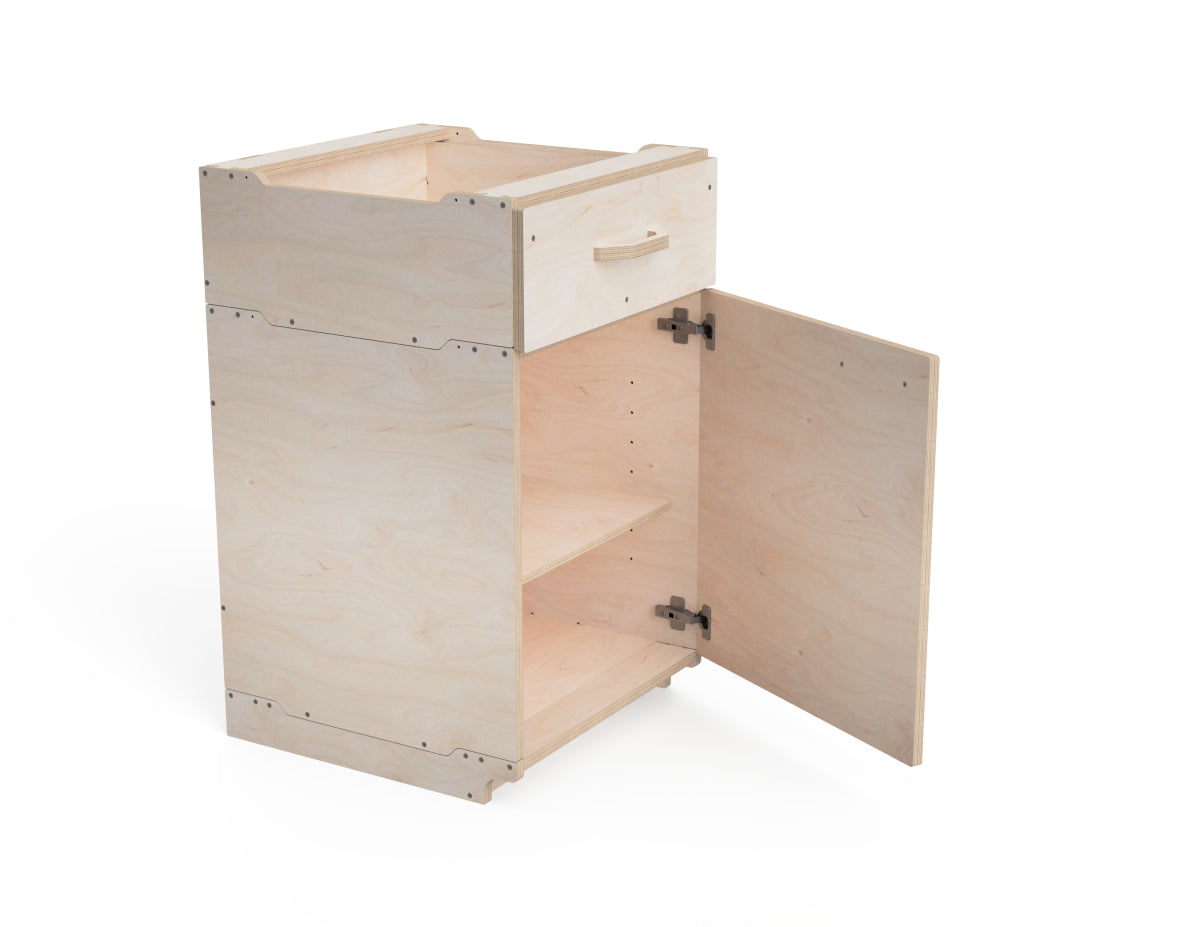

  • Close-up of built-in door on large modular workshop cabinet

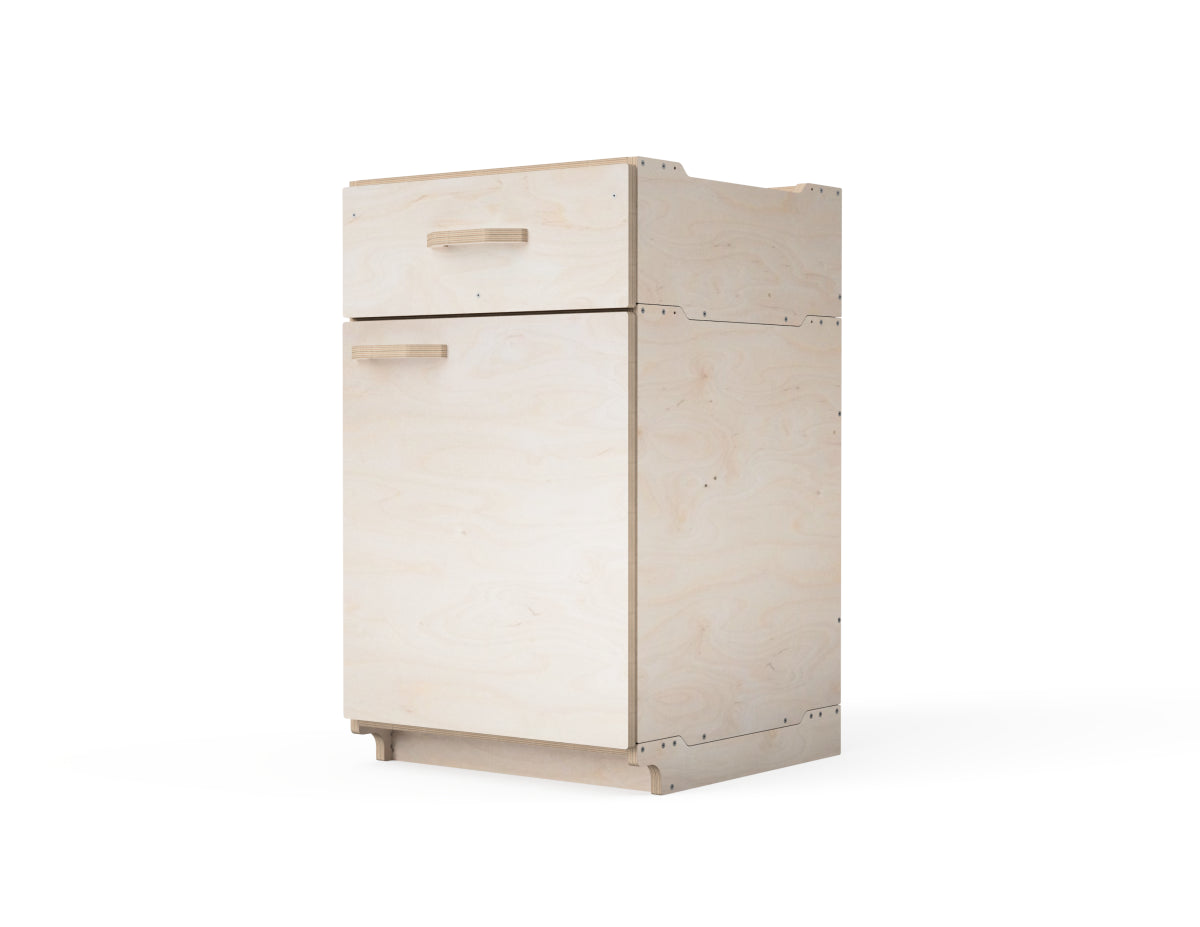

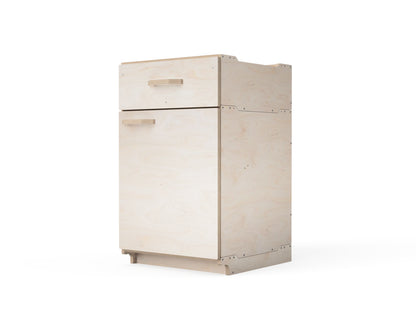

  • Large modular workshop cabinet in garage setup render

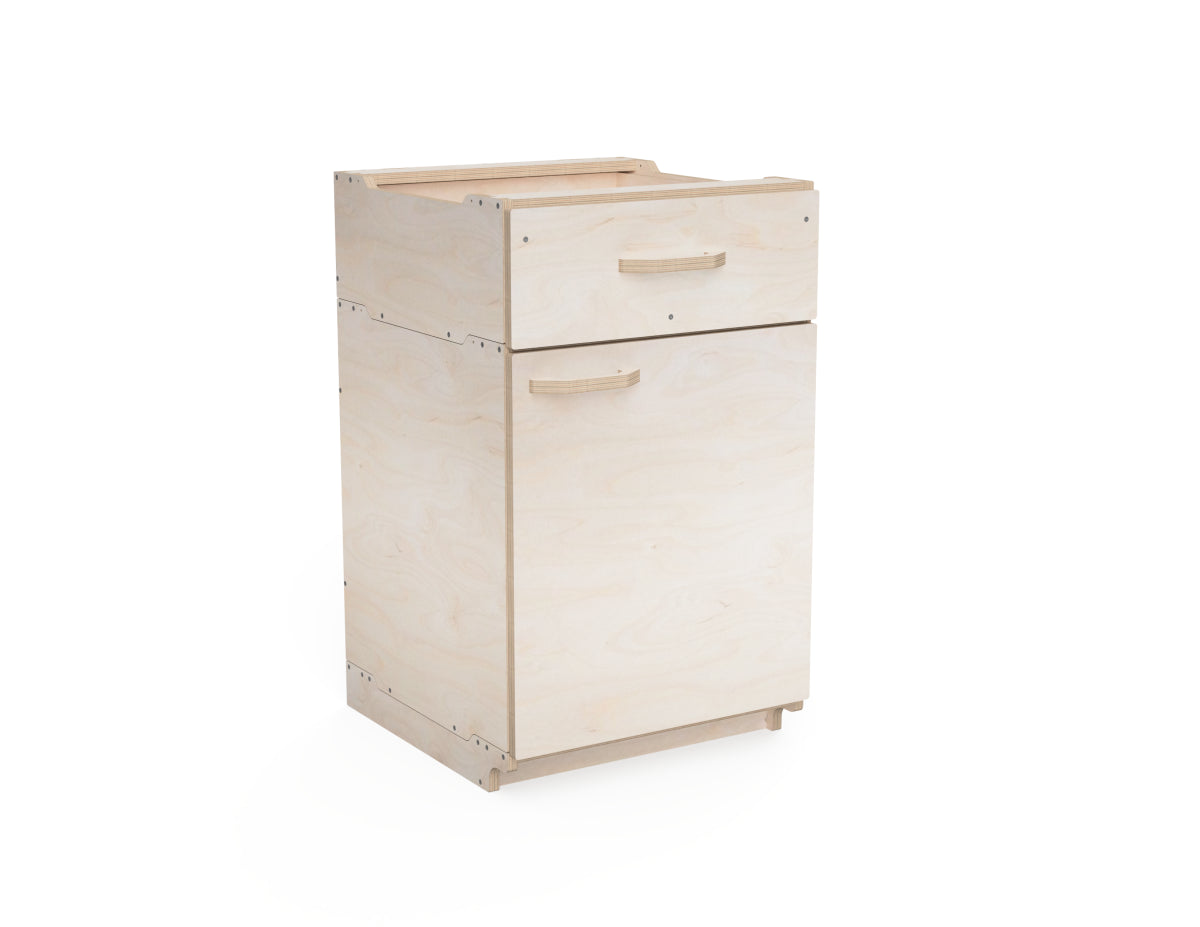

  • Large modular workshop cabinet DXF render, 550 mm width, stacked module
  • CNC workshop cabinet module with built-in door, 475 mm width

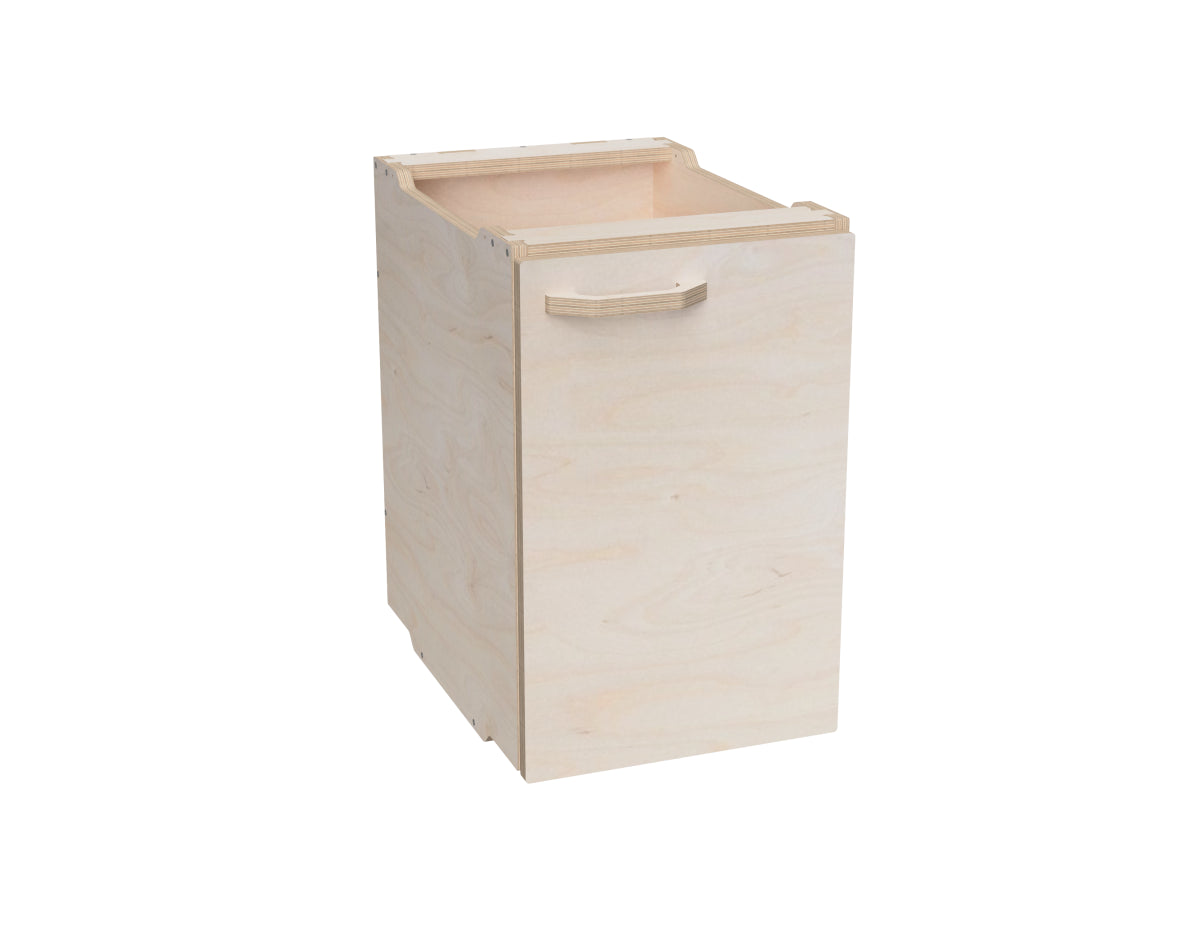

  • Modular cabinet section for workshop storage, 400 mm width, DXF files
1 11

Large Modular Workshop Cabinet - DXF Files

Large Modular Workshop Cabinet - DXF Files

$3.95 USD
$7.95 USD $3.95 USD
Sale Sold out
Taxes included.

Create a versatile, custom workshop storage solution with our Large Modular Workshop Cabinet DXF Files. Designed for CNC router users, this project allows you to craft durable cabinets tailored to your workspace.

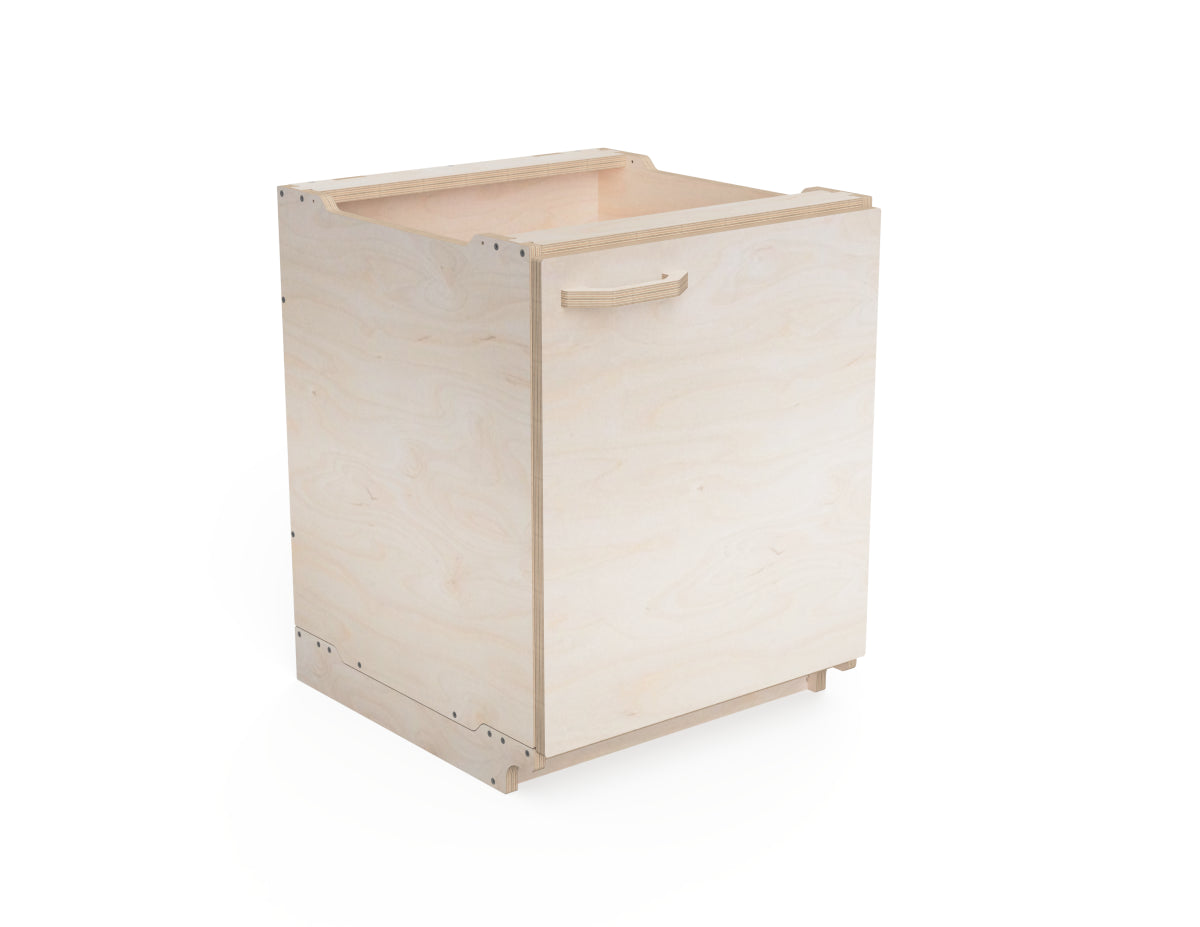

The modular design lets you build individual sections and stack them as needed, giving you complete flexibility to expand or reconfigure your setup over time.

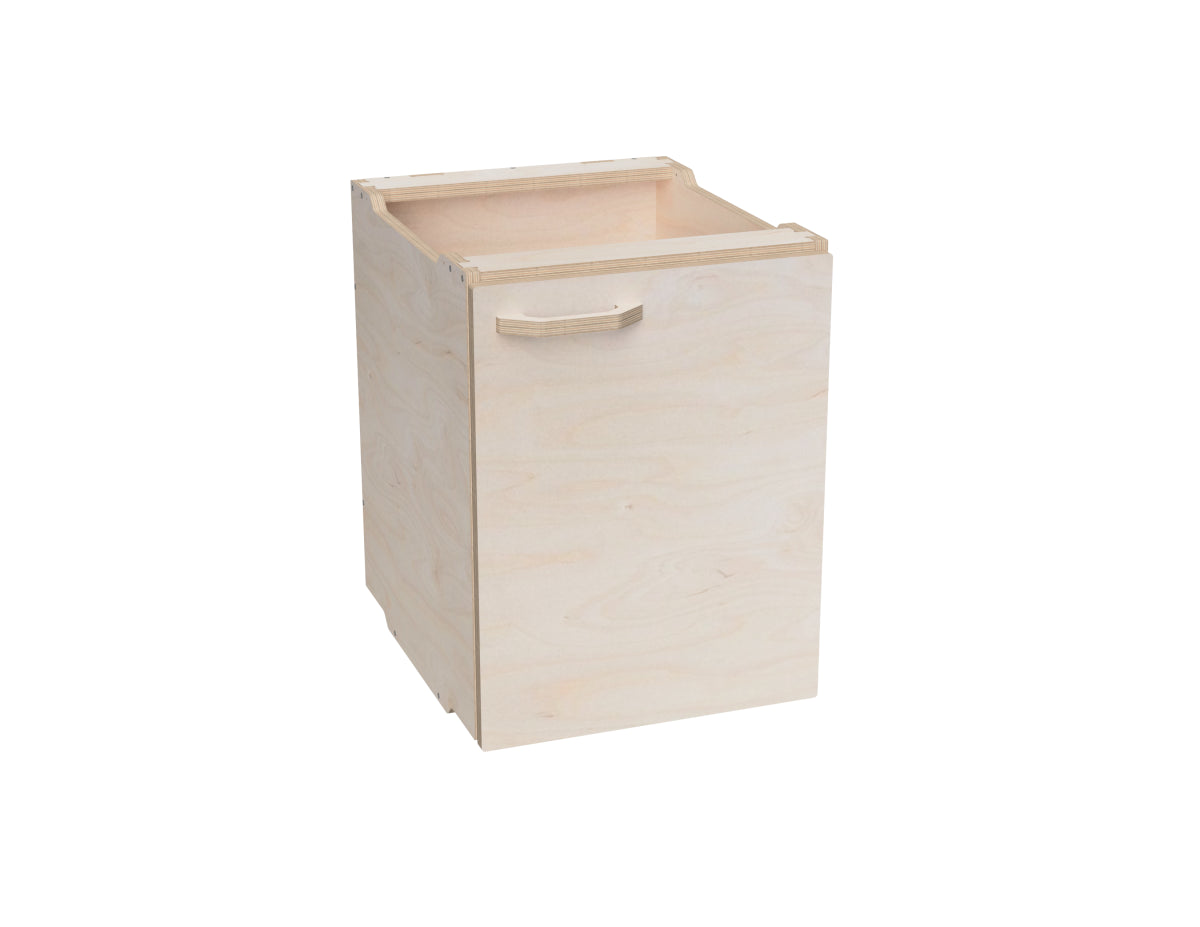

Choose from three widths - 550 mm, 475 mm, or 400 mm - to perfectly fit your workshop layout. The clean, functional design ensures a professional finish while maximizing storage efficiency.



Whether you’re organizing a small garage or a large workshop, these DXF files make it simple to create a custom, modular cabinet system with precise cuts and minimal assembly hassle.



Key Features:

- Modular design for stacking and flexibility

- Three width options: 550 mm, 475 mm, 400 mm

- CNC-ready DXF files for easy fabrication

- Perfect for workshops, garages, or makerspaces



Take control of your workshop storage with a cabinet system that grows with your needs.

Supported CNC sizes

The project can be made on a 600 x 900 mm (2 x 3 ft) CNC router and bigger.

Max single piece size

The biggest component is 615 x 550 mm (24.21 x 21.65 inches).
So if it can fit on your CNC router, you can build this project

Dimensions


Minimum

Width Length Height
400 mm 550 mm 615 mm
15¾ inch 21⅝ inch 24¼ inch

Maximum

Width Length Height
550 mm 550 mm 615 mm
21⅝ inch 21⅝ inch 24¼ inch

Required materials

For a 600 x 900 mm (2 x 3 ft) CNC
- 4 sheets of 600 x 900 x 18 mm (24 x 36 x 3/4 inches) plywood
- 2 sheets of 650 x 600 x 12 mm (24 x 26 x 1/2 inches) plywood
- 35 mm (1-1/2 inches) wood screws - 25 pieces
- 6 mm (1/4 inch) router bit
- Cabinet hinges - 2 pieces
For a 900 x 1220 mm (3 x 4 ft) CNC
- 2 sheets of 650 x 1220 x 18 mm (26 x 48 x 3/4 inches) plywood
- 1 sheets of 600 x 1220 x 12 mm (24 x 48 x 1/2 inches) plywood
- 35 mm (1-1/2 inches) wood screws - 25 pieces
- 6 mm (1/4 inch) router bit
- Cabinet hinges - 2 pieces
For a 1220 x 1220 mm (3 x 4 ft) CNC
- a sheet of 1220 x 1220 x 18 mm (48 x 48 x 3/4 inches) plywood
- 1 sheets of 600 x 1220 x 12 mm (24 x 48 x 1/2 inches) plywood
- 35 mm (1-1/2 inches) wood screws - 25 pieces
- 6 mm (1/4 inch) router bit
- Cabinet hinges - 2 pieces

Approximate CNC time

20 minutes

Assembling time

15 minutes
The product may differ from the representative images when cut and assembled. We hope you will enjoy your purchase from Aribabox!
