Kitchen Wall Cabinet - Wine Storage (Inset Door Cabinets) DXF Files

Kitchen Wall Cabinet - Wine Storage (Inset Door Cabinets) DXF Files

Regular price $12.95 USD
Regular price $0.00 USD Sale price $12.95 USD
Sale Sold out
Taxes included.

Enhance your kitchen's functionality with our Kitchen Wall Cabinet - Wine Storage DXF files, an essential addition to the "Inset Door Cabinet Kitchen Set".


Perfect for beginners and seasoned craftsmen, these user-friendly files simplify the construction of a plywood cabinet using a CNC router.

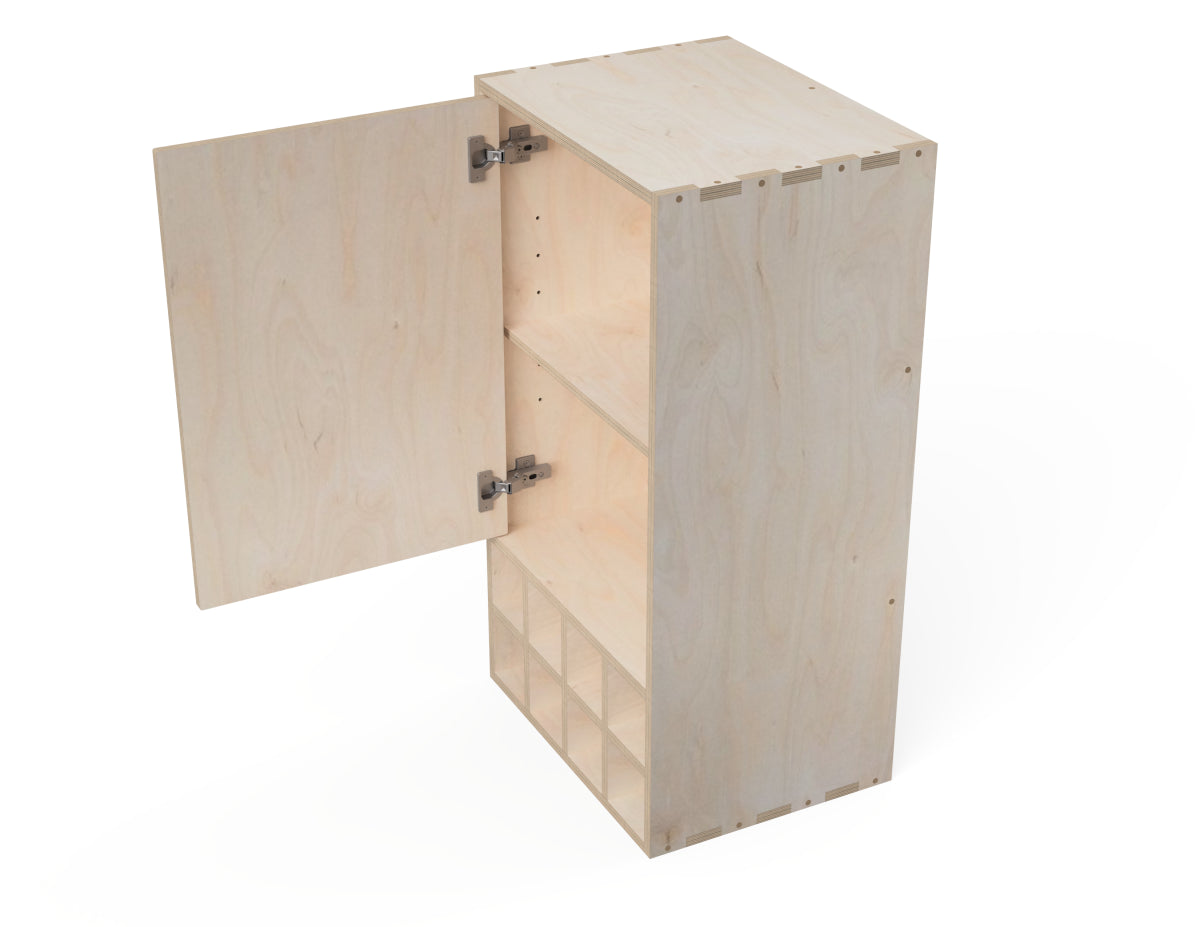

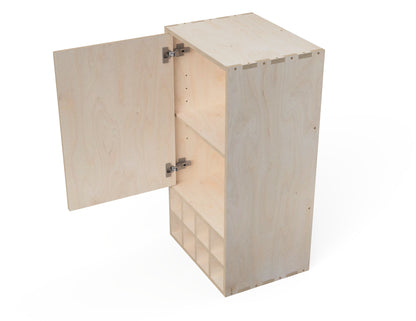

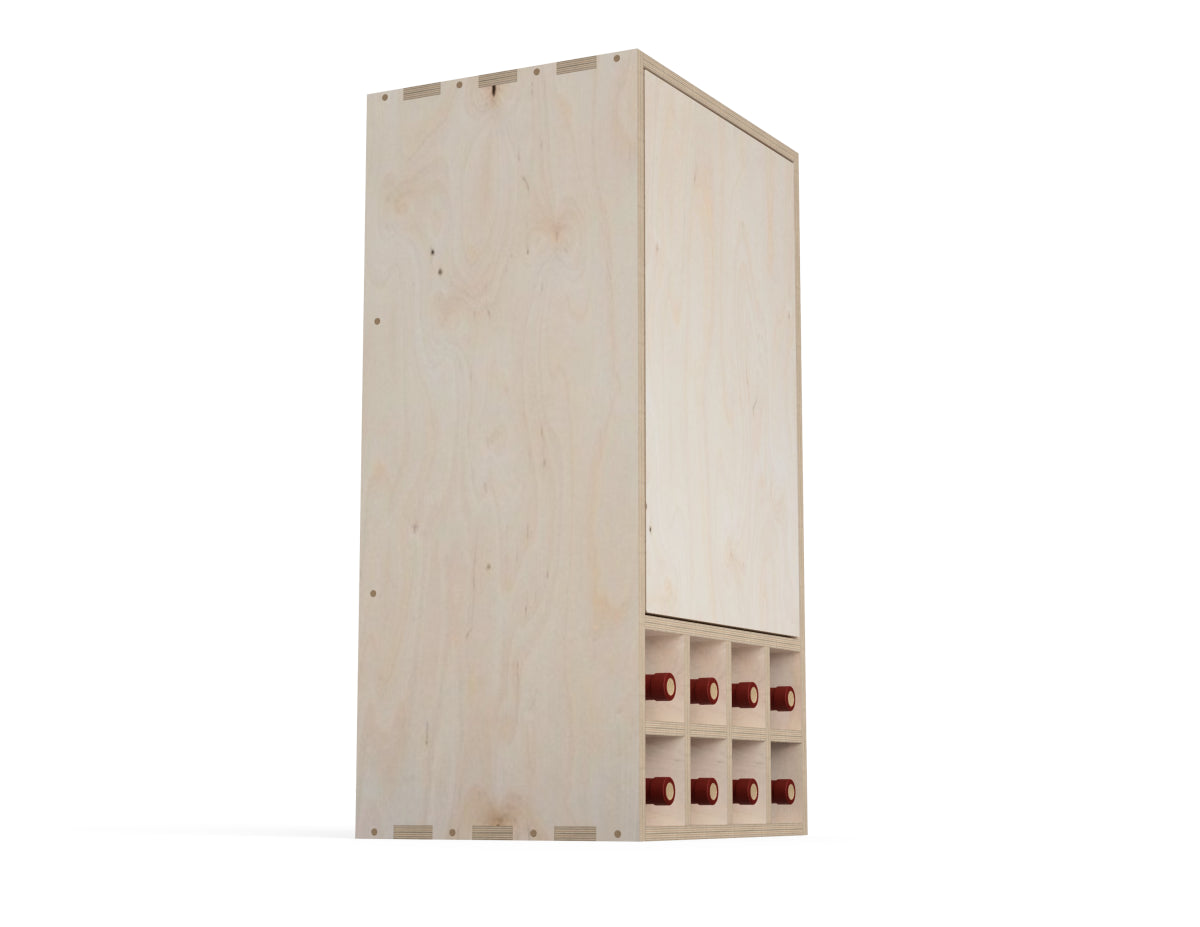

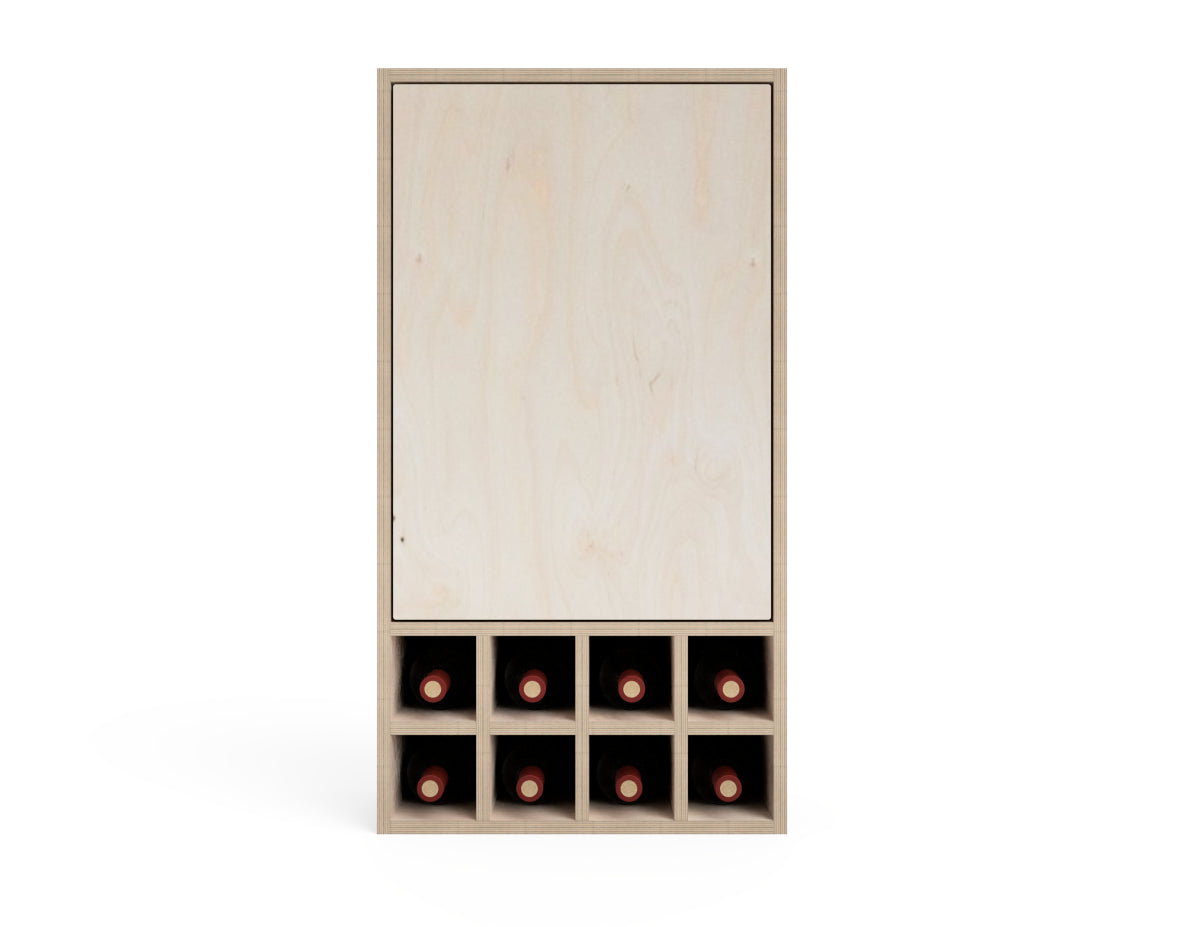

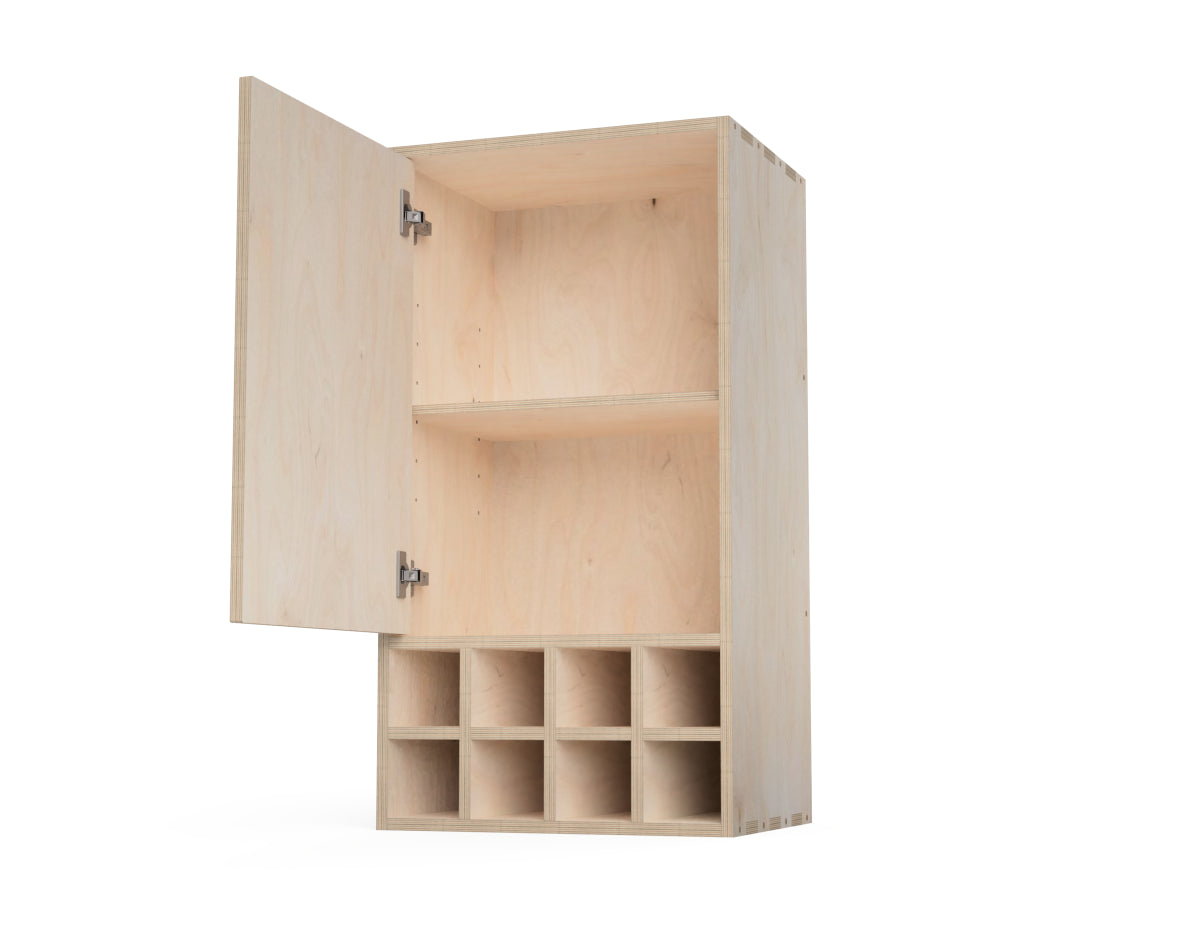

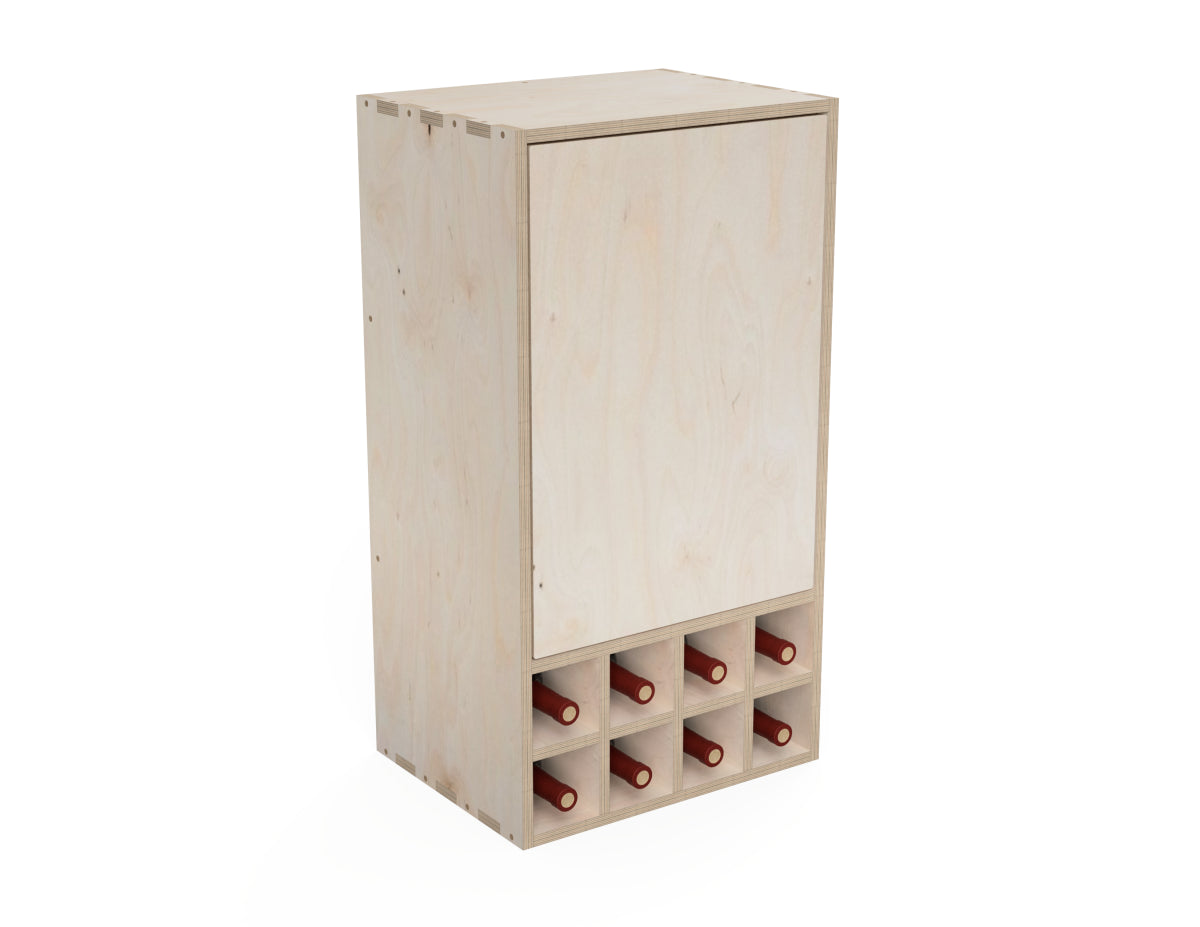

Featuring a spacious one-door cabinet and a wine storage rack accommodating 8 bottles, our DXF files provide convenient storage solutions tailored to your needs.


Elevate your kitchen organization effortlessly with our easy-to-follow DXF files.


The design can be cut on an 800 x 1200 mm (2.6 x 4 ft) CNC router and bigger.


*The files are adjusted to fit both metric and imperial standards for materials and tools


Dimensions (Can be customized to your needs):

850 mm (height) x 455 mm (width) x 350 mm (depth)

33.5 inches (height) x 17.9 inches (width) x 13.8 inches (depth)

Required materials:

For an 800 x 1200 (2.6 x 4 ft) CNC router

  • 2 sheets of 1200 x 820 x 15 mm (48 x 33 x 0.625 inches) Plywood
  • 1 sheet of 550 x 400 x 15 mm (22 x 16 x 0.625 inches) Plywood
  • 1 sheet of 1200 x 500 x 12 mm (48 x 20 x 0.5 inches) Plywood
  • 3 mm (0.125 inch) Router bit

For an 1200 x 1200 (4 x 4 ft) CNC router

  • 1 sheet of 1200 x 1150 x 15 mm (48 x 46 x 0.625 inches) Plywood
  • 1 sheet of 1150 x 650 x 15 mm (46 x 26 x 0.625 inches) Plywood
  • 1 sheet of 1200 x 500 x 12 mm (48 x 20 x 0.5 inches) Plywood
  • 3 mm (0.125 inch) Router bit

For an 1220 x 2440 (4 x 8 ft) CNC router

  • 1 sheet of 2440 x 900 x 15 mm (96 x 36 x 0.625 inches) Plywood
  • 1 sheet of 1200 x 500 x 12 mm (48 x 20 x 0.5 inches) Plywood
  • 3 mm (0.125 inch) Router bit

Plywood Screws - 35 mm (1.25 inches)

1 Pair of Inset Cabinet Hinges

Push to Open door opener


Assembling time:

25 minutes


Delivery time:

30 seconds

After completing the order, you will receive the DXF design file in your email within seconds.


Updates:

Free

If your plywood sheet is thicker or thinner than expected, send your purchase number and the precise thickness to contact@aribabox.com. We will send you the updated DXF design file for free.


The product may differ from the representative images when cut and assembled. We hope you will enjoy your purchase from Aribabox.

Supported CNC sizes

The project can be made on a 800 x 1200 mm (2.6 x 4 ft) CNC router and bigger.

Dimensions

455 mm (width) X 10 mm (length) X 850 mm (height)
17.9 inches (width) X 0.4 inches (length) X 33.5 inches (height)

Required materials

For an 800 x 1200 (2.6 x 4 ft) CNC router
- 2 sheets of 1200 x 820 x 15 mm (48 x 33 x 0.625 inches) Plywood
- 1 sheet of 550 x 400 x 15 mm (22 x 16 x 0.625 inches) Plywood
- 1 sheet of 1200 x 500 x 12 mm (48 x 20 x 0.5 inches) Plywood
- 3 mm (0.125 inch) Router bit
For an 1200 x 1200 (4 x 4 ft) CNC router
- 1 sheet of 1200 x 1150 x 15 mm (48 x 46 x 0.625 inches) Plywood
- 1 sheet of 1150 x 650 x 15 mm (46 x 26 x 0.625 inches) Plywood
- 1 sheet of 1200 x 500 x 12 mm (48 x 20 x 0.5 inches) Plywood
- 3 mm (0.125 inch) Router bit
For an 1220 x 2440 (4 x 8 ft) CNC router
- 1 sheet of 2440 x 900 x 15 mm (96 x 36 x 0.625 inches) Plywood
- 1 sheet of 1200 x 500 x 12 mm (48 x 20 x 0.5 inches) Plywood
- 3 mm (0.125 inch) Router bit
- Plywood Screws - 35 mm (1.25 inches)
- 1 Pair of Inset Cabinet Hinges
- Push to Open door opener

Assembling time

25 minutes
The product may differ from the representative images when cut and assembled. We hope you will enjoy your purchase from Aribabox!
