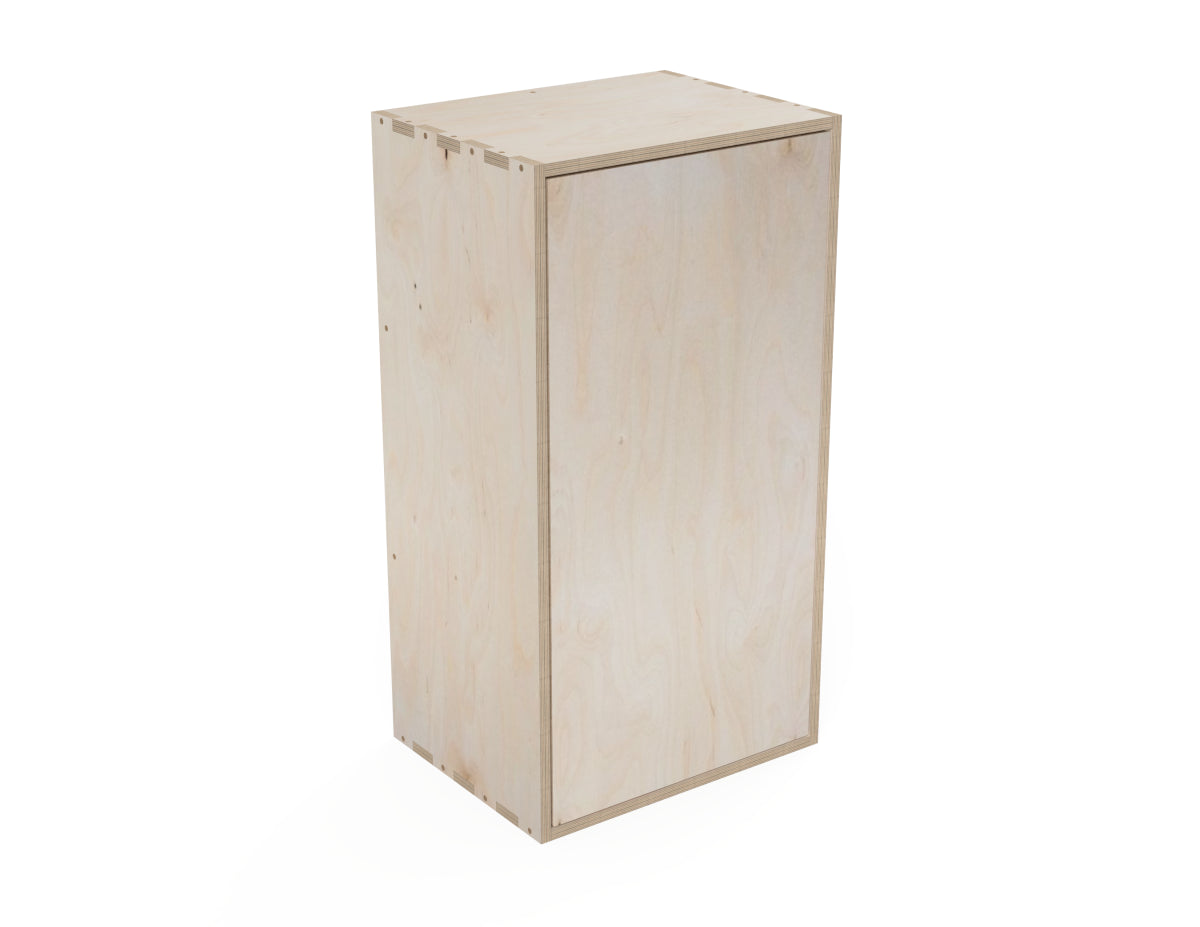

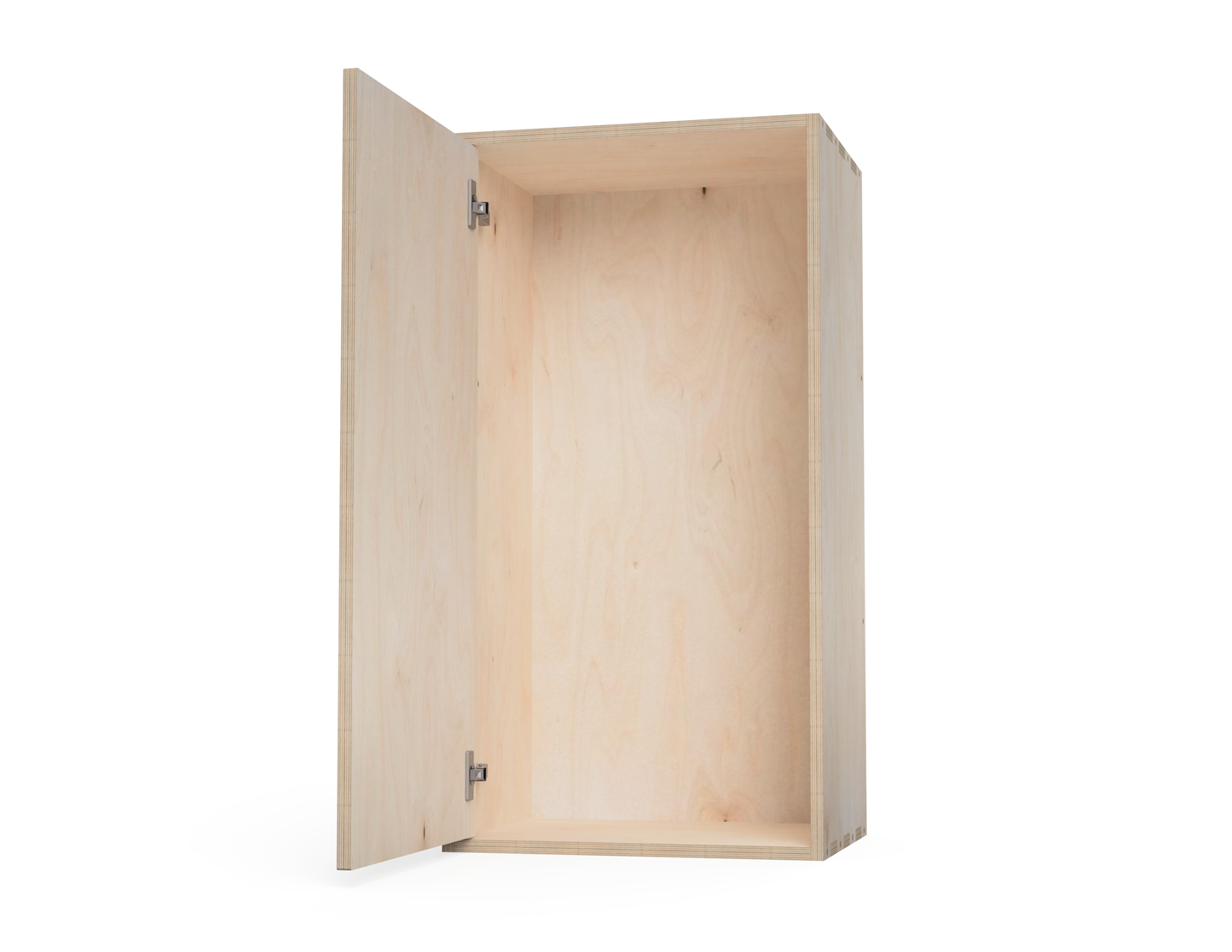

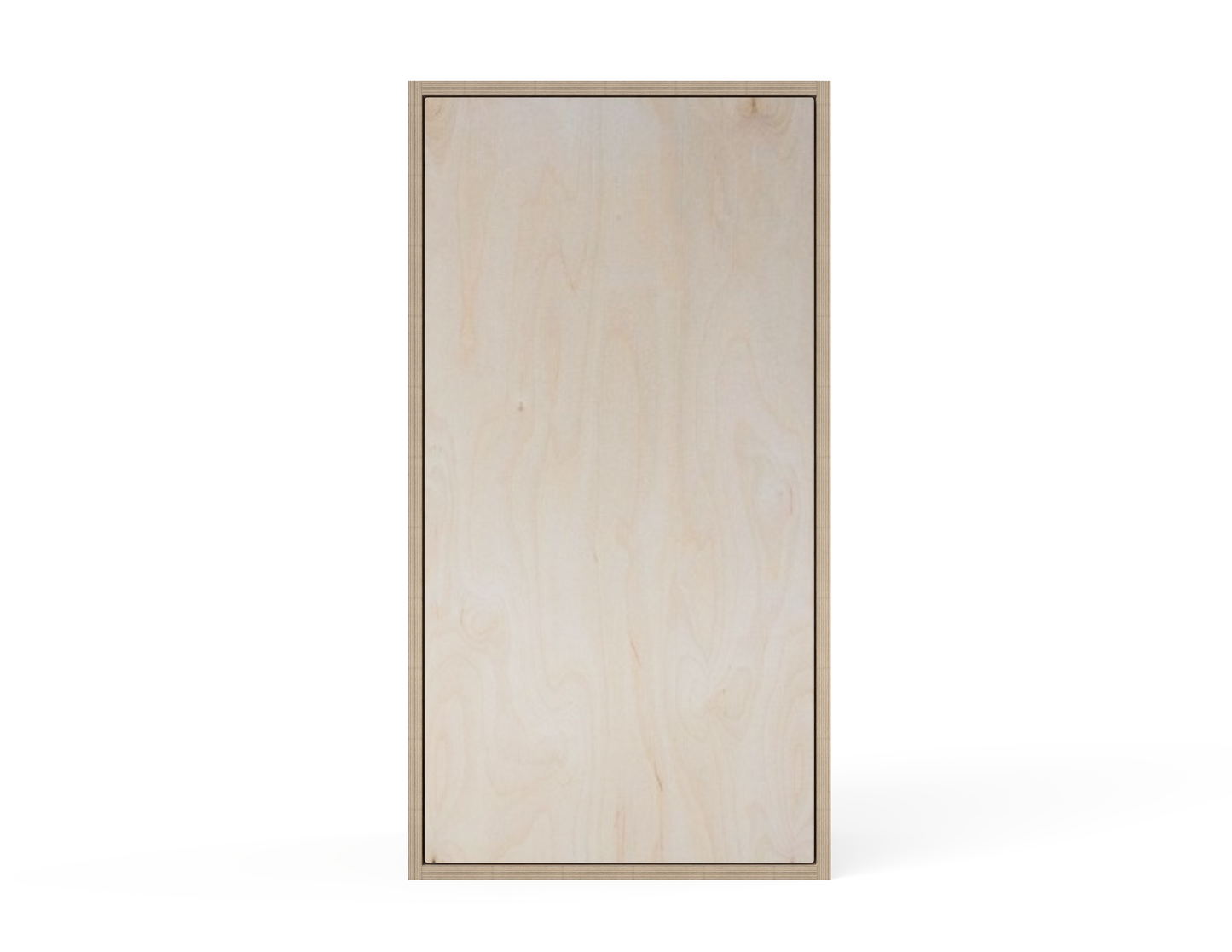

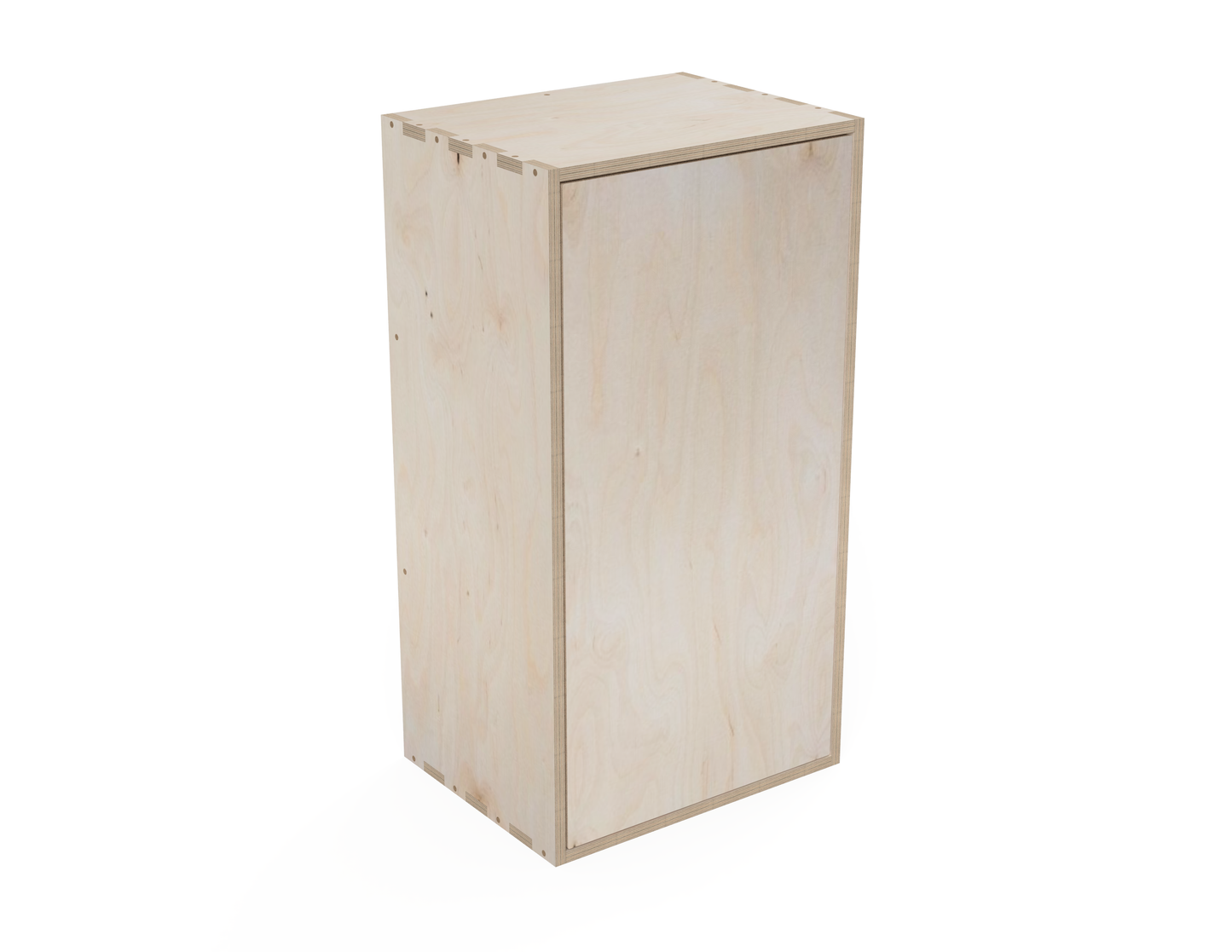

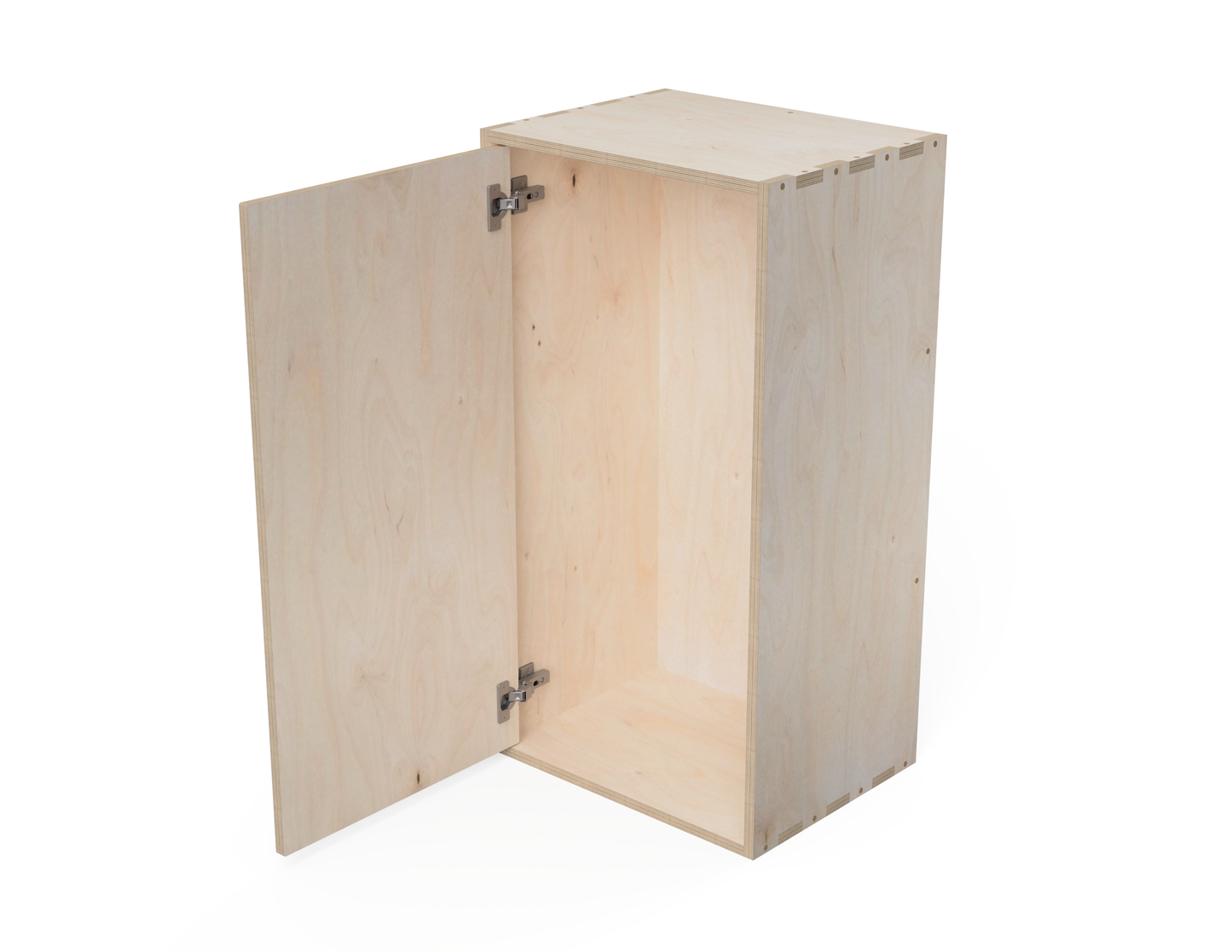

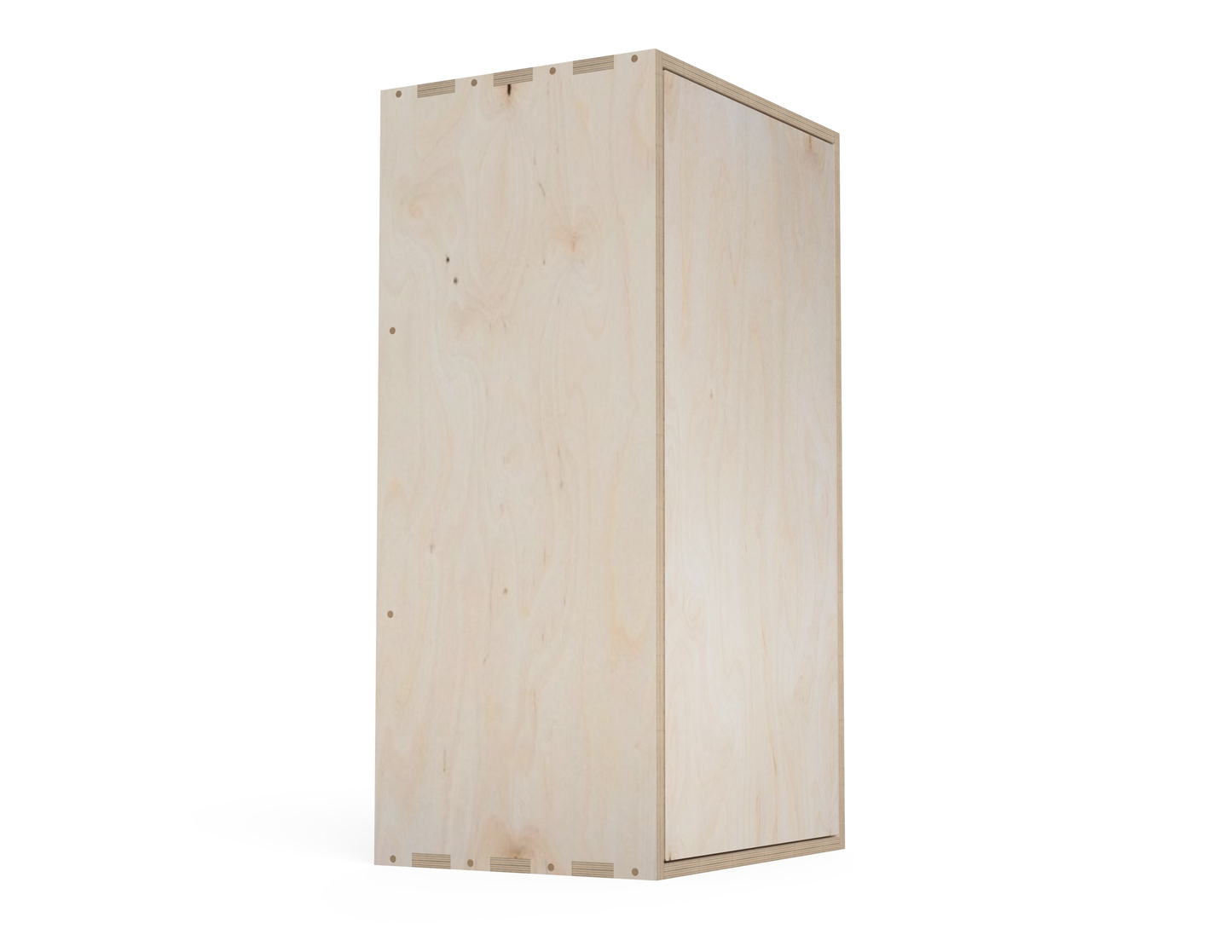

Kitchen Wall Cabinet - Simple One Door Option (Inset Door Cabinets) DXF Files
Kitchen Wall Cabinet - Simple One Door Option (Inset Door Cabinets) DXF Files
Couldn't load pickup availability
Enhance your kitchen's storage space effortlessly with our Kitchen Wall Cabinet - Simple One Door Option DXF files, an essential part of the "Inset Door Cabinet Kitchen Set".
Crafted with simplicity and precision in mind, these user-friendly files enable beginners and experts alike to construct a plywood cabinet seamlessly using a CNC router.
Featuring a large one-door cabinet with shelves, our DXF files offer convenient storage solutions for your kitchen essentials.
Elevate your kitchen organization with ease today using our easy-to-understand DXF files.
Supported CNC sizes
Supported CNC sizes
Dimensions
Dimensions
Width | Length | Height |
---|---|---|
450 mm | 350 mm | 850 mm |
17¾ inch | 13¾ inch | 33½ inch |
Required materials
Required materials
For an 800 x 1200 (2.6 x 4 ft) CNC router
- 2 sheets of 950 x 820 x 15 mm (38 x 33 x 0.625 inches) Plywood
- 1 sheet of 1200 x 500 x 12 mm (48 x 20 x 0.5 inches) Plywood
- 3 mm (0.125 inch) Router bit
For an 1200 x 1200 (4 x 4 ft) CNC router
- 1 sheet of 1200 x 900 x 15 mm (48 x 36 x 0.625 inches) Plywood
- 1 sheet of 950 x 400 x 15 mm (38 x 16 x 0.625 inches) Plywood
- 1 sheet of 1200 x 500 x 12 mm (48 x 20 x 0.5 inches) Plywood
- 3 mm (0.125 inch) Router bit
For an 1220 x 2440 (4 x 8 ft) CNC router
- 1 sheet of 2440 x 850 x 15 mm (96 x 34 x 0.625 inches) Plywood
- 1 sheet of 1200 x 500 x 12 mm (48 x 20 x 0.5 inches) Plywood
- 3 mm (0.125 inch) Router bit
- Plywood Screws - 35 mm (1.25 inches)
- 1 Pair of Inset Cabinet Hinges
- Push-to-open door opener
Assembling time
Assembling time
