Kitchen Wall Cabinet - Simple (Inset Door Cabinets) DXF Files
Kitchen Wall Cabinet - Simple (Inset Door Cabinets) DXF Files
Revolutionize your kitchen storage effortlessly with our Kitchen Wall Cabinet - Simple DXF files, an integral part of the "Inset Door Cabinet Kitchen Set".
Crafted for simplicity and precision, these user-friendly files empower beginners and experts alike to construct a plywood cabinet seamlessly using a CNC router.

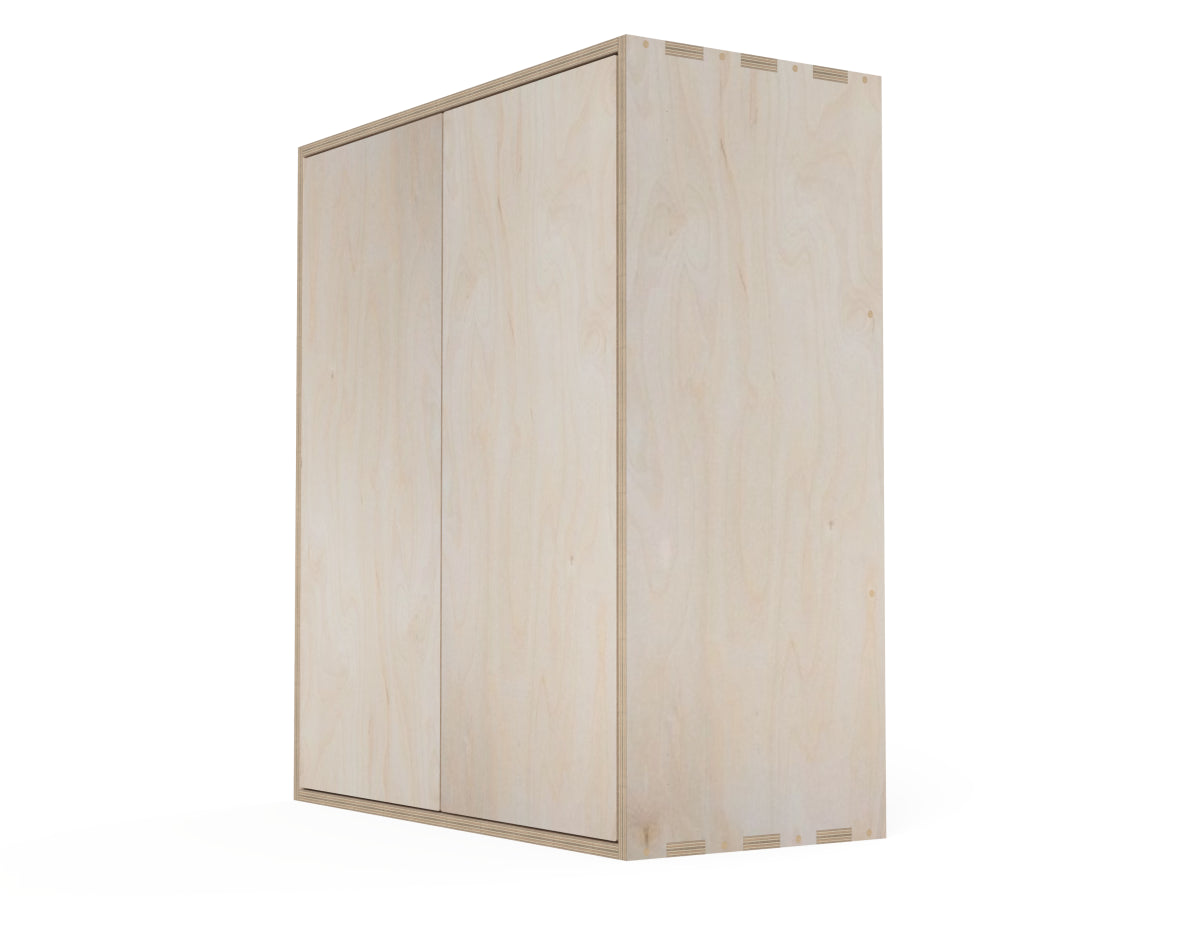

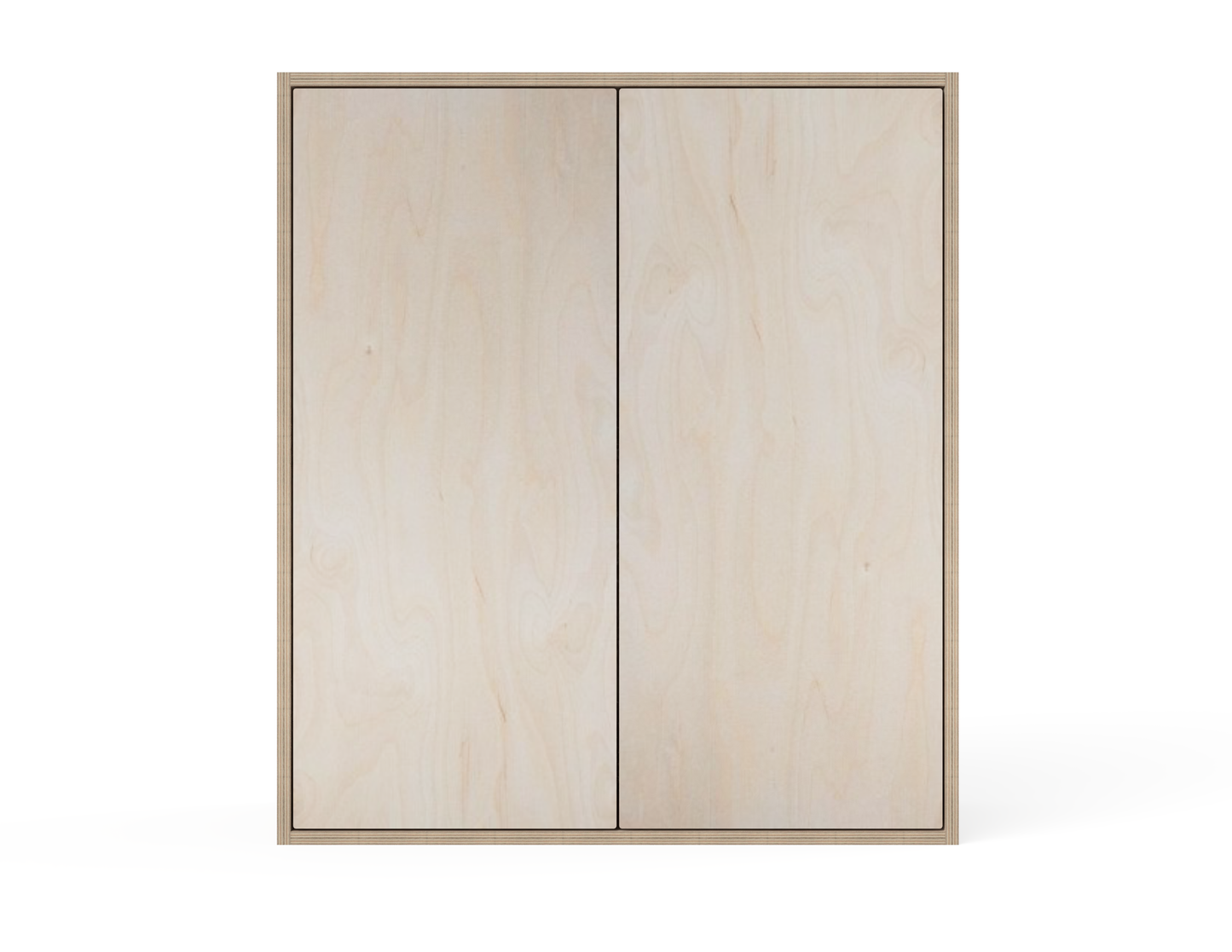

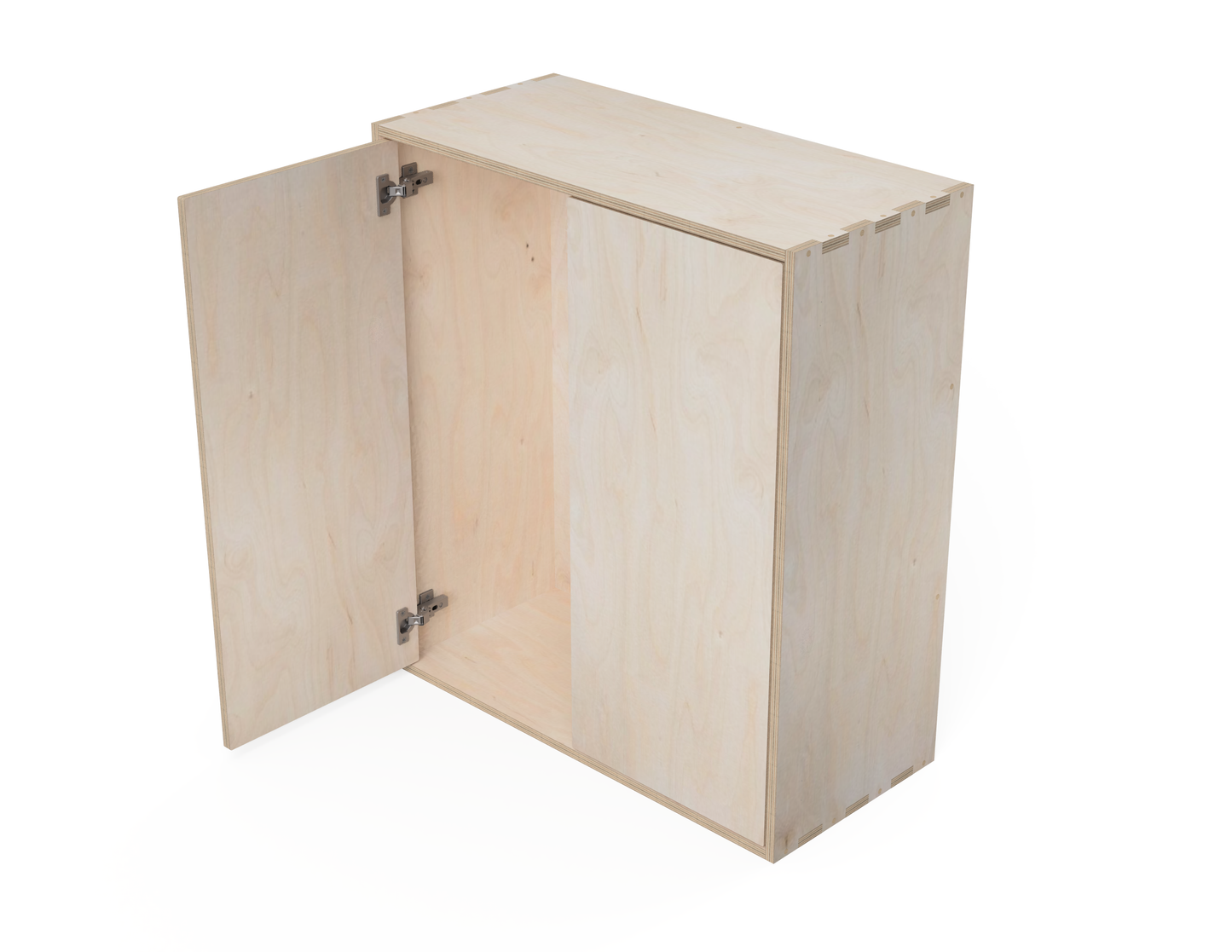

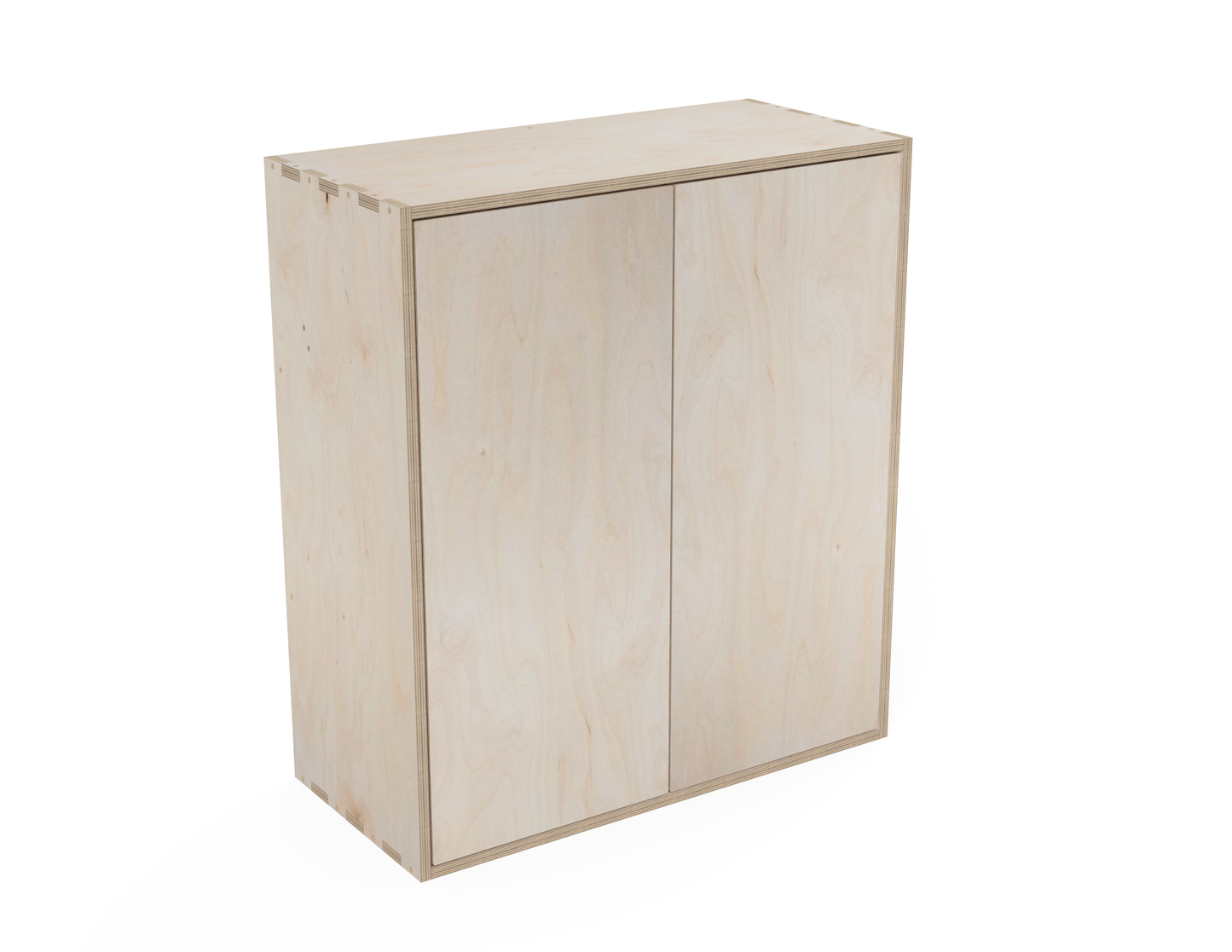

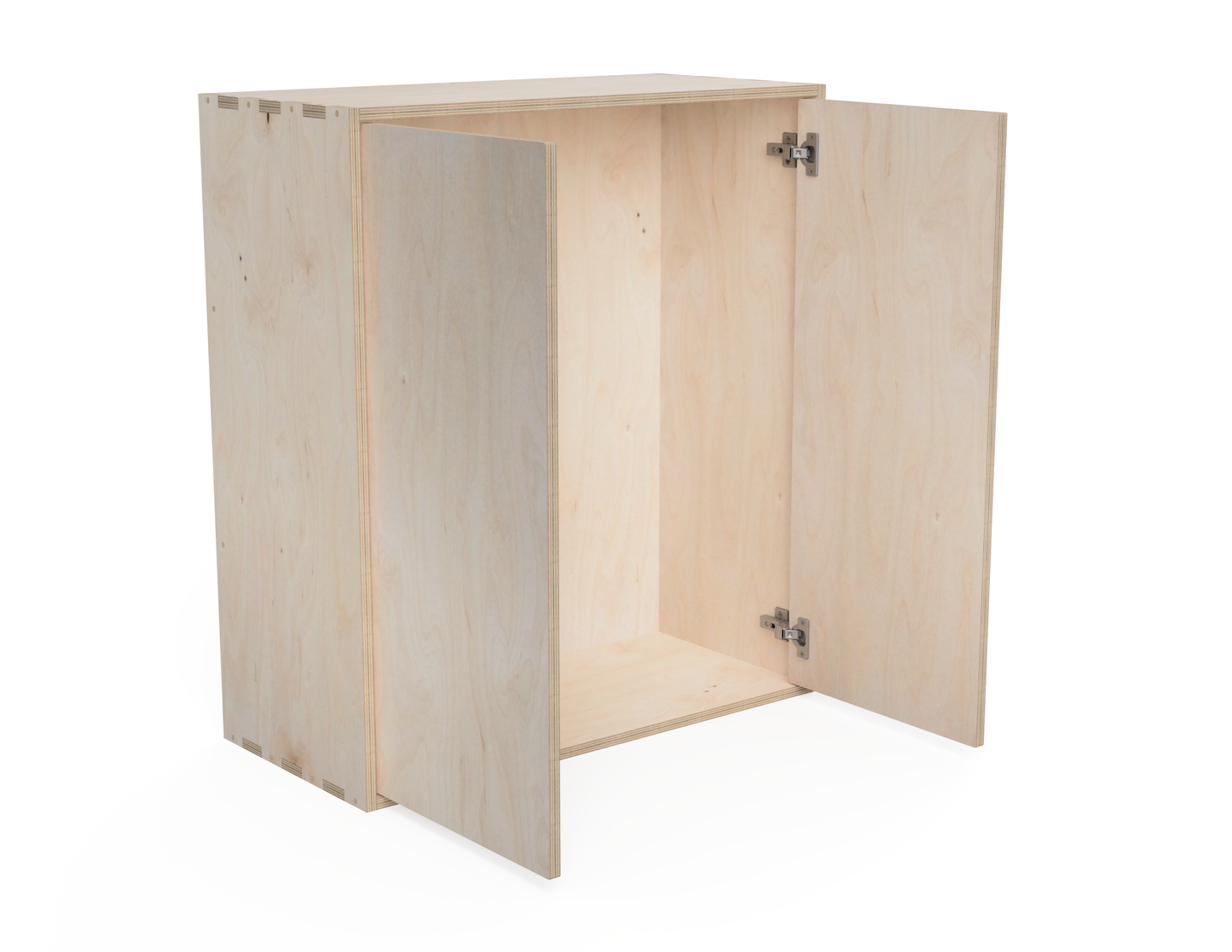

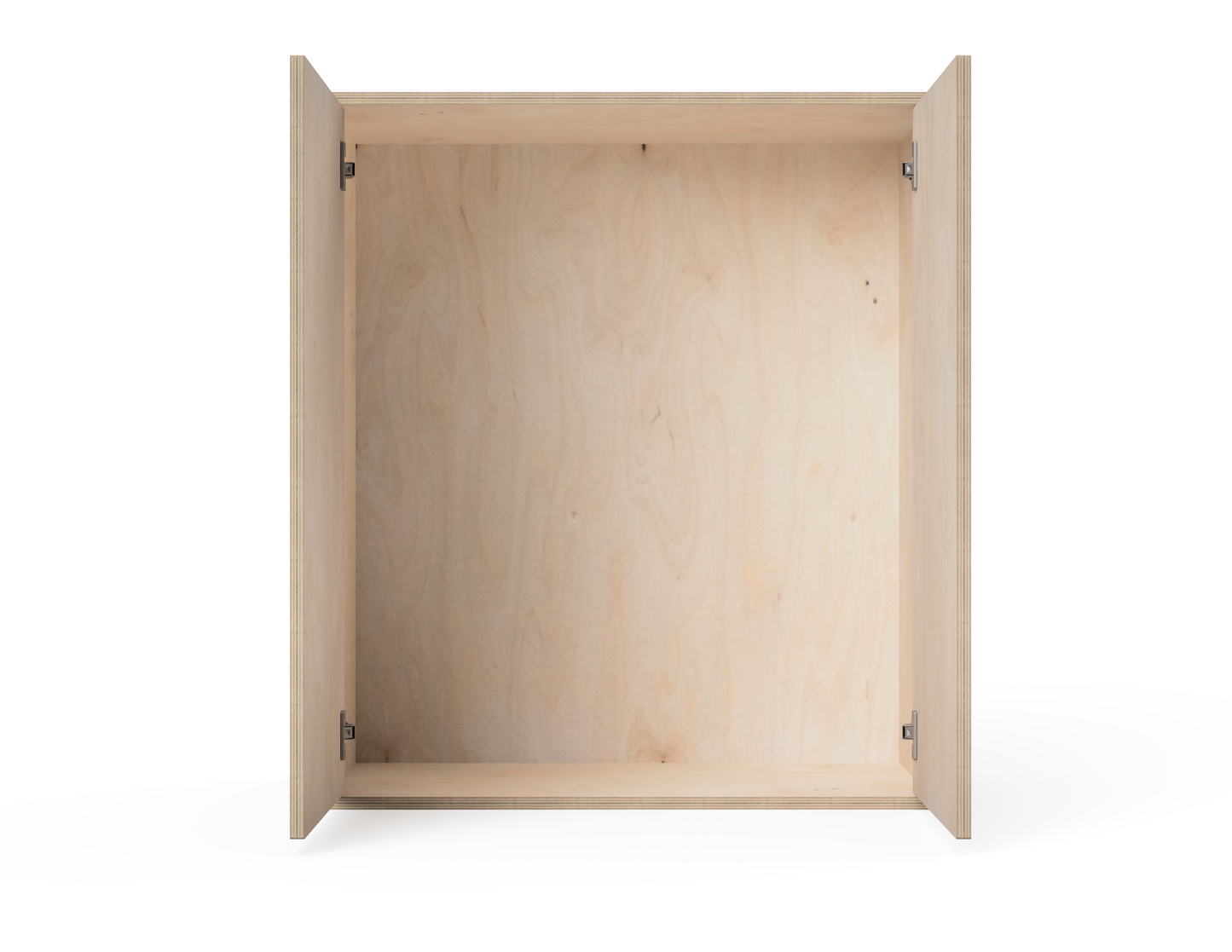

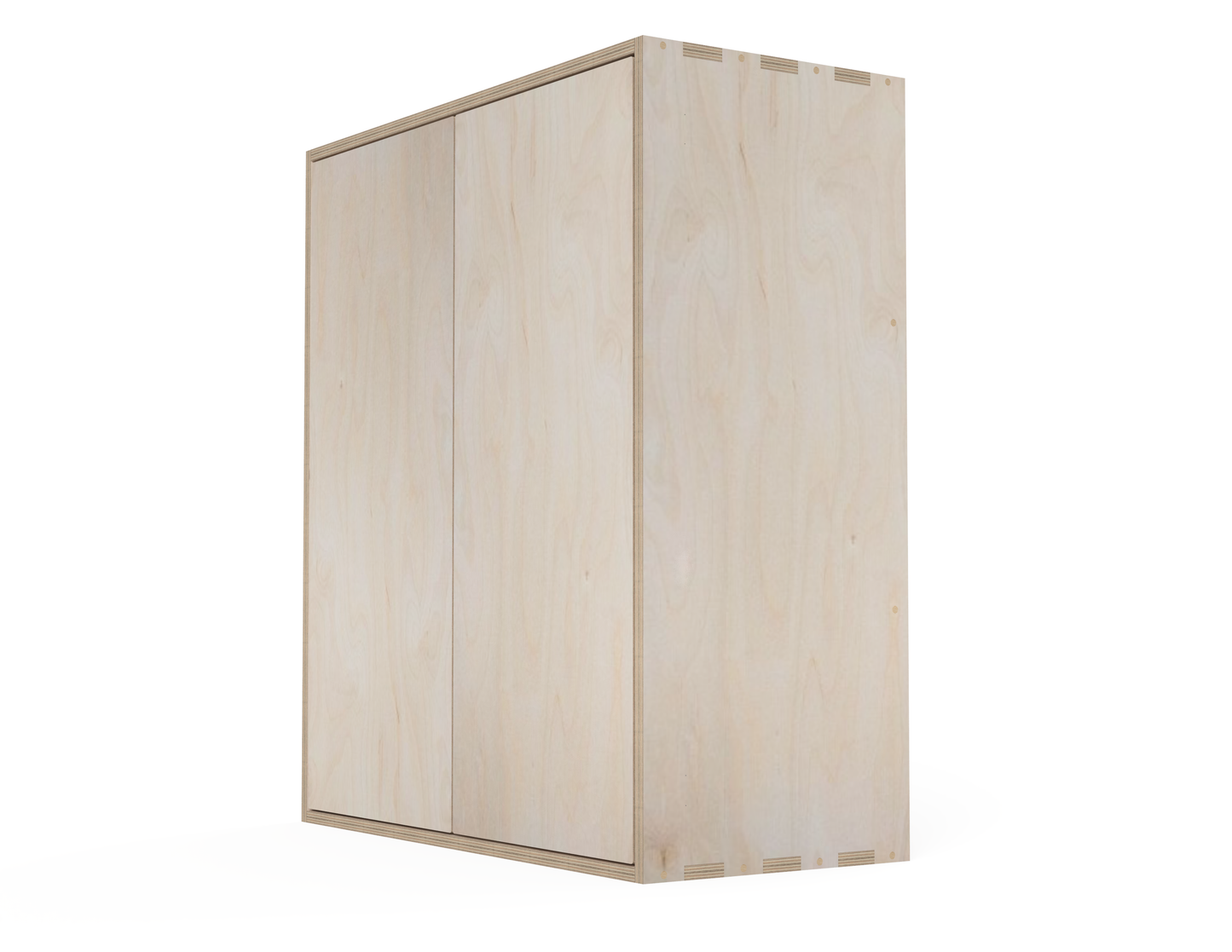

Featuring a large two-door cabinet with shelves, our DXF files offer ample storage space for your kitchen essentials.
Elevate your kitchen organization with ease today using our straightforward DXF files.
The design can be cut on an 800 x 1200 mm (2.6 x 4 ft) CNC router and bigger.
*The files are adjusted to fit both metric and imperial standards for materials and tools
Dimensions (Can be customized to your needs):
850 mm (height) x 750 mm (width) x 350 mm (depth)
33.5 inches (height) x 29.5 inches (width) x 13.8 inches (depth)
Required materials:
For an 800 x 1200 (2.6 x 4 ft) CNC router
- 3 sheets of 900 x 800 x 15 mm (48 x 30 x 0.625 inches) Plywood
- 1 sheet of 1200 x 800 x 12 mm (48 x 32 x 0.5 inches) Plywood
- 3 mm (0.125 inch) Router bit
For an 1200 x 1200 (4 x 4 ft) CNC router
- 2 sheets of 1200 x 900 x 15 mm (48 x 36 x 0.625 inches) Plywood
- 1 sheet of 1200 x 800 x 12 mm (48 x 32 x 0.5 inches) Plywood
- 3 mm (0.125 inch) Router bit
For an 1220 x 2440 (4 x 8 ft) CNC router
- 1 sheet of 1700 x 1220 x 15 mm (67 x 48 x 0.625 inches) Plywood
- 1 sheet of 1200 x 800 x 12 mm (48 x 32 x 0.5 inches) Plywood
- 3 mm (0.125 inch) Router bit
Plywood Screws - 35 mm (1.25 inches)
2 Pairs of Inset Cabinet Hinges
Assembling time:
30 minutes
Delivery time:
30 seconds
After completing the order, you will receive the DXF design file in your email within seconds.
Updates:
Free
If your plywood sheet is thicker or thinner than expected, send your purchase number and the precise thickness to contact@aribabox.com. We will send you the updated DXF design file for free.
The product may differ from the representative images when cut and assembled. We hope you will enjoy your purchase from Aribabox.
