Kitchen Wall Cabinet - Open Shelf (Inset Door Cabinets) DXF Files

Kitchen Wall Cabinet - Open Shelf (Inset Door Cabinets) DXF Files

Regular price $11.45 USD
Regular price $0.00 USD Sale price $11.45 USD
Sale Sold out
Taxes included.

Enhance your kitchen's functionality with our Kitchen Wall Cabinet - Open Shelf DXF files, a seamless addition to the "Inset Door Cabinet Kitchen Set".


Designed for novice and experienced craftsmen alike, these user-friendly files enable the construction of a plywood cabinet using a CNC router.

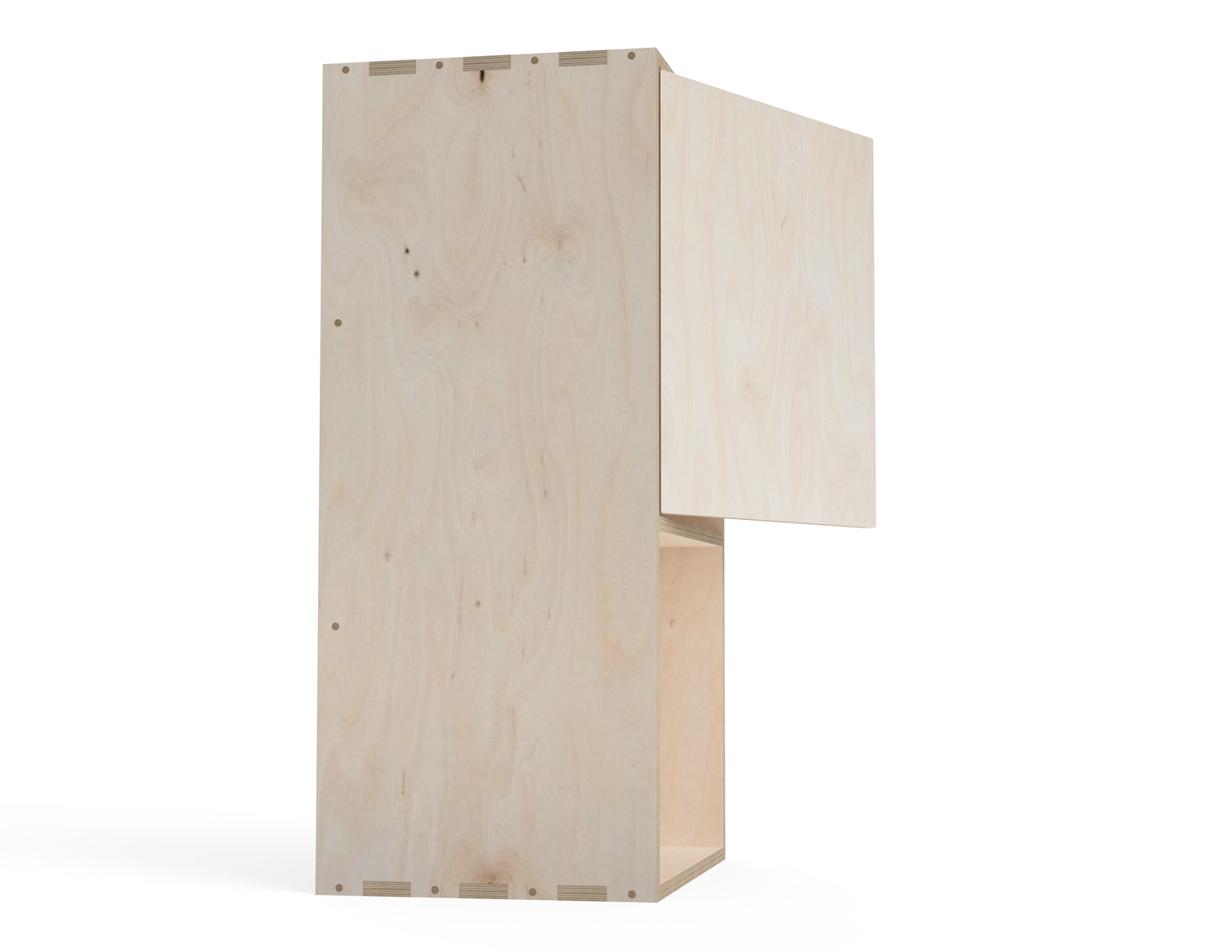

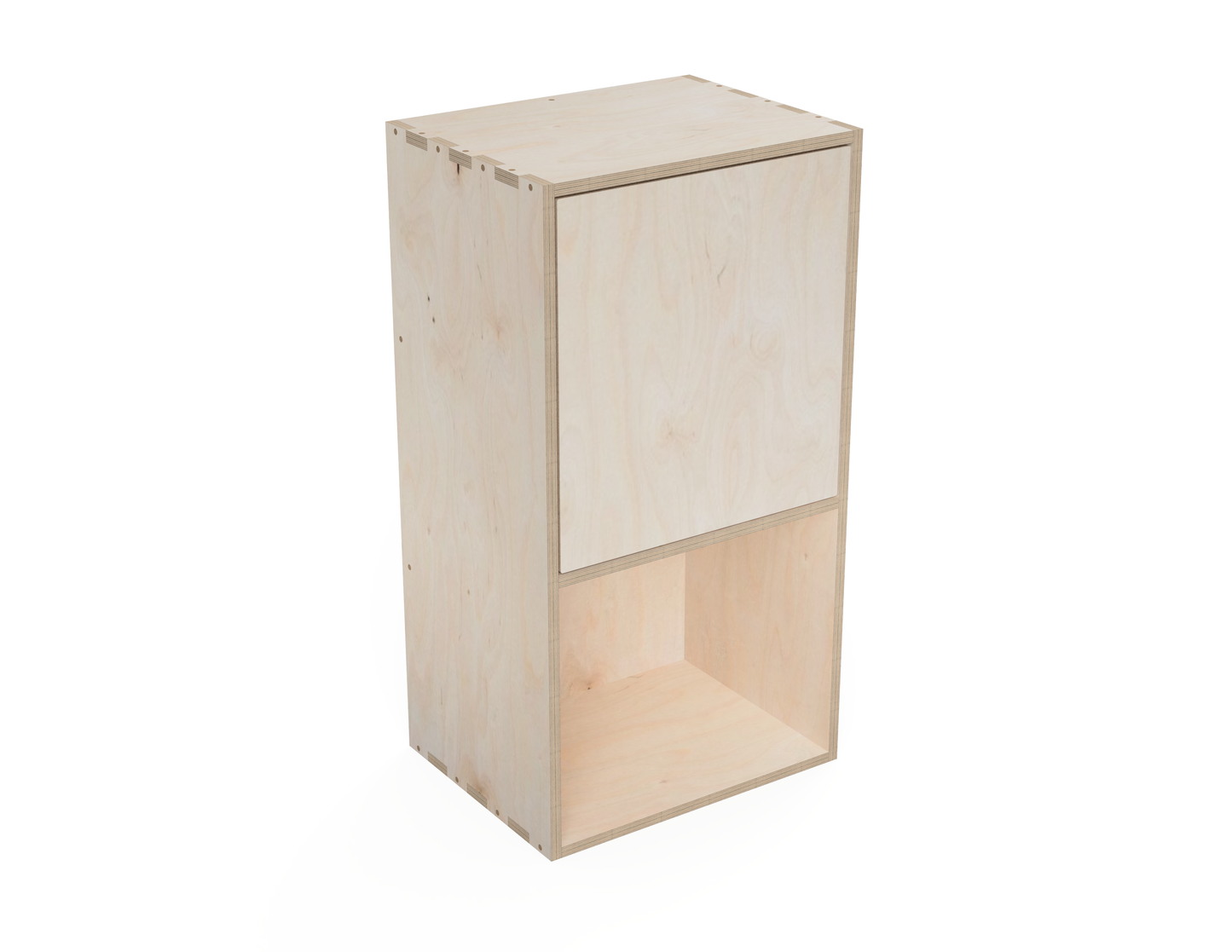

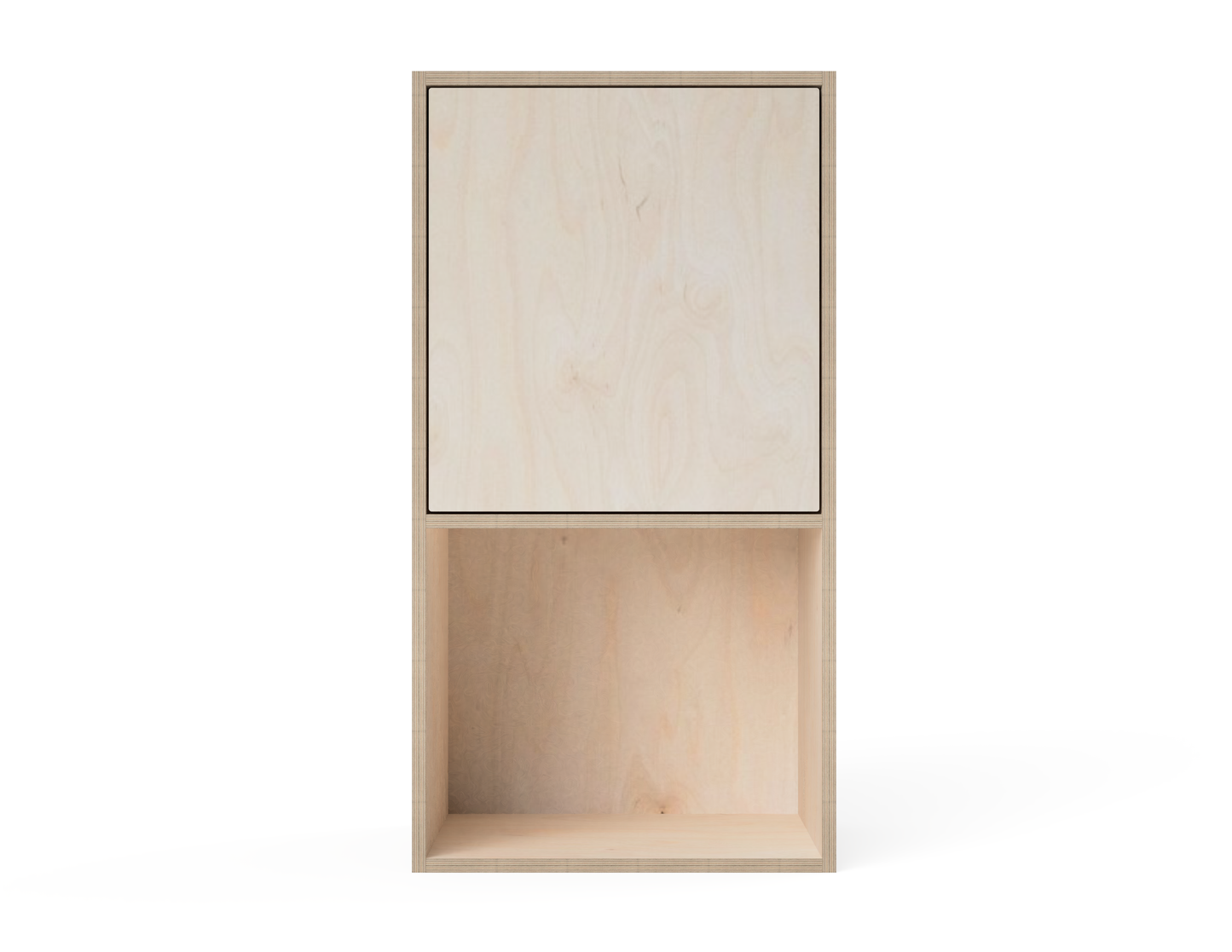

Featuring a small one-door cabinet and a convenient open shelf underneath, our DXF files offer versatile storage solutions.


Streamline your kitchen organization effortlessly with our easy-to-follow instructions.


The design can be cut on an 800 x 1200 mm (2.6 x 4 ft) CNC router and bigger.


*The files are adjusted to fit both metric and imperial standards for materials and tools


Dimensions (Can be customized to your needs):

850 mm (height) x 450 mm (width) x 350 mm (depth)

33.5 inches (height) x 17.72 inches (width) x 13.8 inches (depth)

Required materials:

For an 800 x 1200 (2.6 x 4 ft) CNC router

  • 2 sheets of 1200 x 820 x 15 mm (48 x 33 x 0.625 inches) Plywood
  • 1 sheet of 1200 x 500 x 12 mm (48 x 20 x 0.5 inches) Plywood
  • 3 mm (0.125 inch) Router bit

For an 1200 x 1200 (4 x 4 ft) CNC router

  • 1 sheet of 1200 x 1200 x 15 mm (48 x 48 x 0.625 inches) Plywood
  • 1 sheet of 500 x 400 x 15 mm (20 x 16 x 0.625 inches) Plywood
  • 1 sheet of 1200 x 500 x 12 mm (48 x 20 x 0.5 inches) Plywood
  • 3 mm (0.125 inch) Router bit

For an 1220 x 2440 (4 x 8 ft) CNC router

  • 1 sheet of 1900 x 850 x 15 mm (75 x 34 x 0.625 inches) Plywood
  • 1 sheet of 1200 x 500 x 12 mm (48 x 20 x 0.5 inches) Plywood
  • 3 mm (0.125 inch) Router bit

Plywood Screws - 35 mm (1.25 inches)

1 Pair of Inset Cabinet Hinges

Push-to-open door opener


Assembling time:

20 minutes


Delivery time:

30 seconds

After completing the order, you will receive the DXF design file in your email within seconds.


Updates:

Free

If your plywood sheet is thicker or thinner than expected, send your purchase number and the precise thickness to contact@aribabox.com. We will send you the updated DXF design file for free.


The product may differ from the representative images when cut and assembled. We hope you will enjoy your purchase from Aribabox.

Supported CNC sizes

The project can be made on a 800 x 1200 mm (2.6 x 4 ft) CNC router and bigger.

Dimensions

450 mm (width) X 10 mm (length) X 850 mm (height)
17.7 inches (width) X 0.4 inches (length) X 33.5 inches (height)

Required materials

For an 800 x 1200 (2.6 x 4 ft) CNC router
- 2 sheets of 1200 x 820 x 15 mm (48 x 33 x 0.625 inches) Plywood
- 1 sheet of 1200 x 500 x 12 mm (48 x 20 x 0.5 inches) Plywood
- 3 mm (0.125 inch) Router bit
For an 1200 x 1200 (4 x 4 ft) CNC router
- 1 sheet of 1200 x 1200 x 15 mm (48 x 48 x 0.625 inches) Plywood
- 1 sheet of 500 x 400 x 15 mm (20 x 16 x 0.625 inches) Plywood
- 1 sheet of 1200 x 500 x 12 mm (48 x 20 x 0.5 inches) Plywood
- 3 mm (0.125 inch) Router bit
For an 1220 x 2440 (4 x 8 ft) CNC router
- 1 sheet of 1900 x 850 x 15 mm (75 x 34 x 0.625 inches) Plywood
- 1 sheet of 1200 x 500 x 12 mm (48 x 20 x 0.5 inches) Plywood
- 3 mm (0.125 inch) Router bit
- Plywood Screws - 35 mm (1.25 inches)
- 1 Pair of Inset Cabinet Hinges
- Push-to-open door opener

Assembling time

20 minutes
The product may differ from the representative images when cut and assembled. We hope you will enjoy your purchase from Aribabox!
