Kitchen Wall Cabinet - Double Wine Storage (Inset Door Cabinets) DXF Files
Kitchen Wall Cabinet - Double Wine Storage (Inset Door Cabinets) DXF Files
Enhance your kitchen space effortlessly with our Kitchen Wall Cabinet - Double Wine Storage DXF files, a valuable addition to the "Inset Door Cabinet Kitchen Set".
Crafted with simplicity in mind, these beginner-friendly files enable users with access to a CNC router to construct a plywood cabinet seamlessly.

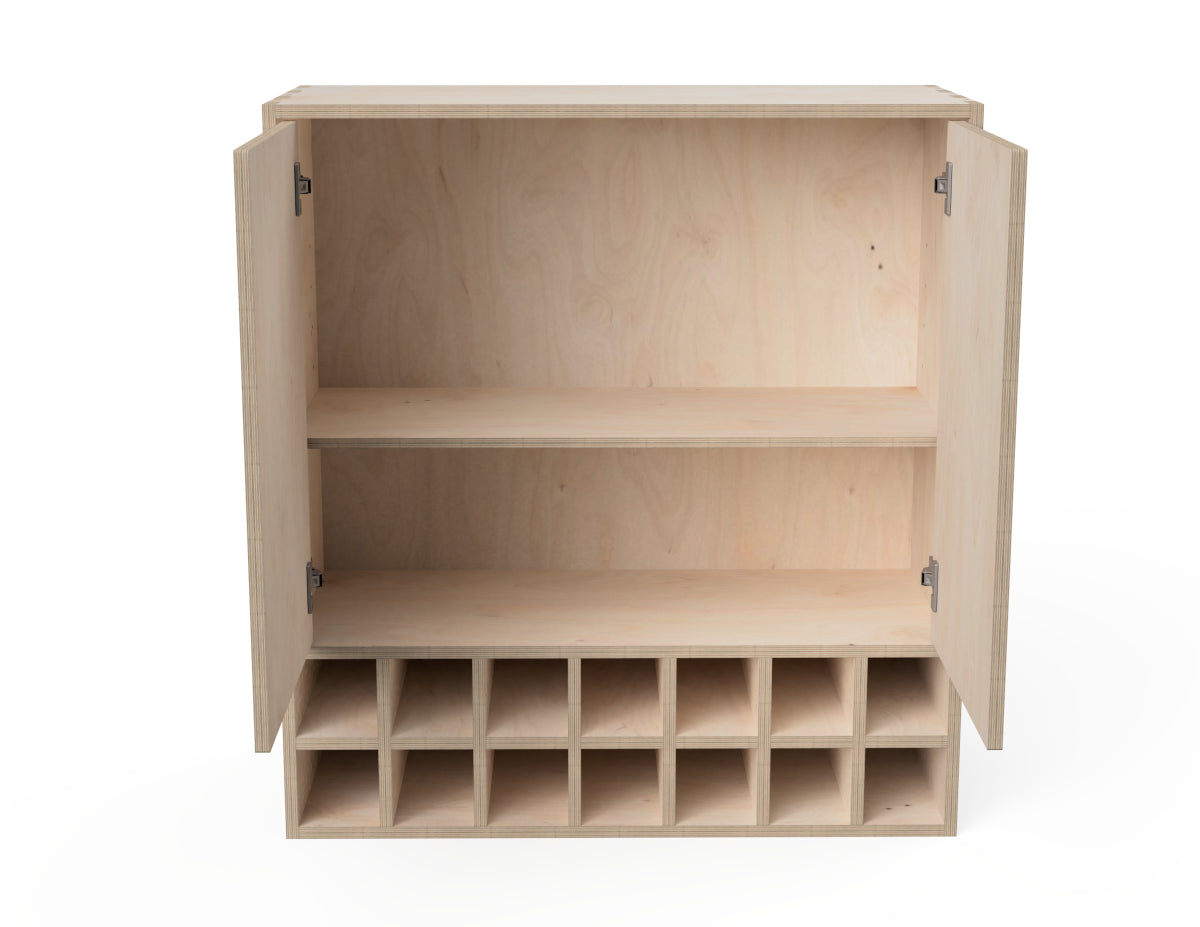

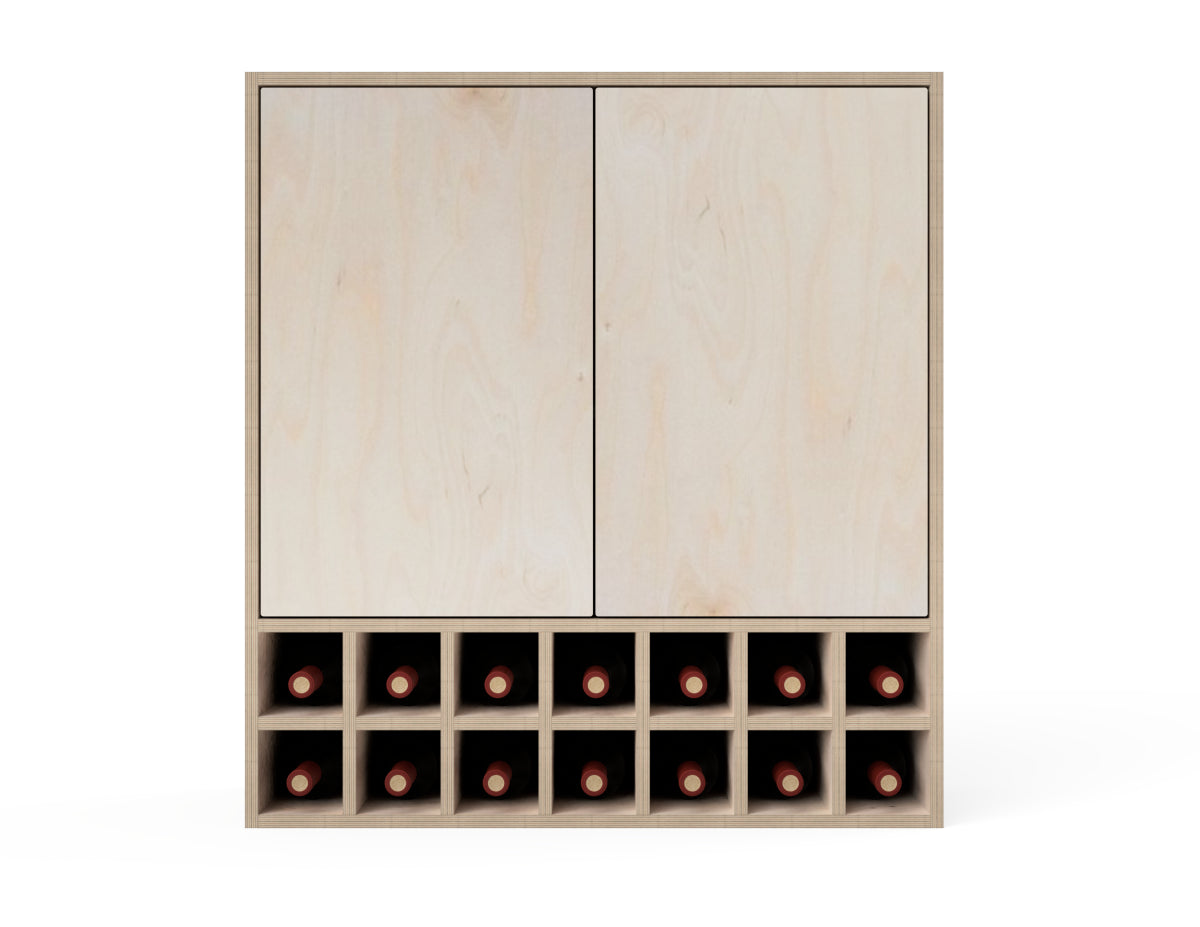

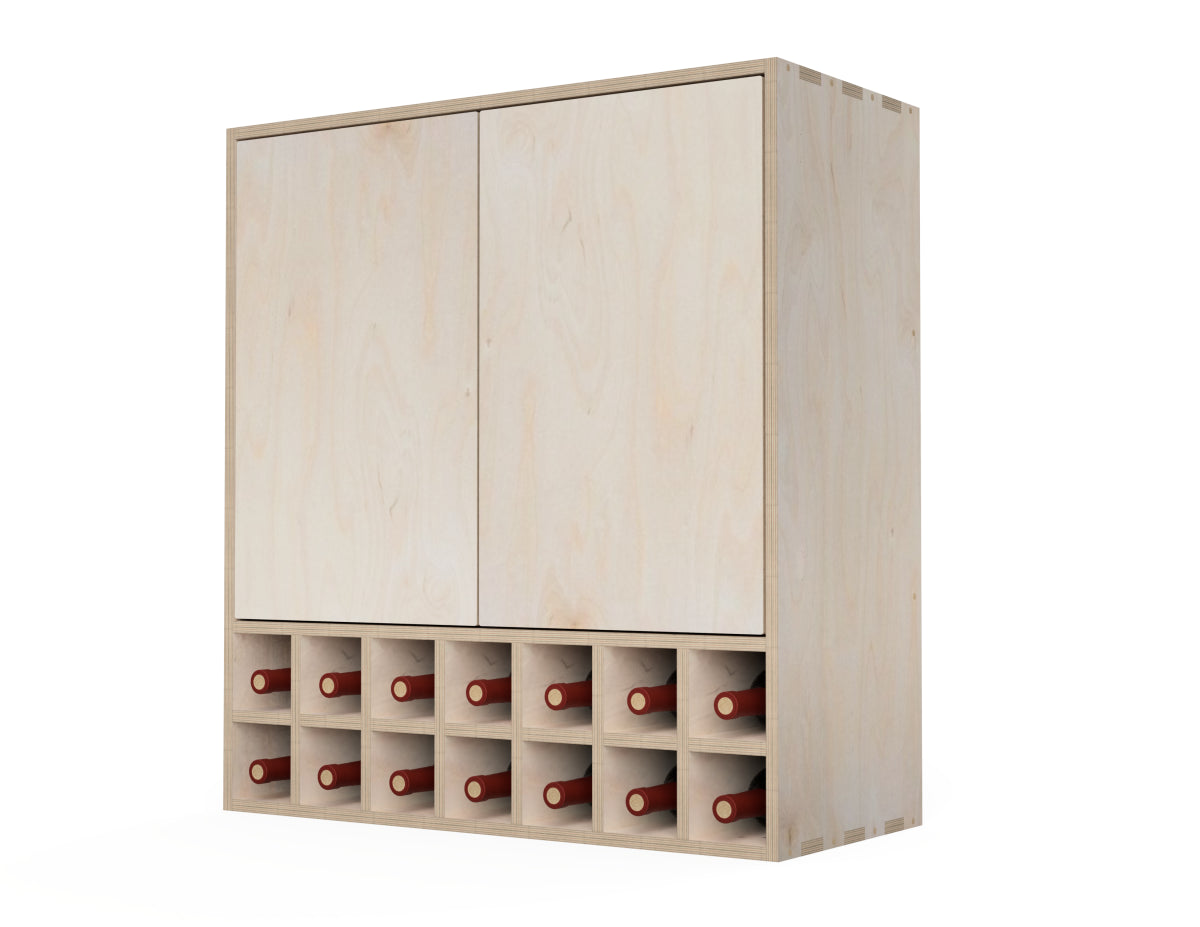

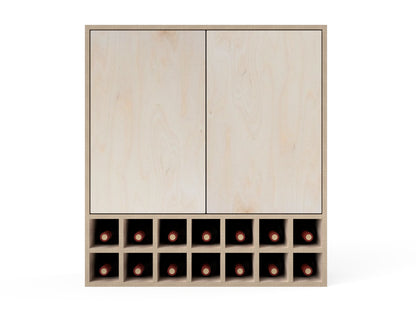

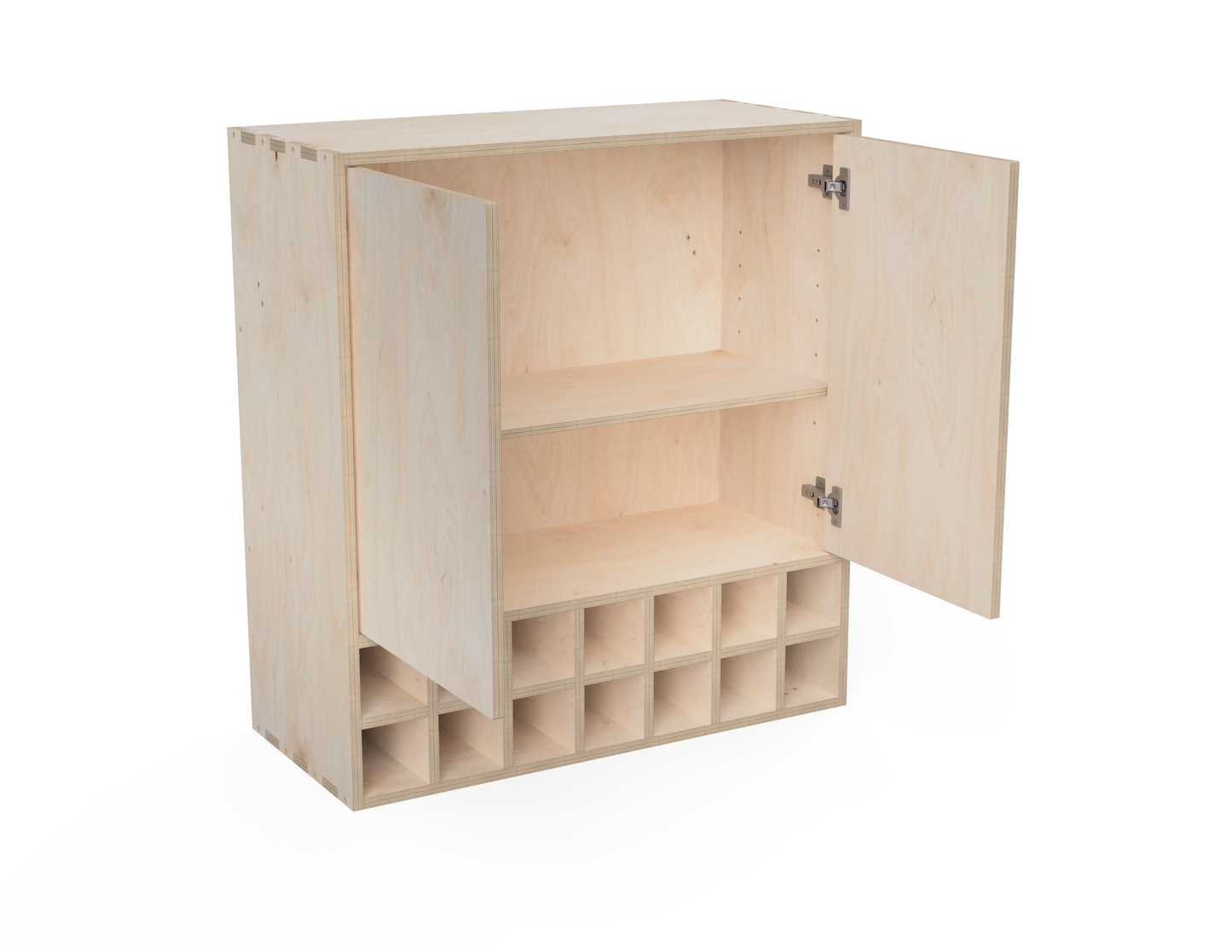

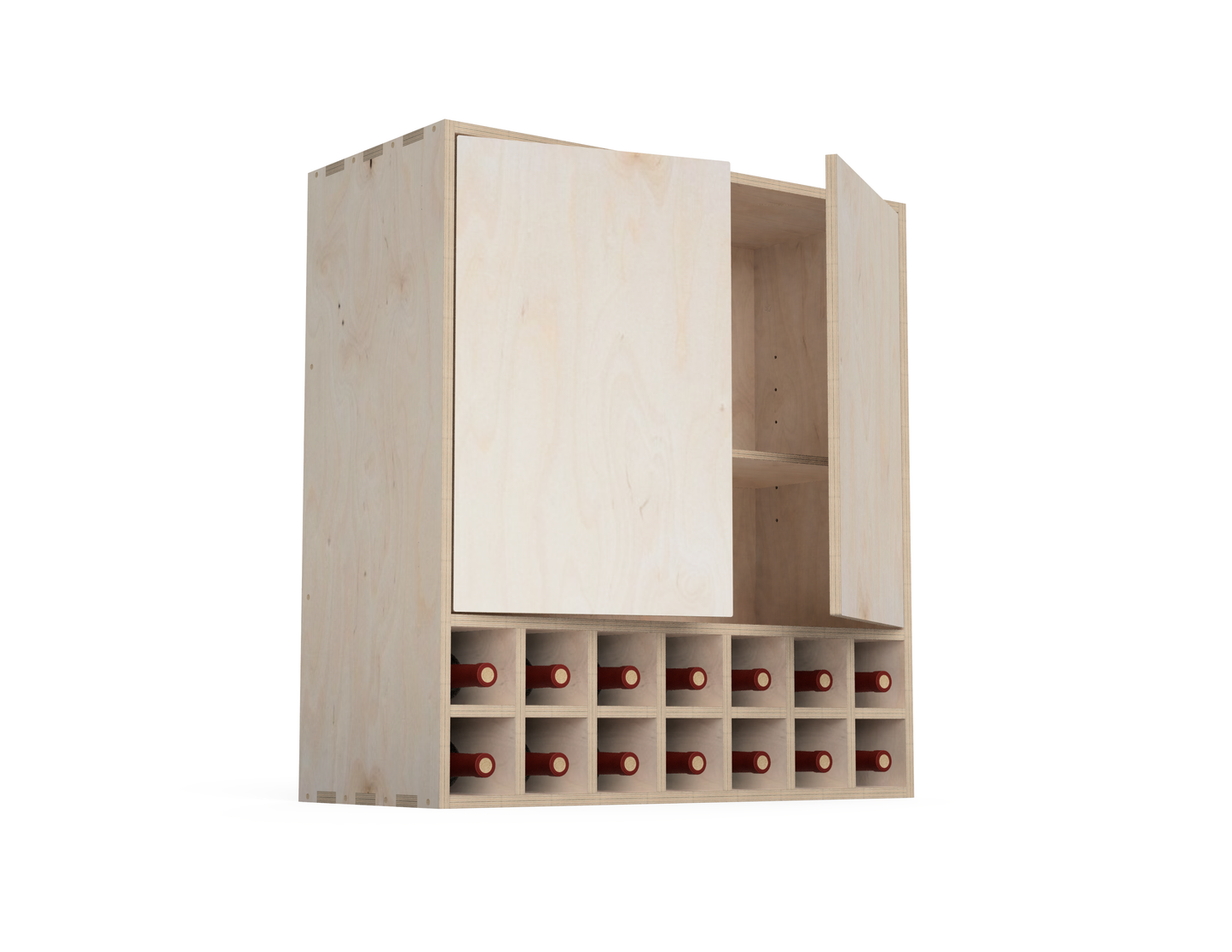

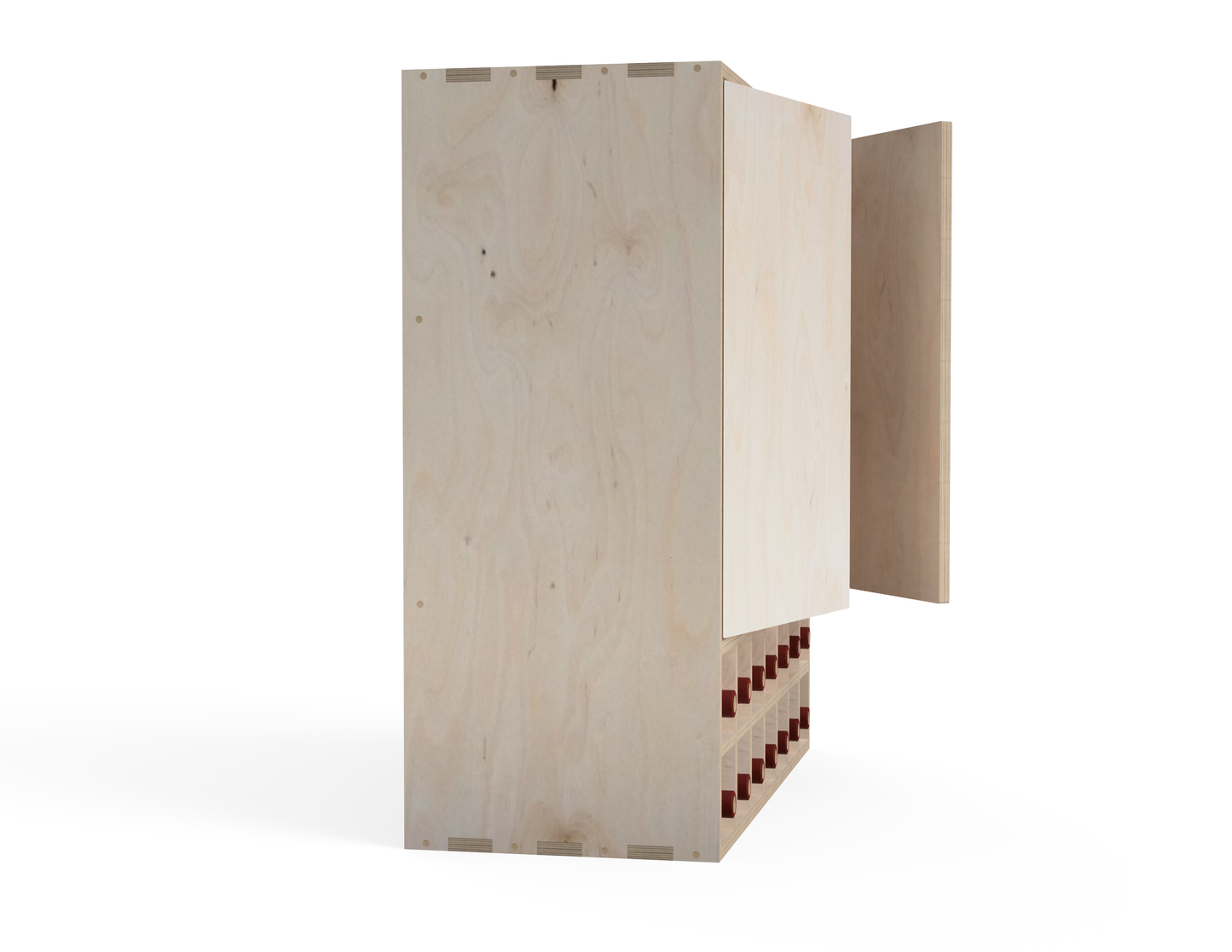

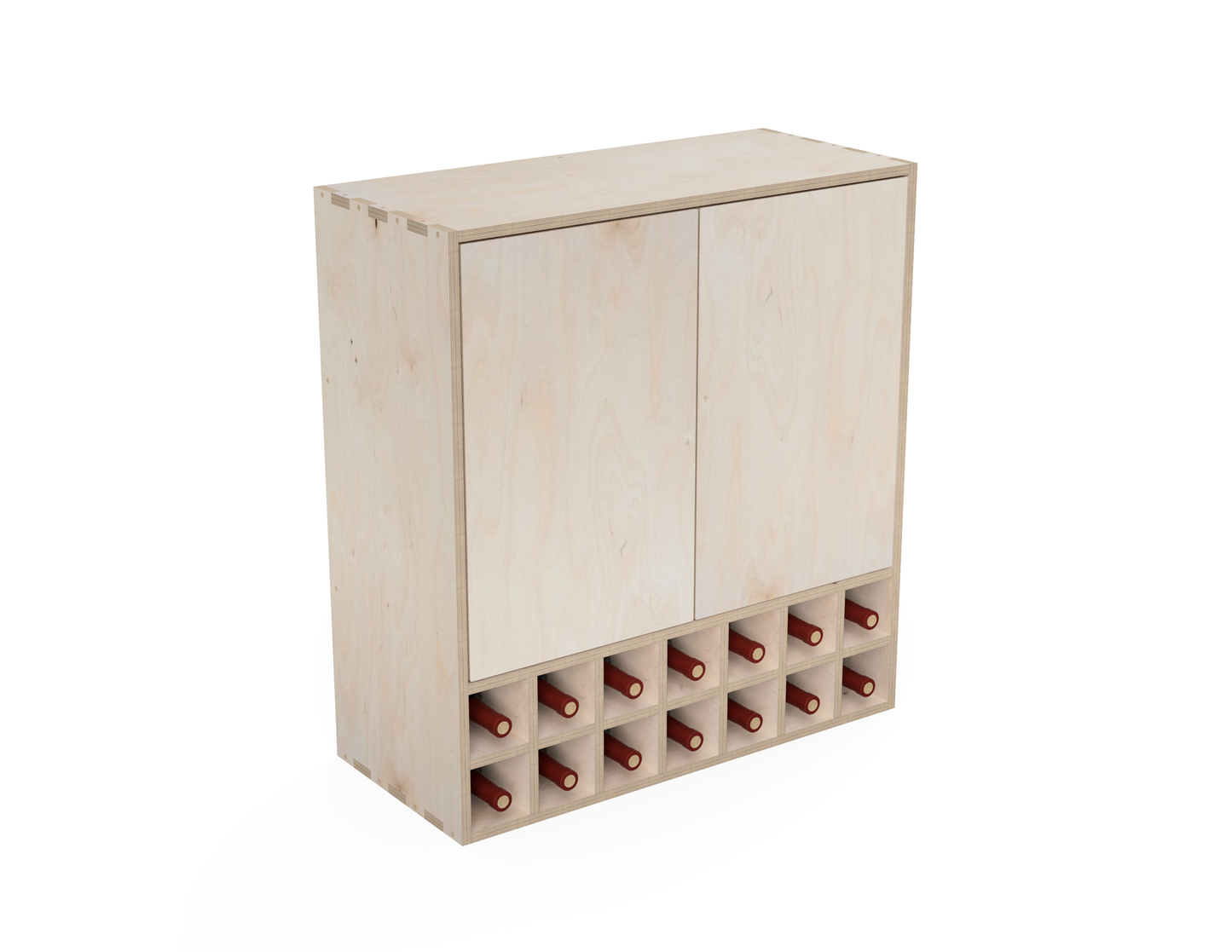

Featuring a spacious two-door cabinet and a wine storage rack capable of holding 14 bottles, our DXF files offer both functionality and style.
Elevate your kitchen organization and wine collection with ease today.
The design can be cut on an 800 x 1200 mm (2.6 x 4 ft) CNC router and bigger.
*The files are adjusted to fit both metric and imperial standards for materials and tools
Dimensions (Can be customized to your needs):
850 mm (height) x 790 mm (width) x 350 mm (depth)
33.5 inches (height) x 31.1 inches (width) x 13.8 inches (depth)
Required materials:
For an 800 x 1200 (2.6 x 4 ft) CNC router
- 3 sheets of 1200 x 820 x 15 mm (48 x 33 x 0.625 inches) Plywood
- 1 sheet of 700 x 250 x 15 mm (28 x 10 x 0.625 inches) Plywood
- 1 sheet of 1200 x 820 x 12 mm (48 x 33 x 0.5 inches) Plywood
- 3 mm (0.125 inch) Router bit
For an 1200 x 1200 (4 x 4 ft) CNC router
- 2 sheets of 1200 x 1200 x 15 mm (48 x 48 x 0.625 inches) Plywood
- 1 sheet of 650 x 450 x 15 mm (26 x 18 x 0.625 inches) Plywood
- 1 sheet of 1200 x 820 x 12 mm (48 x 33 x 0.5 inches) Plywood
- 3 mm (0.125 inch) Router bit
For an 1220 x 2440 (4 x 8 ft) CNC router
- 1 sheet of 2440 x 1220 x 15 mm (96 x 48 x 0.625 inches) Plywood
- 1 sheet of 1200 x 820 x 12 mm (48 x 33 x 0.5 inches) Plywood
- 3 mm (0.125 inch) Router bit
Plywood Screws - 35 mm (1.25 inches)
2 Pairs of Inset Cabinet Hinges
Assembling time:
35 minutes
Delivery time:
30 seconds
After completing the order, you will receive the DXF design file in your email within seconds.
Updates:
Free
If your plywood sheet is thicker or thinner than expected, send your purchase number and the precise thickness to contact@aribabox.com. We will send you the updated DXF design file for free.
The product may differ from the representative images when cut and assembled. We hope you will enjoy your purchase from Aribabox.
