Enhance your kitchen storage effortlessly with our Kitchen Wall Cabinet - Double Open Shelf DXF files, a crucial component of the "Inset Door Cabinet Kitchen Set".
Designed for beginners and experts alike, these user-friendly files enable the construction of a plywood cabinet using a CNC router.

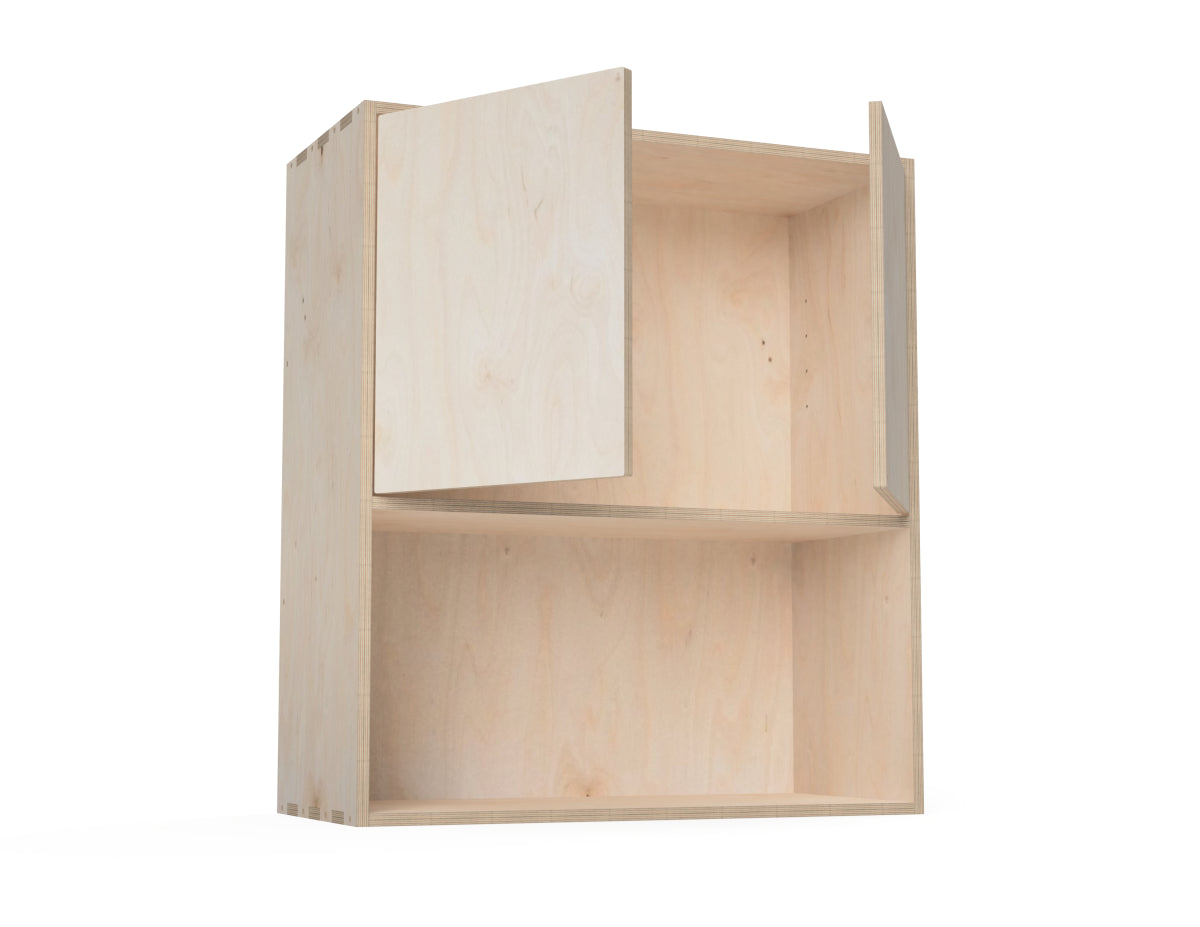

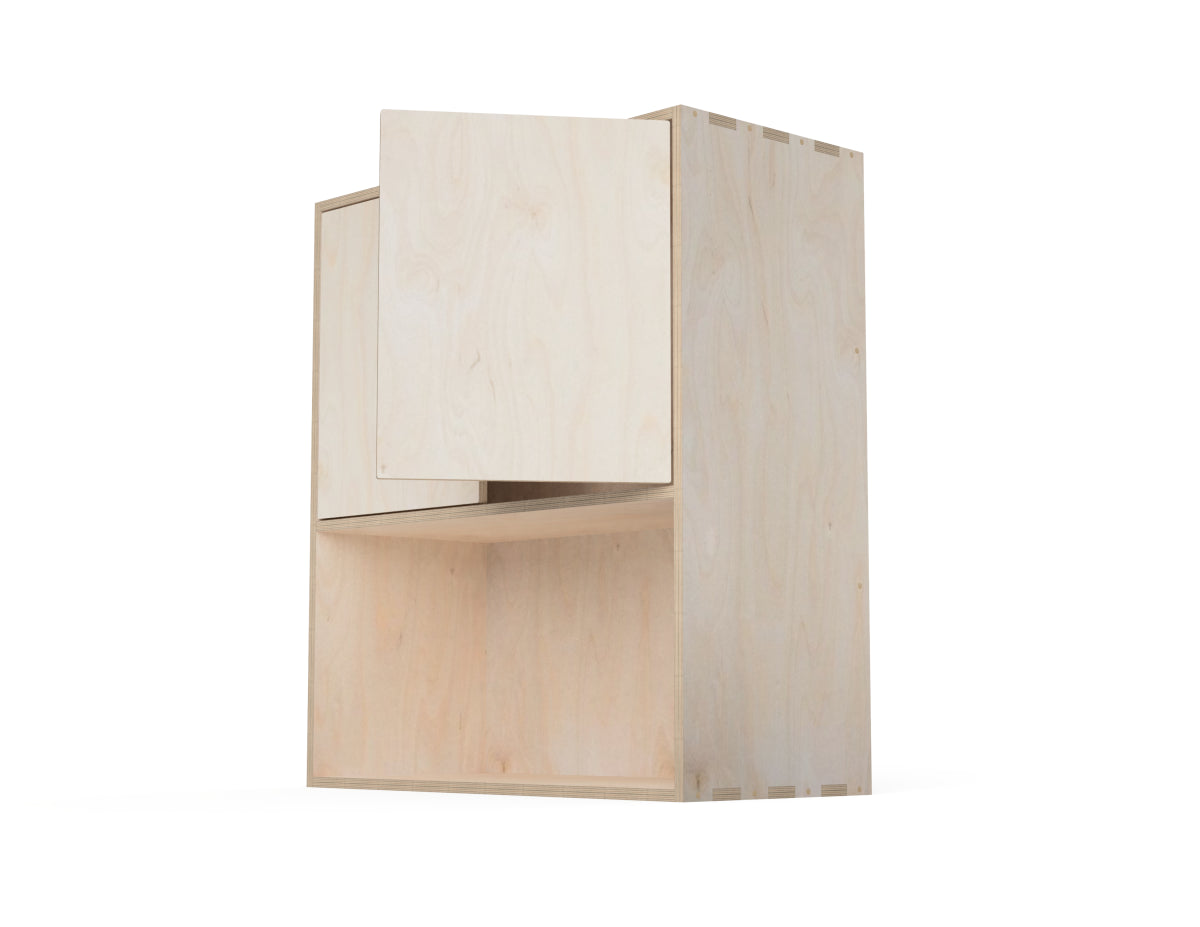

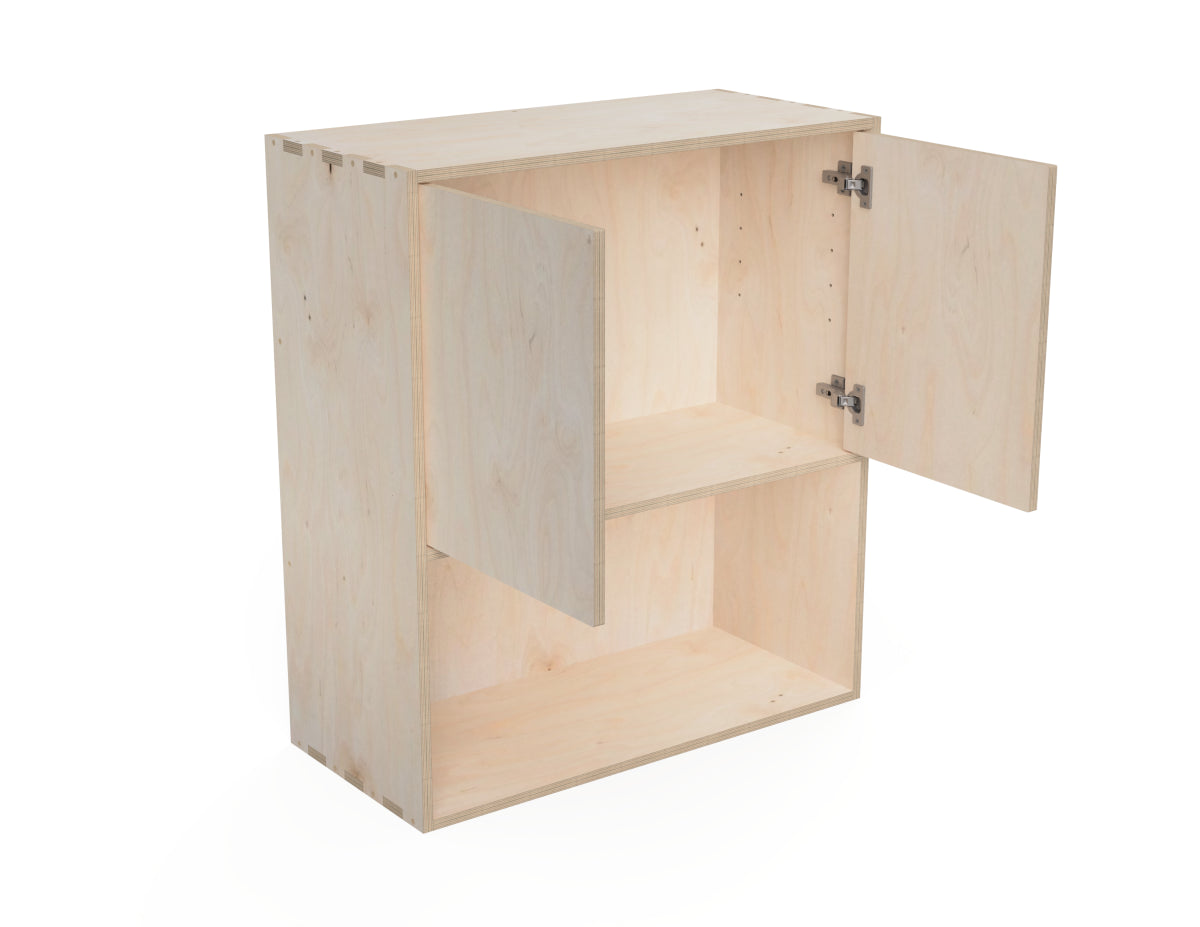

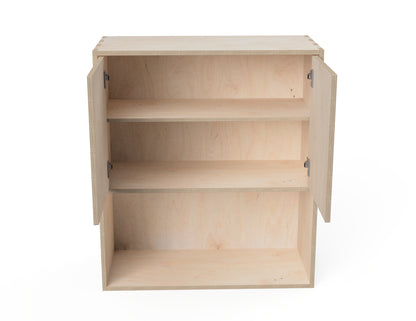

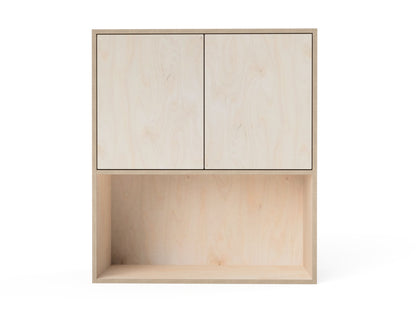

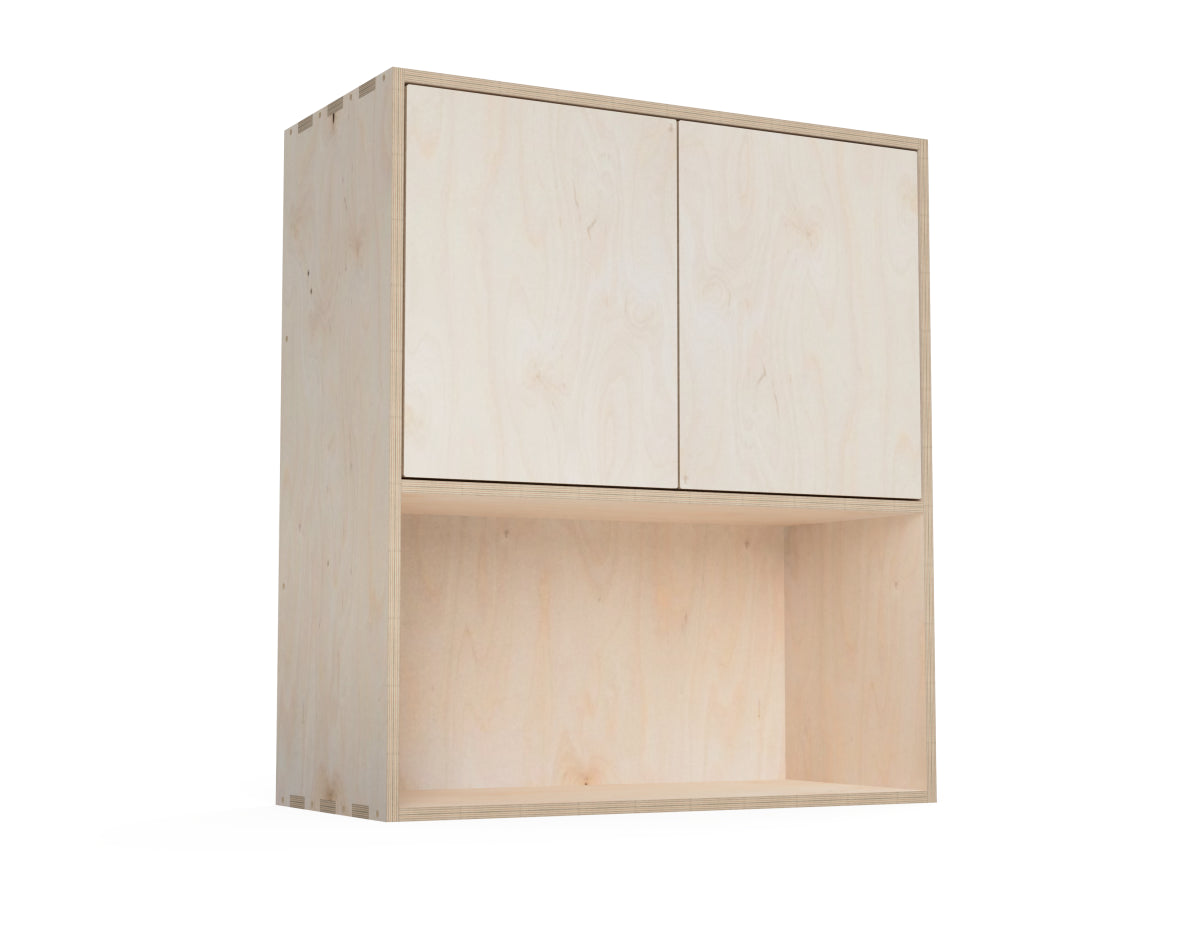

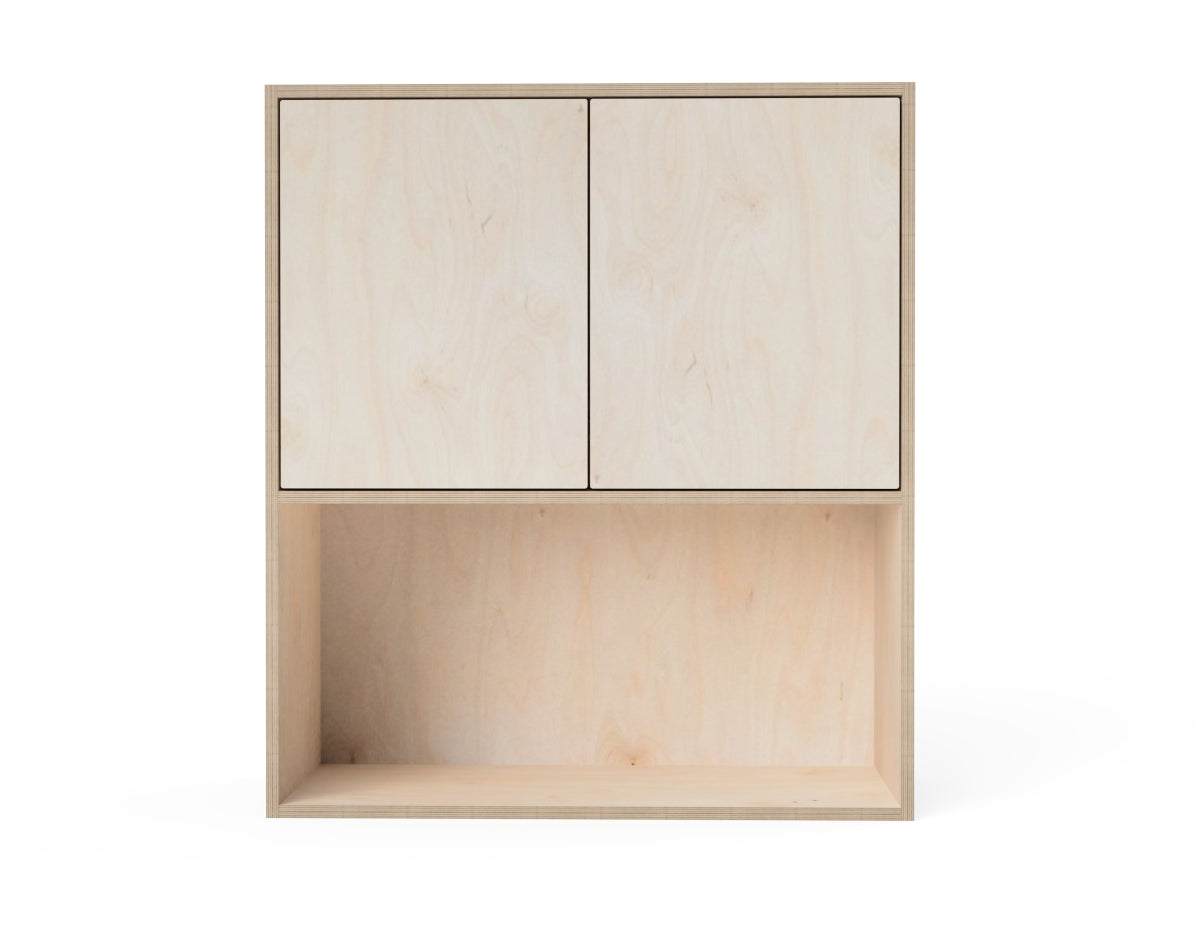

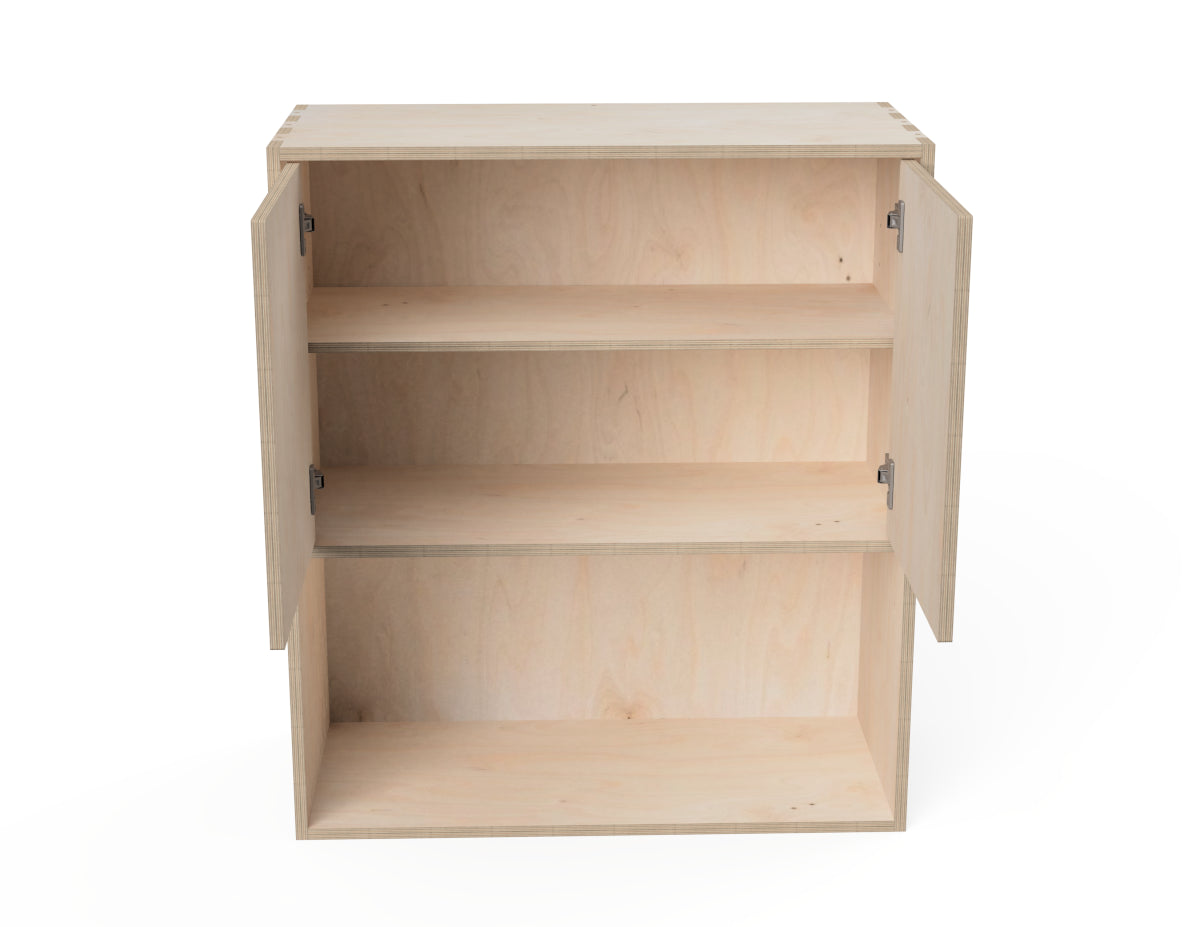

Featuring a spacious two-door cabinet and an open shelf below, our DXF files provide ample storage options for your kitchen essentials.
Elevate your kitchen organization today with our easy-to-understand DXF files.
Supported CNC sizes
Supported CNC sizes
Dimensions
Dimensions
Width | Length | Height |
---|---|---|
750 mm | 350 mm | 850 mm |
29½ inch | 13¾ inch | 33½ inch |
Required materials
Required materials
For an 800 x 1200 (2.6 x 4 ft) CNC router
- 3 sheets of 1200 x 750 x 15 mm (48 x 30 x 0.625 inches) Plywood
- 1 sheet of 1200 x 800 x 12 mm (48 x 32 x 0.5 inches) Plywood
- 3 mm (0.125 inch) Router bit
For an 1200 x 1200 (4 x 4 ft) CNC router
- 2 sheets of 1200 x 900 x 15 mm (48 x 36 x 0.625 inches) Plywood
- 1 sheet of 1200 x 800 x 12 mm (48 x 32 x 0.5 inches) Plywood
- 3 mm (0.125 inch) Router bit
For an 1220 x 2440 (4 x 8 ft) CNC router
- 1 sheet of 2440 x 900 x 15 mm (96 x 36 x 0.625 inches) Plywood
- 1 sheet of 1200 x 800 x 12 mm (48 x 32 x 0.5 inches) Plywood
- 3 mm (0.125 inch) Router bit
- Plywood Screws - 35 mm (1.25 inches)
- 2 Pairs of Inset Cabinet Hinges
- 2 Push-to-open door openers
