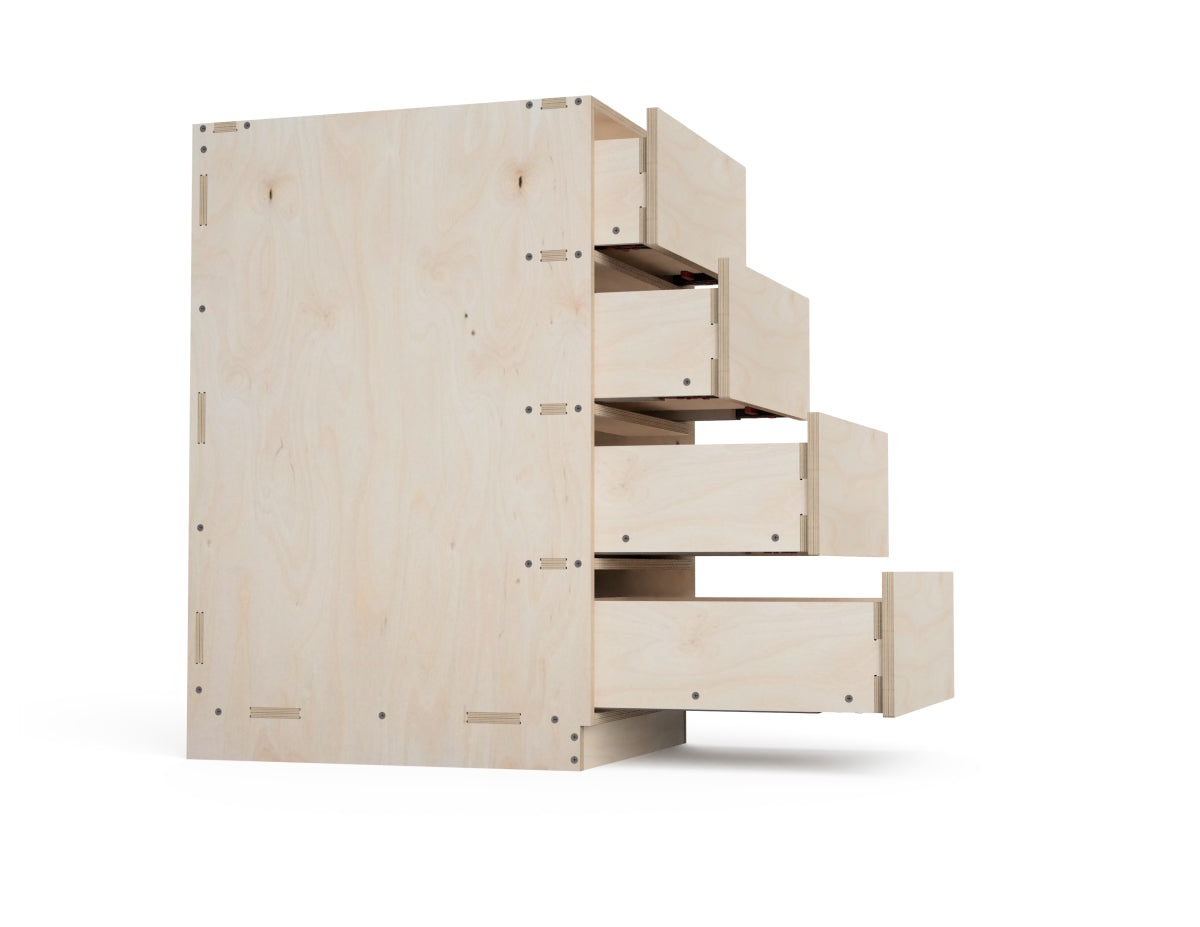

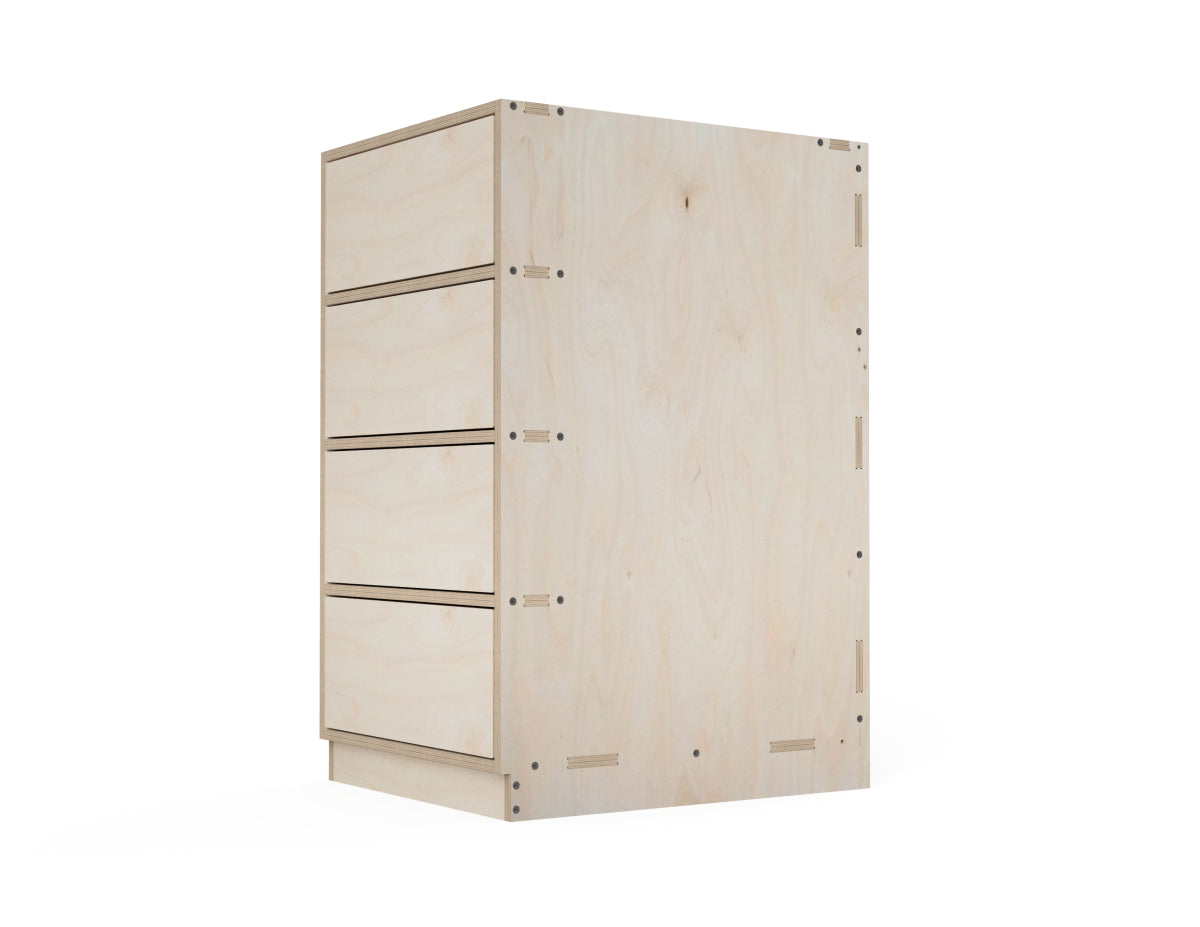

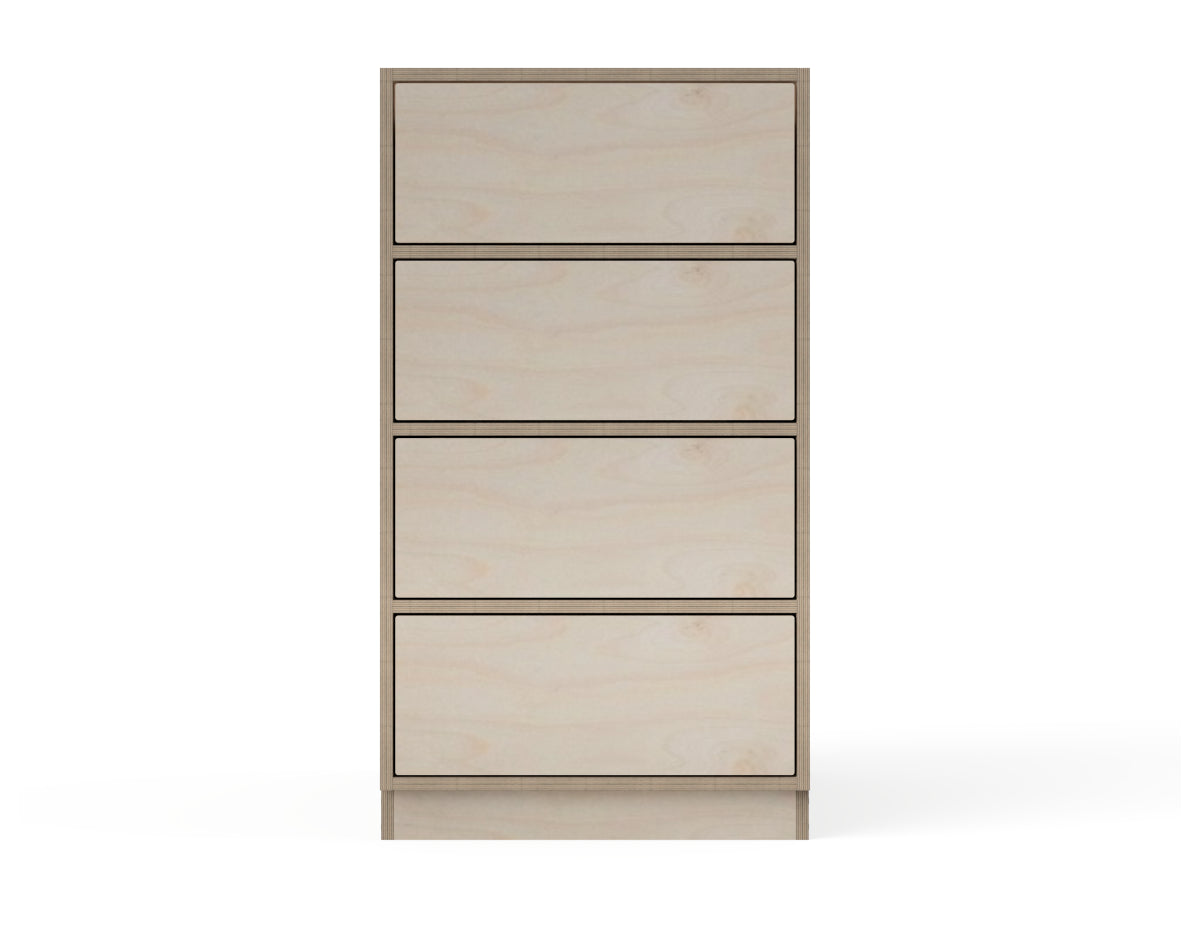

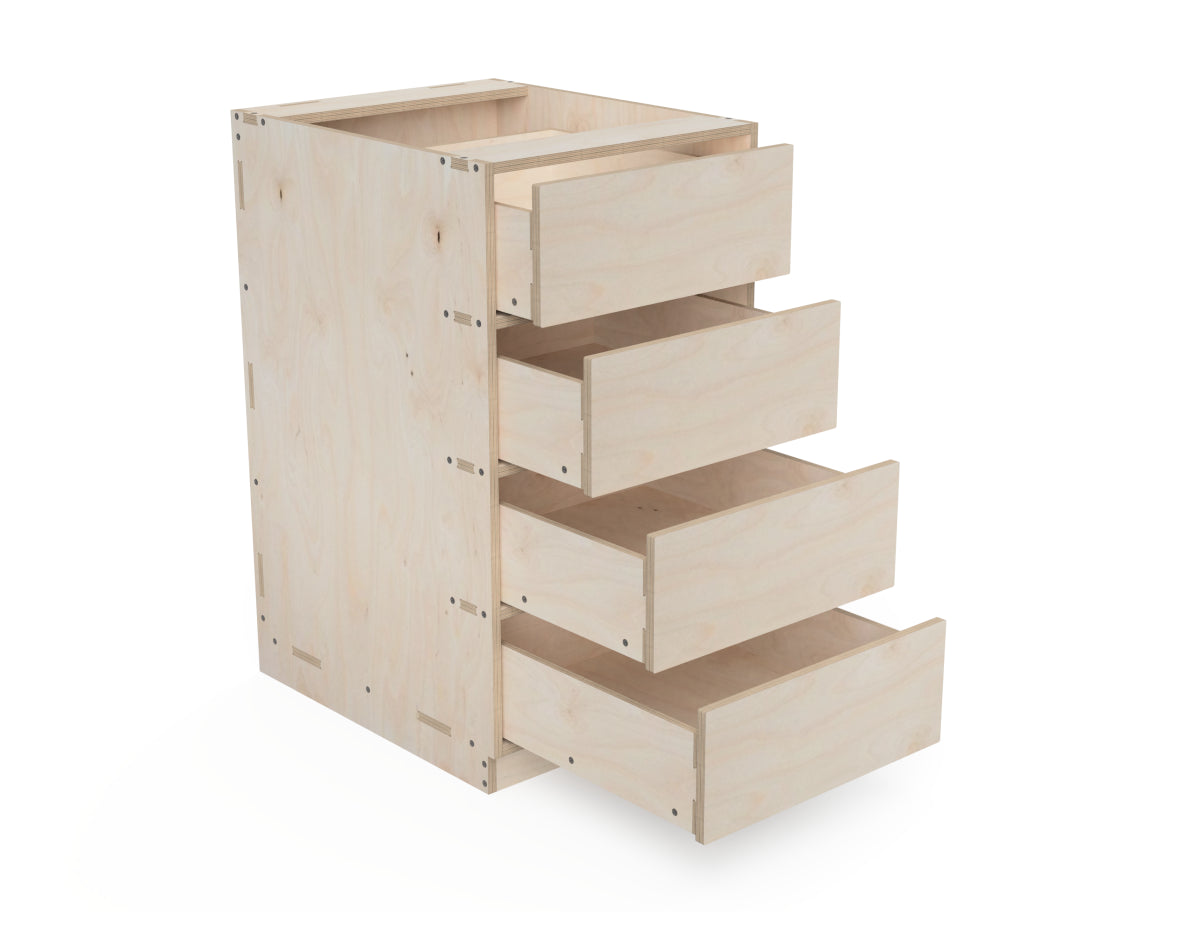

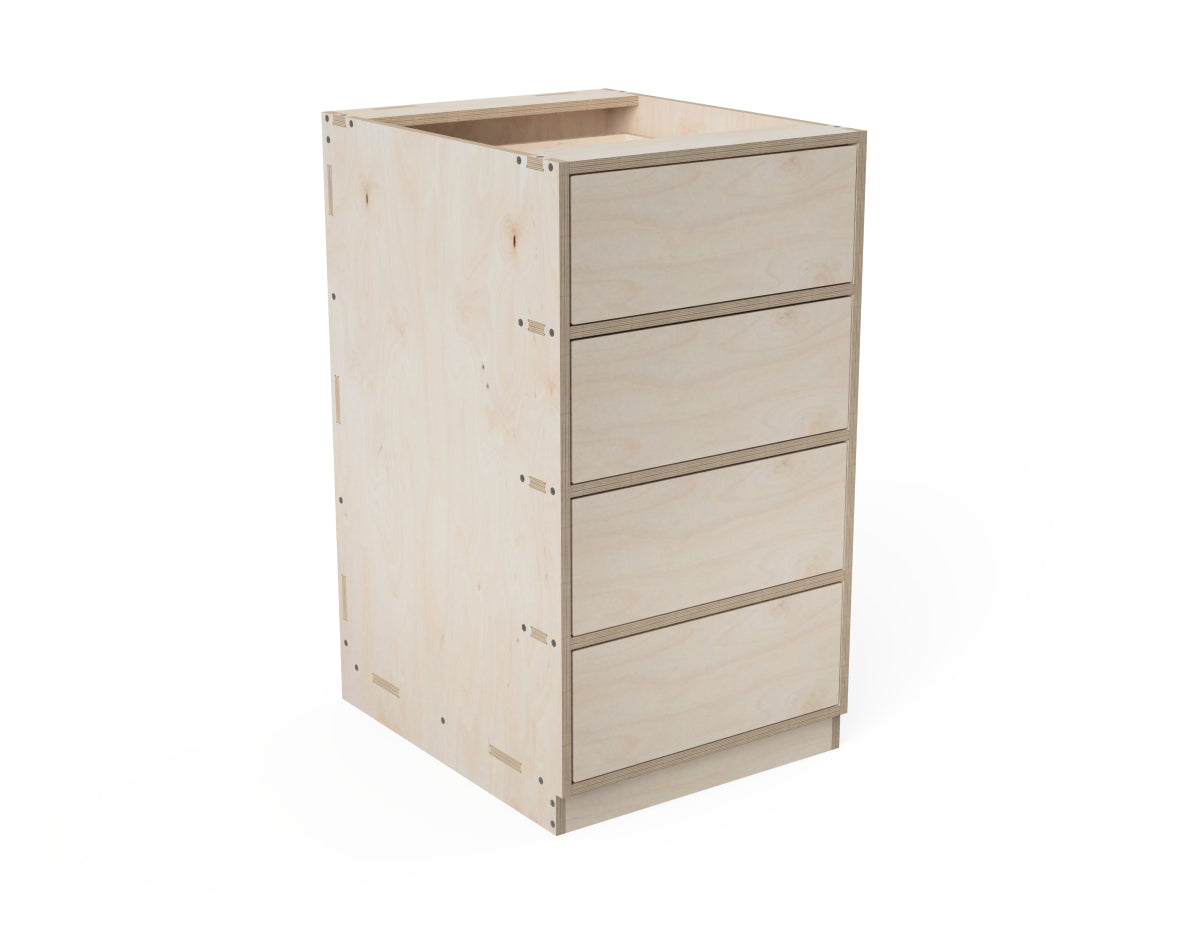

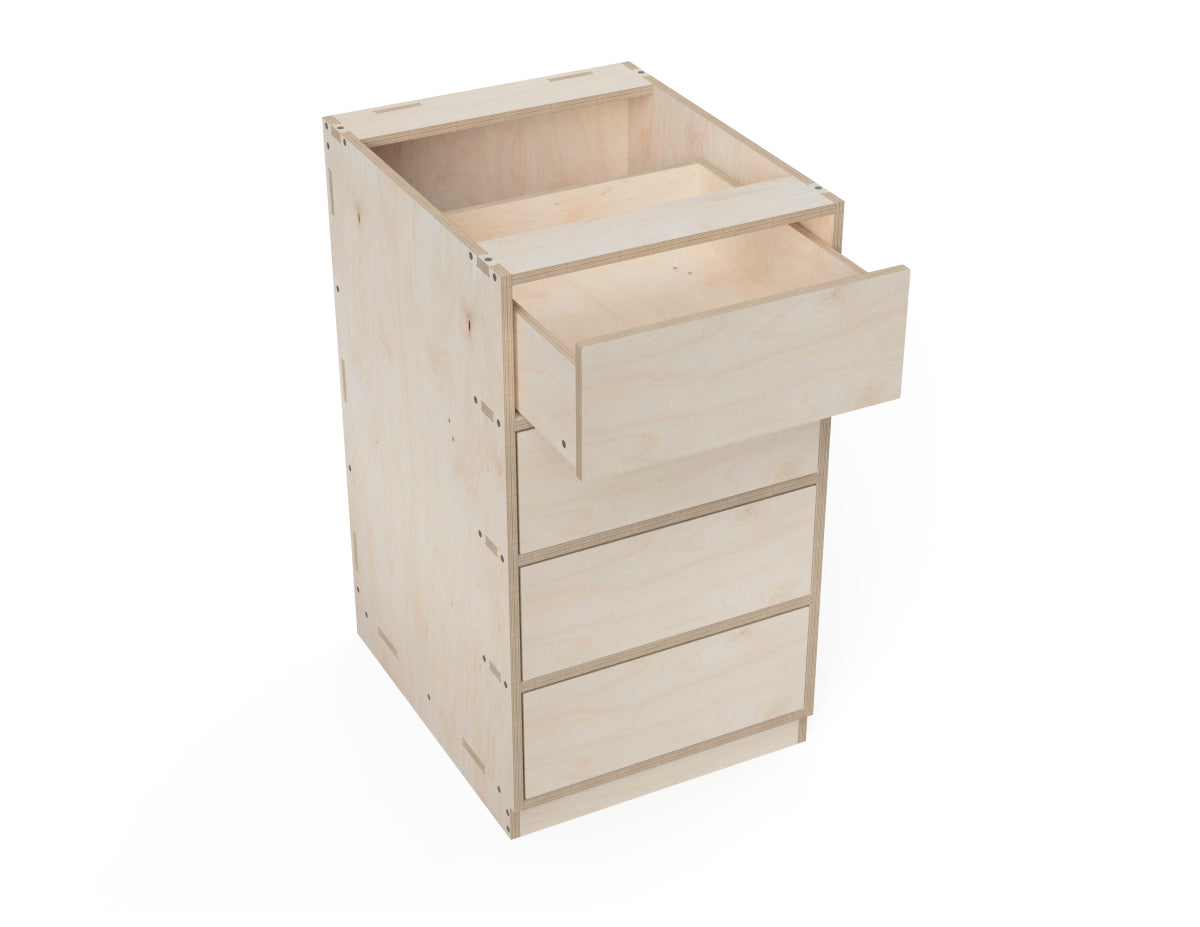

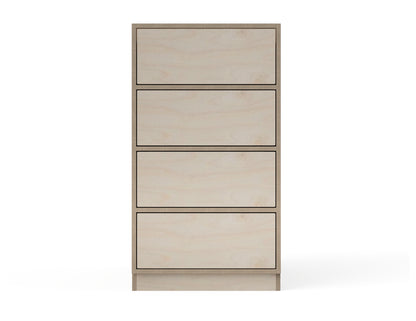

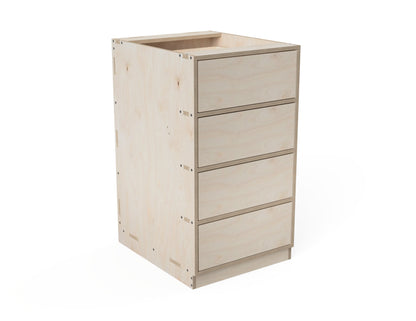

Kitchen Cabinet - 4-Drawers (Inset Door Cabinets) DXF Files
Kitchen Cabinet - 4-Drawers (Inset Door Cabinets) DXF Files
Couldn't load pickup availability
Transform your kitchen effortlessly with our Kitchen Cabinet - 4-Drawers DXF files, a seamless addition to the "Inset Door Cabinet Kitchen Set".
Crafted for simplicity and precision, these user-friendly files enable both beginners and experts to construct a plywood cabinet effortlessly using a CNC router.
Featuring four large drawers, our DXF files offer ample storage space for your kitchen essentials.
Elevate your kitchen organization today with our easy-to-understand DXF files.
Supported CNC sizes
Supported CNC sizes
Dimensions
Dimensions
Width | Length | Height |
---|---|---|
500 mm | 600 mm | 900 mm |
19⅝ inch | 23⅝ inch | 35⅜ inch |
Required materials
Required materials
Plywood Screws - 35 mm (1.25 inches)
For an 800 x 1200 (2.6 x 4 ft) CNC router
- 3 sheets of 1200 x 820 x 15 mm (48 x 32.3 x 0.625 inches) Plywood
- 3 sheets of 1200 x 820 x 12 mm (48 x 32.3 x 0.5 inches) Plywood
- 3 mm (0.125 inch) Router bit
For an 1200 x 1200 (4 x 4 ft) CNC router
- 2 sheets of 1200 x 1200 x 15 mm (48 x 48 x 0.625 inches) Plywood
- 2 sheets of 1200 x 1200 x 12 mm (48 x 48 x 0.5 inches) Plywood
- 3 mm (0.125 inch) Router bit
For an 1220 x 2440 (4 x 8 ft) CNC router
- 1 sheet of 2440 x 1220 x 15 mm (96 x 48 x 0.625 inches) Plywood
- 1 sheet of 2440 x 1220 x 12 mm (96 x 48 x 0.5 inches) Plywood
- 3 mm (0.125 inch) Router bit
- Plywood Screws - 35 mm (1.25 inches)
- 4 Undermount Drawer slides
