Kids game DXF file
Kids game DXF file
Couldn't load pickup availability

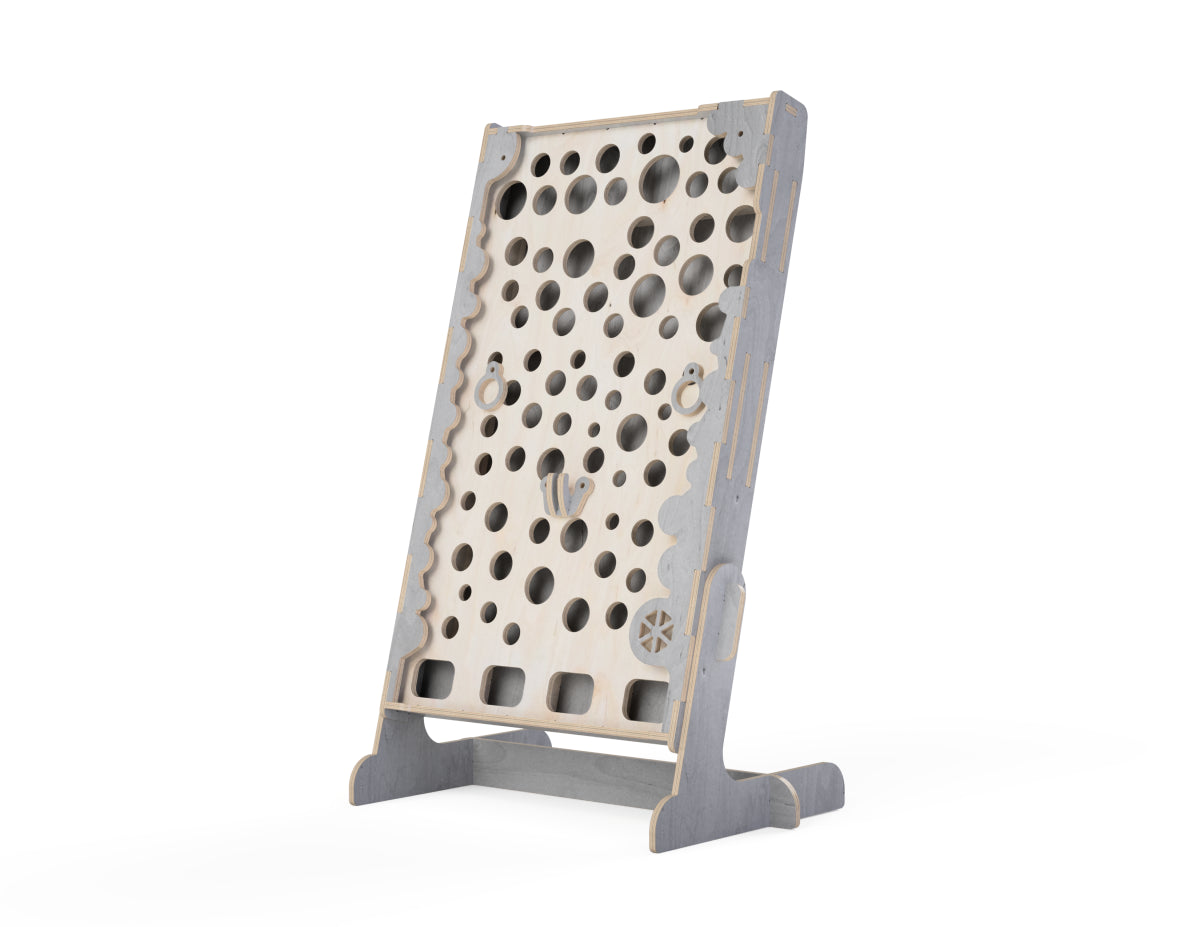

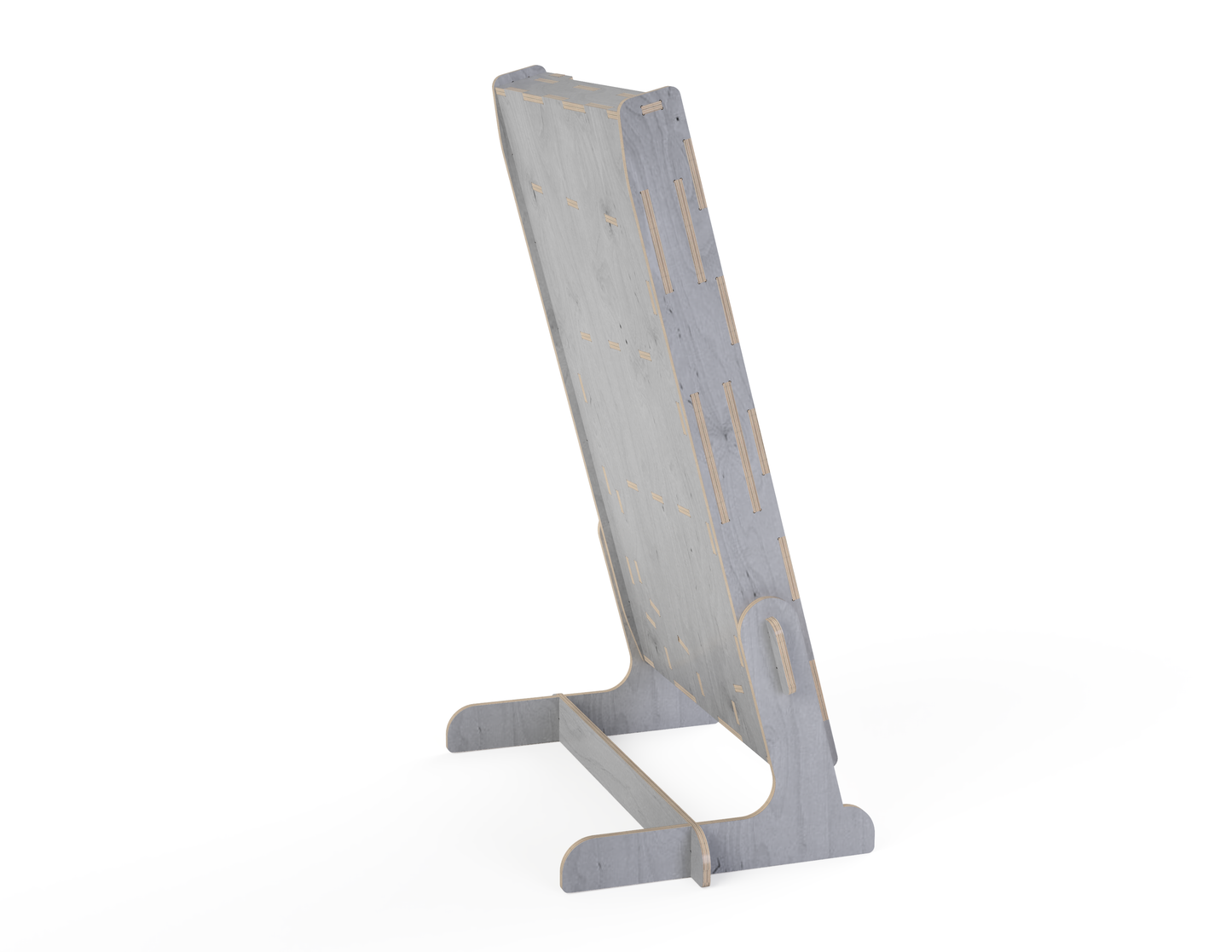

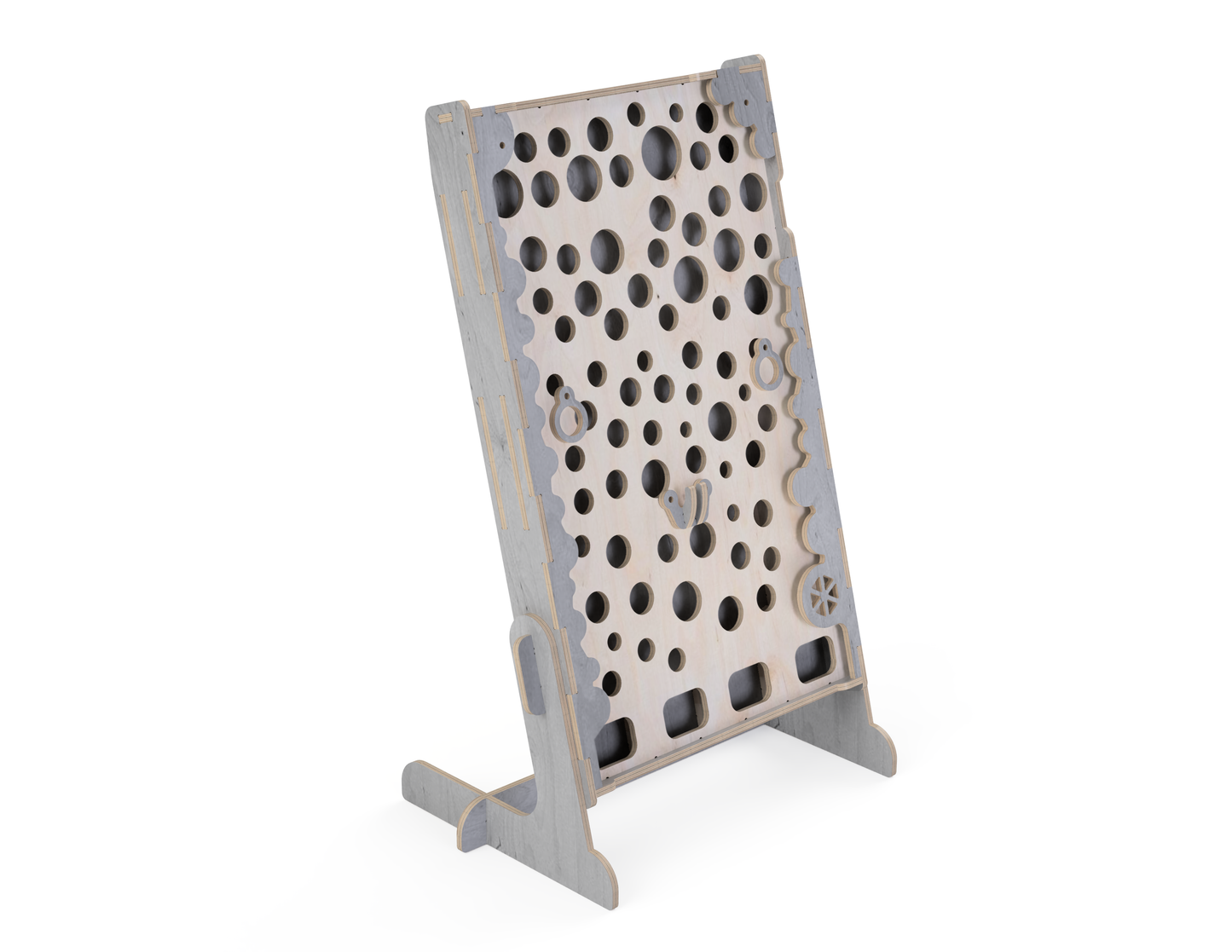

The player carefully guides a small ball around holes, steering the ball with twines. As the ball goes higher, the difficulty increases. The goal of the game is to guide the ball to the very top.
This game improves children's eye-hand coordination and is very fun, especially when competing with friends.
The design can be cut on 900 x 1200 mm (3 x 4 ft) CNC router and bigger.
After completing the order, you will receive DXF files with component layout adjusted to different CNC sizes:
900 x 1200 (3 x 4 ft)
1200 x 1200 (4 x 4 ft)
1200 x 2400 (4 x 8 ft)
*The files are adjusted to fit both metric and imperial standards for materials and tools
Dimensions:
1170 mm (hight) x 750 mm (length) x 500 mm (width)
46-1/16 (hight) x 29-17/32 (length) x 19-11/16mm (width)
Required materials:
For 900 x 1200 (3 x 4 ft) CNC
- 3 sheets of 900 x 1200 x 12 mm (35-7/16 x 47-¼ x 1/2 inches) plywood
- 6 mm (¼ inch) router bit for dogbones
For 1200 x 1200 (4 x 4 ft) CNC
- 2 sheets of 1200 x 1200 x 12 mm (39-⅜ x 47-¼ x 1/2 inches) plywood
- 6 mm (¼ inch) router bit for dogbones
For 1200 x 2440 (4 x 8 ft) CNC
- 1 sheets of 1200 x 2440 x 12 mm (47-¼ x 96-1/16 x 1/2 inches) plywood
- 6 mm (¼ inch) router bit for dogbones
Assembling time:
25 minutes
Delivery time:
30 seconds
After completing the order, you will receive the DXF design file to your email within seconds.
Updates:
Free
If your plywood sheet is thicker or thinner than expected, send the number of your purchase and the actual thickness to contact@aribabox.com. We will send you the updated DXF design file for free.
The product may differ from the representative images when cut and assembled. We hope you will enjoy your purchase from Aribabox.
