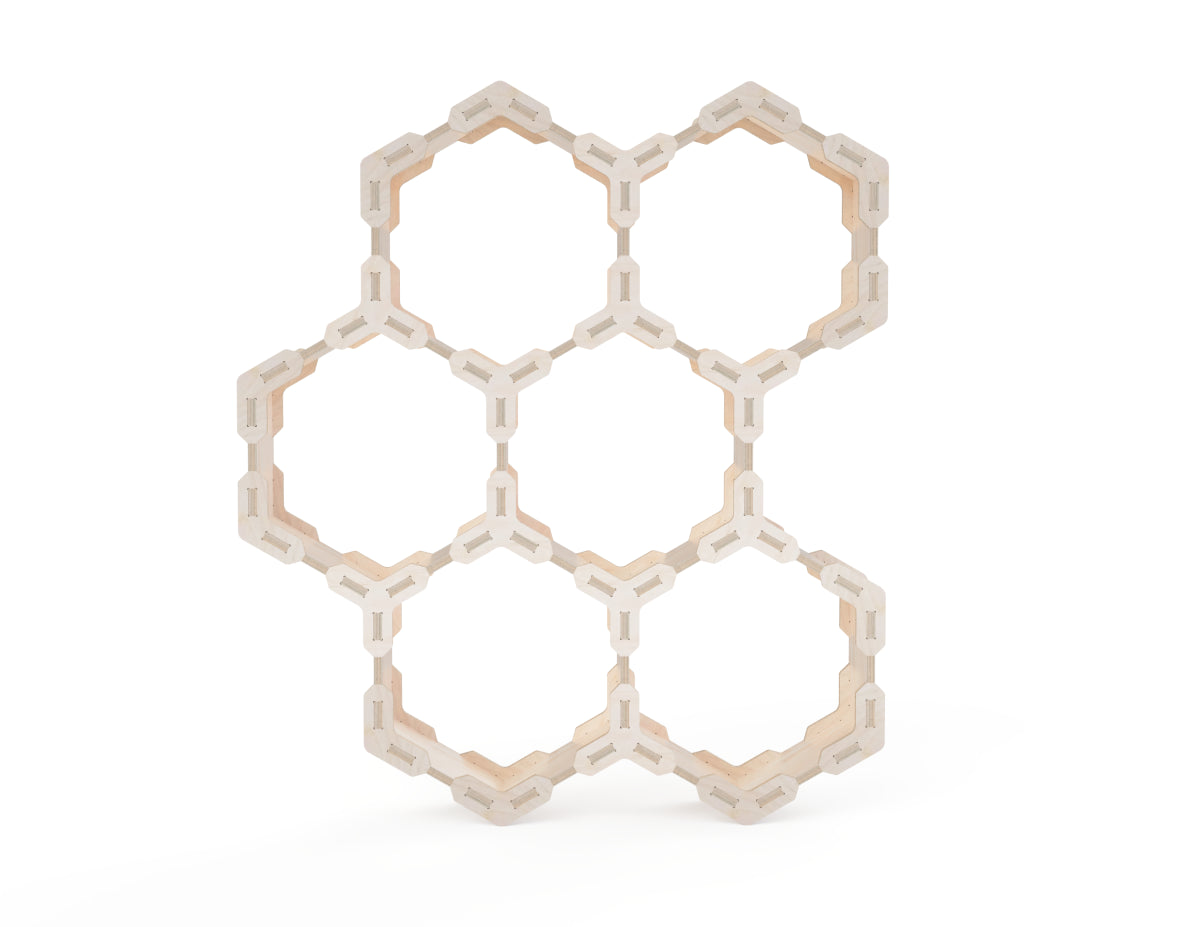

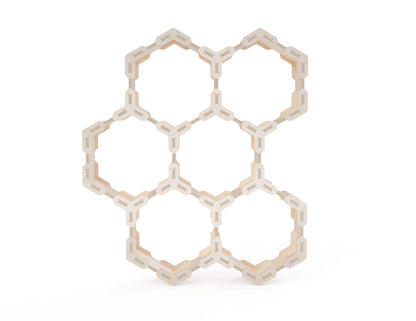

• Honeycomb shelf DXF file CNC DXF file design overview

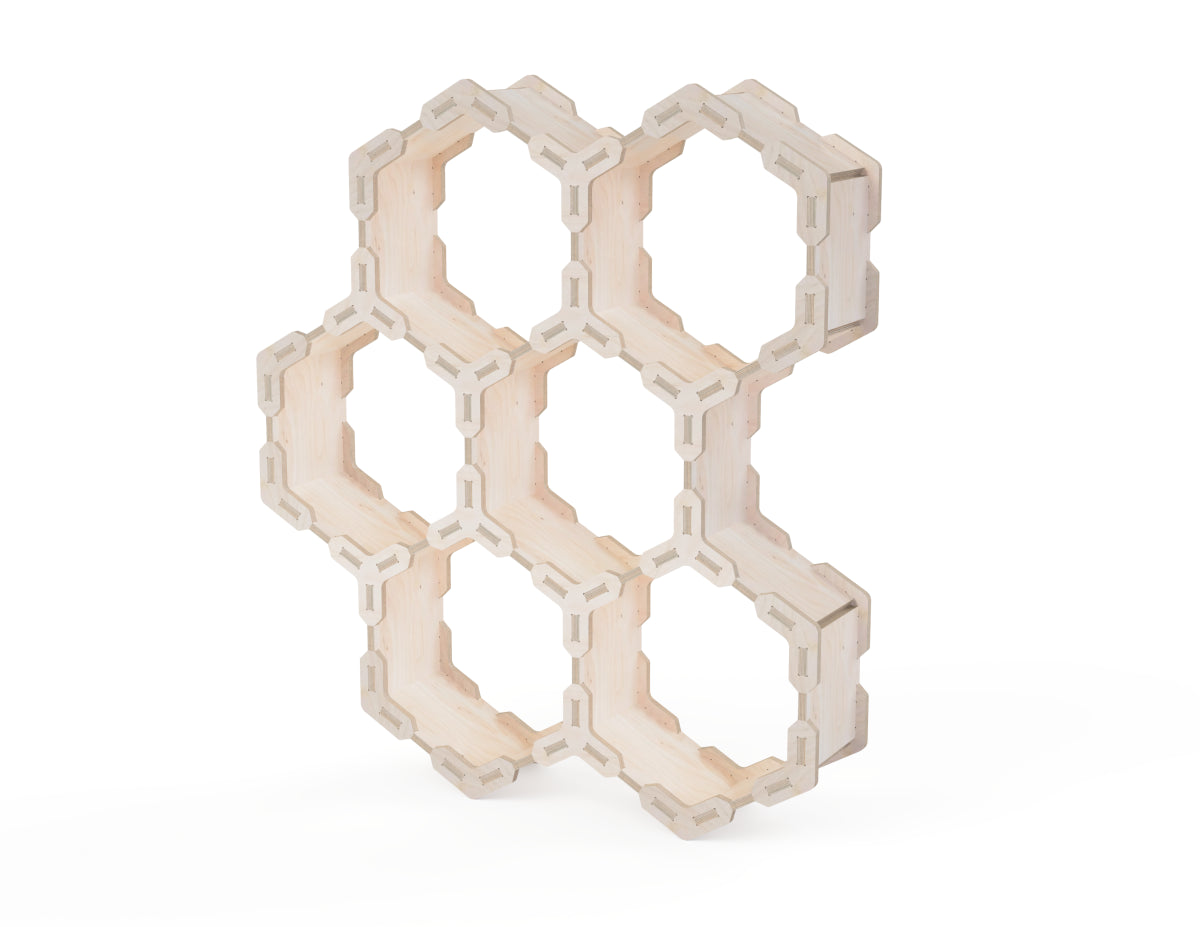

  • Honeycomb shelf DXF file DXF file rendered from angled view for CNC cutting

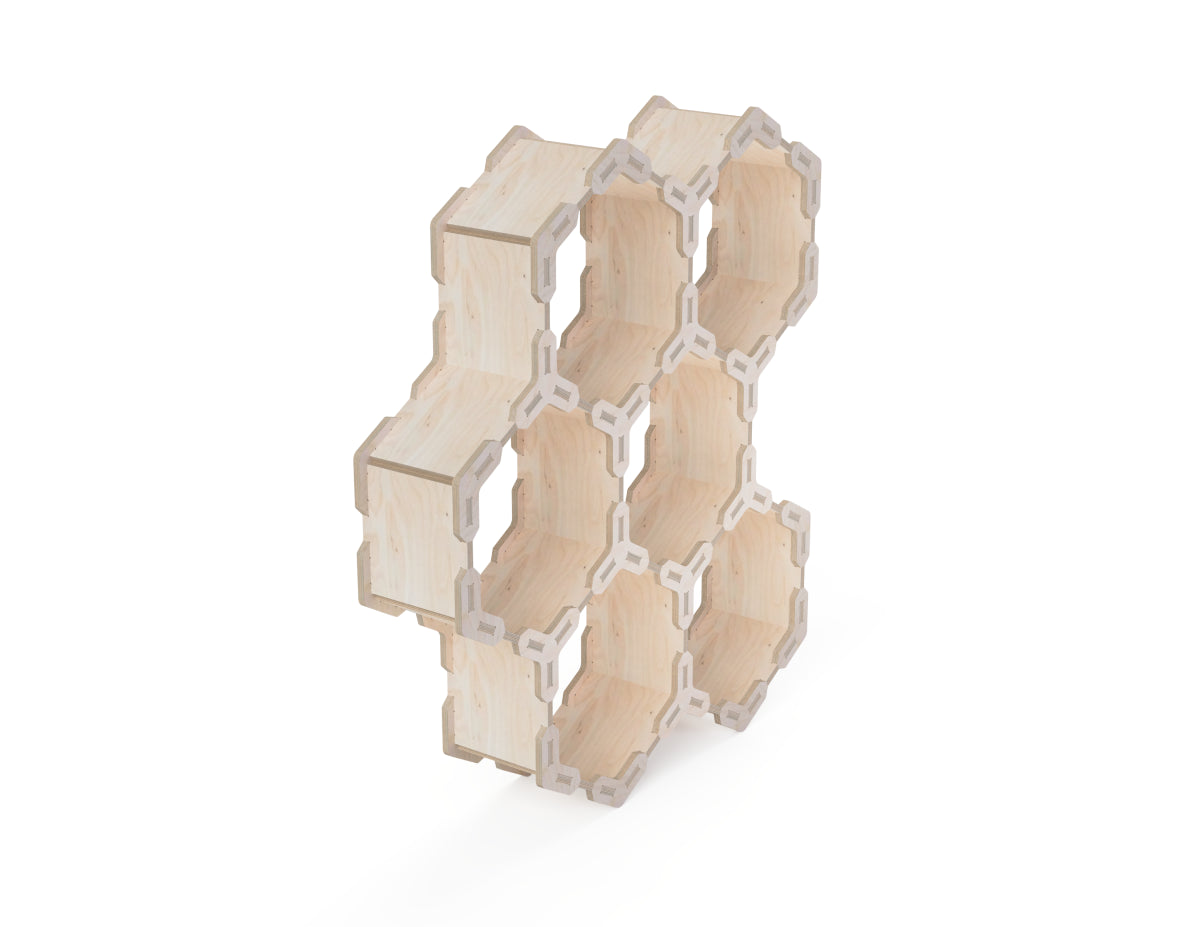

  • Detailed DXF drawing of honeycomb shelf dxf file for CNC router
1 3

Modular Honeycomb Shelf DXF Files

Modular Honeycomb Shelf DXF Files

$9.55 USD
$9.55 USD $9.55 USD
Sale Sold out
Taxes included.

Build a stylish Modular Honeycomb Shelf using these ready-to-cut CNC router DXF files. Designed for flexibility, the honeycomb shelf can be easily scaled up or down to fit your unique storage needs and space.



Its modular design allows you to craft the shelf on small CNC routers with a worksurface as compact as 300 x 300 mm, making it accessible for hobbyists and professionals alike.



This easy-to-make project can be completed in one evening or over a weekend, perfect for beginners and experienced makers. Add a modern, geometric storage solution to your home or workspace with this versatile honeycomb shelf design.

Supported CNC sizes

The project can be made on a 600 x 900 mm (2 x 3 ft) CNC router and bigger.

Dimensions

Width Length Height
940 mm 200 mm 1100 mm
37 inch 7⅞ inch 43¼ inch

Required materials

For 600 x 900 (2 x 3 ft) CNC
- 4 sheets of 600 x 900 x 12 mm (23-⅝ x 35-7/16 x 1/2 inches) plywood
- 4 mm (1/8 inch) router bit for dogbones
For 900 x 1200 (3 x 4 ft) CNC
- 2 sheets of 900 x 1200 x 12 mm (35-7/16 x 47-¼ x 1/2 inches) plywood
- 4 mm (1/8 inch) router bit for dogbones
For 1200 x 1200 (4 x 4 ft)
- 2 sheets of 1200 x 1200 x 12 mm (47-1/4 x 47-¼ x 1/2 inches) plywood
- 4 mm (1/8 inch) router bit for dogbones
For 1200 x 2400 (4 x 8ft)
- 1 sheets of 1200 x 1720 x 12 mm (47-1/4 x 67-23/32 x 1/2 inches) plywood
- 4 mm (1/8 inch) router bit for dogbones

Assembling time

20 minutes
The product may differ from the representative images when cut and assembled. We hope you will enjoy your purchase from Aribabox!
