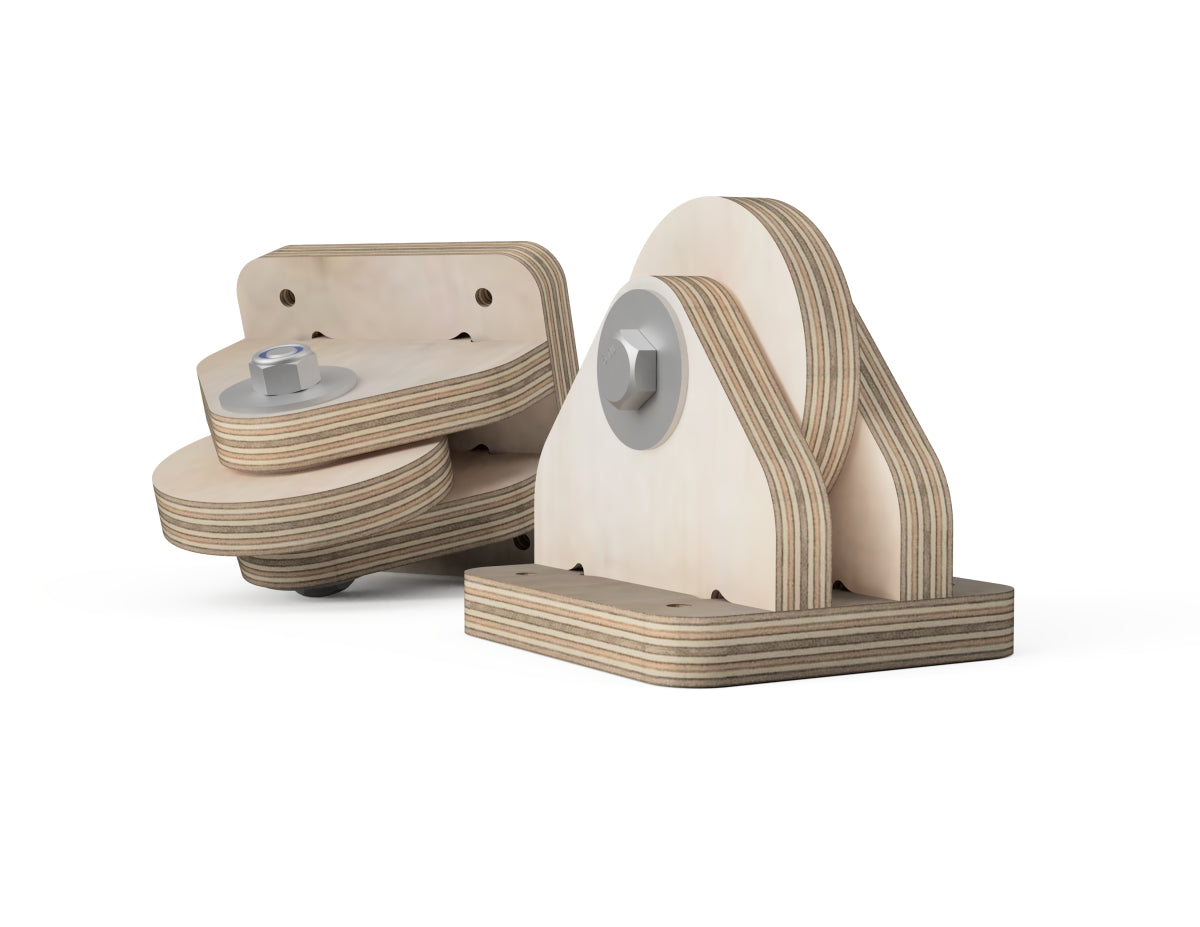

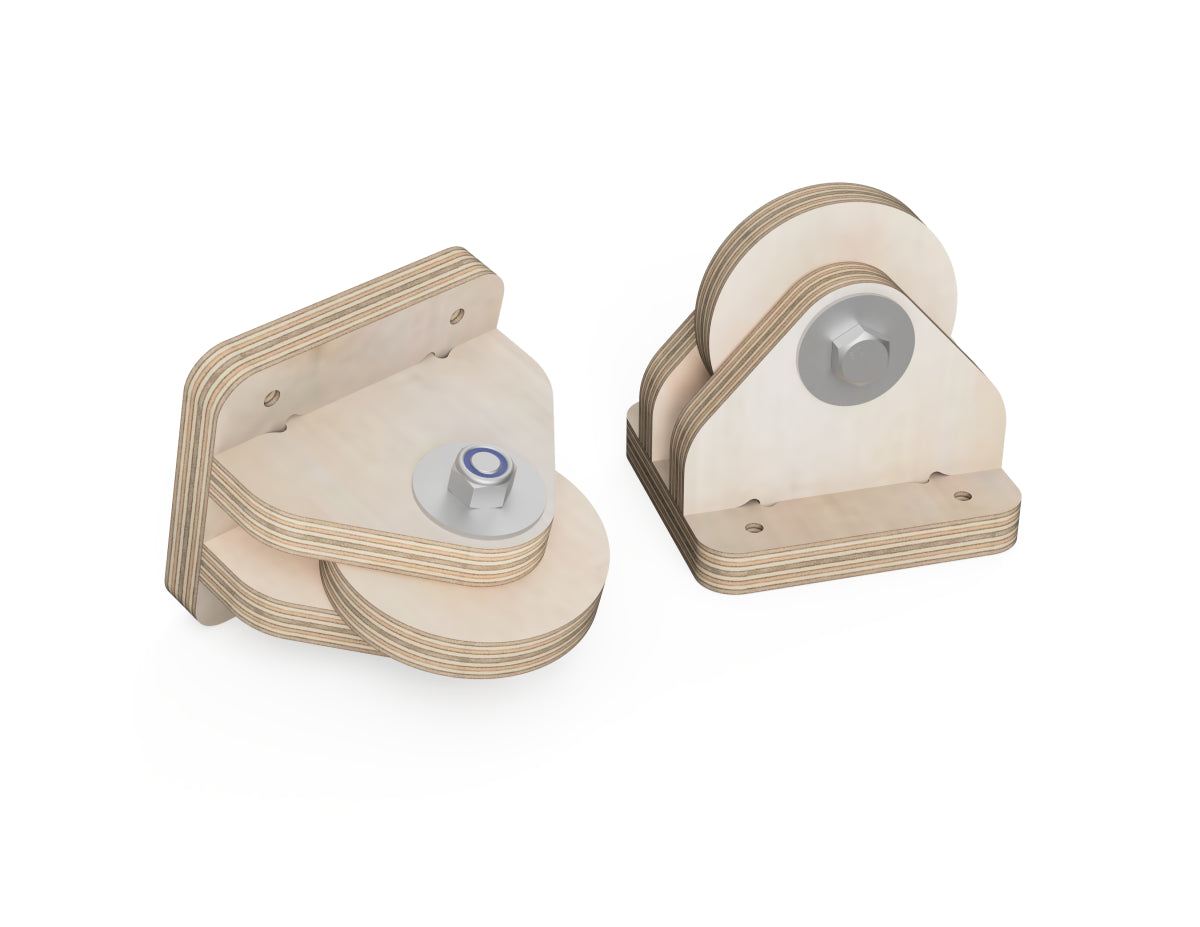

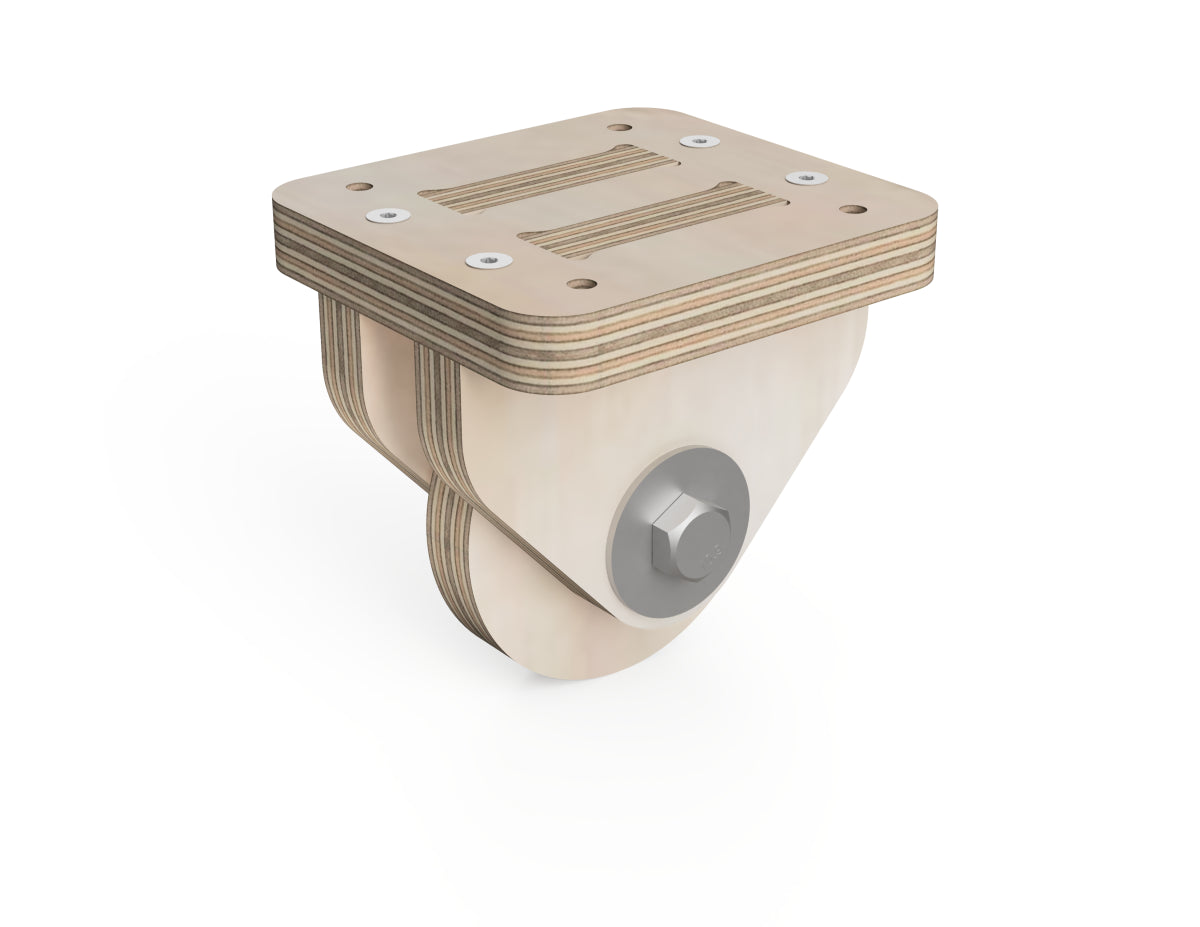

Make your projects mobile with these DIY fixed caster wheels, designed specifically for CNC routers.
These free DXF files let you create fully functional plywood caster wheels using just a small piece of material—perfect for makers, woodworkers, and CNC hobbyists.

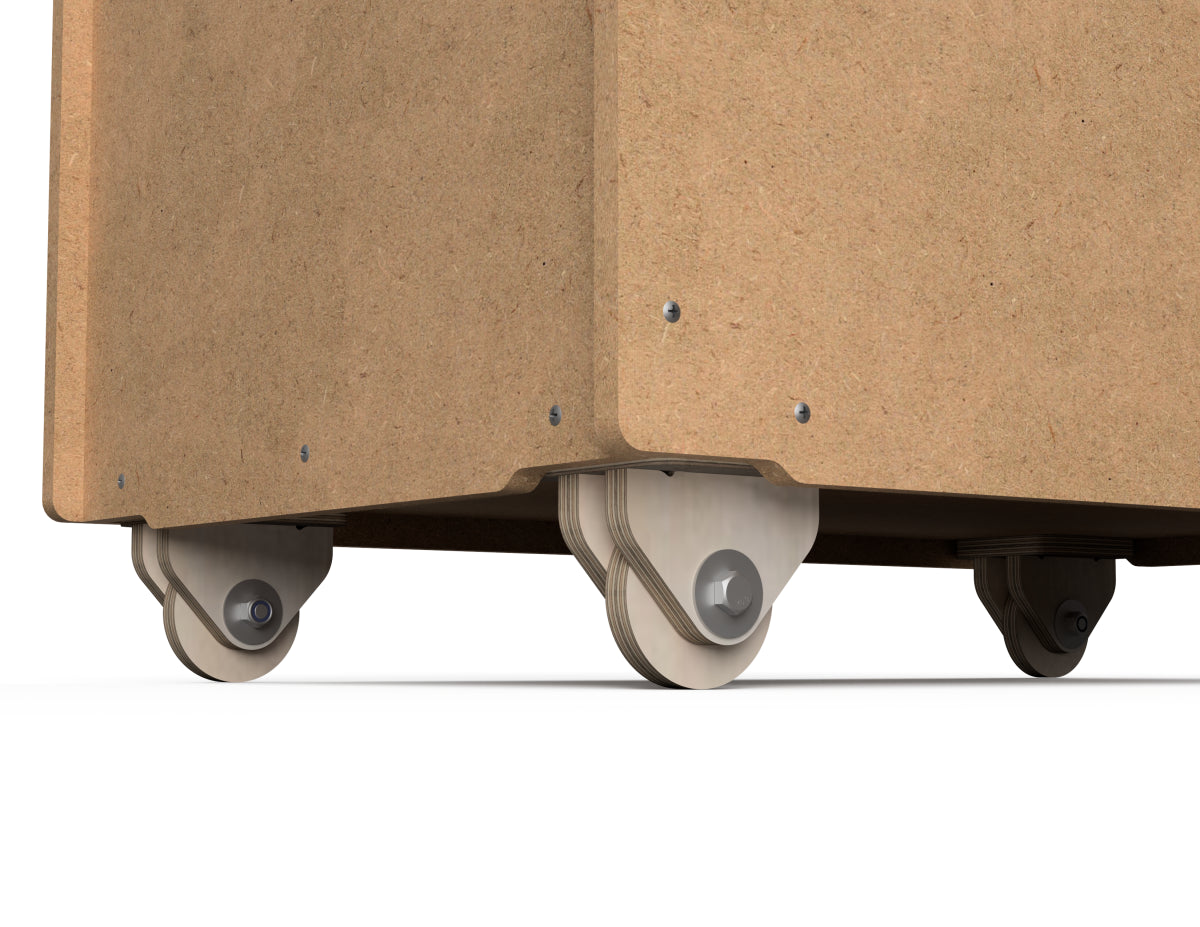

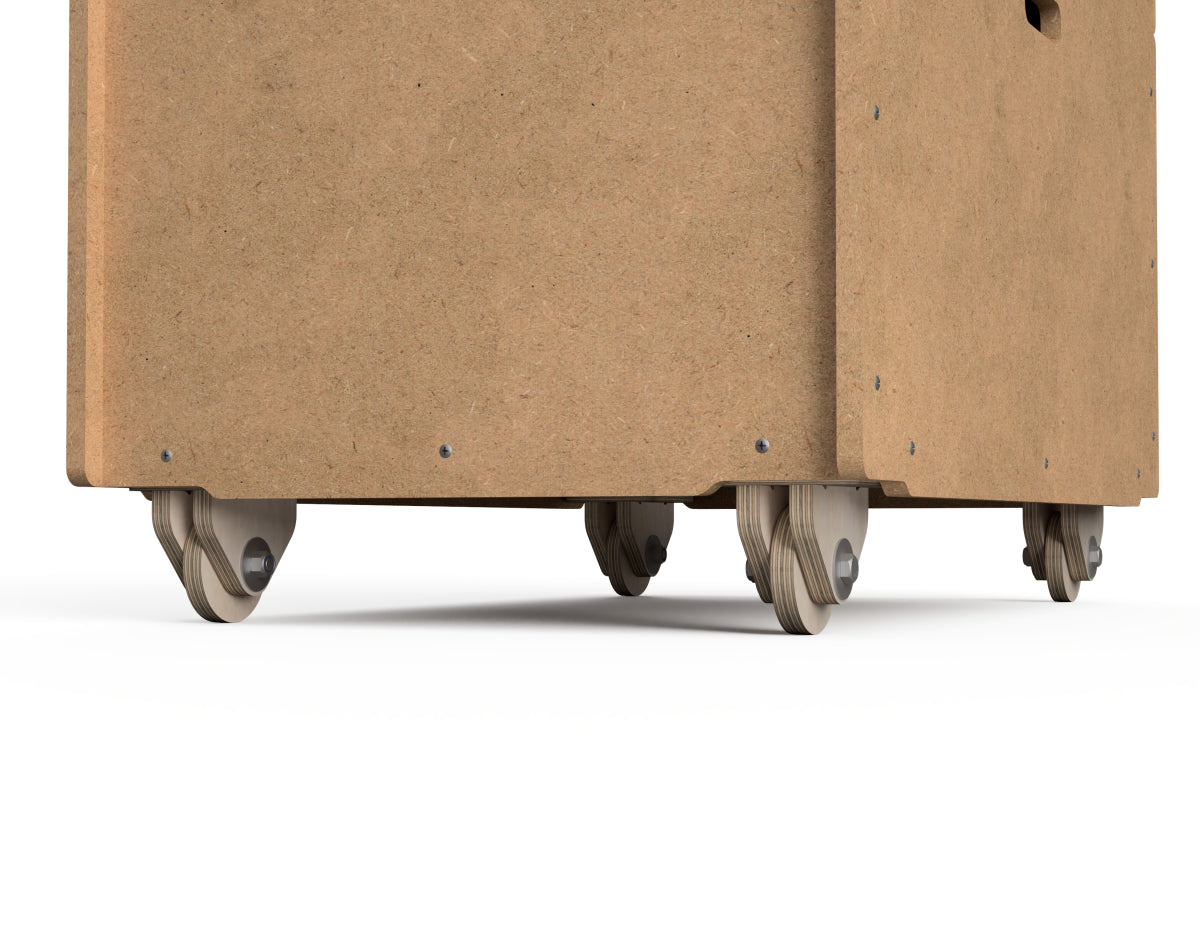

Ideal for adding movement to workbenches, tool cabinets, storage boxes, and tables, these wheels are easy to cut and assemble.
Whether you're building a new CNC project or upgrading an old one, these caster wheel plans are a smart, low-cost solution for smooth mobility.
Supported CNC sizes
Supported CNC sizes
Dimensions
Dimensions
| Width | Length | Height |
|---|---|---|
| 82 mm | 85 mm | 85 mm |
| 3¼ inch | 3⅜ inch | 3⅜ inch |
Required materials
Required materials
For a 600 x 600 mm (2 x 2 ft) CNC and bigger:
- 400 x 120 x 12 mm (16 x 5 x 1/2 inches) plywood
- M8 x 50 mm screw
- M8 washers - 4 pieces
- M8 locknut
- 25 mm (1-inch) wood screws - 8 pieces
Approximate CNC time
Approximate CNC time
Assembling time
Assembling time
