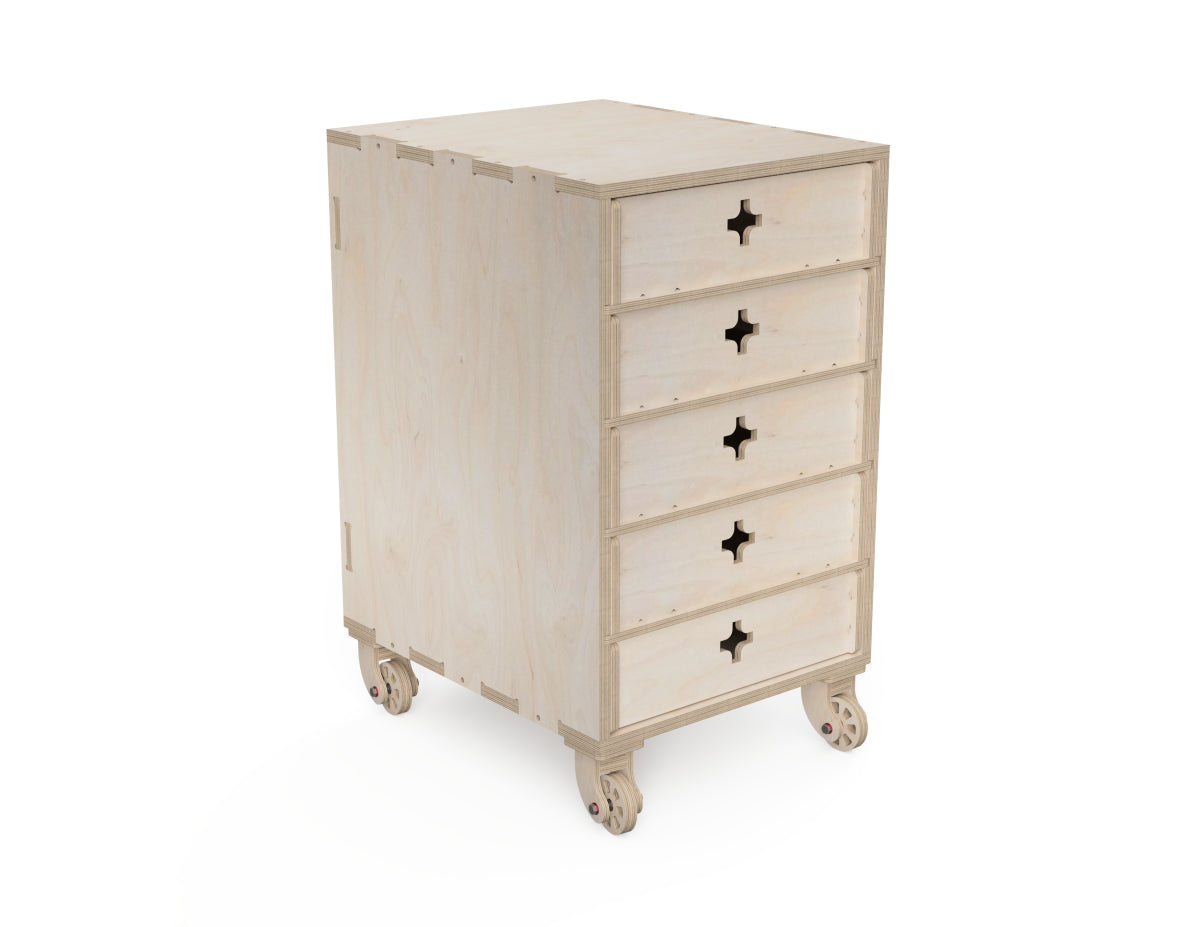

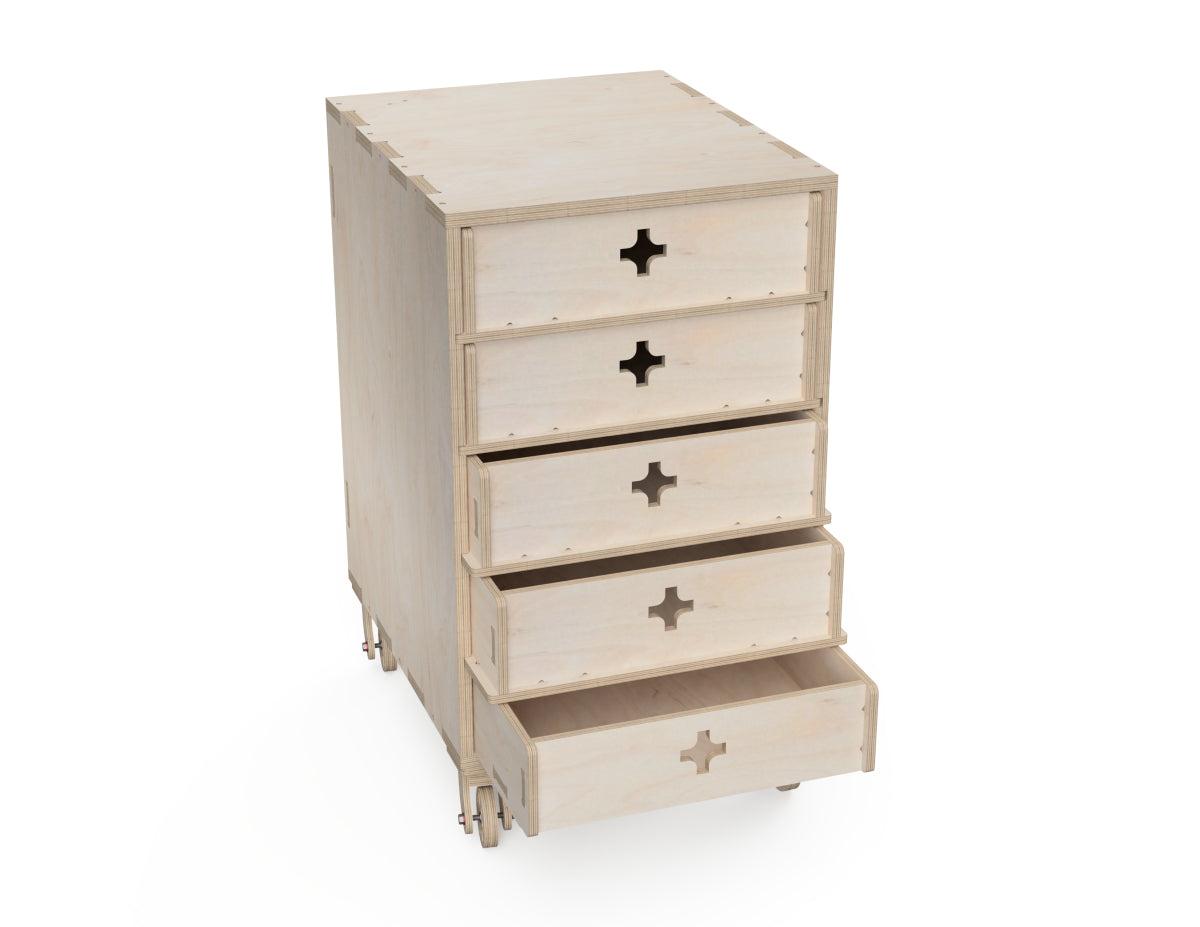

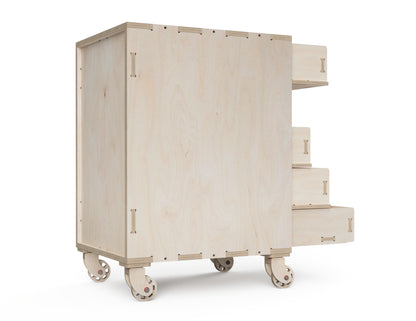

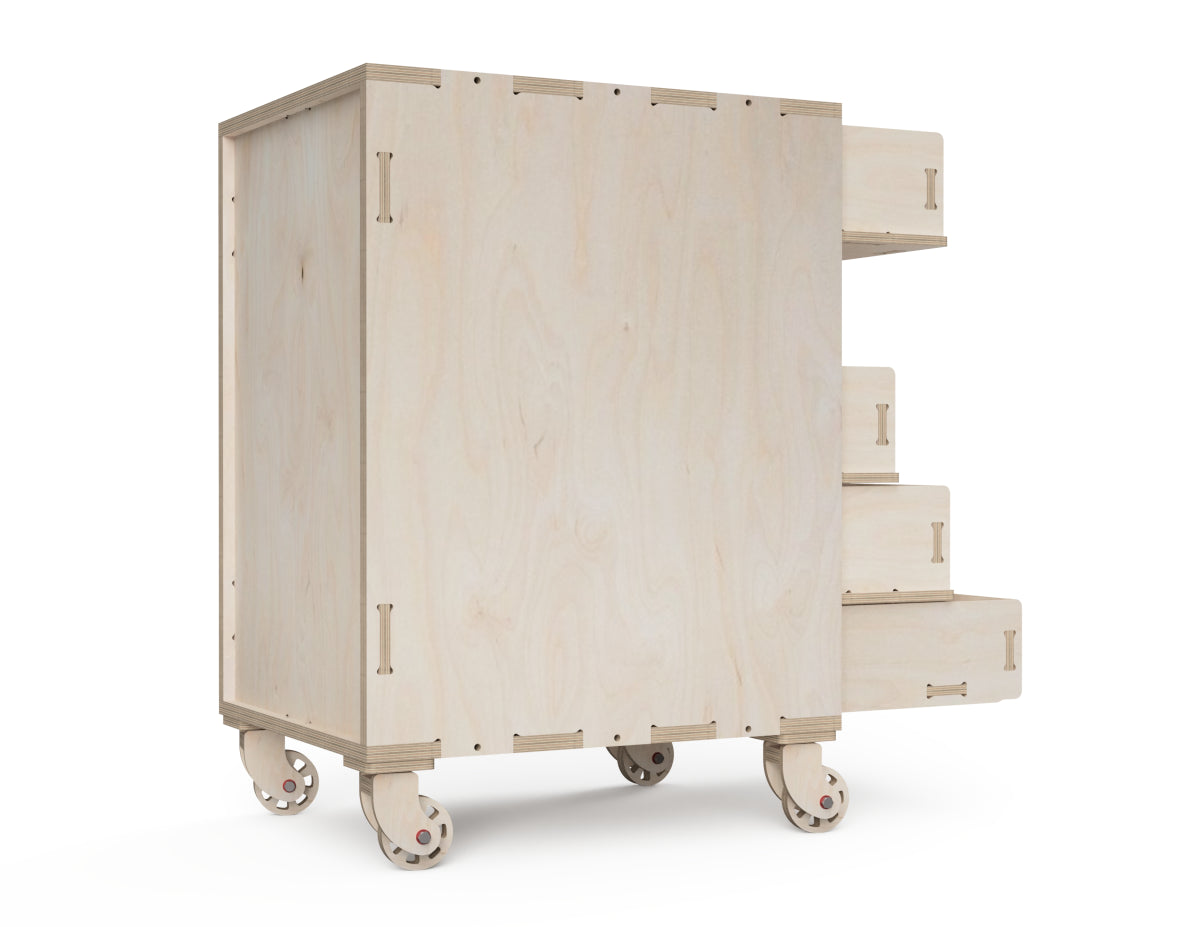

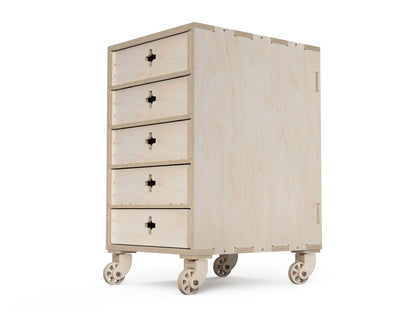

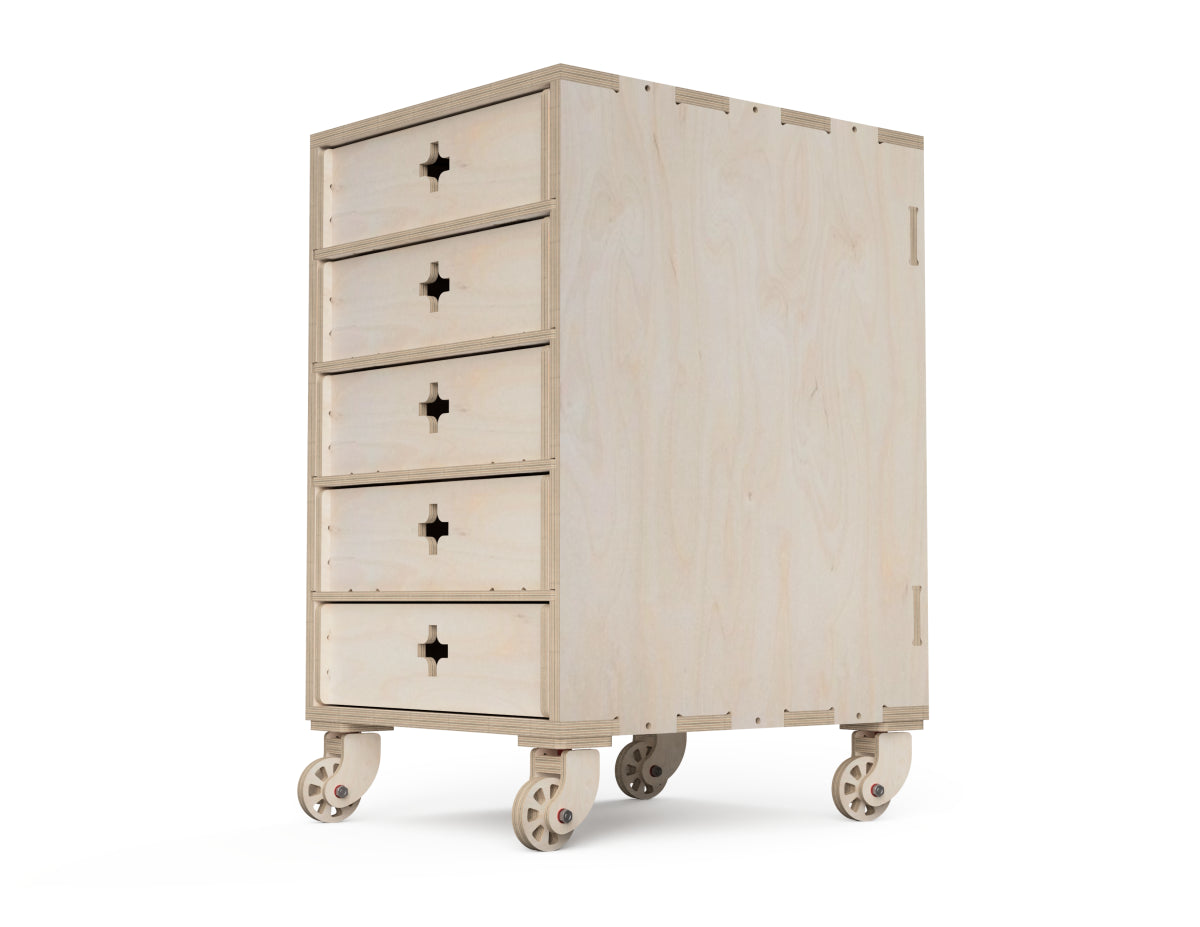

Five Drawer Cabinet For Workshop DXF Files
Five Drawer Cabinet For Workshop DXF Files
Couldn't load pickup availability
Introducing our convenient Drawer Cabinet DXF Files, the ultimate solution for creating a custom workshop cabinet with ease.
Designed for use with CNC routers, these files empower individuals with access to a CNC router to construct their very own drawer cabinet.
With straightforward usability, even beginners can effortlessly navigate and utilize the DXF files.
Assembling the cabinet is a breeze, requiring only dowels—no additional fasteners necessary.
Enhance your workshop organization and storage today with our user-friendly Drawer Cabinet DXF Files.
Supported CNC sizes
Supported CNC sizes
Dimensions
Dimensions
Width | Length | Height |
---|---|---|
500 mm | 600 mm | 740 mm |
19⅝ inch | 23⅝ inch | 29⅛ inch |
Required materials
Required materials
For an 800 x 1200 (2.6 x 4 ft) CNC router
- 2 sheets of 1200 x 800 x 18 mm (47.5 x 31.5 x 0.75 inches) Plywood
- 4 sheets of 1200 x 800 x 12 mm (47.5 x 31.5 x 0.5 inches) Plywood
- 8 mm (0.315 inch) dowels
For an 900 x 1200 (3 x 4 ft) CNC router
- 2 sheets of 1200 x 800 x 18 mm (47.5 x 31.5 x 0.75 inches) Plywood
- 4 sheets of 1200 x 800 x 12 mm (47.5 x 31.5 x 0.5 inches) Plywood
- 8 mm (0.315 inch) dowels
For an 1200 x 1200 (4 x 4 ft) CNC router
- 2 sheets of 1200 x 800 x 18 mm (47.5 x 31.5 x 0.75 inches) Plywood
- 2 sheet of 1200 x 1200 x 12 mm (40 x 37.5 x 0.625 inches) Plywood
- 1 sheet of 1200 x 800 x 12 mm (47.5 x 31.5 x 0.5 inches) Plywood
- 8 mm (0.315 inch) dowels
For an 1220 x 2440 (4 x 8 ft) CNC router
- 1 sheet of 2300 x 800 x 18 mm (91 x 32 x 0.75 inches) Plywood
- 1 sheet of 2440 x 1220 x 12 mm (96 x 48 x 0.5 inches) Plywood
- 1 sheet of 1100 x 700 x 12 mm (43.3 x 27.5 x 0.5 inches) Plywood
- 8 mm (0.315 inch) dowels
Assembling time
Assembling time
