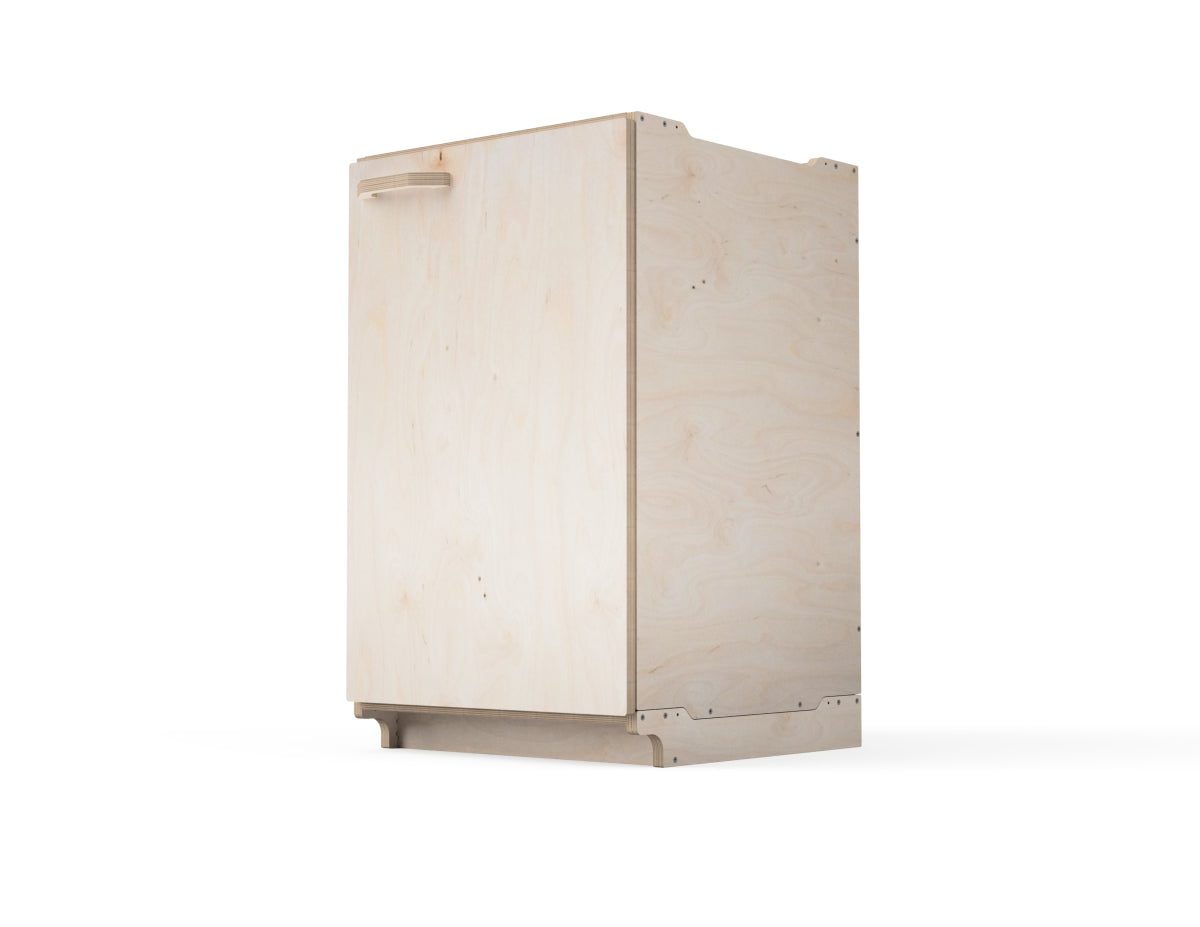

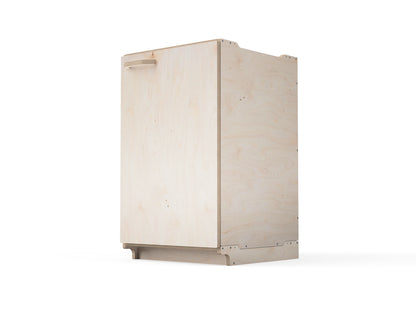

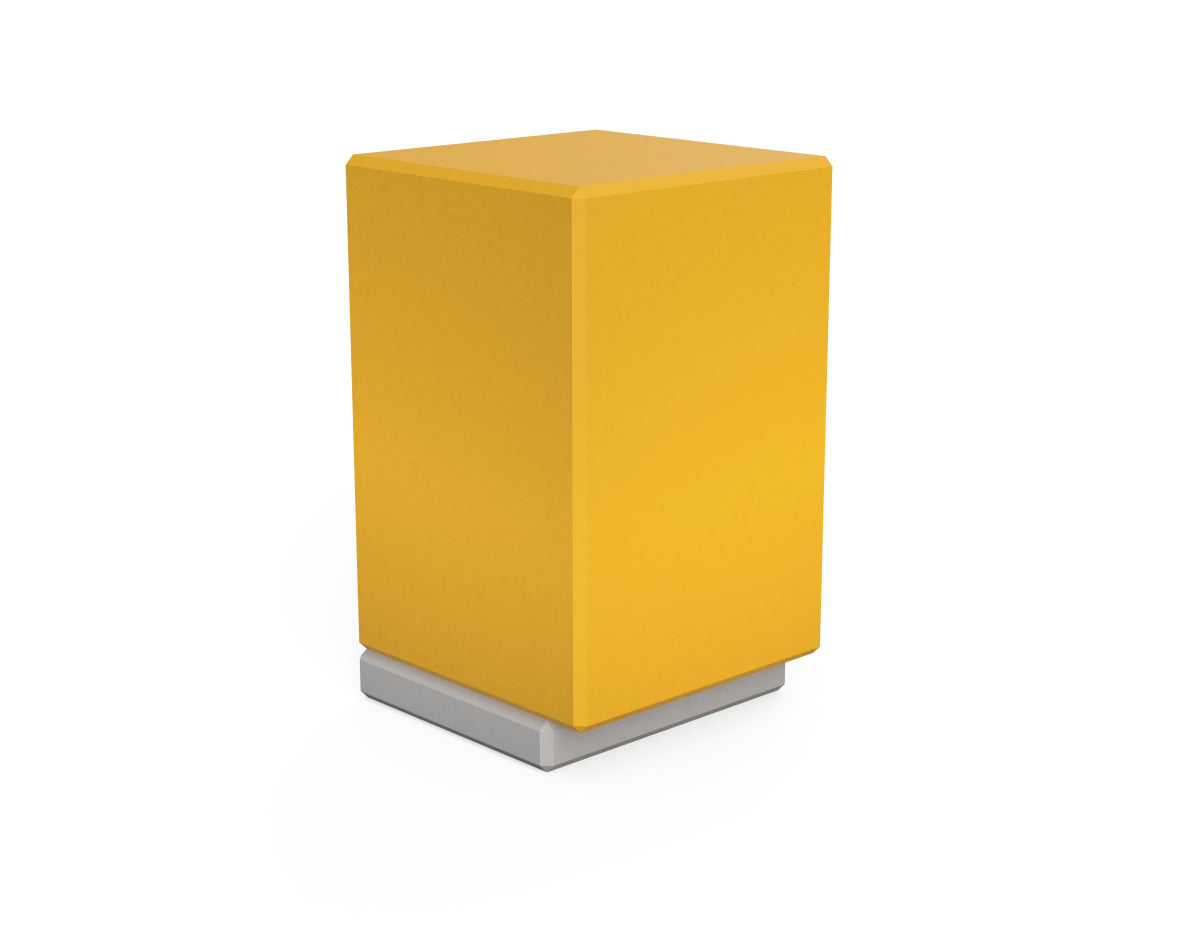

Create a custom workshop storage solution with the Extra Large Modular Workshop Cabinet DXF files.

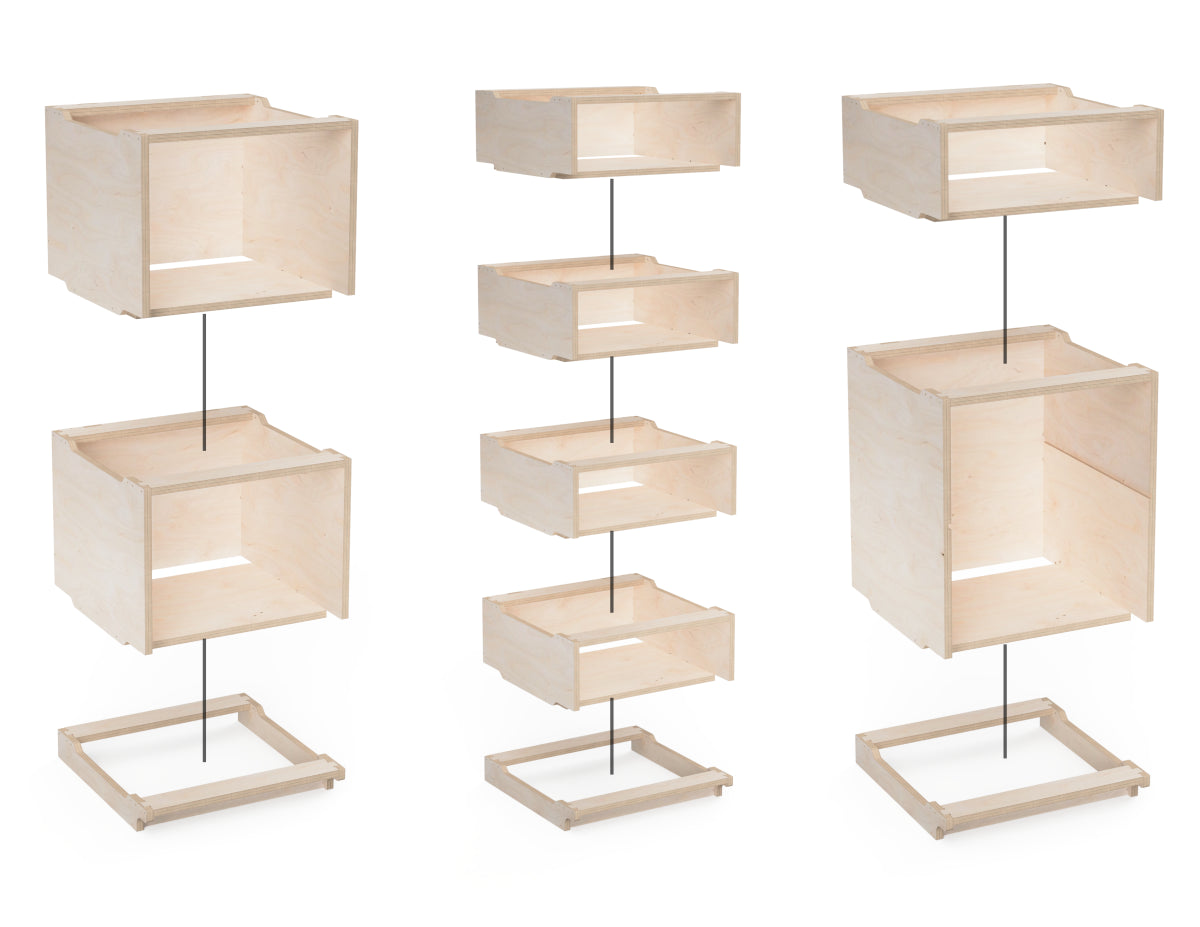

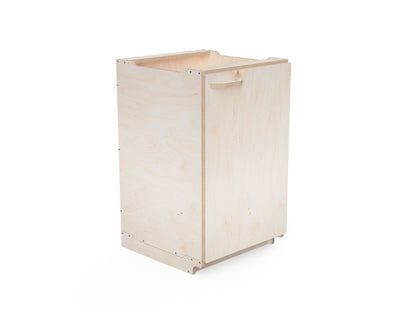

Designed for CNC routers, this modular cabinet system allows you to build stackable sections tailored to your space.

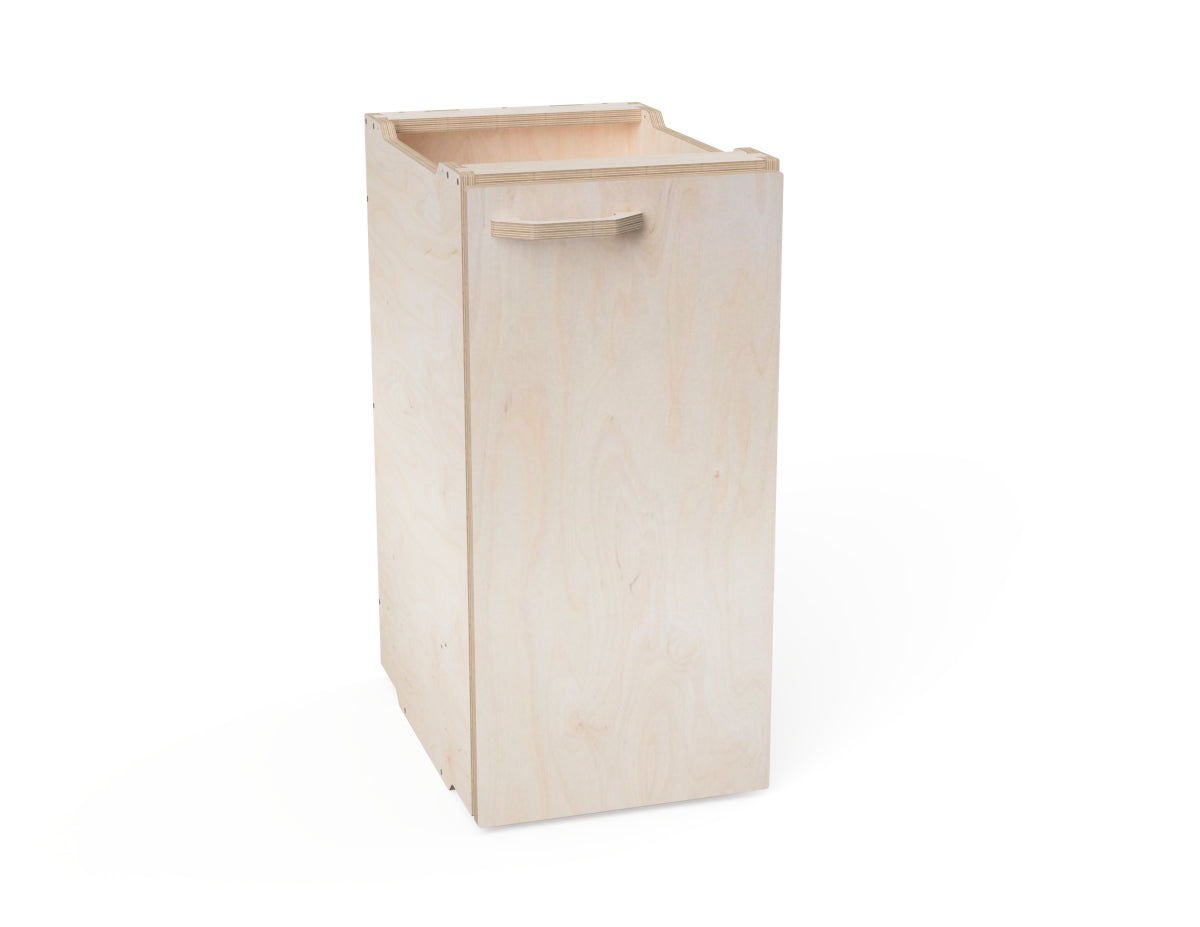

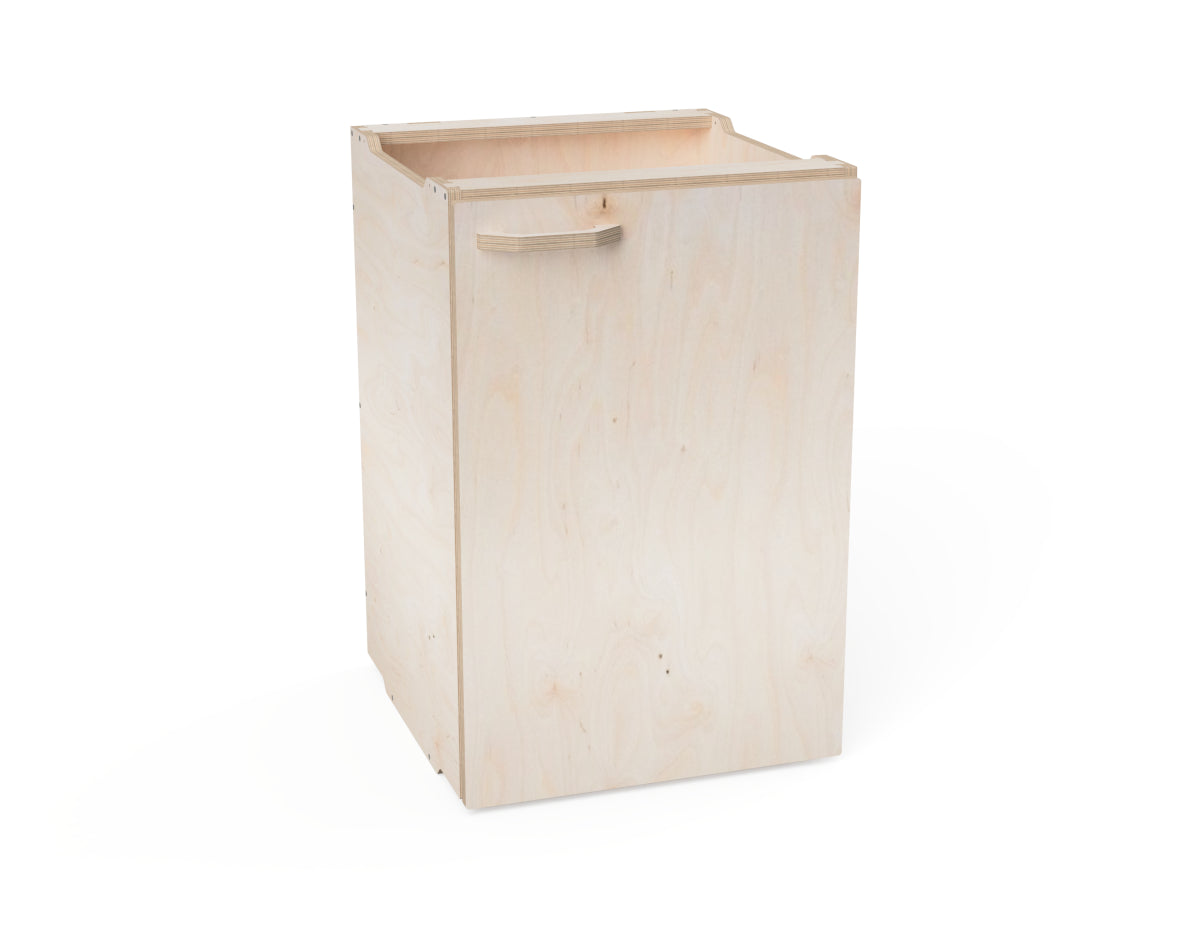

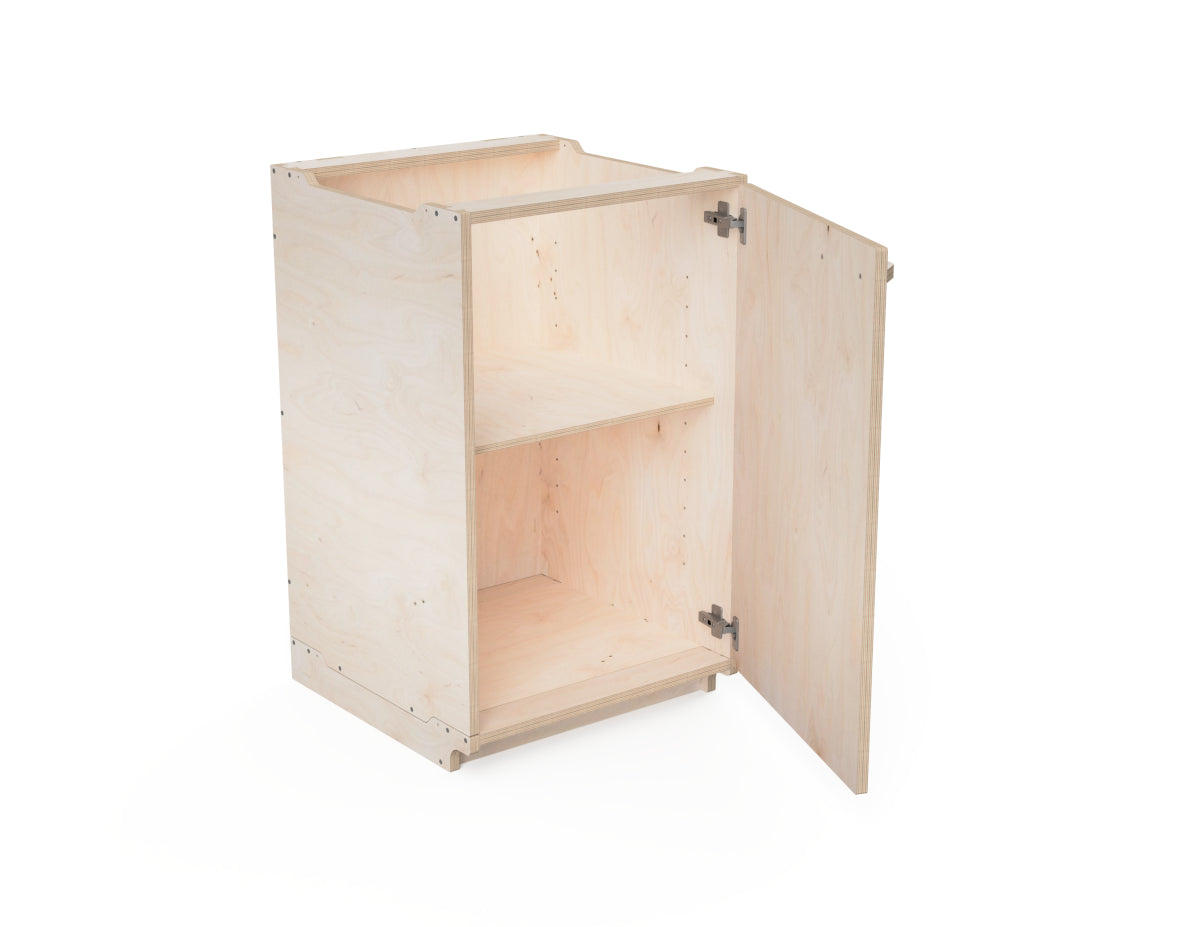

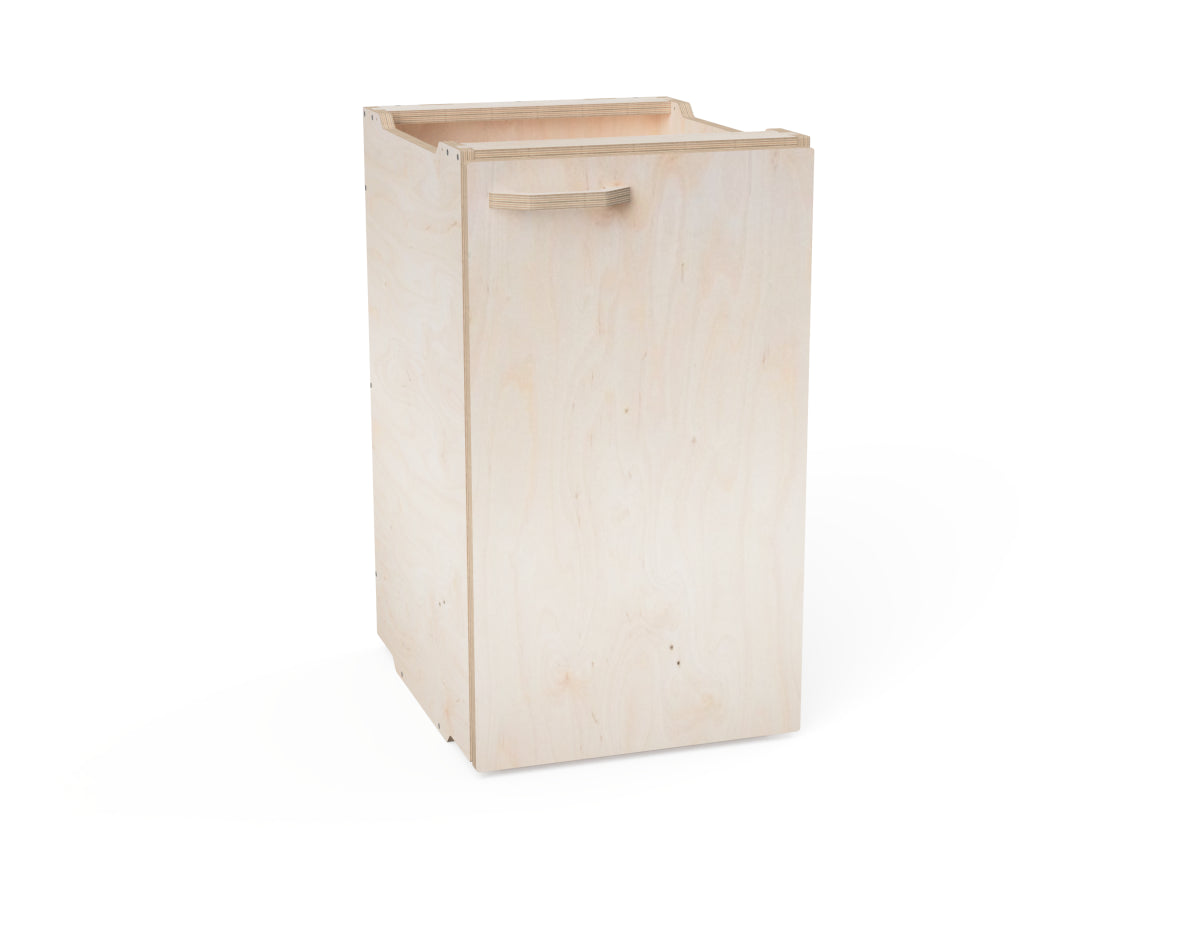

Each module is 900 mm high with a built-in door for easy access and comes in three widths: 550 mm, 475 mm, and 400 mm.

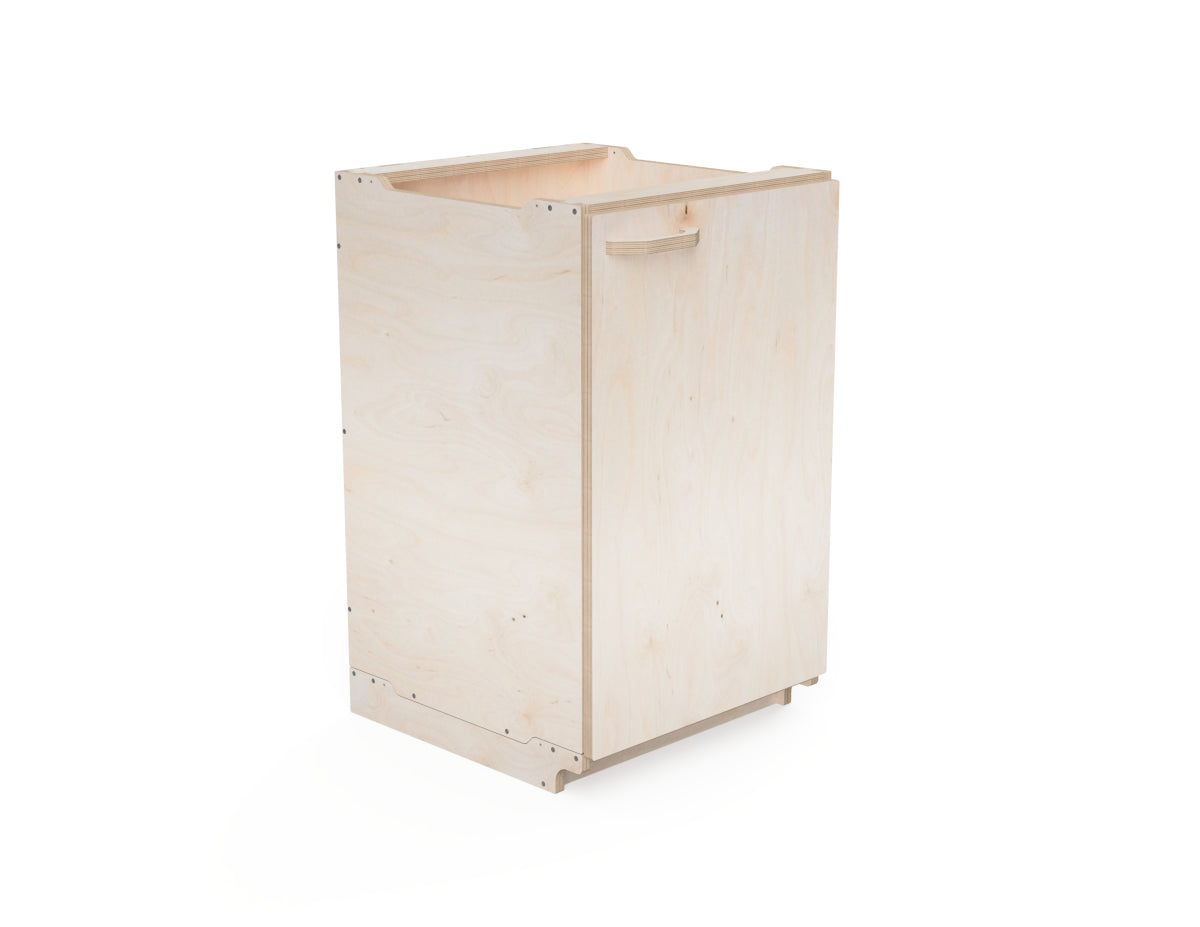

Mix and match modules to fit your workshop needs, and organize tools, supplies, and equipment efficiently.

Perfect for DIYers, woodworkers, and makers seeking a professional, flexible storage solution.

Supported CNC sizes

The project can be made on a 600 x 900 mm (2 x 3 ft) CNC router and bigger.

Max single piece size

The biggest component is 840 x 550 mm (33.07 x 21.65 inches).
So if it can fit on your CNC router, you can build this project

Dimensions

Minimum

Width	Length	Height
400 mm	550 mm	840 mm
15¾ inch	21⅝ inch	33⅛ inch

Maximum

Width	Length	Height
550 mm	550 mm	840 mm
21⅝ inch	21⅝ inch	33⅛ inch

Required materials

For a 600 x 900 mm (2 x 3 ft) CNC
- 5 sheets of 600 x 900 x 18 mm (24 x 36 x 3/4 inches) plywood
- 2 sheets of 600 x 900 x 12 mm (24 x 36 x 1/2 inches) plywood
- 35 mm (1-1/2 inches) wood screws - 25 pieces
- 6 mm (1/4 inch) router bit
- Cabinet hinges - 2 pieces
For a 900 x 1220 mm (3 x 4 ft) CNC
- 2 sheets of 900 x 1220 x 18 mm (36 x 48 x 3/4 inches) plywood
- 1 sheet of 900 x 1220 x 12 mm (36 x 48 x 1/2 inches) plywood
- 35 mm (1-1/2 inches) wood screws - 25 pieces
- 6 mm (1/4 inch) router bit
- Cabinet hinges - 2 pieces
For a 1220 x 2440 mm (3 x 4 ft) CNC
- a sheet of 1220 x 2440 x 18 mm (48 x 96 x 3/4 inches) plywood
- 1 sheet of 900 x 1220 x 12 mm (36 x 48 x 1/2 inches) plywood
- 35 mm (1-1/2 inches) wood screws - 25 pieces
- 6 mm (1/4 inch) router bit
- Cabinet hinges - 2 pieces
