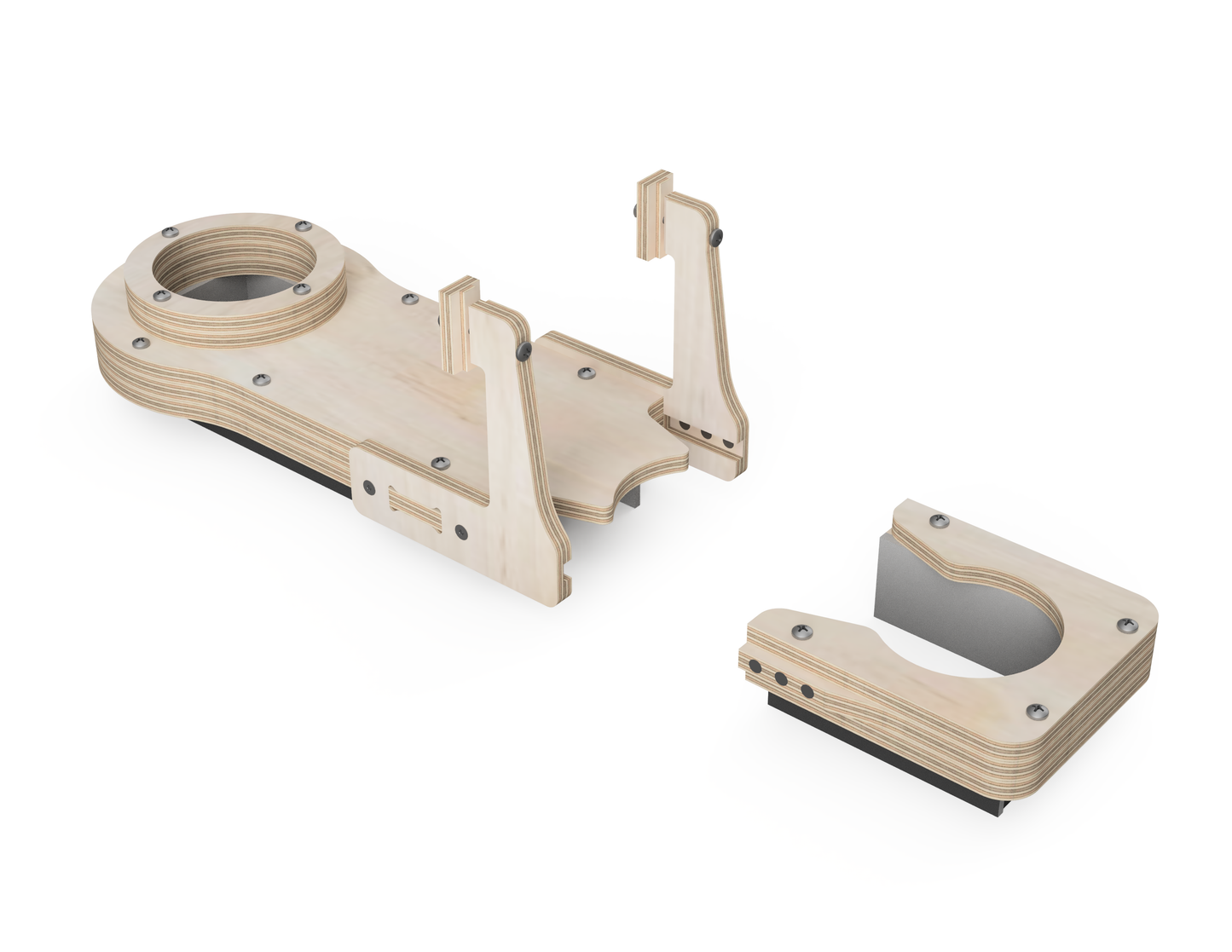

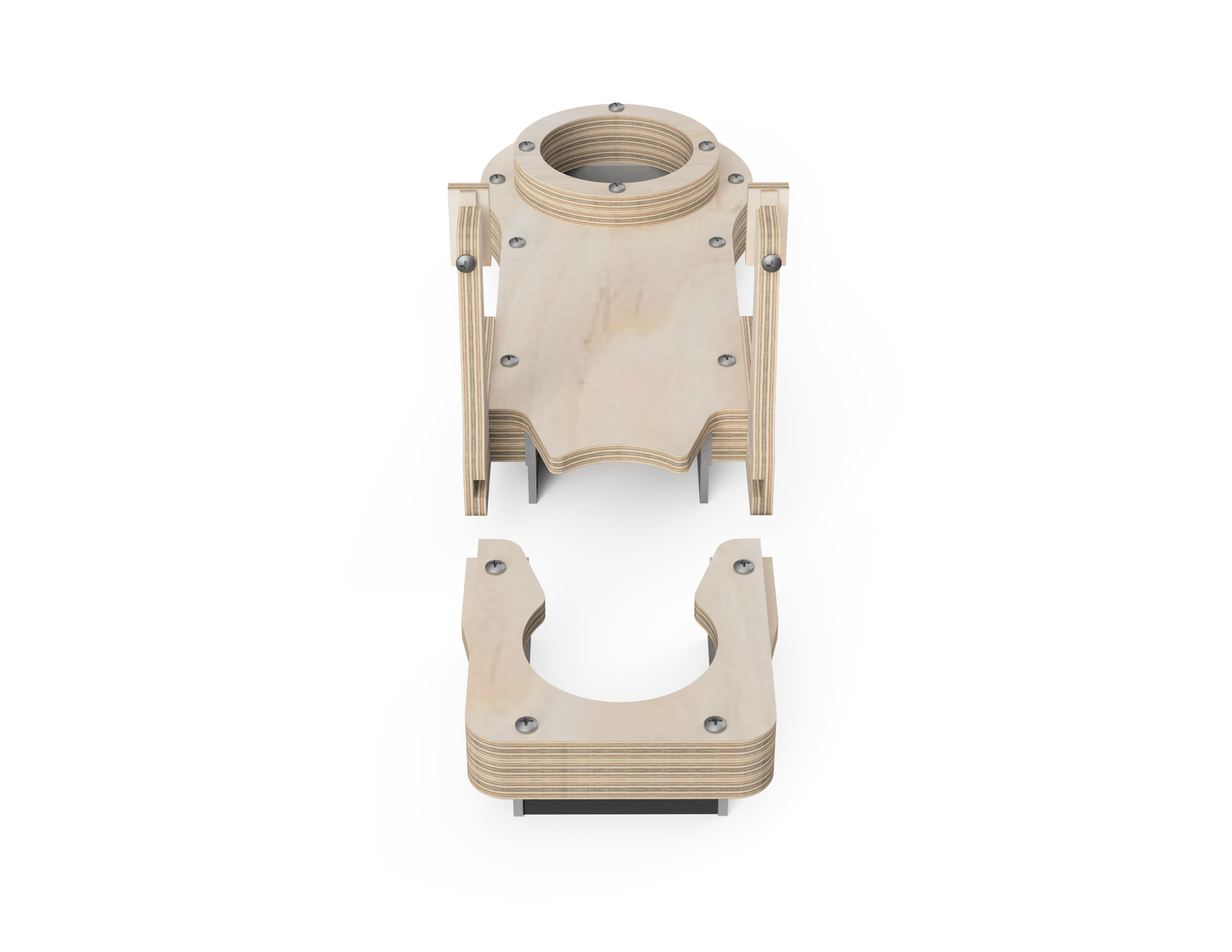

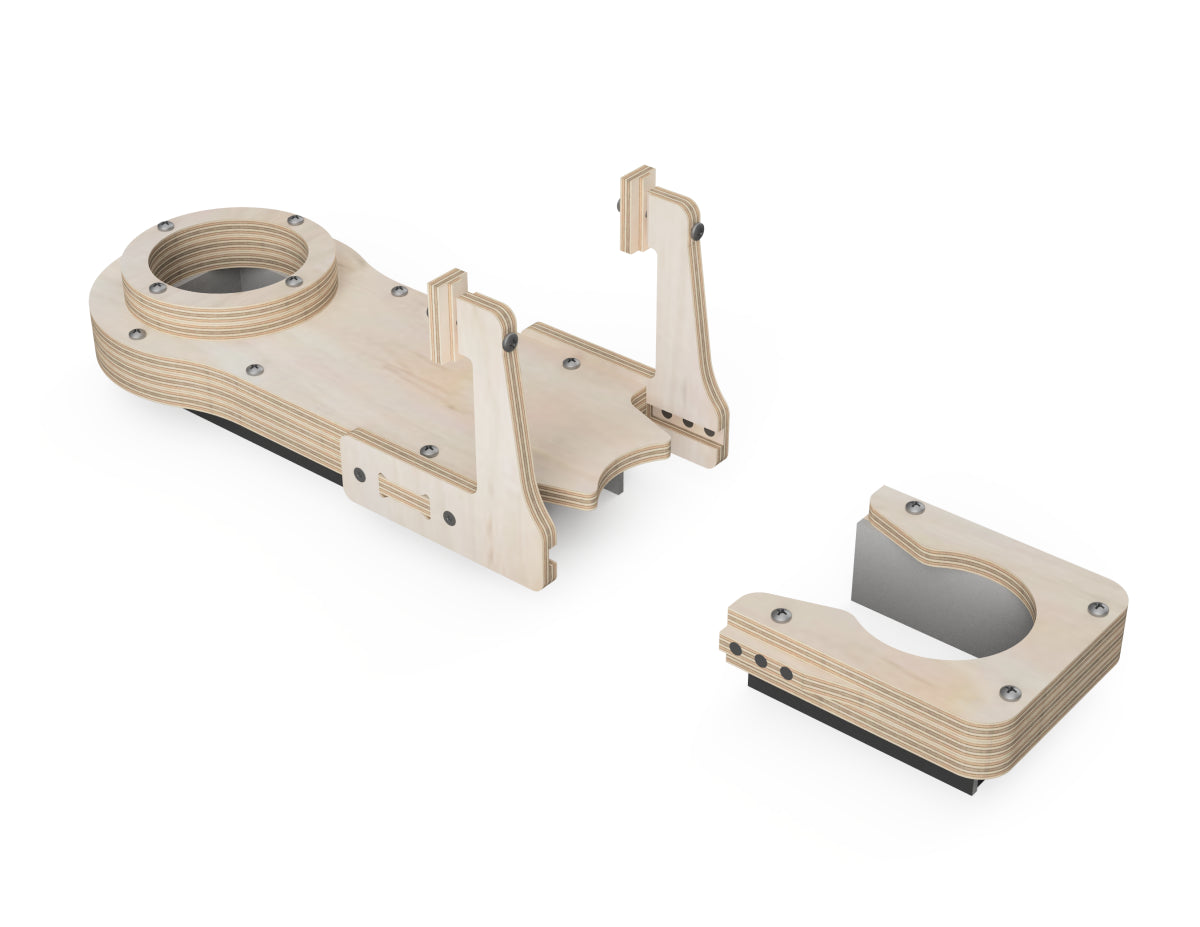

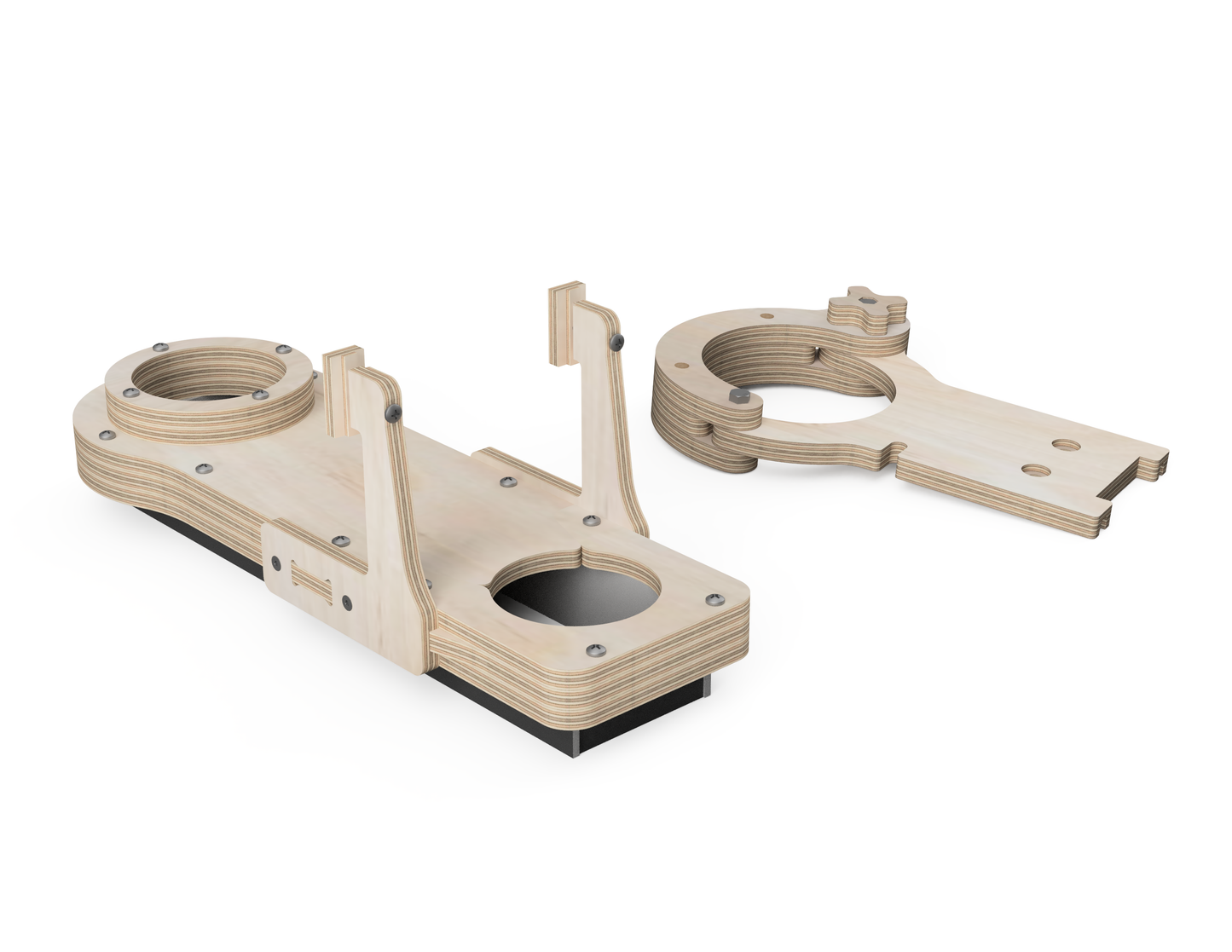

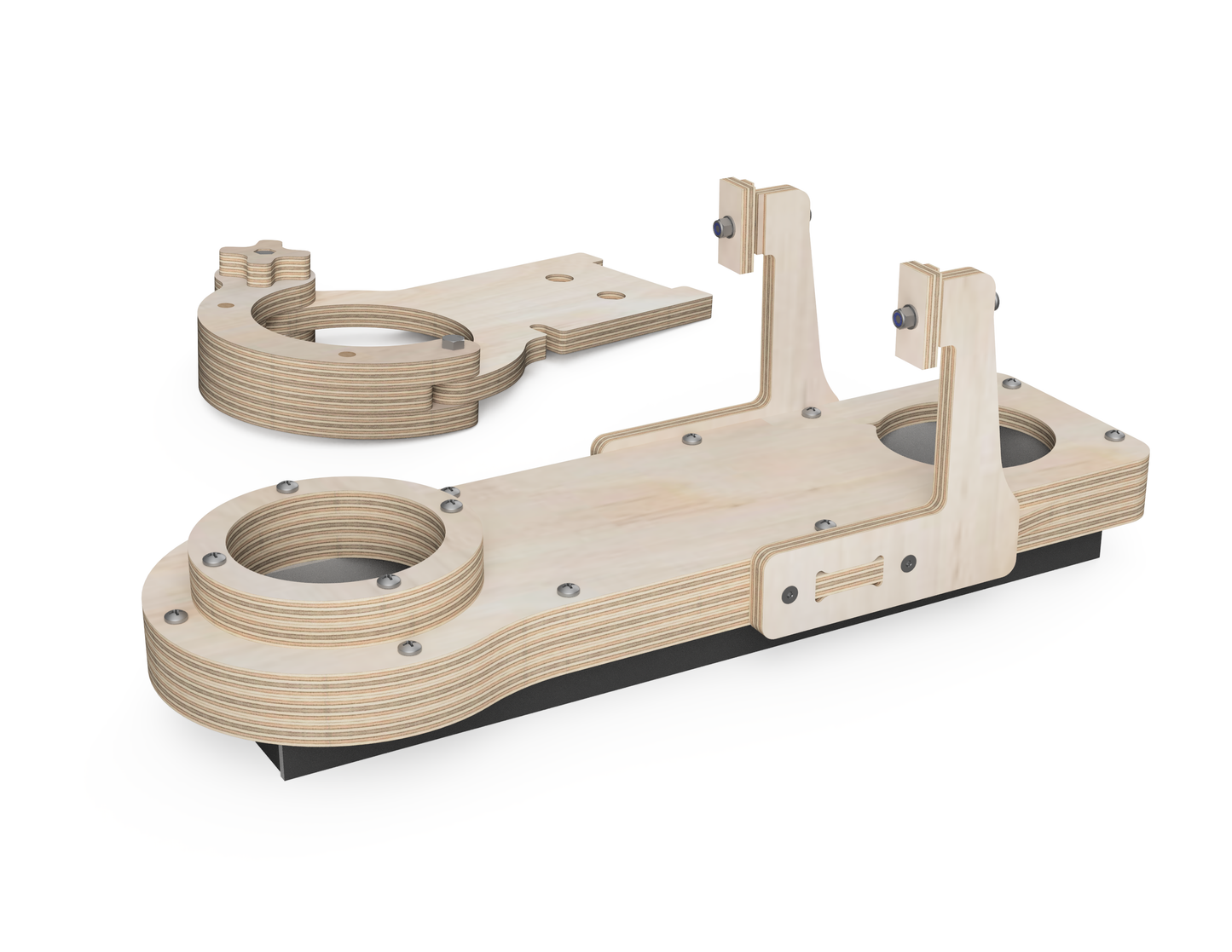

Upgrade your Onefinity CNC machine with a custom DIY dust shoe!
These free DXF files include everything you need to make a dust collection shoe compatible with Makita trim routers and 65mm spindle setups.
Designed for a 100mm (4-inch) dust collection hose, this dust shoe helps keep your workspace clean and your cuts precise. Perfect solution if you work mostly with sheet materials.
Download the files for free on our website and start building your own dust collection solution today!
Supported CNC sizes
Supported CNC sizes
The project can be made on a
600 x 600 mm (2 x 2 ft) CNC
router and bigger.
Max single piece size
Max single piece size
The biggest component is
320
x
180
mm (12.6
x
7.09
inches).
So if it can fit on your CNC router, you can build this project
So if it can fit on your CNC router, you can build this project
Dimensions
Dimensions
| Width | Length | Height |
|---|---|---|
| 400 mm | 128 mm | 145 mm |
| 15¾ inch | 5 inch | 5¾ inch |
Required materials
Required materials
For a 600 x 900 mm (2 x 3 ft) CNC and bigger:
For a 600 x 900 mm (2 x 3 ft) CNC and bigger:
- 1 sheet of 750 x 350 x 9 mm (30 x 16 x 0.375 inches) Plywood
- 1 sheet of 450 x 300 x 12 mm (18 x 12 x 0.5 inches) Plywood
- M4 x 30 mm screws - 15 pieces
- M4 x 40 mm screws - 2 pieces
- M4 locknuts - 17 pieces
- M6 x 55 mm screws - 2 pieces
- M6 nuts - 2 pieces
- 8 x 30 mm dowels - 2 pieces
- Door seal brush - 1 m (40 inches)
- Disc magnets ~ 6 mm (0.25 inch) in diameter
Approximate CNC time
Approximate CNC time
20 minutes
Assembling time
Assembling time
1 hour
