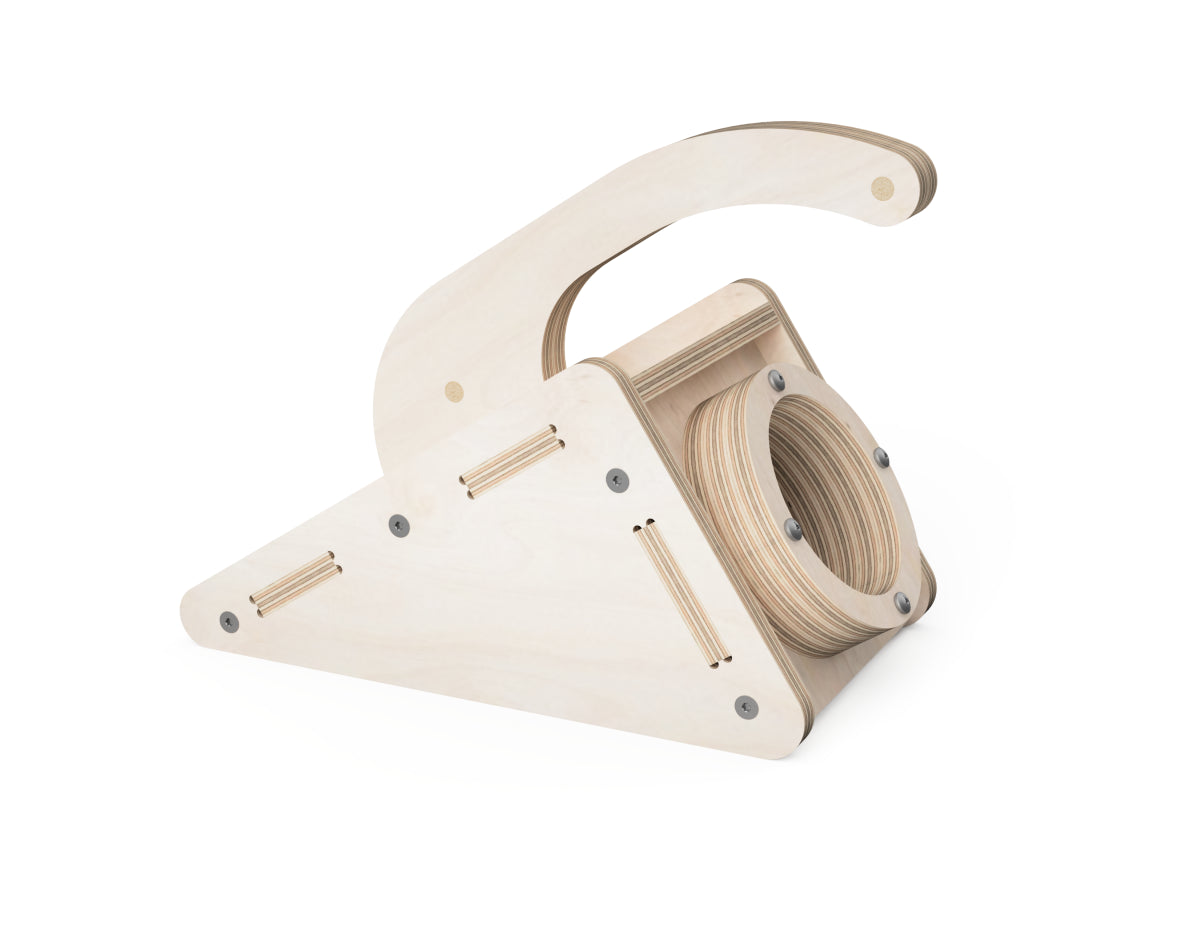

Make workshop cleanups easier and more comfortable with this handy dust collection hose handle! The design lets you attach a sturdy grip to your dust hose, giving you better control while cleaning work surfaces and corners.

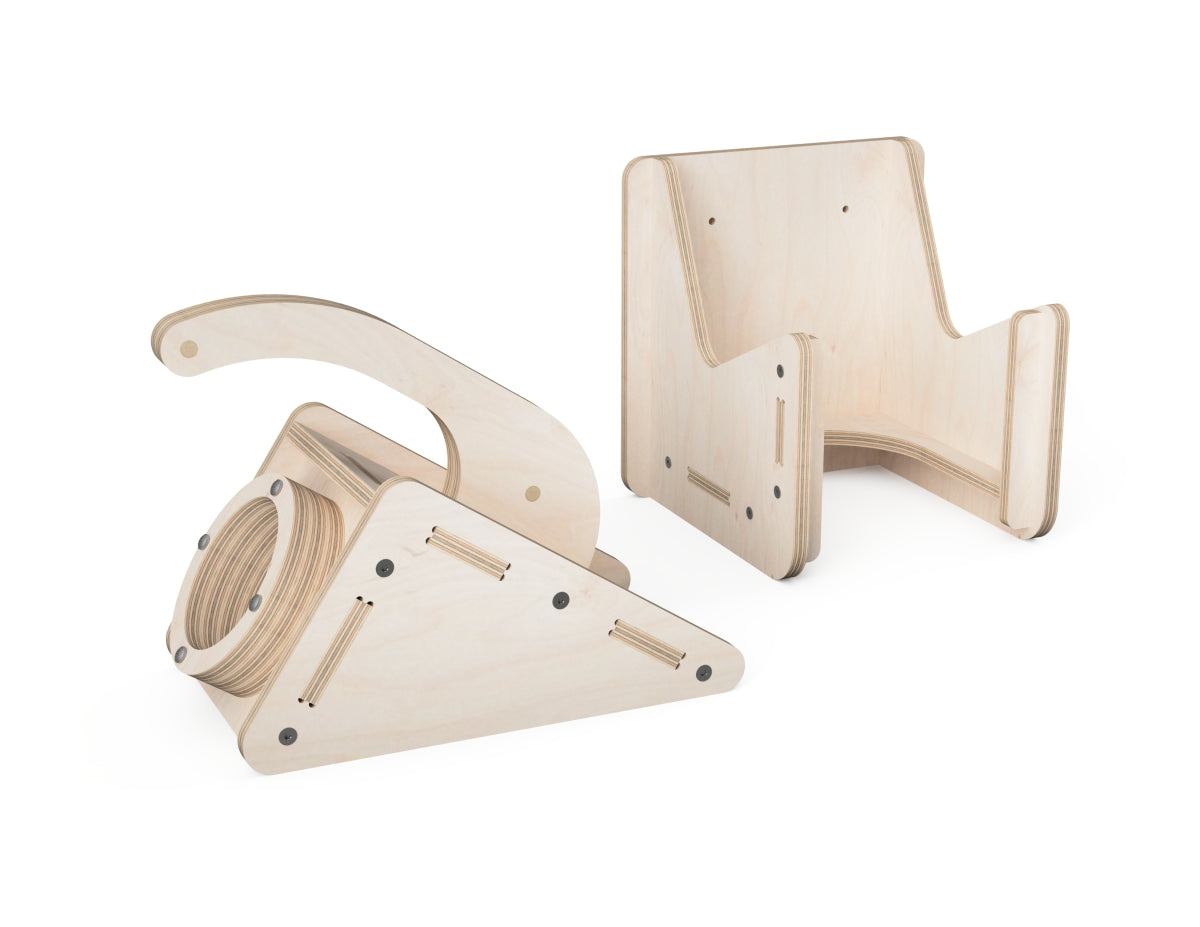

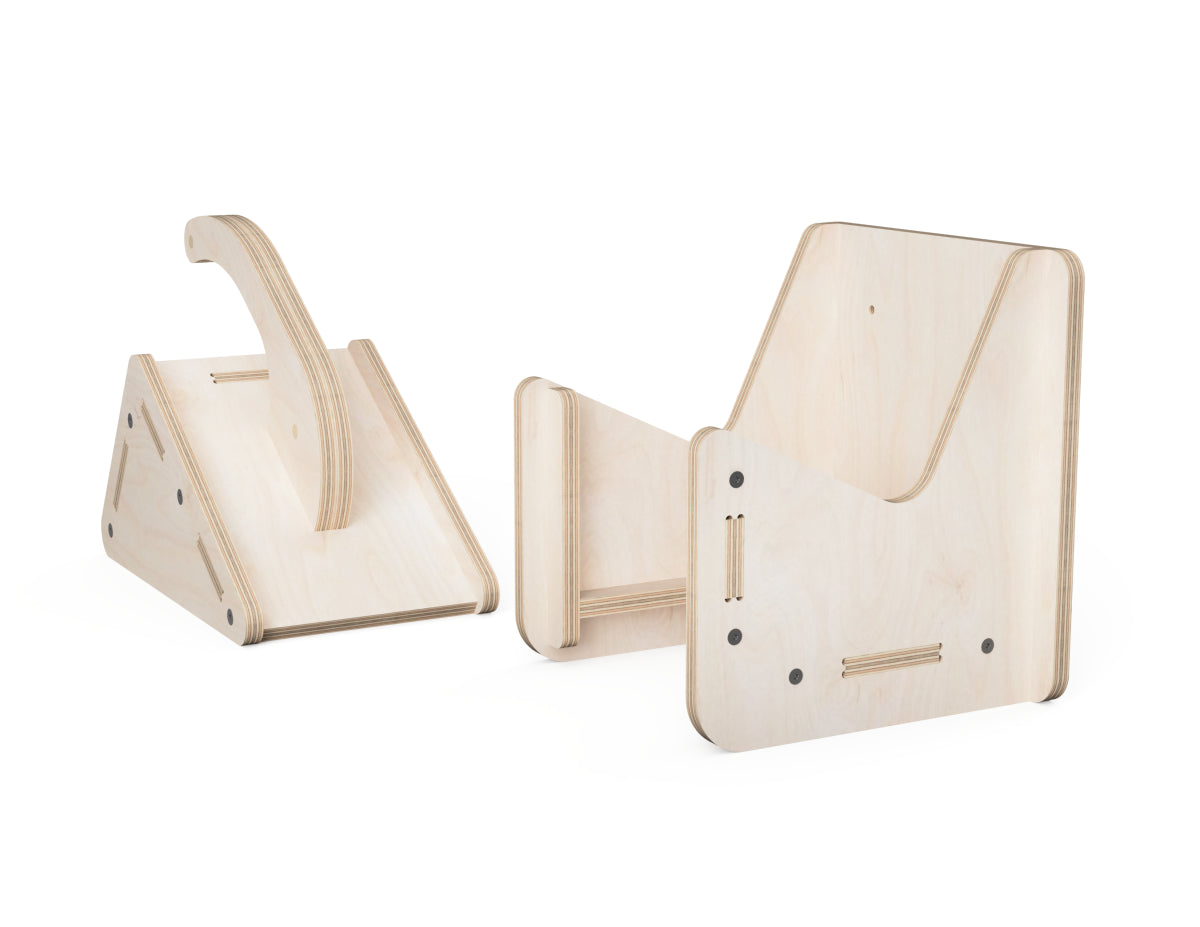

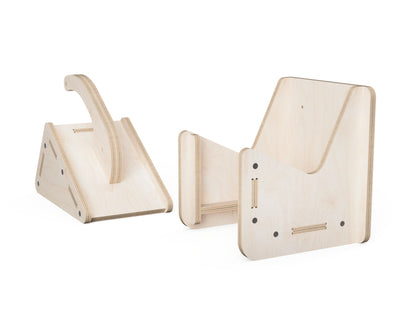

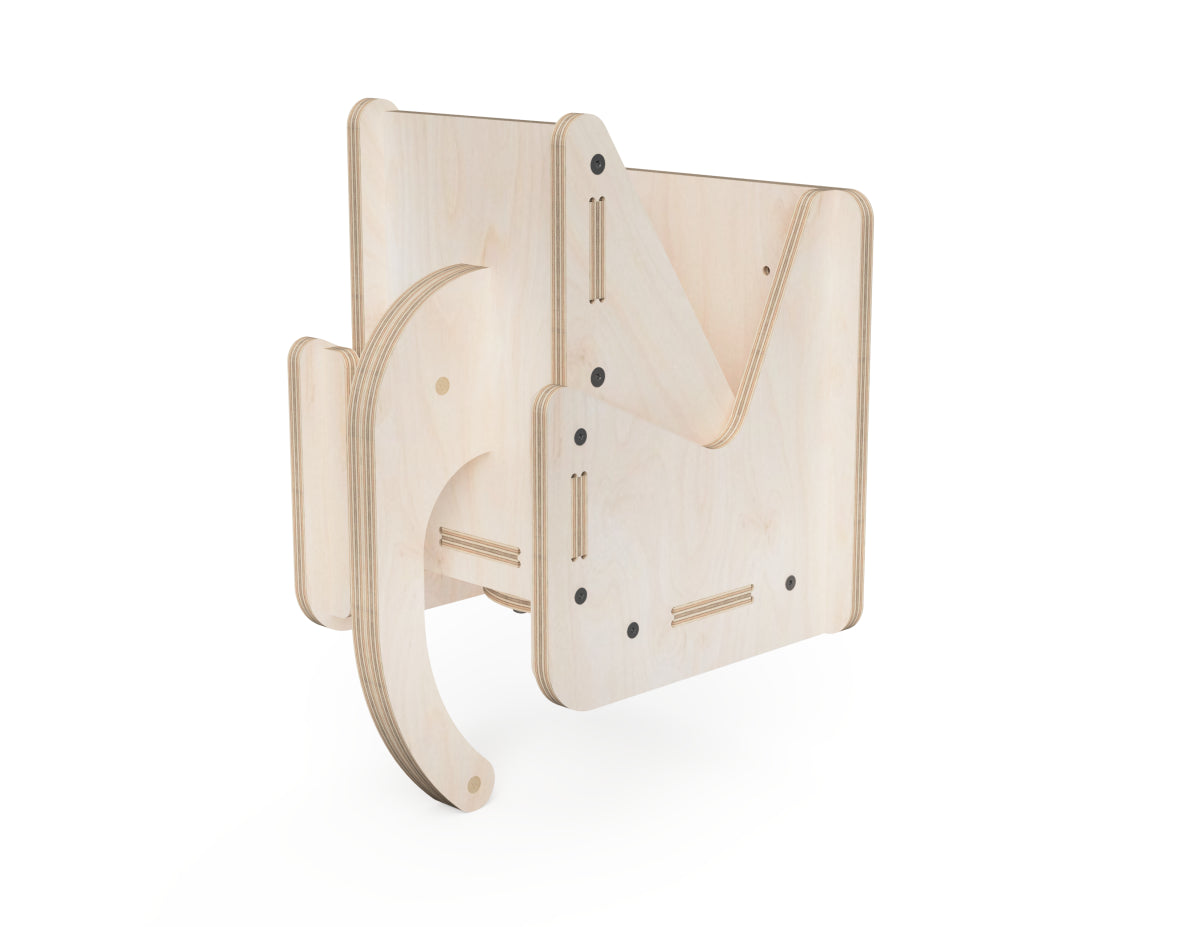

It also includes a wall-mounted storage station, keeping your handle neatly organized, out of the way, and always within arm’s reach.

Perfect for a quick CNC project - download the free DXF files and upgrade your workshop in one evening!

The dust hose handle works with 100 mm (4-inch) diameter collector hoses.

Supported CNC sizes

The project can be made on a 600 x 600 mm (2 x 2 ft) CNC router and bigger.

Max single piece size

The biggest component is 205 x 200 mm (8.07 x 7.87 inches).
So if it can fit on your CNC router, you can build this project

Dimensions

Width	Length	Height
250 mm	140 mm	190 mm
9⅞ inch	5½ inch	7½ inch

Required materials

- a sheet of 900 x 450 x 9 mm (36 x 18 x 3/8 inches) plywood
- 3 mm (1/8 inch) router bit
- M4 Lock nuts - 4 pieces
- M4 x 40 mm - screws
- 8 mm dowels - 2 pieces
- wood screws - 25 pieces
