Downdraft Sanding Box DXF Files

Downdraft Sanding Box DXF Files

Regular price $14.35 USD
Regular price $0.00 USD Sale price $14.35 USD
Sale Sold out
Taxes included.

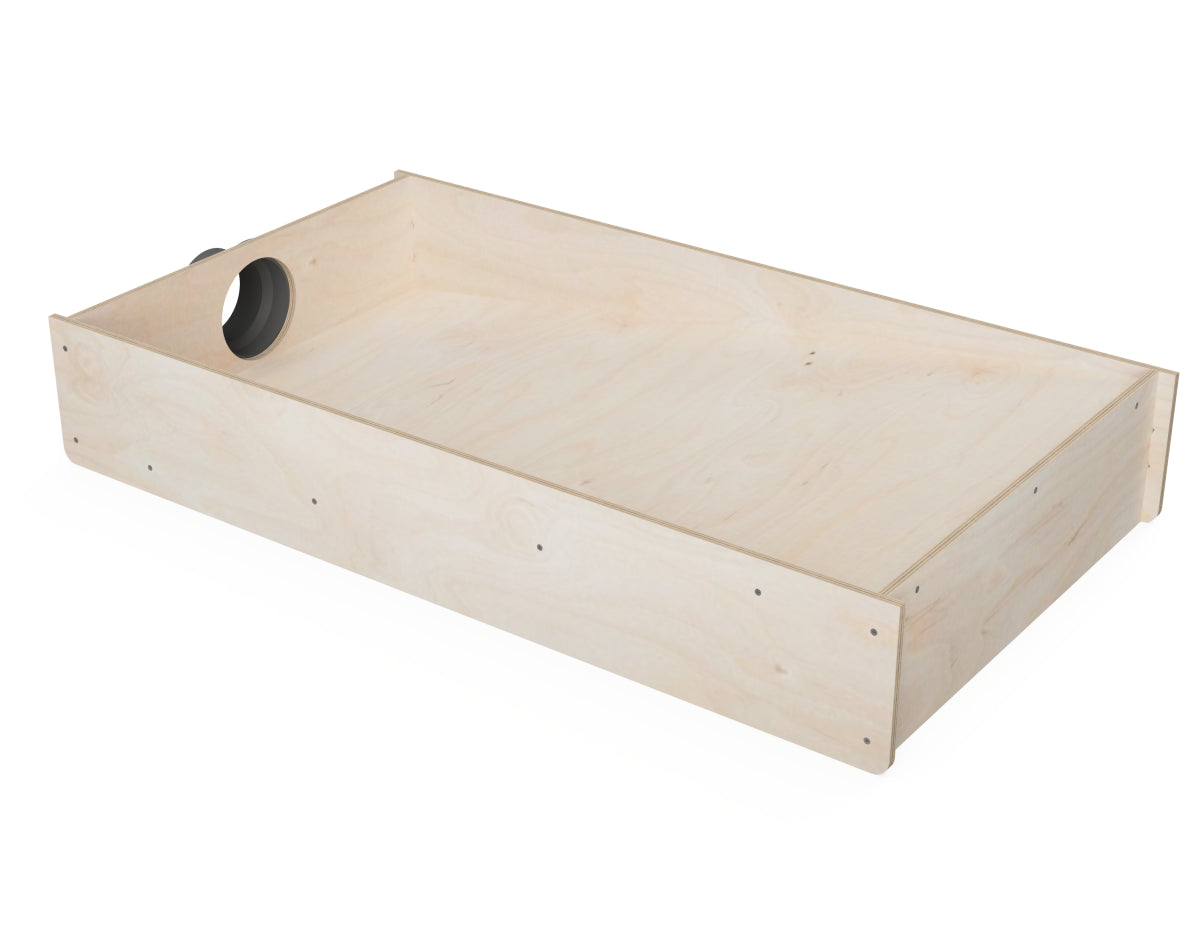

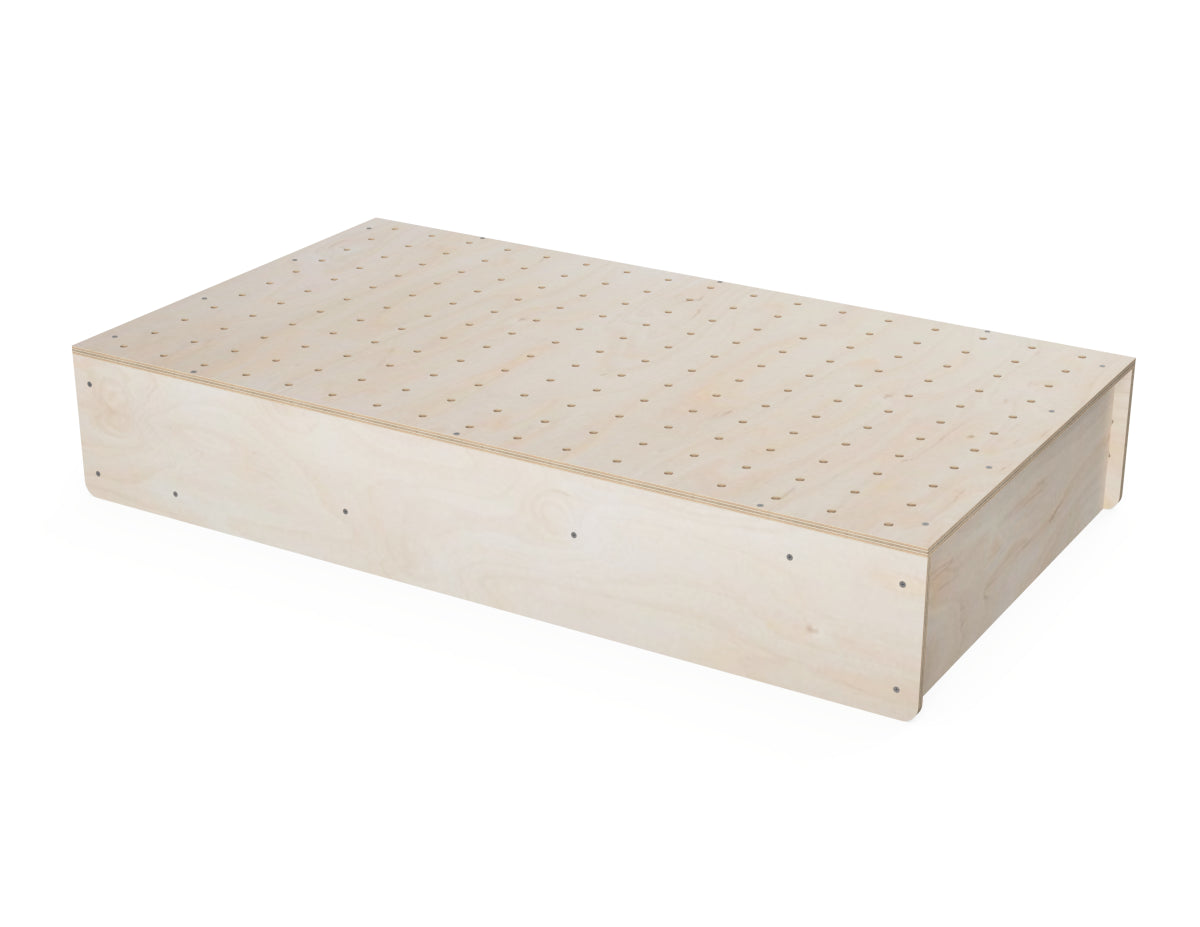

Introducing our Downdraft Sanding Box DXF Files - the perfect solution for component sanding! With easy access to our CNC-compatible DXF files, anyone can create their own downdraft sanding box.

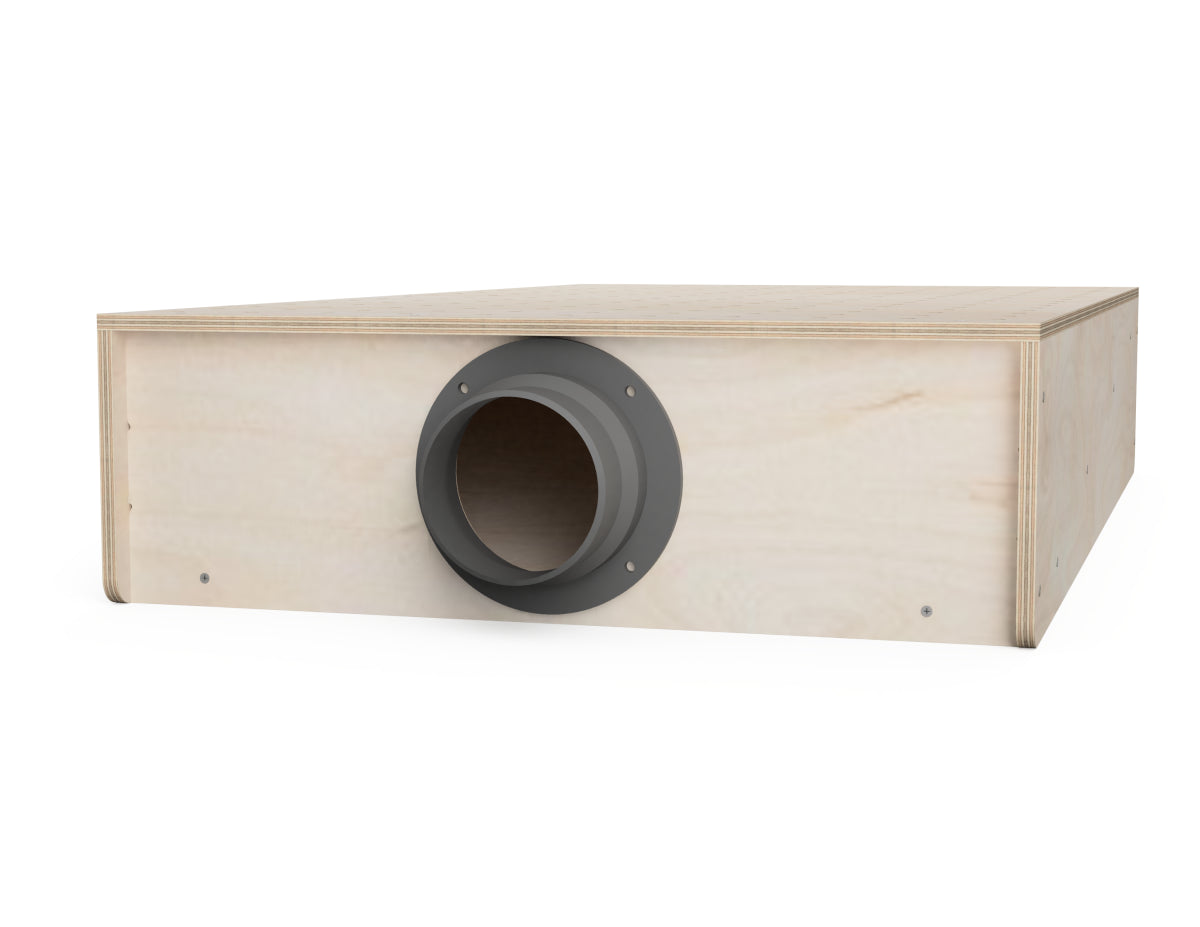

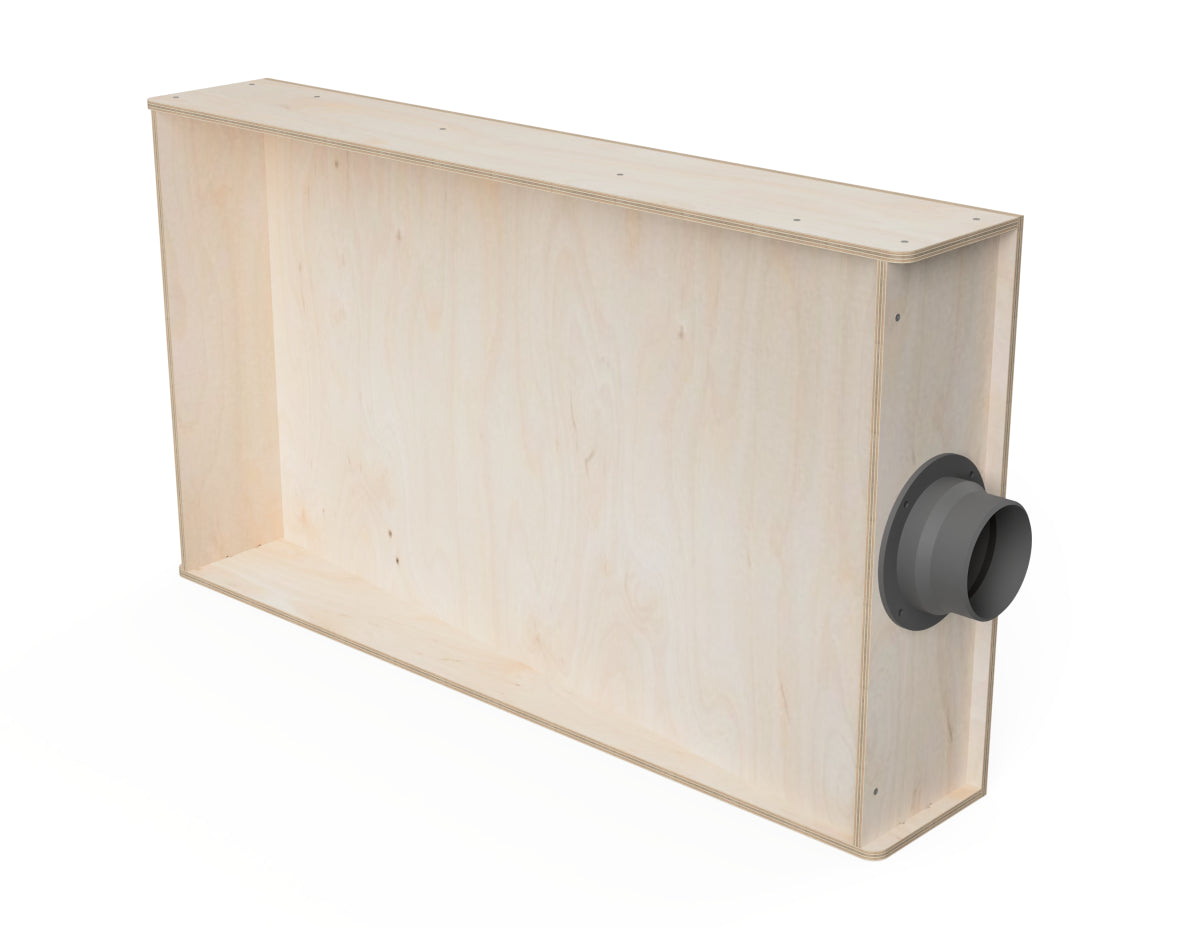

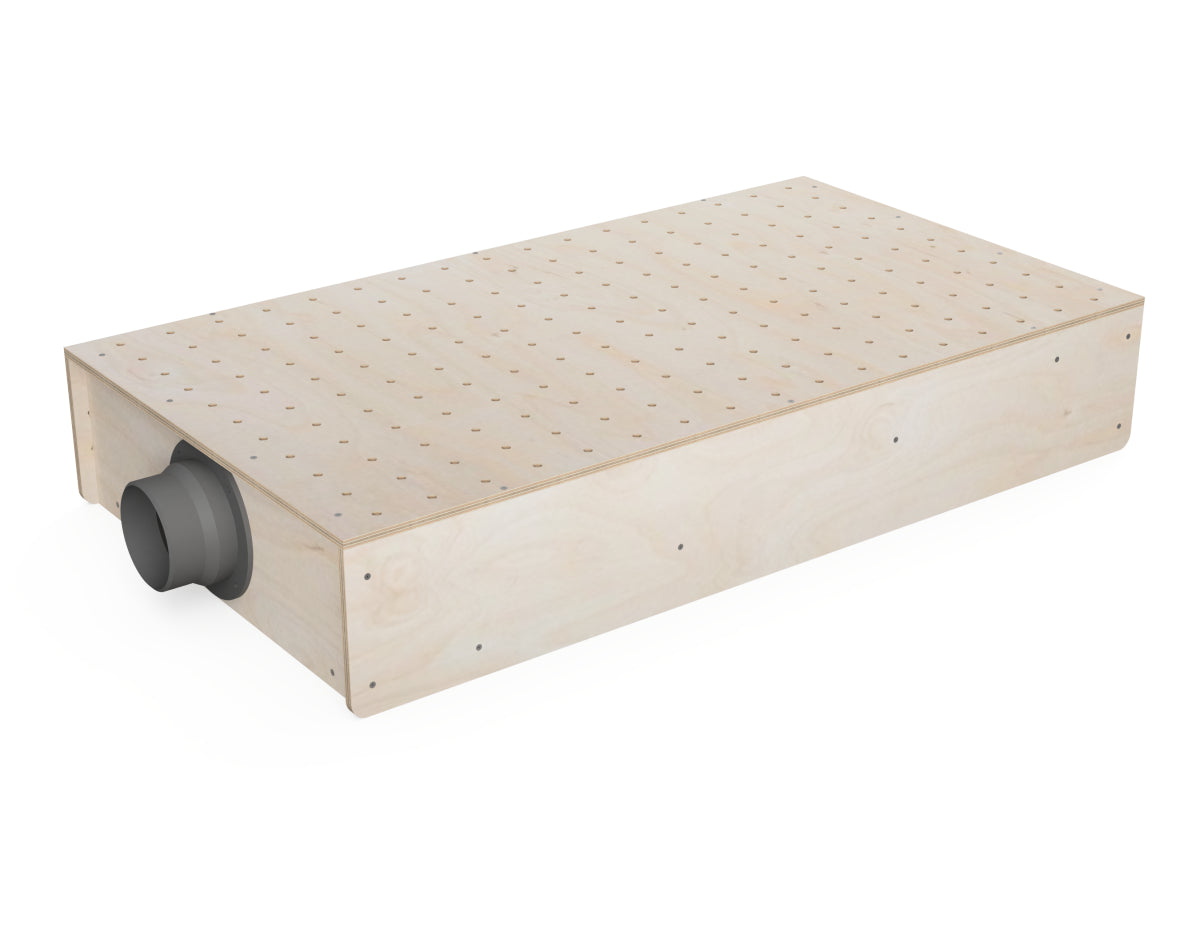

Designed to fit a 4-inch dust collection hose, this box effectively sucks in most of the sanding dust, helping to keep your workshop air cleaner.


Say goodbye to messy sanding and hello to a cleaner and more efficient sanding experience. Get your hands on our optimized downdraft sanding box DXF files today and upgrade your workshop!


The design can be made on a 600 x 900 mm (2 x 3 ft) CNC router and bigger.


*The files are adjusted to fit both metric and imperial standards for materials and tools


Dimensions:

160 mm (height) x 870 mm (length) x 500 mm (width)

6.3 inches (height) x 34.25 inches (length) x 19.7 inches (width)


Required materials:

For a 600 x 900 mm (2 x 3 ft) CNC

  • 3 sheets of 900 x 550 x 9 mm (35.5 x 21.7 x 0.375 inches) plywood
  • 1 sheet of 550 x 200 x 9 mm (21.7 x 7.8 x 0.375 inches) plywood
  • 3 mm (0.125 inches) router bit

For a 800 x 1200 mm (2.6 x 3 ft) CNC

  • 2 sheets of 1100 x 700 x 9 mm (43.3 x 27.6 x 0.375 inches) plywood
  • 3 mm (0.125 inches) router bit

For a 900 x 1200 mm (3 x 4 ft) CNC

  • 1 sheet of 1220 x 900 x 9 mm (48 x 35.5 x 0.375 inches) plywood
  • 1 sheet of 1050 x 400 x 9 mm (41.5 x 15.75 x 0.375 inches) plywood
  • 3 mm (0.125 inches) router bit

For a 1200 x 1200 mm (4 x 4 ft) CNC

  • 1 sheet of 1220 x 1100 x 9 mm (48 x 43.3 x 0.375 inches) plywood
  • 1 sheet of 950 x 200 x 9 mm (37.5 x 7.85 x 0.375 inches) plywood
  • 3 mm (0.125 inches) router bit

For a 1200 x 1200 mm (4 x 4 ft) CNC

  • 1 sheet of 1300 x 1220 x 9 mm (52 x 48 x 0.375 inches) plywood
  • 3 mm (0.125 inches) router bit

Assembling time:

45 minutes


Delivery time:

30 seconds

After completing the order, you will receive the DXF design file in your email within seconds.


Updates:

Free

If your plywood sheet is thicker or thinner than expected, send your purchase number and the precise material thickness to contact@aribabox.com. We will send you the updated DXF design file for free.


The product may differ from the representative images when cut and assembled. We hope you will enjoy your purchase from Aribabox.

Supported CNC sizes

The project can be made on a 600 x 900 mm (2 x 3 ft) CNC router and bigger.

Dimensions

500 mm (width) X 870 mm (length) X 160 mm (height)
19.7 inches (width) X 34.3 inches (length) X 6.3 inches (height)

Required materials

For a 600 x 900 mm (2 x 3 ft) CNC
- 3 sheets of 900 x 550 x 9 mm (35.5 x 21.7 x 0.375 inches) plywood
- 1 sheet of 550 x 200 x 9 mm (21.7 x 7.8 x 0.375 inches) plywood
- 3 mm (0.125 inches) router bit
For a 800 x 1200 mm (2.6 x 3 ft) CNC
- 2 sheets of 1100 x 700 x 9 mm (43.3 x 27.6 x 0.375 inches) plywood
- 3 mm (0.125 inches) router bit
For a 900 x 1200 mm (3 x 4 ft) CNC
- 1 sheet of 1220 x 900 x 9 mm (48 x 35.5 x 0.375 inches) plywood
- 1 sheet of 1050 x 400 x 9 mm (41.5 x 15.75 x 0.375 inches) plywood
- 3 mm (0.125 inches) router bit
For a 1200 x 1200 mm (4 x 4 ft) CNC
- 1 sheet of 1220 x 1100 x 9 mm (48 x 43.3 x 0.375 inches) plywood
- 1 sheet of 950 x 200 x 9 mm (37.5 x 7.85 x 0.375 inches) plywood
- 3 mm (0.125 inches) router bit
For a 1200 x 1200 mm (4 x 4 ft) CNC
- 1 sheet of 1300 x 1220 x 9 mm (52 x 48 x 0.375 inches) plywood
- 3 mm (0.125 inches) router bit

Assembling time

45 minutes
The product may differ from the representative images when cut and assembled. We hope you will enjoy your purchase from Aribabox!
