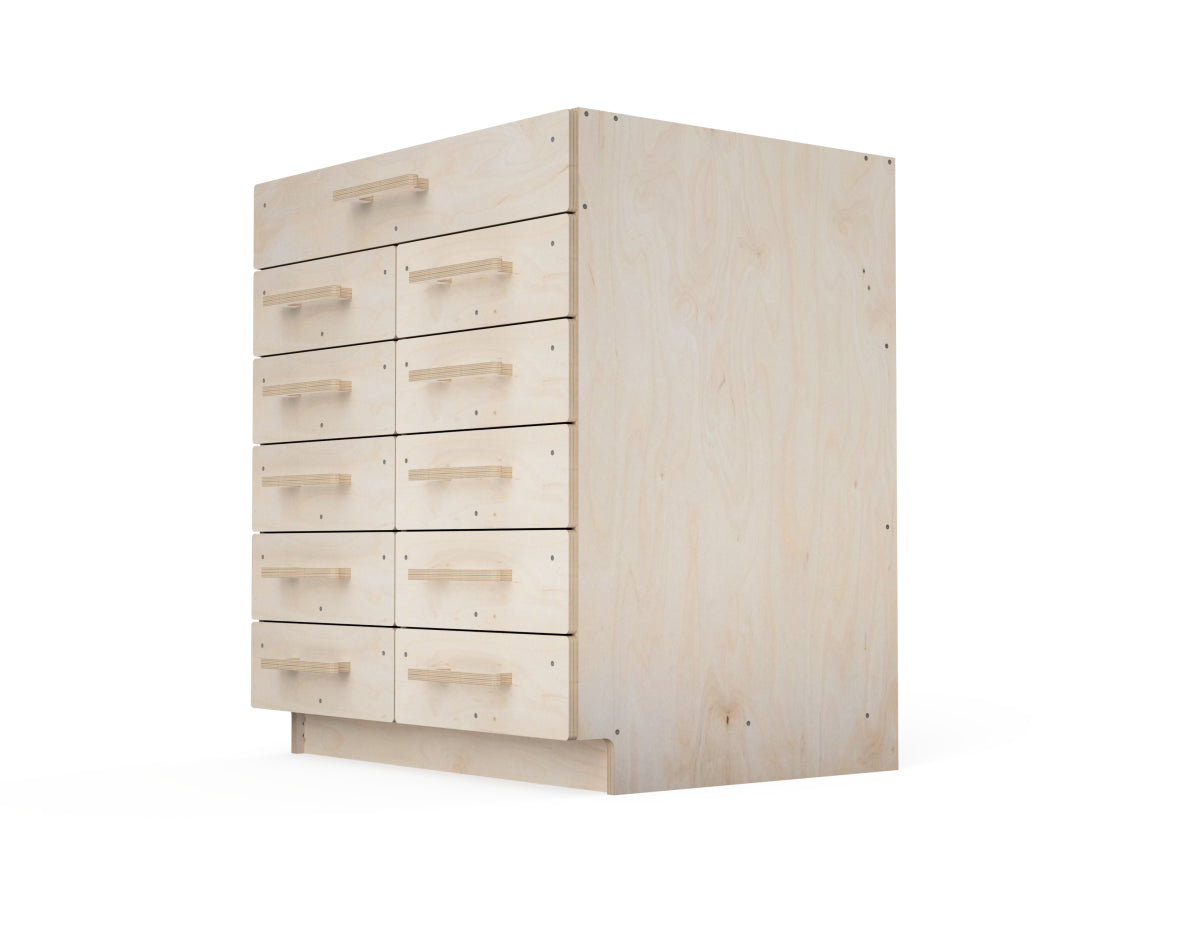

• Rendered image of a CNC-cut double workshop drawer cabinet with one large drawer, made from plywood – DXF file project for DIY garage storage

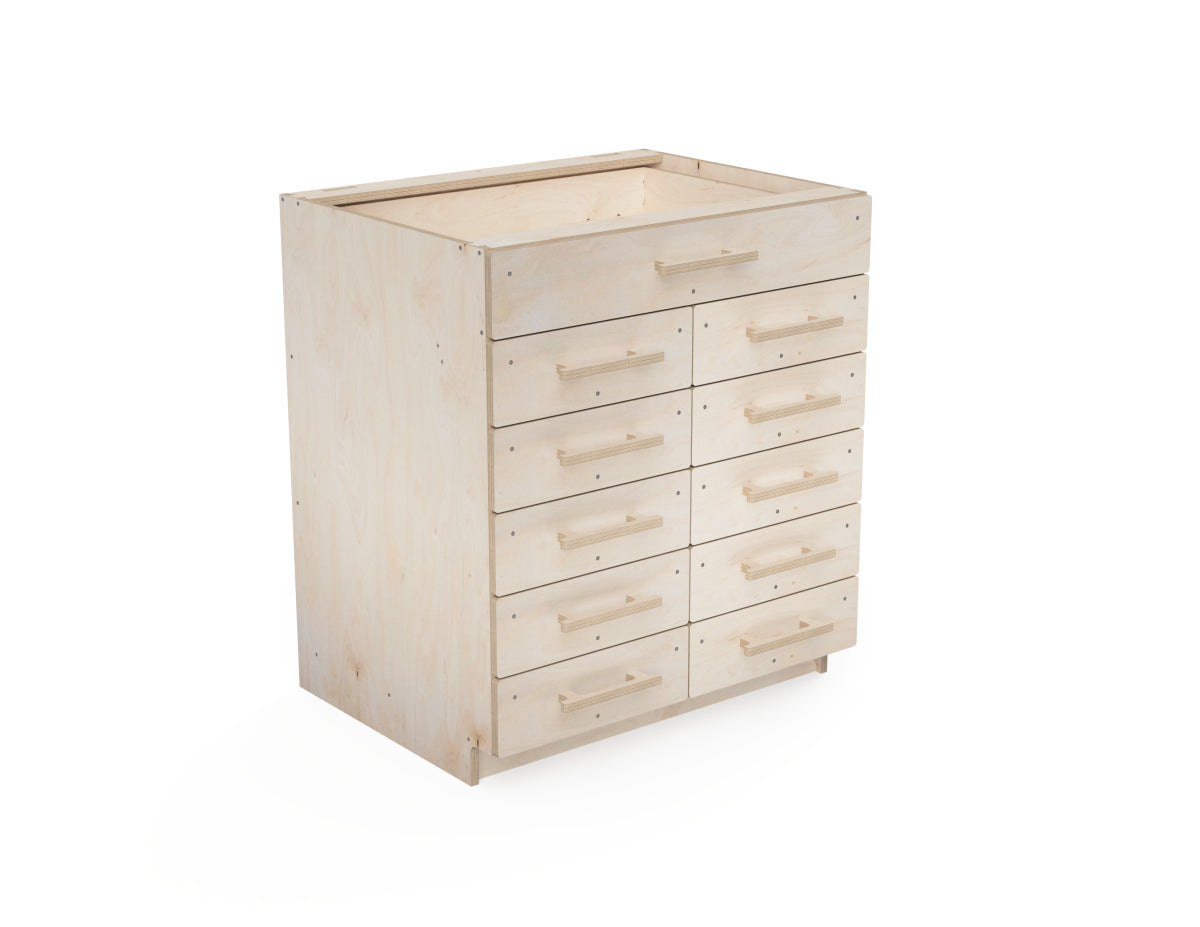

  • CNC router-ready DXF design for a double workshop cabinet featuring one large drawer – perfect for organizing tools in a home workshop

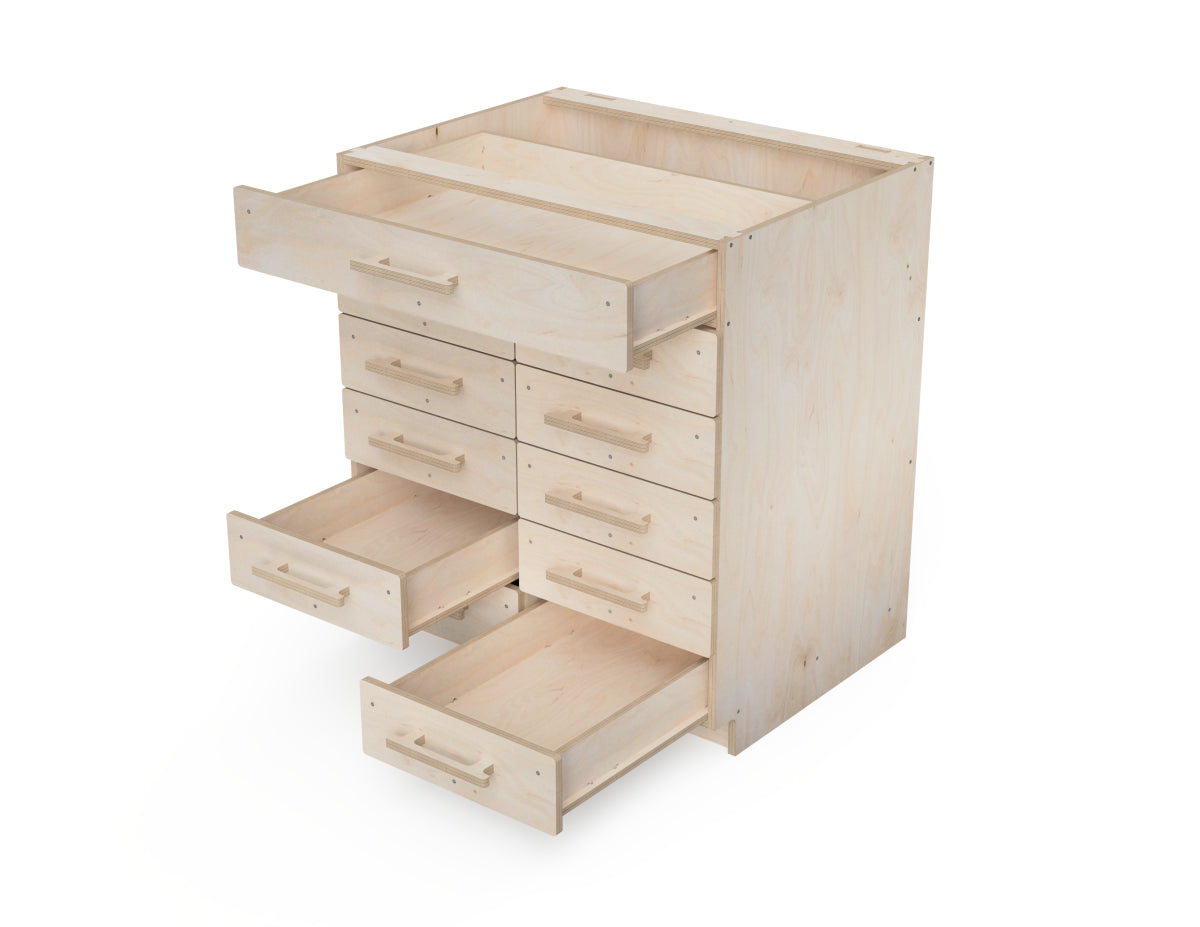

  • Workshop storage cabinet with two compartments and one wide drawer – CNC project rendered preview from downloadable DXF files

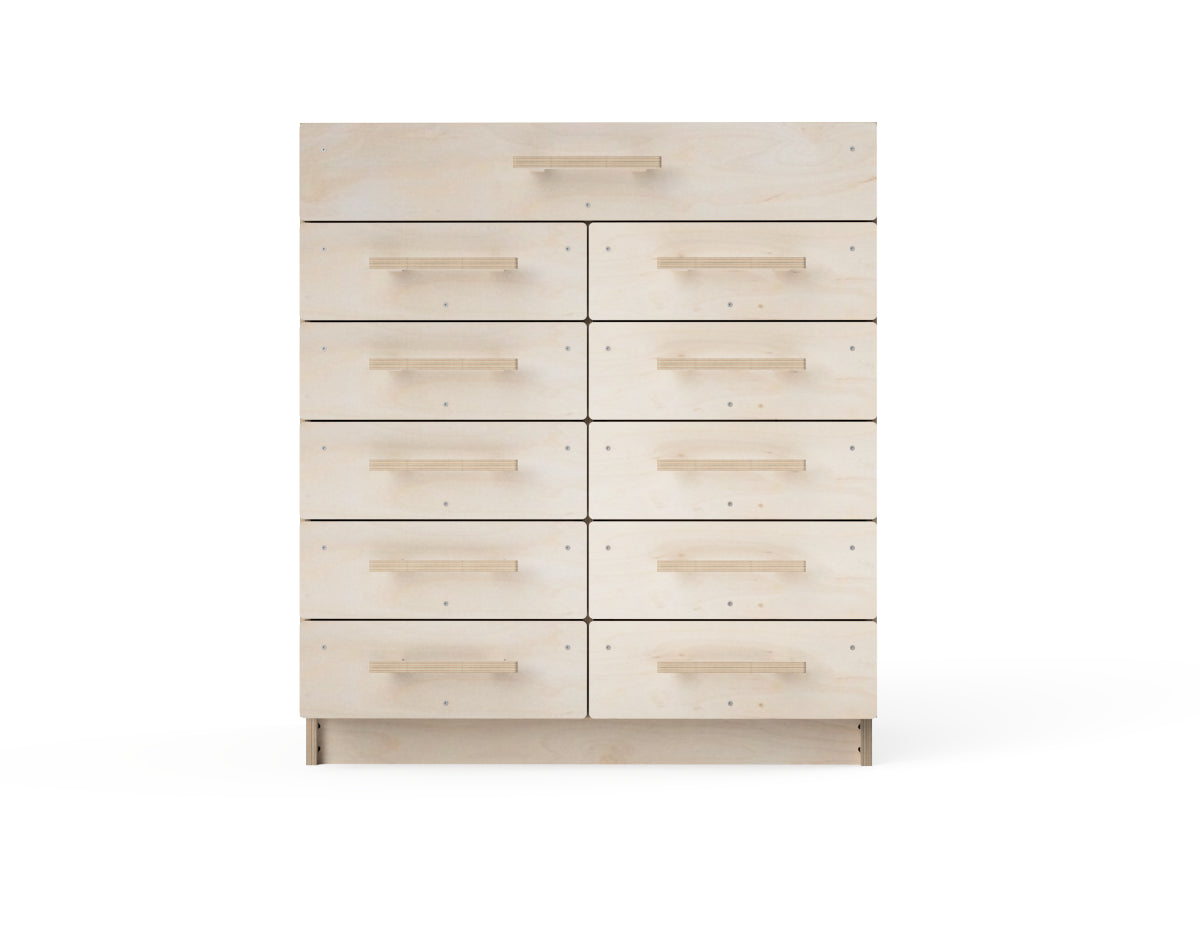

  • DIY plywood drawer cabinet for workshop use – double section design with a large pull-out drawer, CNC cut from included DXF files

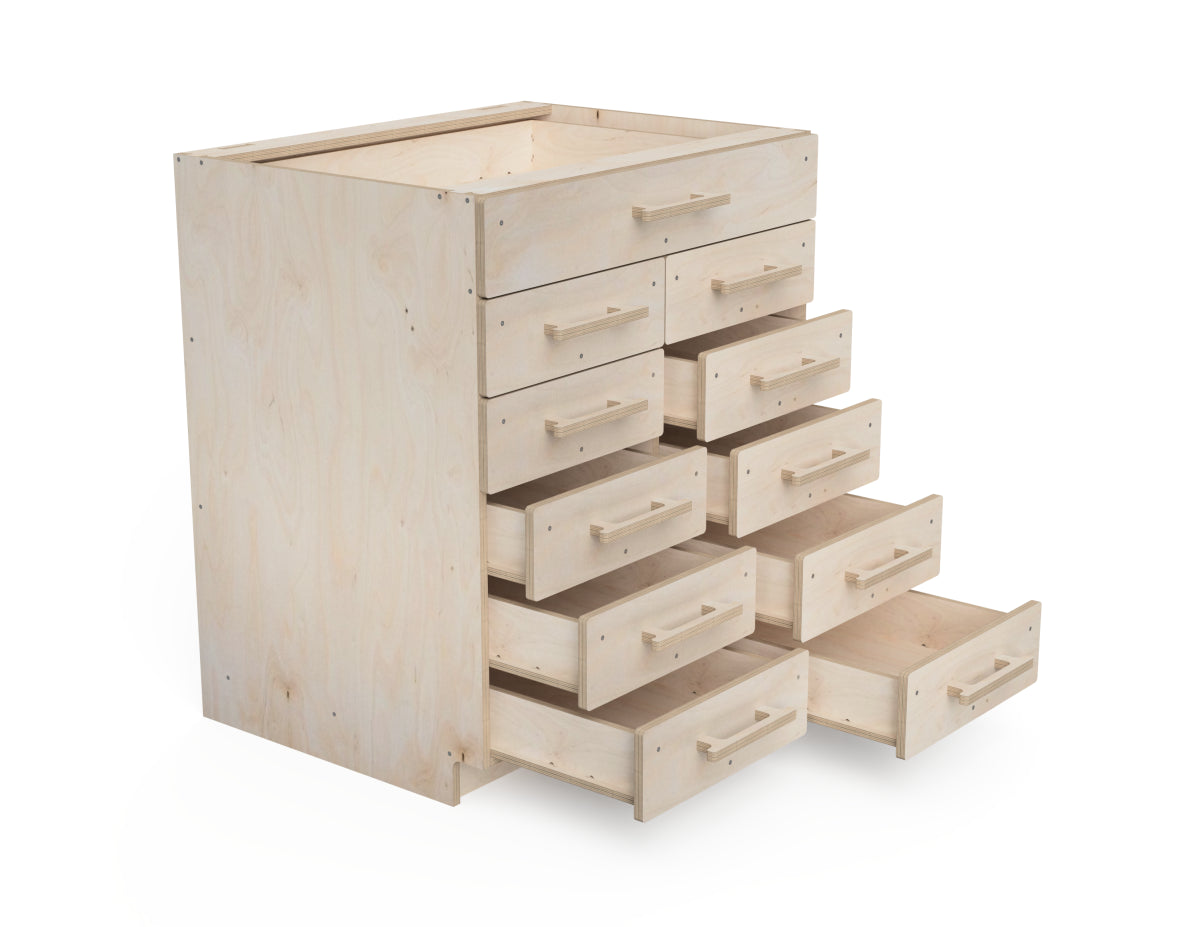

  • 3D render of CNC-made double workshop cabinet with a spacious lower drawer – ideal woodworking project using DXF plans
  • Rendered image of a CNC-cut double workshop drawer cabinet with one large drawer, made from plywood – DXF file project for DIY garage storage
1 6

Double Workshop Drawer Cabinet with one Large Drawer - DXF Files

Double Workshop Drawer Cabinet with one Large Drawer - DXF Files

$13.75 USD
$13.75 USD $13.75 USD
Sale Sold out
Taxes included.

Make workshop organization easy with this CNC-ready drawer cabinet design. Featuring 10 compact drawers and 1 large top drawer, it’s perfect for storing tools, hardware, and other essentials.



The built-in drawer slide system eliminates the need for metal slides, saving money and simplifying assembly.



Downloadable DXF files let you skip the design process and go straight to cutting - ideal for any CNC router setup. Fast, functional, and workshop-tested.



Optimize your workflow—build your own plywood drawer cabinet today!

Supported CNC sizes

The project can be made on a 800 x 1200 mm (2.6 x 4 ft) CNC router and bigger.

Max single piece size

The biggest component is 900 x 750 mm (35.43 x 29.53 inches).
So if it can fit on your CNC router, you can build this project

Dimensions

Width Length Height
750 mm 550 mm 900 mm
29½ inch 21⅝ inch 35⅜ inch

Required materials

For a 820 x 1220 mm (2.6 x 4 ft) CNC:
- 4 sheets of 1220 x 820 x 18 mm (48 x 32 x 3/4 inches) plywood
- 6 sheets of 1220 x 820 x 12 mm (48 x 32 x 1/2 inches) plywood
- 6 mm (1/4 inch) router bit
- 35 mm (1-1/4 inch) wood screws
- 8 mm wooden dowels
For a 1220 x 1220 mm (4 x 4 ft) CNC:
- 2 sheets of 1220 x 1220 x 18 mm (48 x 48 x 3/4 inches) plywood
- 1 sheet of 1220 x 600 x 18 mm (48 x 24 x 3/4 inches) plywood
- 4 sheets of 1220 x 1220 x 12 mm (48 x 32 x 1/2 inches) plywood
- 6 mm (1/4 inch) router bit
- 35 mm (1-1/4 inch) wood screws
- 8 mm wooden dowels
For a 1220 x 2440 mm (4 x 8 ft) CNC:
- 1 sheet of 2440 x 1220 x 18 mm (96 x 48 x 3/4 inches) plywood
- 1 sheet of 1220 x 600 x 18 mm (48 x 24 x 3/4 inches)
- 2 sheets of 2440 x 1220 x 12 mm (96 x 48 x 1/2 inches) plywood
- 6 mm (1/4 inch) router bit
- 35 mm (1-1/4 inch) wood screws
- 8 mm wooden dowels

Approximate CNC time

1 hour 15 minutes

Assembling time

1 hour 30 minutes
The product may differ from the representative images when cut and assembled. We hope you will enjoy your purchase from Aribabox!
