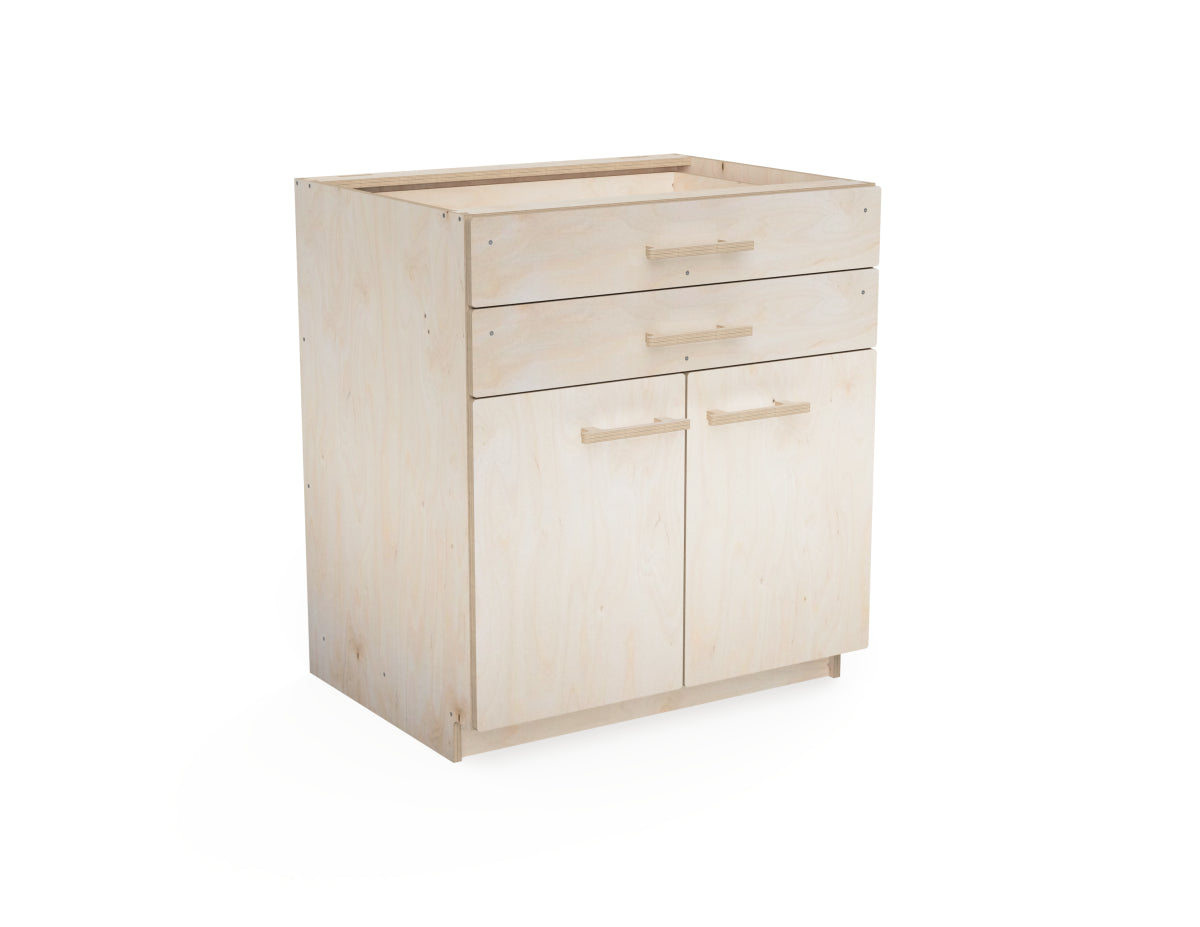

• Rendered image of CNC-cut double workshop cabinet with two drawers, made from plywood using DXF files – ideal for garage or tool storage

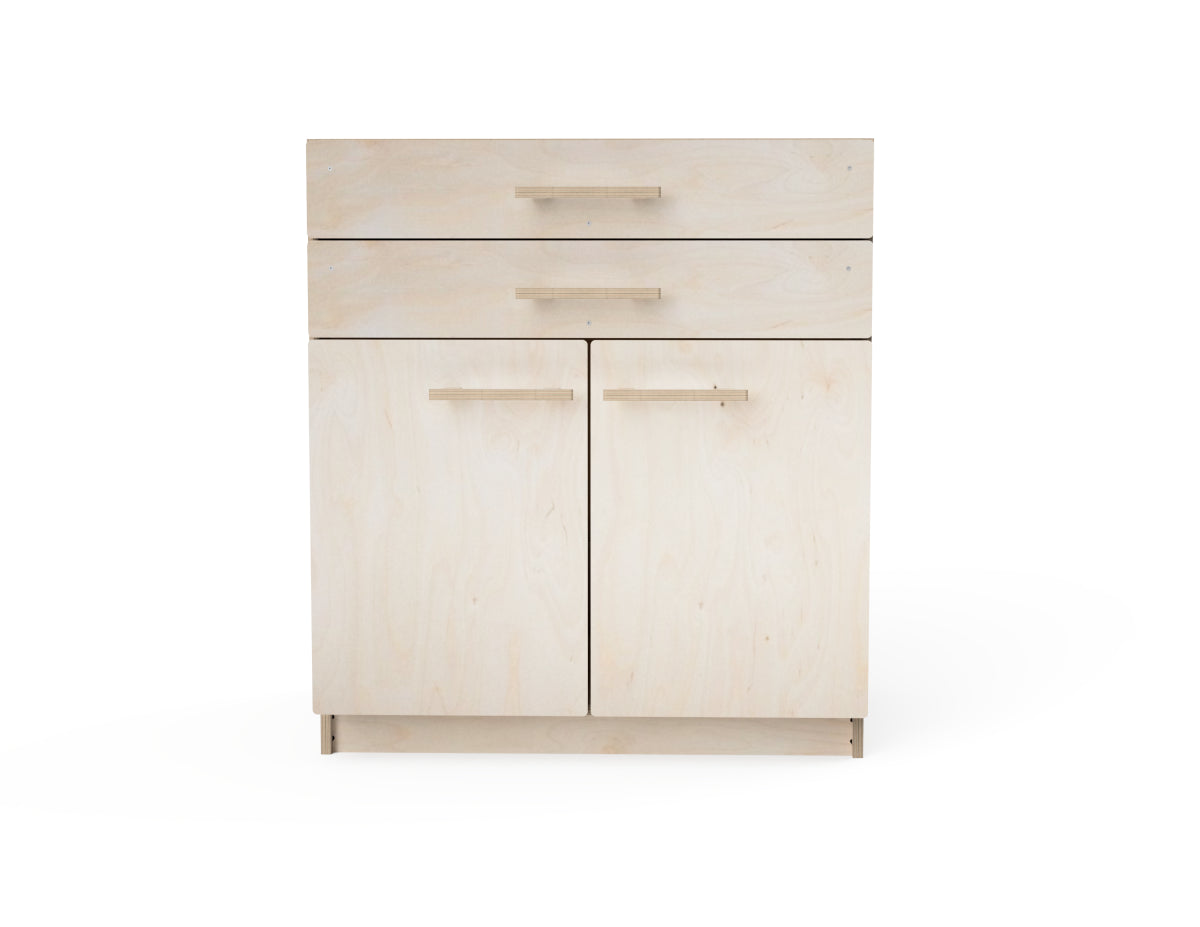

  • Double drawer workshop cabinet design for CNC router – preview of downloadable DXF file for DIY plywood storage project

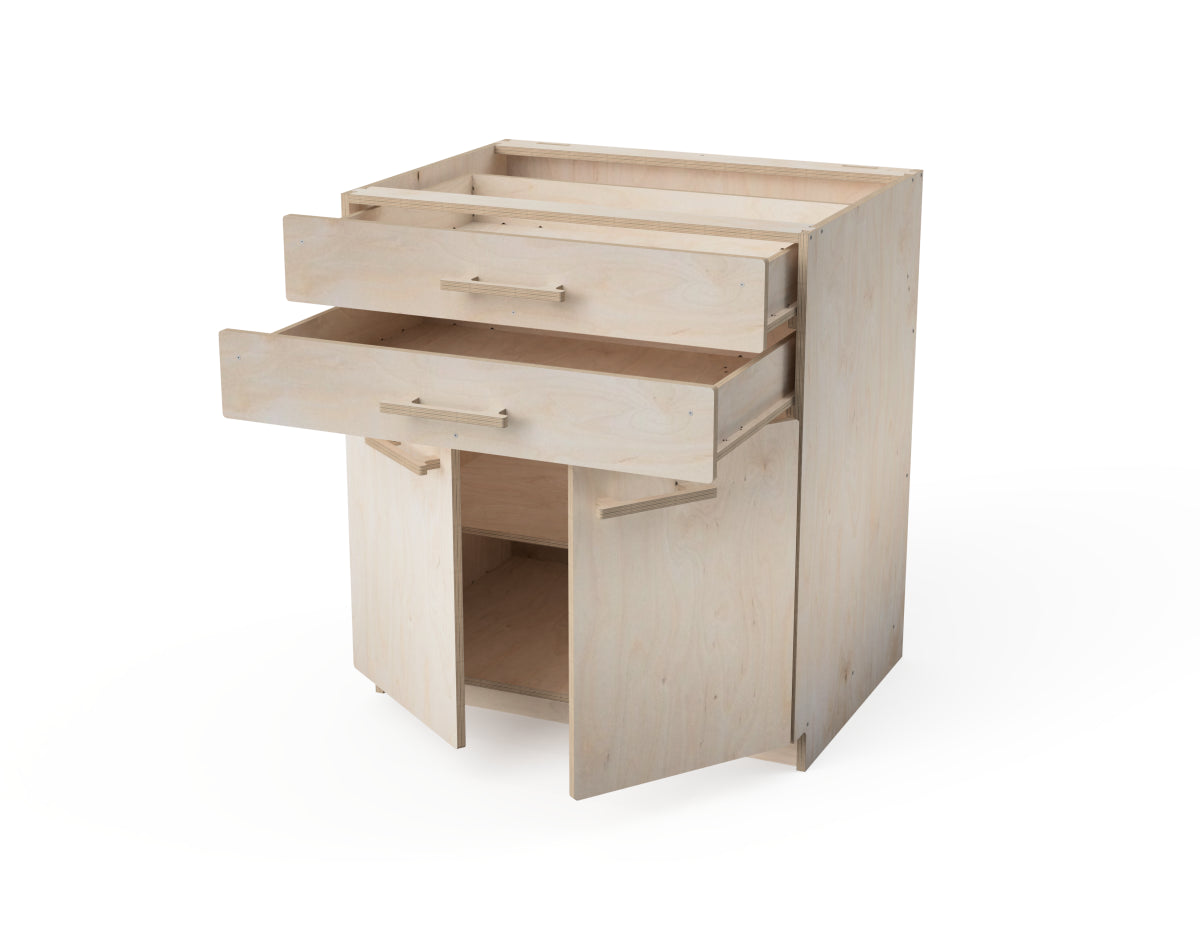

  • CNC plywood workshop cabinet with dual drawers – perfect project for organizing tools, shown assembled from DXF cut files

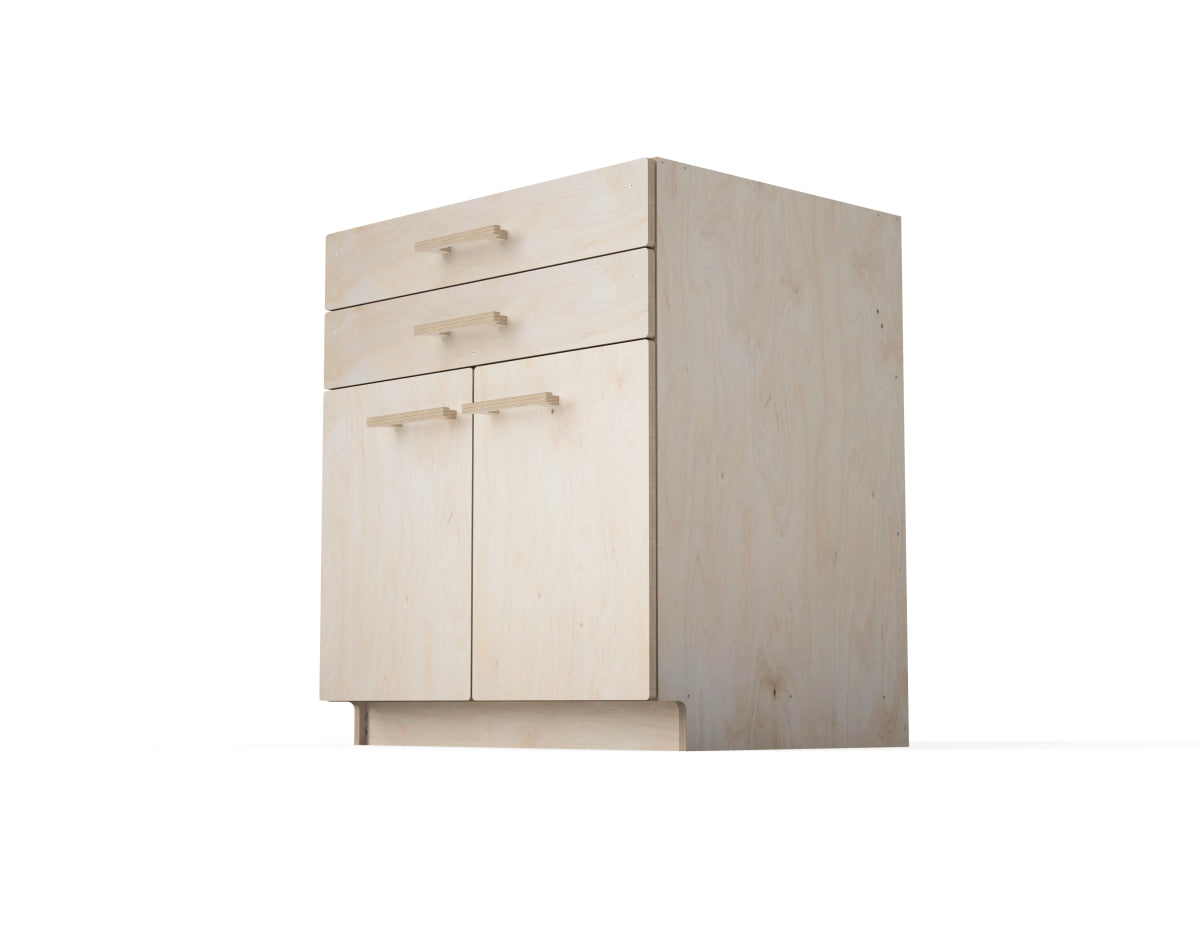

  • Digital render of CNC router-friendly double drawer cabinet – part of downloadable DXF file collection for workshop storage
  • Workshop cabinet with two spacious drawers, CNC cut from a single sheet of plywood – DXF file project for makers and woodworkers
1 5

Double Workshop Cabinet with Two Drawers - DXF Files

Double Workshop Cabinet with Two Drawers - DXF Files

$12.45 USD
$12.45 USD $12.45 USD
Sale Sold out
Taxes included.

Upgrade your workshop with this CNC-ready Double Cabinet design featuring two spacious drawers.



These DXF files let you skip the design process and jump straight to cutting on your CNC router. Perfect for tool storage and organization, this cabinet is easy to make and delivers a clean, professional look.



Save time and get reliable results with files optimized for workshop setups.

Supported CNC sizes

The project can be made on a 800 x 1200 mm (2.6 x 4 ft) CNC router and bigger.

Max single piece size

The biggest component is 900 x 750 mm (35.43 x 29.53 inches).
So if it can fit on your CNC router, you can build this project

Dimensions

Width Length Height
750 mm 550 mm 900 mm
29½ inch 21⅝ inch 35⅜ inch

Required materials

For a 820 x 1220 mm (2.6 x 4 ft) CNC:
- 3 sheets of 1220 x 820 x 18 mm (48 x 32 x 3/4 inches) plywood
- 3 sheets of 1220 x 820 x 12 mm (48 x 32 x 1/2 inches) plywood
- 6 mm (1/4 inch) router bit
- 35 mm (1-1/4 inch) wood screws
- 12 mm (1/2 inch) wood screws
- full-overlap cabinet hinges - 4 pieces
- shelf support pins
- 8 mm wooden dowels
For a 1220 x 1220 mm (4 x 4 ft) CNC:
- 2 sheets of 1220 x 1220 x 18 mm (48 x 48 x 3/4 inches) plywood
- 2 sheets of 1220 x 1220 x 12 mm (48 x 32 x 1/2 inches) plywood
- 6 mm (1/4 inch) router bit
- 35 mm (1-1/4 inch) wood screws
- 12 mm (1/2 inch) wood screws
- full-overlap cabinet hinges - 4 pieces
- shelf support pins
- 8 mm wooden dowels
For a 1220 x 2440 mm (4 x 8 ft) CNC:
- 1 sheet of 2440 x 1220 x 18 mm (96 x 48 x 3/4 inches) plywood
- 1 sheet of 2440 x 1220 x 12 mm (96 x 48 x 1/2 inches) plywood
- 6 mm (1/4 inch) router bit
- 35 mm (1-1/4 inch) wood screws
- 12 mm (1/2 inch) wood screws
- full-overlap cabinet hinges - 4 pieces
- shelf support pins
- 8 mm wooden dowels

Approximate CNC time

50 minutes

Assembling time

1 hour 15 minutes
The product may differ from the representative images when cut and assembled. We hope you will enjoy your purchase from Aribabox!
