Double Workshop Cabinet - DXF Files

Double Workshop Cabinet - DXF Files

Regular price $11.45 USD
Regular price $11.45 USD Sale price $11.45 USD
Sale Sold out
Taxes included.

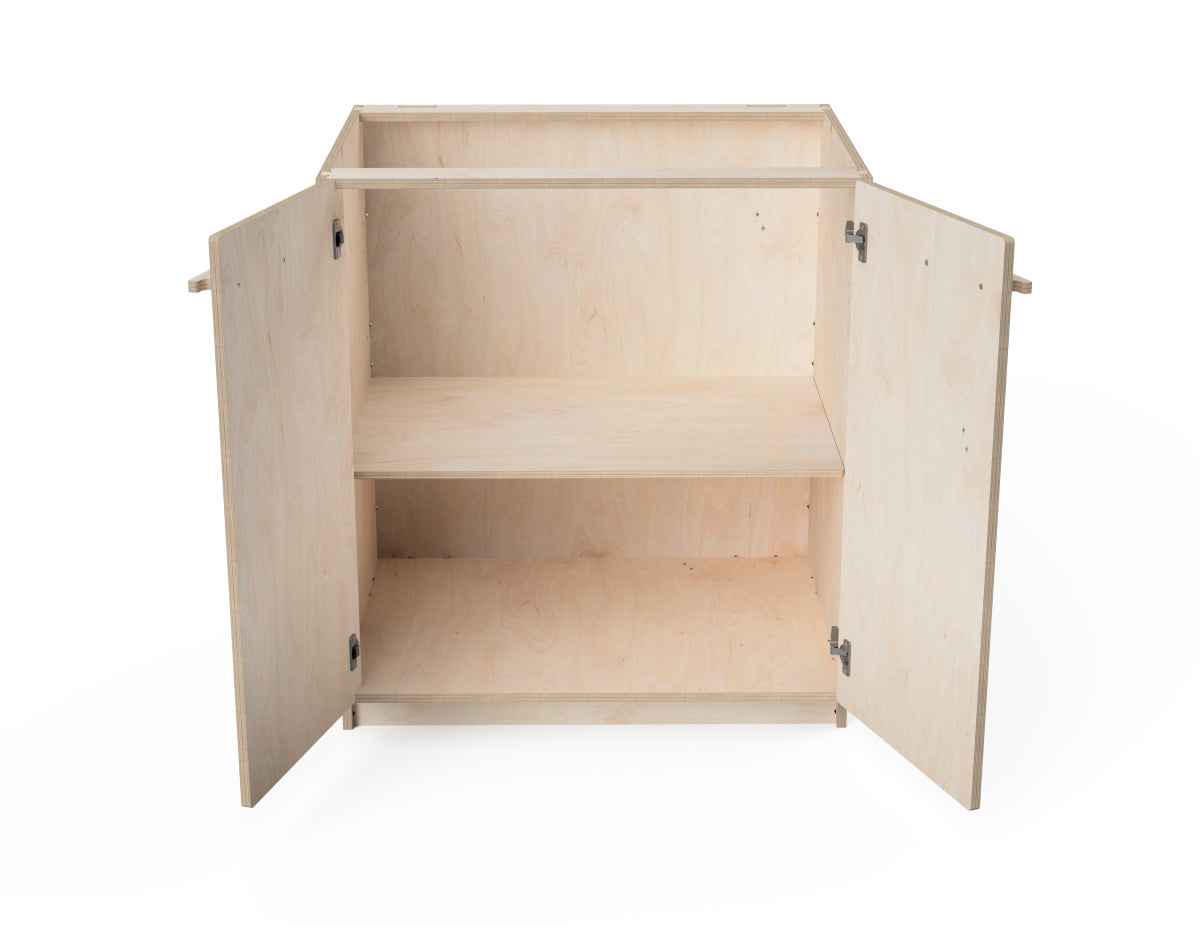

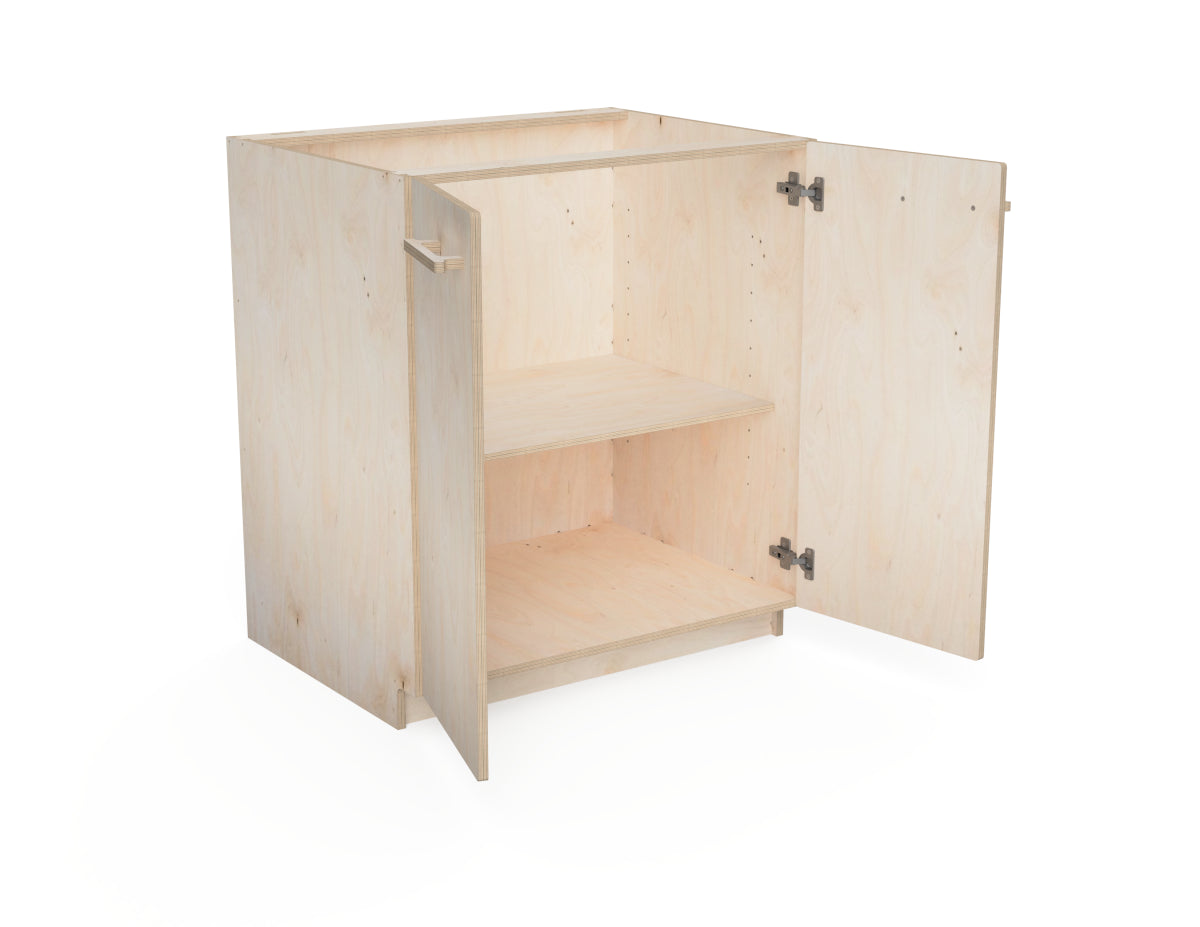

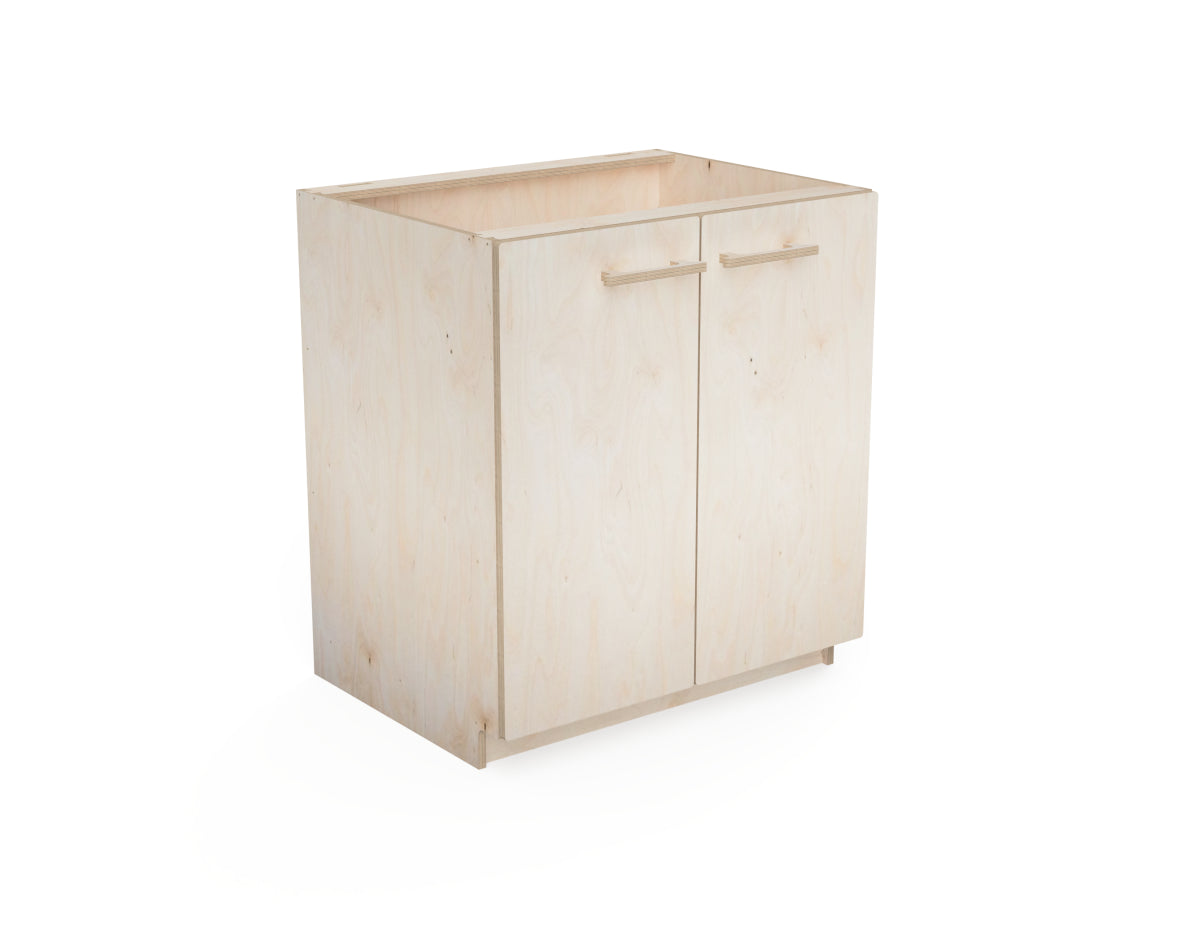

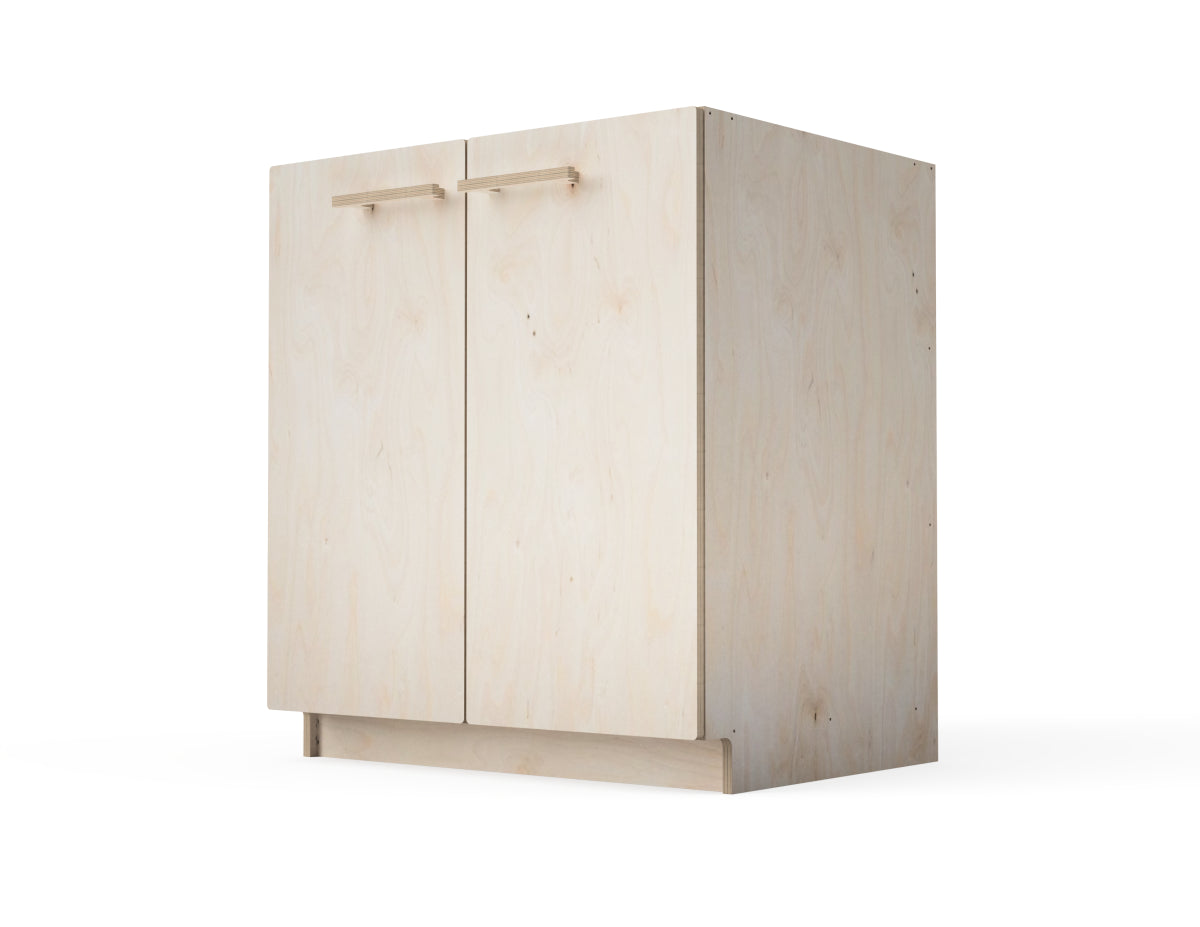

Organize your workshop with this CNC-cut double cabinet design. Featuring spacious compartments with doors and an internal shelf, it's perfect for storing tools, supplies, or gear.

Β

The downloadable DXF files make it easy to build with a CNC router - no need to design from scratch. Clean look, solid structure, and workshop-ready.

Skip the design process and start cutting - perfect for plywood CNC builds.

Supported CNC sizes

The project can be made on a 800 x 1200 mm (2.6 x 4 ft) CNC router and bigger.

Max single piece size

The biggest component is 900 x 750 mm (35.43 x 29.53 inches).
So if it can fit on your CNC router, you can build this project

Dimensions

Width Length Height
750 mm 550 mm 900 mm
29Β½ inch 21⅝ inch 35β…œ inch

Required materials

For a 820 x 1220 mm (2.6 x 4 ft) CNC:
- 4 sheets of 1220 x 820 x 18 mm (48 x 32 x 3/4 inches) plywood
- 2 sheets of 1220 x 820 x 12 mm (48 x 32 x 1/2 inches) plywood
- 6 mm (1/4 inch) router bit
- 35 mm (1-1/4 inch) wood screws
- 12 mm (1/2 inch) wood screws)
- Full overlap cabinet hinges - 4 pieces
- shelf pins
For a 1220 x 1220 mm (4 x 4 ft) CNC:
- 1 sheet of 1220 x 1220 x 18 mm (48 x 48 x 3/4 inches) plywood
- 2 sheet of 900 x 800 x 18 mm (36 x 32 x 3/4 inches) plywood
- 2 sheets of 1220 x 820 x 12 mm (48 x 32 x 1/2 inches) plywood
- 6 mm (1/4 inch) router bit
- 35 mm (1-1/4 inch) wood screws
- 12 mm (1/2 inch) wood screws)
- Full overlap cabinet hinges - 4 pieces
- shelf pins
For a 1220 x 2440 mm (4 x 8 ft) CNC:
- 1 sheet of 2440 x 1220 x 18 mm (96 x 48 x 3/4 inches) plywood
- 1 sheet of 1400 x 800 x 12 mm (55 x 32 x 1/2 inches) plywood
- 6 mm (1/4 inch) router bit
- 35 mm (1-1/4 inch) wood screws
- 12 mm (1/2 inch) wood screws)
- Full overlap cabinet hinges - 4 pieces
- shelf pins

Approximate CNC time

45 minutes

Assembling time

45 minutes
The product may differ from the representative images when cut and assembled. We hope you will enjoy your purchase from Aribabox!
