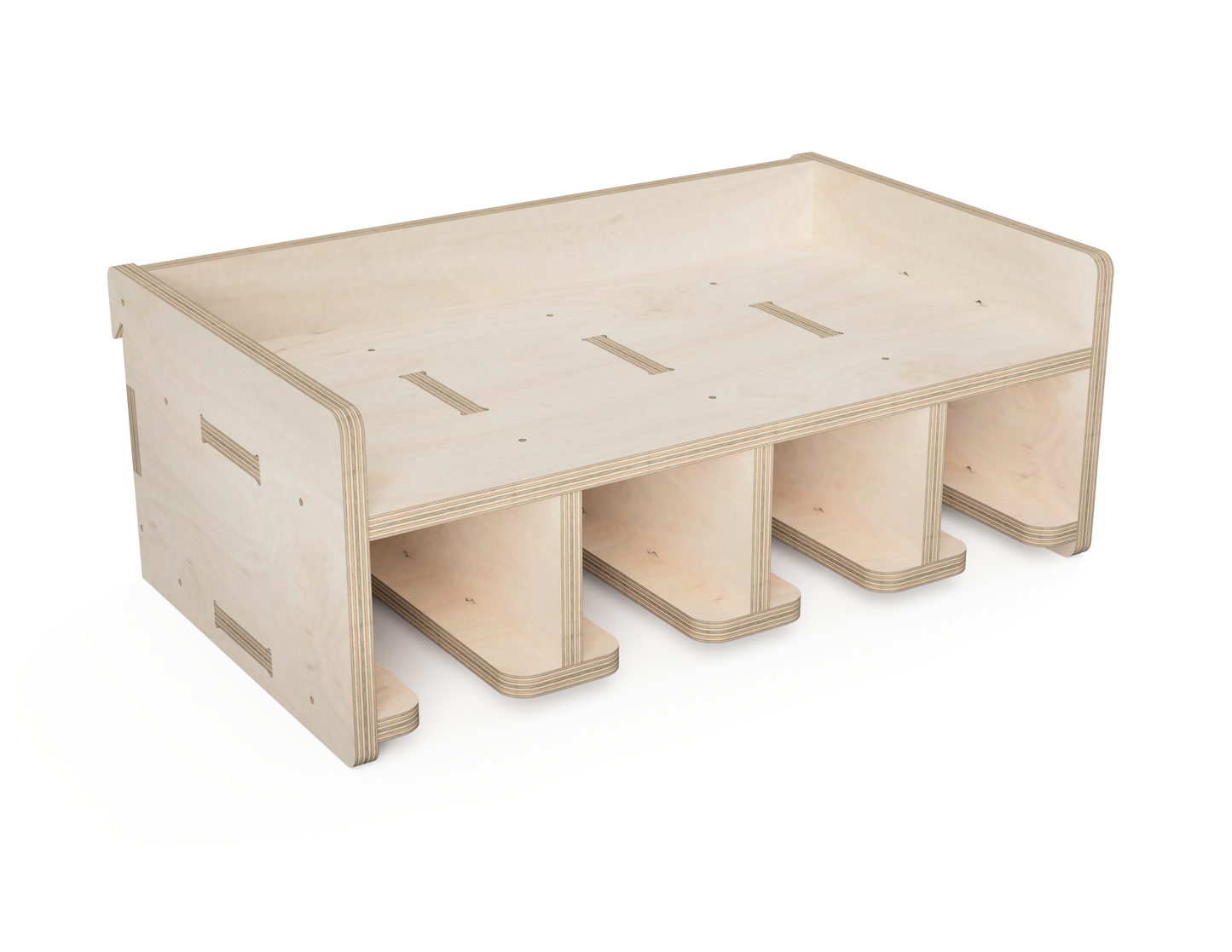

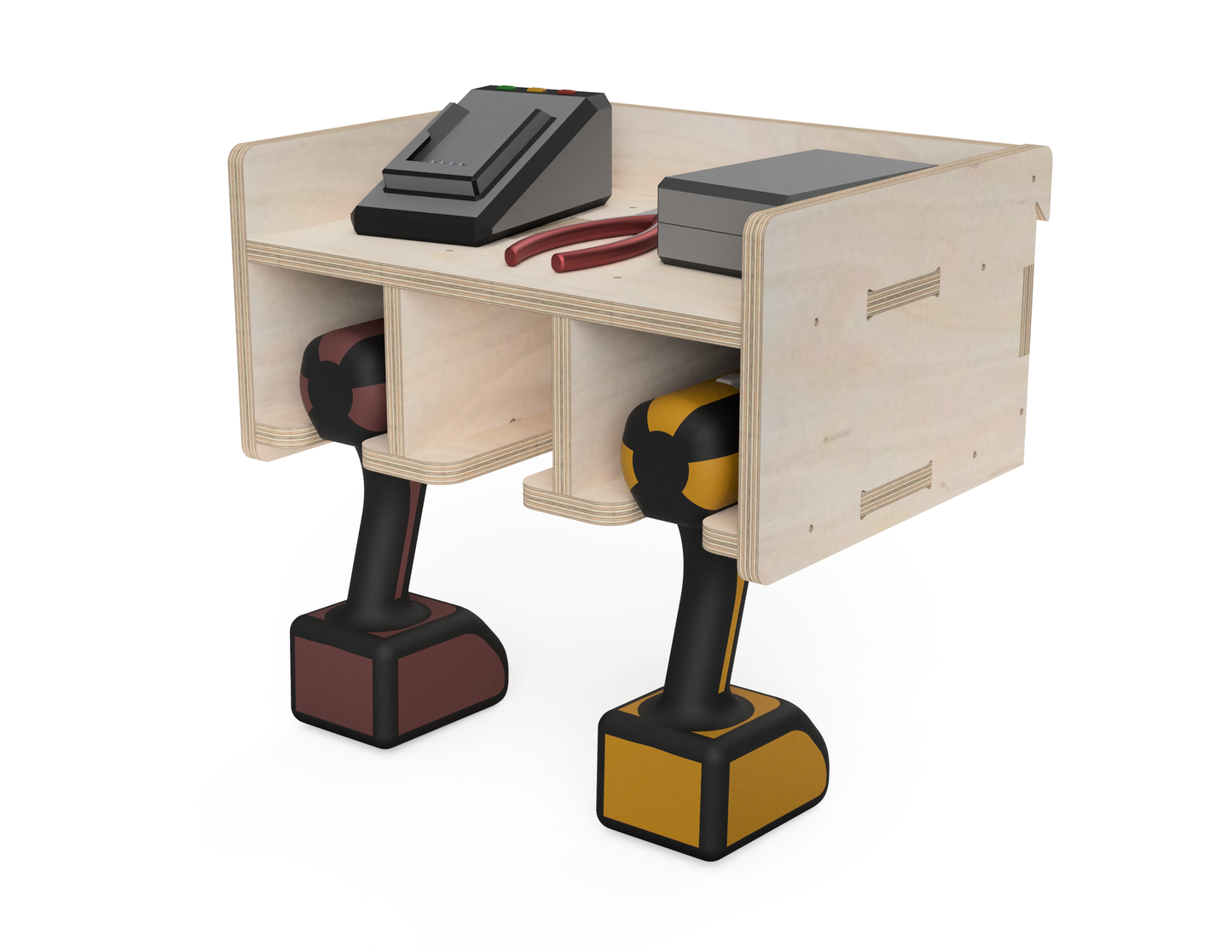

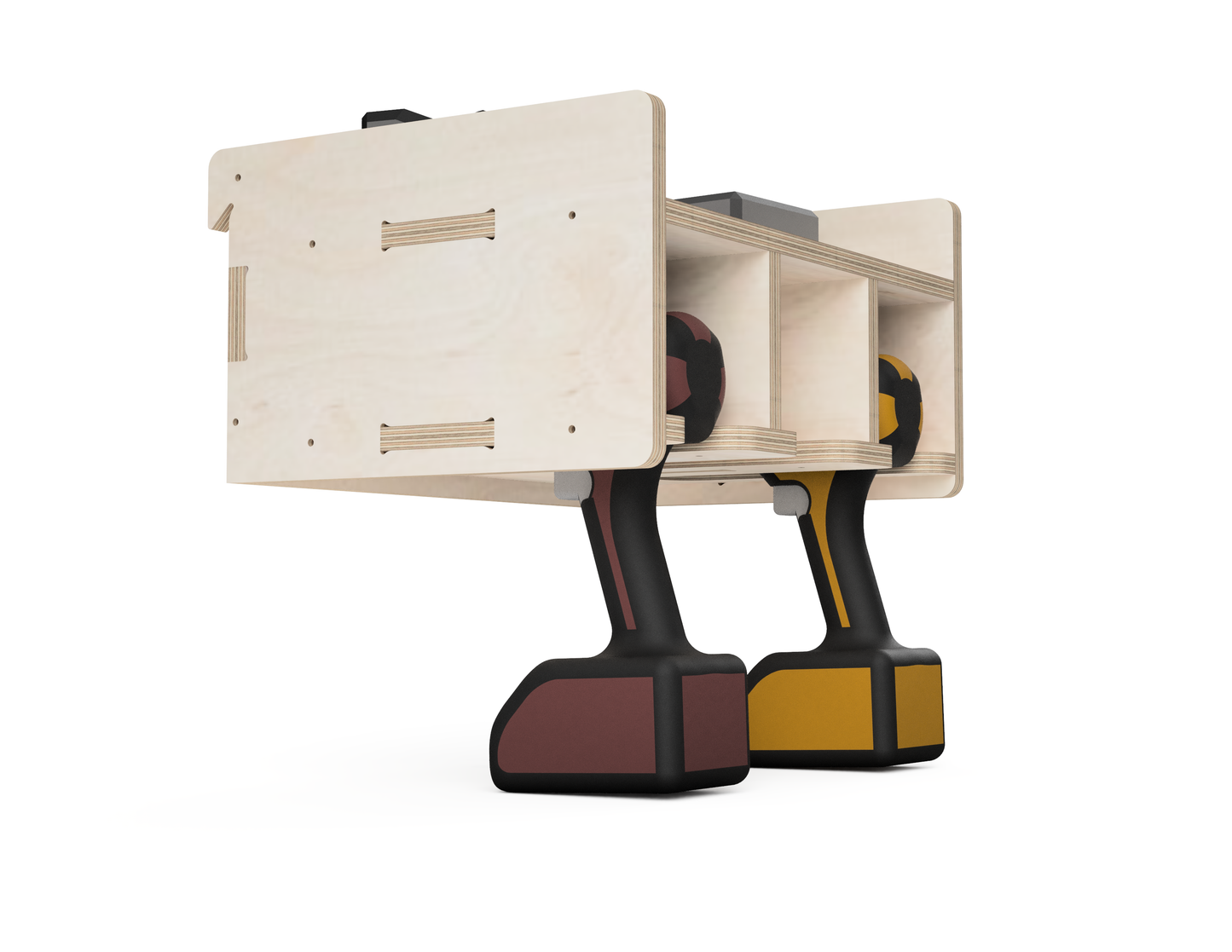

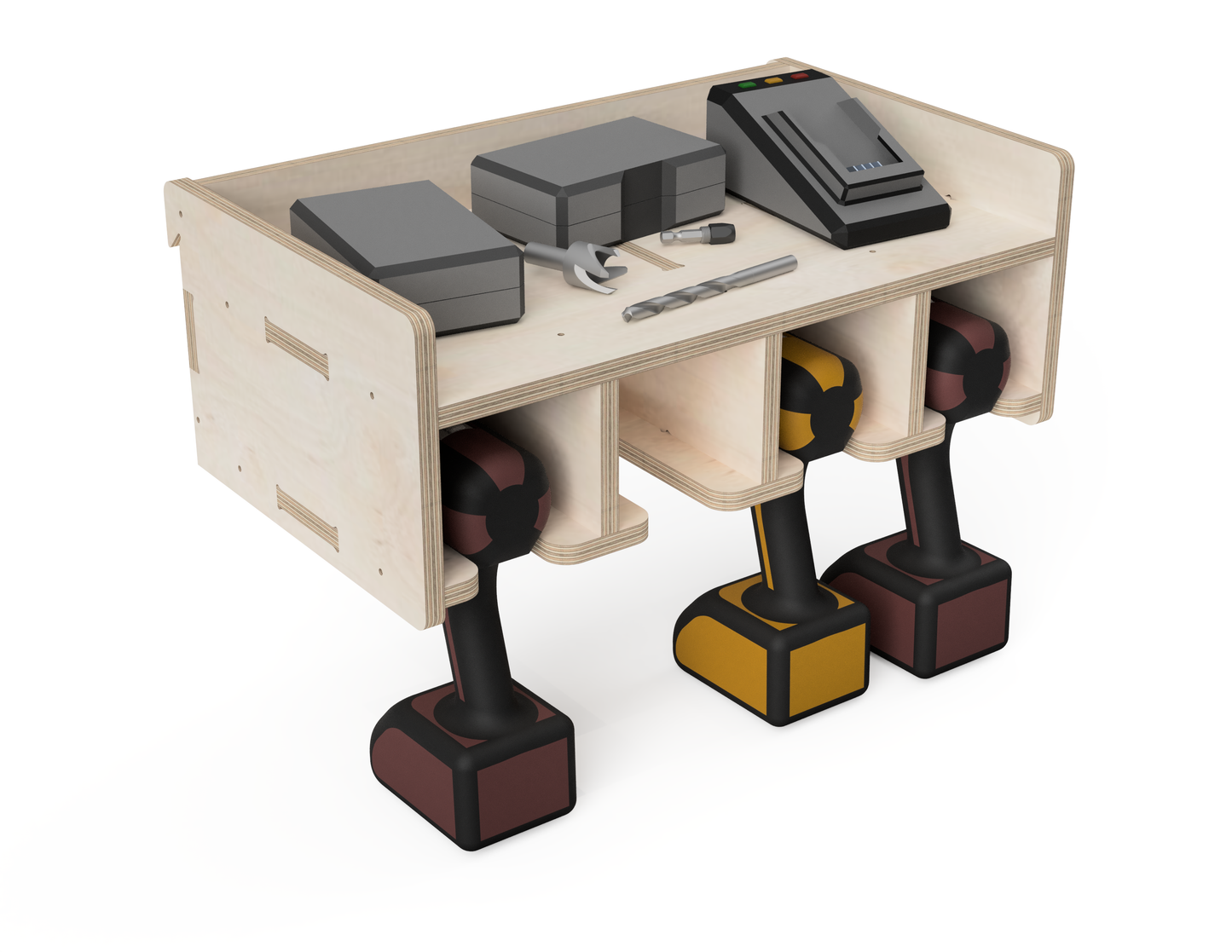

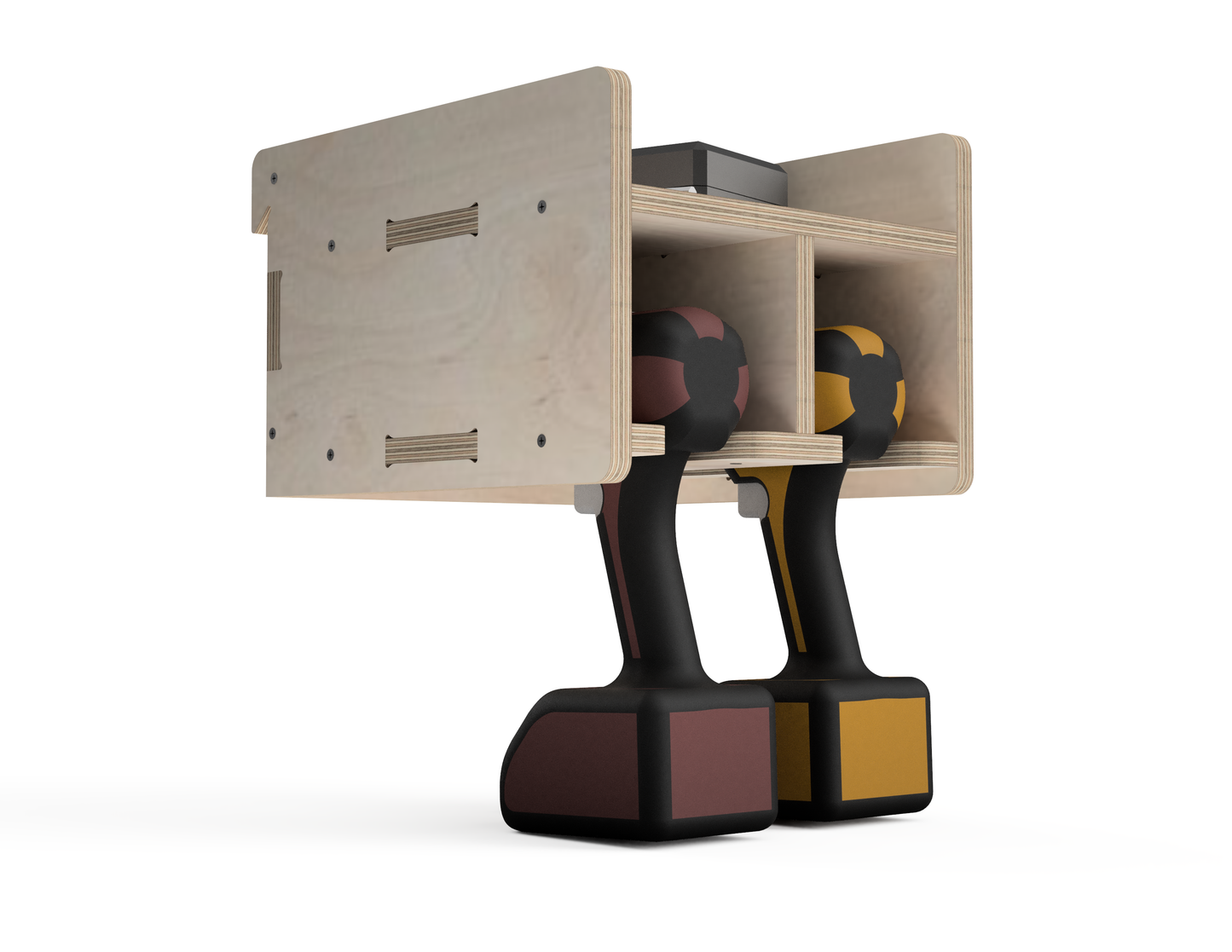

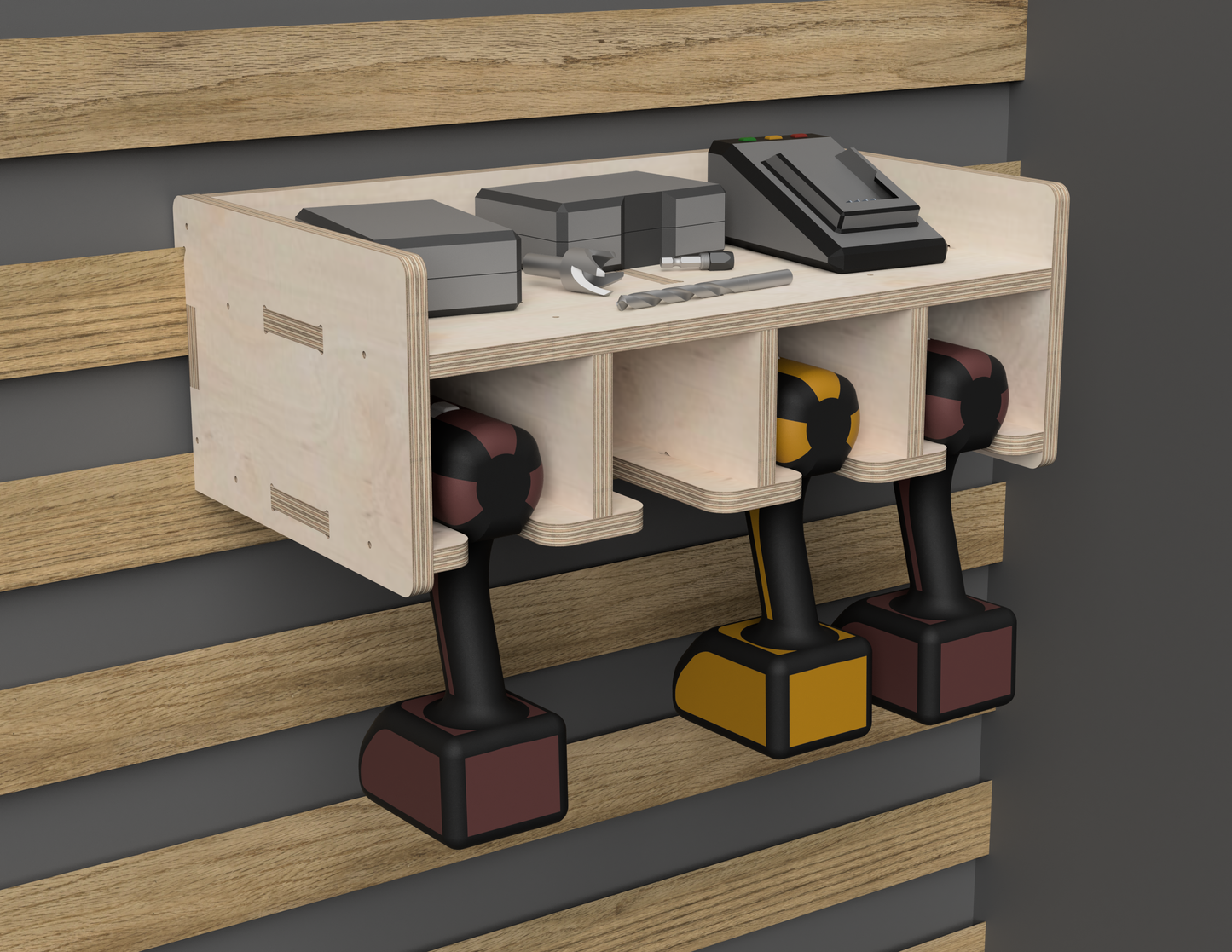

Organize your workspace with our Single Shelf Drill Stand designed for French cleat walls.

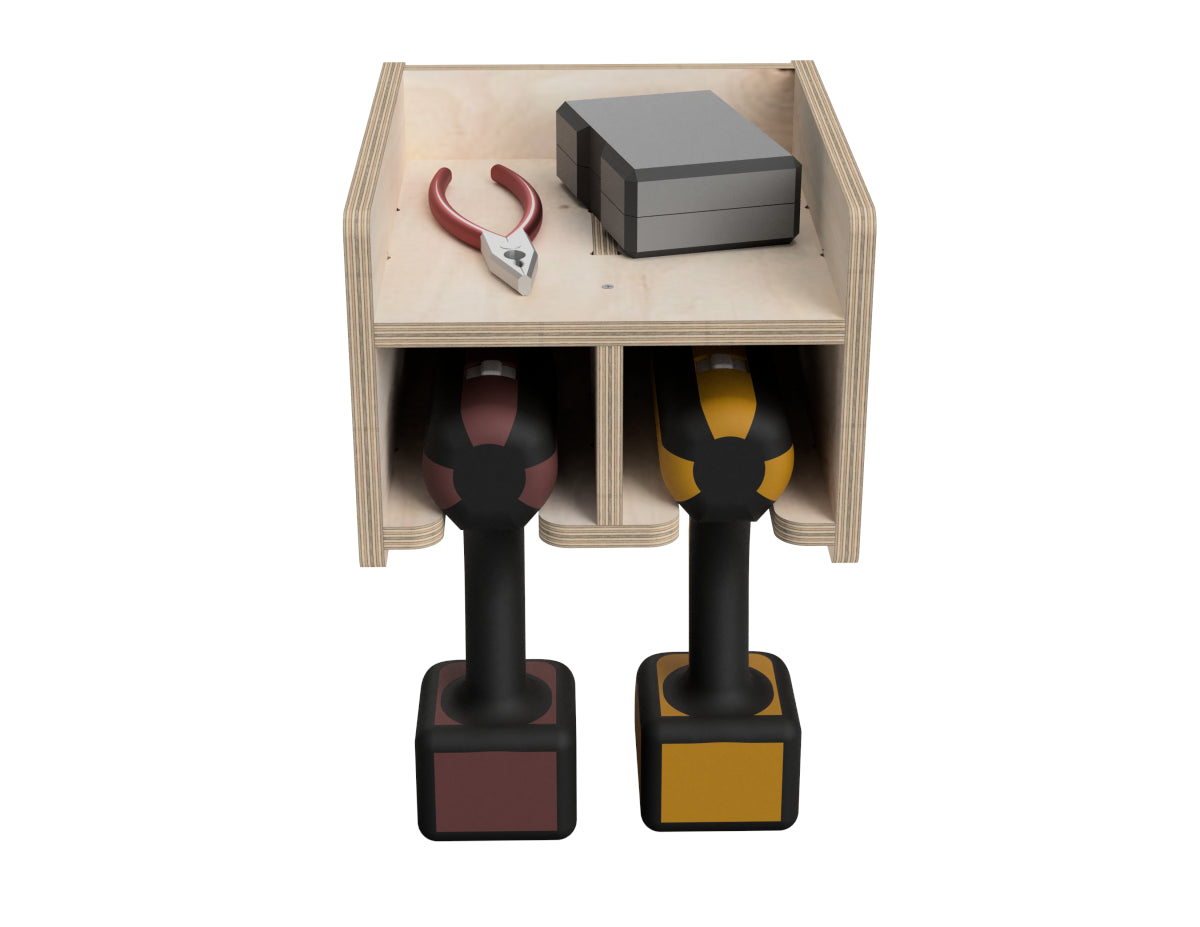

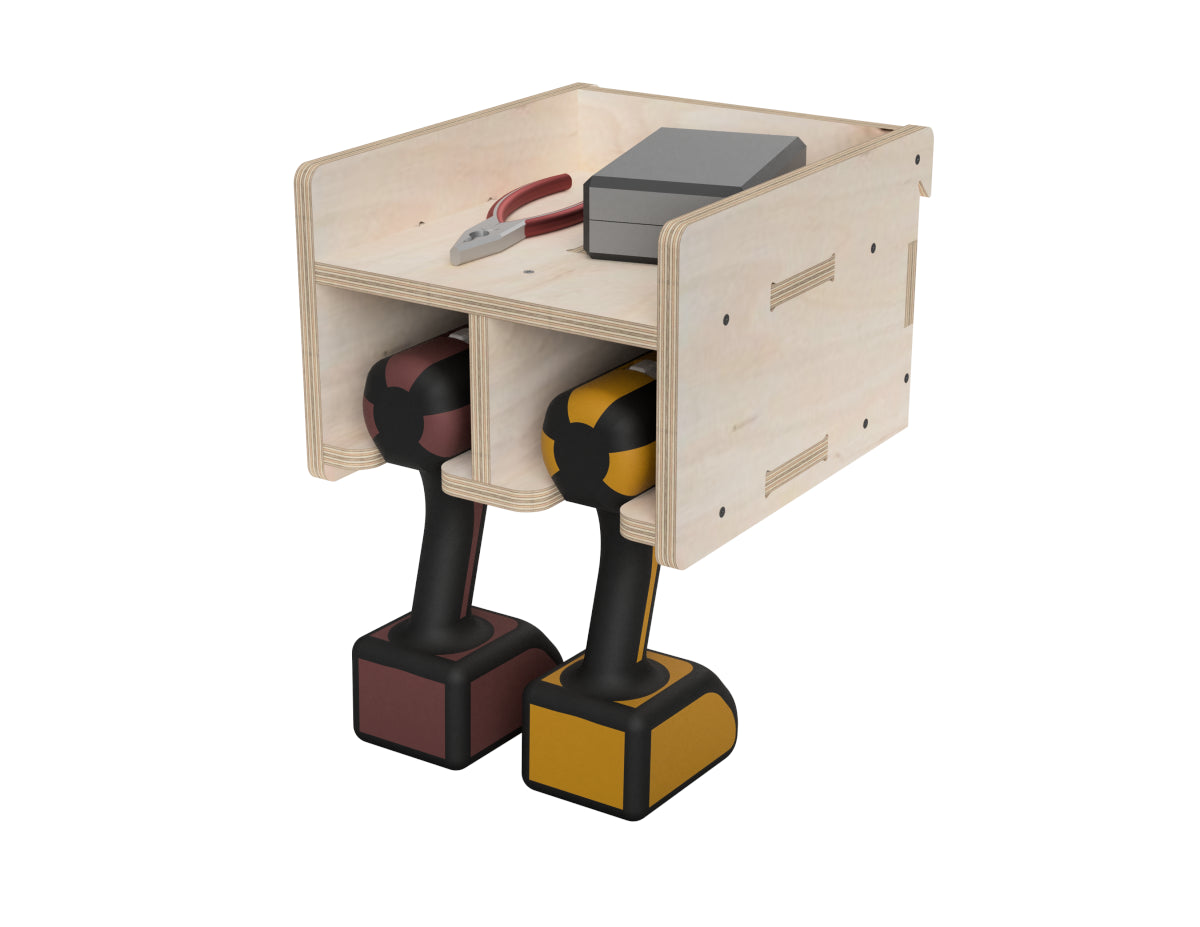

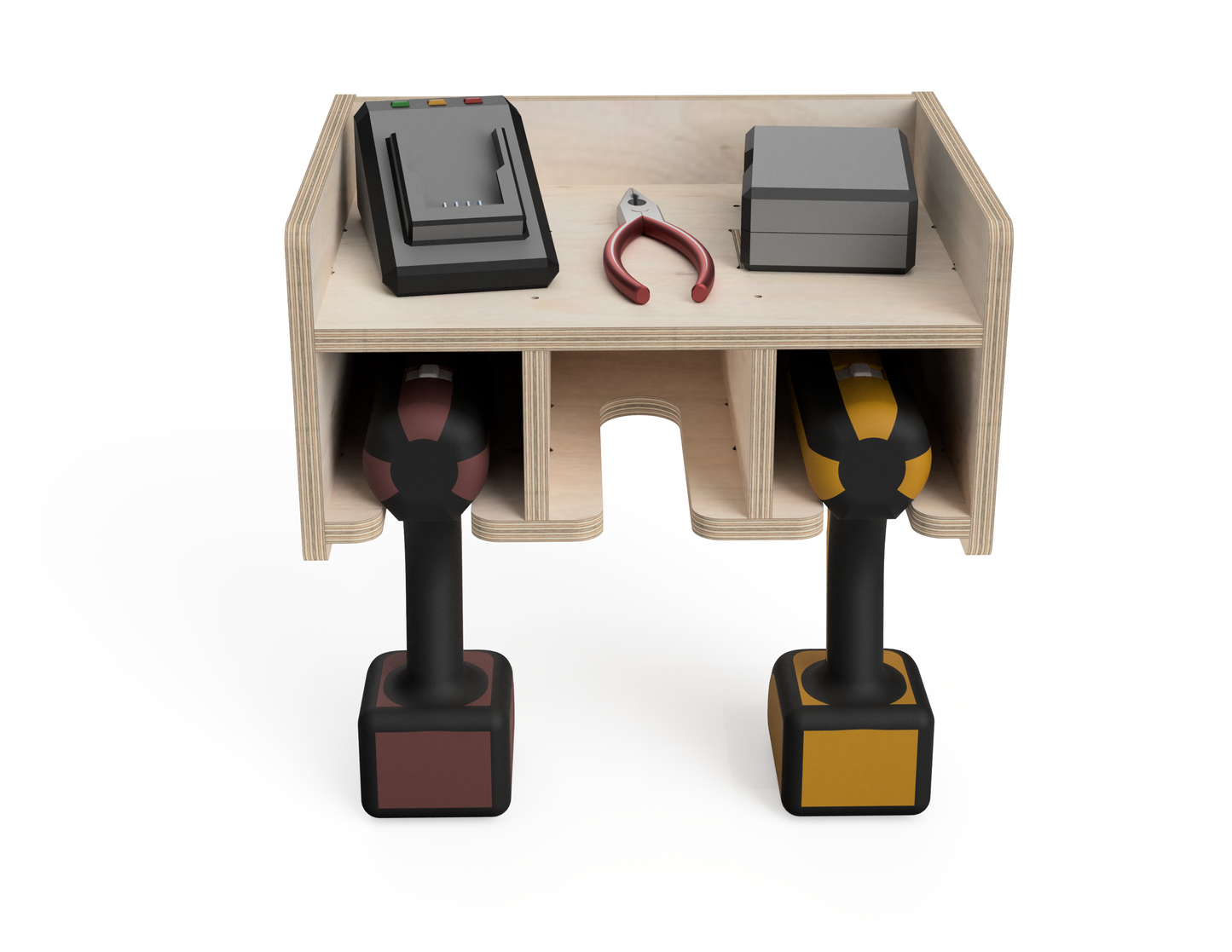

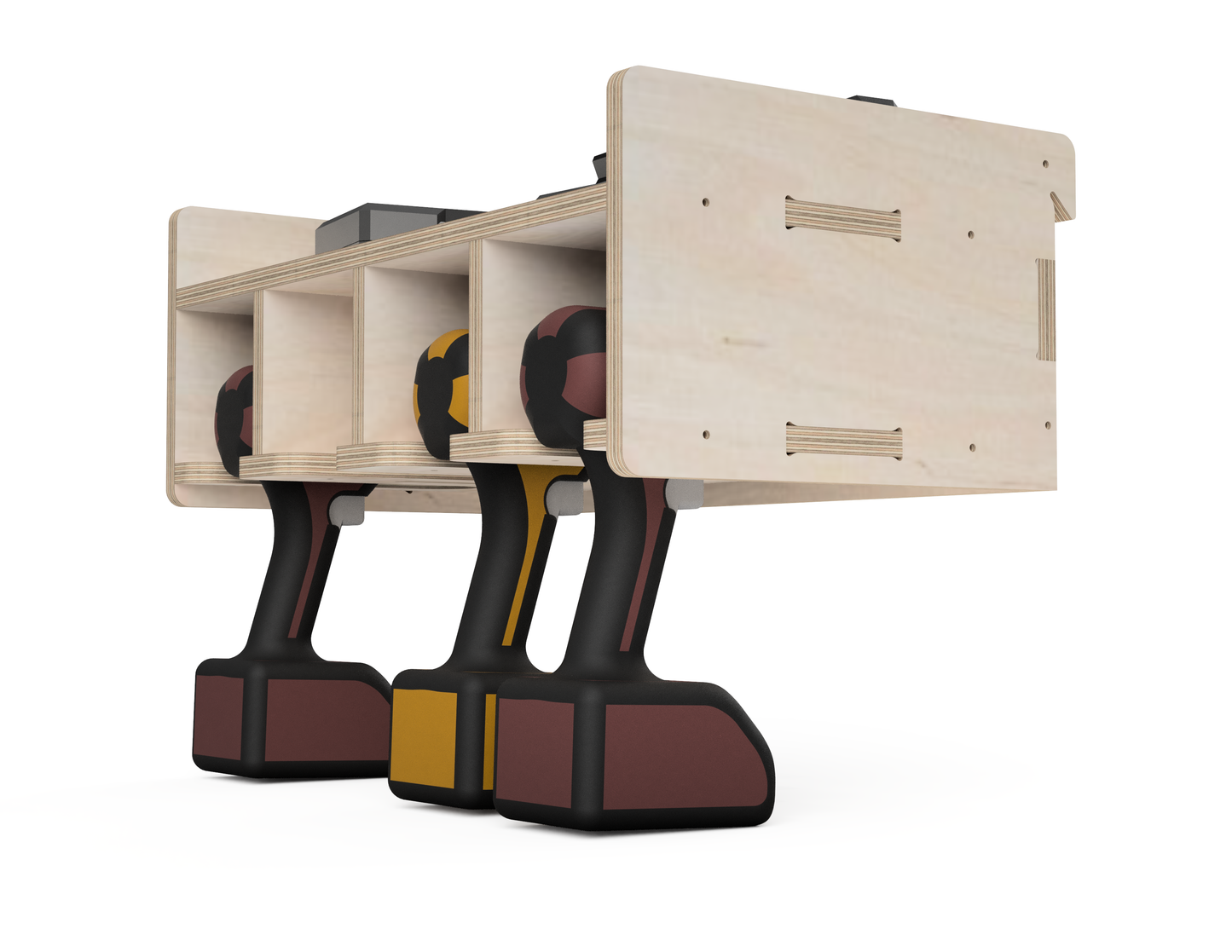

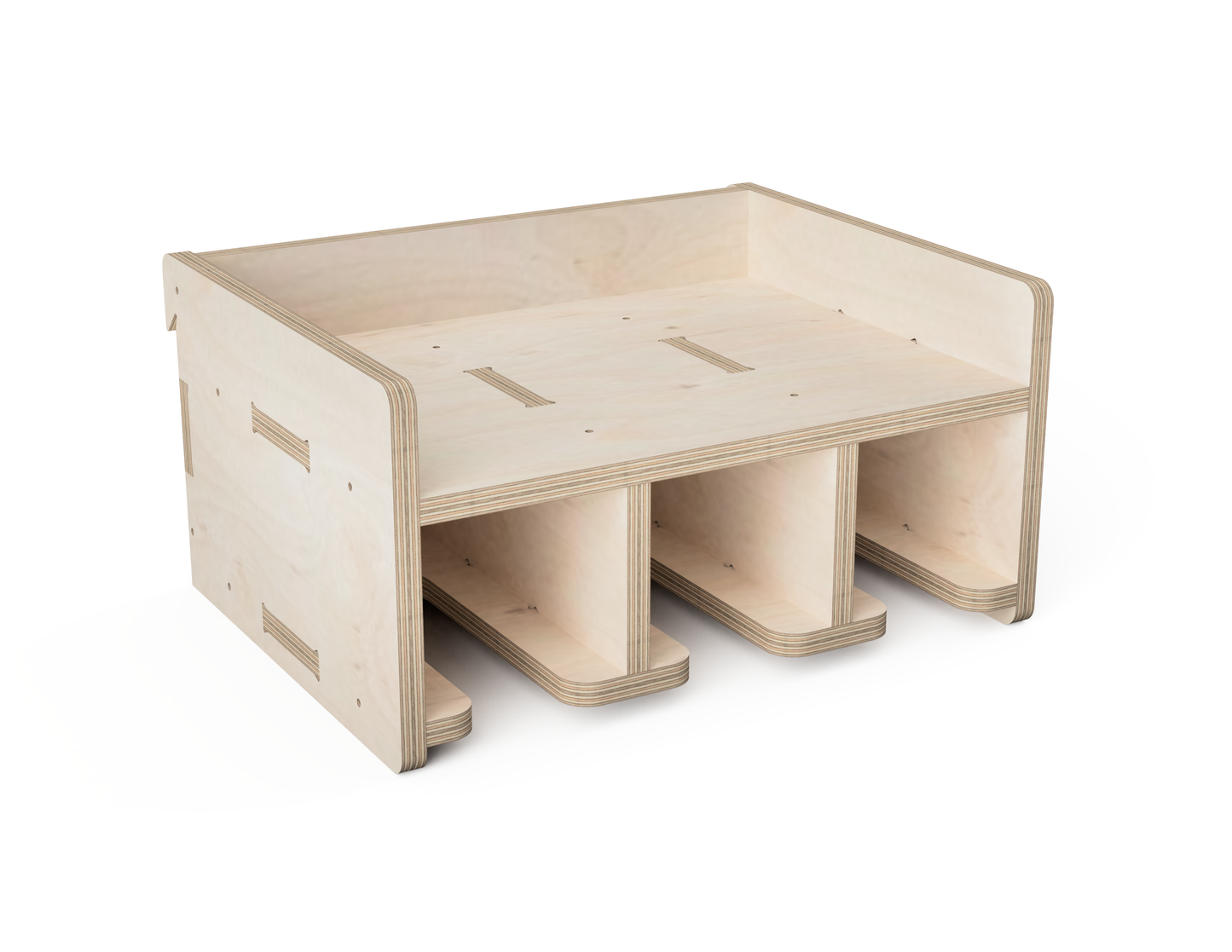

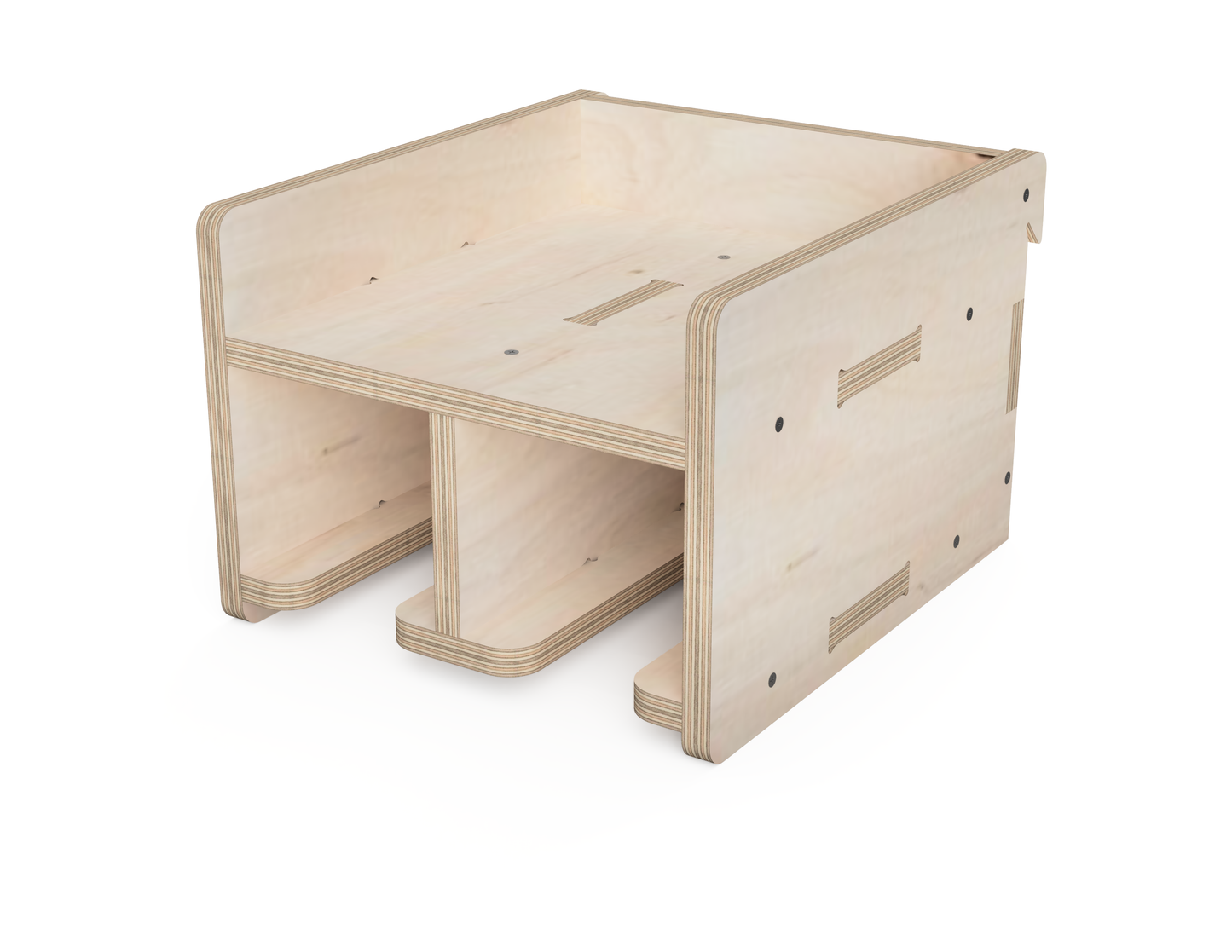

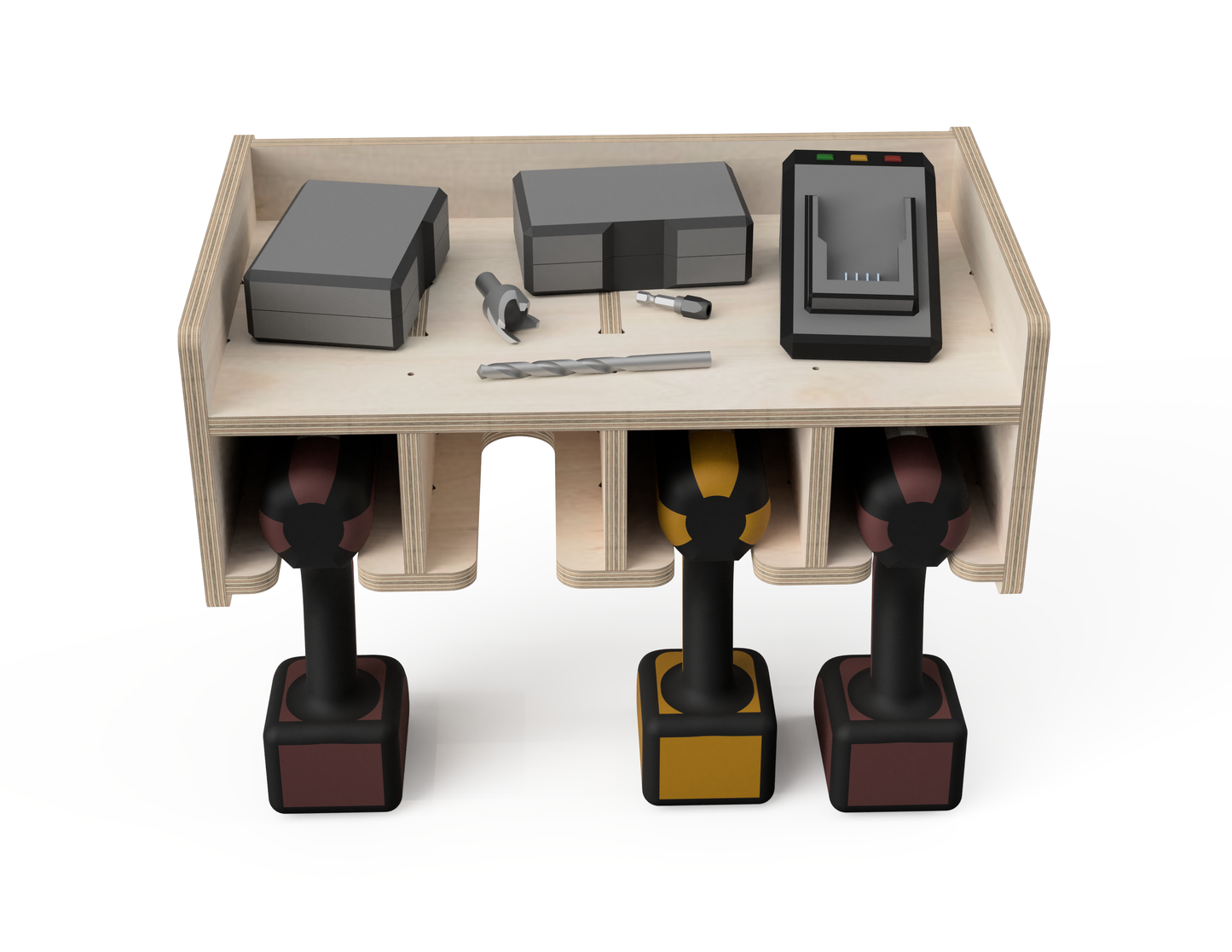

These CNC DXF files allow you to create custom cordless drill stations that hold 2, 3, or 4 drills.
Featuring a spacious shelf, this rack offers ample space to store drill bits, batteries, and chargers, keeping your tools accessible and clutter-free.

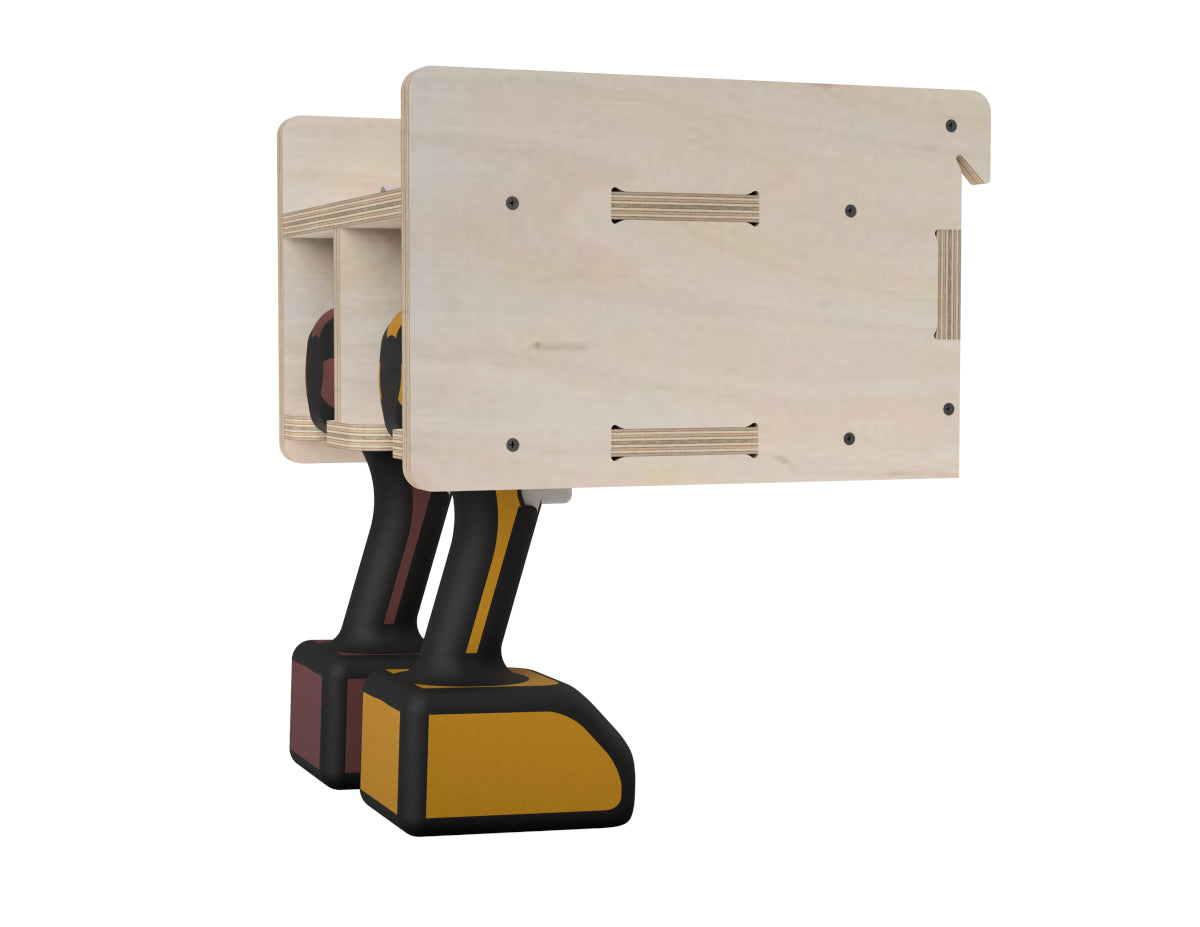

Compatible with cleats at least 12mm thick, it's perfect for DIY enthusiasts and professionals looking for a practical storage solution.
Download now and upgrade your tool organization today!
Supported CNC sizes
Supported CNC sizes
Max single piece size
Max single piece size
So if it can fit on your CNC router, you can build this project
Dimensions
Dimensions
Minimum
Width | Length | Height |
---|---|---|
240 mm | 262 mm | 180 mm |
9½ inch | 10⅜ inch | 7⅛ inch |
Maximum
Width | Length | Height |
---|---|---|
465 mm | 262 mm | 180 mm |
18¼ inch | 10⅜ inch | 7⅛ inch |
Required materials
Required materials
For a 600 x 900 mm (2 x 3 ft) CNC
- 1 sheet of 900 x 600 x 12 mm (36 x 24 x 1/2 inches) plywood
- 1 sheet of 600 x 220 x 12 mm (24 x 10 x 1/2 inches) plywood
- 3 mm (1/8 inch) router bit
- 24 wood screws (optional)
For a 820 x 1220 mm (2.6 x 4 ft) CNC and bigger
- 1 sheet of 1150 x 550 x 12 mm (46 x 22 x 1/2 inches) plywood
- 3 mm (1/8 inch) router bit
- 24 wood screws (optional)
