Double Modular Workbench Attachment - With Two Drawers DXF Files

Double Modular Workbench Attachment - With Two Drawers DXF Files

$6.75 USD
$13.45 USD $6.75 USD
Sale Sold out
Taxes included.

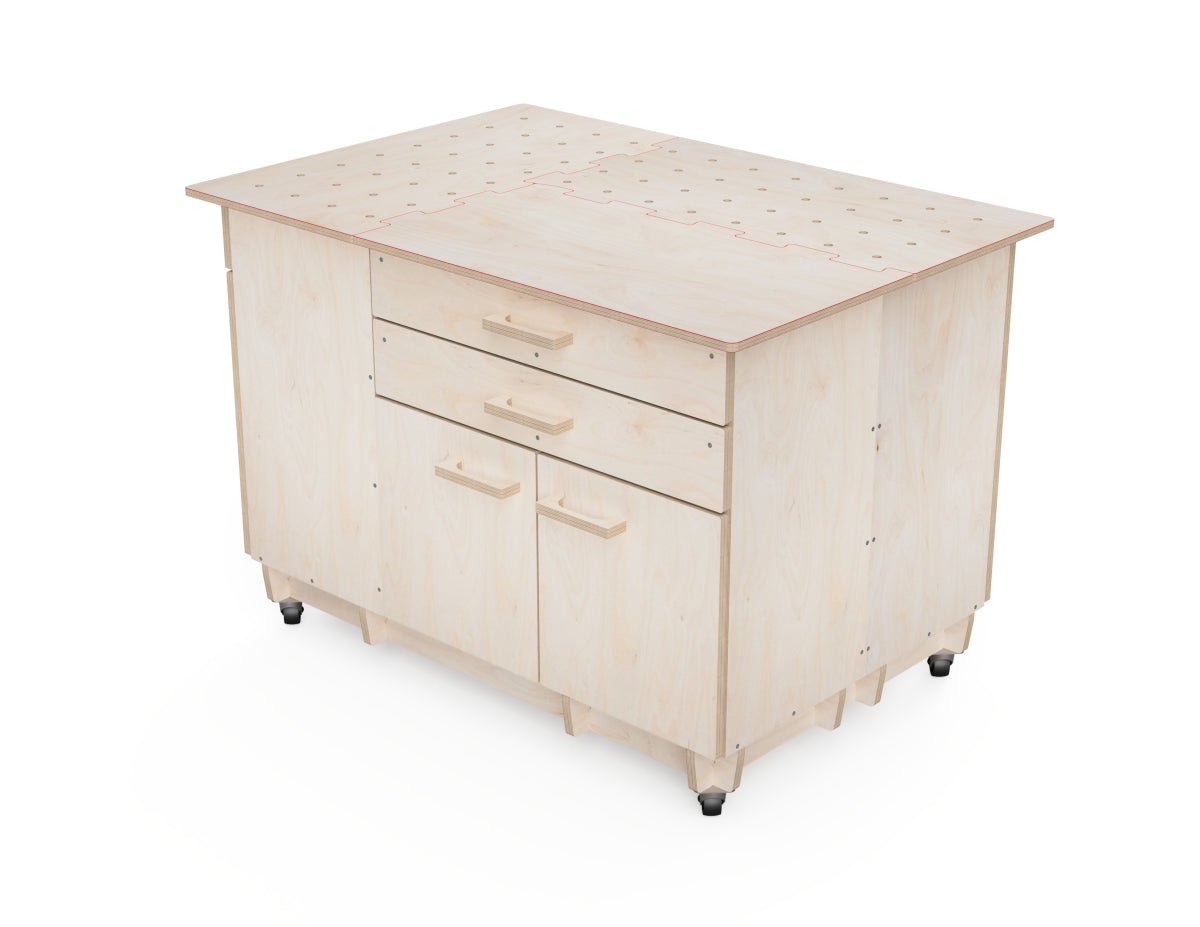

The Double Modular Workbench Attachment adds extra storage to your modular workbench setup.

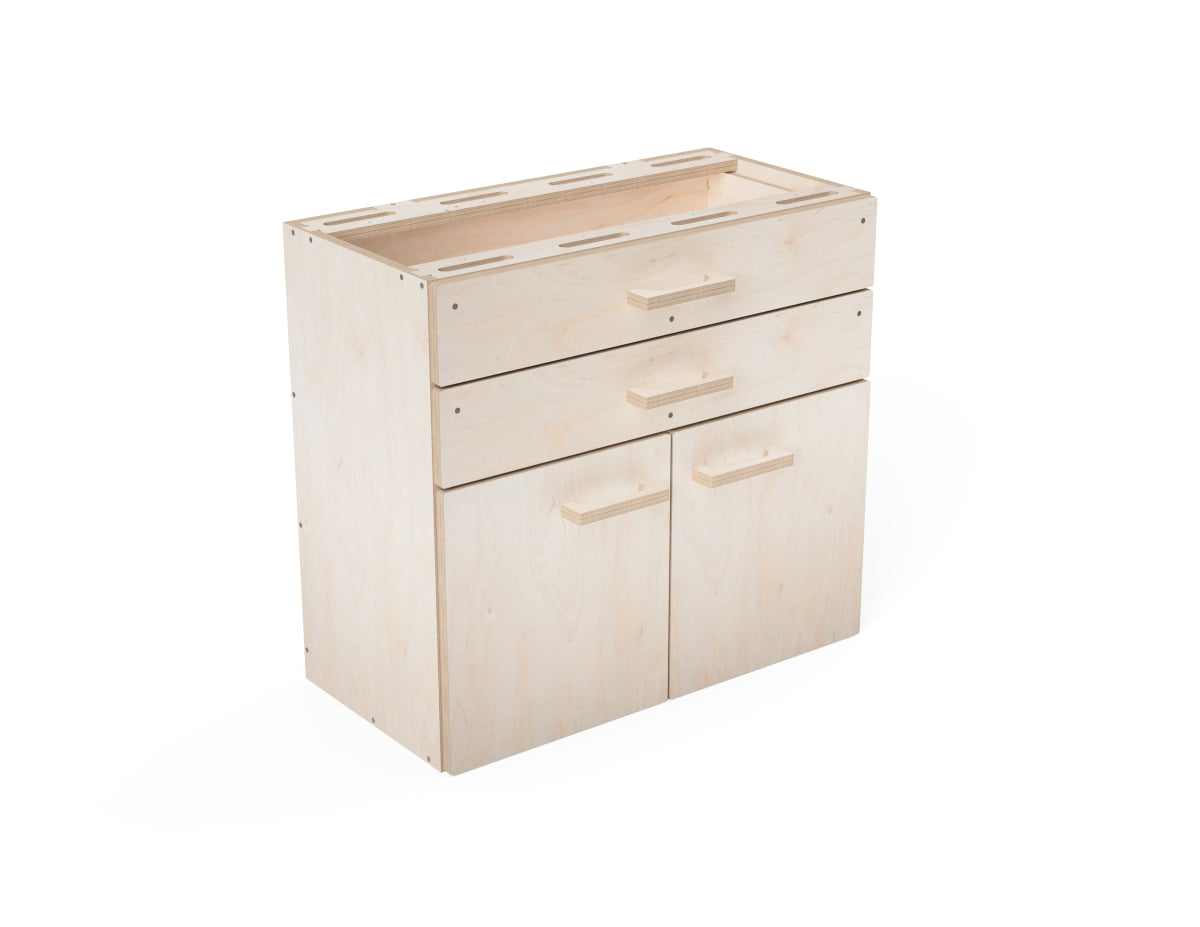

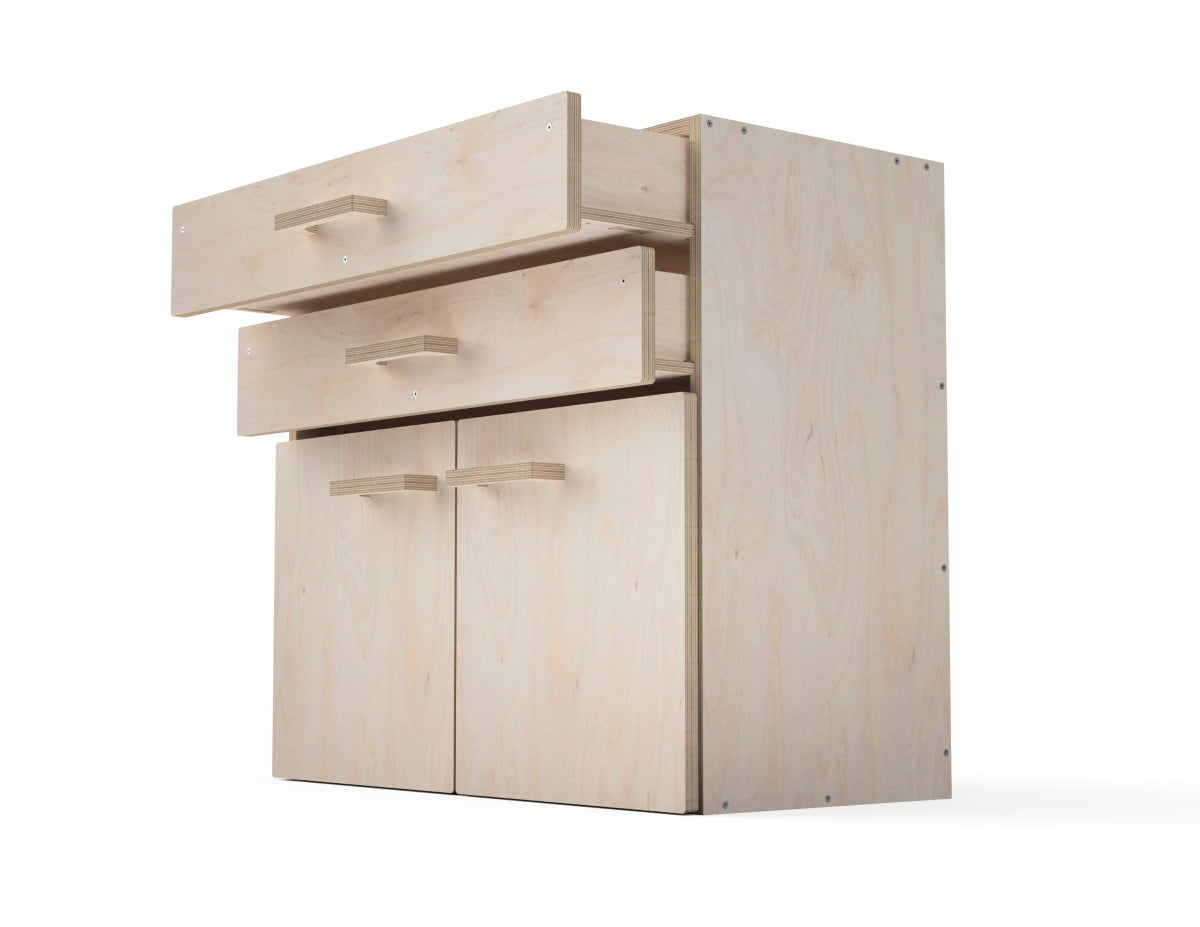

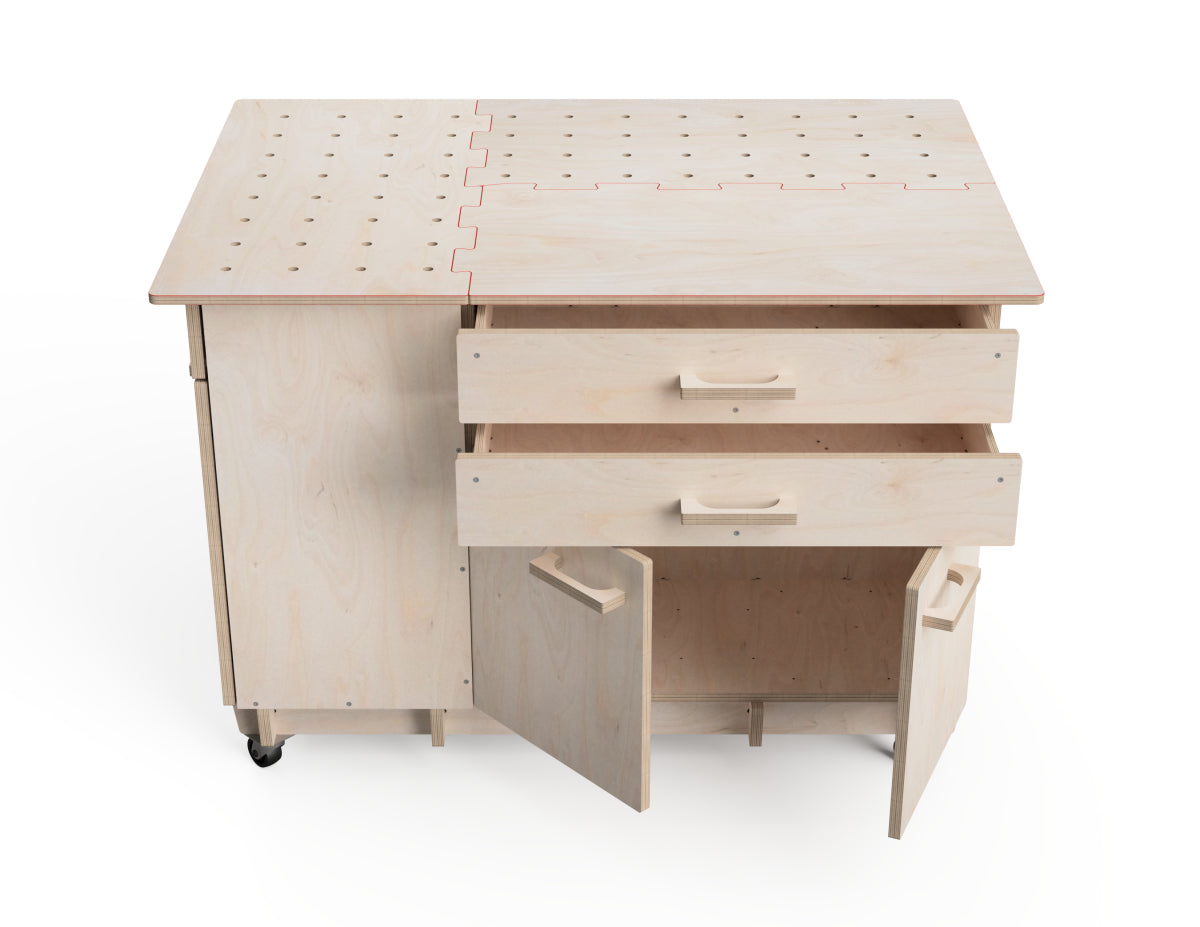

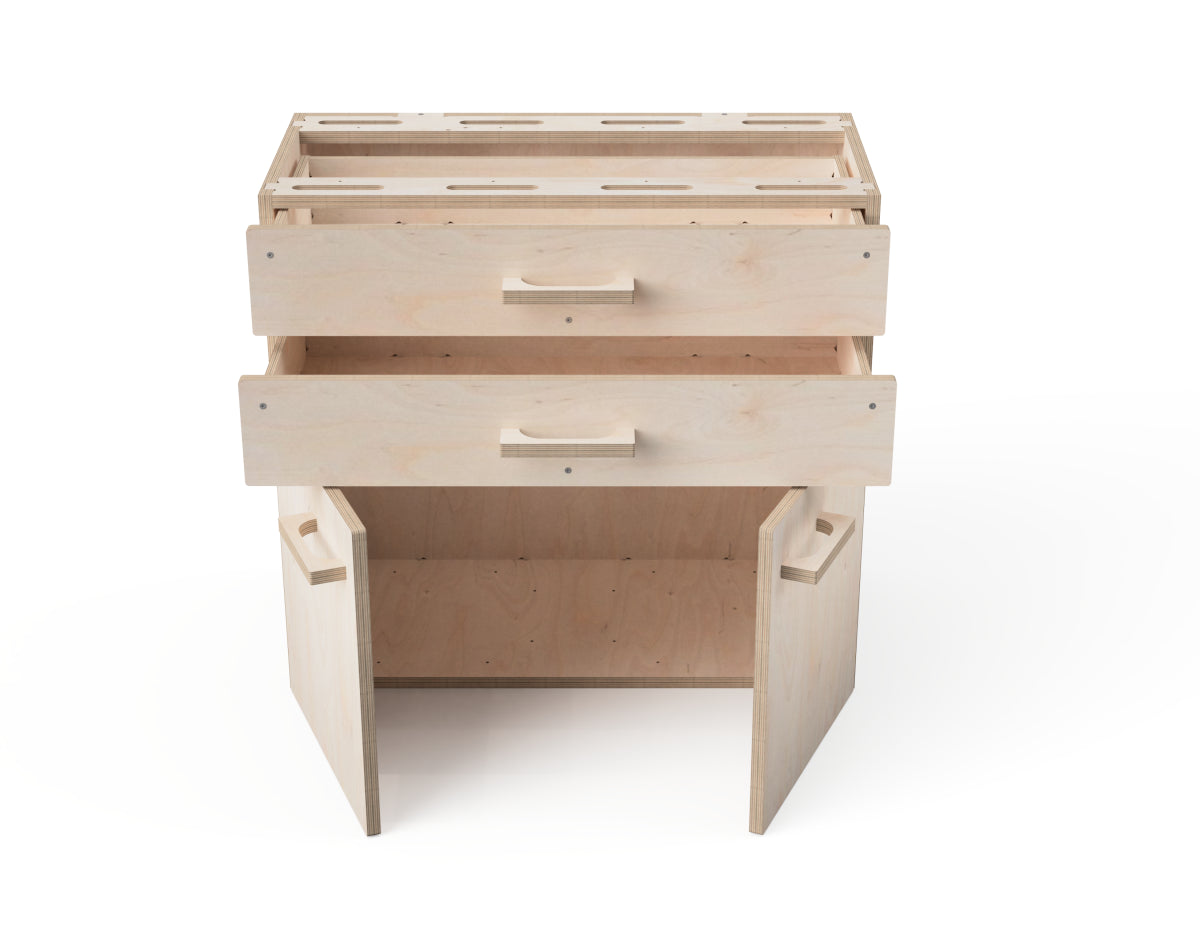

This cabinet features two doors to keep tools, jigs, and workpieces dust-free, plus two large top drawers for easy access to frequently used items.

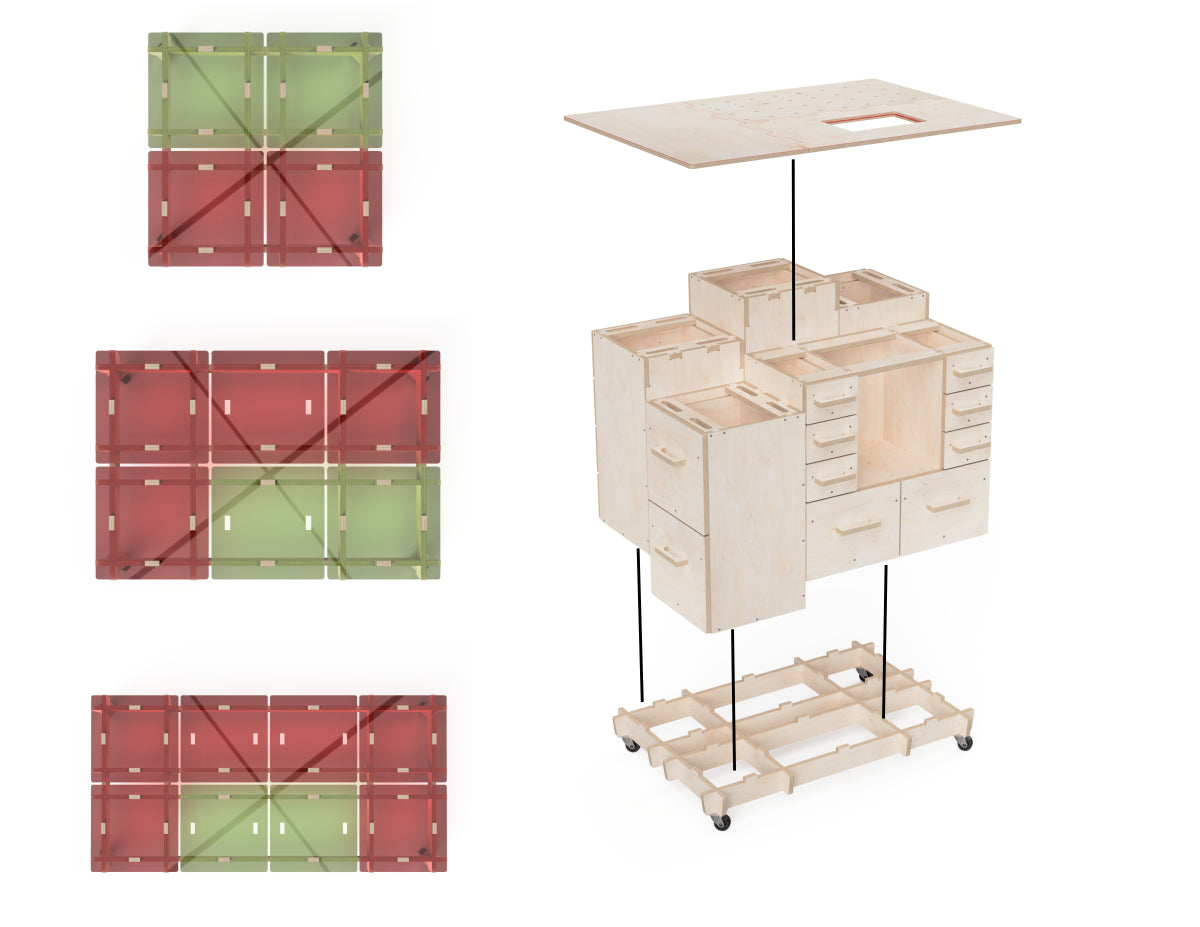

Designed to occupy two modules on your base frame, it comes with DXF files for both the cabinet and work surface panels, making assembly simple and precise. Perfect for keeping your workshop organized and efficient.

Supported CNC sizes

The project can be made on a 800 x 1200 mm (2.6 x 4 ft) CNC router and bigger.

Max single piece size

The biggest component is 800 x 730 mm (31.5 x 28.74 inches).
So if it can fit on your CNC router, you can build this project

Dimensions

Width Length Height
400 mm 800 mm 730 mm
15¾ inch 31½ inch 28¾ inch

Required materials

For a 820 x 1220 mm (2.6 x 4 ft) CNC
- 2 sheets of 820 x 1220 x 18 mm (32 x 48 x 3/4 inches) plywood
- 1 sheet of 520 x 950 x 18 mm (21 x 38 x 3/4 inches) plywood
- 1 sheet of 820 x 1220 x 12 mm (32 x 48 x 1/2 inches) plywood
- 1 sheet of 140 x 800 mm x 12 mm (6 x 31 x 1/2 inches) plywood
- 6 mm (1/4 inch) router bit
- 30 mm (1-1/4 inch) wood screws - 100 pieces
- 15 mm (5/16 inches) wood screws - 16 pieces
- cabinet door hinges - 4 pieces
For a 1220 x 1220 mm (4 x 4 ft) CNC
- 1 sheet of 1220 x 1220 x 18 mm (48 x 48 x 3/4 inches) plywood
- 1 sheet of 1220 x 920 x 18 mm (48 x 37 x 3/4 inches) plywood
- 1 sheet of 1220 x 920 x 12 mm (48 x 37 x 1/2 inches) plywood
- 6 mm (1/4 inch) router bit
- 30 mm (1-1/4 inch) wood screws - 100 pieces
- 15 mm (5/16 inches) wood screws - 16 pieces
- cabinet door hinges - 4 pieces
For a 1220 x 2440 mm (4 x 8 ft) CNC
- 1 sheet of 1220 x 2440 x 18 mm (48 x 96 x 3/4 inches plywood
- 1 sheet of 1220 x 920 x 12 mm (48 x 37 x 1/2 inches) plywood
- 6 mm (1/4 inch) router bit
- 30 mm (1-1/4 inch) wood screws - 100 pieces
- 15 mm (5/16 inches) wood screws - 16 pieces
- cabinet door hinges - 4 pieces

Approximate CNC time

1 hour

Assembling time

1 hour
The product may differ from the representative images when cut and assembled. We hope you will enjoy your purchase from Aribabox!
