Double Modular Workbench Attachment - With One Drawer DXF Files

Double Modular Workbench Attachment - With One Drawer DXF Files

$5.75 USD
$11.45 USD $5.75 USD
Sale Sold out
Taxes included.

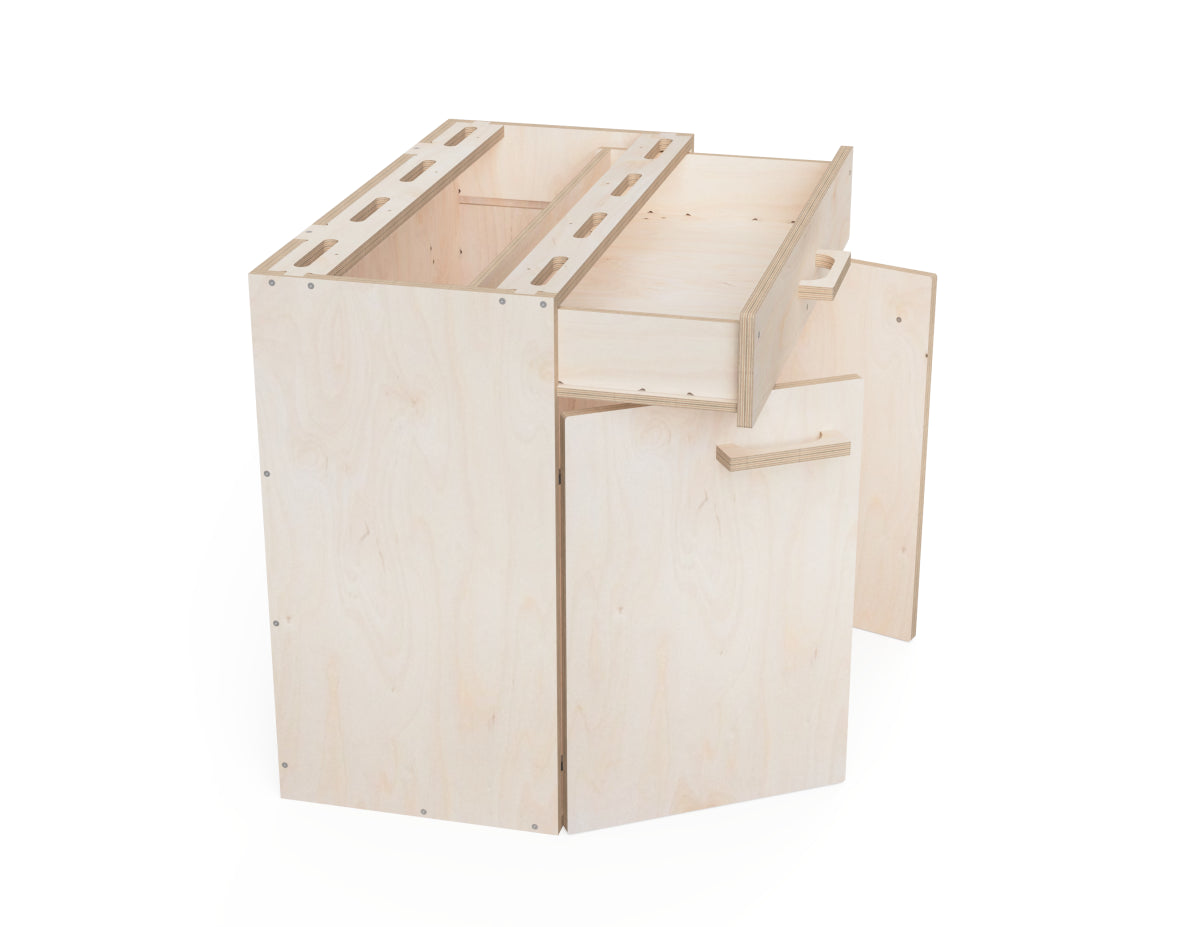

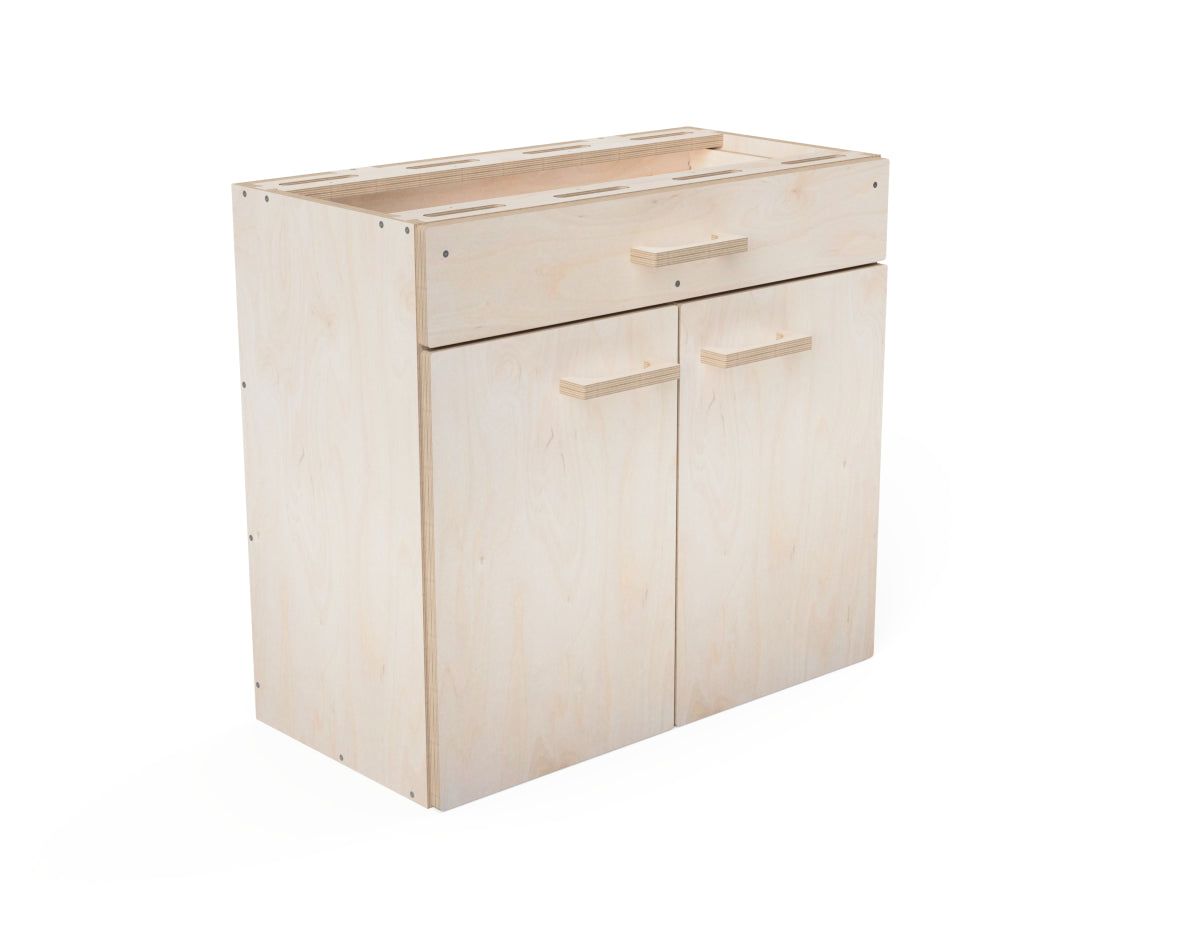

Create a versatile storage solution for your modular workbench with the Double Modular Workbench Attachment.

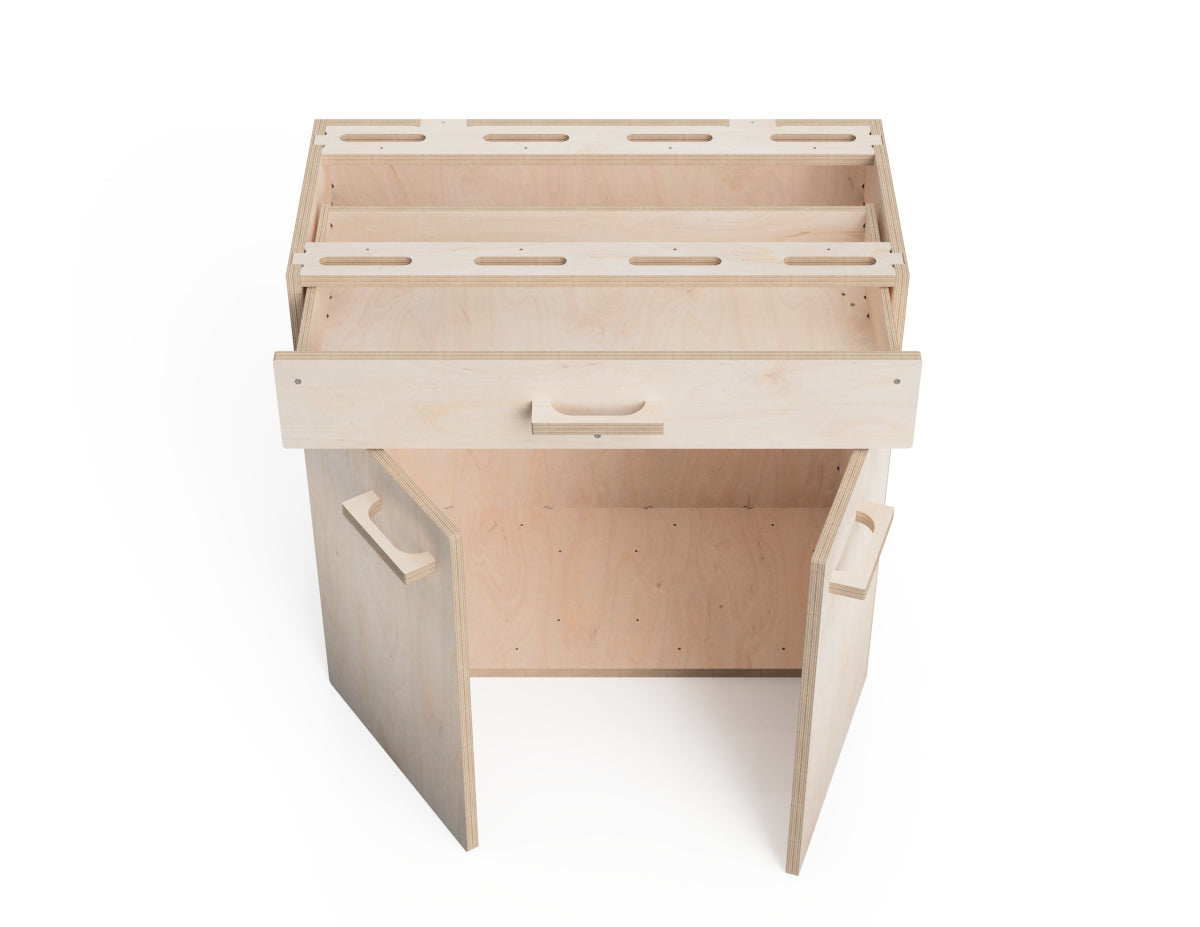

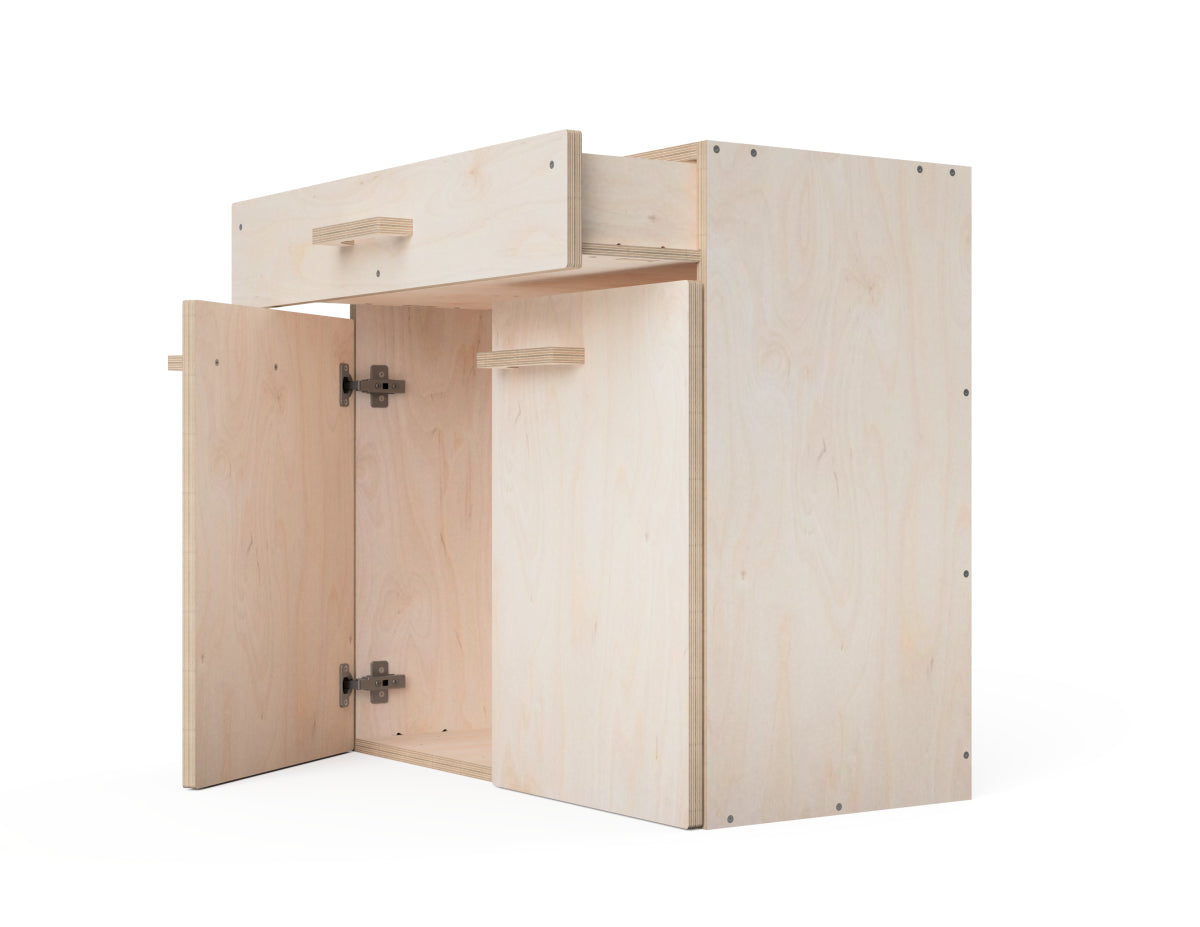

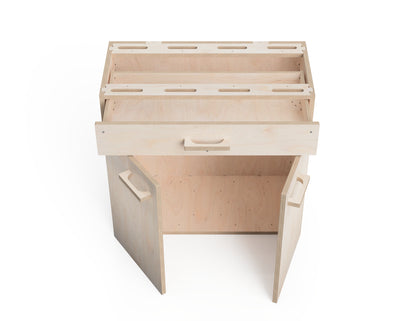

This DXF file project lets you build a simple cabinet featuring two door panels to keep tools, jigs, materials, and workpieces dust-free, plus a large top drawer for quick access to frequently used items.

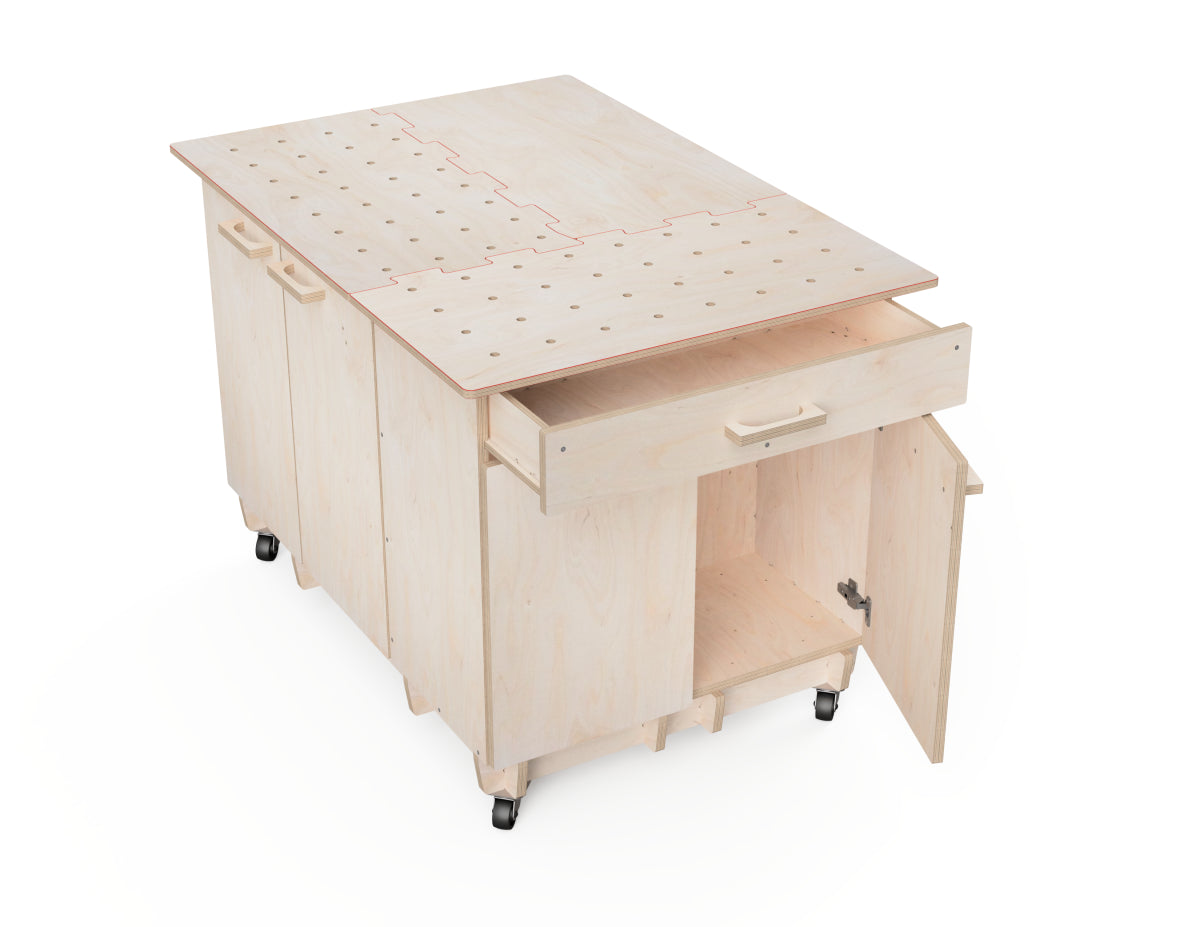

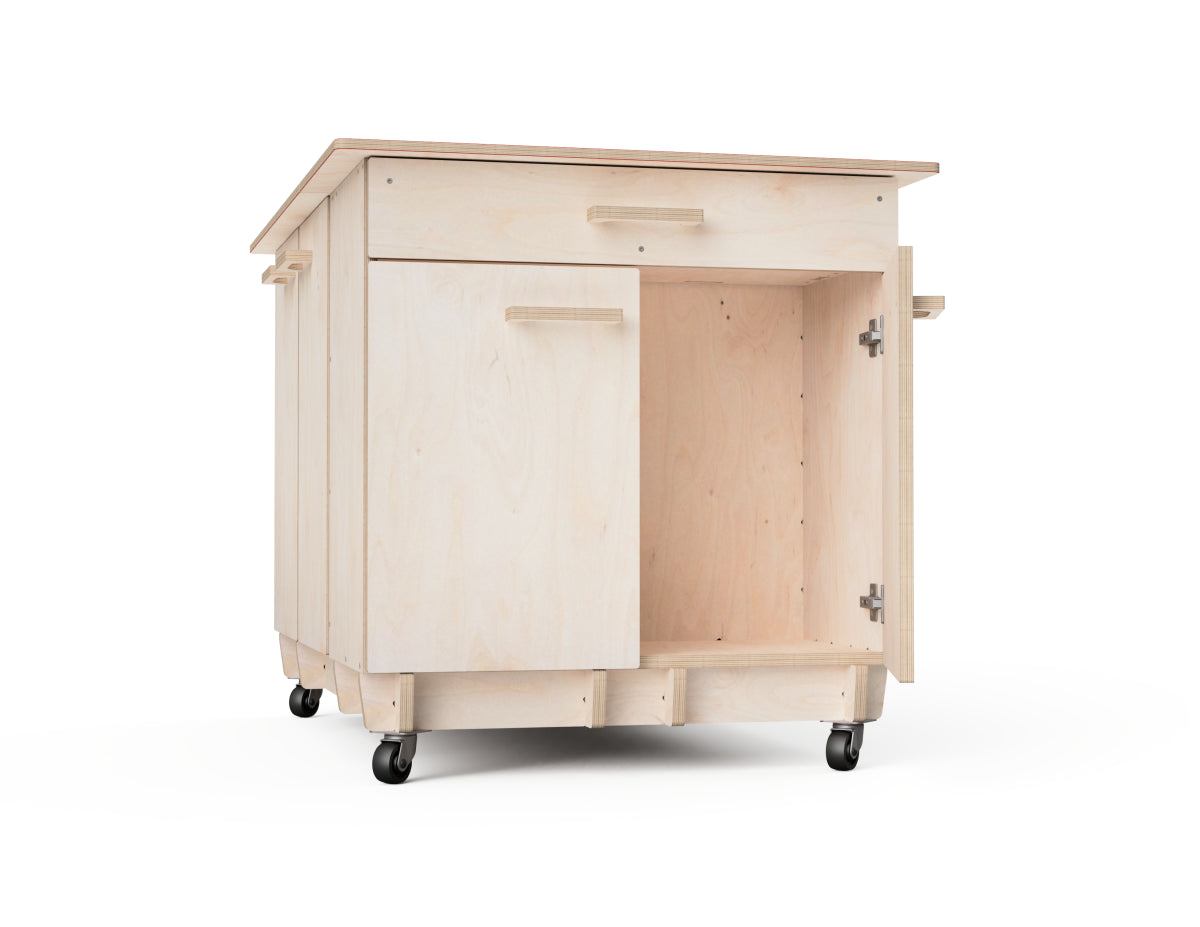

Designed to occupy two modules on your base frame, the project also includes files for the work surface panels to complete your setup.



Small Workbench Setup
Dimensions: 900 × 900 × 900 mm (W × L × H)
≈ 35 × 35 × 35 in

Medium Workbench Setup
Dimensions: 900 × 1300 × 900 mm (W × L × H)
≈ 35 × 51 × 35 in

Large Workbench Setup
Dimensions: 900 × 1700 × 900 mm (W × L × H)
≈ 35 × 67 × 35 in

Supported CNC sizes

The project can be made on a 800 x 1200 mm (2.6 x 4 ft) CNC router and bigger.

Max single piece size

The biggest component is 800 x 730 mm (31.5 x 28.74 inches).
So if it can fit on your CNC router, you can build this project

Dimensions

Width Length Height
400 mm 400 mm 730 mm
15¾ inch 15¾ inch 28¾ inch

Required materials

For a 820 x 1220 mm (2.6 x 4 ft) CNC
- 2 sheets of 820 x 1220 x 18 mm (32 x 48 x 3/4 inches) plywood
- 1 sheet of 420 x 1220 x 18 mm (17 x 48 x 3/4 inches) plywood
- 1 sheet of 520 x 1050 x 12 mm (21 x 42 x 1/2 inches) plywood
- 6 mm (1/4 inch) router bit
- 30 mm (1-1/4 inch) wood screws - 100 pieces
- 15 mm (5/16 inches) wood screws - 16 pieces
- cabinet door hinges - 4 pieces
For a 1220 x 1220 mm (4 x 4 ft) CNC
- 1 sheet of 1220 x 1220 x 18 mm (48 x 48 x 3/4 inches) plywood
- 1 sheet of 1220 x 820 x 18 mm (48 x 32 x 3/4 inches) plywood
- 1 sheet of 520 x 1050 x 12 mm (21 x 42 x 1/2 inches) plywood
- 6 mm (1/4 inch) router bit
- 30 mm (1-1/4 inch) wood screws - 100 pieces
- 15 mm (5/16 inches) wood screws - 16 pieces
- cabinet door hinges - 4 pieces
For a 1220 x 2440 mm (4 x 8 ft) CNC
- 1 sheet of 1220 x 2440 x 18 mm (48 x 96 x 3/4 inches plywood
- 1 sheet of 520 x 1050 x 12 mm (21 x 42 x 1/2 inches) plywood
- 6 mm (1/4 inch) router bit
- 30 mm (1-1/4 inch) wood screws - 100 pieces
- 15 mm (5/16 inches) wood screws - 16 pieces
- cabinet door hinges - 4 pieces

Approximate CNC time

50 minutes

Assembling time

50 minutes
The product may differ from the representative images when cut and assembled. We hope you will enjoy your purchase from Aribabox!
View full details
