Upgrade your modular workbench with this Double Attachment - Open Shelf Cabinet.

The DXF files let you cut and assemble a sturdy two-module cabinet that adds both open and closed storage.

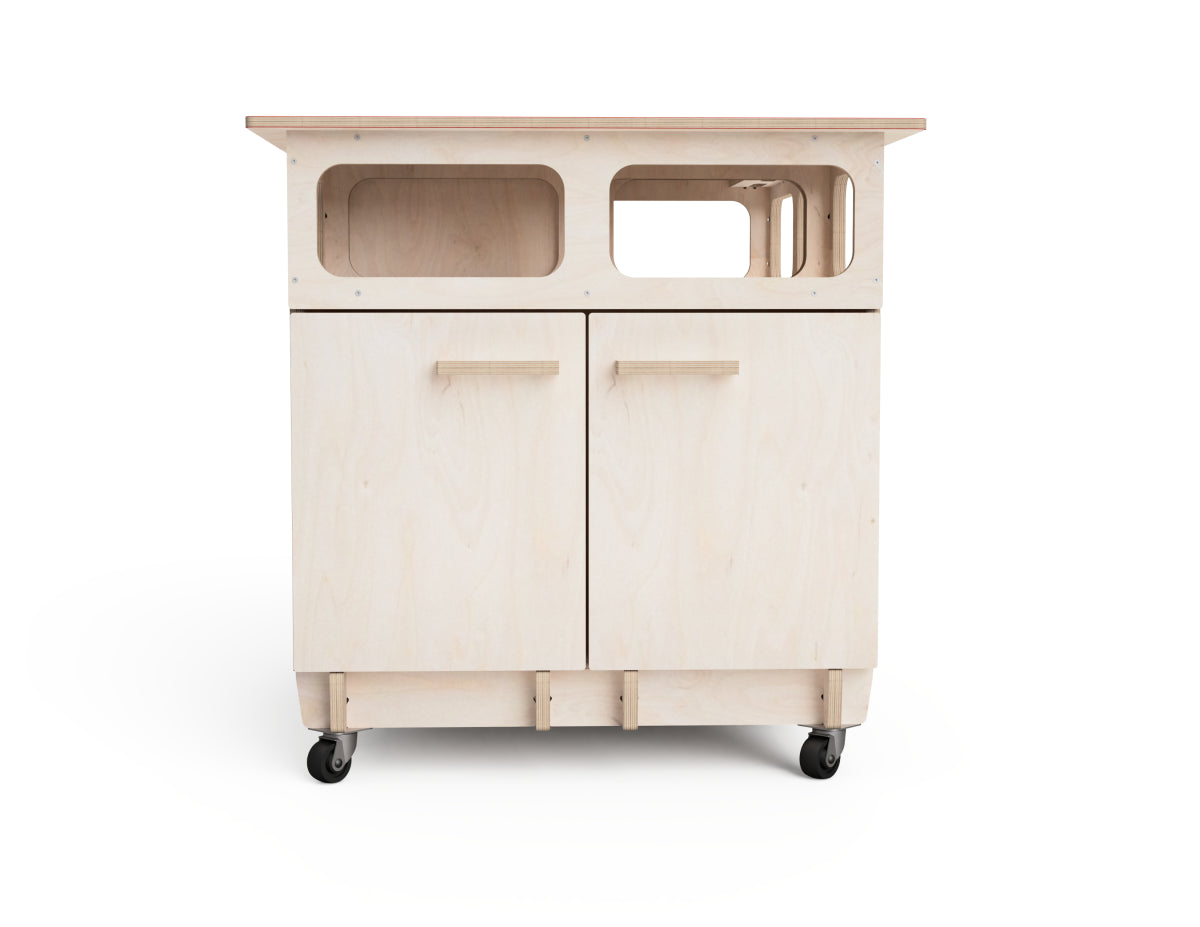

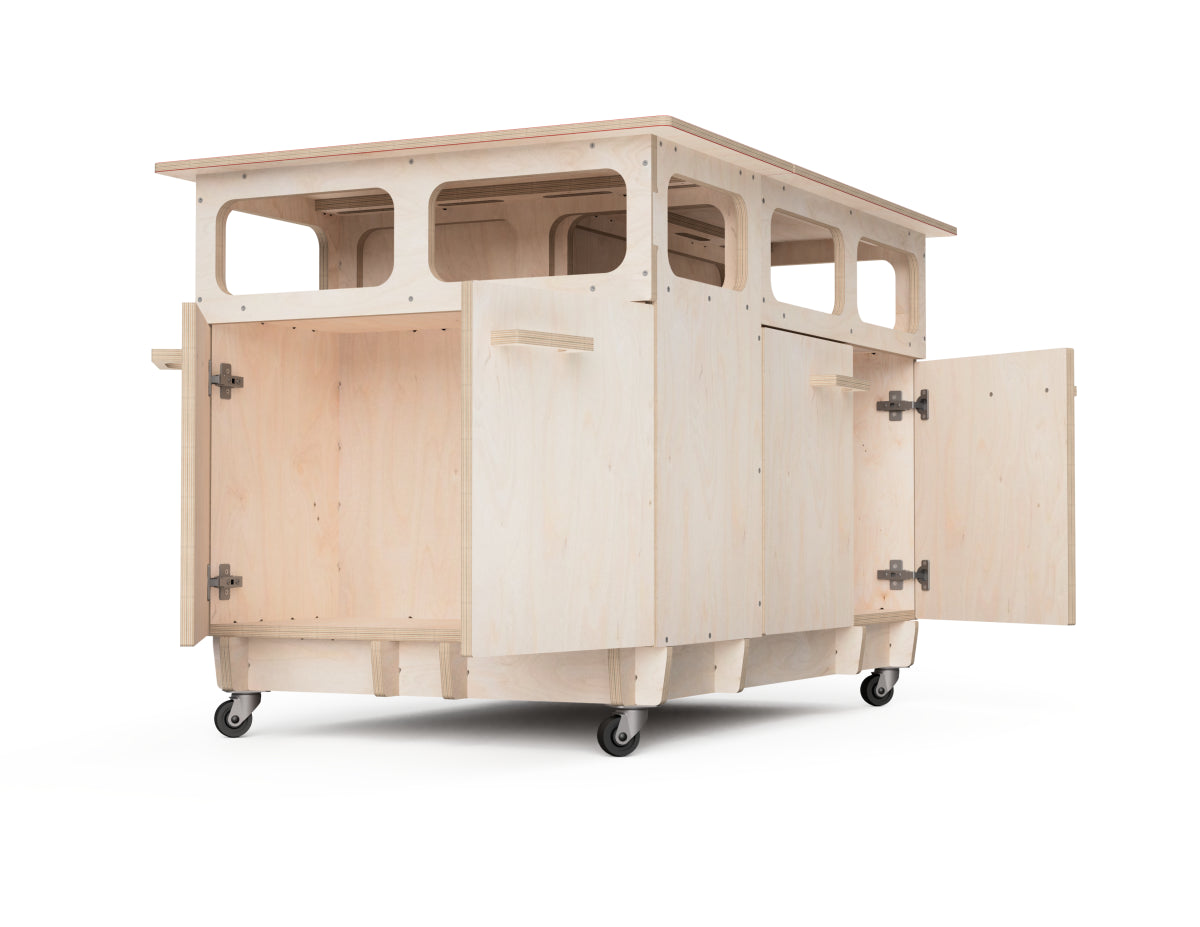

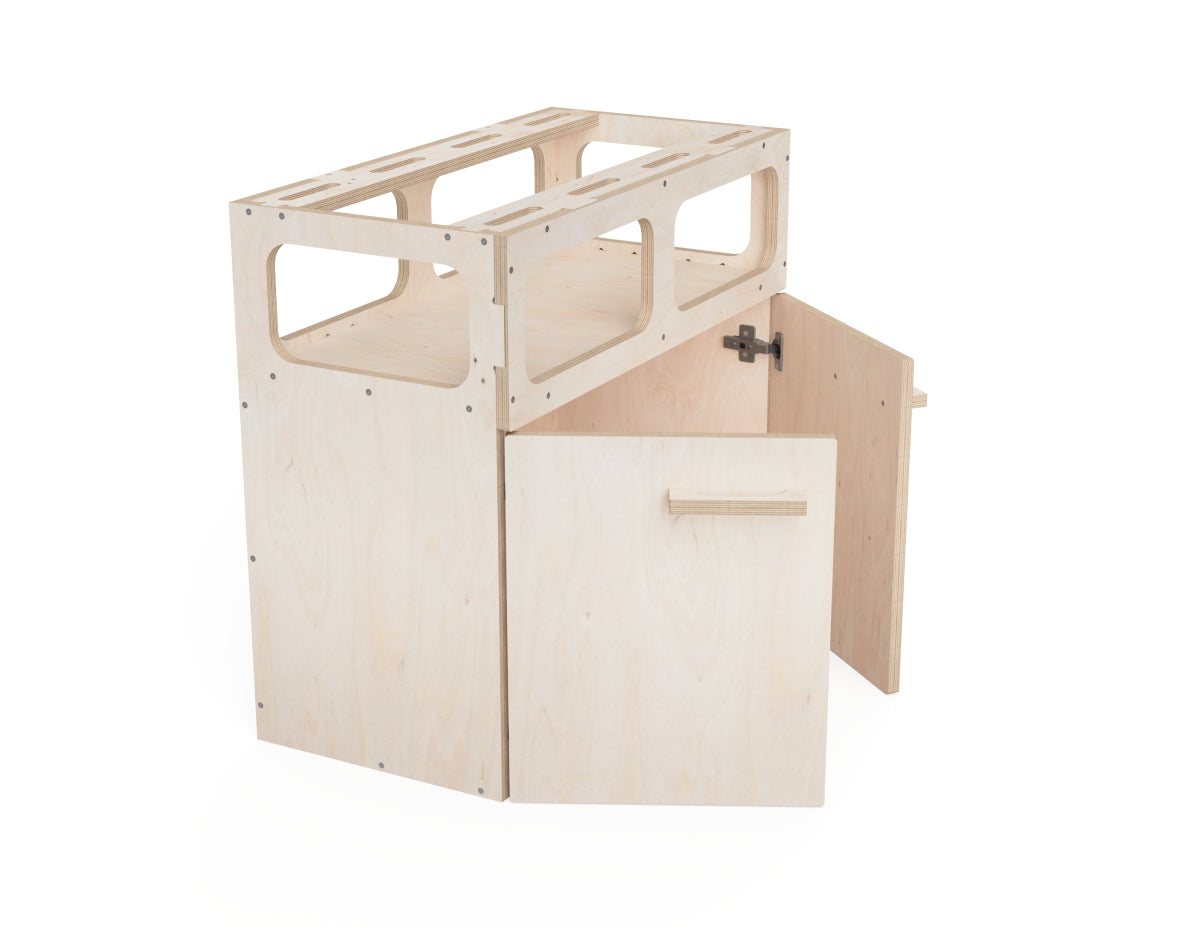

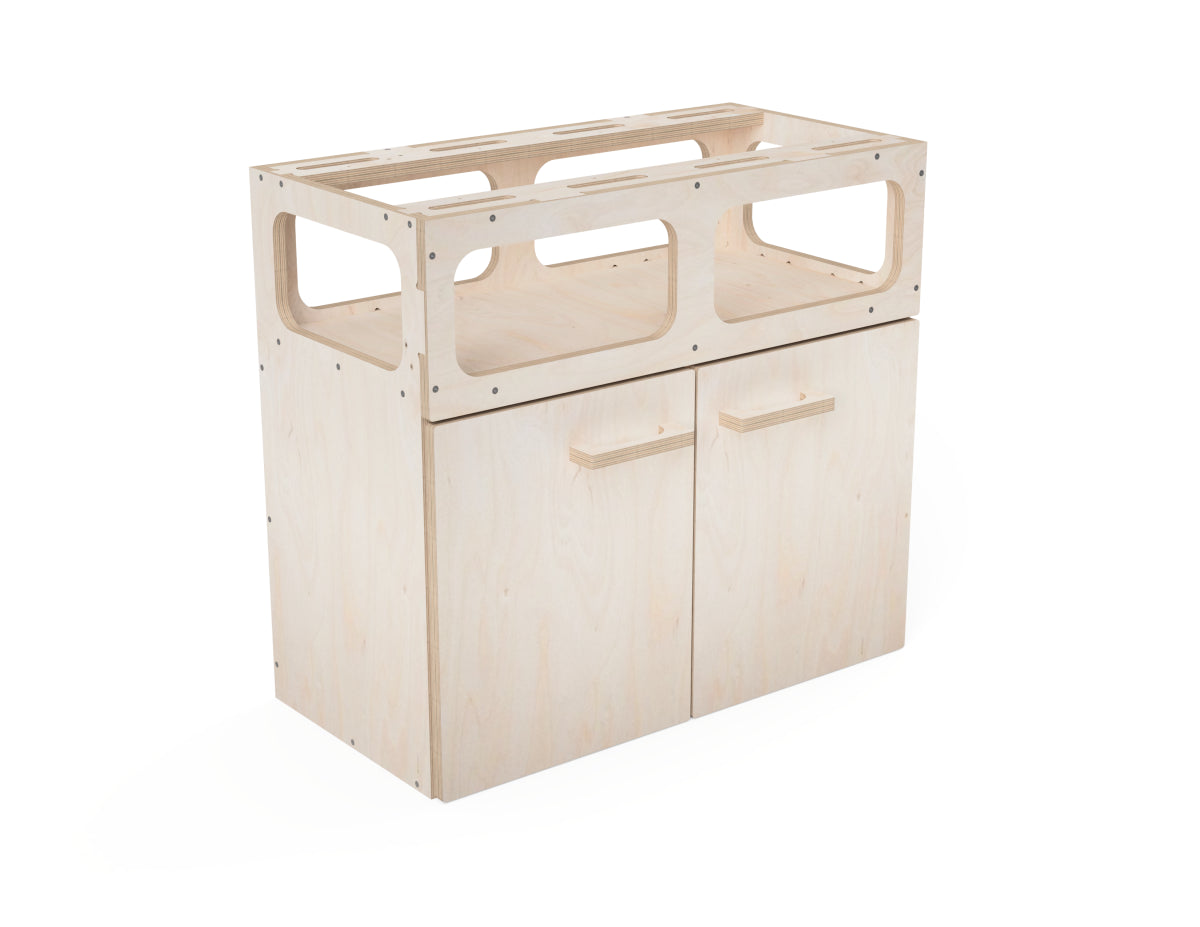

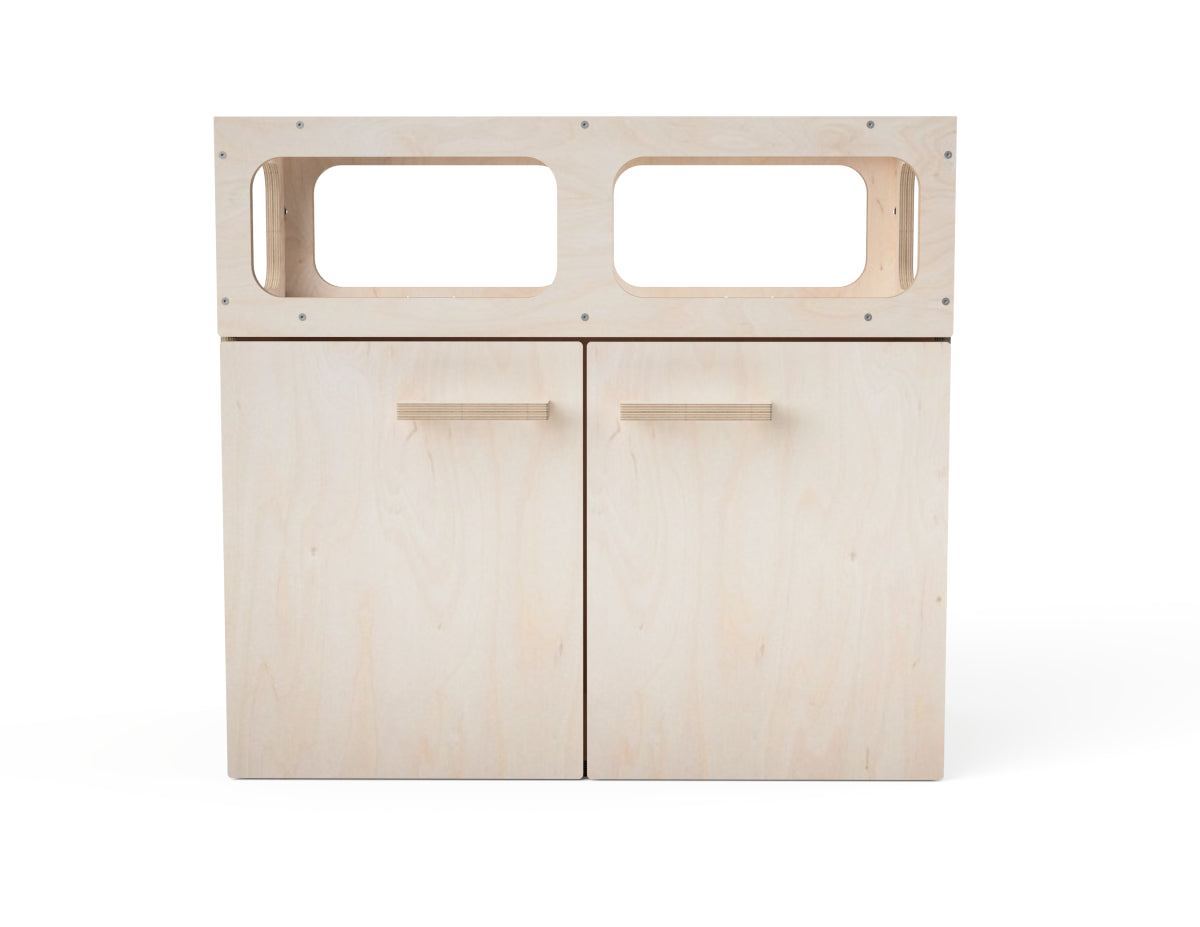

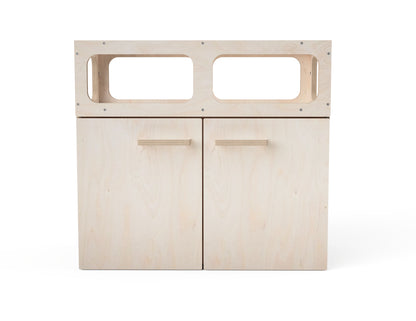

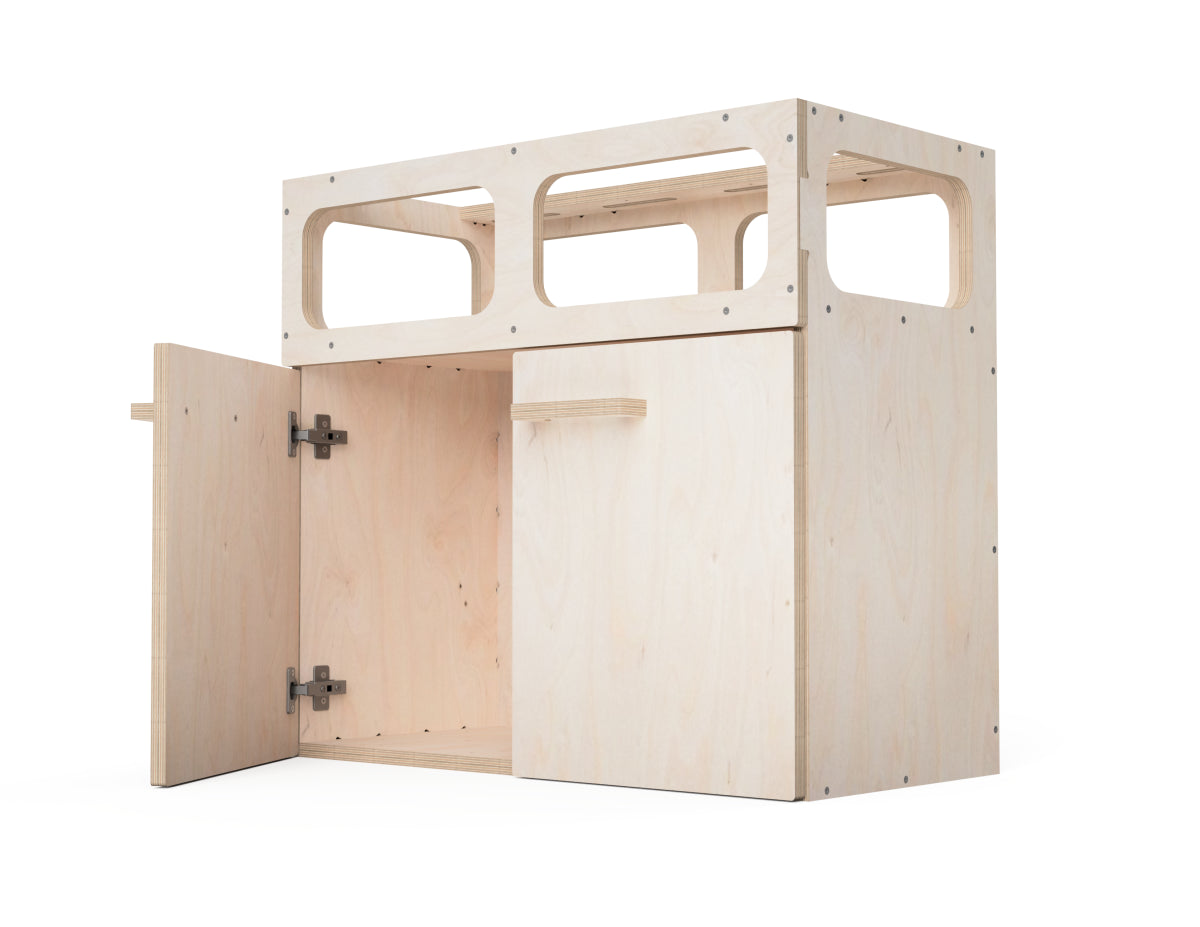

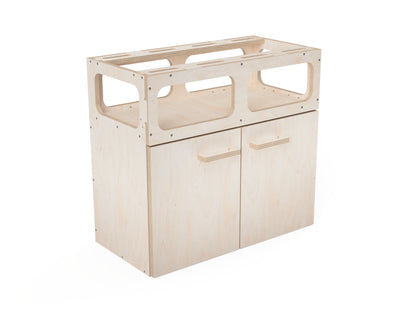

The top features a wide open shelf for quick access to tools and materials, while the bottom includes a spacious cabinet with two door panels for secure storage.

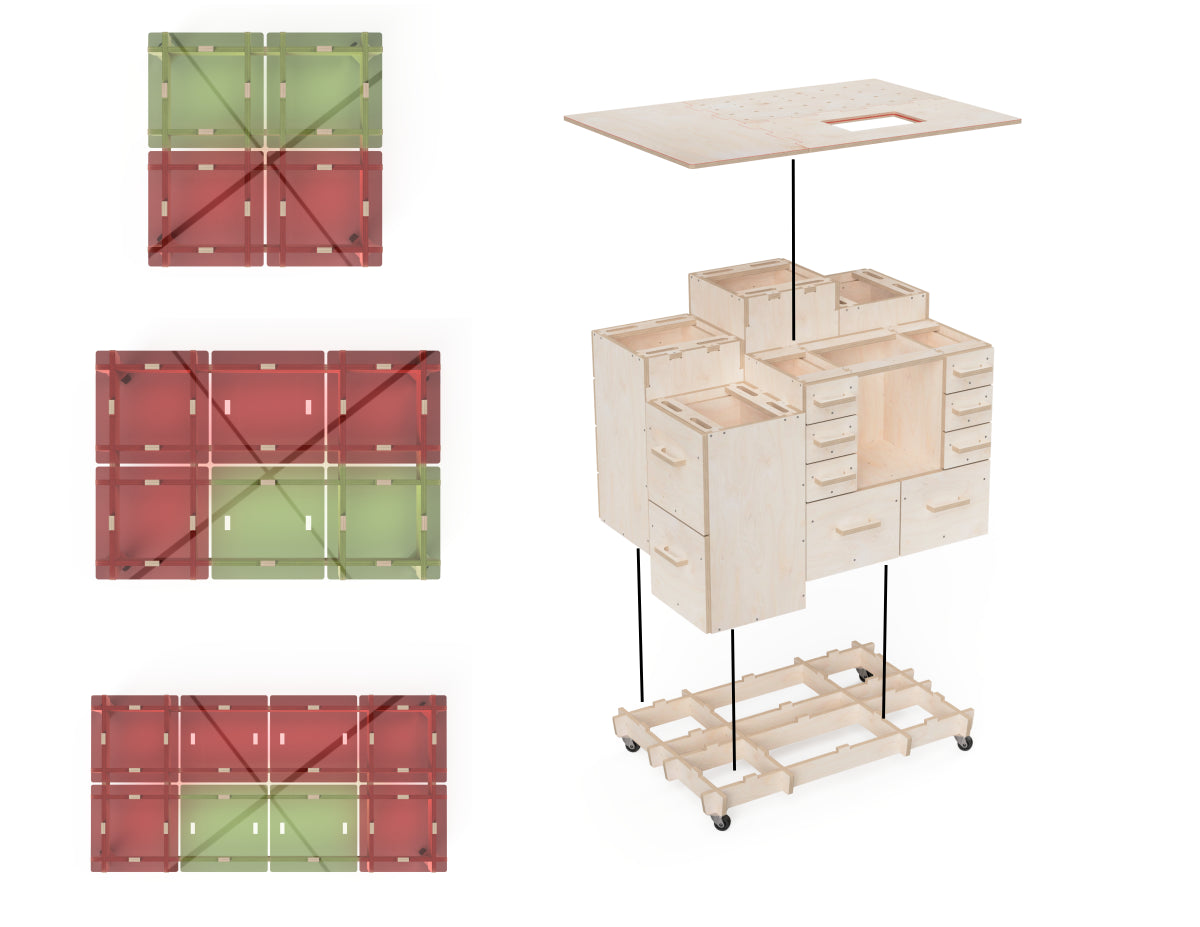

Project files also include work surface panel files for a perfect fit with your base frame setup.

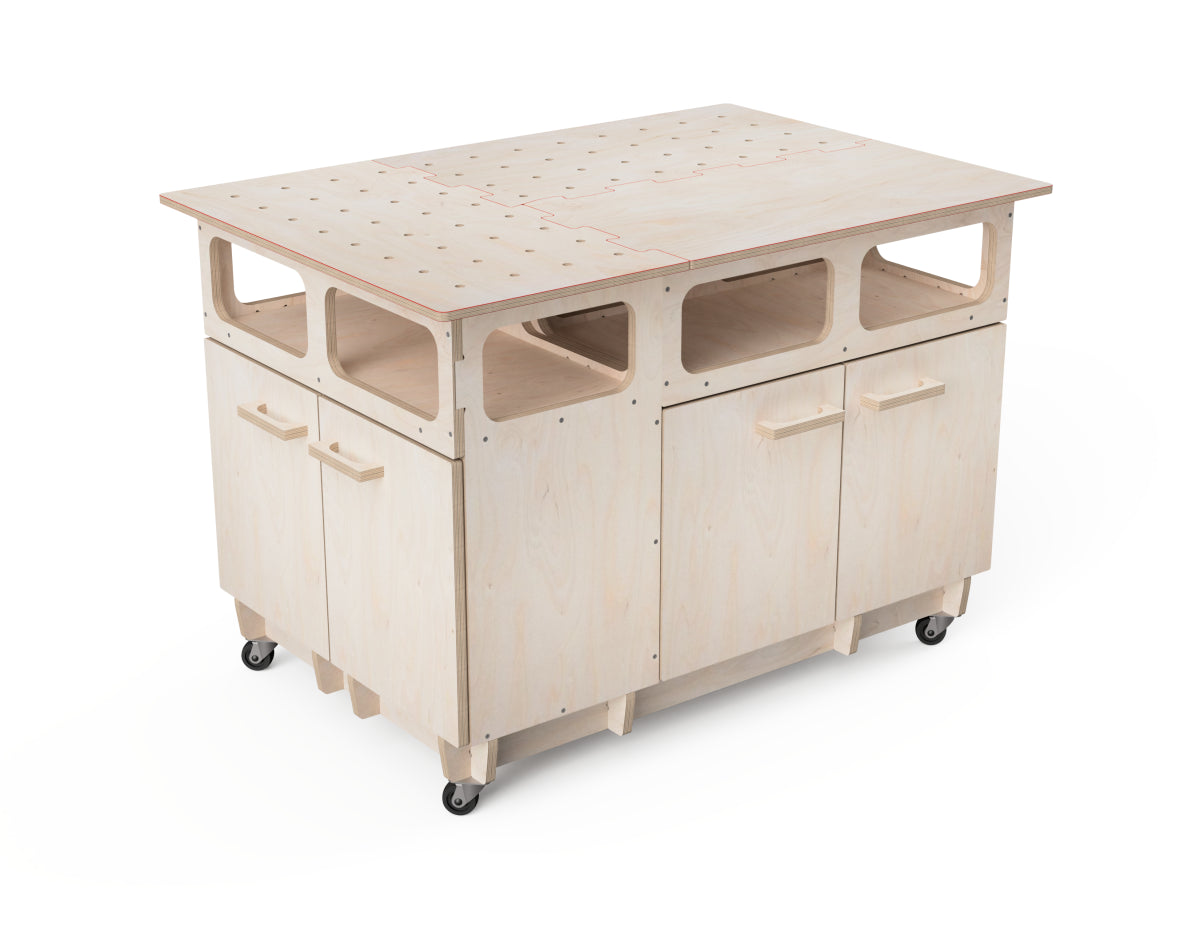

Small Workbench Setup
Dimensions: 900 × 900 × 900 mm (W × L × H)
≈ 35 × 35 × 35 in

Medium Workbench Setup
Dimensions: 900 × 1300 × 900 mm (W × L × H)
≈ 35 × 51 × 35 in

Large Workbench Setup
Dimensions: 900 × 1700 × 900 mm (W × L × H)
≈ 35 × 67 × 35 in

Supported CNC sizes

The project can be made on a 800 x 1200 mm (2.6 x 4 ft) CNC router and bigger.

Max single piece size

The biggest component is 800 x 730 mm (31.5 x 28.74 inches).
So if it can fit on your CNC router, you can build this project

Dimensions

Width	Length	Height
400 mm	800 mm	730 mm
15¾ inch	31½ inch	28¾ inch

Required materials

For a 820 x 1220 mm (2.6 x 4 ft) CNC
- 2 sheets of 820 x 1220 x 18 mm (32 x 48 x 3/4 inches) plywood
- 1 sheet of 620 x 850 x 18 mm (25 x 34 x 3/4 inches) plywood
- 1 sheet of 820 x 420 x 12 mm (33 x 17 x 1/2 inches) plywood
- 6 mm (1/4 inch) router bit
- 30 mm (1-1/4 inch) wood screws - 50 pieces
- 15 mm (5/16 inches) wood screws - 16 pieces
- cabinet door hinges - 4 pieces
For a 1220 x 1220 mm (4 x 4 ft) CNC
- 2 sheets of 1220 x 1220 x 18 mm (48 x 48 x 3/4 inches) plywood
- 1 sheet of 820 x 420 x 12 mm (33 x 17 x 1/2 inches) plywood
- 6 mm (1/4 inch) router bit
- 30 mm (1-1/4 inch) wood screws - 50 pieces
- 15 mm (5/16 inches) wood screws - 16 pieces
- cabinet door hinges - 4 pieces
For a 1220 x 2440 mm (4 x 8 ft) CNC
- 1 sheet of 1220 x 2440 x 18 mm (48 x 96 x 3/4 inches plywood
- 1 sheet of 820 x 420 x 12 mm (33 x 17 x 1/2 inches) plywood
- 6 mm (1/4 inch) router bit
- 30 mm (1-1/4 inch) wood screws - 50 pieces
- 15 mm (5/16 inches) wood screws - 16 pieces
- cabinet door hinges - 4 pieces
