Double Kitchen Cabinet With One Drawer (Inset Door Cabinets) DXF Files

Elevate your kitchen storage effortlessly with our Double Kitchen Cabinet With One Drawer DXF files, a pivotal component of the "Inset Door Cabinet Kitchen Set".

Crafted for beginners and experts alike, these user-friendly files enable the construction of a plywood cabinet using a CNC router.

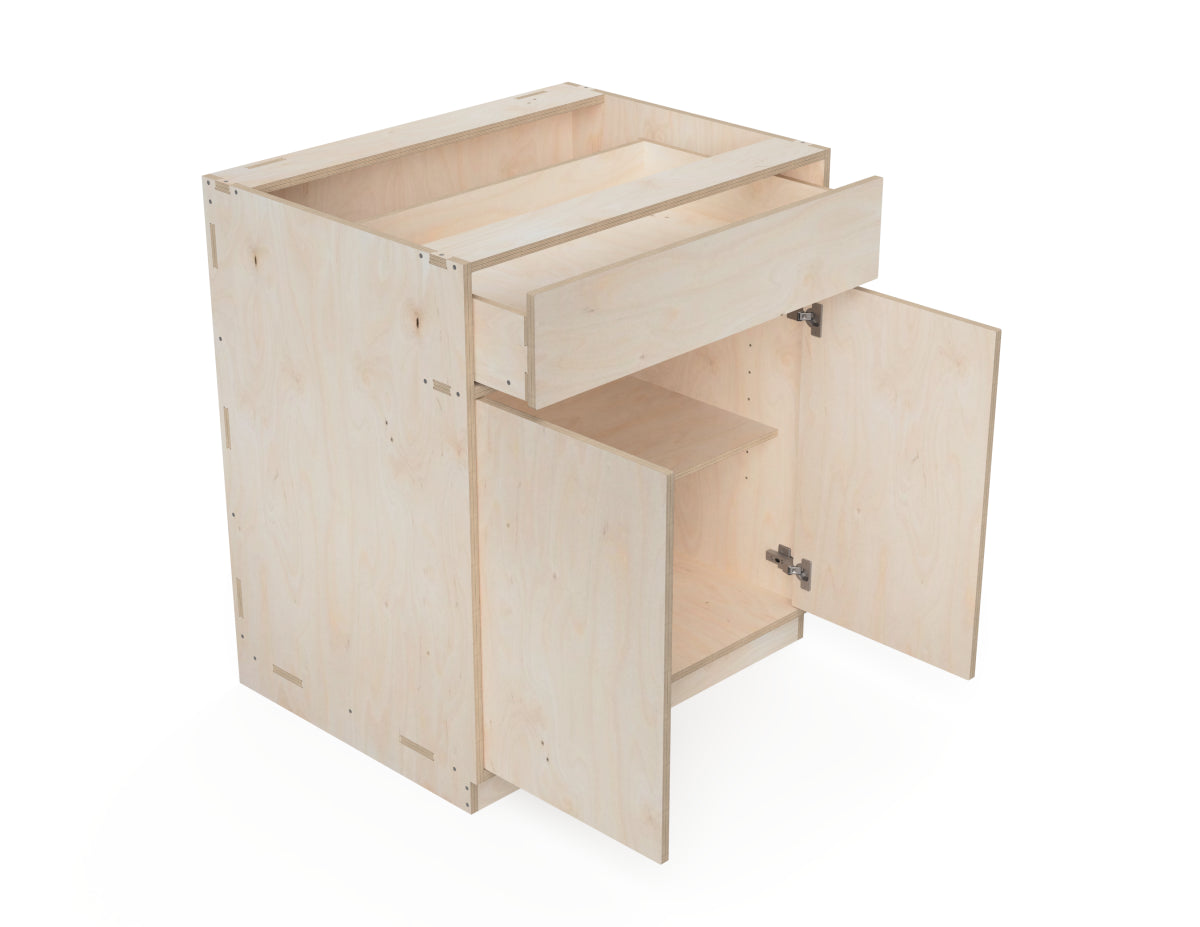

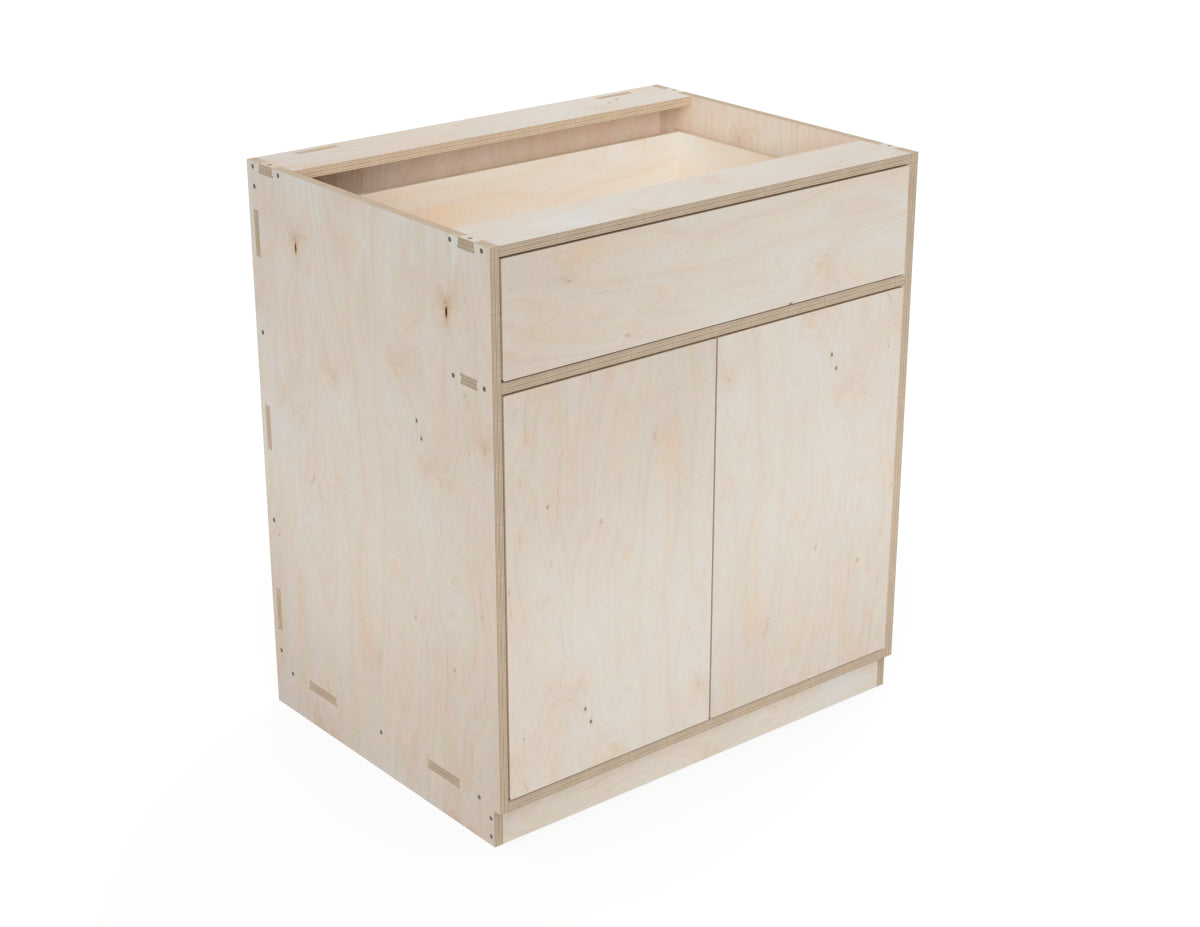

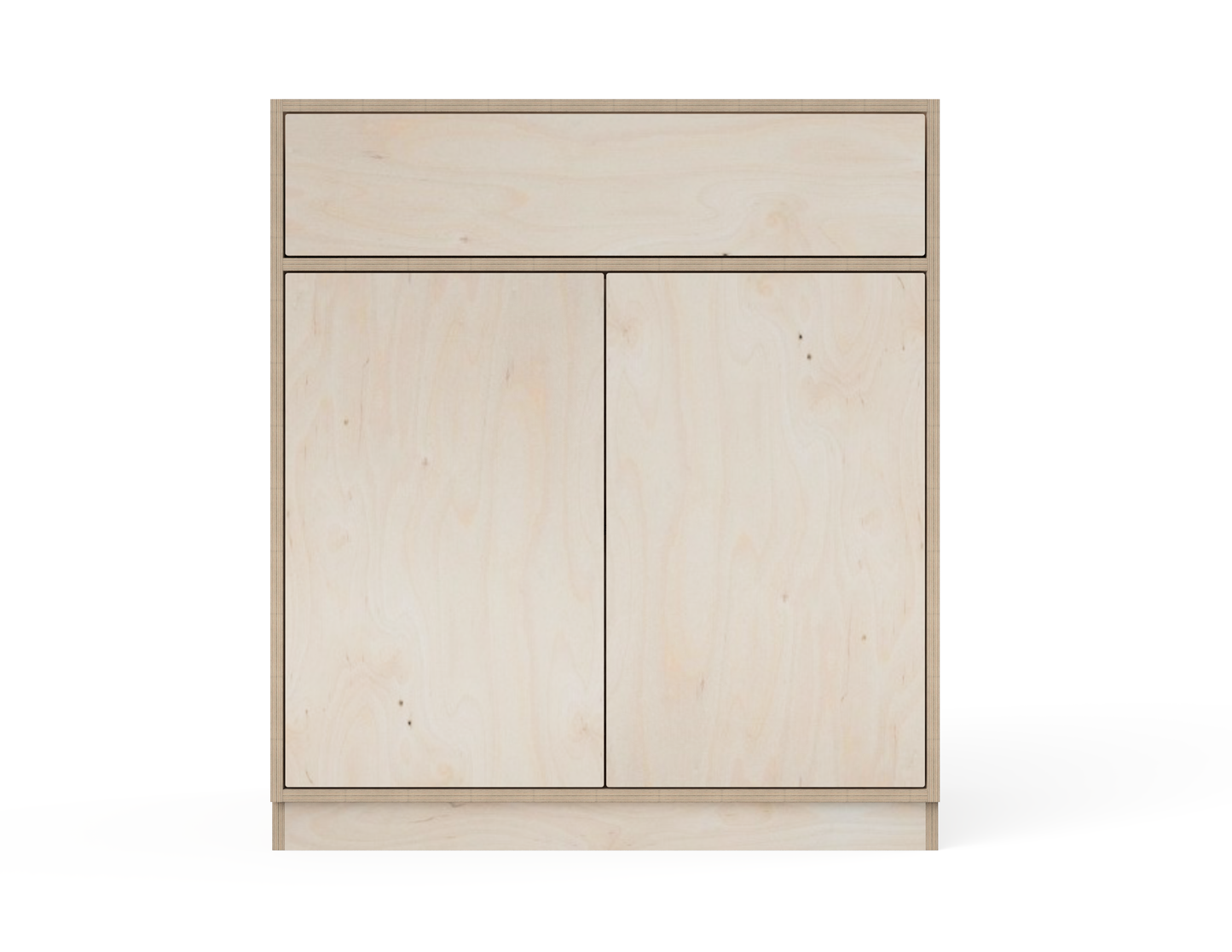

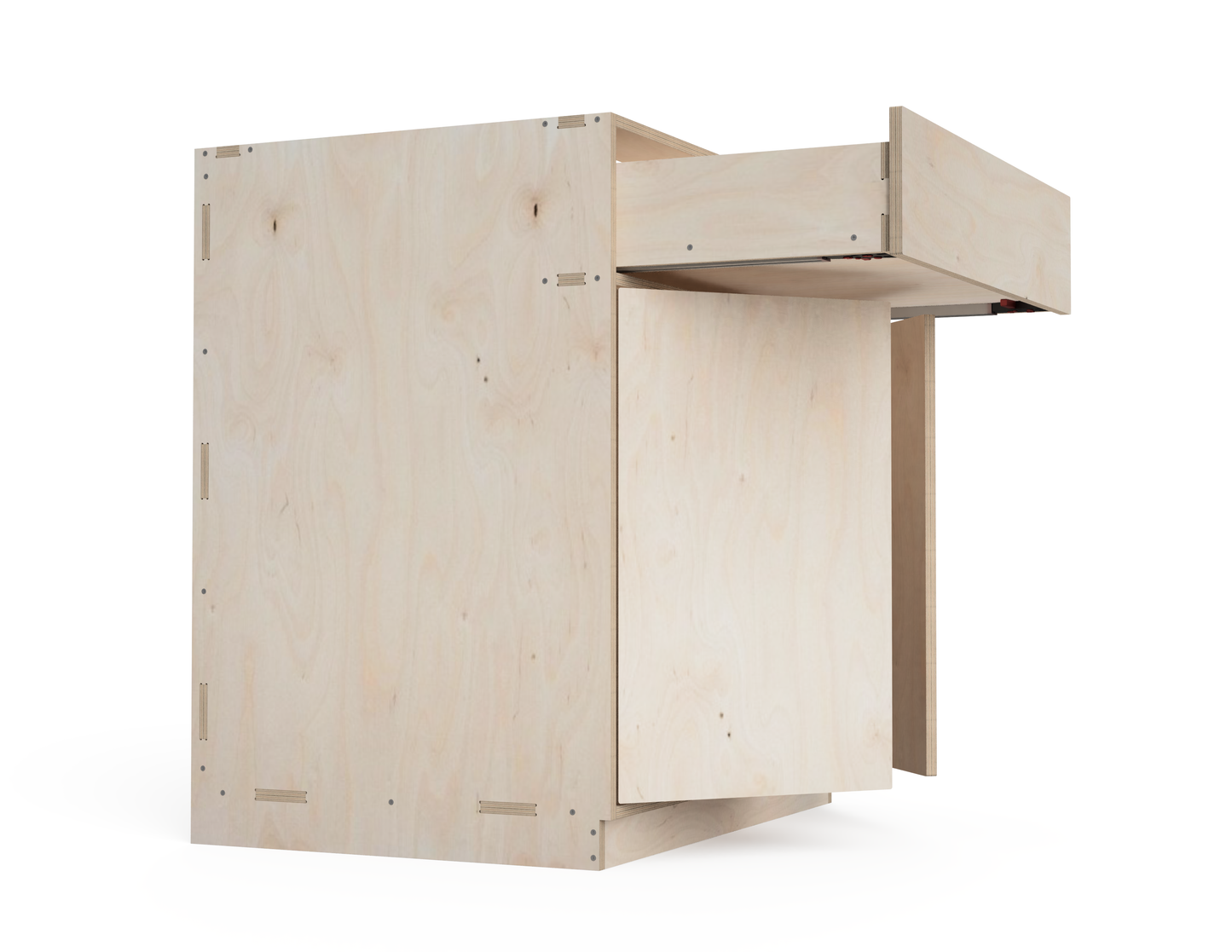

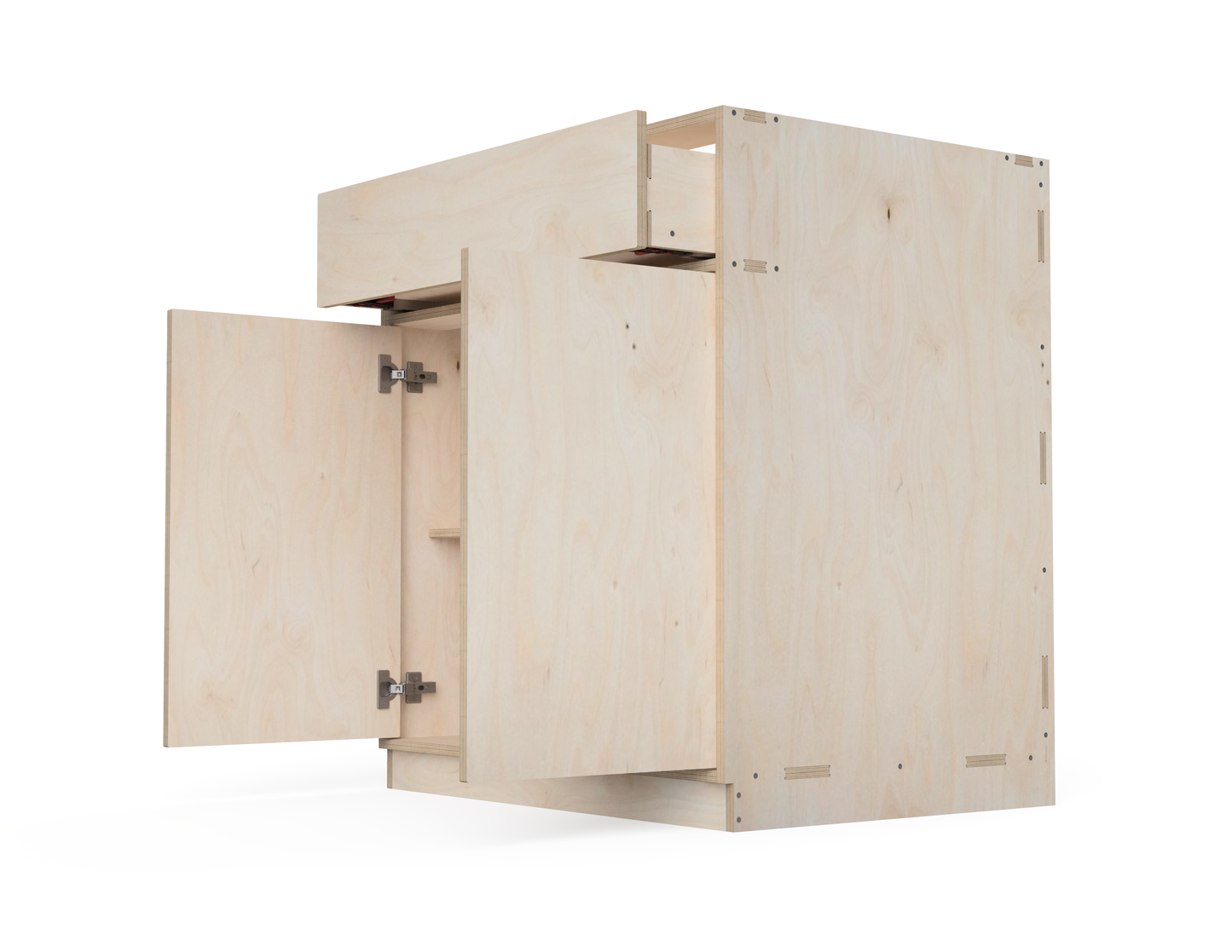

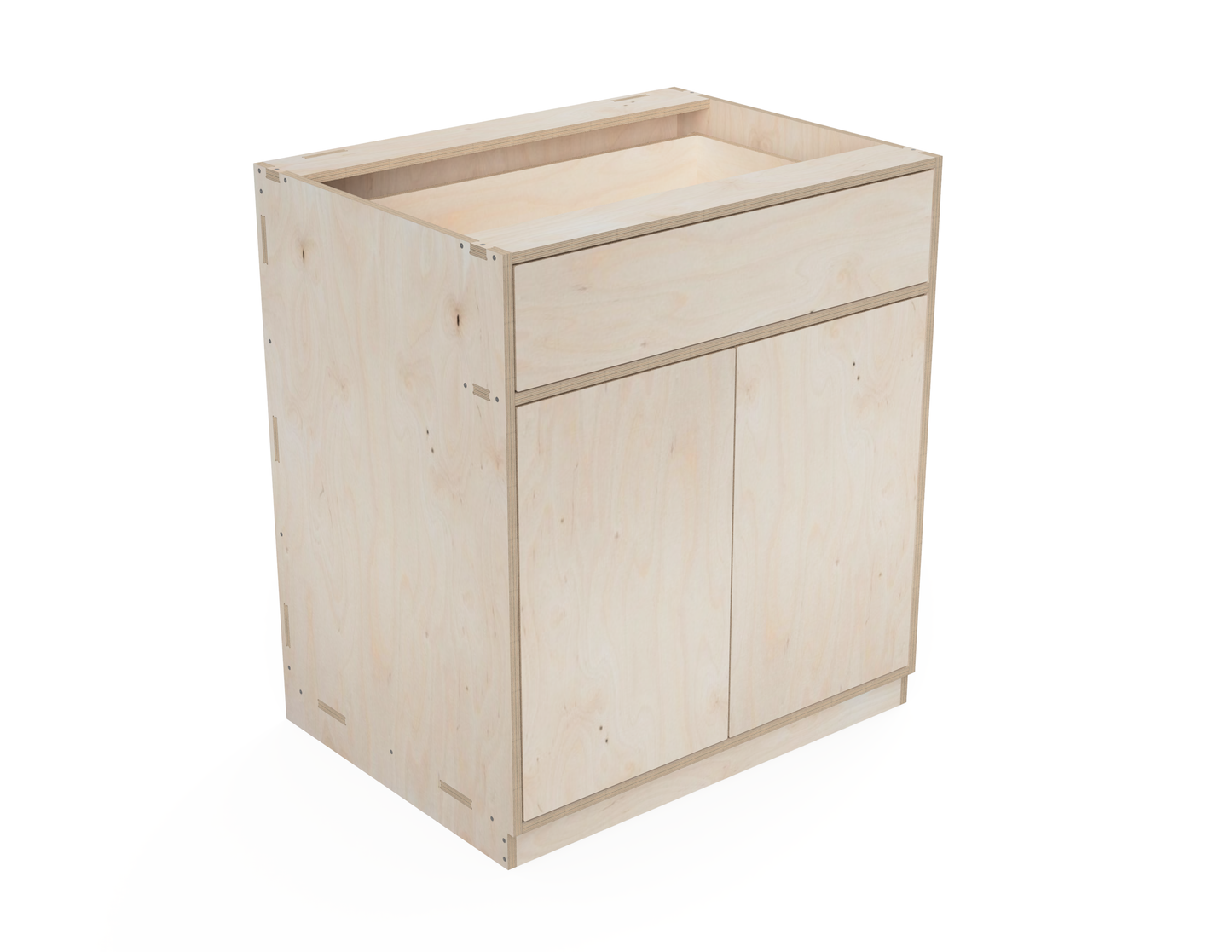

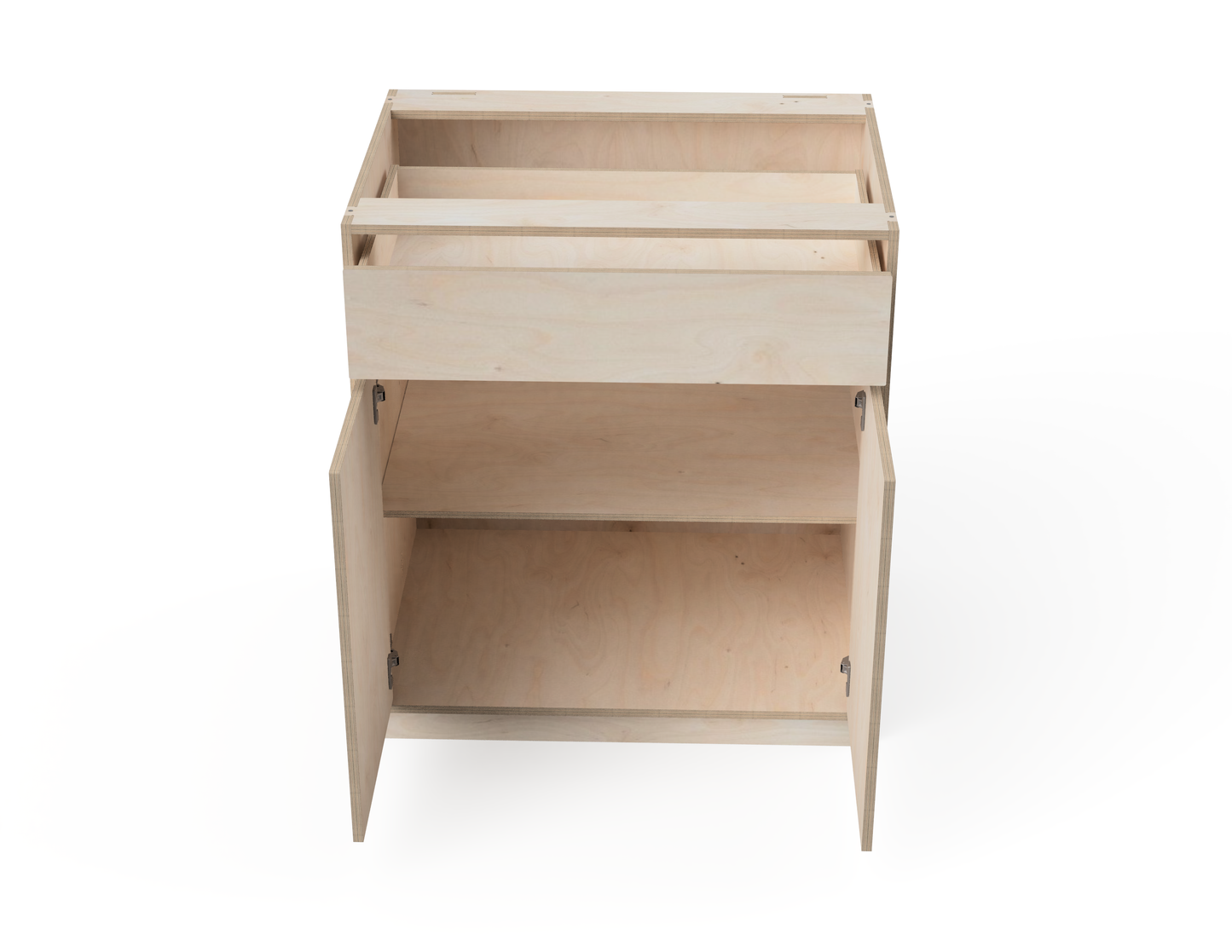

Featuring one large drawer atop a spacious shelf cabinet, our DXF files offer convenient storage solutions for all your kitchen essentials.

Streamline your kitchen organization today with our easy-to-understand DXF files.

The design can be cut on an 800 x 1200 mm (2.6 x 4 ft) CNC router and bigger.

*The files are adjusted to fit both metric and imperial standards for materials and tools

Dimensions (Can be customized to your needs):

900 mm (height) x 800 mm (width) x 600 mm (depth)

35.4 inches (height) x 31.5 inches (width) x 23.65 inches (depth)

Required materials:

For an 800 x 1200 (2.6 x 4 ft) CNC router

• 3 sheets of 1200 x 820 x 15 mm (48 x 32.3 x 0.625 inches) Plywood
• 1 sheet of 650 x 420 x 15 mm (26 x 17 x 0.625 inches) Plywood
• 2 sheets of 1200 x 820 x 12 mm (48 x 32.3 x 0.5 inches) Plywood
• 1 sheets of 550 x 200 x 12 mm (22 x 8 x 0.5 inches) Plywood
• 3 mm (0.125 inch) Router bit

For an 1200 x 1200 (4 x 4 ft) CNC router

• 2 sheets of 1200 x 1100 x 15 mm (48 x 44 x 0.625 inches) Plywood
• 1 sheet of 950 x 650 x 15 mm (38 x 26 x 0.625 inches) Plywood
• 2 sheets of 1200 x 1000 x 12 mm (48 x 40 x 0.5 inches) Plywood
• 3 mm (0.125 inch) Router bit

For an 1220 x 2440 (4 x 8 ft) CNC router

• 1 sheet of 2440 x 1220 x 15 mm (96 x 48 x 0.625 inches) Plywood
• 1 sheet of 2440 x 850 x 12 mm (96 x 34 x 0.5 inches) Plywood
• 3 mm (0.125 inch) Router bit

Plywood Screws - 35 mm (1.25 inches)

1 Undermount Drawer slides

2 Pairs of Inset Cabinet Hinges

2 Push-to-open Door Openers

45 minutes

Delivery time:

30 seconds

After completing the order, you will receive the DXF design file in your email within seconds.

Updates:

Free

If your plywood sheet is thicker or thinner than expected, send your purchase number and the precise thickness to contact@aribabox.com. We will send you the updated DXF design file for free.

The product may differ from the representative images when cut and assembled. We hope you will enjoy your purchase from Aribabox.
