Double Kitchen Cabinet - Universal (Inset Door Cabinets) DXF Files

Double Kitchen Cabinet - Universal (Inset Door Cabinets) DXF Files

Regular price $16.95 USD
Regular price $0.00 USD Sale price $16.95 USD
Sale Sold out
Taxes included.

Upgrade your kitchen with ease using our Double Kitchen Cabinet - Sink DXF files, an integral part of the "Inset Door Cabinet Kitchen Set".


Designed for simplicity and precision, these user-friendly files allow beginners and experts alike to construct a plywood cabinet effortlessly using a CNC router.

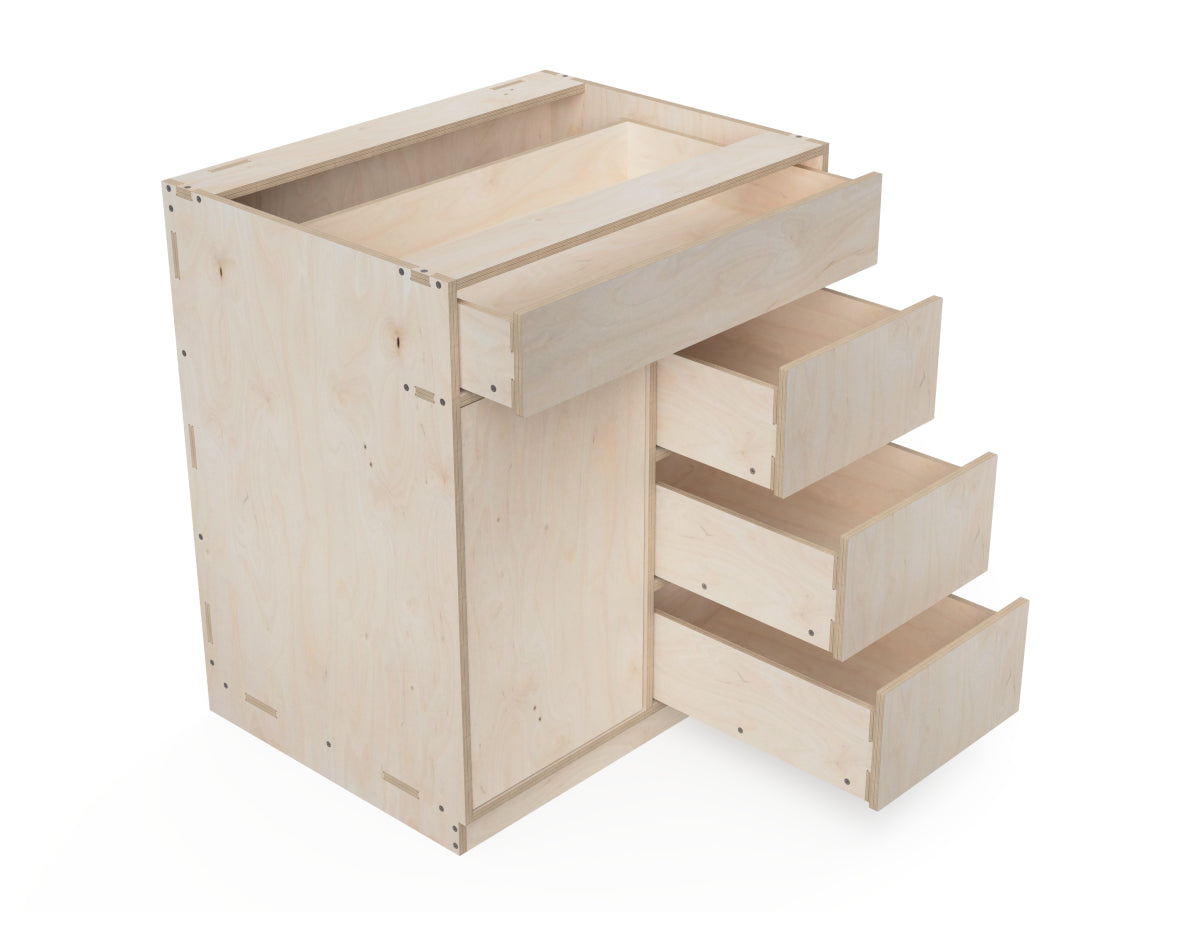

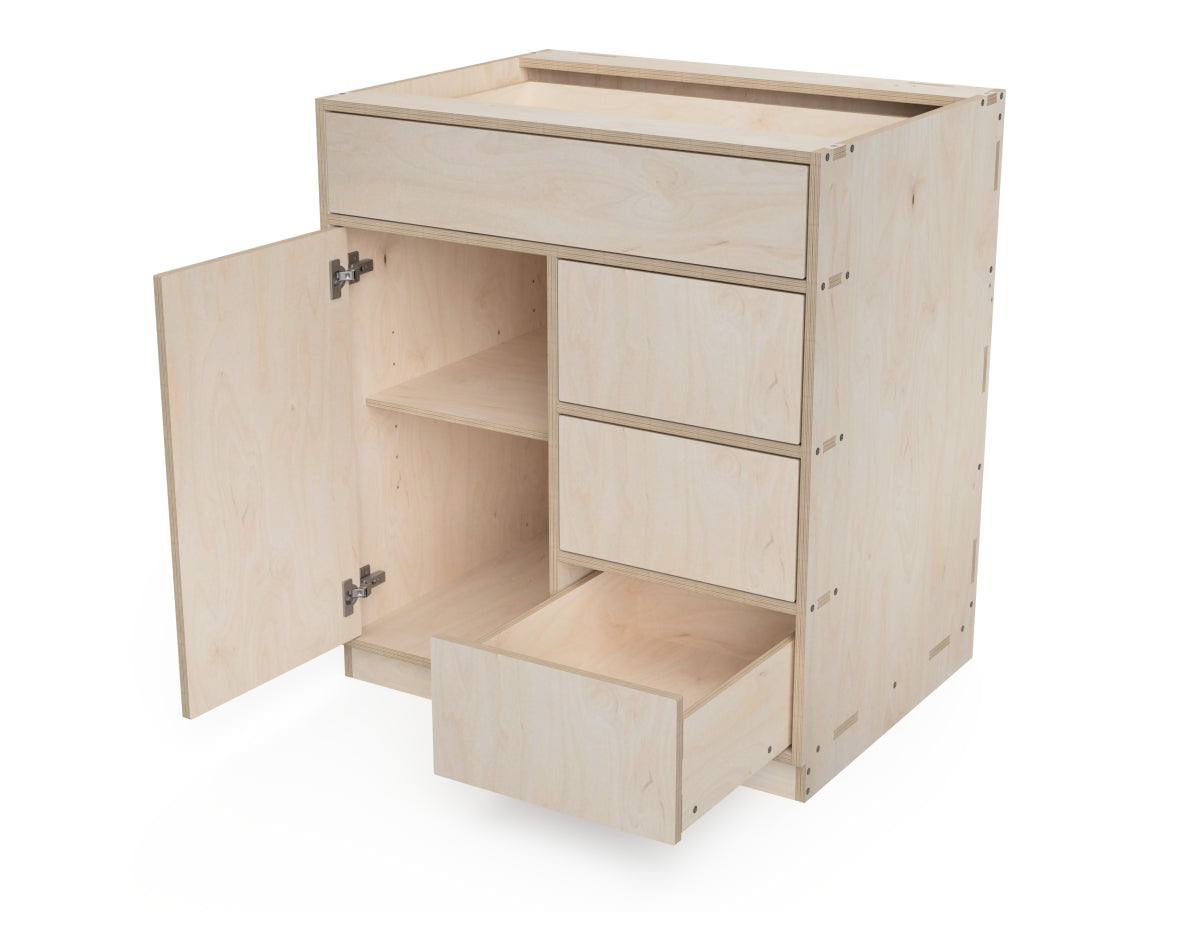

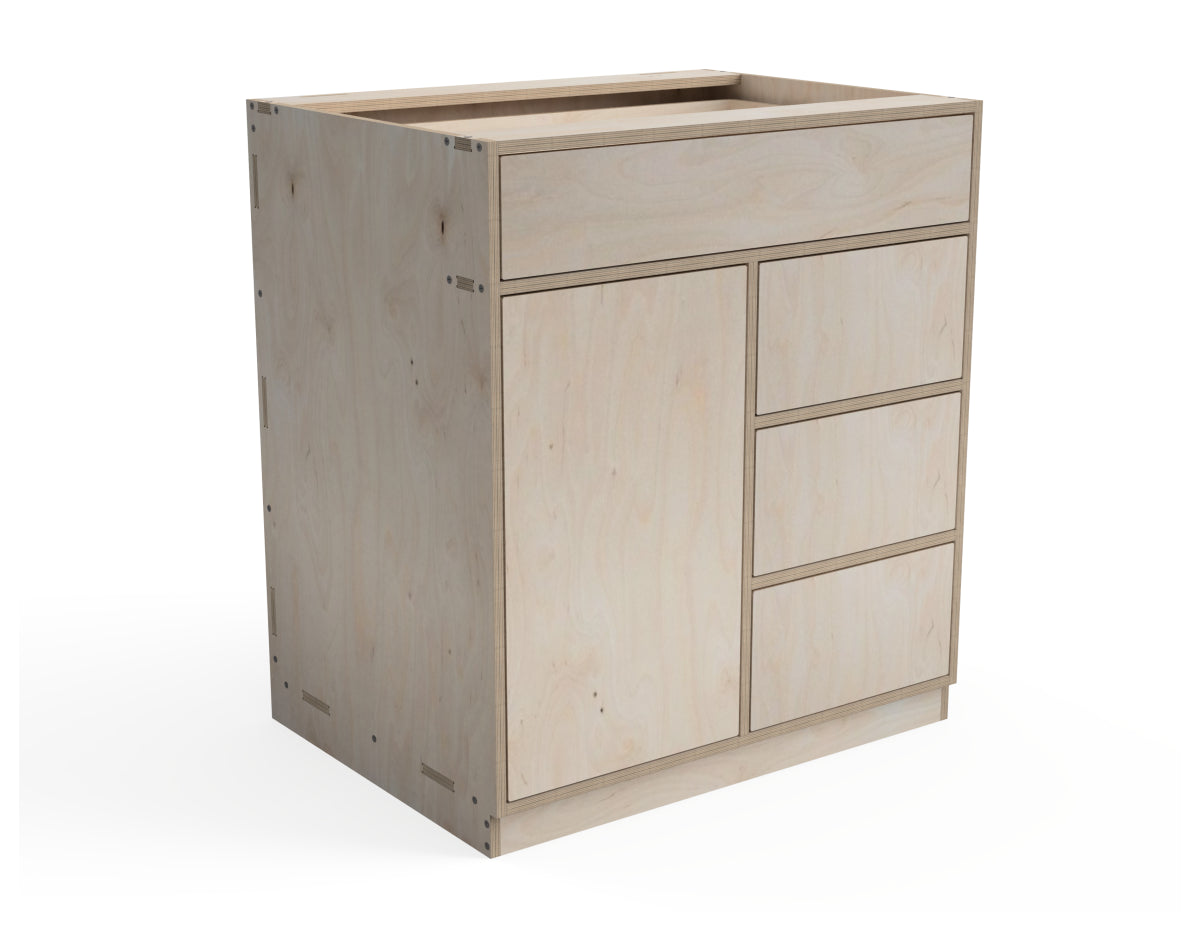

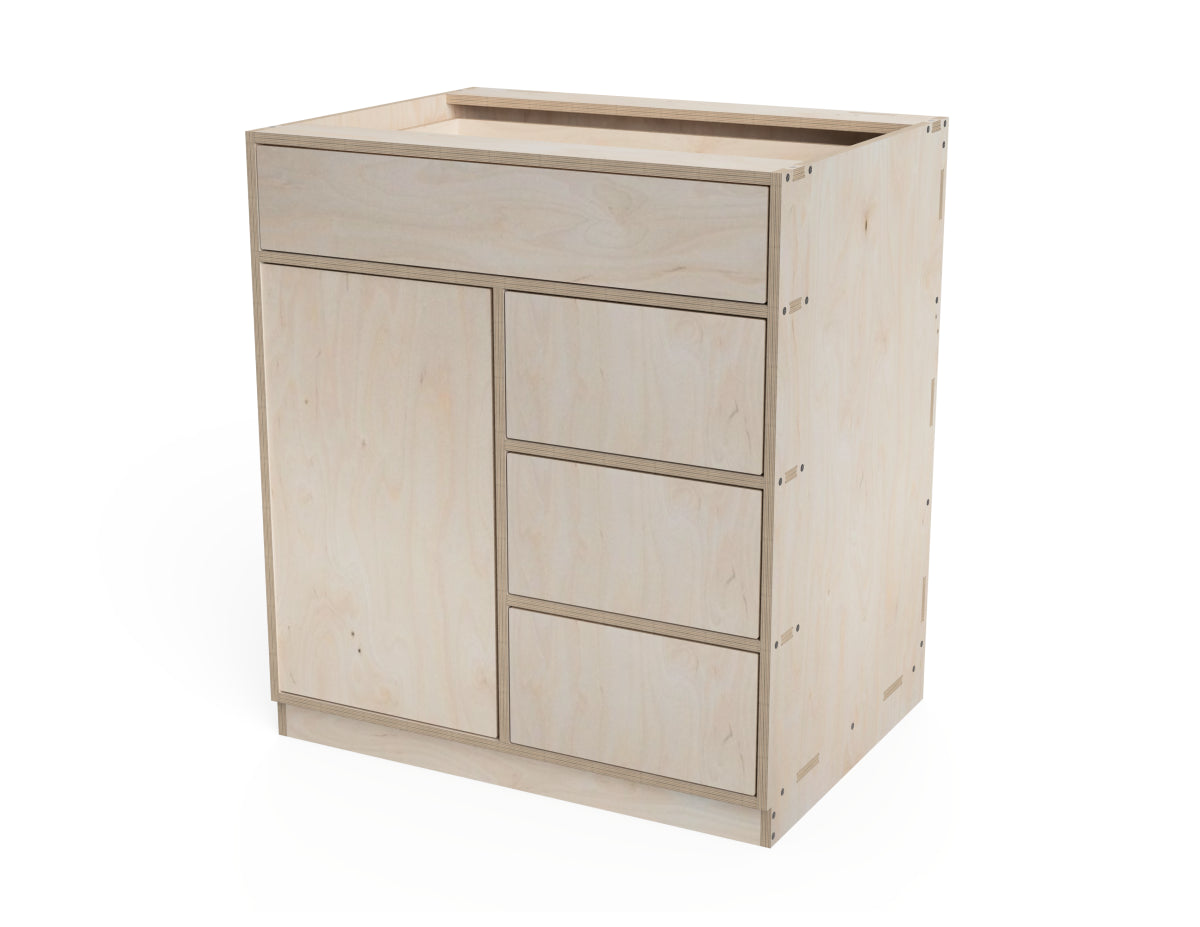

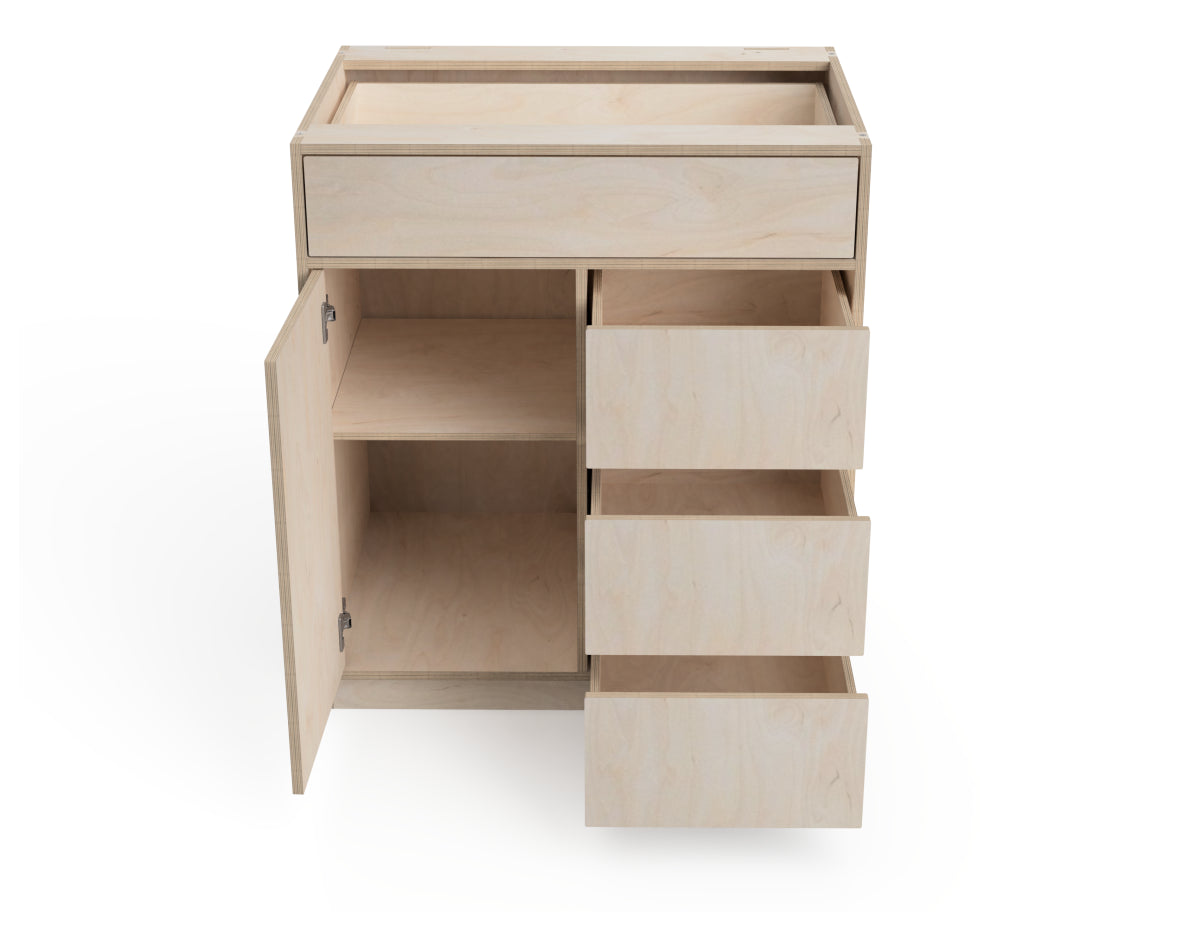

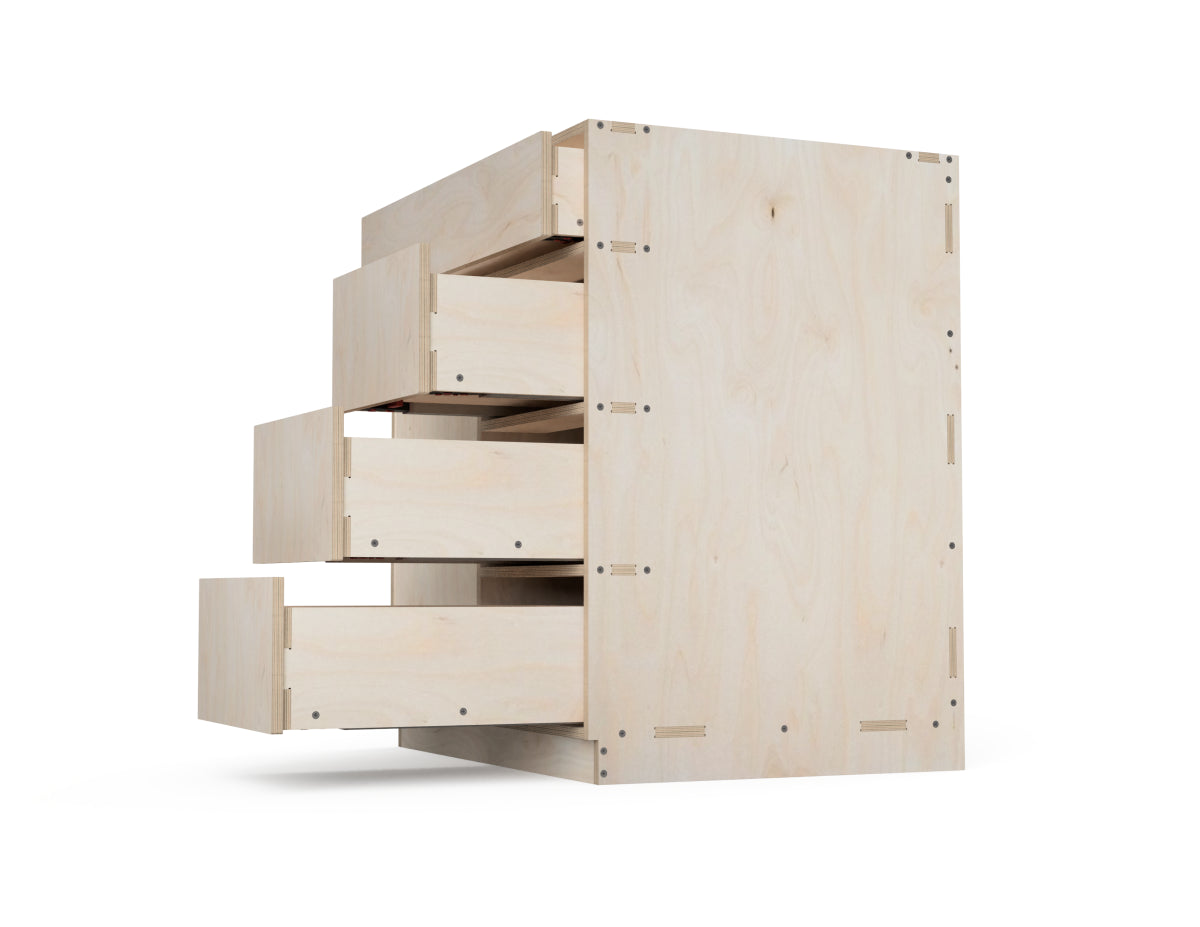

Featuring one large drawer, three smaller ones, and a spacious shelf cabinet, our DXF files offer ample storage solutions for your kitchen essentials.


Elevate your kitchen organization today with our easy-to-understand DXF files.


The design can be cut on an 800 x 1200 mm (2.6 x 4 ft) CNC router and bigger.


*The files are adjusted to fit both metric and imperial standards for materials and tools


Dimensions (Can be customized to your needs):

900 mm (height) x 800 mm (width) x 600 mm (depth)

35.4 inches (height) x 31.5 inches (width) x 23.65 inches (depth)

Required materials:

For an 800 x 1200 (2.6 x 4 ft) CNC router

  • 4 sheets of 1200 x 820 x 15 mm (48 x 32.3 x 0.625 inches) Plywood
  • 4 sheet5 of 1200 x 820 x 12 mm (48 x 32.3 x 0.5 inches) Plywood
  • 3 mm (0.125 inch) Router bit

For an 1200 x 1200 (4 x 4 ft) CNC router

  • 2 sheets of 1200 x 1200 x 15 mm (48 x 48 x 0.625 inches) Plywood
  • 1 sheet of 1200 x 830 x 15 mm (48 x 33 x 0.625 inches) Plywood
  • 2 sheet of 1200 x 1200 x 12 mm (48 x 48 x 0.5 inches) Plywood
  • 1 sheet of 1200 x 550 x 12 mm (48 x 22 x 0.5 inches) Plywood
  • 3 mm (0.125 inch) Router bit

For an 1220 x 2440 (4 x 8 ft) CNC router

  • 1 sheet of 2440 x 1220 x 15 mm (96 x 48 x 0.625 inches) Plywood
  • 1 sheet of 820 x 700 x 15 mm (33 x 28 x 0.625 inches) Plywood
  • 1 sheet of 2440 x 1220 x 12 mm (96 x 48 x 0.5 inches) Plywood
  • 1 sheet of 1100 x 450 x 12 mm (44 x 18 x 0.5 inches) Plywood
  • 3 mm (0.125 inch) Router bit

Plywood Screws - 35 mm (1.25 inches)

4 Undermount Drawer slides

1 Pair of Inset Cabinet Hinges

Push-to-open Door Opener

Assembling time:

60 minutes


Delivery time:

30 seconds

After completing the order, you will receive the DXF design file in your email within seconds.


Updates:

Free

If your plywood sheet is thicker or thinner than expected, send your purchase number and the precise thickness to contact@aribabox.com. We will send you the updated DXF design file for free.


The product may differ from the representative images when cut and assembled. We hope you will enjoy your purchase from Aribabox.

Supported CNC sizes

The project can be made on a 800 x 1200 mm (2.6 x 4 ft) CNC router and bigger.

Dimensions

800 mm (width) X 10 mm (length) X 900 mm (height)
31.5 inches (width) X 0.4 inches (length) X 35.4 inches (height)

Required materials

For an 800 x 1200 (2.6 x 4 ft) CNC router
- 4 sheets of 1200 x 820 x 15 mm (48 x 32.3 x 0.625 inches) Plywood
- 4 sheet5 of 1200 x 820 x 12 mm (48 x 32.3 x 0.5 inches) Plywood
- 3 mm (0.125 inch) Router bit
For an 1200 x 1200 (4 x 4 ft) CNC router
- 2 sheets of 1200 x 1200 x 15 mm (48 x 48 x 0.625 inches) Plywood
- 1 sheet of 1200 x 830 x 15 mm (48 x 33 x 0.625 inches) Plywood
- 2 sheet of 1200 x 1200 x 12 mm (48 x 48 x 0.5 inches) Plywood
- 1 sheet of 1200 x 550 x 12 mm (48 x 22 x 0.5 inches) Plywood
- 3 mm (0.125 inch) Router bit
For an 1220 x 2440 (4 x 8 ft) CNC router
- 1 sheet of 2440 x 1220 x 15 mm (96 x 48 x 0.625 inches) Plywood
- 1 sheet of 820 x 700 x 15 mm (33 x 28 x 0.625 inches) Plywood
- 1 sheet of 2440 x 1220 x 12 mm (96 x 48 x 0.5 inches) Plywood
- 1 sheet of 1100 x 450 x 12 mm (44 x 18 x 0.5 inches) Plywood
- 3 mm (0.125 inch) Router bit
- Plywood Screws - 35 mm (1.25 inches)
- 4 Undermount Drawer slides
- 1 Pair of Inset Cabinet Hinges
- Push-to-open Door Opener

Assembling time

1 hour(s) 0 minutes
The product may differ from the representative images when cut and assembled. We hope you will enjoy your purchase from Aribabox!
