Regular price $11.45 Unit price  per

Tax included.

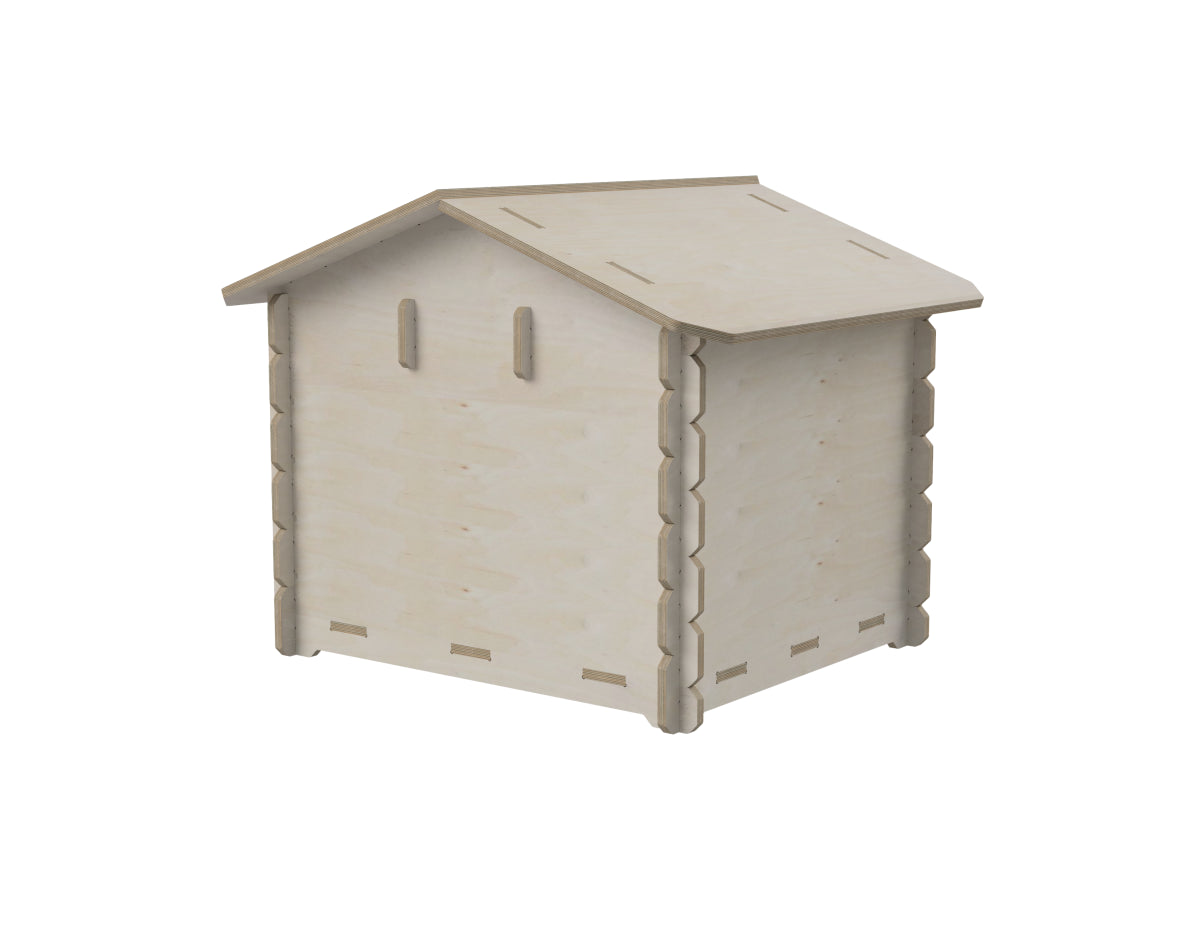

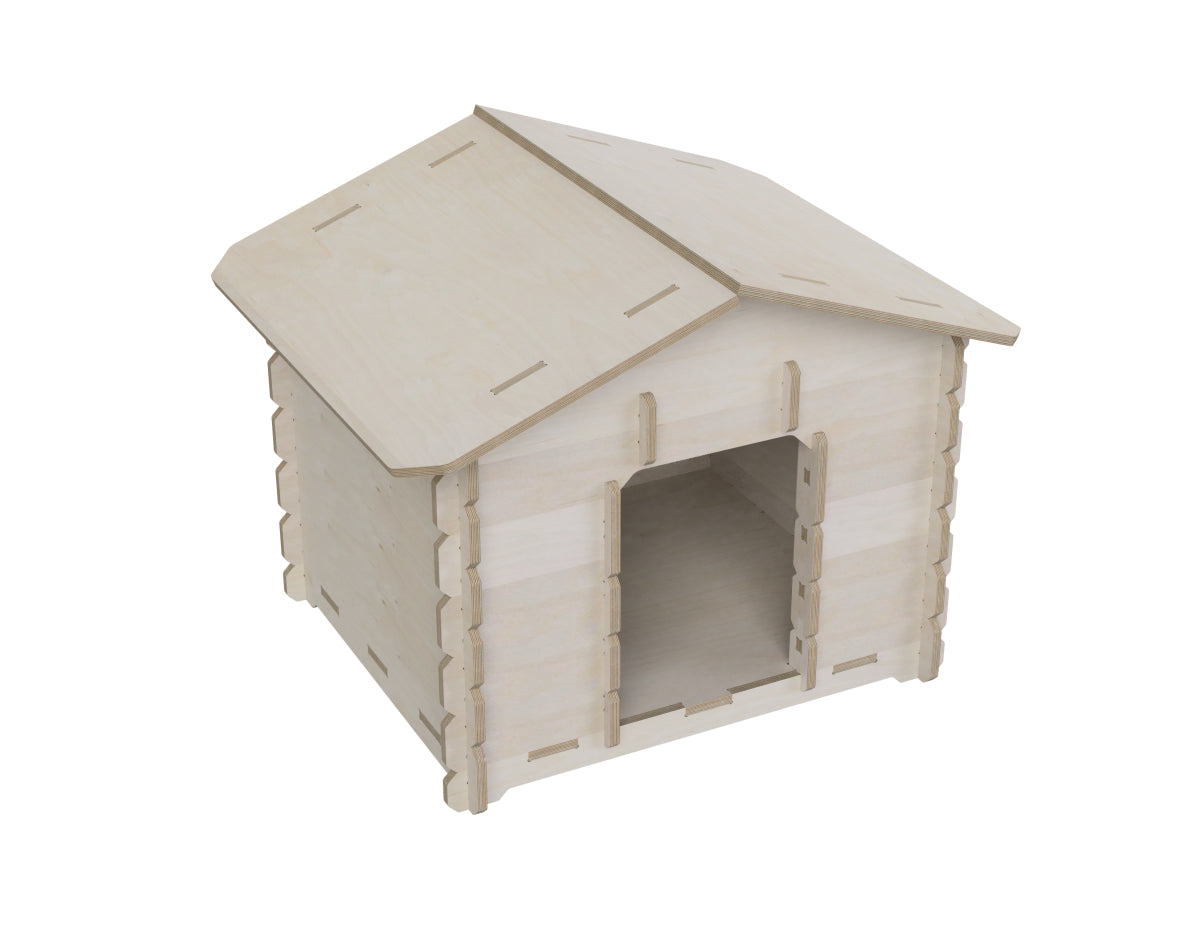

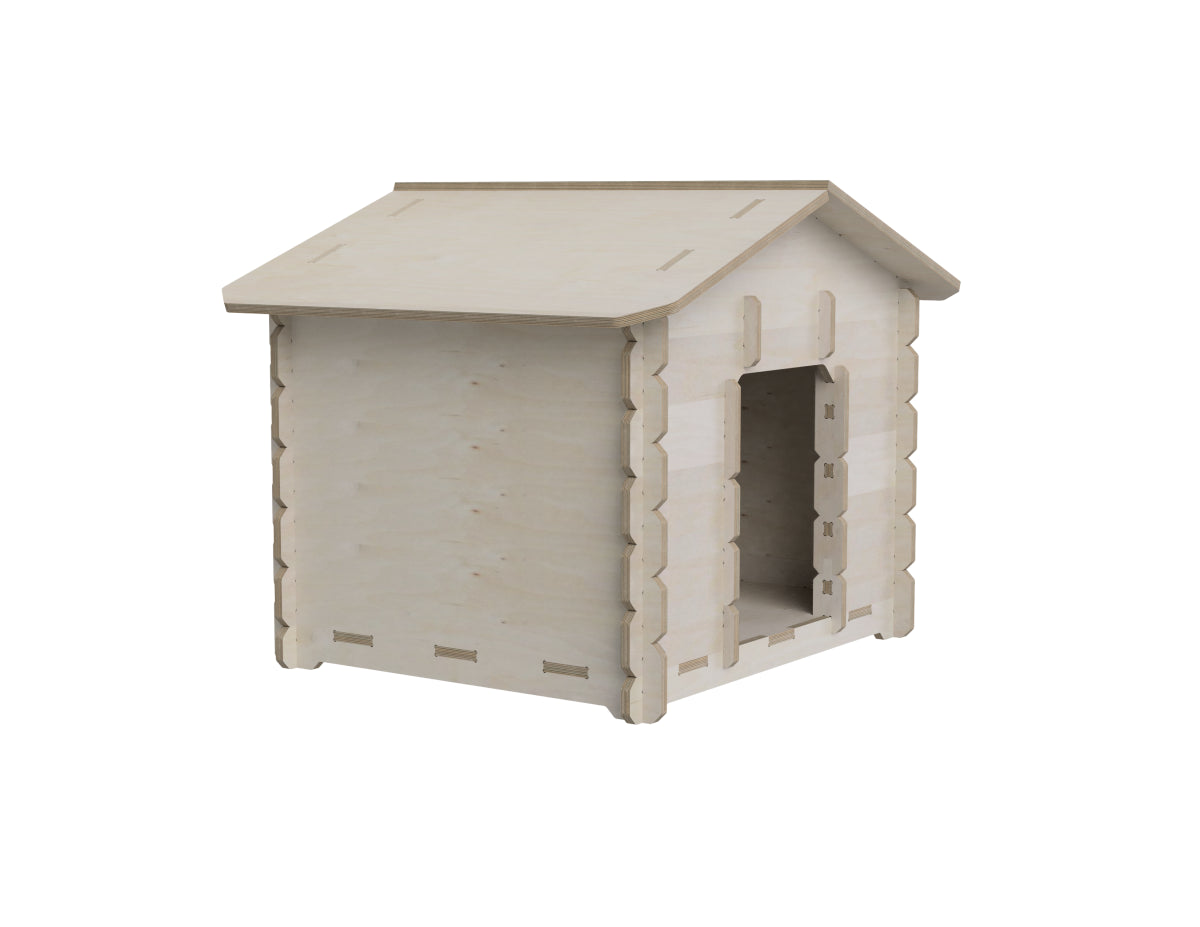

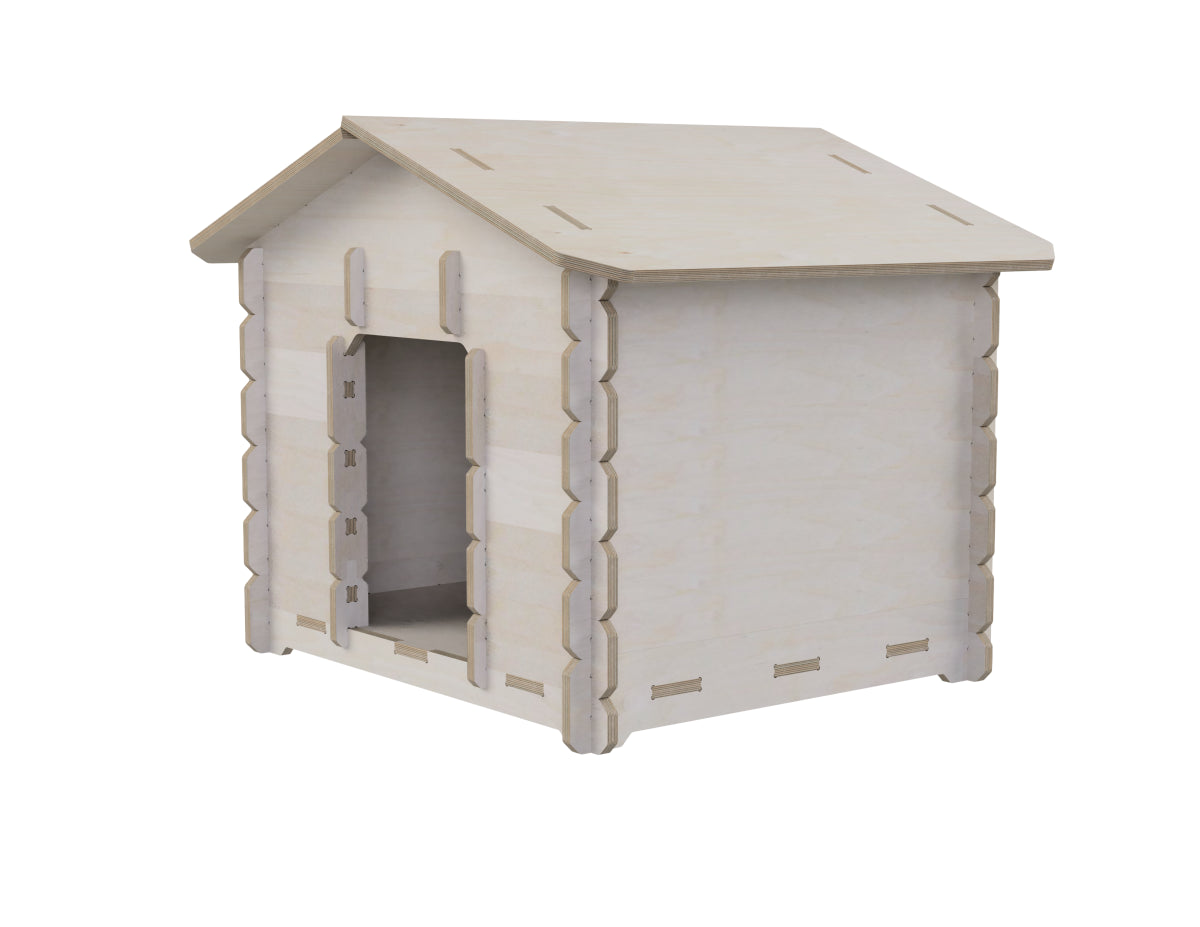

Everyone deserves a roof over his/ her head, that includes your pet friend!


The design can be cut on 900 x 1200 (3 x 4 ft)) CNC router and bigger.


After completing the order, you will receive DXF files with component layout adjusted to different CNC sizes:

900 x 1200 (3 x 4 ft)

1200 x 1200 (4 x 4 ft)
1200 x 2400 (4 x 8 ft)


*The files are adjusted to fit both metric and imperial standards for materials and tools


Dimensions:

730 mm (hight) x 800 mm (length) x 700 mm (width)

28-47/64 (hight) x 31-1/2 (length) x 27-9/16 (width)


Required materials:

For 900 x 1200 (3 x 4 ft) CNC

  • 3 sheets of 900 x 1200 x 15 mm (35-7/16 x 47-¼ x ⅝ inches) plywood
  • 1 sheet of 750 x 900 x 15 mm (29-17/32 x 35-7/16 x ⅝ inches) plywood
  • 6 mm (¼ inch) router bit for dogbones

For 1200 x 1200 (4 x 4 ft) CNC

  • 2 sheets of 1200 x 1200 x 15 mm (47-1/4 x 47-1/4 x 5/8 inches) plywood
  • 1 sheet of 900 x 1200 x 15 mm (35-7/16 x 47-1/4 x 5/8 inches) plywood
  • 6 mm (¼ inch) router bit for dogbones

For 1200 x 2400 (4 x 8 ft) CNC

  • 1 sheet of 1220 x 2440 x 15 mm (48-1/32 x 96-1/16 x 5/8 inches) plywood
  • 1 sheet of 900 x 1200 x 15 mm (35-7/16 x 47-1/4 x 5/8 inches) plywood
  • 6 mm (¼ inch) router bit for dogbones


Assembling time:

25 minutes


Delivery time:

30 seconds

After completing the order, you will receive the DXF design file to your email within seconds.


Updates:

Free

If your plywood sheet is thicker or thinner than expected, send the number of your purchase and the actual thickness to contact@aribabox.com. We will send you the updated DXF design file for free.


The product may differ from the representative images when cut and assembled. We hope you will enjoy your purchase from Aribabox.
