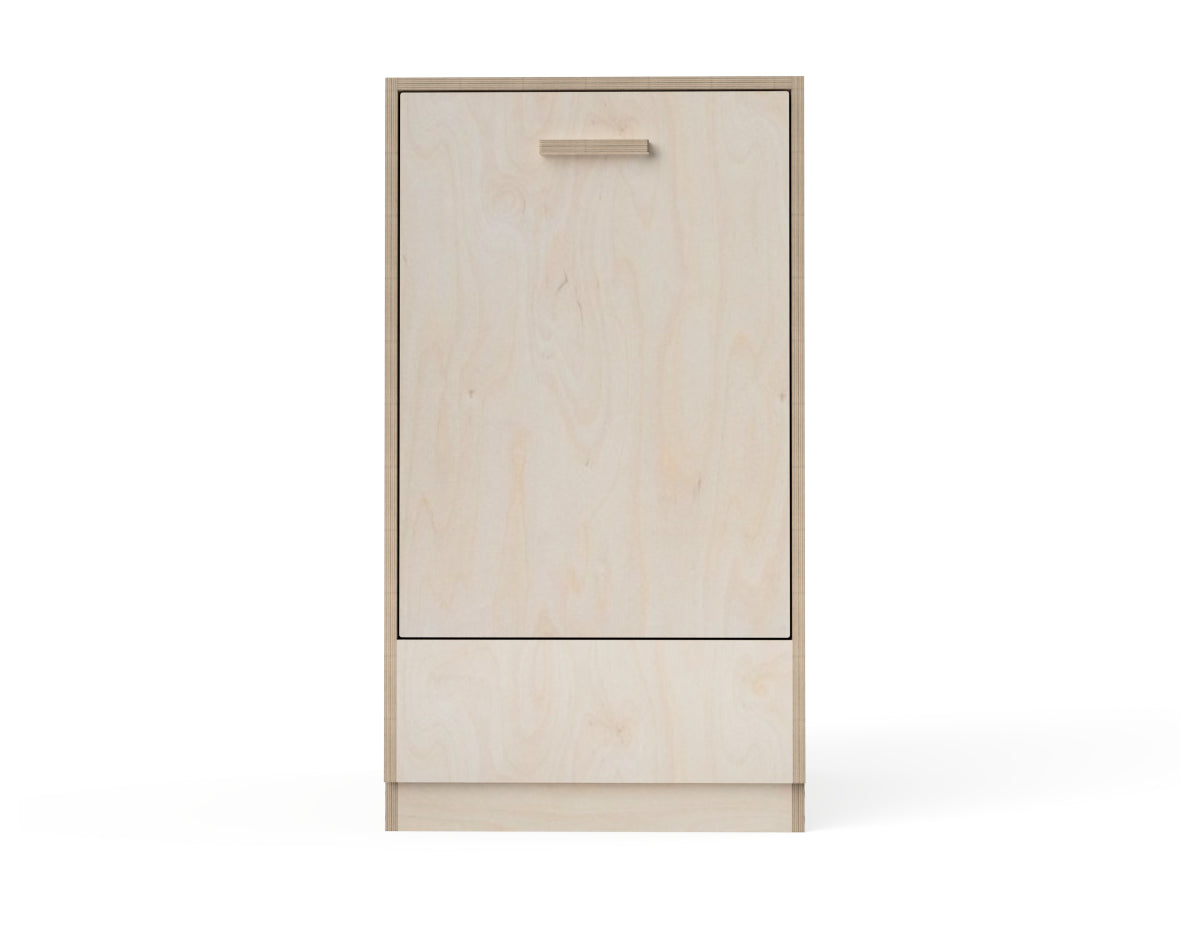

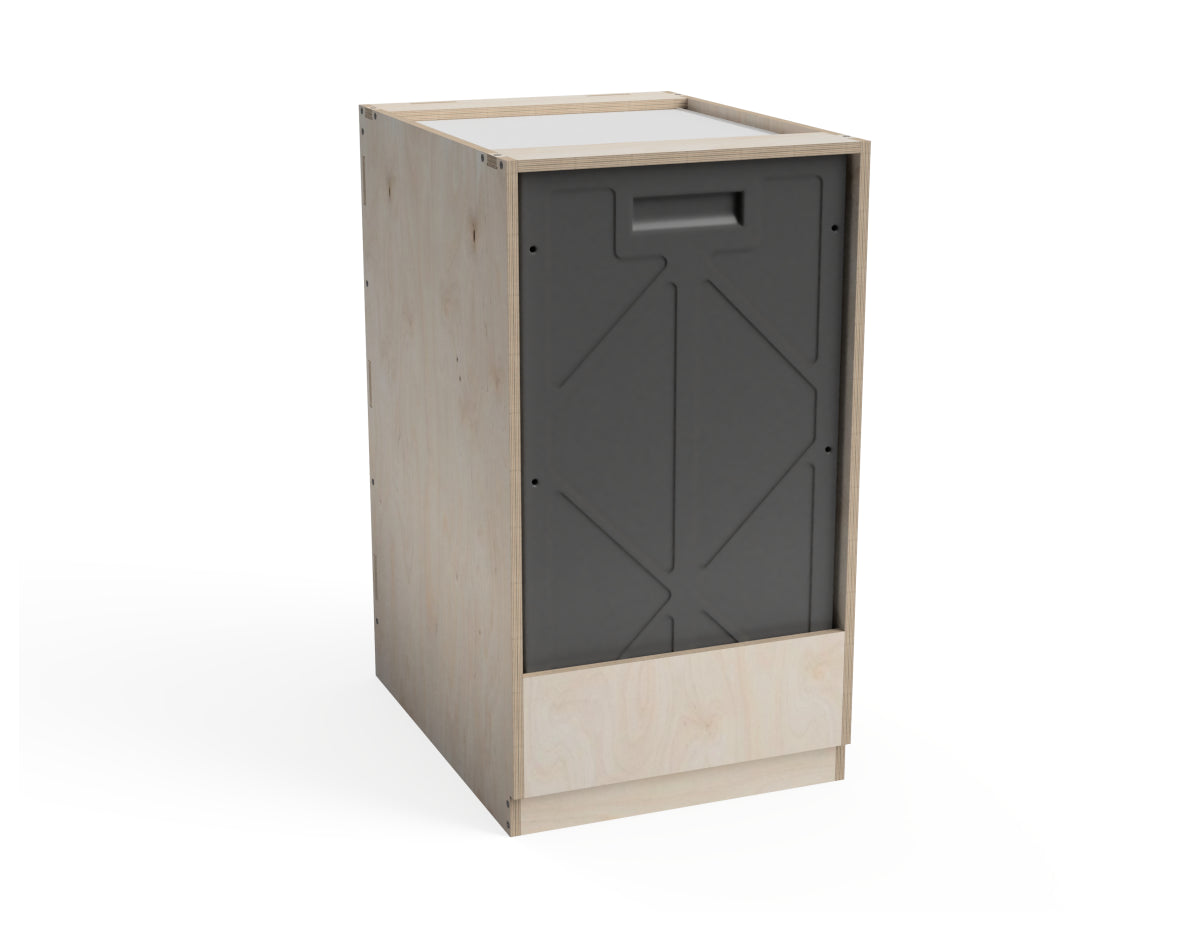

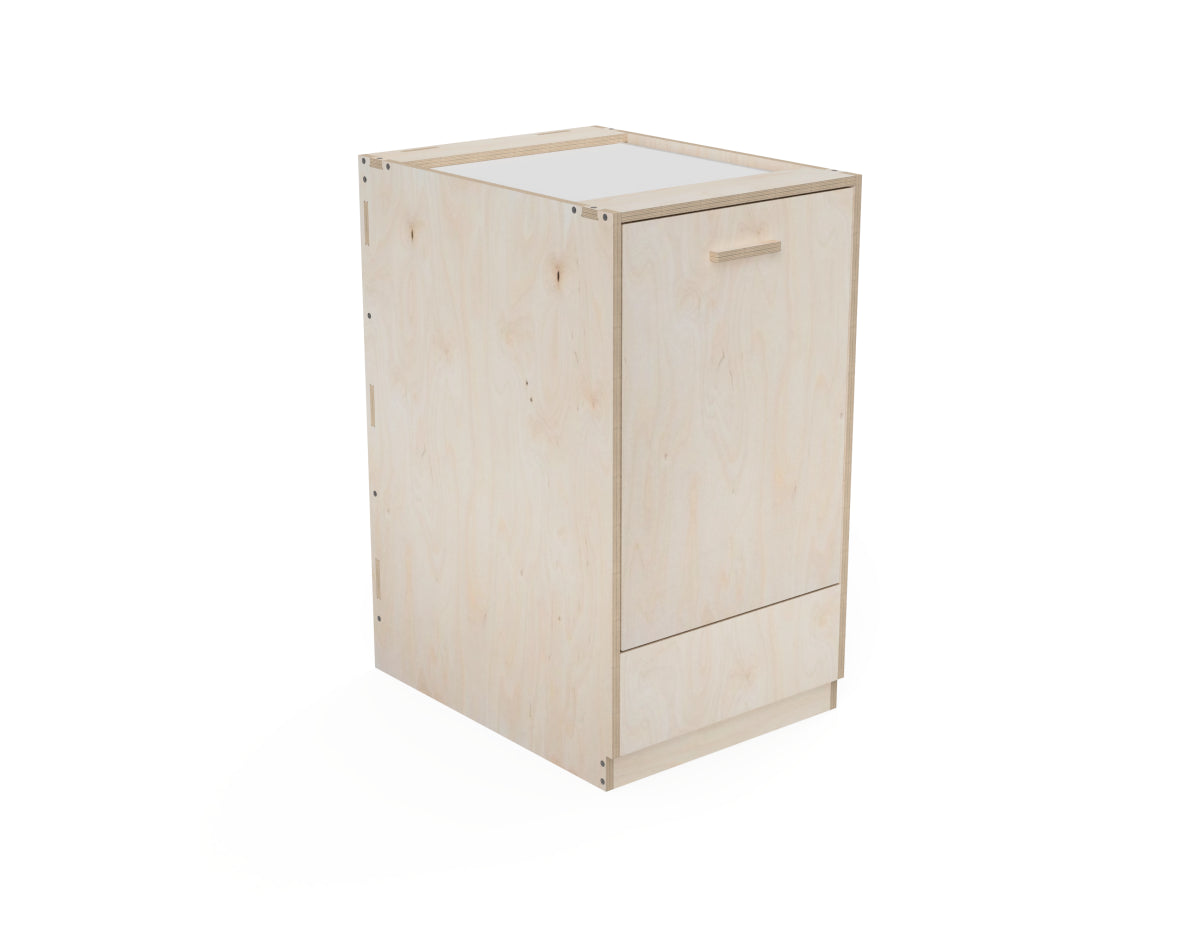

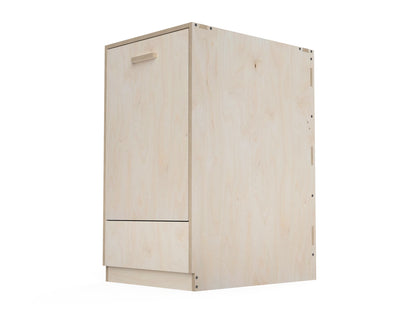

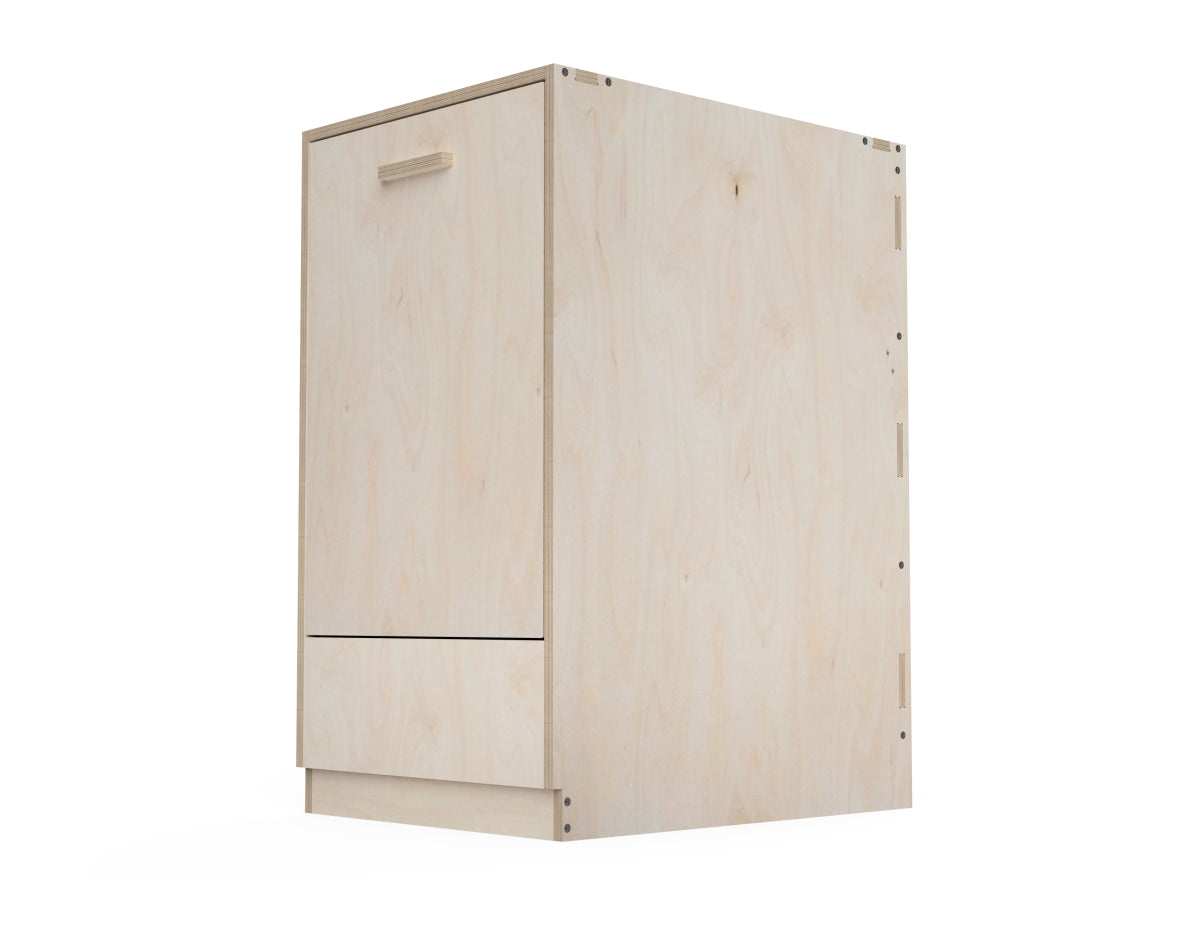

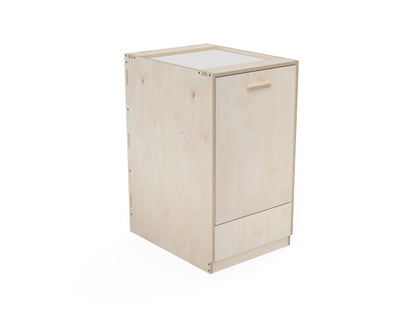

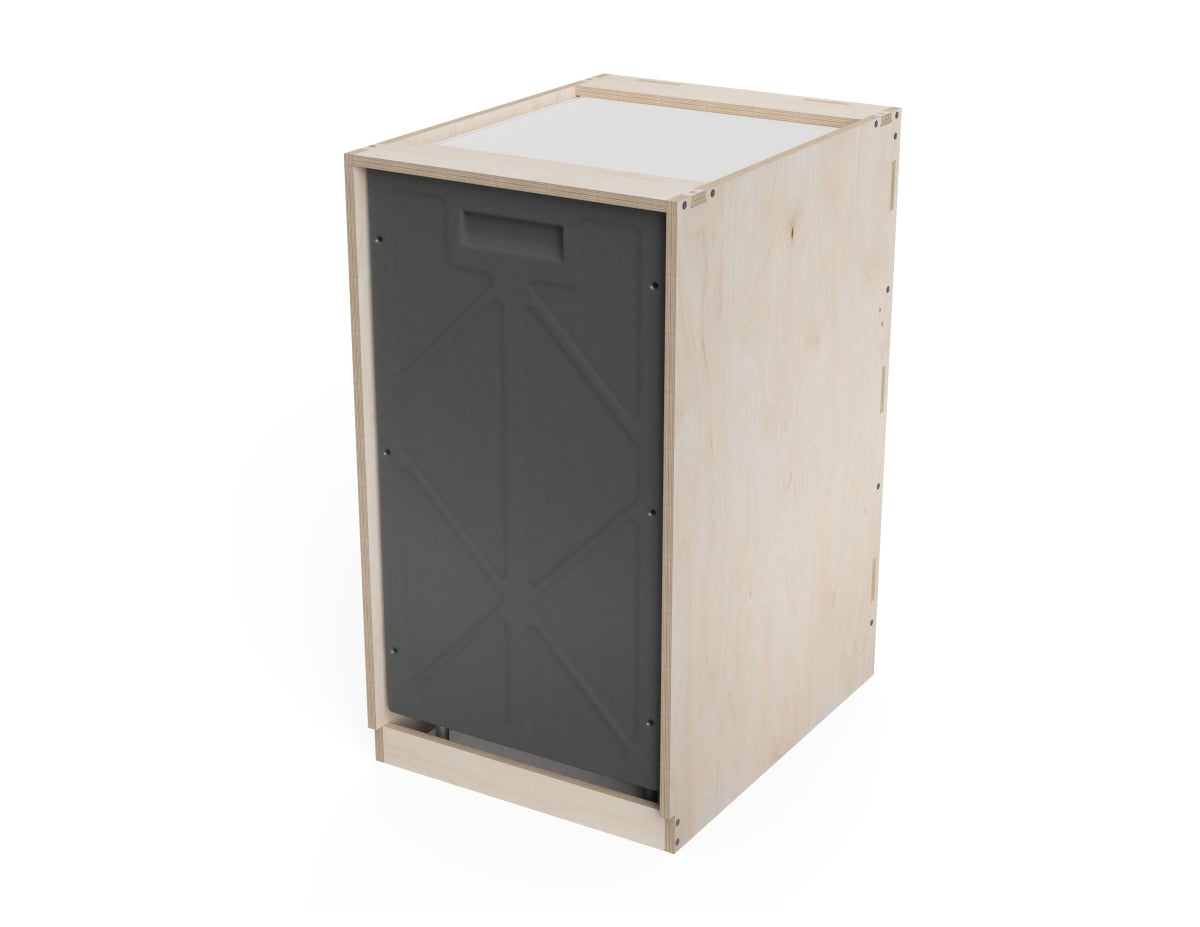

Dishwasher Cabinet (Inset Door Cabinets) DXF Files

Unlock seamless kitchen organization with our Dishwasher Cabinet DXF files, a vital component of the "Inset Door Cabinet Kitchen Set."

Perfect for beginners and seasoned craftsmen alike, these files enable easy construction of a plywood cabinet using a CNC router.

Designed for accessibility and precision, our user-friendly files ensure a hassle-free DIY experience.

Elevate your kitchen's functionality with our dishwasher cabinet today.

The design can be cut on an 800 x 1200 mm (2.6 x 4 ft) CNC router and bigger.

*The files are adjusted to fit both metric and imperial standards for materials and tools

Dimensions (Can be customized to your needs):

900 mm (height) x 500 mm (width) x 600 mm (depth)

35.4 inches (height) x 19.7 inches (width) x 23.65 inches (depth)

Required materials:

For an 800 x 1200 (2.6 x 4 ft) CNC router

• 3 sheets of 1200 x 650 x 15 mm (47.5 x 26 x 0.625 inches) Plywood
• 1 sheet of 950 x 600 x 12 mm (38 x 24 x 0.5 inches) Plywood
• 3 mm (0.125 inch) Router bit

For an 1200 x 1200 (4 x 4 ft) CNC router

• 3 sheets of 1200 x 650 x 15 mm (47.5 x 26 x 0.625 inches) Plywood
• 1 sheet of 950 x 600 x 12 mm (38 x 24 x 0.5 inches) Plywood
• 3 mm (0.125 inch) Router bit

For an 1220 x 2440 (4 x 8 ft) CNC router

• 1 sheet of 2440 x 900 x 15 mm (96 x 36 x 0.625 inches) Plywood
• 1 sheet of 950 x 600 x 12 mm (38 x 24 x 0.5 inches) Plywood
• 3 mm (0.125 inch) Router bit

Plywood Screws - 35 mm (1.25 inches)

Assembling time:

20 minutes

Delivery time:

30 seconds

After completing the order, you will receive the DXF design file in your email within seconds.

Updates:

Free

If your plywood sheet is thicker or thinner than expected, send your purchase number and the precise thickness to contact@aribabox.com. We will send you the updated DXF design file for free.

The product may differ from the representative images when cut and assembled. We hope you will enjoy your purchase from Aribabox.
