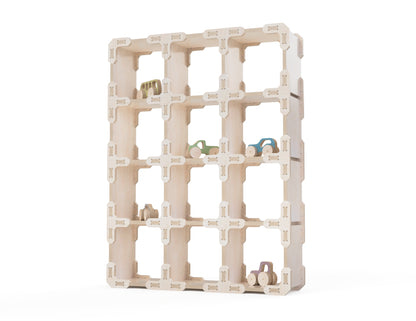

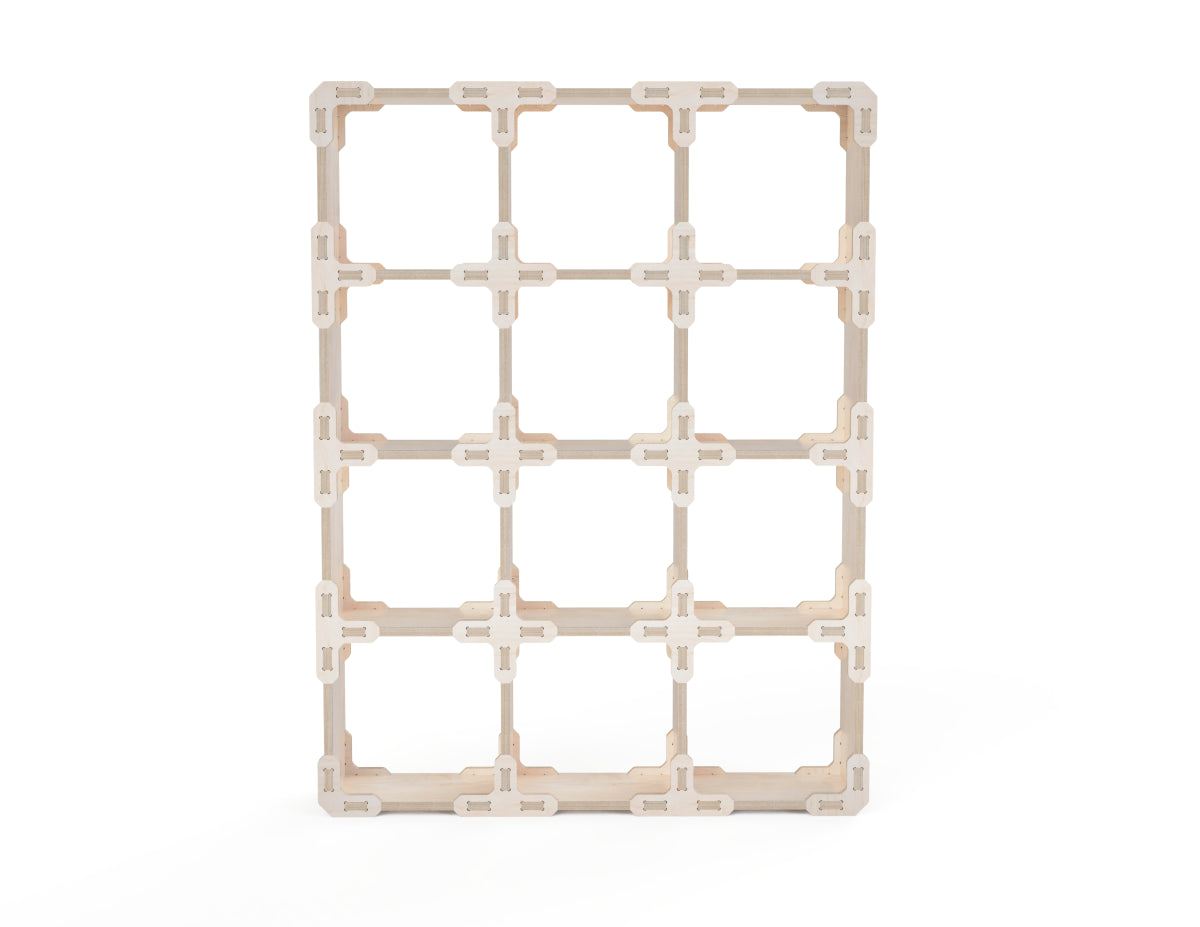

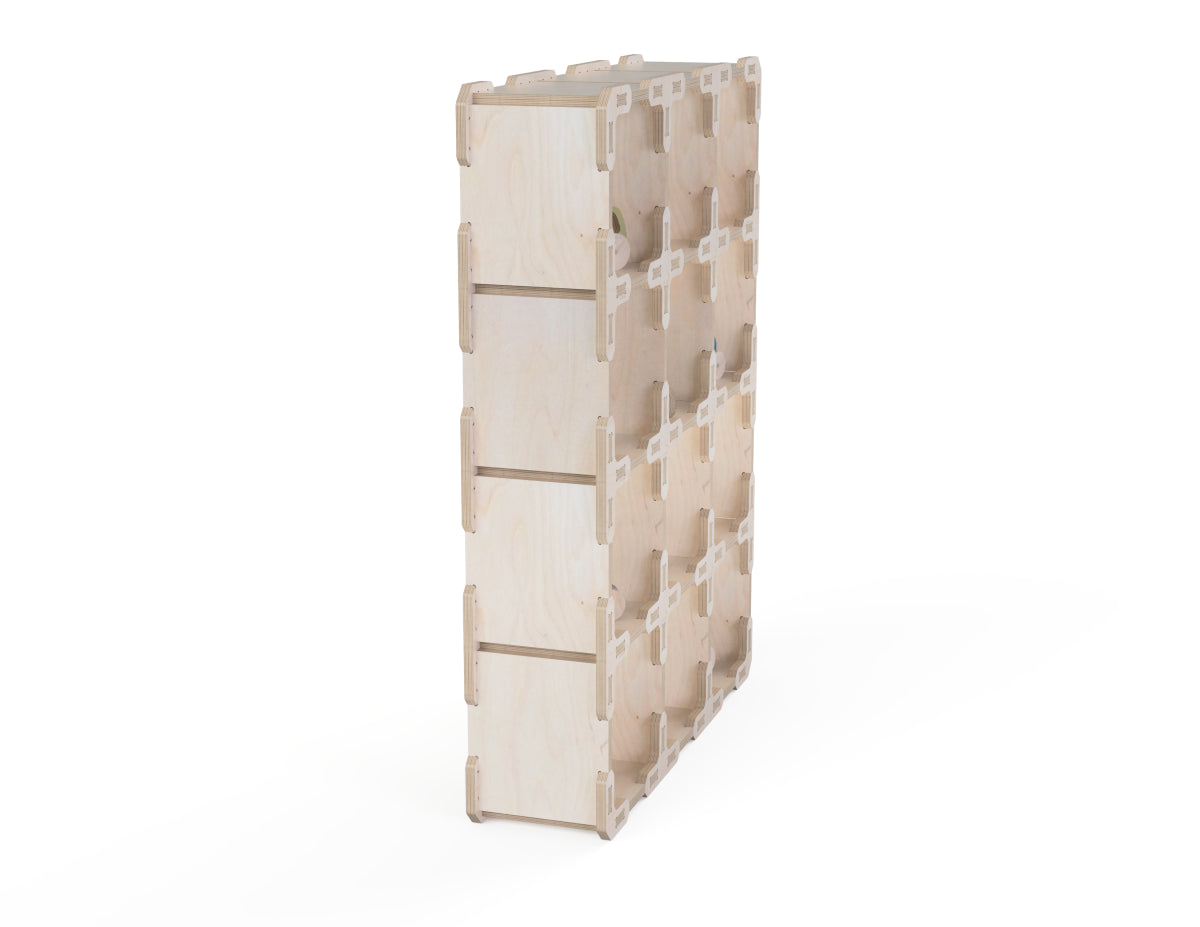

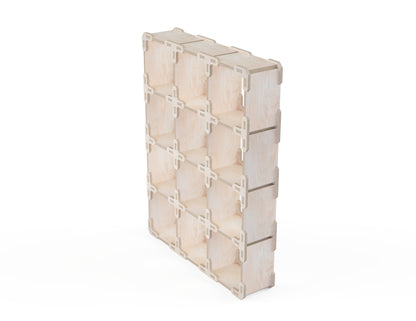

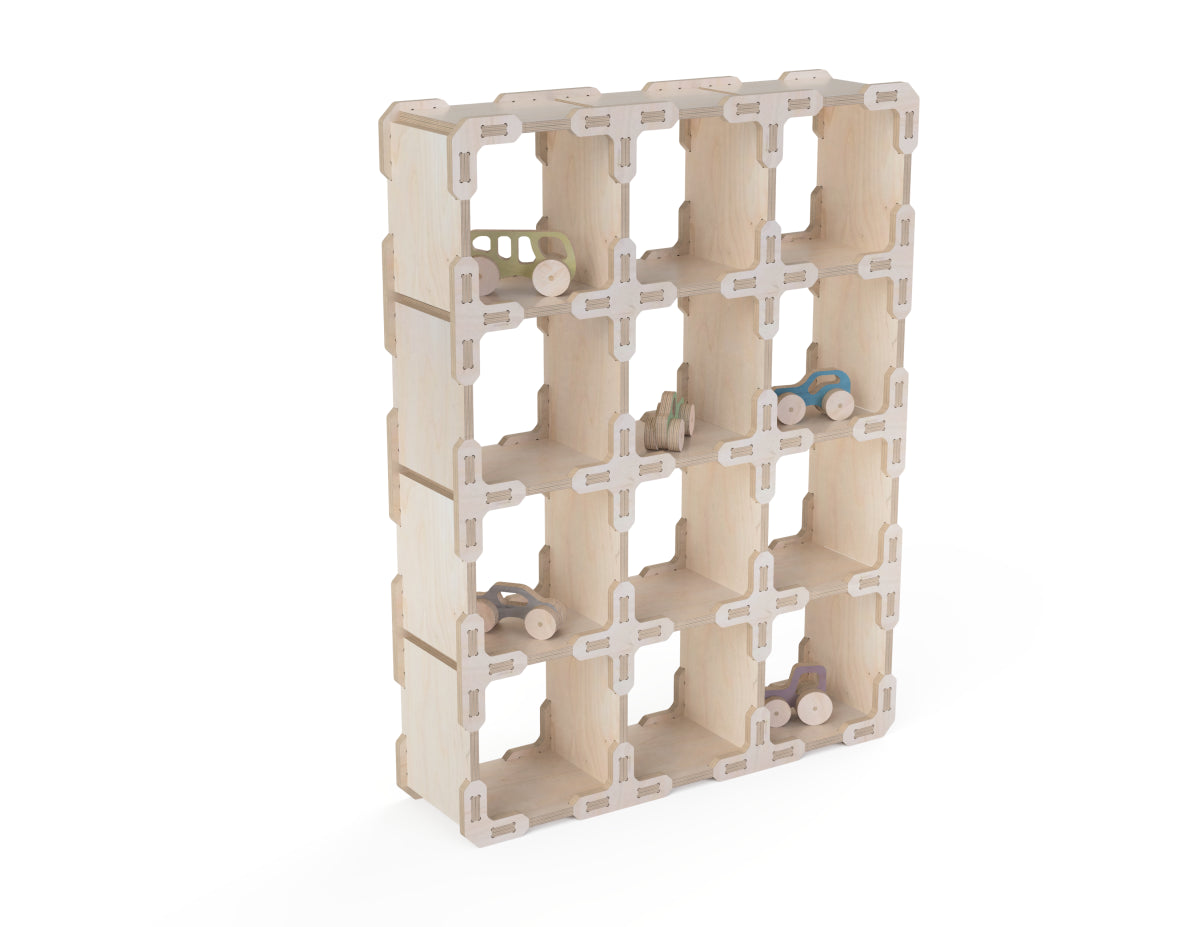

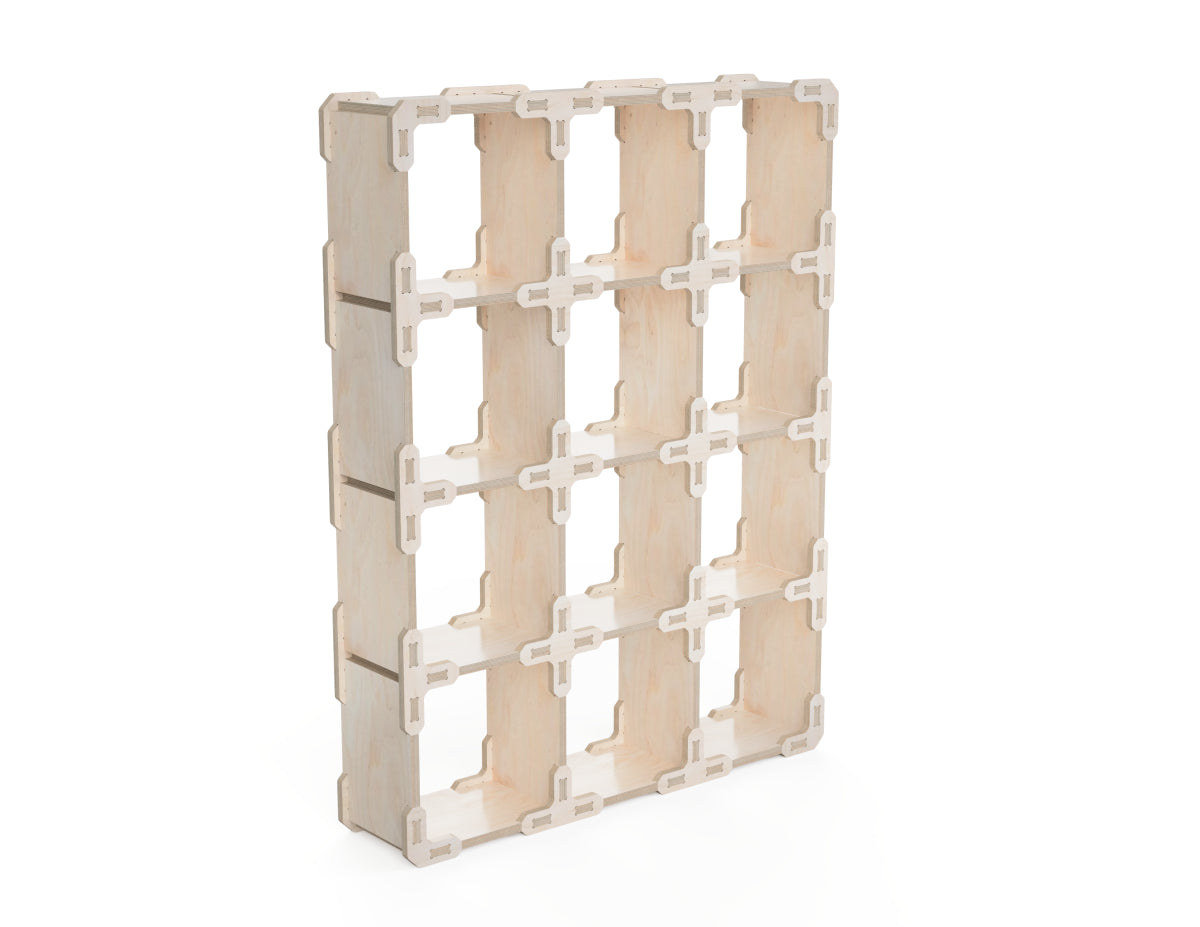

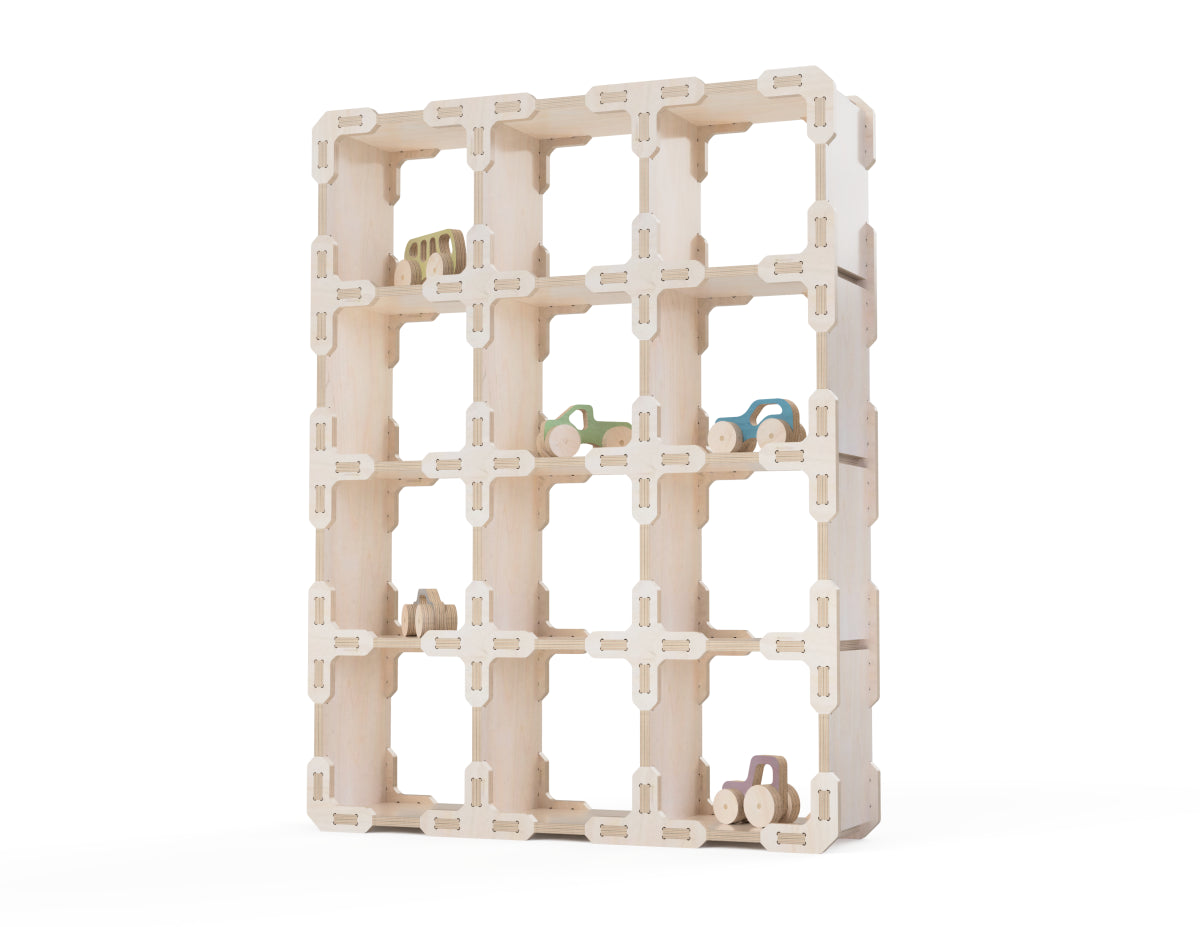

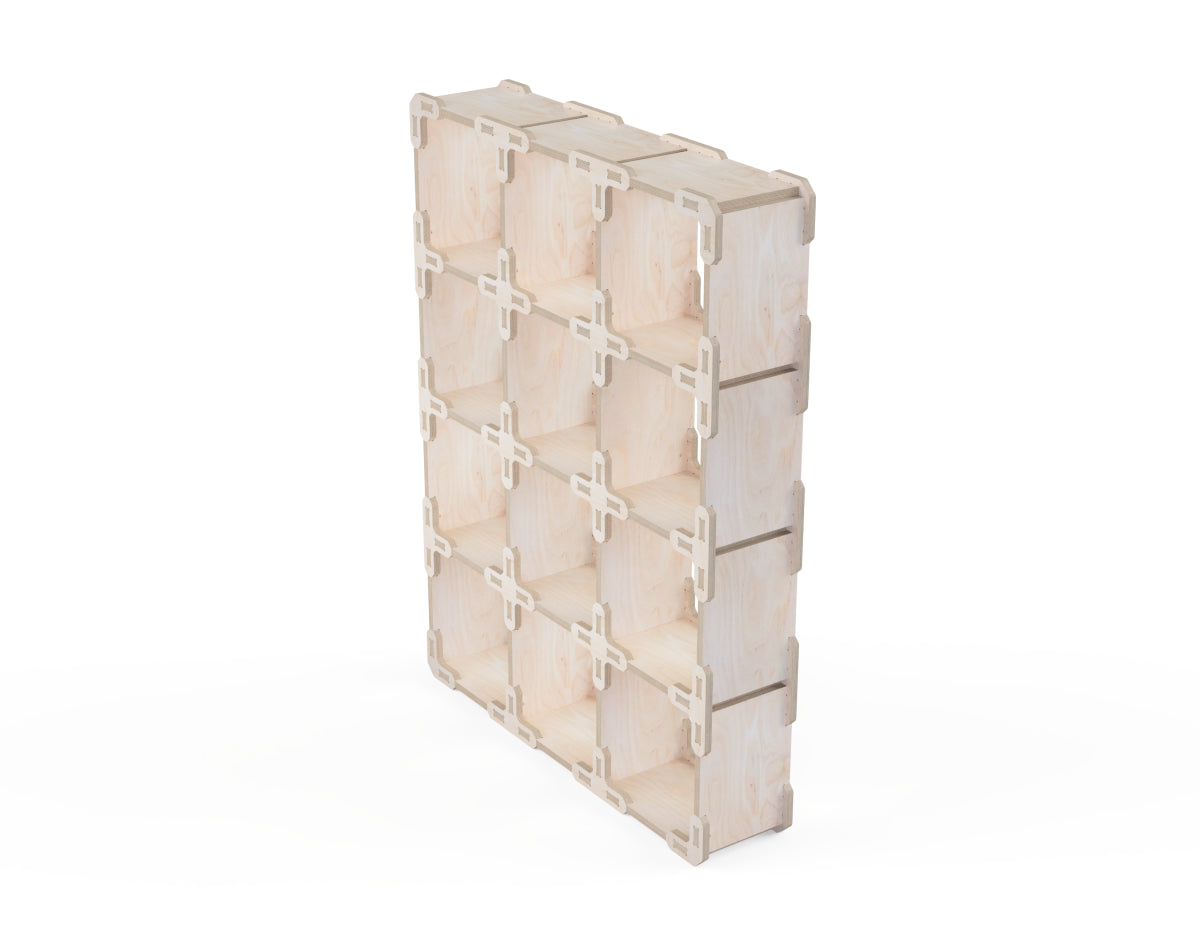

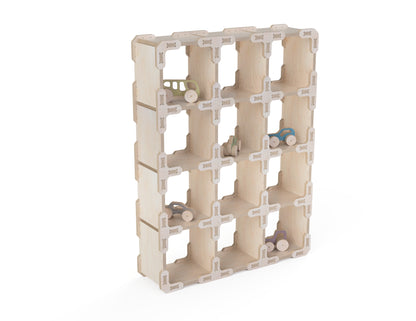

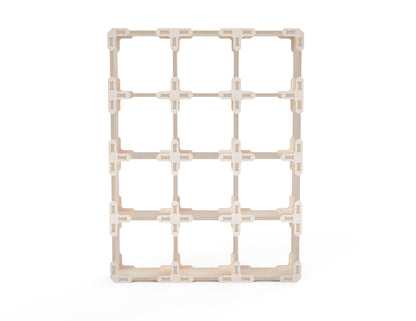

Cube shelf (Honeycomb) DXF file

Cube shelf (Honeycomb) DXF file

Regular price $9.45 USD
Regular price $0.00 USD Sale price $9.45 USD
Sale Sold out
Taxes included.

Do you want more order and structure? The Cube shelf demonstrates you mean business! In symbolic geometry, square shapes represent stability and trustworthiness - no wonder they are so widely used in banking logos.


The design can be cut on a 600 x 900 (2 x 3 ft) CNC router and bigger.


After completing the order, you will receive DXF files with component layout adjusted to different CNC sizes:

600 x 900 mm (2 x 3 ft)

900 x 1200 mm (3 x 4 ft)

1200 x 1200 mm (4 x 4 ft)
1200 x 2400 mm (4 x 8 ft)


*The files are adjusted to fit both metric and imperial standards for materials and tools


Dimensions:

1285 mm (height) x 975 mm (length) x 220 mm (depth)

50-19/32 (height) x 38-25/64 (length) x 8-21/32 (depth)


Required materials:

For 600 x 900 (2 x 3 ft) CNC

  • 6 sheets of 600 x 900 x 12 mm (23-5/8 x 35-7/16 x 1/2 inches) plywood
  • 1 sheet of 500 x 350 x 12 mm (19-11/16 x 13-25/32 x 1/2 inches) plywood
  • 4 mm (3/16 inch) router bit for dogbones

For 900 x 1200 (3 x 4 ft) CNC

  • 3 sheets of 900 x 1200 x 12 mm (35-7/16 x 47-¼ x 1/2 inches) plywood
  • 1 sheet of 450 x 650 x 12 mm (17-23/32 x 25-19/32 x 1/2 inches) plywood
  • 4 mm (3/16 inch) router bit for dogbones

For 1200 x 1200 (4 x 4 ft) CNC

  • 2 sheet of 1200 x 1200 x 12 mm (47-¼ x 47-¼ x 1/2 inches) plywood
  • 1 sheet of 650 x 900 x 12 mm (25-19/32 x 35-7/16 x 1/2 inches) plywood
  • 4 mm (3/16 inch) router bit for dogbones

For 1200 x 2440 (4 x 8 ft) CNC

  • 1 sheet of 1220 x 2440 x 12 mm (48-1/32 x 96-1/16 x 1/2 inches) plywood
  • 1 sheet of 670 x 670 x 12 mm (26-3/8 x 26-3/8 x 1/2 inches) plywood
  • 4 mm (3/16 inch) router bit for dogbones

Assembling time:

40 minutes


Delivery time:

30 seconds

After completing the order, you will receive the DXF design file in your email within seconds.


Updates:

Free

If your plywood sheet is thicker or thinner than expected, send the number of your purchase and the actual thickness to contact@aribabox.com. We will send you the updated DXF design file for free.


The product may differ from the representative images when cut and assembled. We hope you will enjoy your purchase from Aribabox.


Supported CNC sizes

The project can be made on a 600 x 900 mm (2 x 3 ft) CNC router and bigger.

Dimensions

220 mm (width) X 975 mm (length) X 1285 mm (height)
8.7 inches (width) X 38.4 inches (length) X 50.6 inches (height)

Required materials

For 600 x 900 (2 x 3 ft) CNC
- 6 sheets of 600 x 900 x 12 mm (23-5/8 x 35-7/16 x 1/2 inches) plywood
- 1 sheet of 500 x 350 x 12 mm (19-11/16 x 13-25/32 x 1/2 inches) plywood
- 4 mm (3/16 inch) router bit for dogbones
For 900 x 1200 (3 x 4 ft) CNC
- 3 sheets of 900 x 1200 x 12 mm (35-7/16 x 47-¼ x 1/2 inches) plywood
- 1 sheet of 450 x 650 x 12 mm (17-23/32 x 25-19/32 x 1/2 inches) plywood
- 4 mm (3/16 inch) router bit for dogbones
For 1200 x 1200 (4 x 4 ft) CNC
- 2 sheet of 1200 x 1200 x 12 mm (47-¼ x 47-¼ x 1/2 inches) plywood
- 1 sheet of 650 x 900 x 12 mm (25-19/32 x 35-7/16 x 1/2 inches) plywood
- 4 mm (3/16 inch) router bit for dogbones
For 1200 x 2440 (4 x 8 ft) CNC
- 1 sheet of 1220 x 2440 x 12 mm (48-1/32 x 96-1/16 x 1/2 inches) plywood
- 1 sheet of 670 x 670 x 12 mm (26-3/8 x 26-3/8 x 1/2 inches) plywood
- 4 mm (3/16 inch) router bit for dogbones

Assembling time

40 minutes
The product may differ from the representative images when cut and assembled. We hope you will enjoy your purchase from Aribabox!
