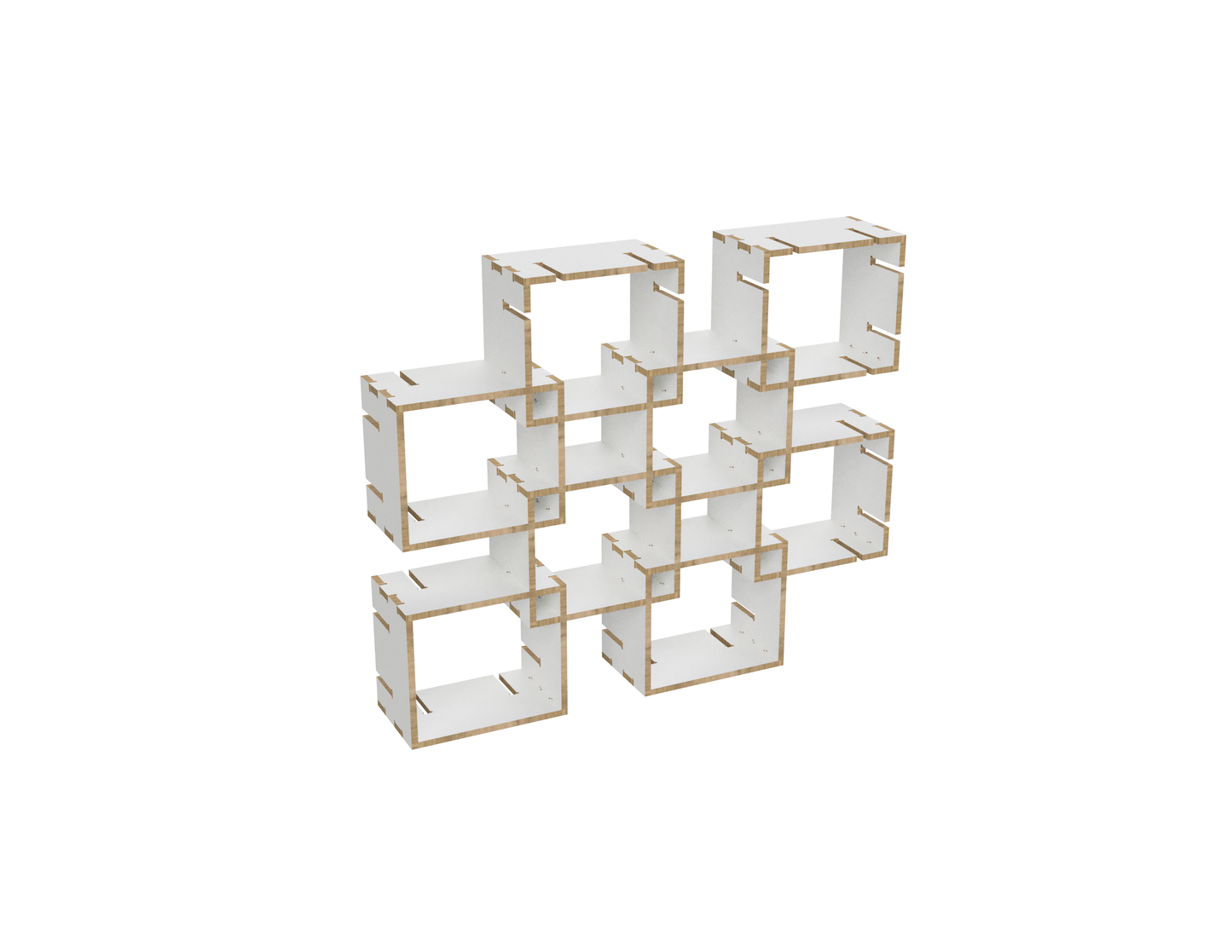

• Cube shelf DXF file CNC DXF file design overview

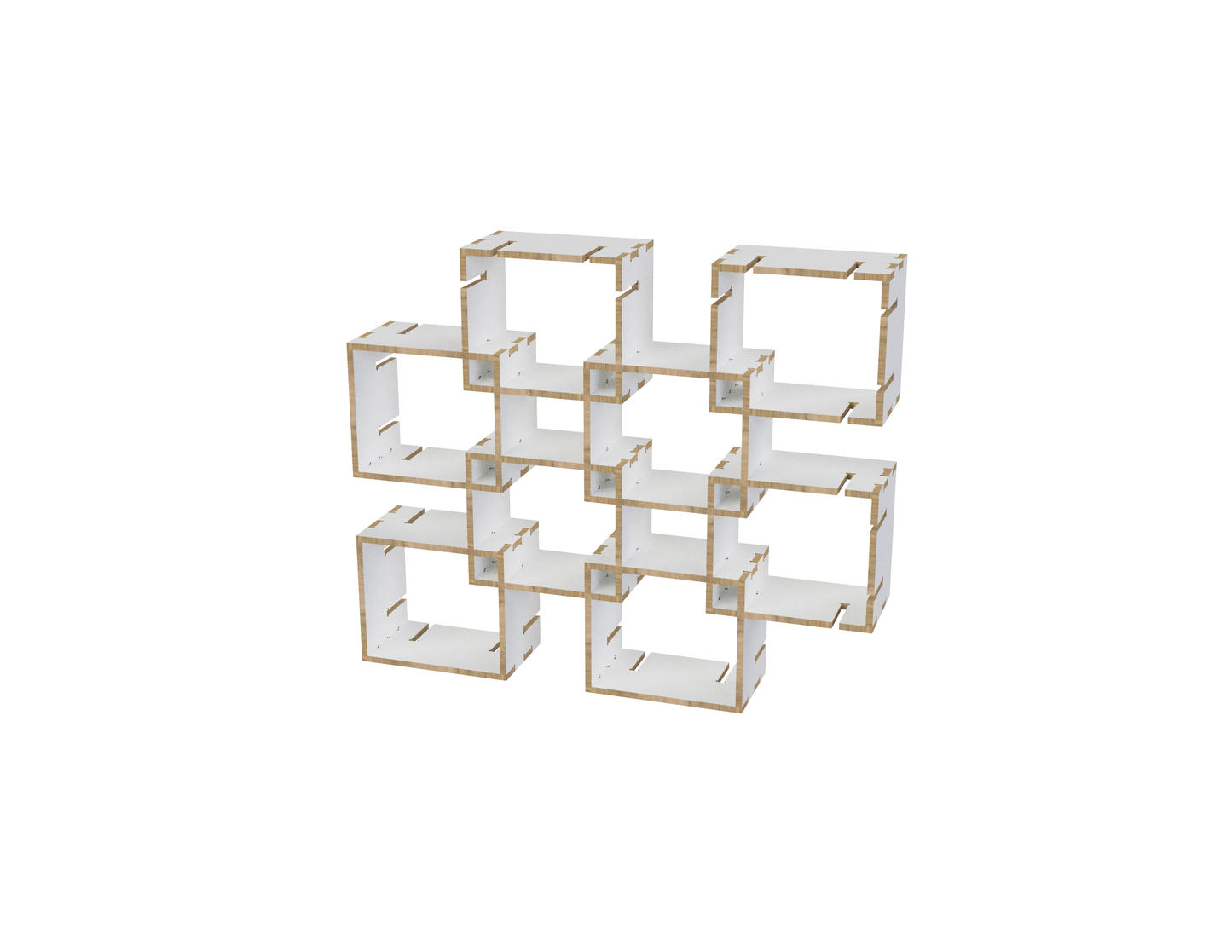

  • Cube shelf DXF file DXF file rendered from angled view for CNC cutting

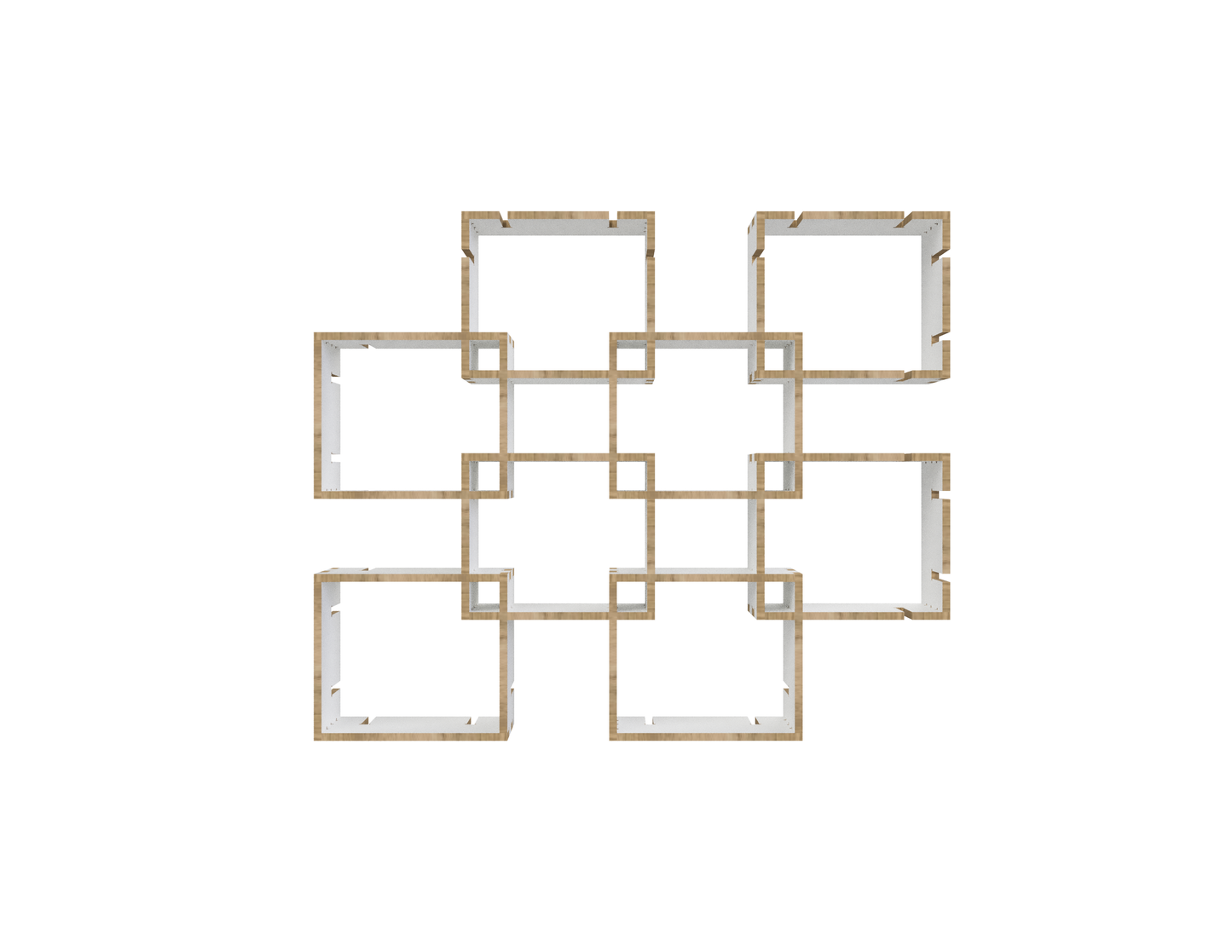

  • Detailed DXF drawing of cube shelf dxf file for CNC router
  • Cube shelf DXF file CNC-ready design showing joints and assembly features
1 4

Modular Cube Shelf DXF Files

Modular Cube Shelf DXF Files

$9.45 USD
$9.45 USD $9.45 USD
Sale Sold out
Taxes included.

Downloadable DXF files for creating a customizable modular cube shelf with your CNC router. These interlocking cubes form a minimalistic and creative wall shelf system - perfect for storing books, decor, or everyday items.



Easily adjust the layout to fit your space and expand it anytime. A stylish, functional CNC project for modern interiors.

Supported CNC sizes

The project can be made on a 600 x 900 mm (2 x 3 ft) CNC router and bigger.

Dimensions

Width Length Height
180 mm 955 mm 795 mm
7⅛ inch 37⅝ inch 31¼ inch

Required materials

For 600 x 900 (2 x 3 ft) CNC
- 4 sheets of 600 x 900 x 12 mm (23-⅝ x 35-7/16 x 1/2 inches) plywood
- 4 mm (3/16 inch) router bit for dogbones
For 900 x 1200 (3 x 4 ft) CNC
- 2 sheets of 900 x 1200 x 12 mm (35-7/16 x 47-¼ x 1/2 inches) plywood
- 4 mm (3/16 inch) router bit for dogbones
For 1200 x 1200 (4 x 4 ft) CNC and bigger
- 1 sheet of 1200 x 1200 x 12 mm (47-1/4 x 47-¼ x 1/2 inches) plywood
- 1 sheet of 1100 x 400 x 12 mm (43-5/16 x 15-3/4 x 1/2 inches) plywood
- 4 mm (3/16 inch) router bit for dogbones
For 1200 x 2400 (4 x 4 ft) CNC and bigger
- 1 sheet of 1200 x 1650 x 12 mm (47-1/4 x 64-61/64 x 1/2 inches) plywood
- 4 mm (3/16 inch) router bit for dogbones

Assembling time

5 minutes
The product may differ from the representative images when cut and assembled. We hope you will enjoy your purchase from Aribabox!
