Clamp Racks - French Cleat Attachment - DXF Files

Clamp Racks - French Cleat Attachment - DXF Files

$2.75 USD
$5.50 USD $2.75 USD
Sale Sold out
Taxes included.

Organize your workshop efficiently with our Clamp Racks - French Cleat Attachment - DXF Files.



These CNC files allow you to easily create custom clamp storage racks designed for quick access and neat organization.

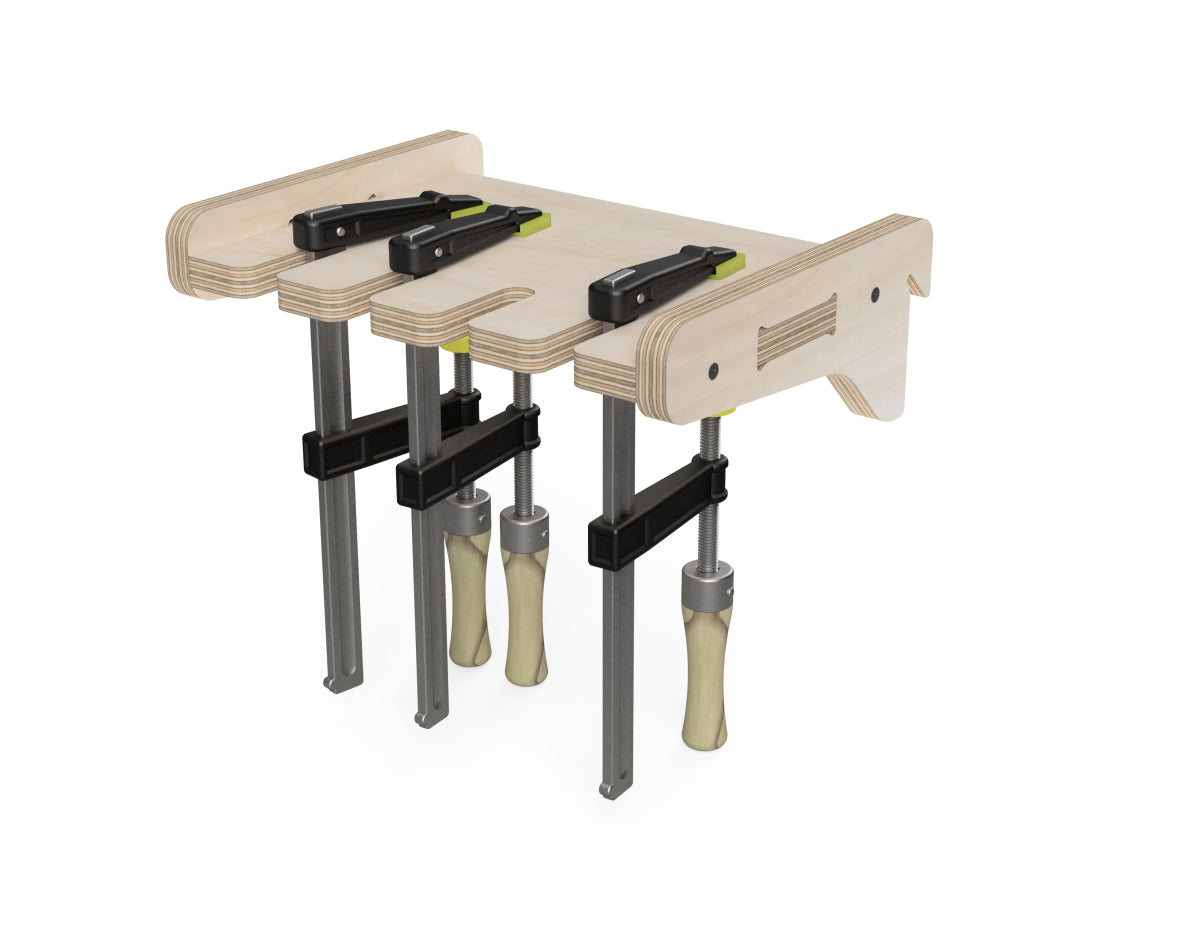

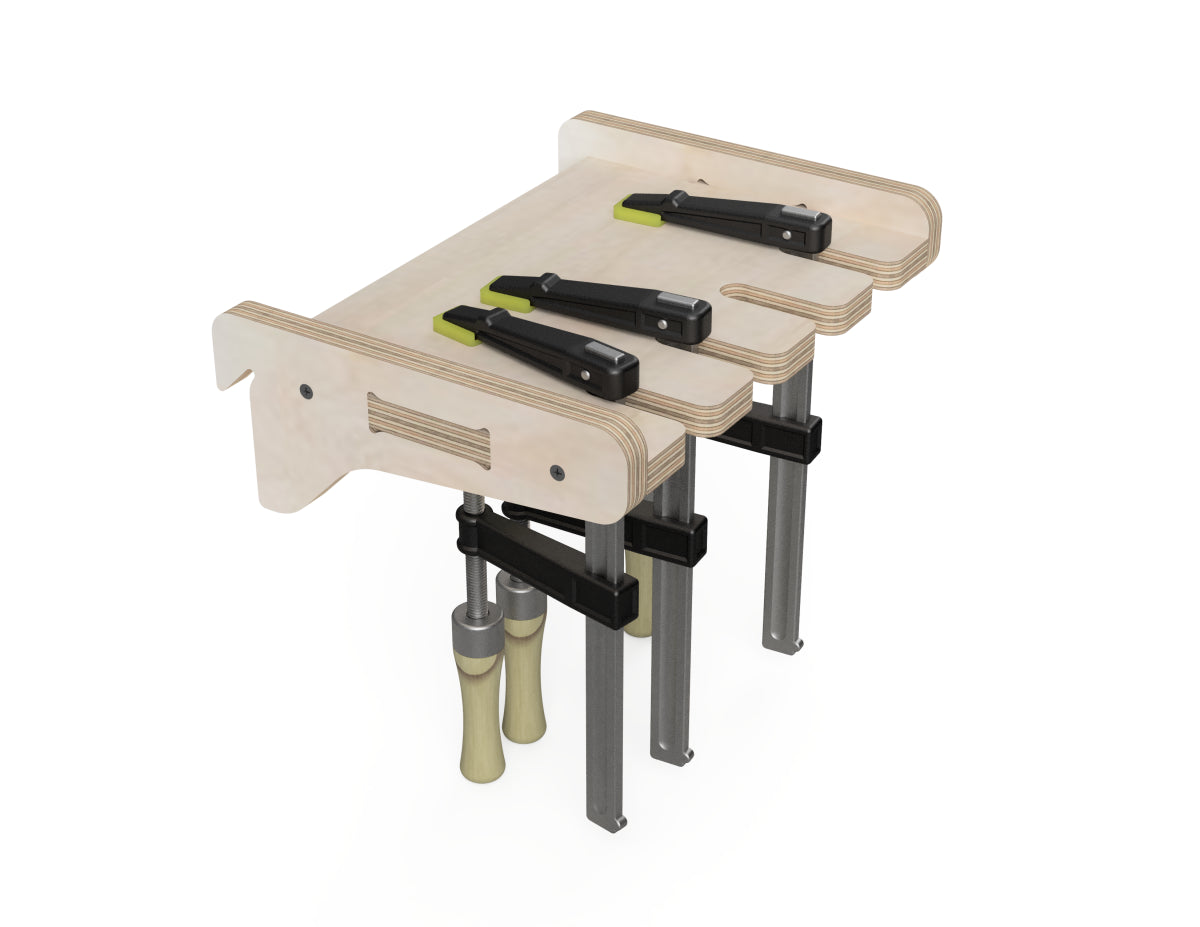

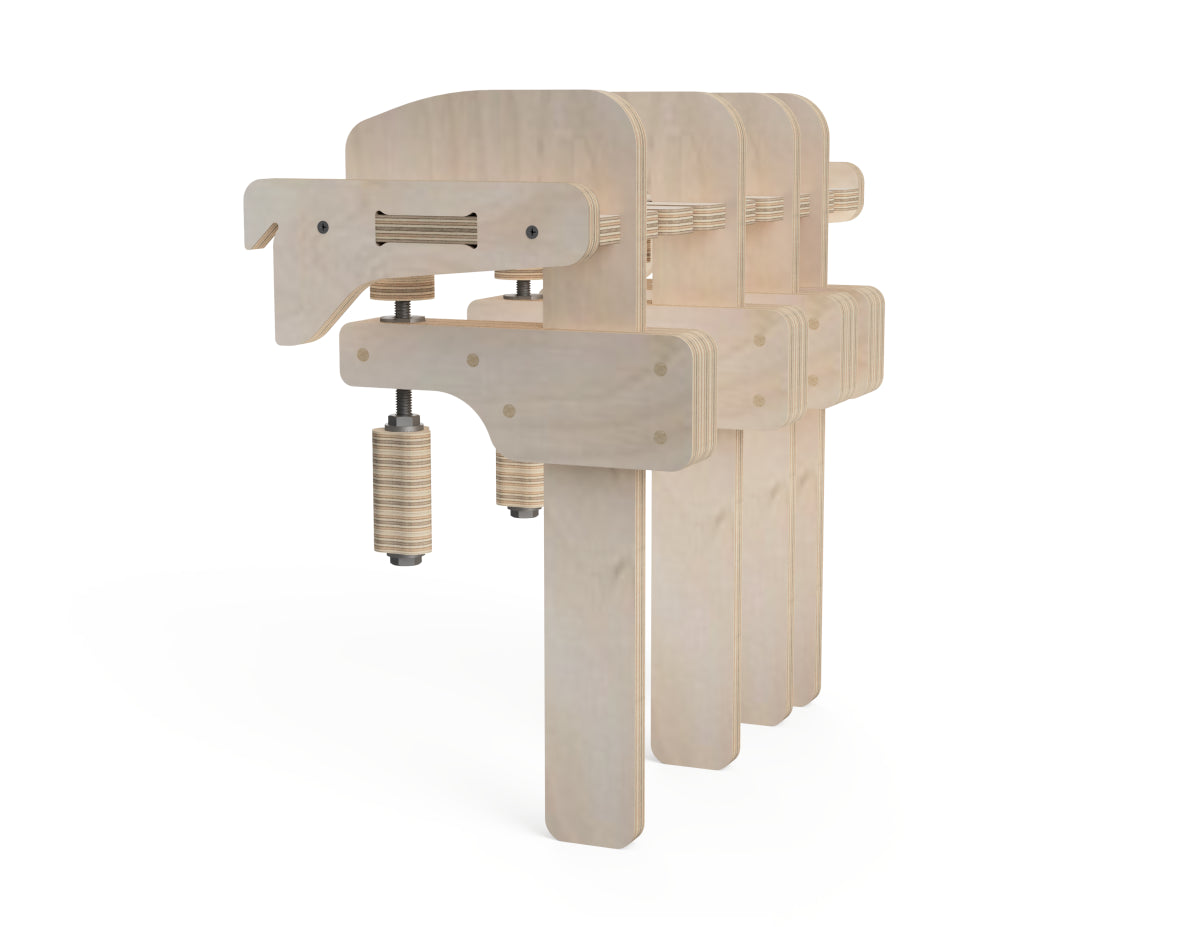

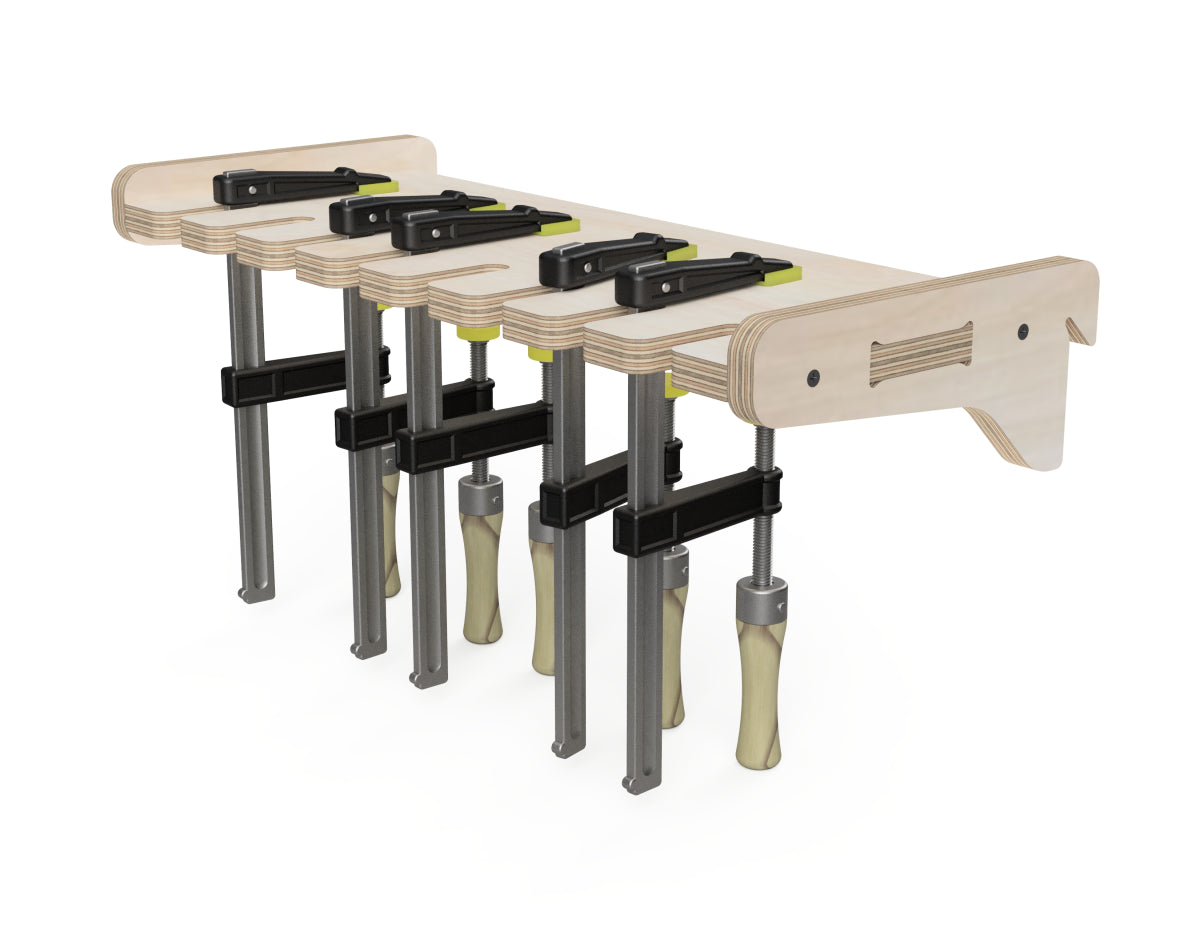

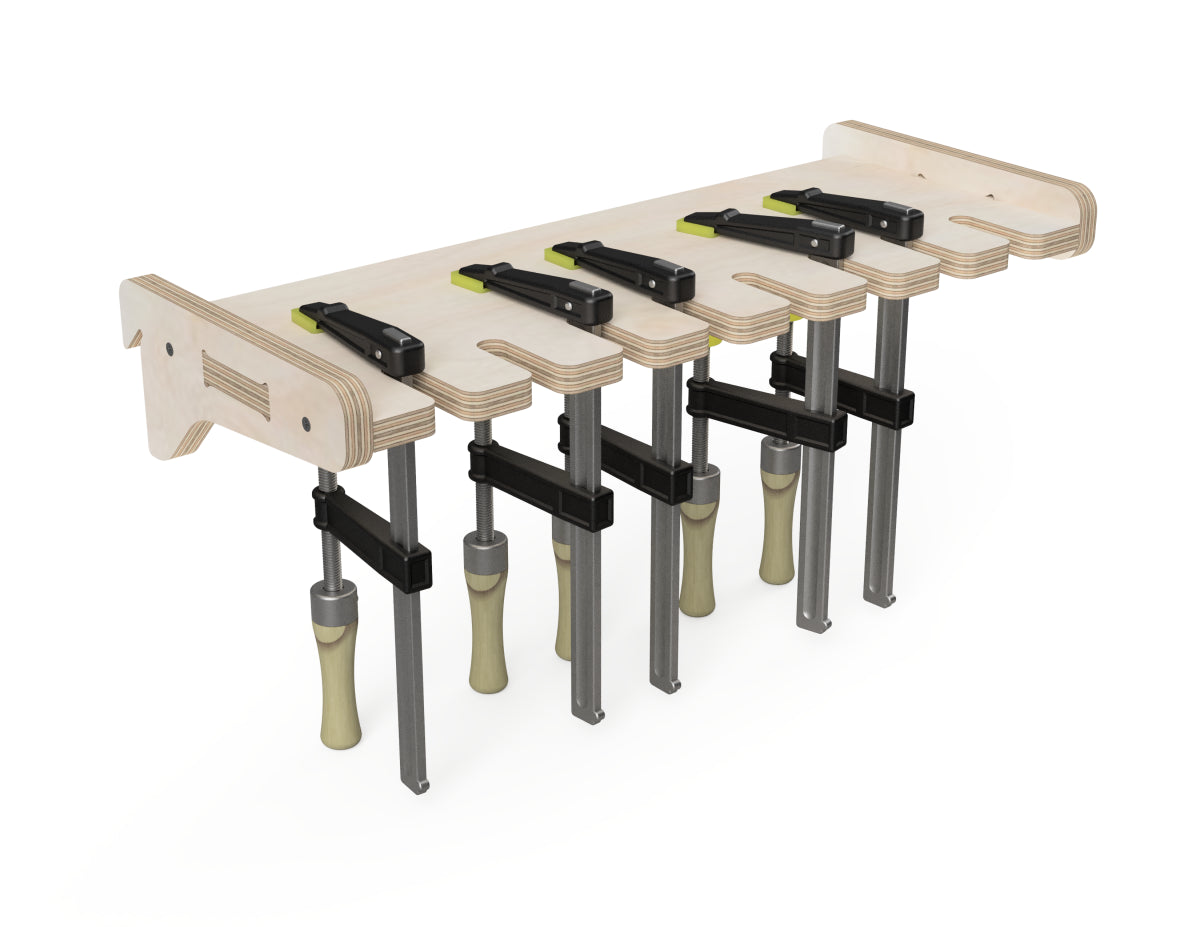

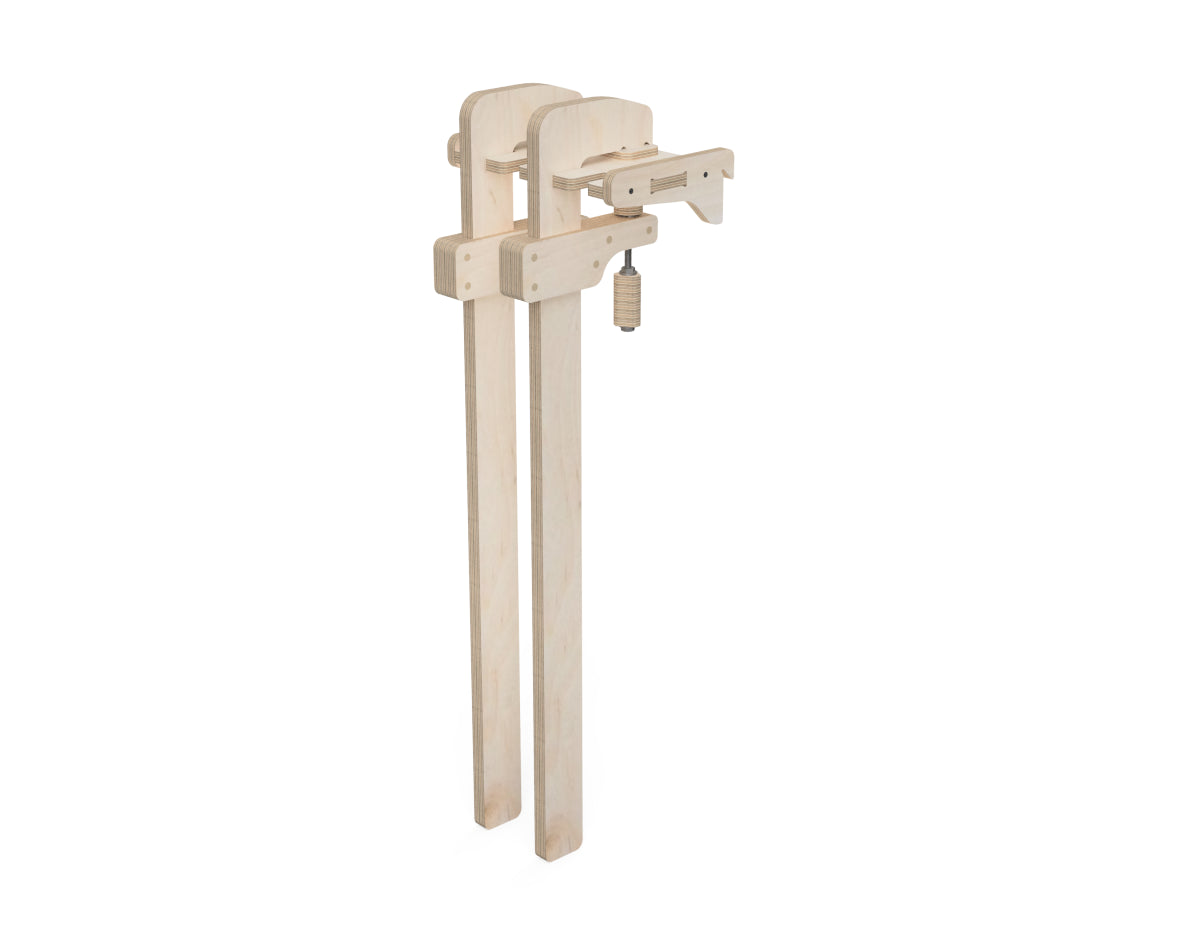

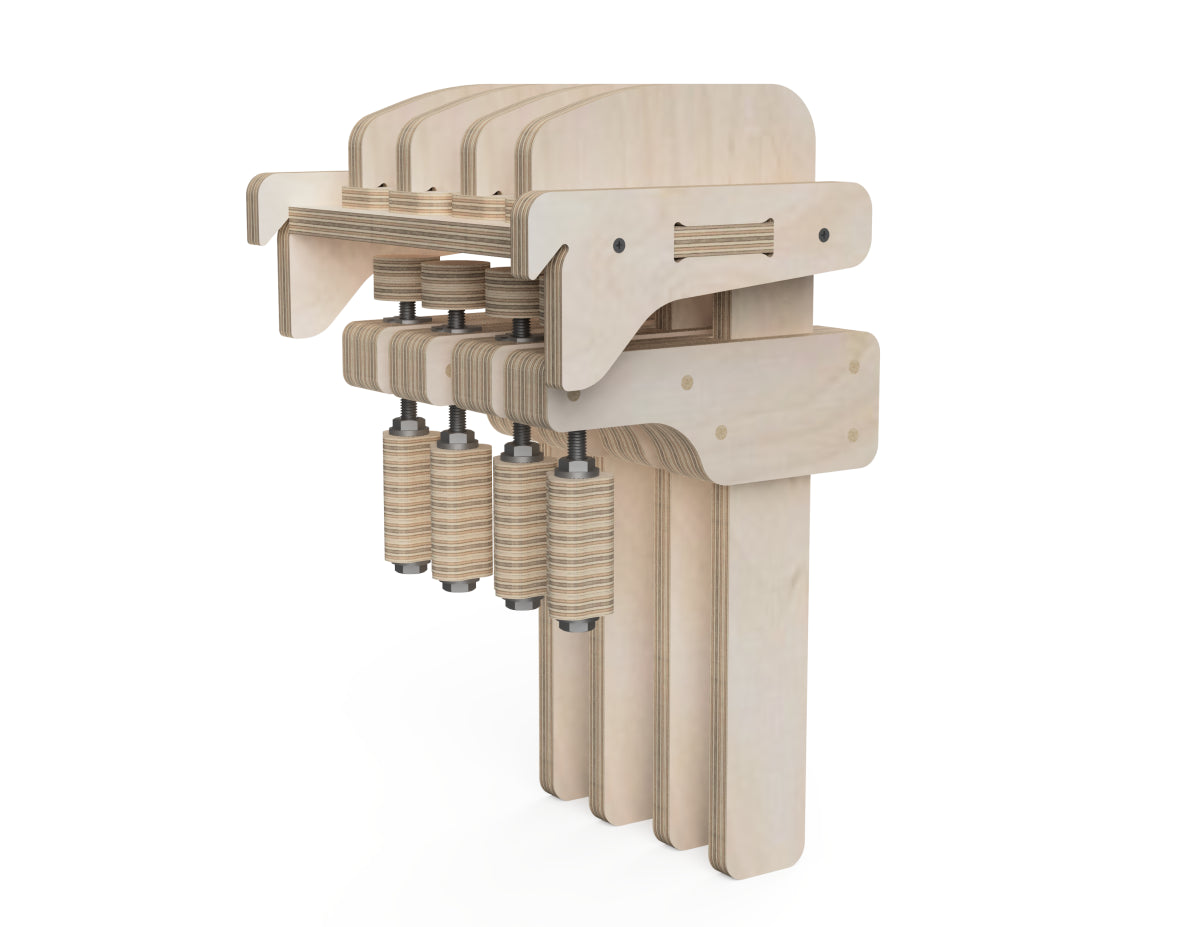

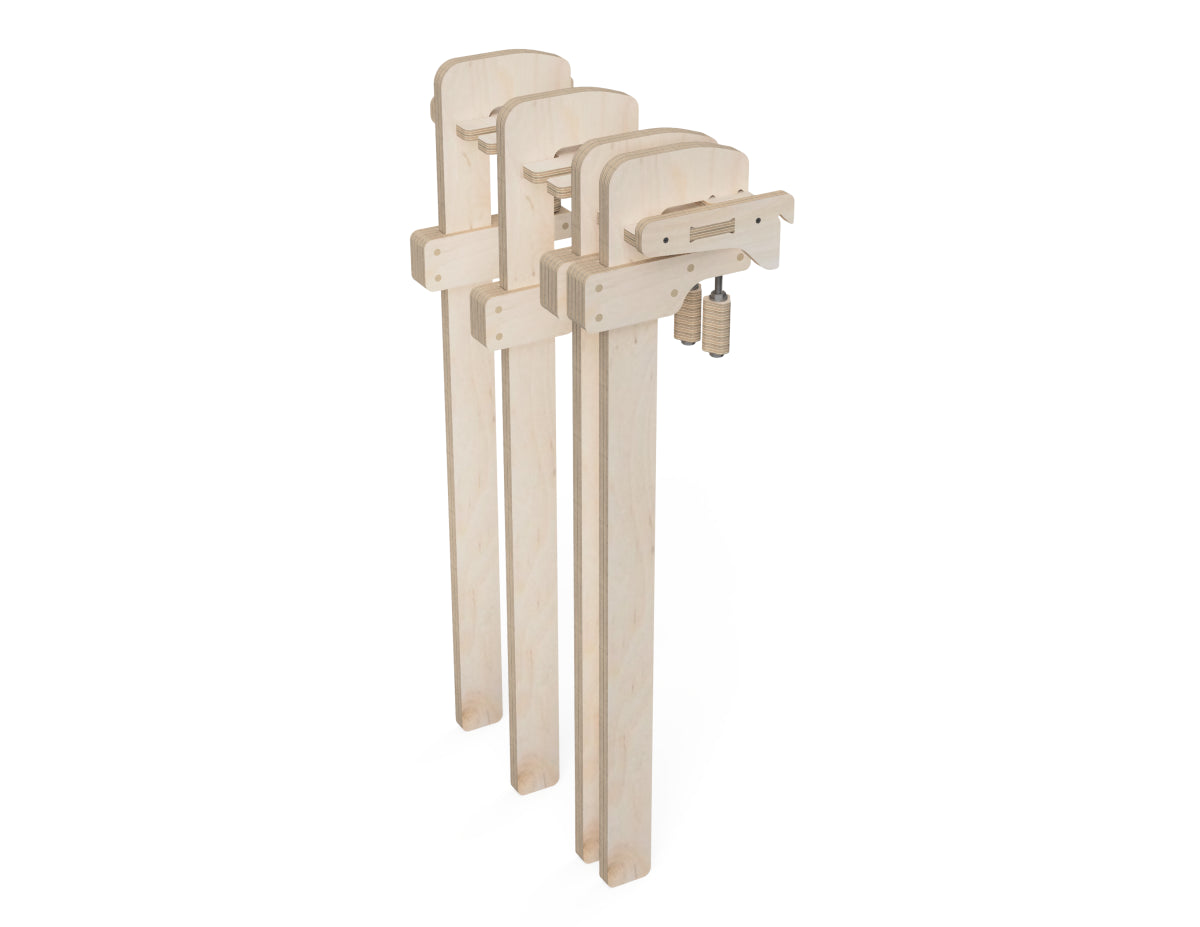

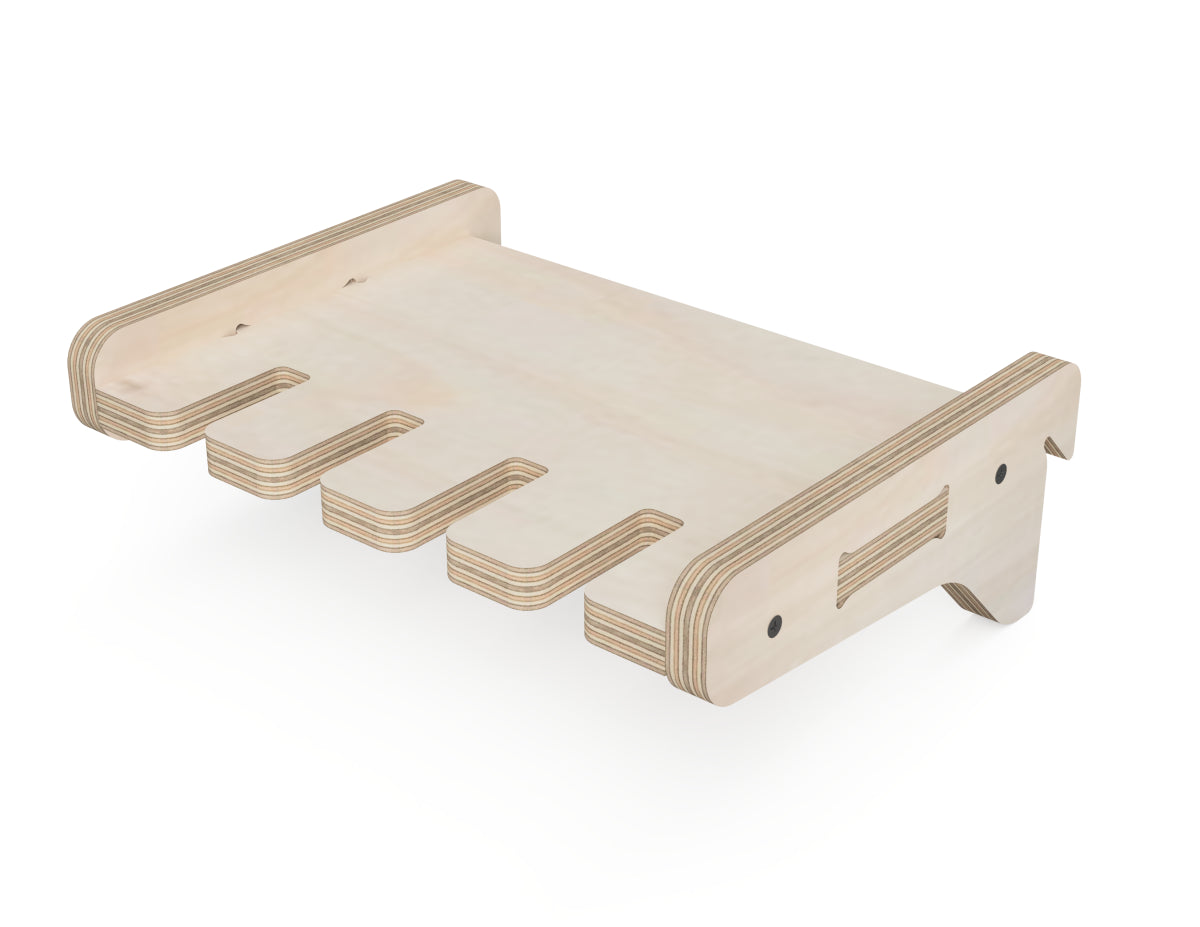

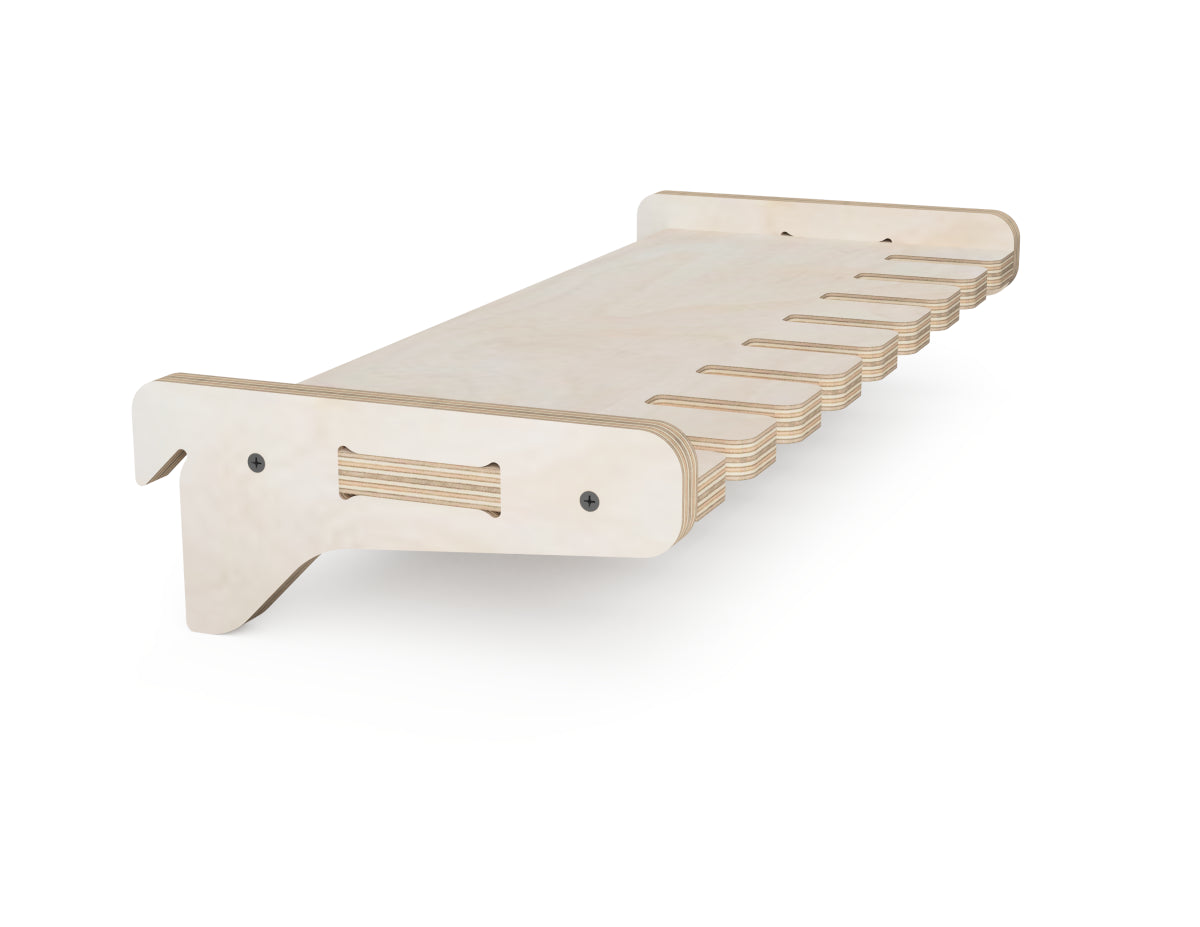

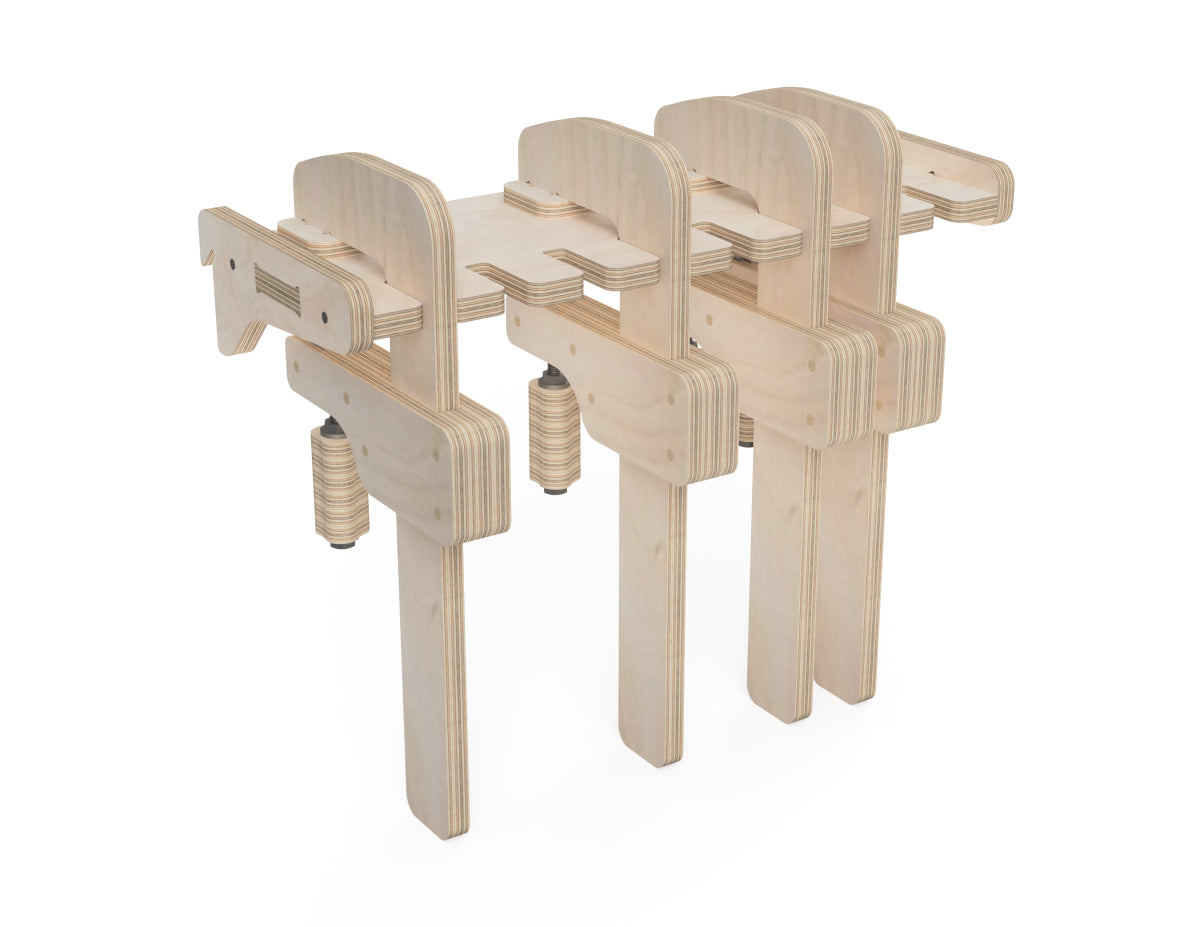

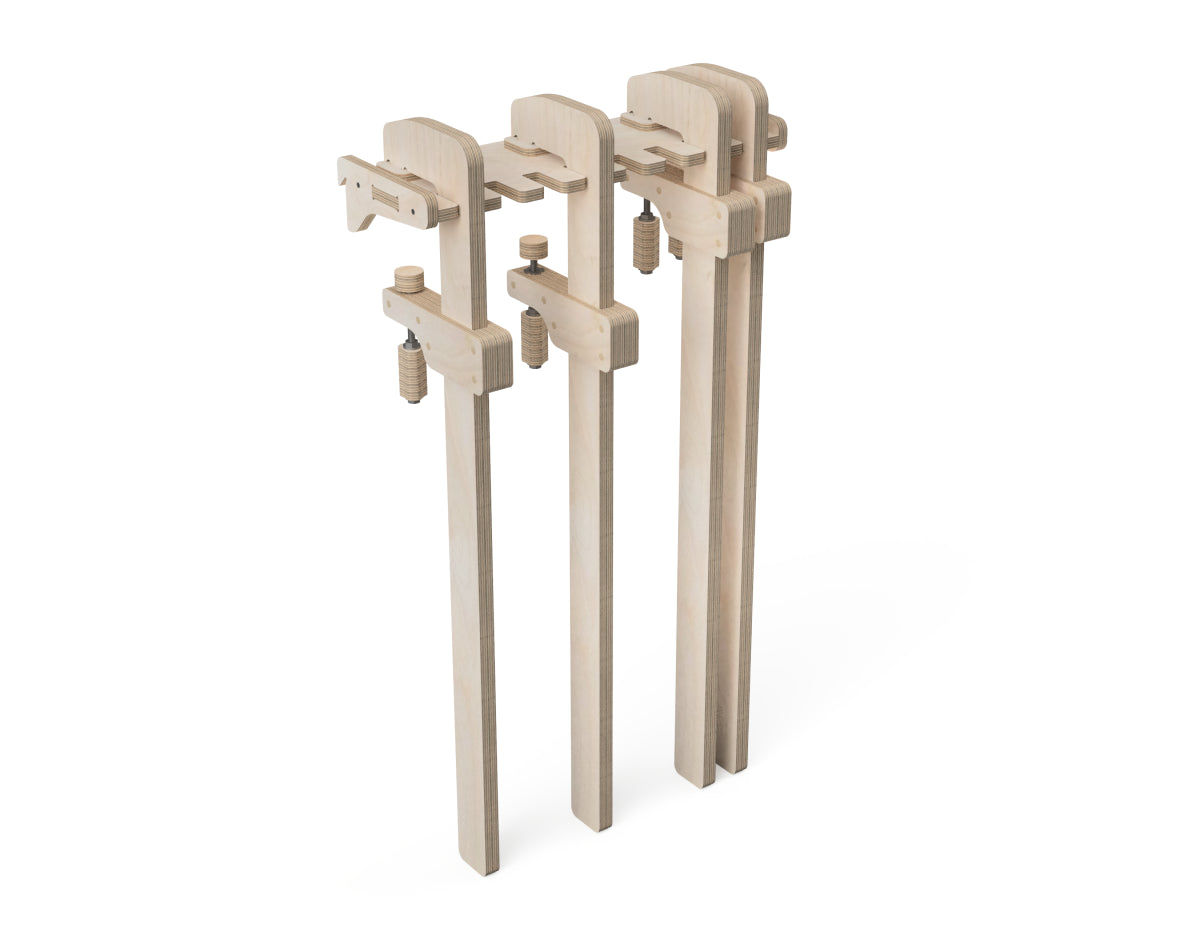

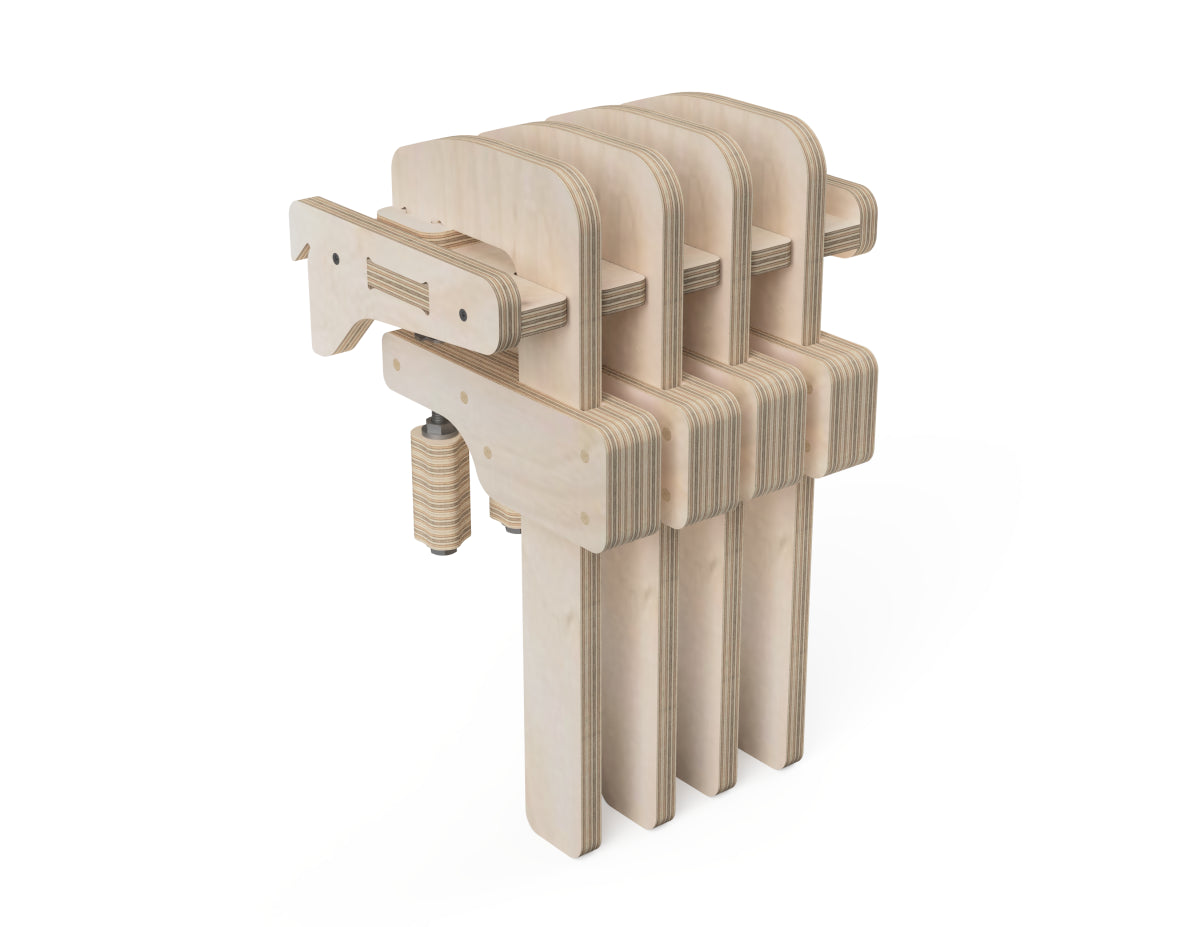

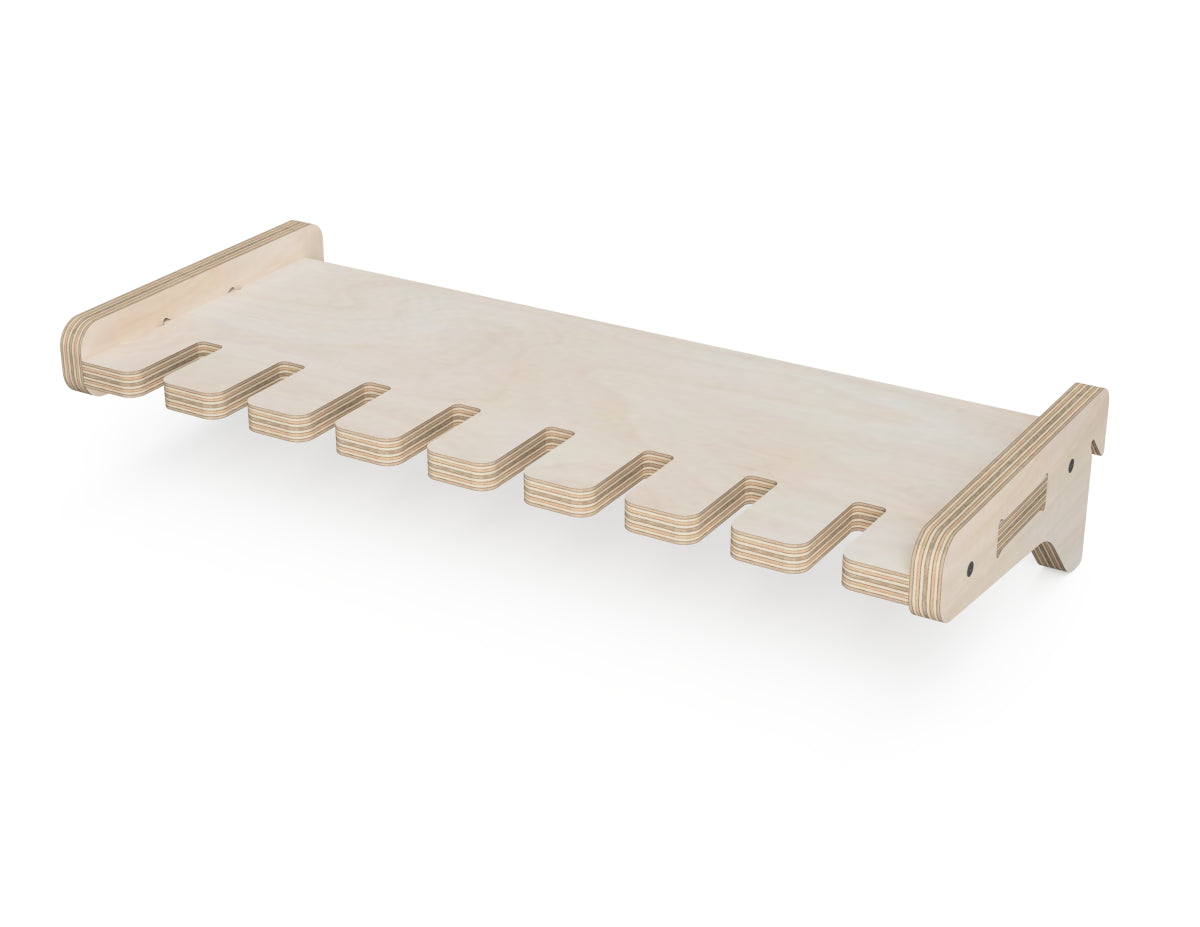

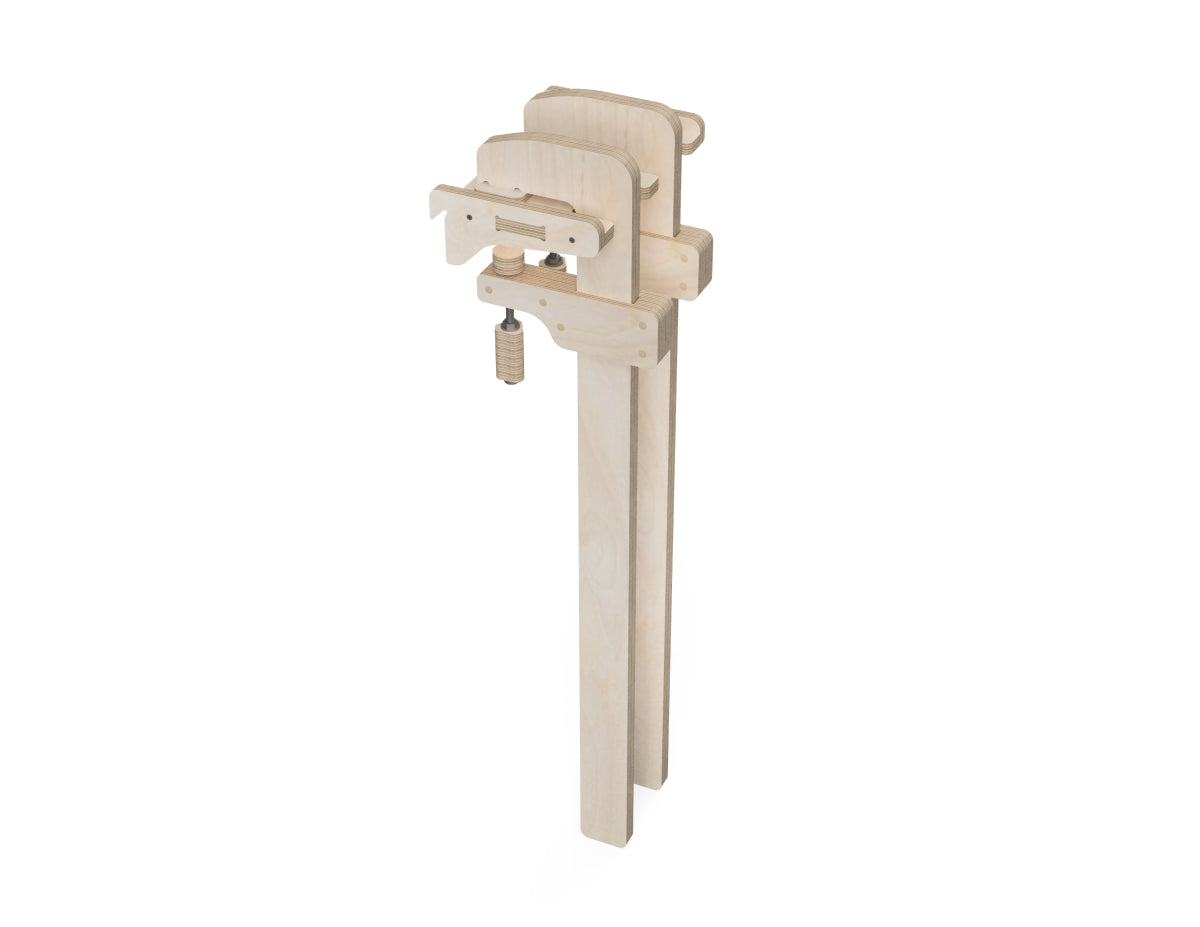

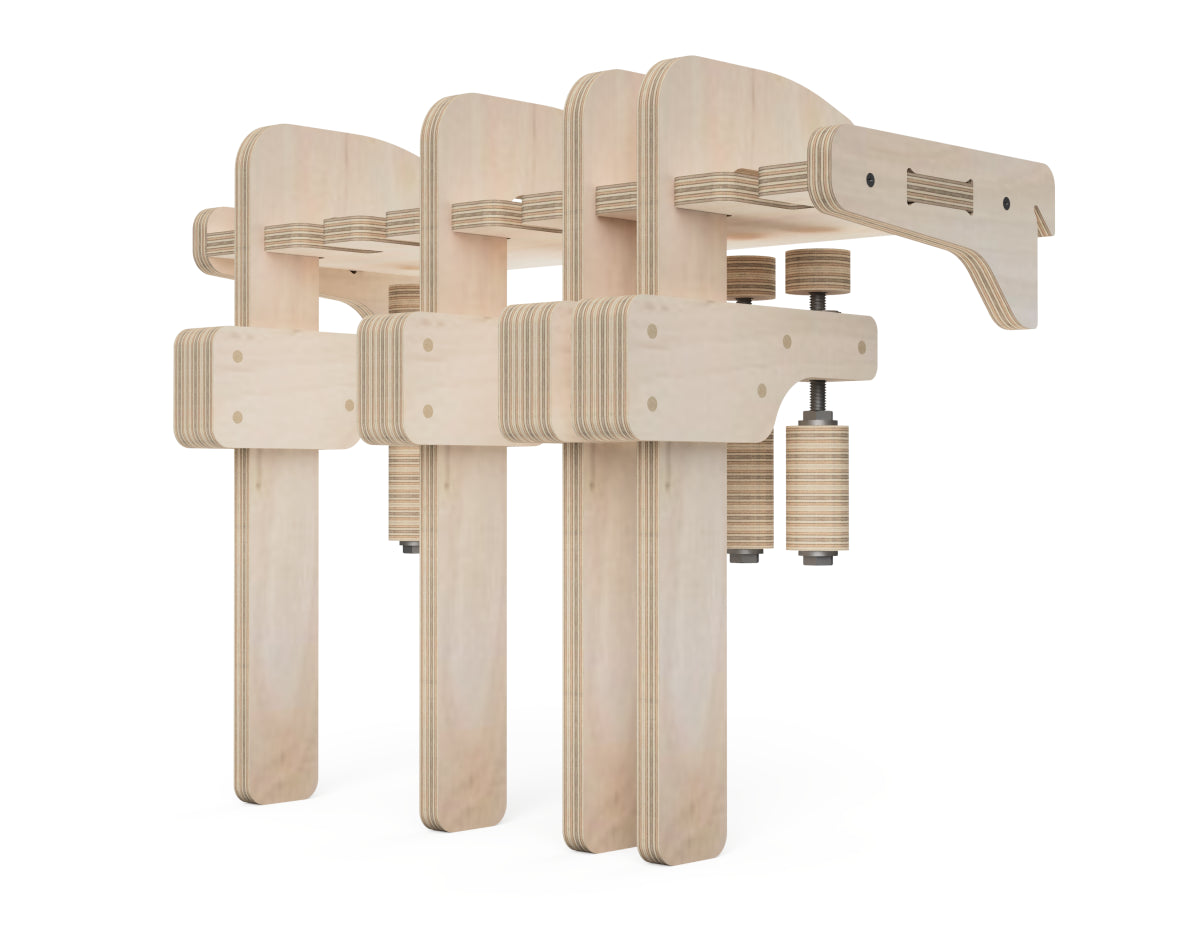

The files include designs for racks holding 4 or 8 clamps, compatible with both Aribabox clamps and traditional clamp types.

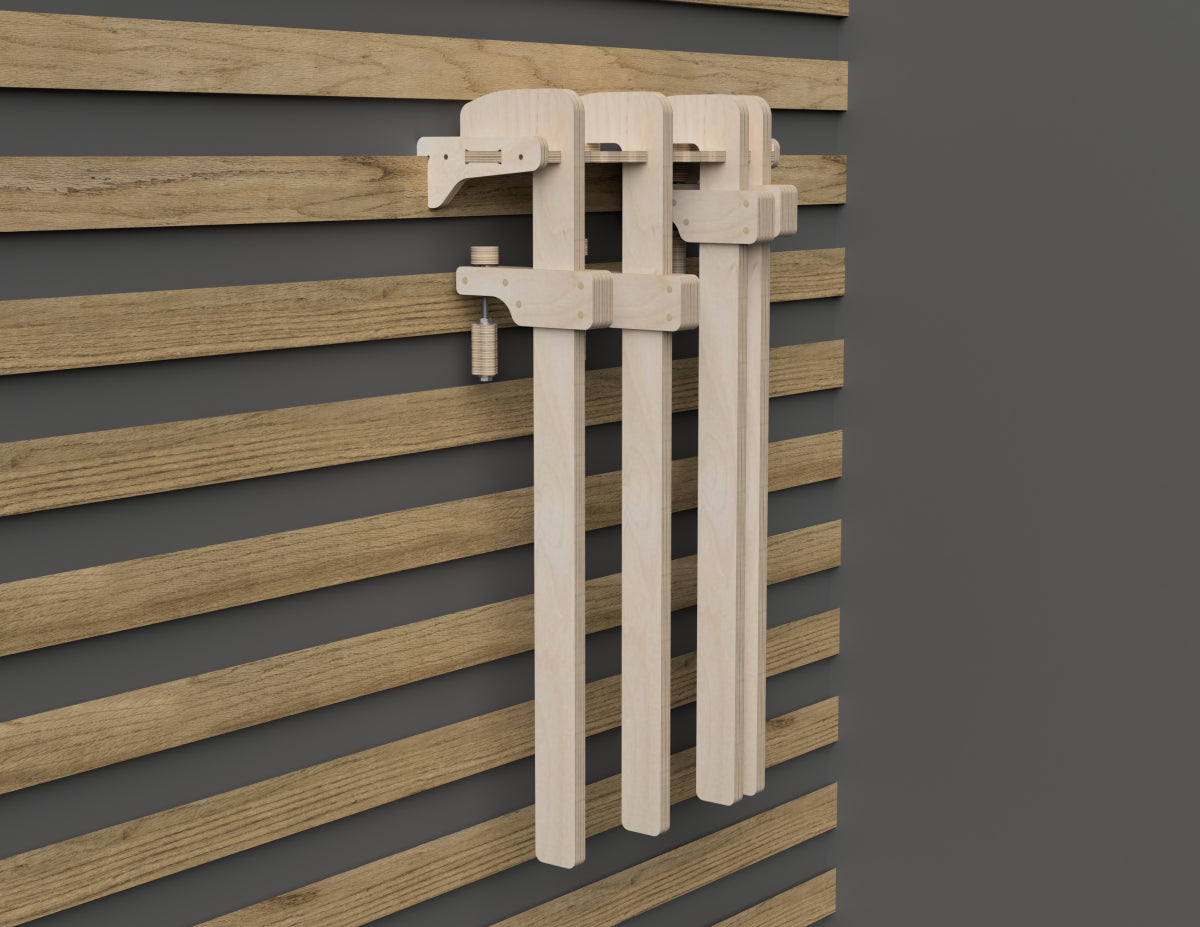

Ideal for workshops with walls using a cleat system at least 12mm thick, this solution keeps your tools within reach and saves space.



Download the DXF files and streamline your workspace today! Perfect for DIY enthusiasts and professionals alike.

Supported CNC sizes

The project can be made on a 600 x 600 mm (2 x 2 ft) CNC router and bigger.

Max single piece size

The biggest component is 445 x 160 mm (17.52 x 6.3 inches).
So if it can fit on your CNC router, you can build this project

Dimensions


Minimum

Width Length Height
230 mm 165 mm 75 mm
9 inch 6½ inch 2 inch

Maximum

Width Length Height
445 mm 165 mm 75 mm
17½ inch 6½ inch 2 inch

Required materials

For a 600 x 900 mm (2 x 3 ft) CNC and bigger
- 1 sheets of 500 x 300 x 12 mm (20 x 12 x 1/2 inches) plywood
- 3 mm (1/8 inch) router bit
- 4 wood screws (optional)

Approximate CNC time

5 minutes

Assembling time

10 minutes
The product may differ from the representative images when cut and assembled. We hope you will enjoy your purchase from Aribabox!
