Circle Center Finder Jig - DXF Files
Circle Center Finder Jig - DXF Files
Regular price
$0.00 USD
Regular price
Sale price
$0.00 USD
Unit price
/
per
Taxes included.
Couldn't load pickup availability

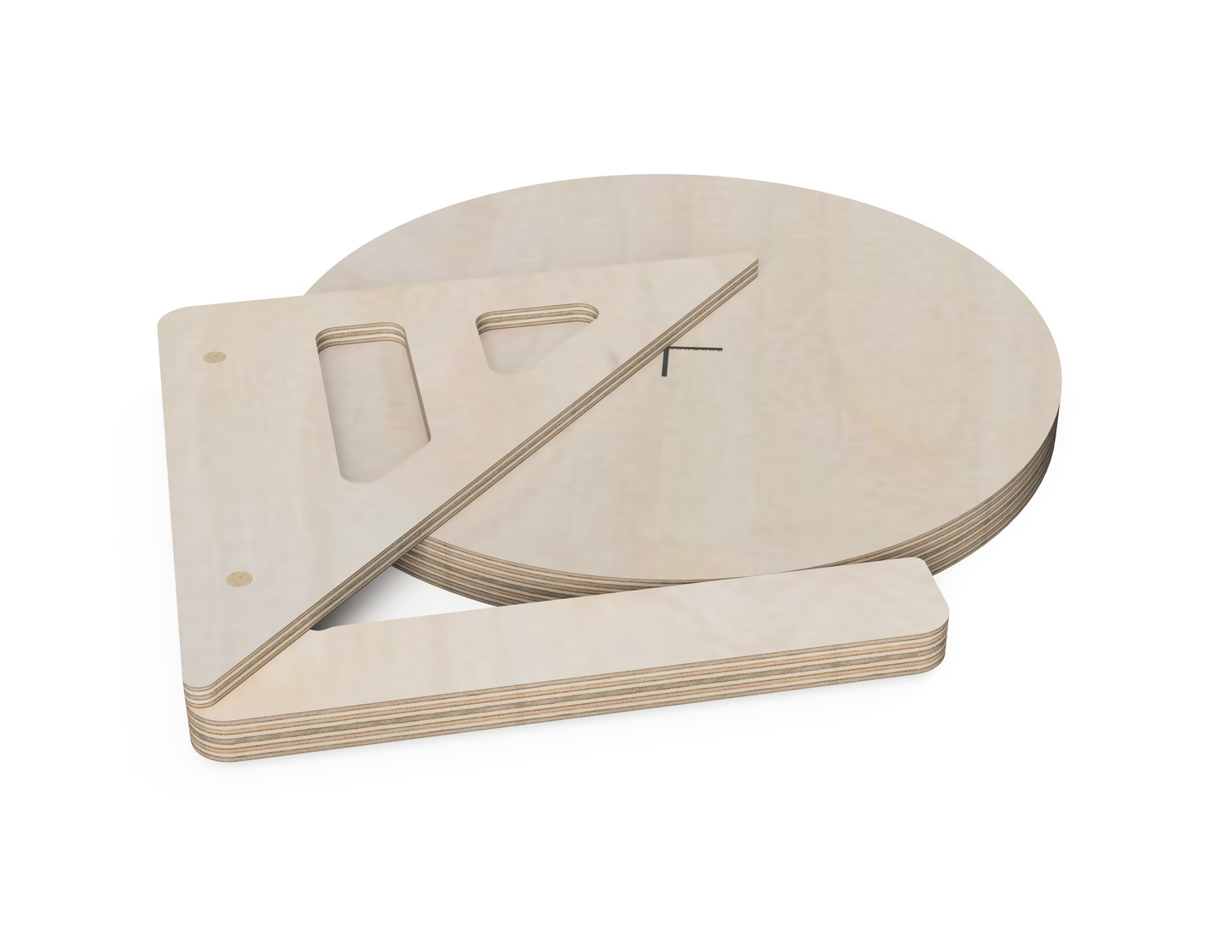

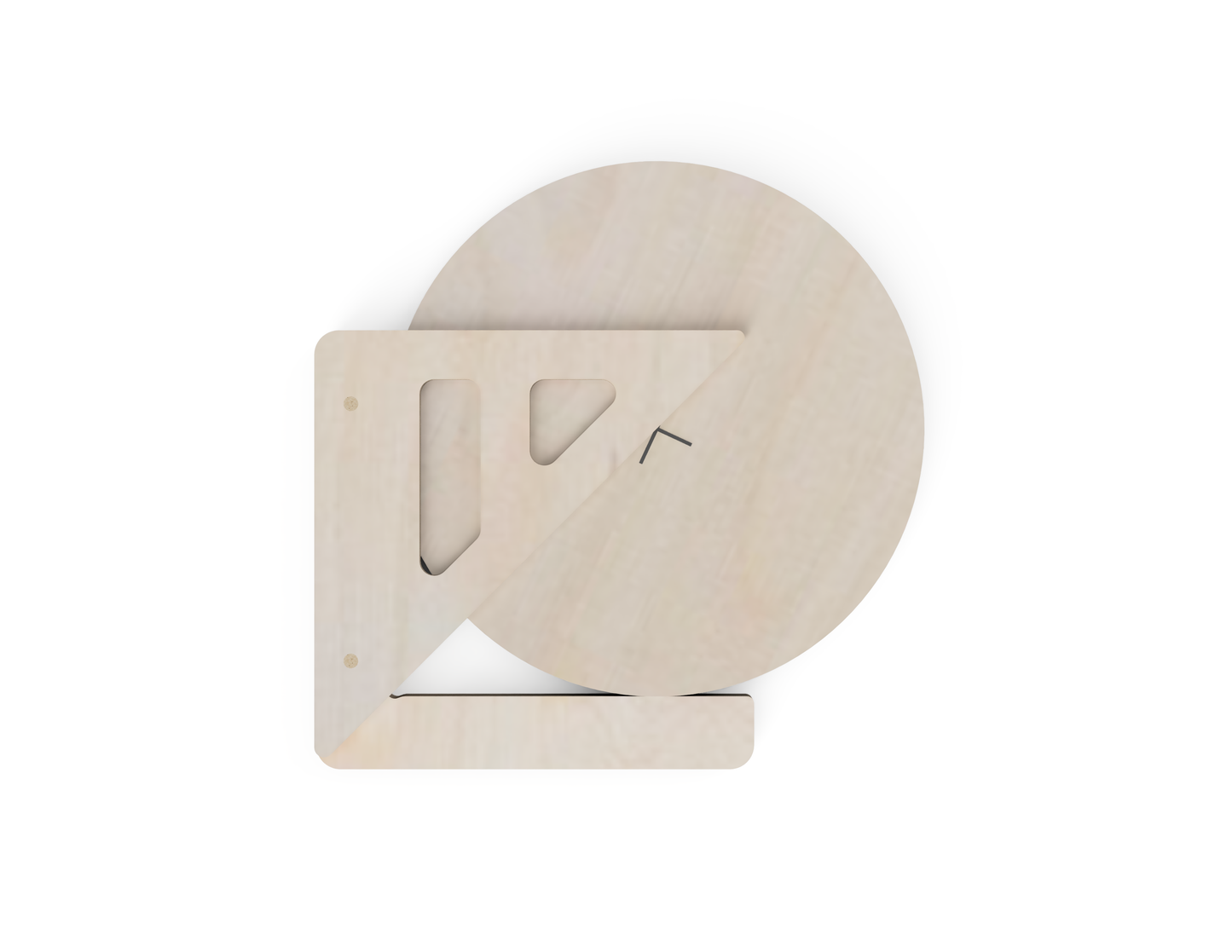

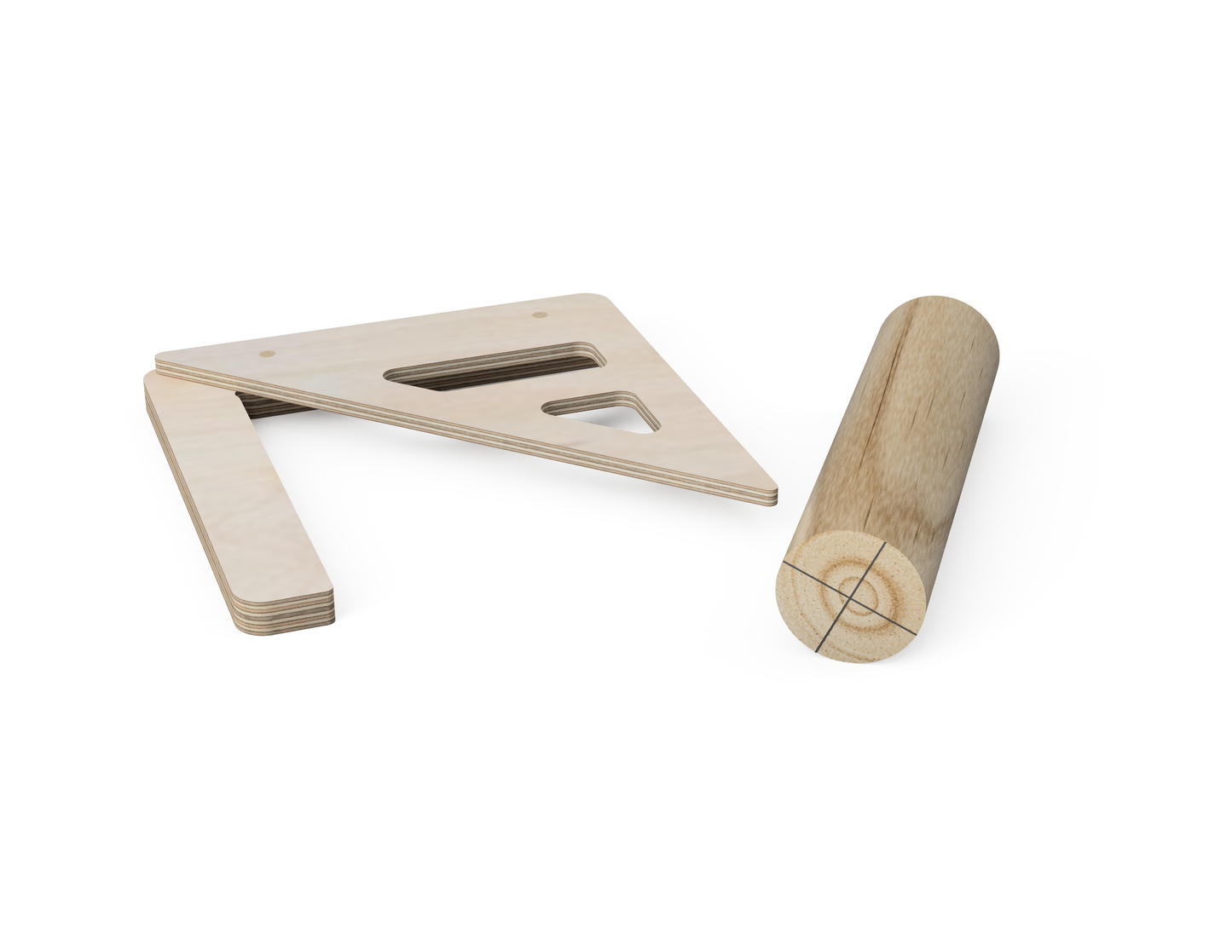

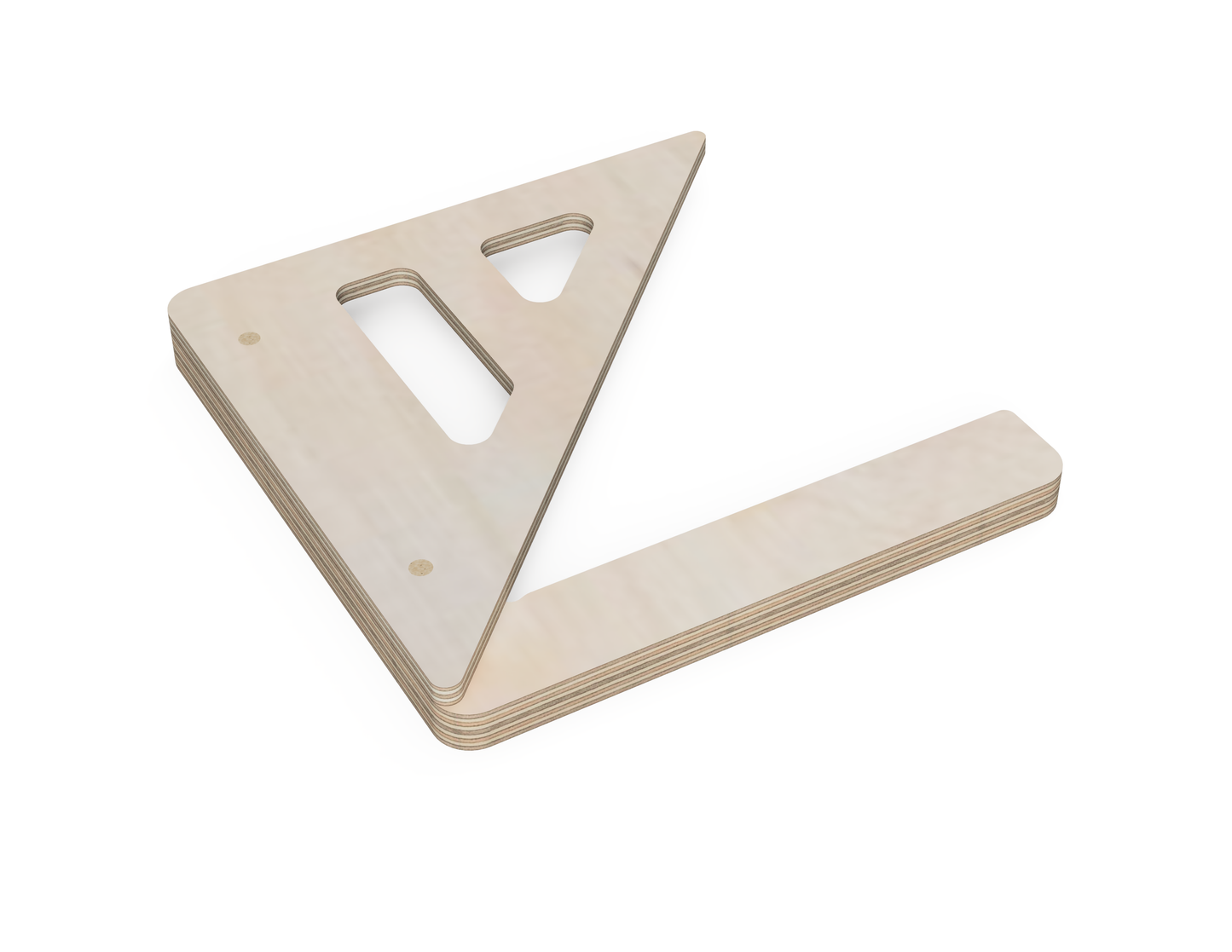

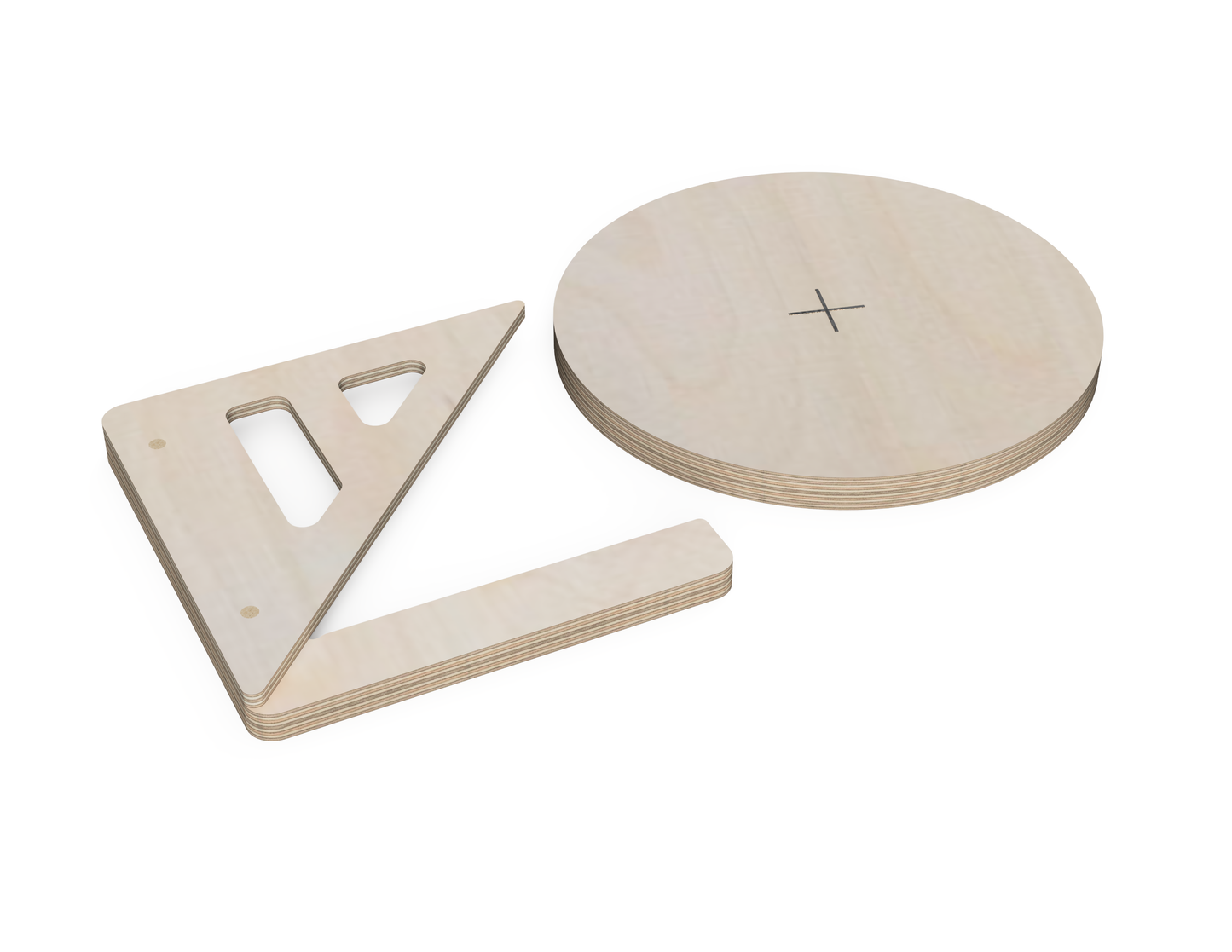

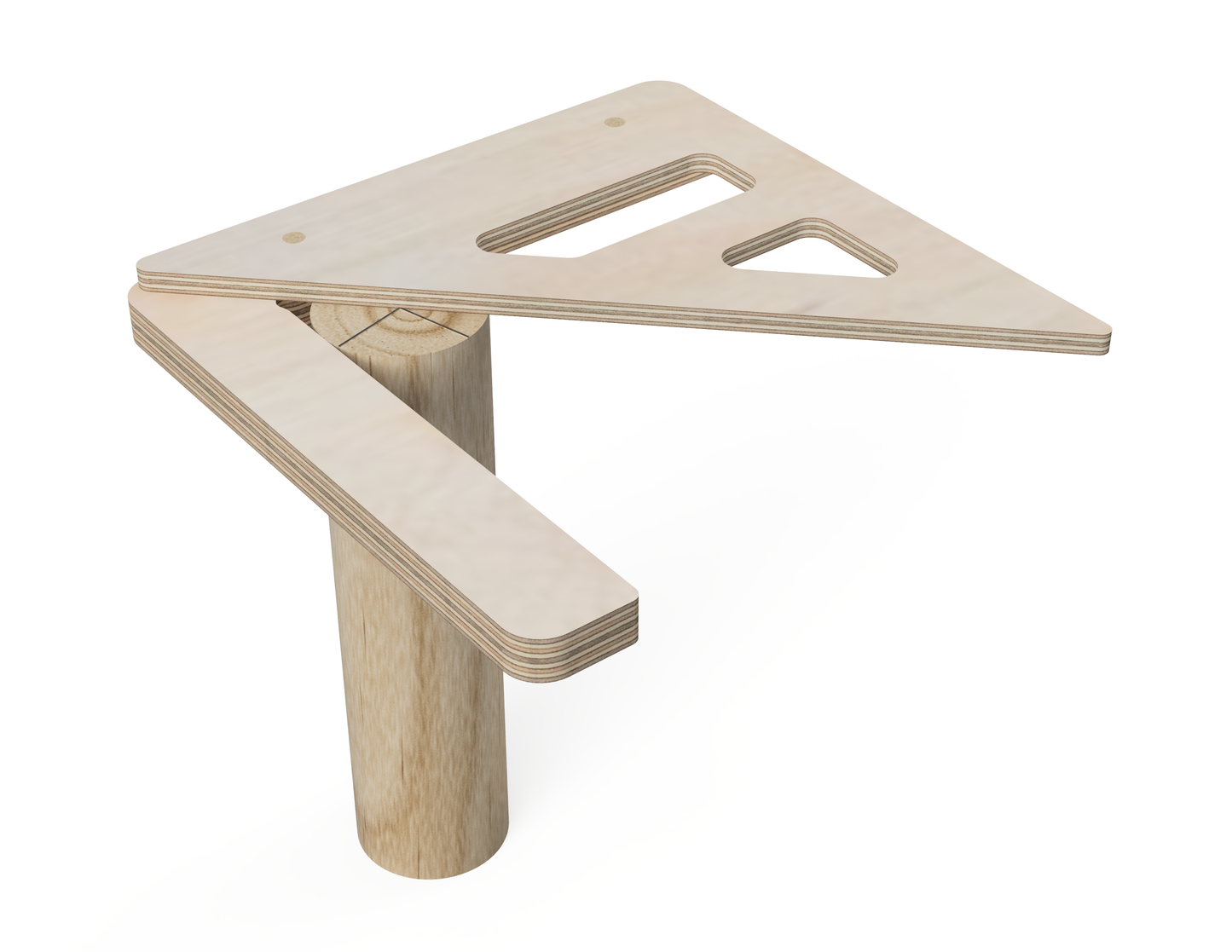

Get precise center points every time with our Circle Center Finder Jig - Free DXF Files! Perfect for CNC router users, this easy-to-make jig simplifies finding the exact center of any circular object, making it an essential tool for any workshop.
Download now to add this compact, efficient tool to your arsenal—ideal for woodworkers, DIYers, and CNC enthusiasts.
Supported CNC sizes
Supported CNC sizes
The project can be made on a
600 x 600 mm (2 x 2 ft) CNC
router and bigger.
Max single piece size
Max single piece size
The biggest component is
180
x
180
mm (7.09
x
7.09
inches).
So if it can fit on your CNC router, you can build this project
So if it can fit on your CNC router, you can build this project
Dimensions
Dimensions
| Width | Length | Height |
|---|---|---|
| 180 mm | 180 mm | 18 mm |
| 7⅛ inch | 7⅛ inch | ¾ inch |
Required materials
Required materials
For a 600 x 900 mm (2 x 3 ft) CNC and bigger:
For a 600 x 900 mm (2 x 3 ft) CNC and bigger:
- 1 sheet of 250 x 250 x 12 mm (10 x 10 x 1/2 inches) plywood
- 1 sheet of 250 x 250 x 6 mm (10 x 10 x 1/4 inches) plywood
- Wooden dowels - 6 mm (¼ inches) diameter
- 3 mm (⅛ inch) router bit
Approximate CNC time
Approximate CNC time
20 minutes
Assembling time
Assembling time
10 minutes
The product may differ from the representative images when cut and assembled. We hope you will enjoy your purchase from Aribabox!
