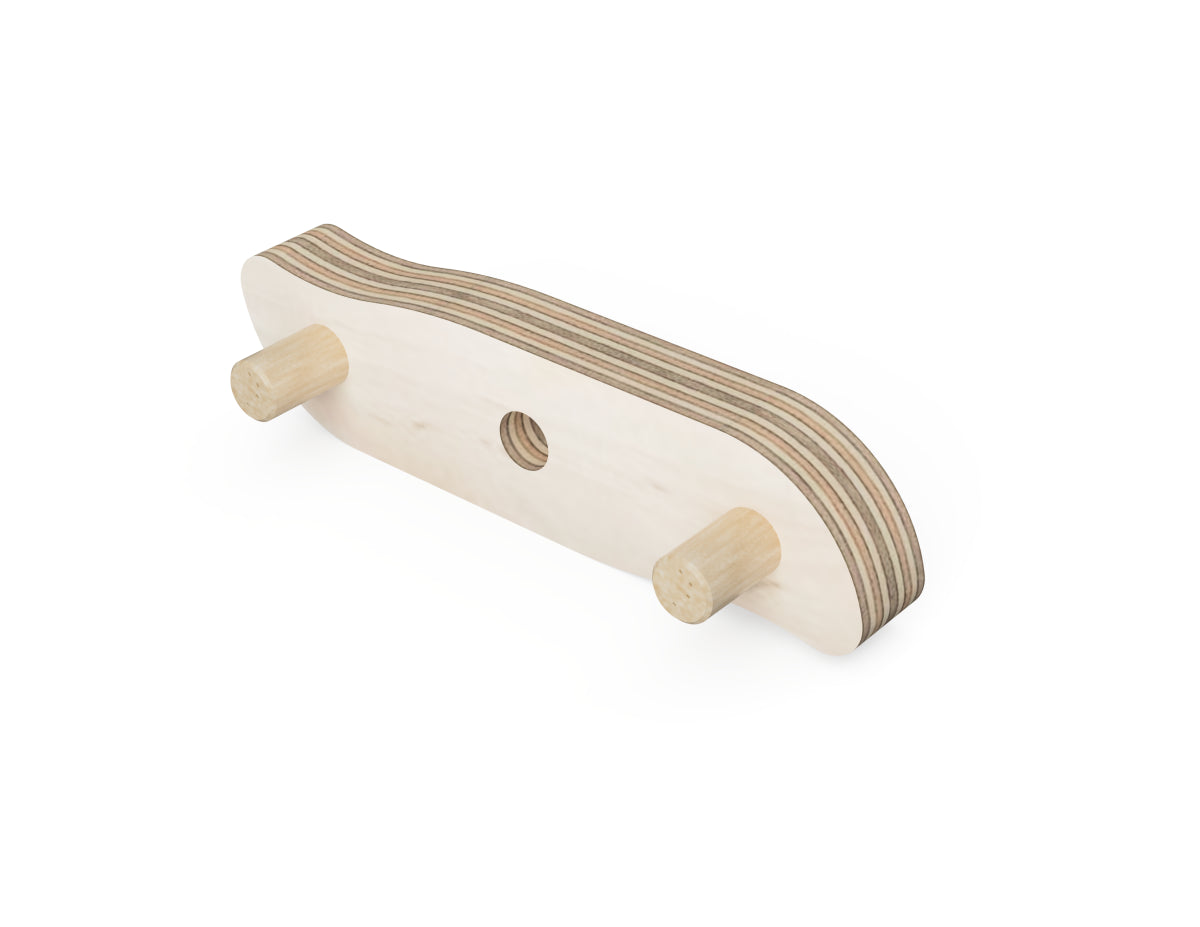

  • small jig made on a CNC router for marking center line on the workpiece - rendered image.

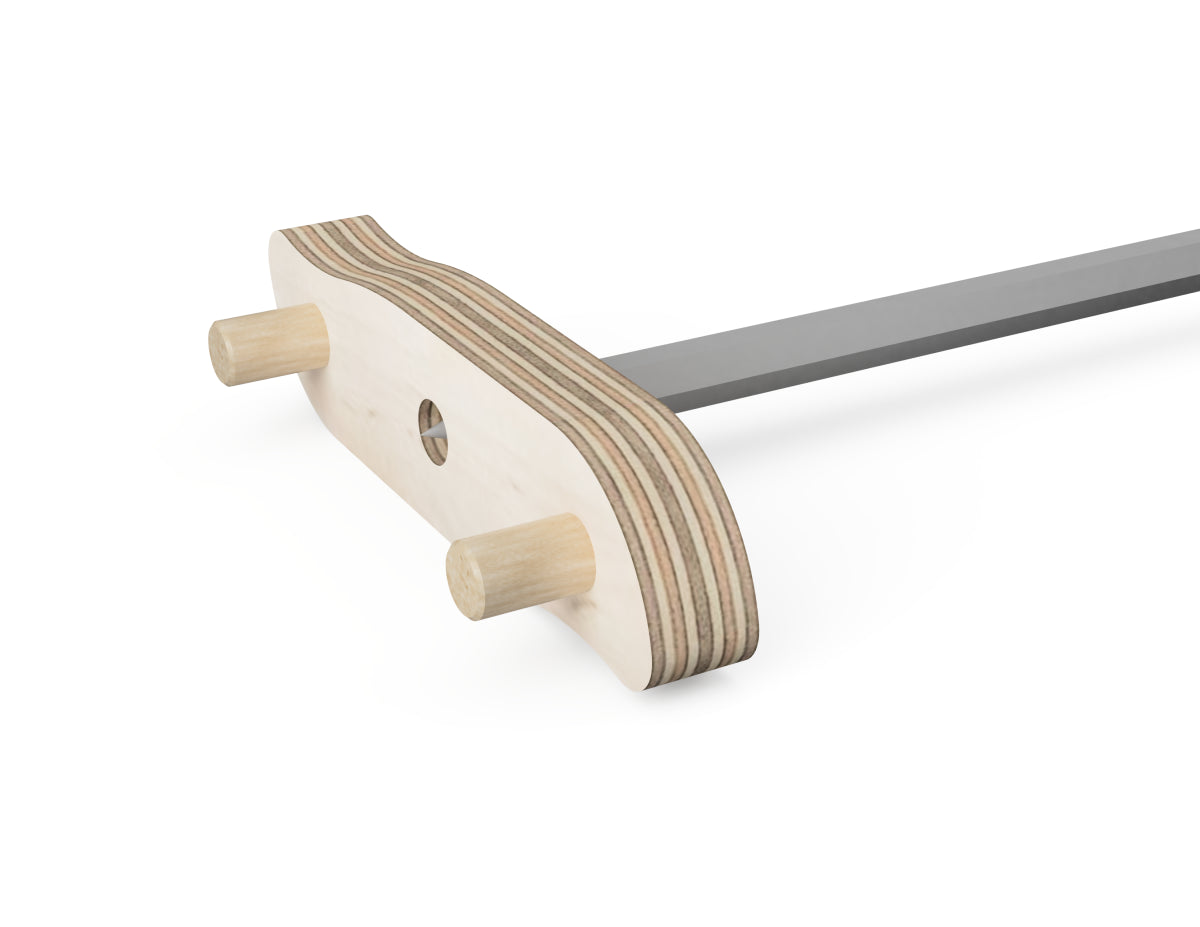

  • small jig made on a CNC router for marking center line on the workpiece - rendered image of jig in use
1 4

Center Marking Jig Free DXF Files

Center Marking Jig Free DXF Files

$0.00 USD
$0.00 USD
Sale Sold out
Taxes included.

Download free DXF files to make a handy center marking jig on your CNC machine.



This simple 5-minute project helps you quickly mark the exact center line of any workpiece and makes it easy to pre-drill dowel holes in sheet material or hardwood edges.



A perfect little addition to your CNC tool collection!

Supported CNC sizes

The project can be made on a 600 x 600 mm (2 x 2 ft) CNC router and bigger.

Dimensions

Width Length Height
95 mm 24 mm 12 mm
3¾ inch inch ½ inch

Required materials

For a 600 x 600 mm (2 x 2 ft) CNC and bigger:
- a sheet of 120 x 50 mm (5 x 2 inches) plywood
- 6 mm or 8 mm (1/4 or 5/16 inch) dowels

Approximate CNC time

2 minutes

Assembling time

1 minute
