Toy Catapult DXF Files

Toy Catapult DXF Files

$7.45 USD
$7.45 USD $7.45 USD
Sale Sold out
Taxes included.

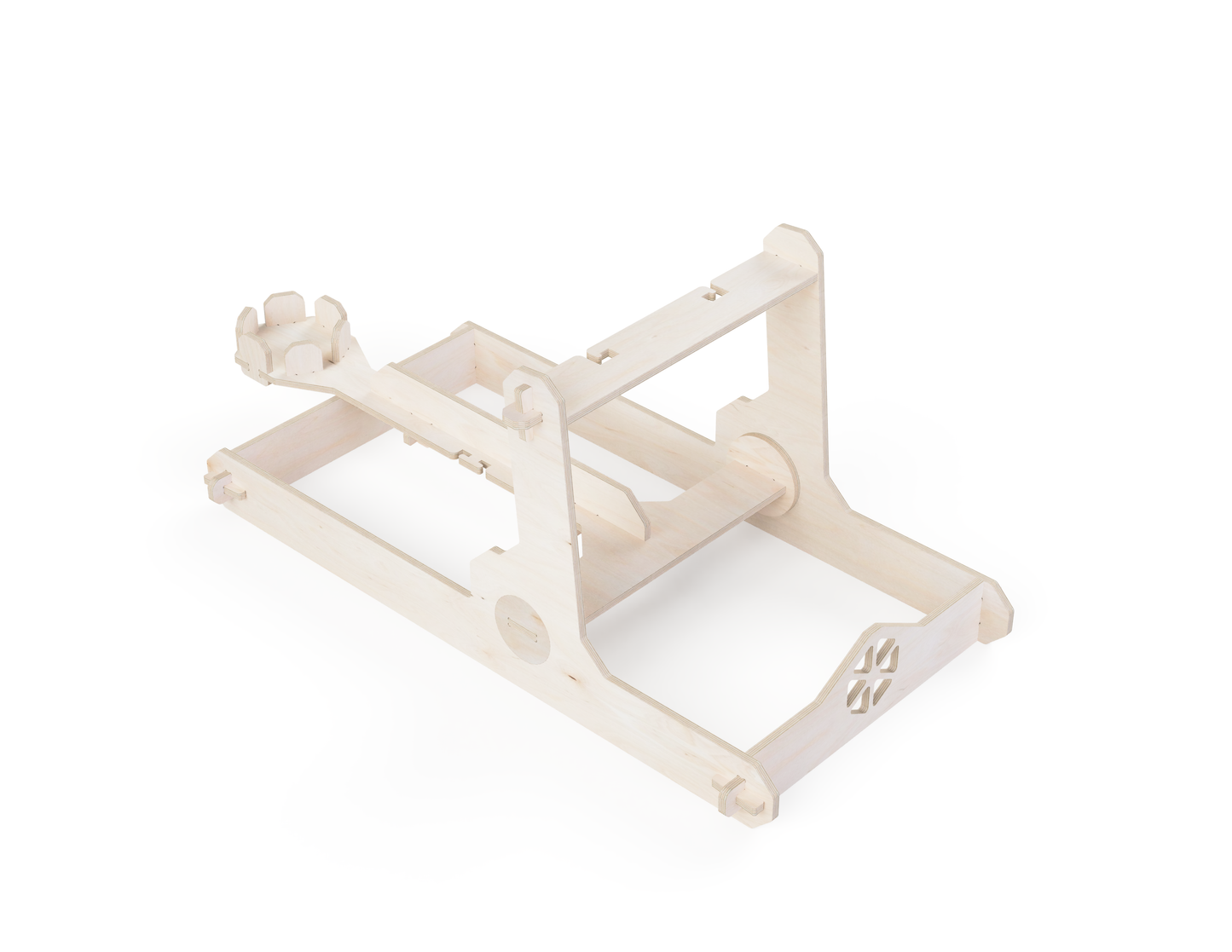

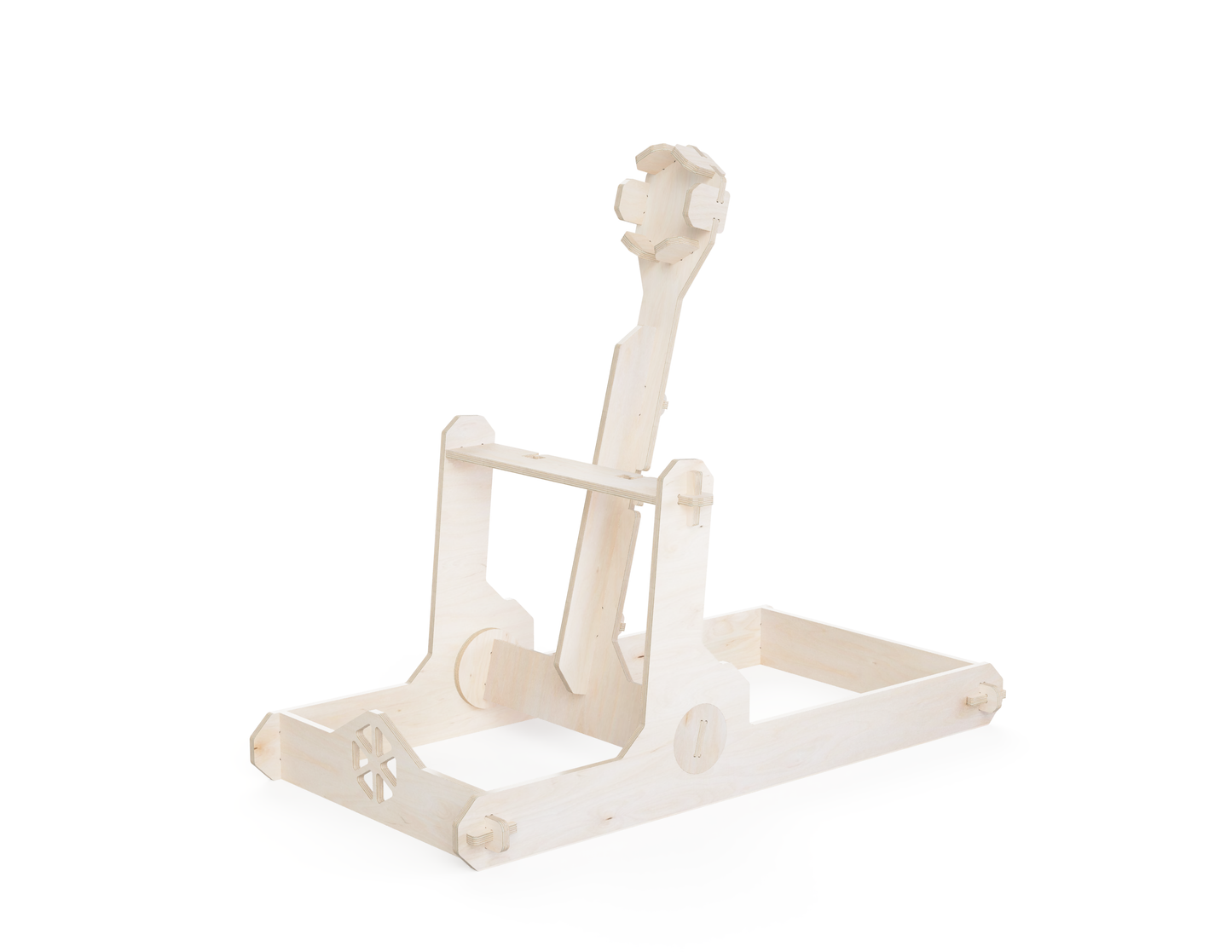

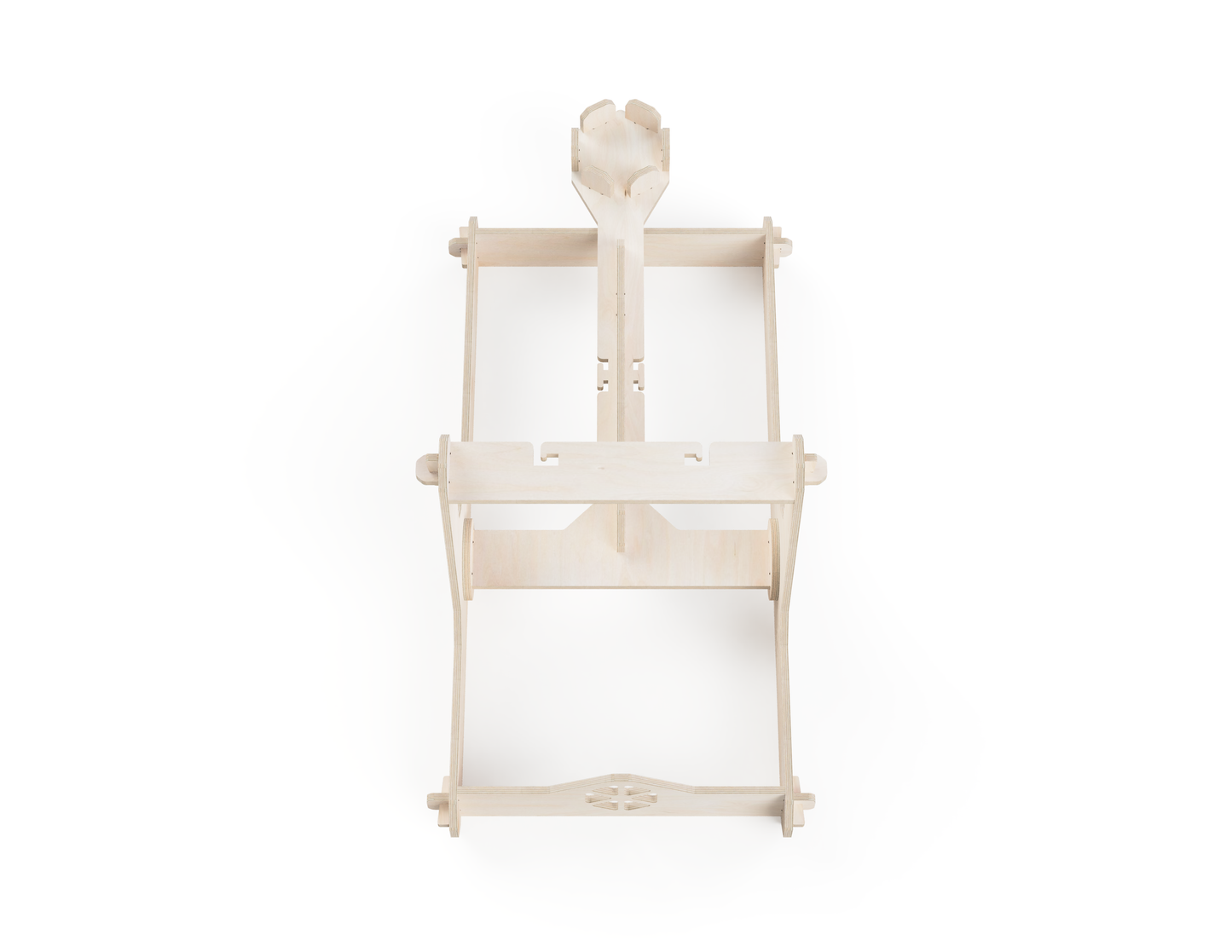

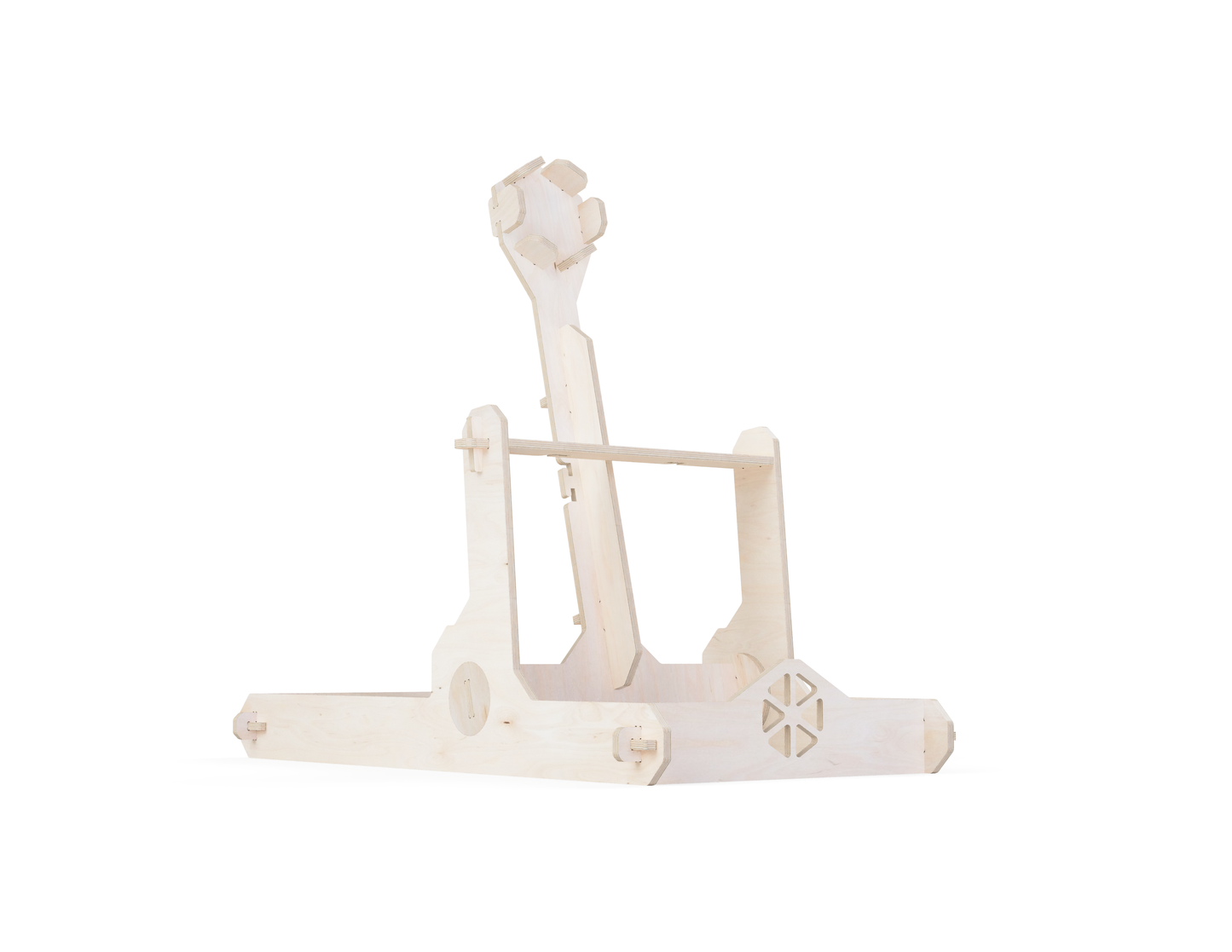

Create a fun and educational toy catapult with these easy-to-use DXF files, designed for CNC routers. Perfect for boys interested in classic mechanics, this model demonstrates the basic principles of catapult launching.



While the range is limited for safe play, it’s an engaging addition to any toy collection. Ideal for hands-on learning and creative woodworking projects.

Supported CNC sizes

The project can be made on a 600 x 900 mm (2 x 3 ft) CNC router and bigger.

Dimensions

Width Length Height
850 mm 450 mm 400 mm
33½ inch 17¾ inch 15¾ inch

Required materials

For 600 x 900 (2 x 3 ft) CNC
- 1 sheet of 600 x 900 x 9 mm (23-⅝ x 35-7/16 x 3/8 inches) plywood
- 1 sheet of 420 x 720 x 9 mm (17 x 29 x 3/8 inches) plywood
- 4 mm (1/8 inch) router bit for dogbones
For 900 x 1200 (3 x 4 ft) CNC and bigger
- 1 sheet of 700 x 1200 x 9 mm (28 x 47-¼ x 3/8 inches) plywood
- 4 mm (1/8 inch) router bit for dogbones

Assembling time

10 minutes
The product may differ from the representative images when cut and assembled. We hope you will enjoy your purchase from Aribabox!
