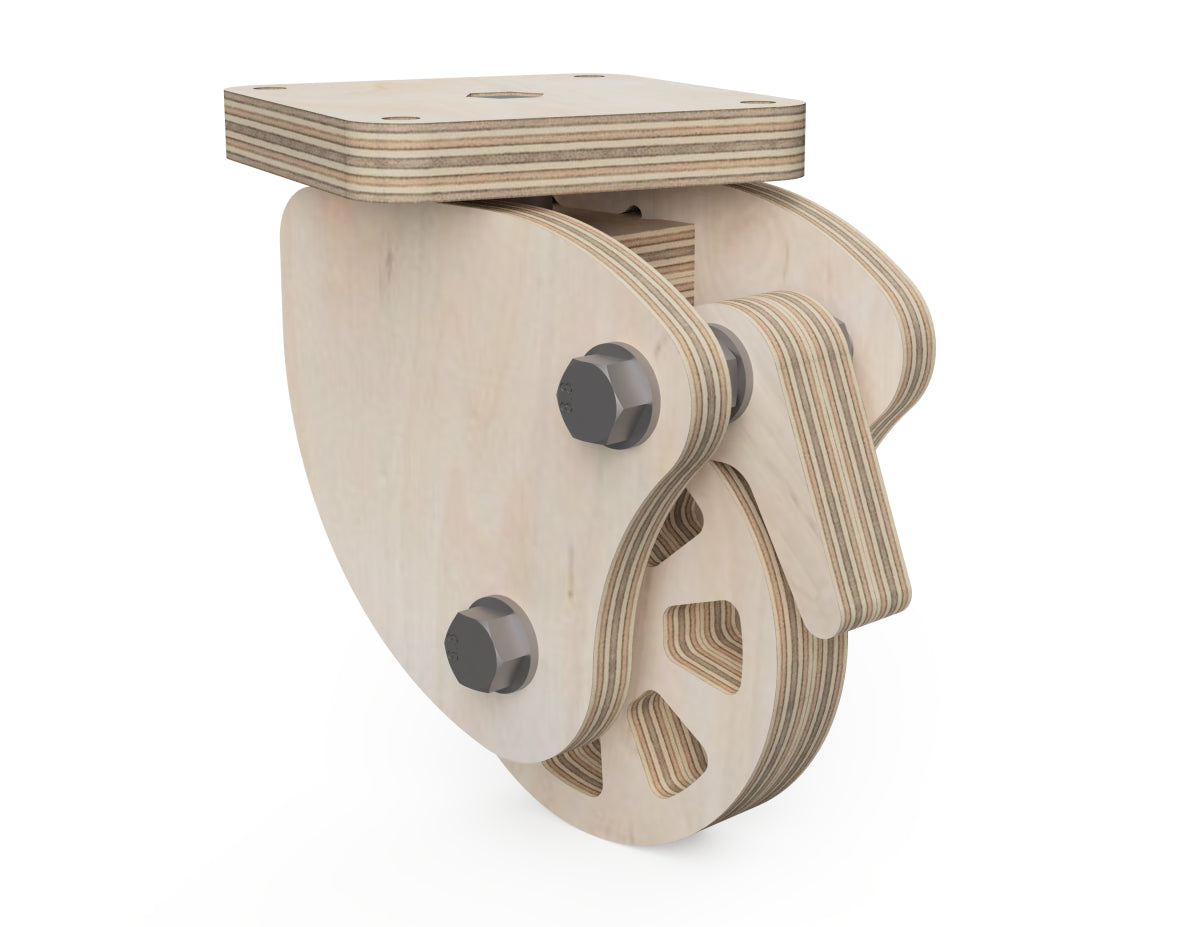

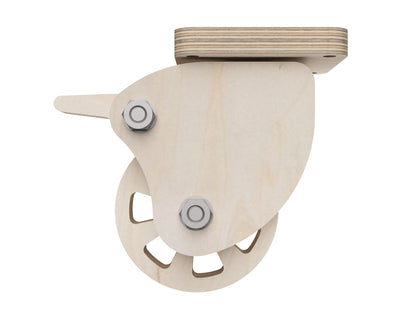

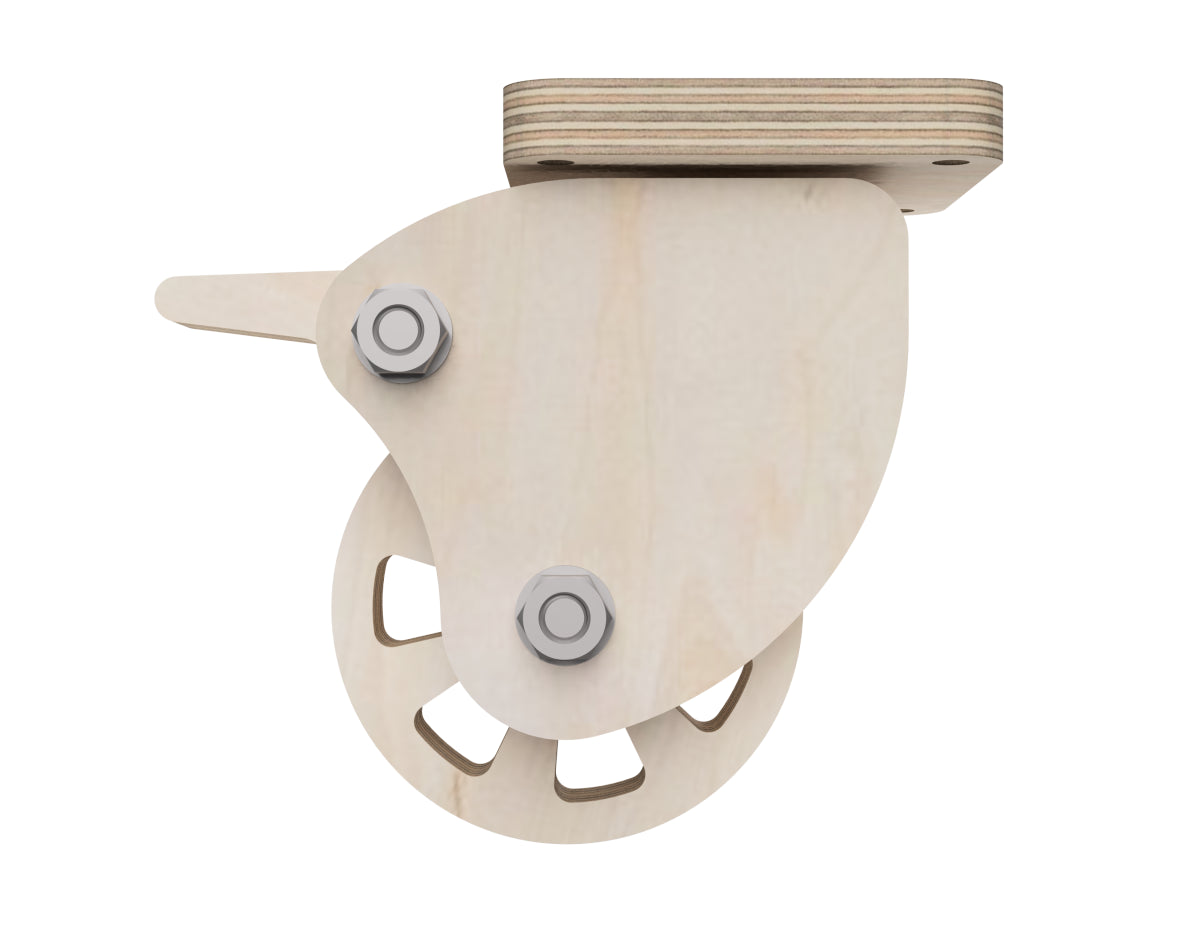

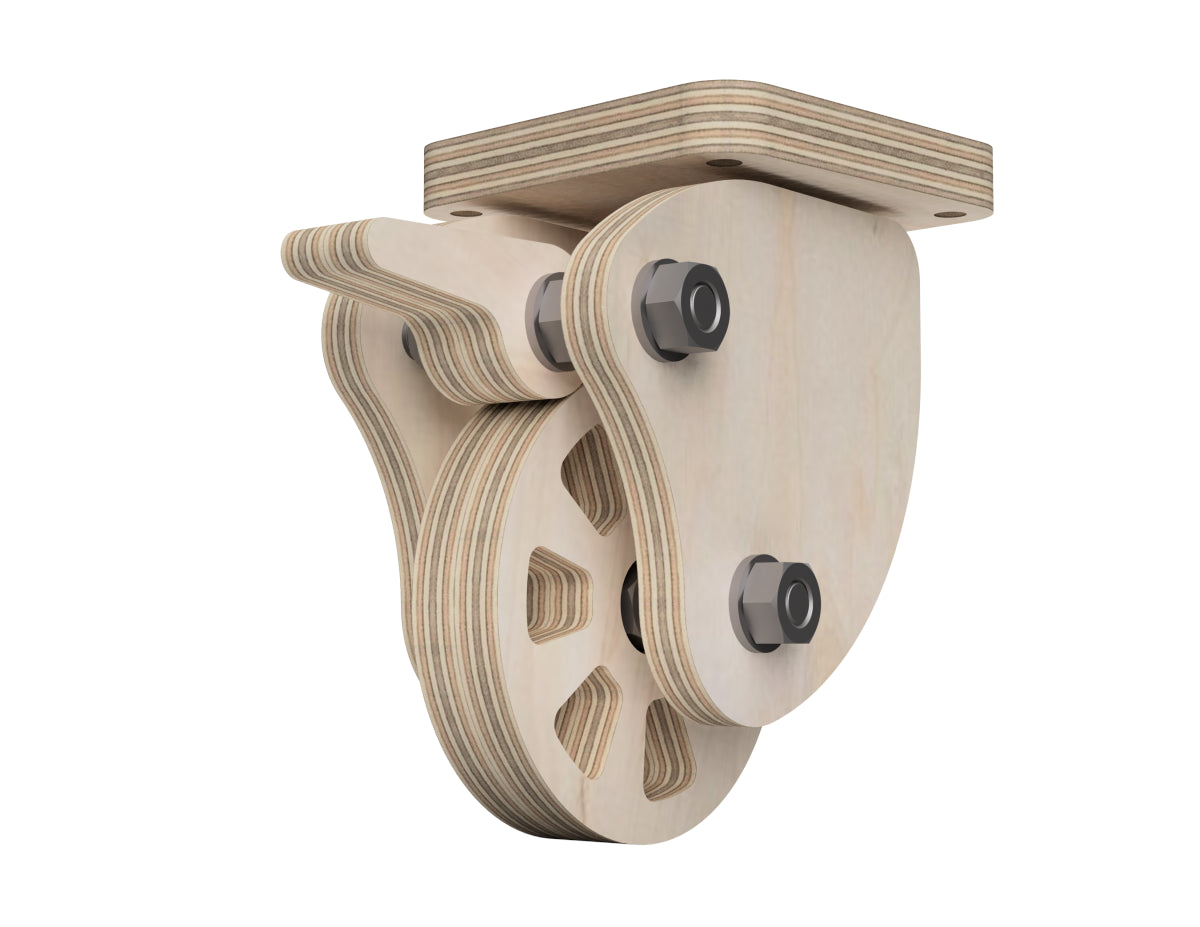

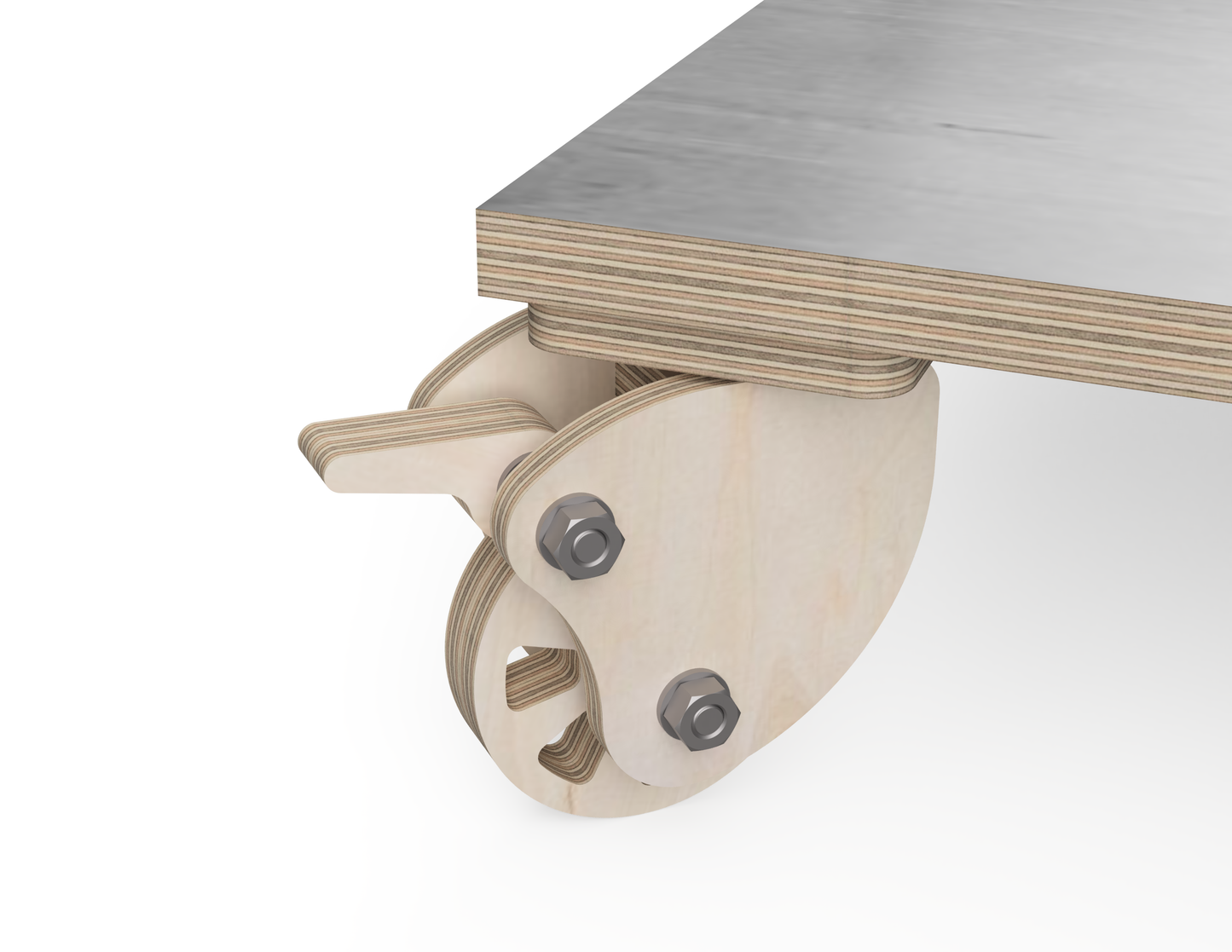

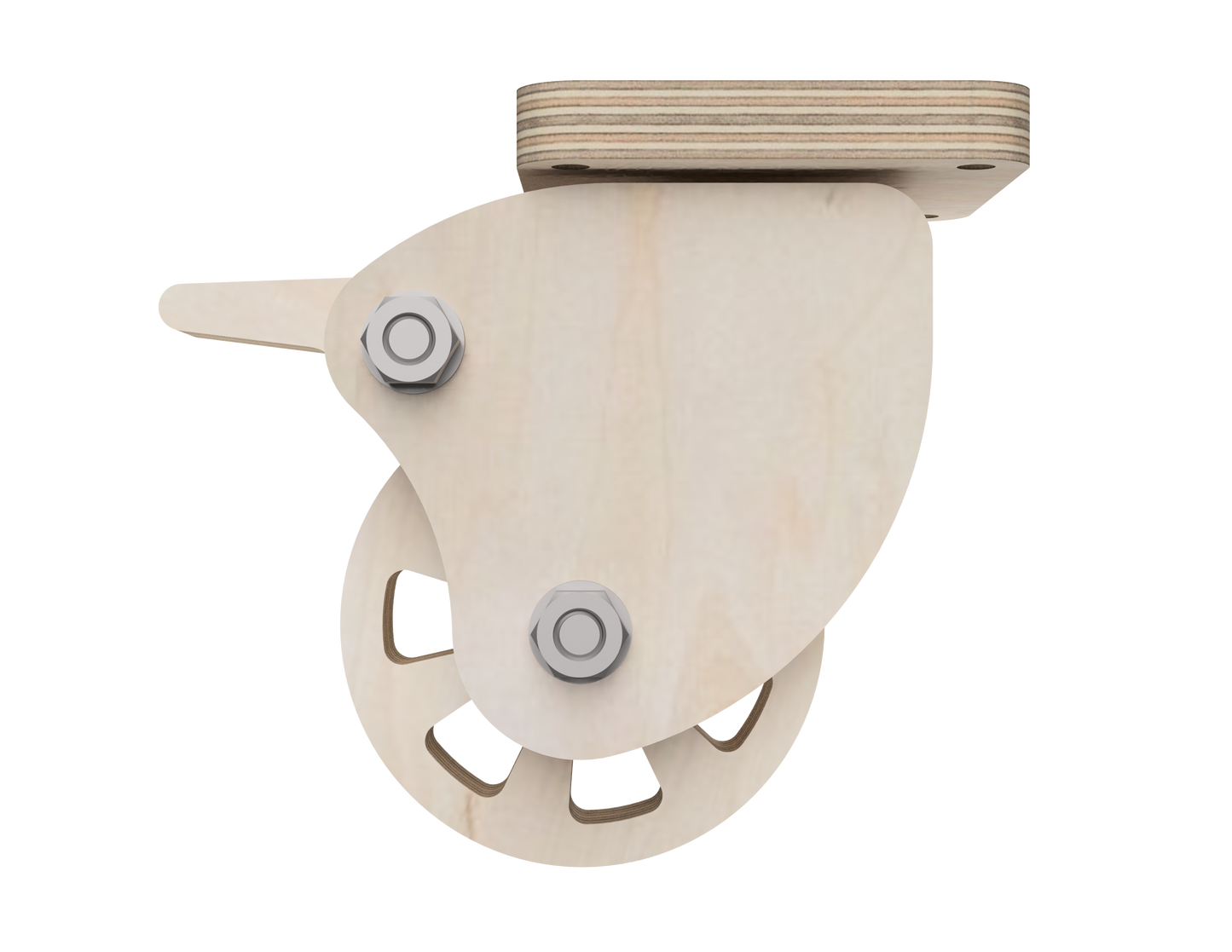

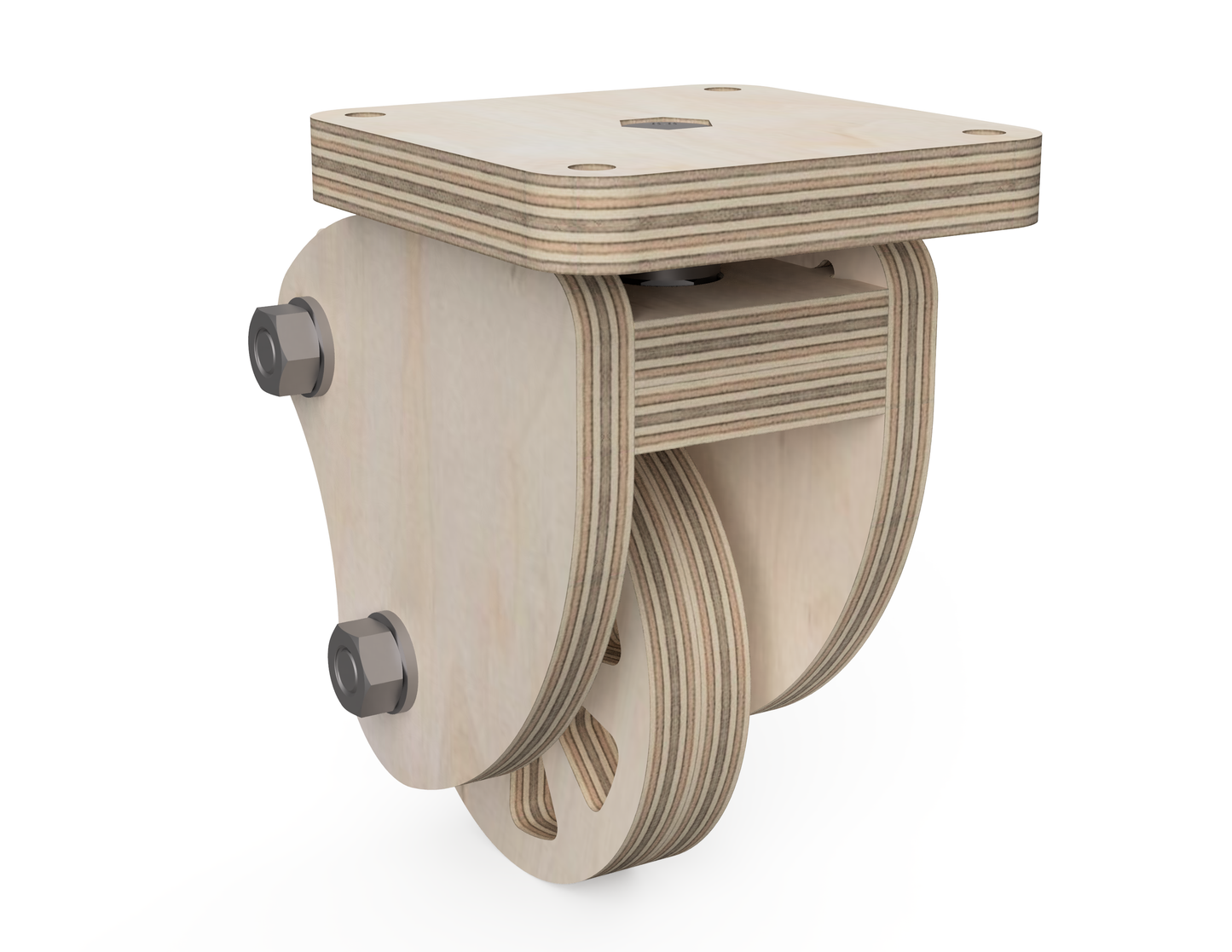

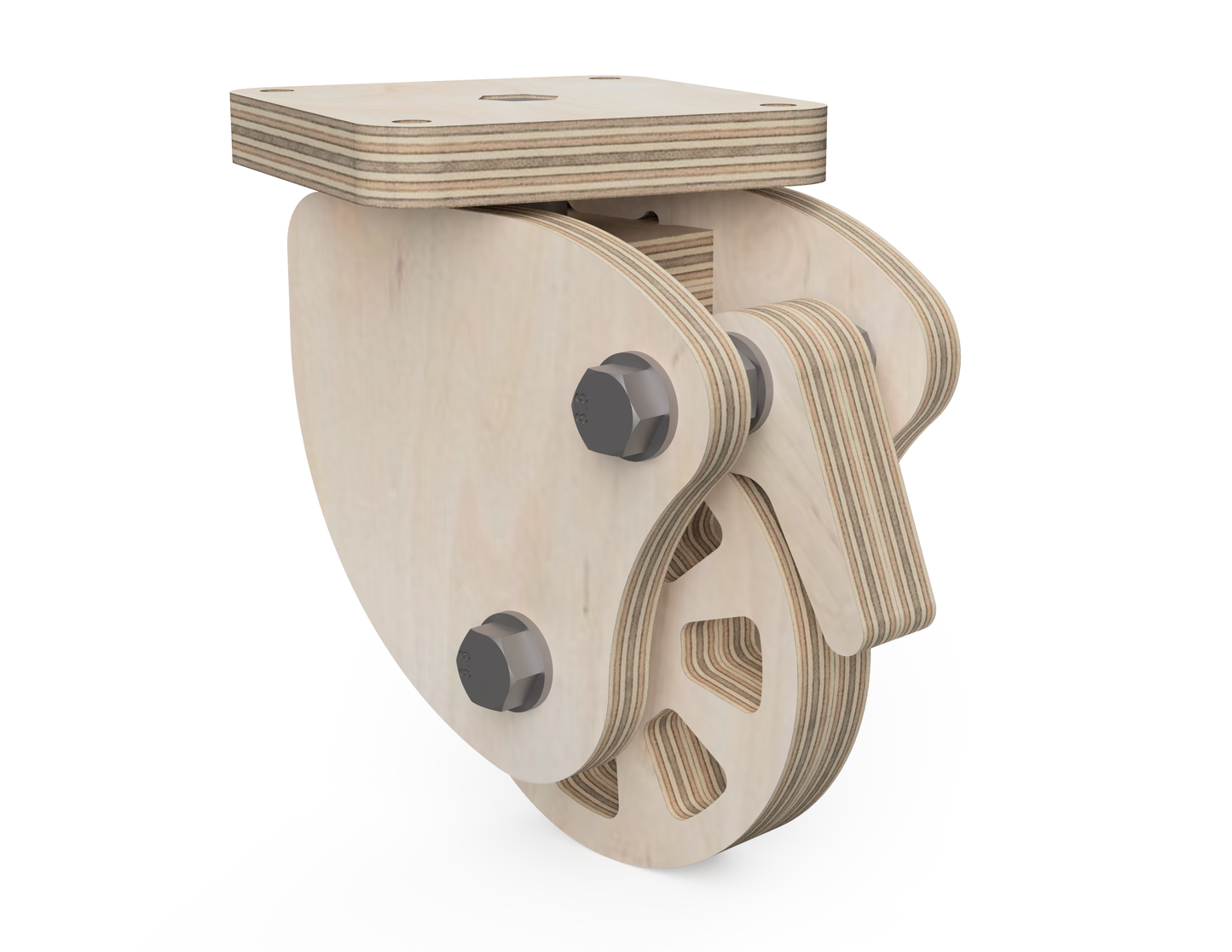

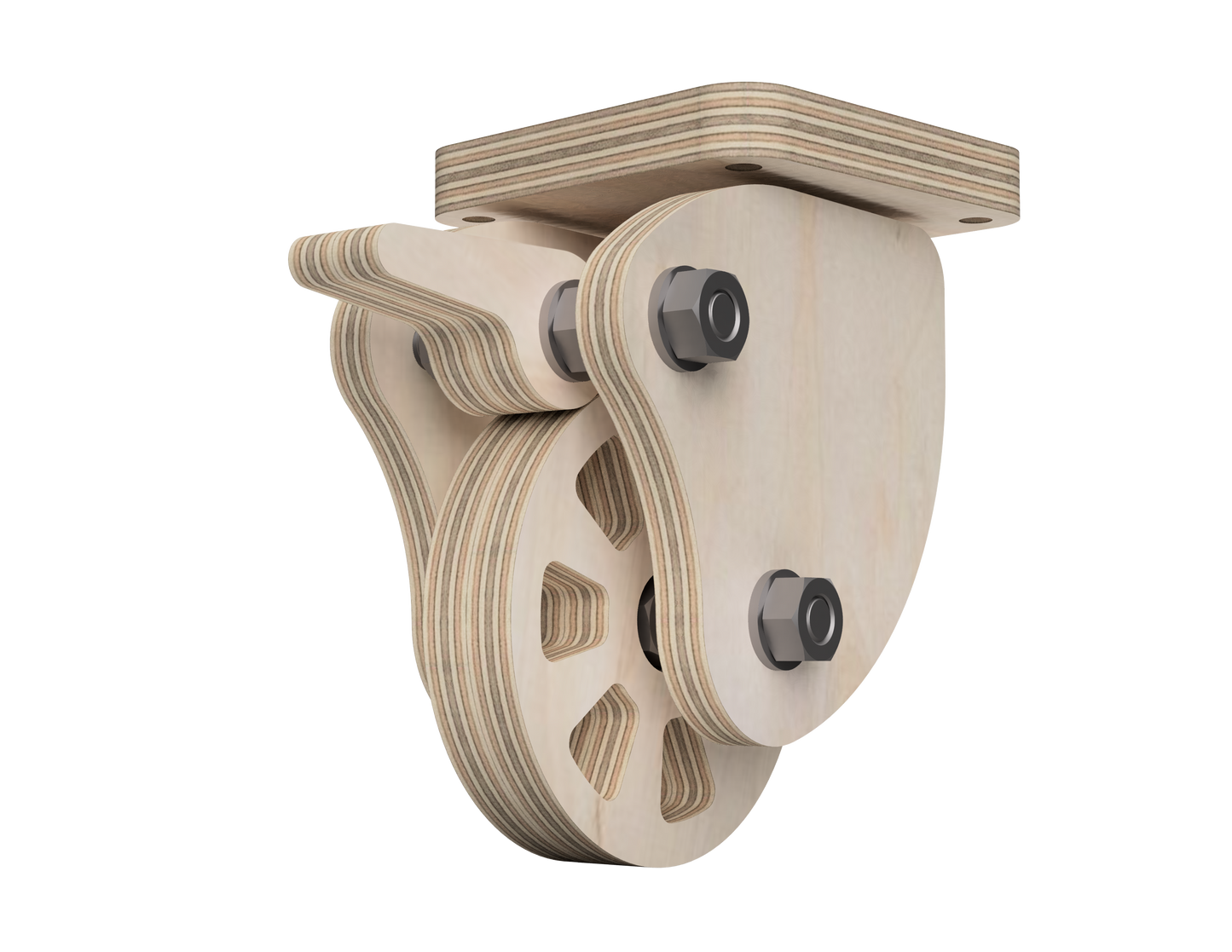

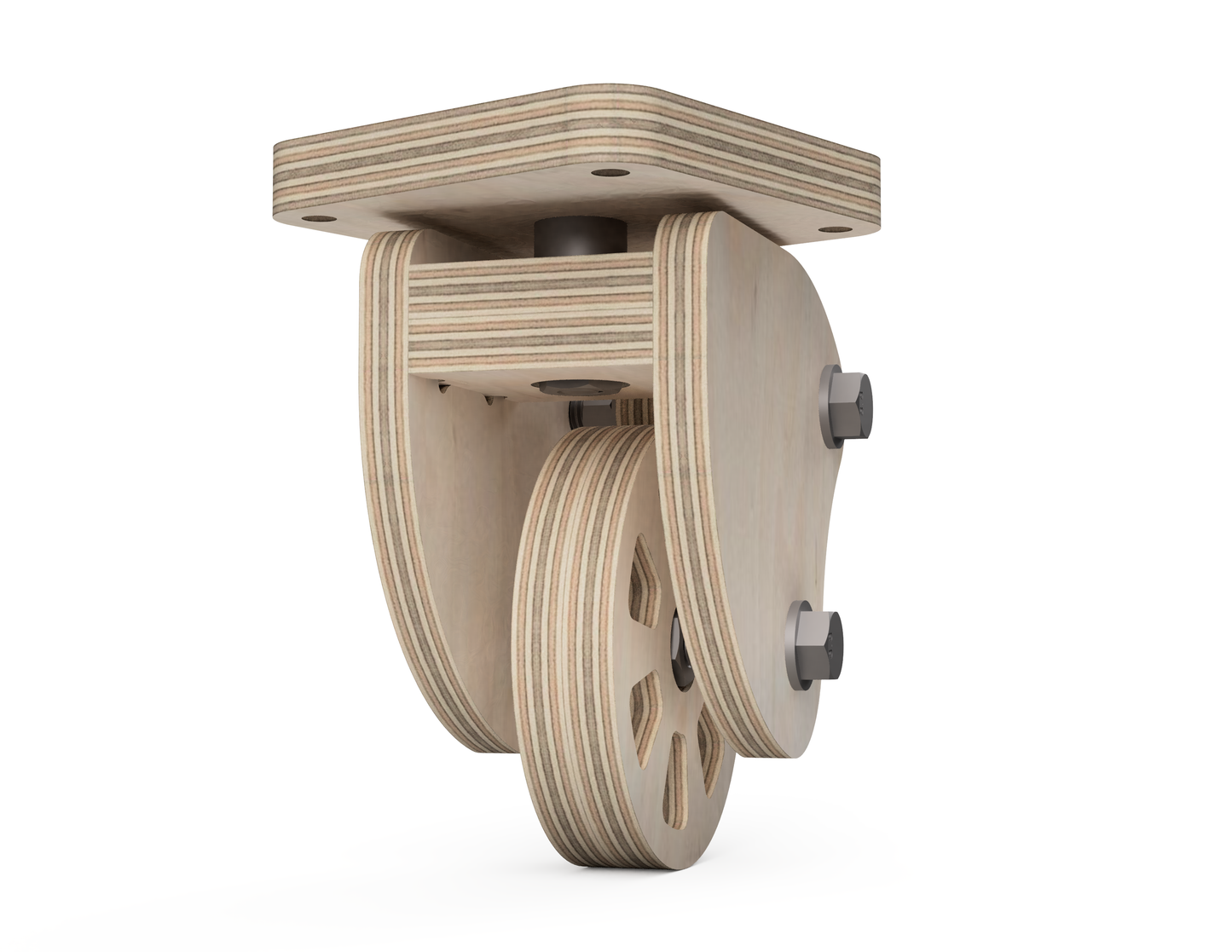

Introducing our Caster Wheel DXF files! With these files, you can easily build your own caster wheels on your CNC, using just plywood scraps, M8 screws, nuts, washers, and ball bearings.


This project is simple, easy to make, and perfect for DIY enthusiasts.


Start rolling smoothly today with our Caster Wheel DXF files!


The design can be cut on a 600 x 600 mm (2 x 2 ft) CNC router and bigger.


*The files are adjusted to fit both metric and imperial standards for materials and tools


Dimensions:

120 mm (height) x 80 mm (width) x 80 mm (wheel diameter)

4.7 inches (height) x 3.15 inches (width) x 3.15 inches (wheel diameter)


Required materials (for one caster):

For 600 x 600 mm (2 x 2 ft) and bigger

  • 1 sheet of 450 x 175 x 9 mm (17.5 x 6.85 x 0.375 inches) plywood
  • 1 sheet of 120 x 120 x 12 mm (4.75 x 4.75 x 0.5 inches) plywood
  • 3 mm (0.125 inches) router bit
  • Ball bearings (Outer diameter - 22 mm, inner diameter - 8 mm, Thickness - 7 mm) - 2 bearings per caster.
  • 70 mm M8 screw - 2 pieces
  • 35 mm M8 screw
  • 8 M8 lock nuts
  • 11 M8 washers

Assembling time:

15 minutes


Delivery time:

30 seconds

After completing the order, you will receive the DXF design file in your email within seconds.


Updates:

Free

If your plywood sheet is thicker or thinner than expected, send your purchase number and the precise material thickness to contact@aribabox.com. We will send you the updated DXF design file for free.


The product may differ from the representative images when cut and assembled. We hope you will enjoy your purchase from Aribabox.
