Caster Wheel Update - DXF files

Caster Wheel Update - DXF files

$0.00 USD
$0.00 USD
Sale Sold out
Taxes included.

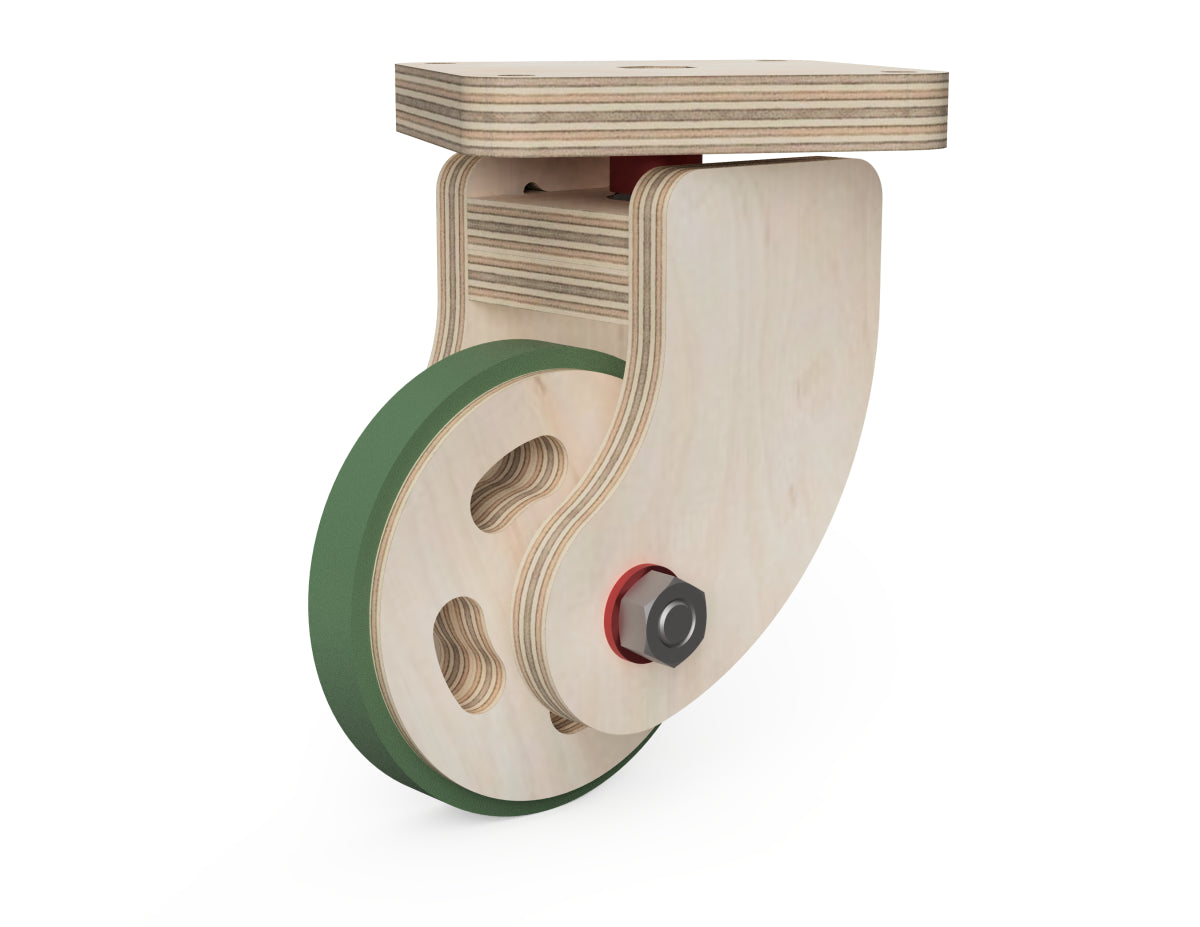

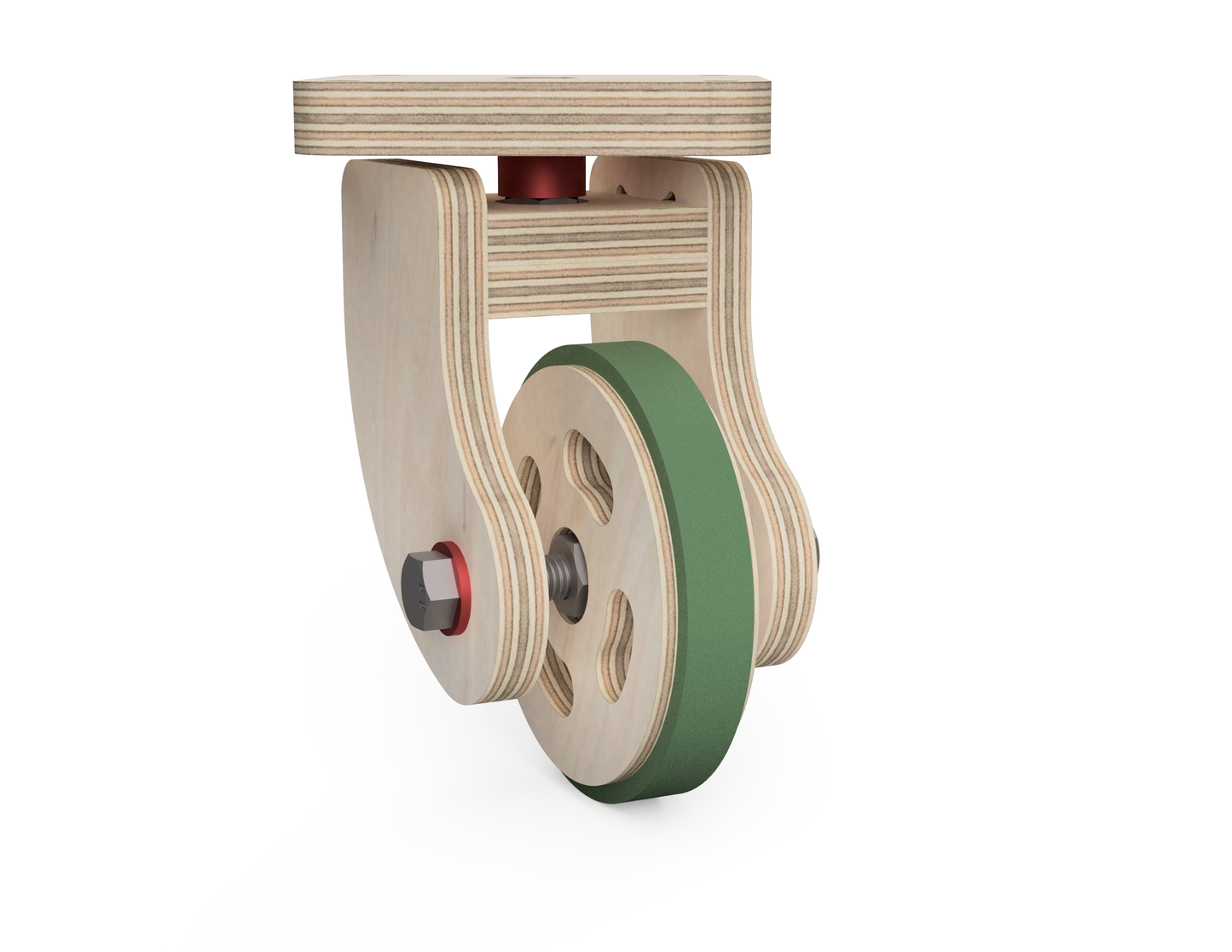

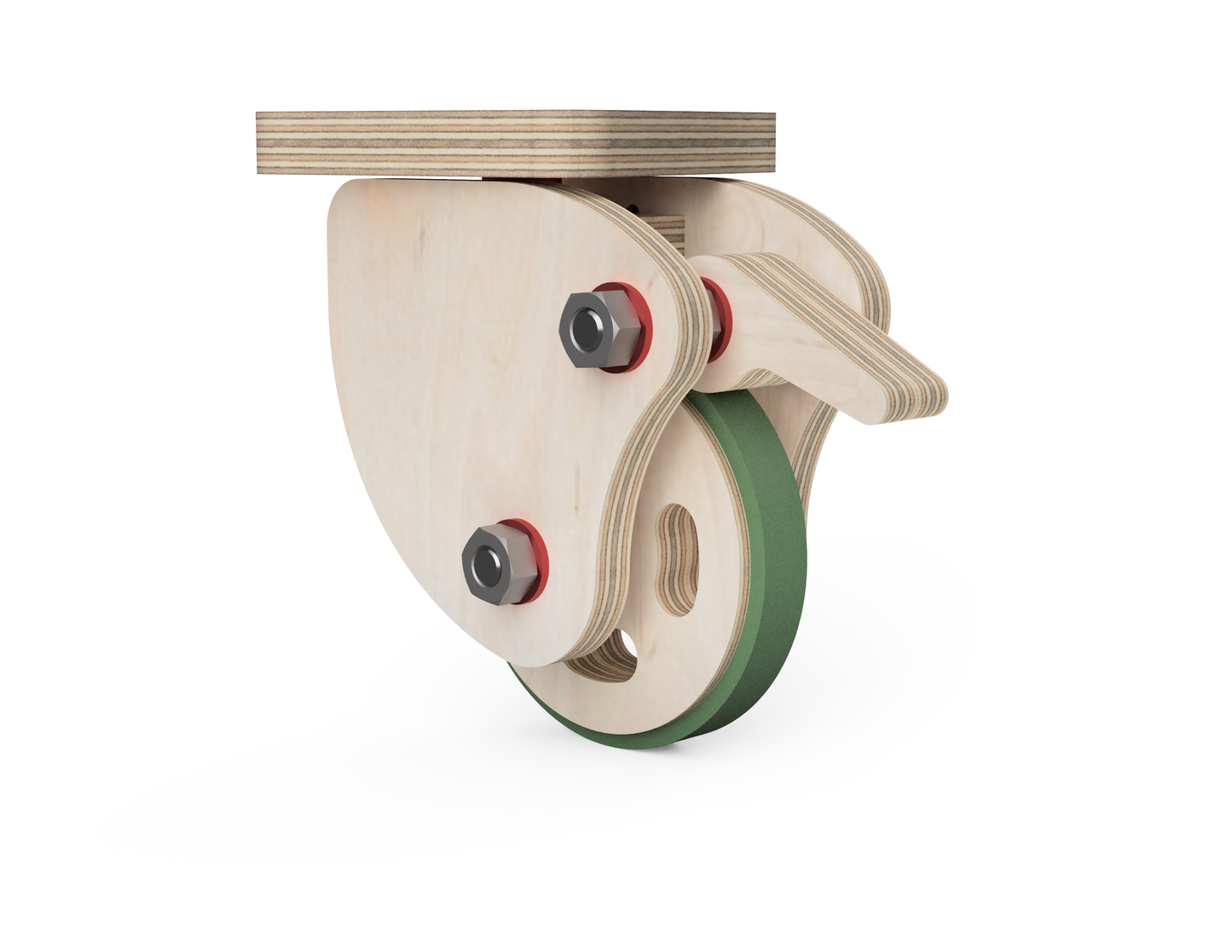

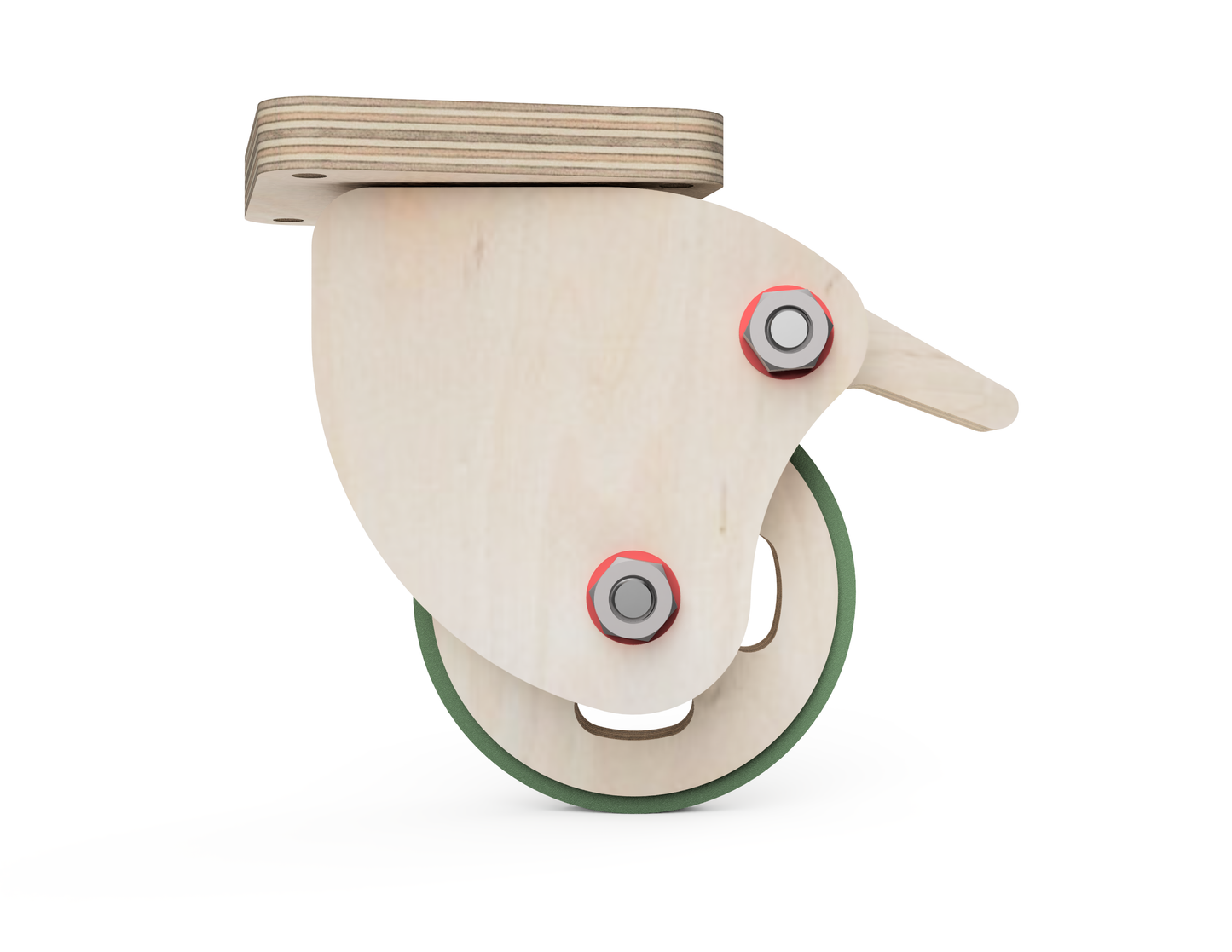

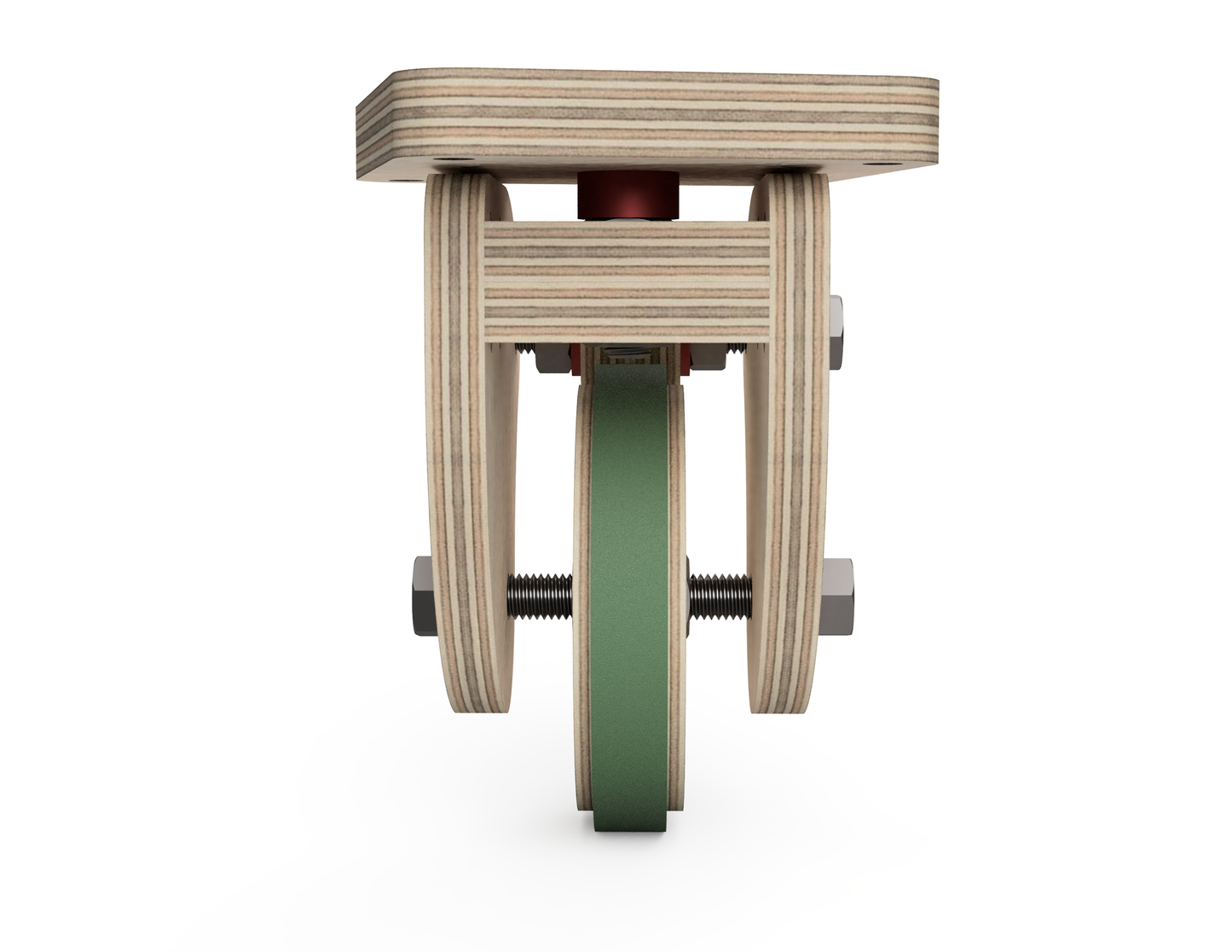

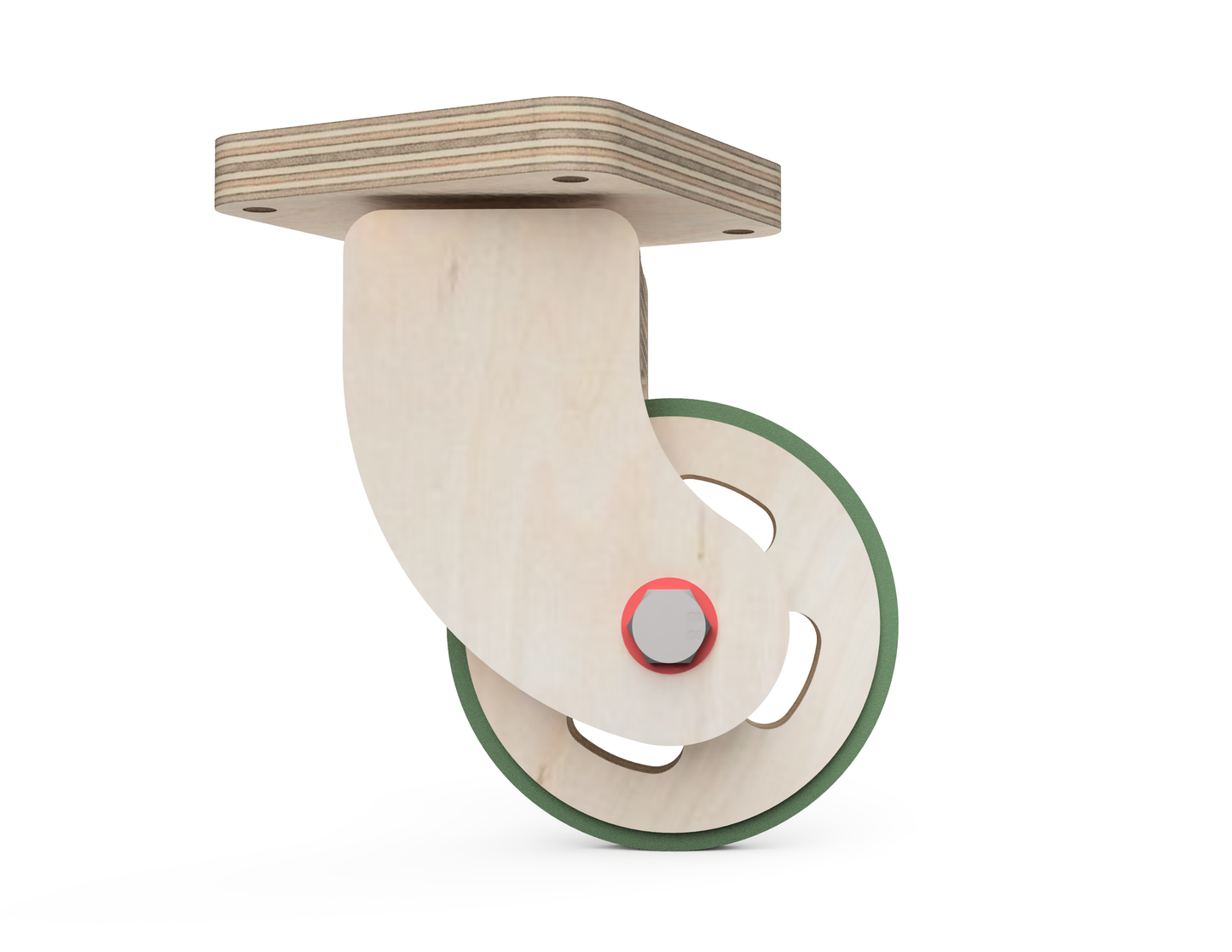

Upgrade your DIY plywood caster wheels with our Caster Wheel Update - DXF Files.


This download includes everything you need to enhance your existing caster wheels by adding a rubber ring for smoother, quieter performance.

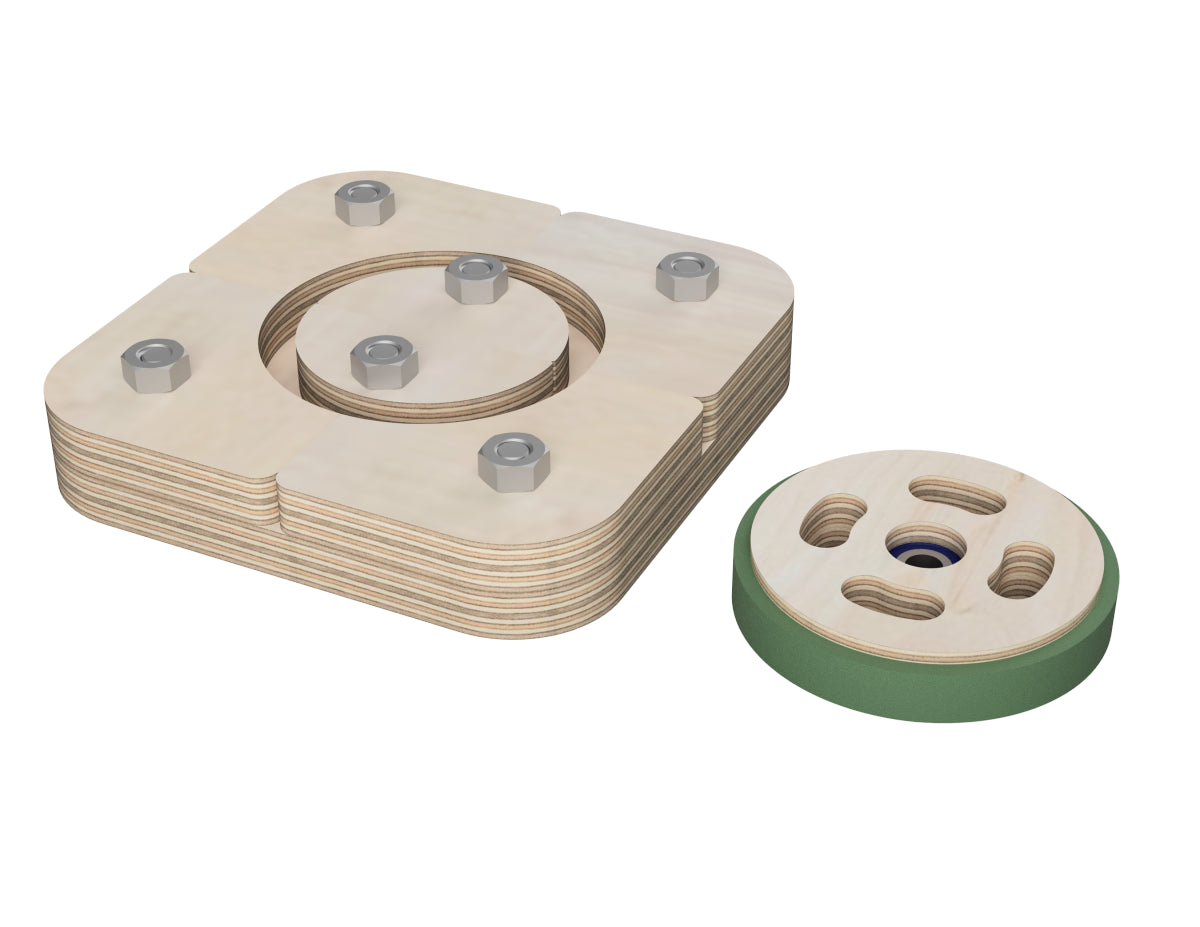

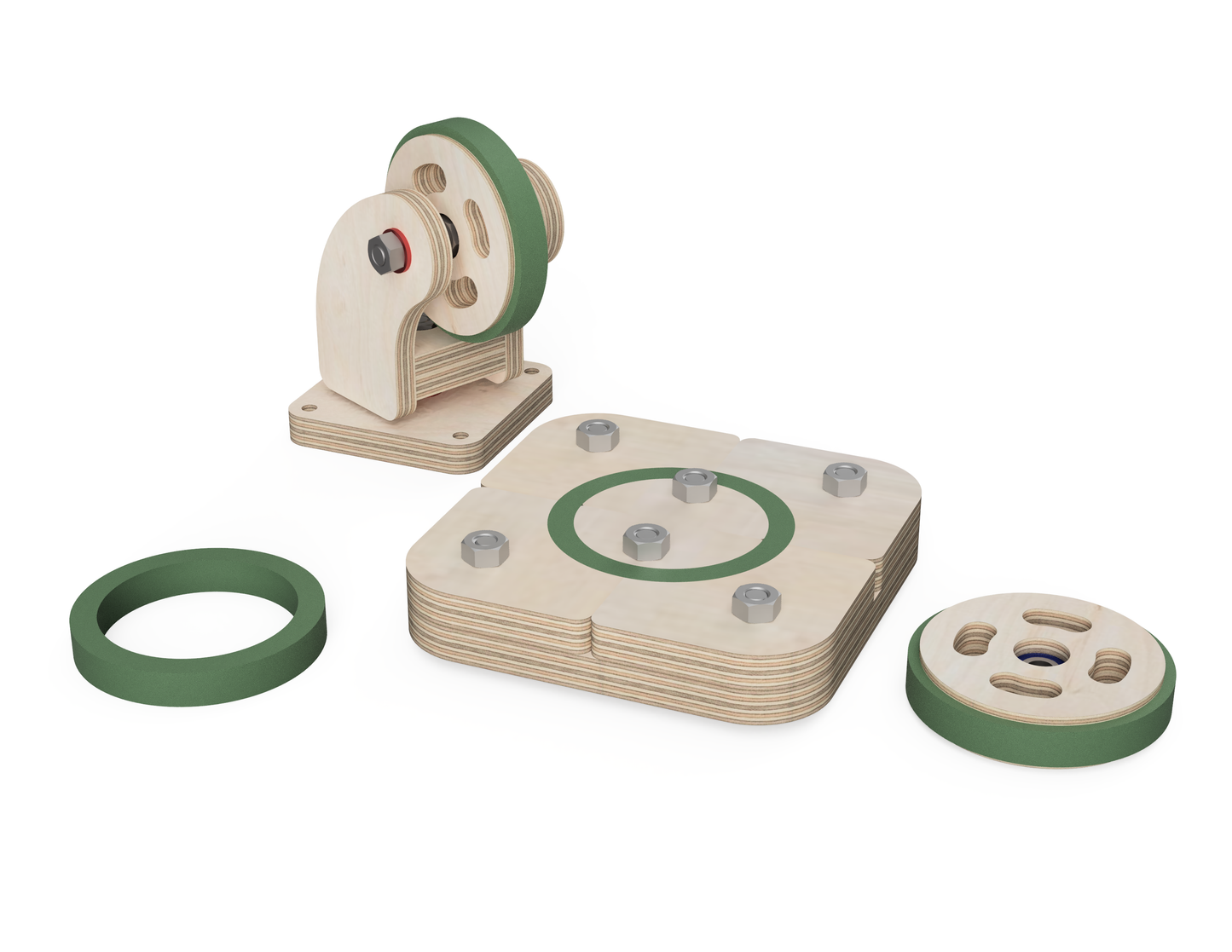

You'll find updated wheel parts designed to work seamlessly with the new rubber addition, as well as files for creating the rubber tire mold.


Ideal for anyone looking to reduce noise and increase the durability of their caster wheels—this update is compatible with your existing caster wheel design, so there's no need to remake the entire project, just the wheels.



*The files are adjusted to fit both metric and imperial standards for materials and tools

The project can be made on a 600 x 600 mm (2 x 2 ft) CNC router and bigger.
The biggest component is 140 x 140 mm (5.51 x 5.51 inches).
So if it can fit on your CNC router, you can build this project
Width Length Height
80 mm 80 mm 120 mm
3⅛ inch 3⅛ inch 4¾ inch

- 1 sheet of 125 x 250 x 9 mm (5 x 10 x 0.375 inches) plywood
- 1 sheet of 250 x 350 x 12 mm (10 x 14 x 0.5 inches) plywood- 3 mm (0.125 inches) router bit
- Ball bearings (Outer diameter - 22 mm, inner diameter - 8 mm, Thickness - 7 mm) - Roller skate bearings
- 30 mm M8 screw - 5 pieces
- 8 M8 nuts - 5 pieces
- Rubber Sealant (We used Bostik MSP 107 seal)
35 minutes
2 hours
The product may differ from the representative images when cut and assembled. We hope you will enjoy your purchase from Aribabox!
