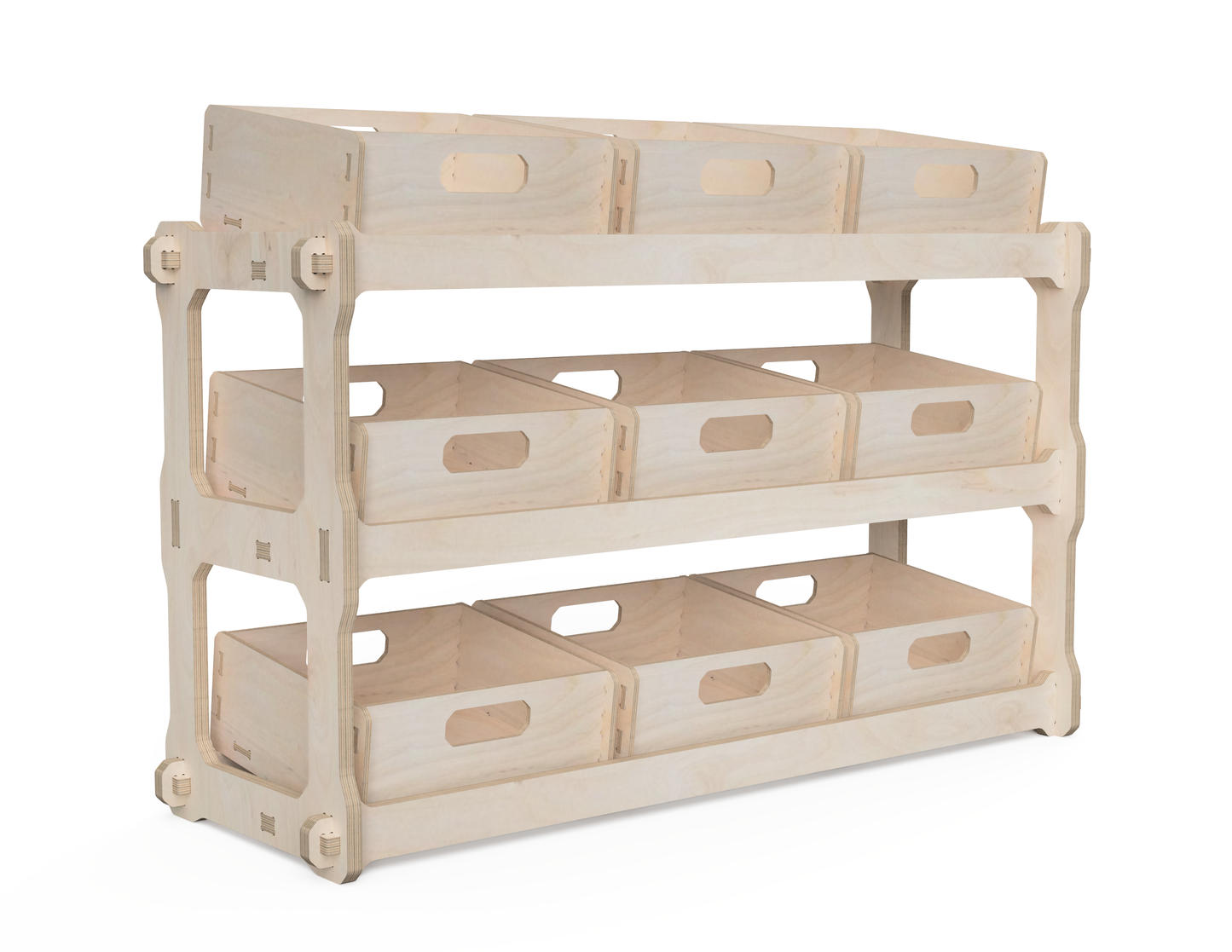

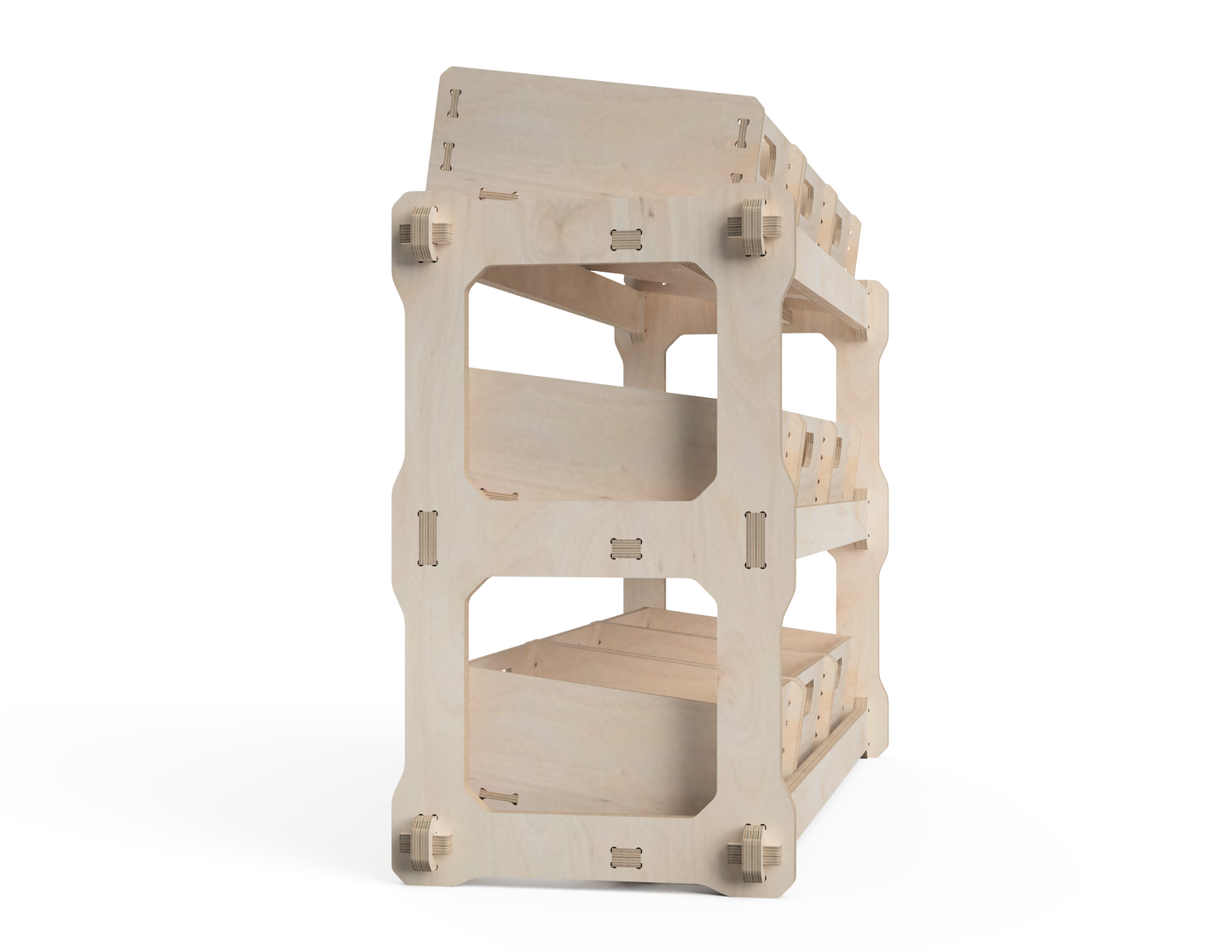

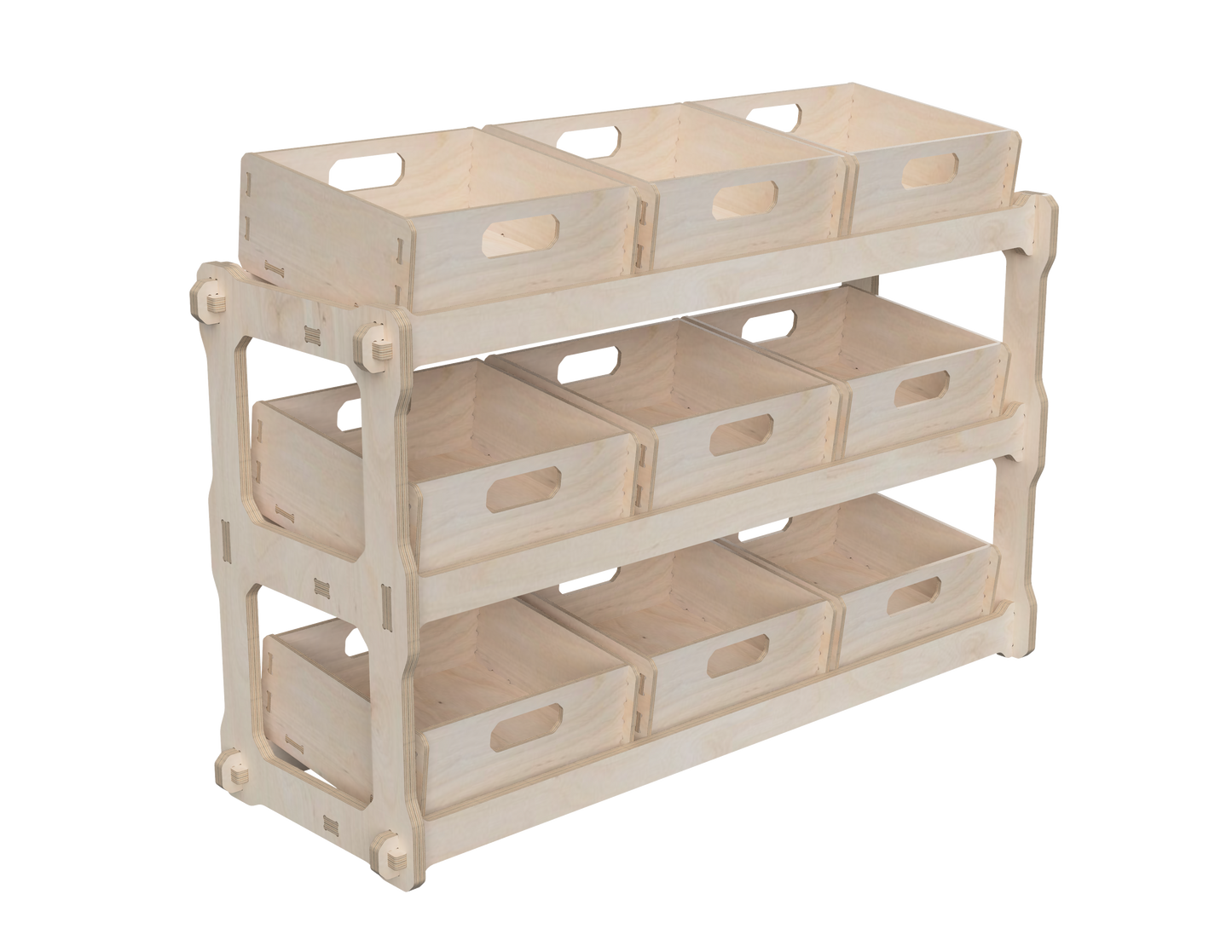

Organize toys, tools, or clutter with this CNC-friendly Box Shelf DXF file. Designed for a kids' room, this 3-tier rack holds 9 plywood boxes for easy sorting and storage.



Ideal for toys, craft supplies, or garage tools. The file is optimized for CNC routers and perfect for makers using plywood. Great for kids’ rooms, garages, or storage spaces.



Includes:
✔️ DXF file for CNC routing
✔️ 3-level rack + 9 stackable boxes
✔️ Easy-to-assemble design



Perfect for plywood projects and DIY organization.

Supported CNC sizes

The project can be made on a 900 x 1200 mm (3 x 4 ft) CNC router and bigger.

Dimensions

Width Length Height
1050 mm 350 mm 715 mm
41⅜ inch 13¾ inch 28⅛ inch

Required materials

For 900 x 1200 mm (3 x 4 ft) CNC
- 2 sheets of 900 x 1200 x 6 mm (35-7/16 x 48 x 1/4 inches) plywood
- 1 sheet of 550 x 940 x 6 mm (22 x 37 x 1/4 inches) plywood
- 1 sheet of 700 x 1200 x 15 mm (28 x 48 x 5/8 inches) plywood
- 1 sheet of 750 x 650 x 15 mm (30 x 26 x 5/8 inches) plywood
- 4 mm (1/8 inch) router bit for dogbones
For 1220 x 1220 mm (4 x 4 ft) CNC
- 2 sheets of 1100 x 1200 x 15 mm (43-1/2 x 48 x 1/4 inches) plywood
- 1 sheet of 700 x 1200 x 15 mm (28 x 48 x 5/8 inches) plywood
- 1 sheet of 750 x 650 x 15 mm (30 x 26 x 5/8 inches) plywood
- 4 mm (1/8 inch) router bit for dogbones
For 1220 x 2440 mm (4 x 8 ft) CNC
- 1 sheet of 1220 x 2440 x 6 mm (48 x 96 x ¼ inches) plywood
- 1 sheet of 1280 x 1100 x 15 mm (50-1/2 x 43-1/2 x 5/8 inches) plywood
- 4 mm (1/8 inch) router bit for dogbones

Assembling time

35 minutes
The product may differ from the representative images when cut and assembled. We hope you will enjoy your purchase from Aribabox!
