Blast Gates DXF Files
Blast Gates DXF Files
Regular price
$0.00 USD
Regular price
Sale price
$0.00 USD
Unit price
/
per
Taxes included.
Couldn't load pickup availability

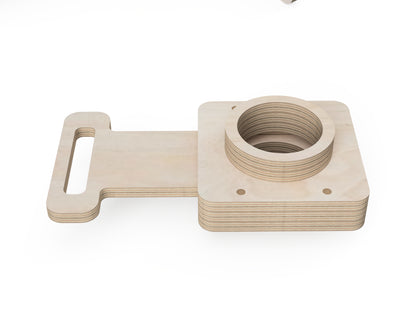

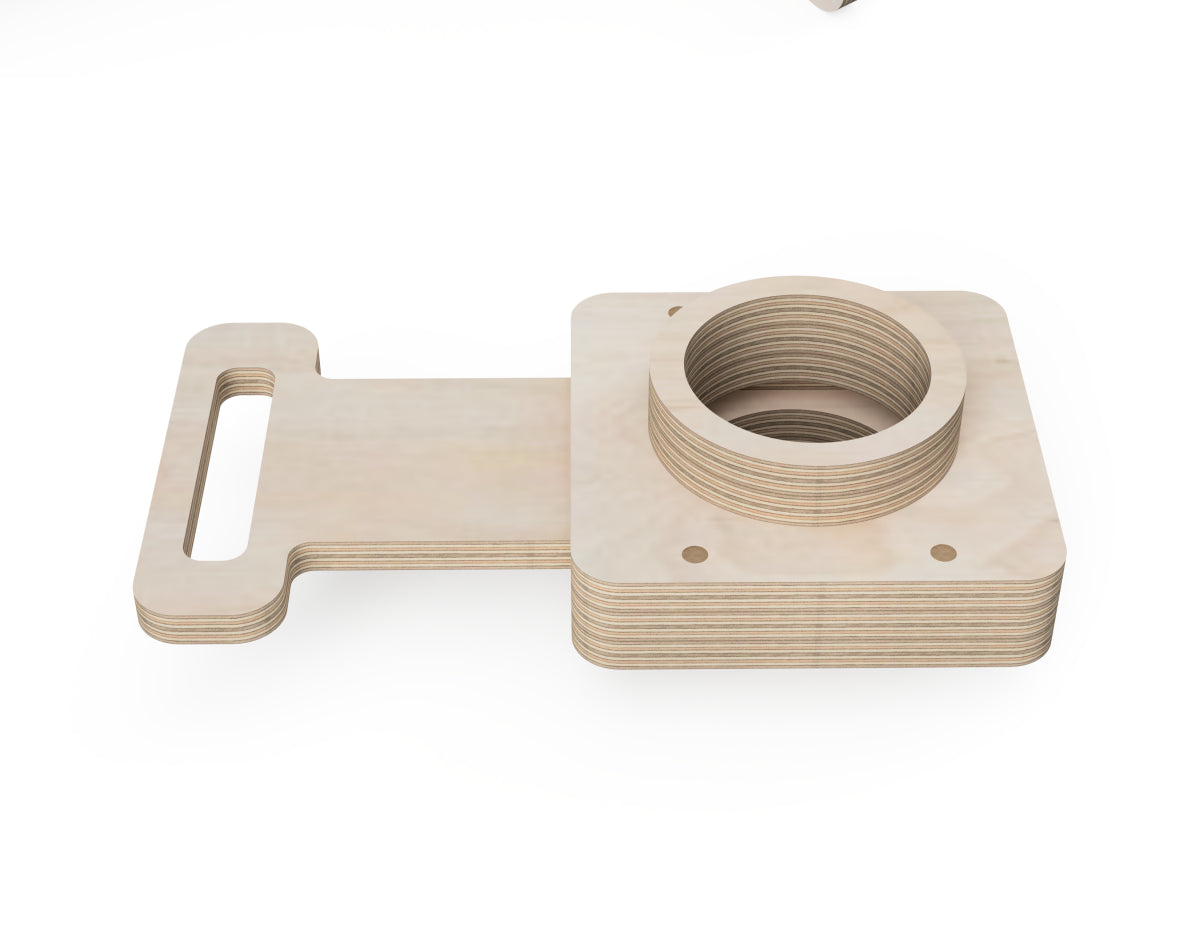

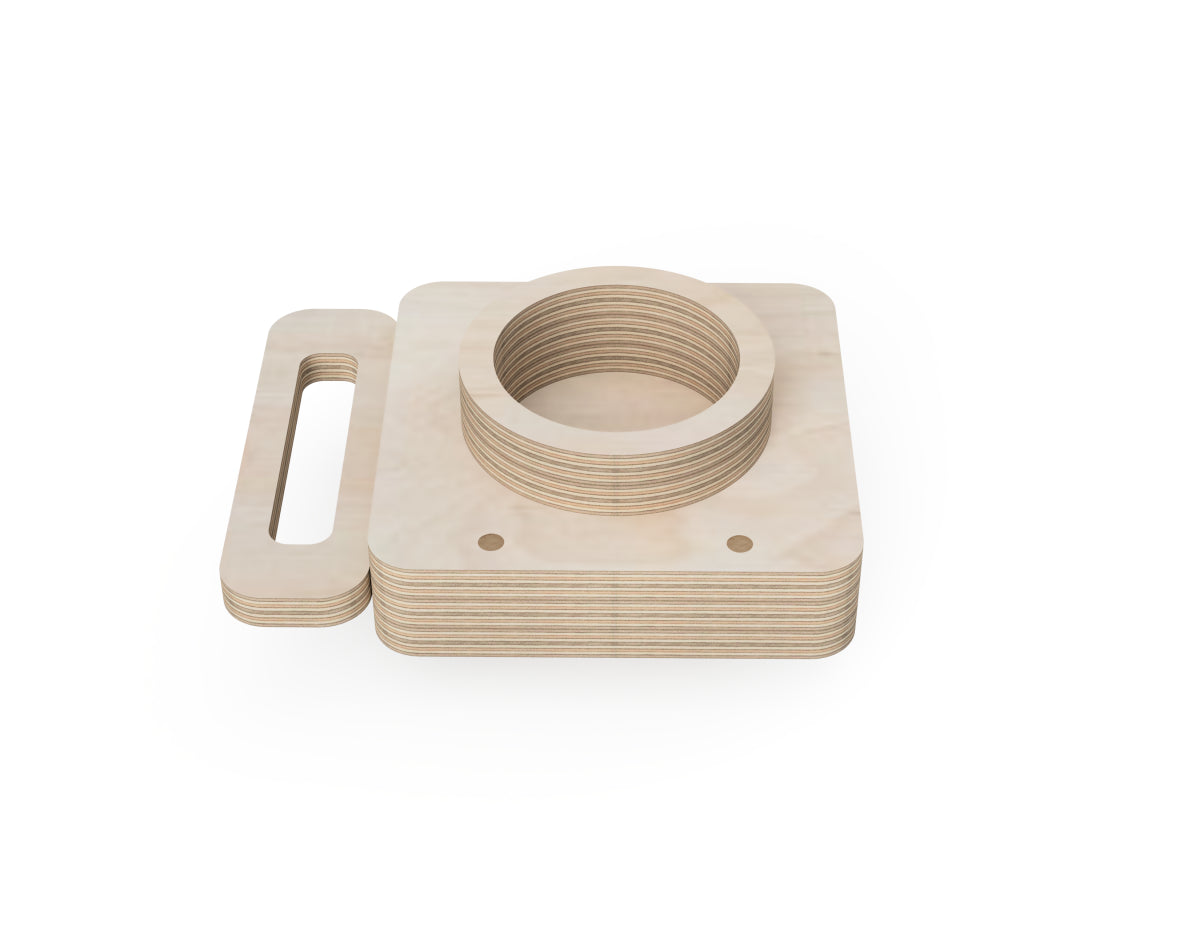

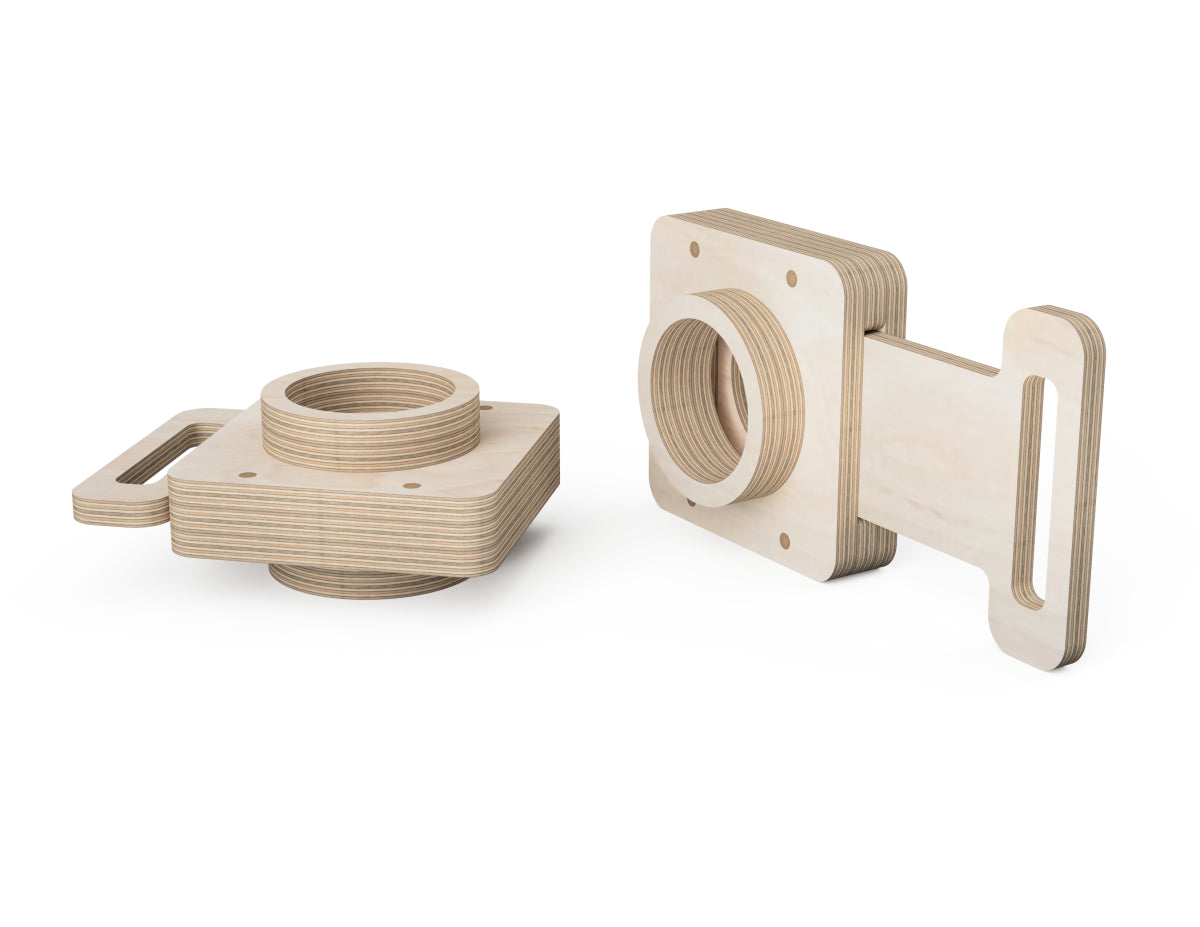

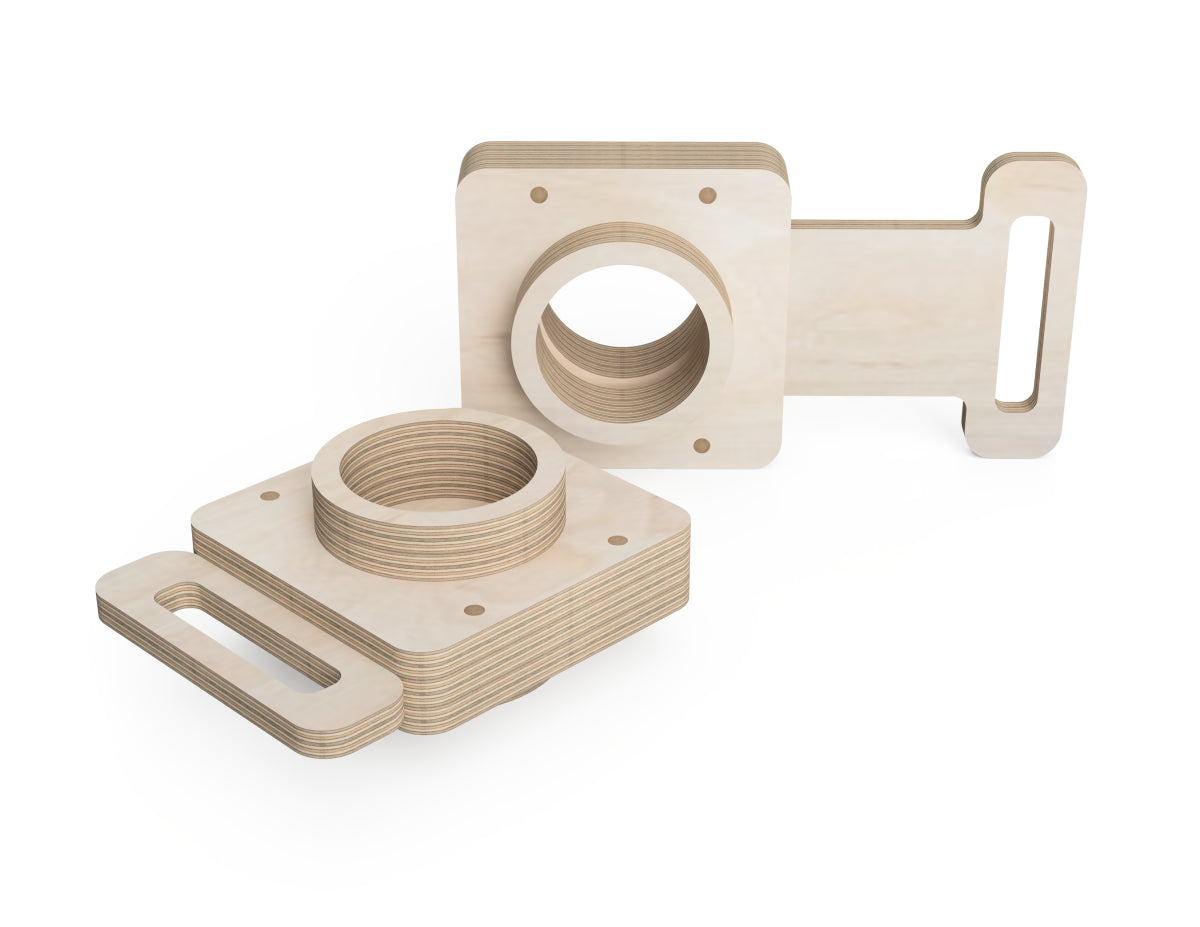

Download free CNC-compatible DXF files to create your own blast gates for a dust collection system.

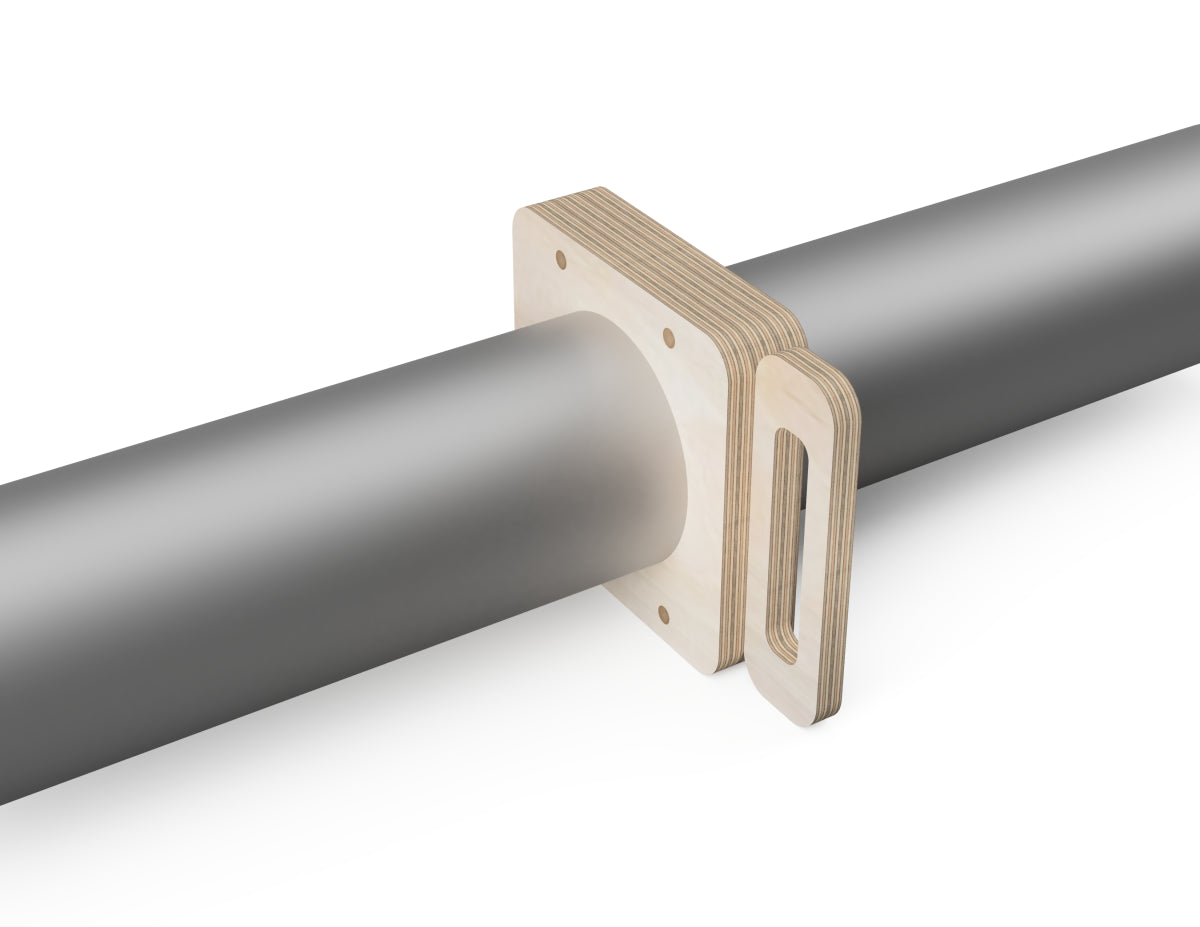

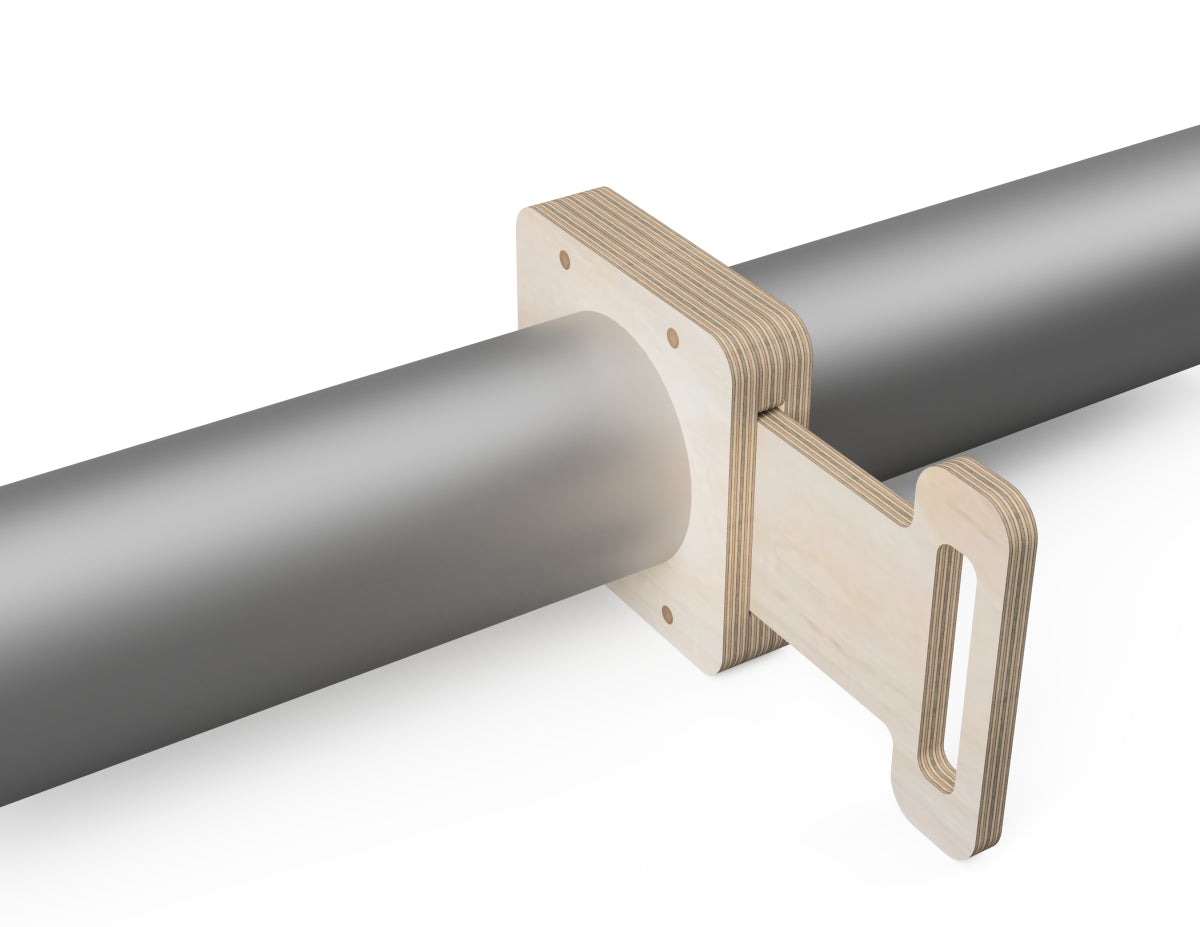

Designed for standard 100 mm (4-inch) dust hoses, these easy-to-cut blast gate plans work with plywood or MDF boards and help control airflow to specific tools.
Perfect for workshop dust management, this free CNC project is a must-have for any DIY woodworker or maker looking to improve shop efficiency.
Supported CNC sizes
Supported CNC sizes
The project can be made on a
600 x 600 mm (2 x 2 ft) CNC
router and bigger.
Max single piece size
Max single piece size
The biggest component is
170
x
150
mm (6.69
x
5.91
inches).
So if it can fit on your CNC router, you can build this project
So if it can fit on your CNC router, you can build this project
Dimensions
Dimensions
| Width | Length | Height |
|---|---|---|
| 197 mm | 150 mm | 85 mm |
| 7¾ inch | 5⅞ inch | 3⅜ inch |
Required materials
Required materials
For a 600 x 600 mm (2 x 2 ft) CNC and bigger:
- 600 x 350 x 12 mm (24 x 14 x 1/2 inch) Plywood
- (can use different material thickness)
- 8 mm (1/3 inch) dowels - 4 pieces
- 3 or 6 mm (1/8 or 1/4-inch) rotuer bit
Approximate CNC time
Approximate CNC time
10 minutes
Assembling time
Assembling time
10 minutes
The product may differ from the representative images when cut and assembled. We hope you will enjoy your purchase from Aribabox!
