Base Frames for the Modular Workbench – Free DXF Files

Base Frames for the Modular Workbench – Free DXF Files

Regular price $0.00 USD
Regular price Sale price $0.00 USD
Sale Sold out
Taxes included.

Build the perfect foundation for your custom workshop setup with these free CNC files.

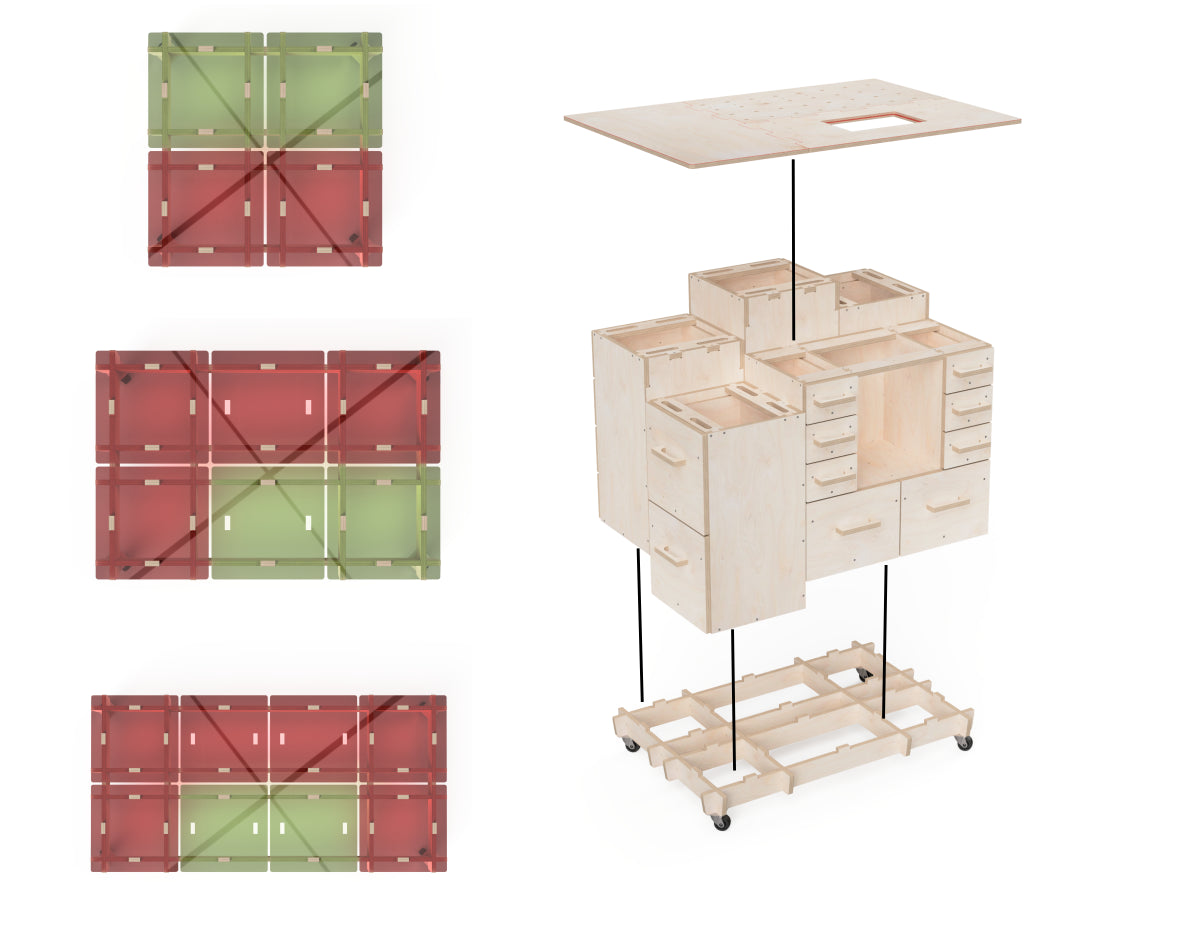

Designed to work seamlessly with the Modular Workbench System, these base frames let you create a sturdy starting point for attaching shelves, tool holders, and other accessories.

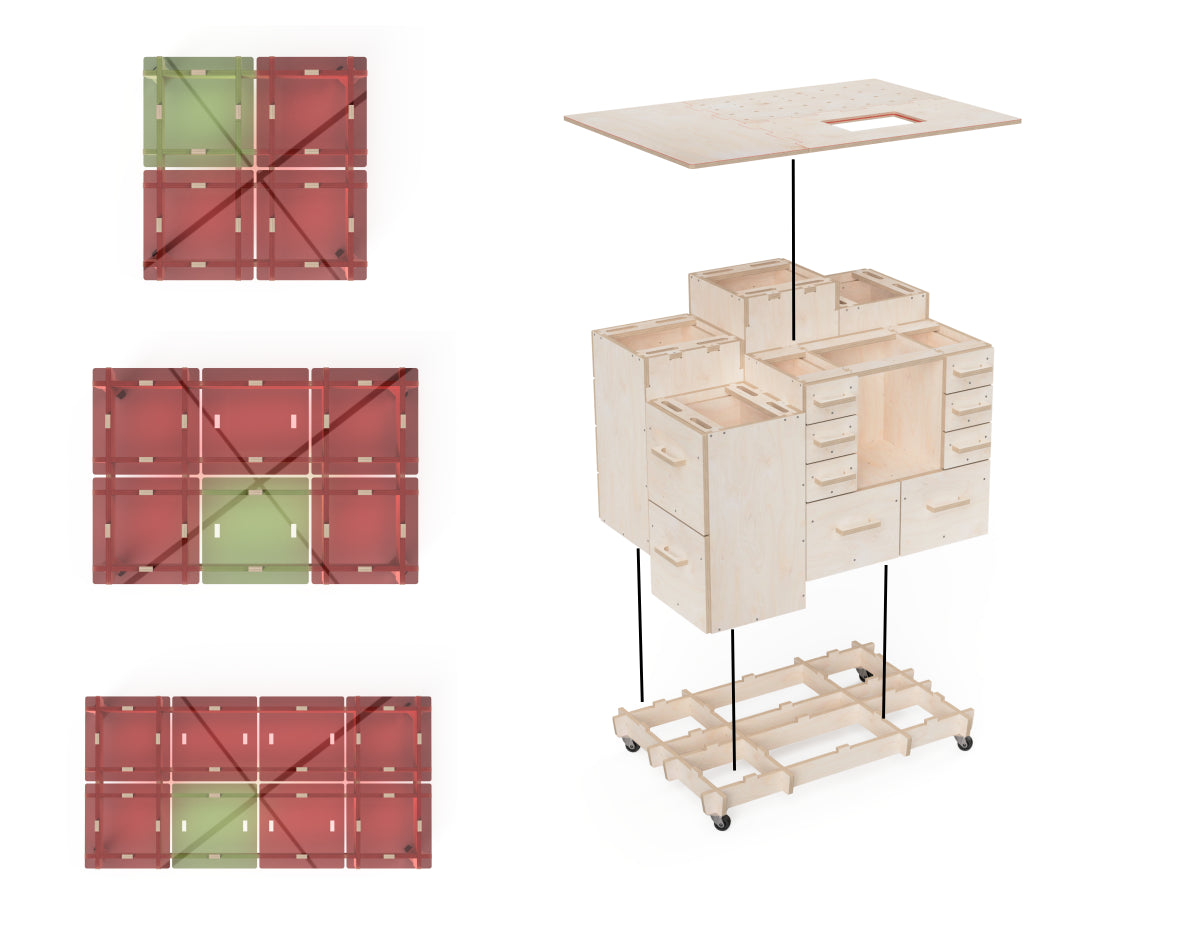

Available in three sizes:

  • S (Small) – Supports up to 4 attachments
  • M (Medium) – Supports up to 6 attachments
  • L (Large) – Supports up to 8 attachments



These files give you the flexibility to design a workbench tailored to your workflow, whether you need a compact setup or a full-sized workstation. Perfect for CNC enthusiasts looking to maximize shop space and organization.

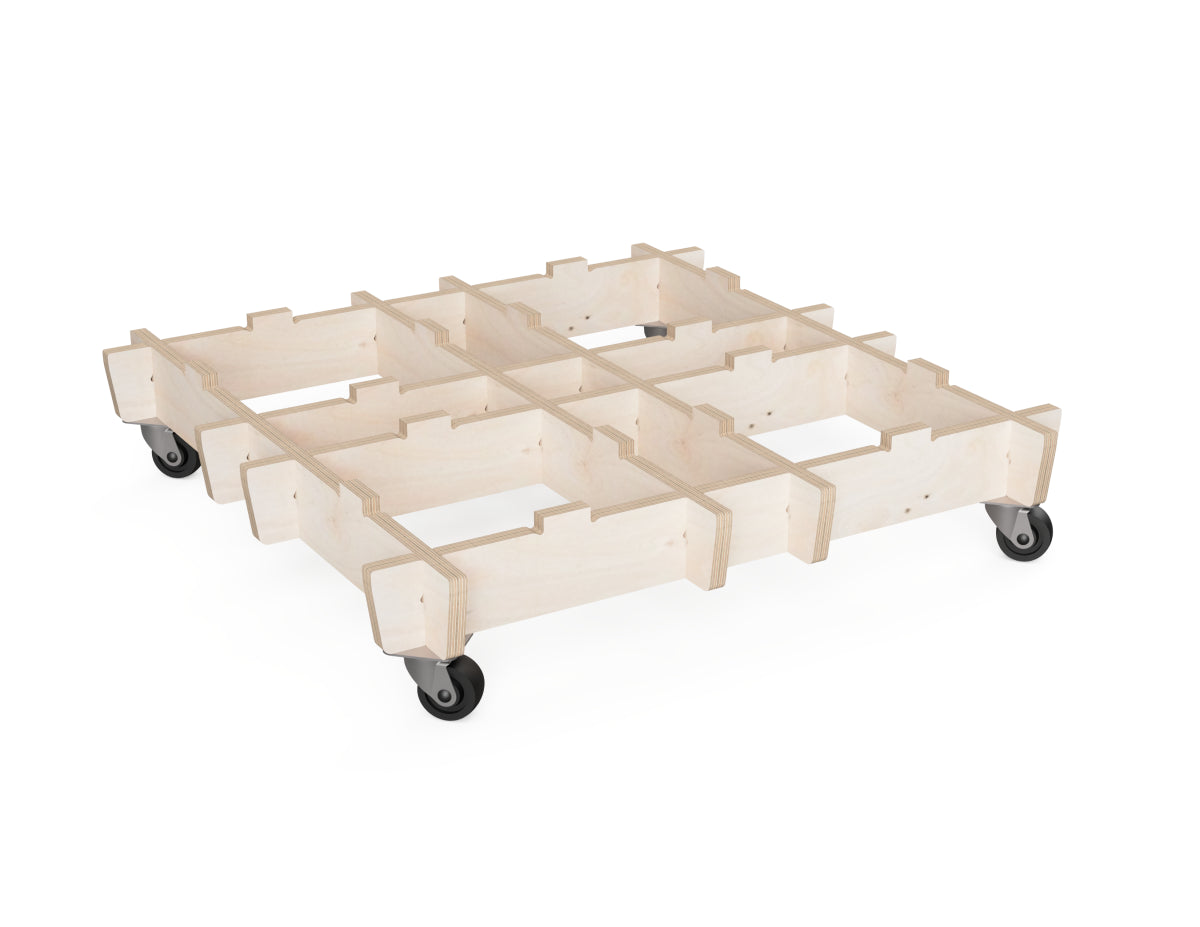

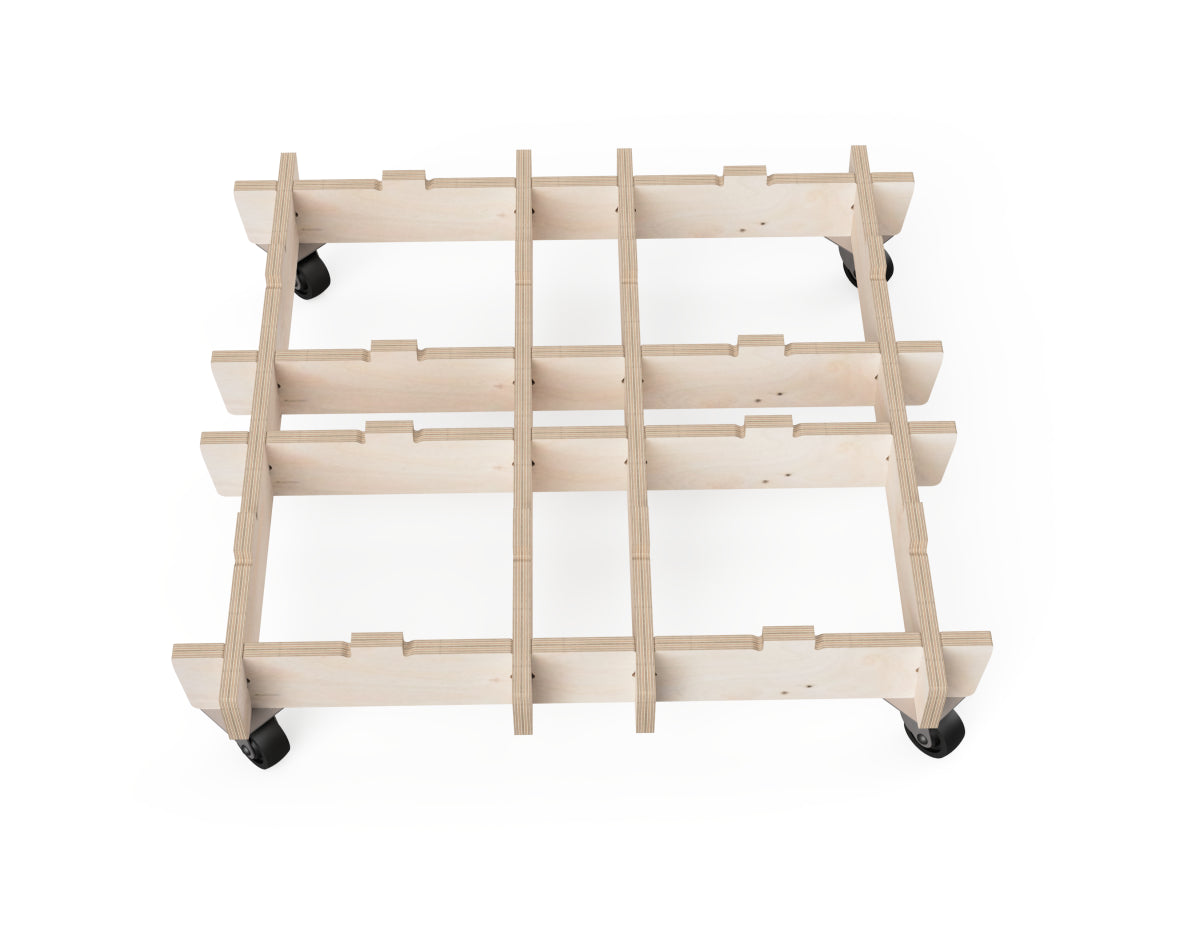

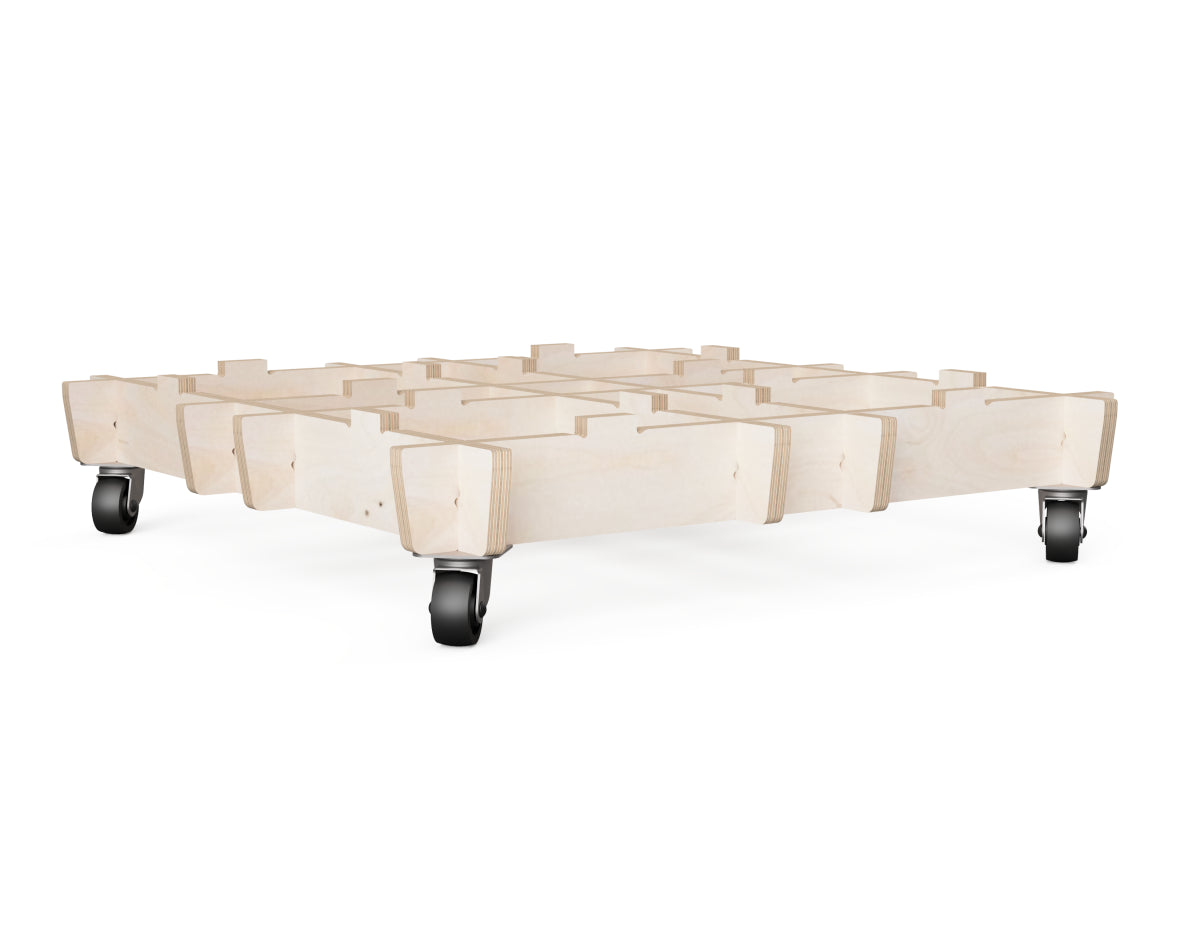

Small Workbench Setup
Dimensions: 900 × 900 × 900 mm (W × L × H)
35 × 35 × 35 in

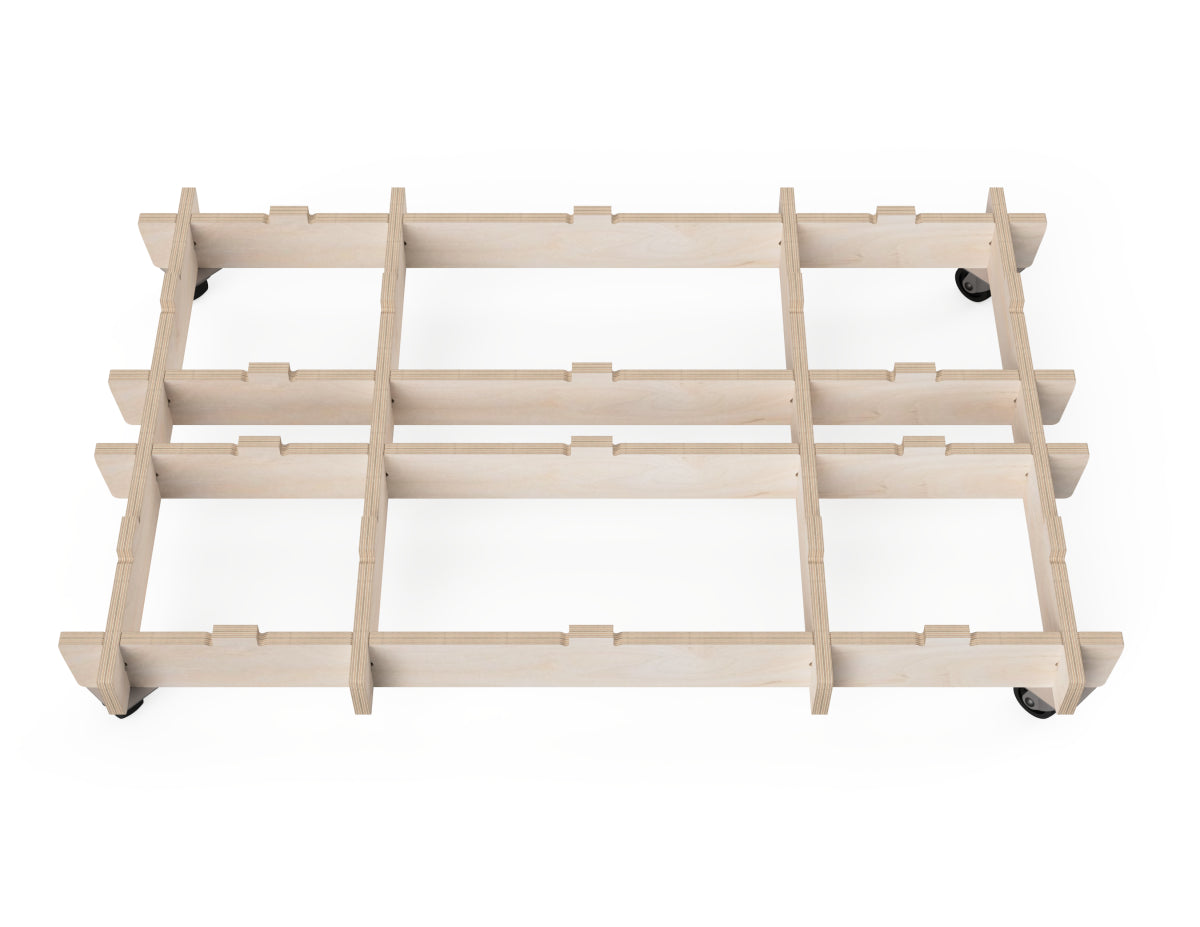

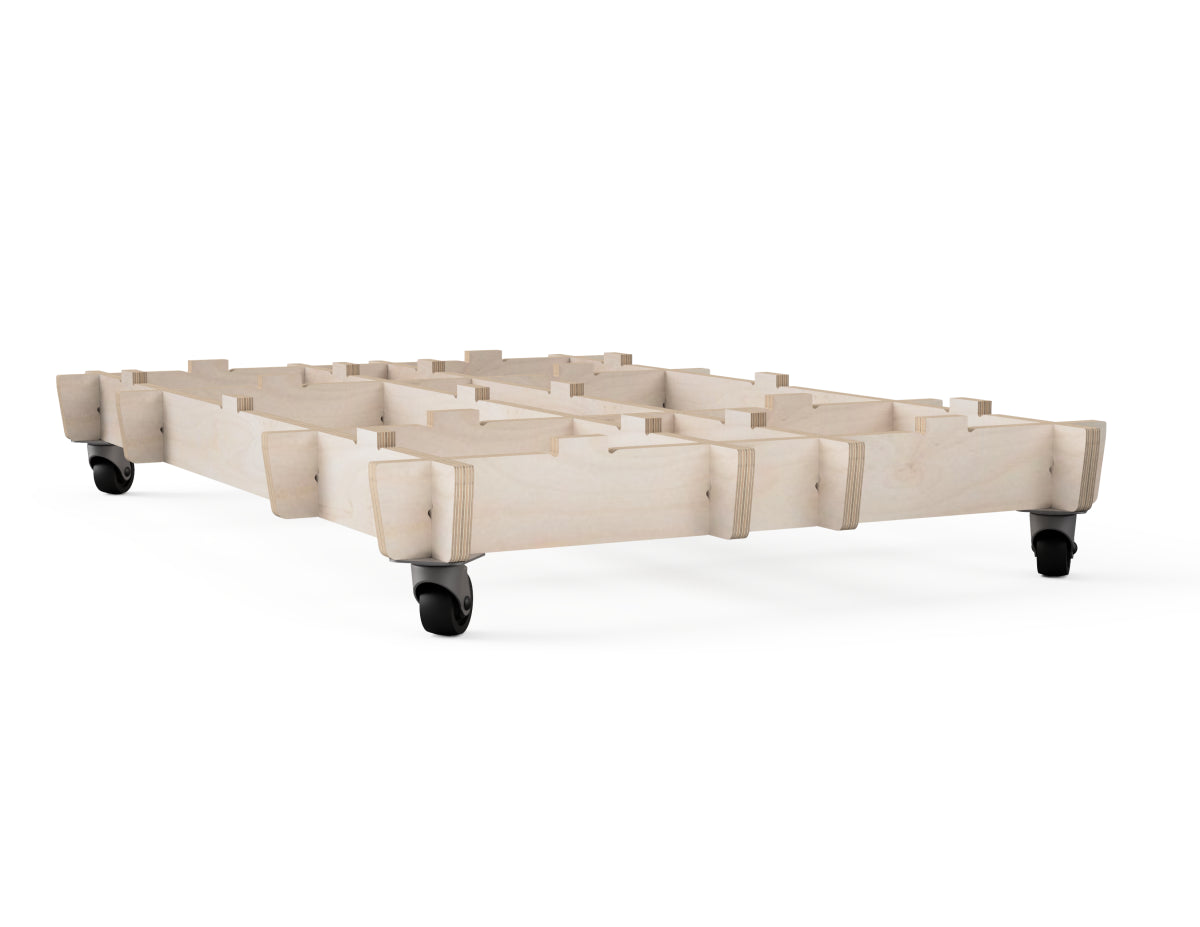

Medium Workbench Setup
Dimensions: 900 × 1300 × 900 mm (W × L × H)
35 × 51 × 35 in

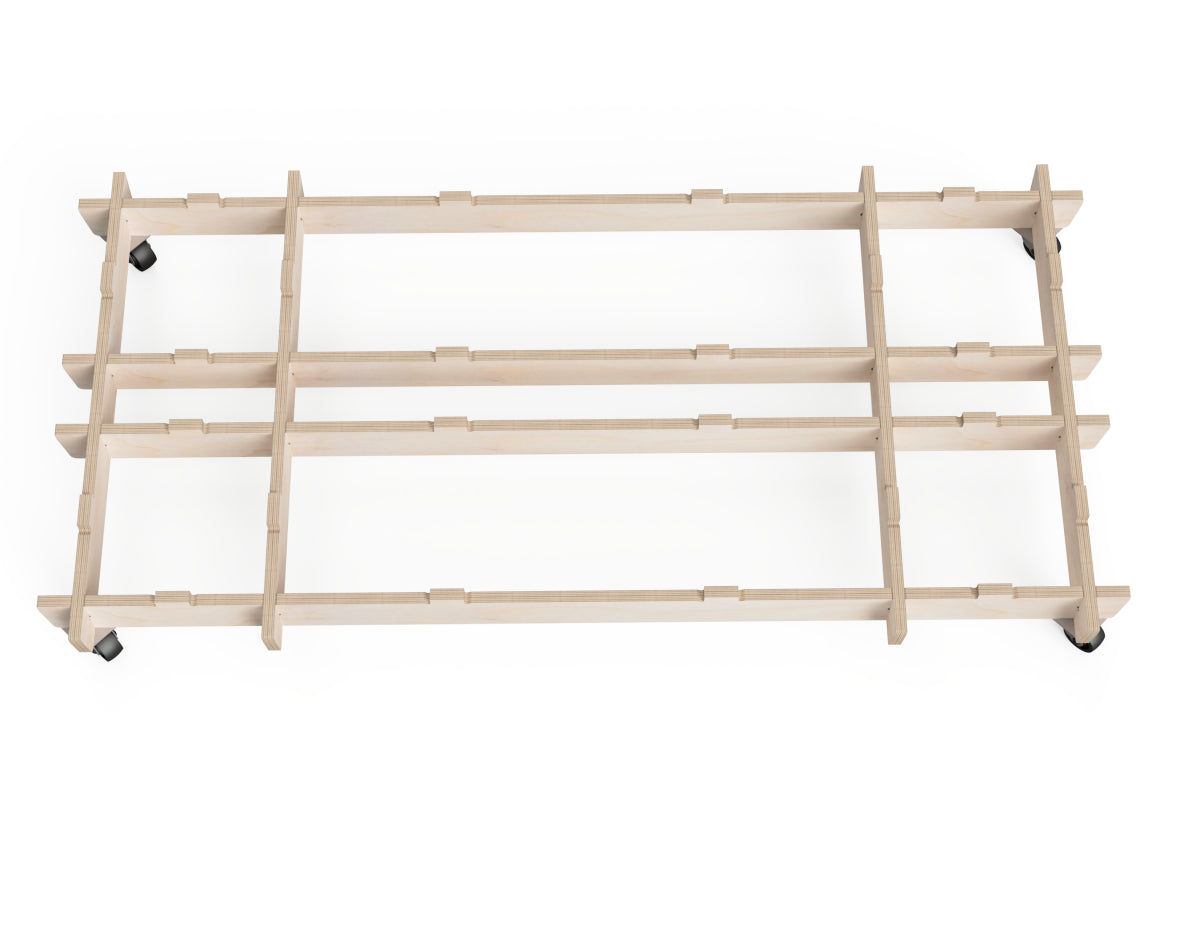

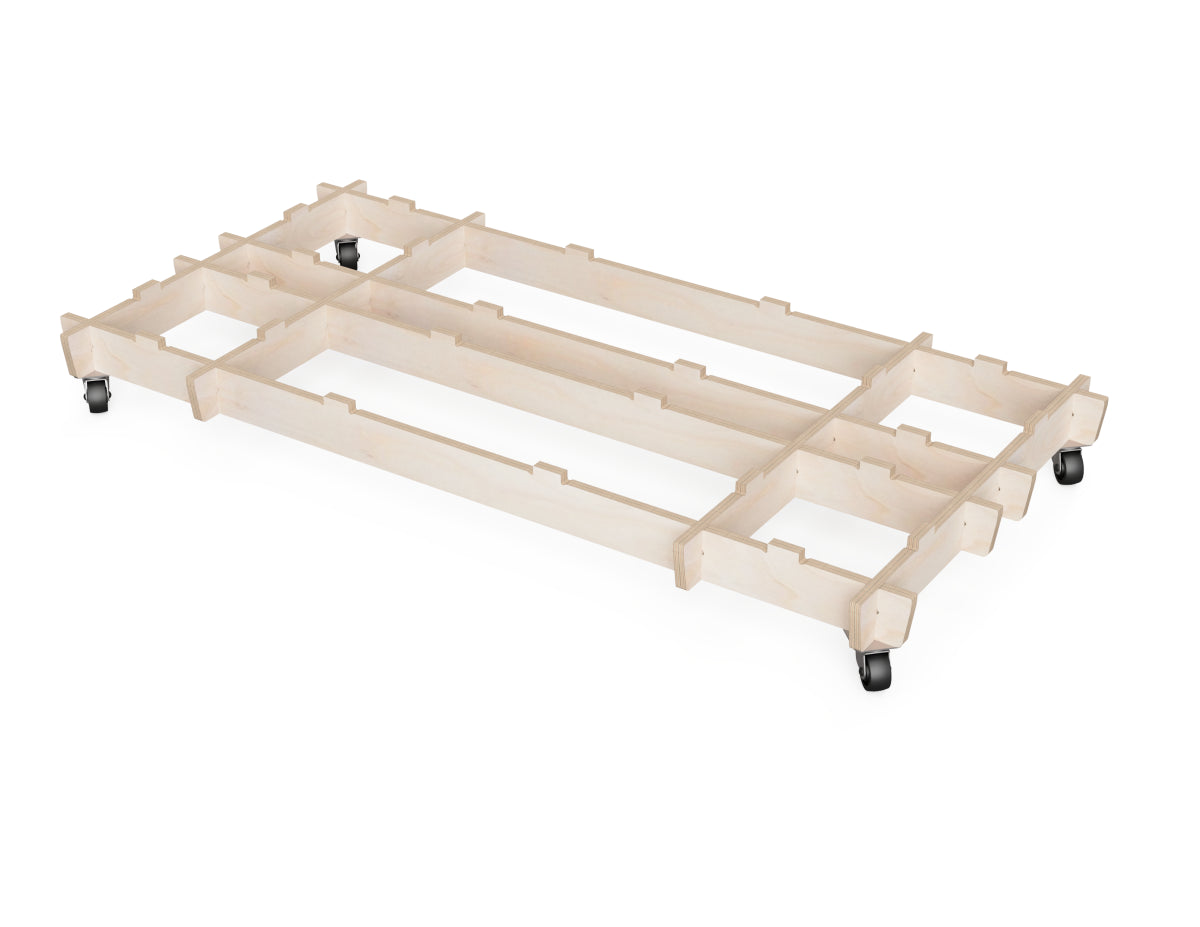

Large Workbench Setup
Dimensions: 900 × 1700 × 900 mm (W × L × H)
35 × 67 × 35 in

Supported CNC sizes

The project can be made on a 800 x 1200 mm (2.6 x 4 ft) CNC router and bigger.

Max single piece size

The biggest component is 1600 x 85 mm (62.99 x 3.35 inches).
So if it can fit on your CNC router, you can build this project

Dimensions


Minimum

Width Length Height
800 mm 800 mm 170 mm
31½ inch 31½ inch 6¾ inch

Maximum

Width Length Height
1600 mm 800 mm 170 mm
62 inch 31½ inch 6¾ inch

Required materials

For the Small Frame:
- 1 sheet of 920 x 850 x 18 mm (36 x 33-1/2 x 3/4 inches) plywood
- 6 mm (1/4 - inch) router bit
- 4 Heavy-duty caster wheels
- 30 mm (1-1/4 inch) wood screws - 16 pieces
For the Medium Frame:
- 1 sheet of 2050 x 500 x 18 mm (81 x 20 x 3/4 inches) plywood
- 6 mm (1/4 - inch) router bit
- 4 Heavy-duty caster wheels
- 30 mm (1-1/4 inch) wood screws - 16 pieces
For the Large Frame:
- 1 sheet of 2440 x 500 x 18 mm (96 x 20 x 3/4 inches) plywood
- 6 mm (1/4 - inch) router bit
- 4 Heavy-duty caster wheels
- 30 mm (1-1/4 inch) wood screws - 16 pieces

Approximate CNC time

25 minutes

Assembling time

20 minutes
The product may differ from the representative images when cut and assembled. We hope you will enjoy your purchase from Aribabox!
