Band Saw Cabinet DXF Files

Band Saw Cabinet DXF Files

Regular price $15.00 USD
Regular price $15.00 USD Sale price $15.00 USD
Sale Sold out
Taxes included.

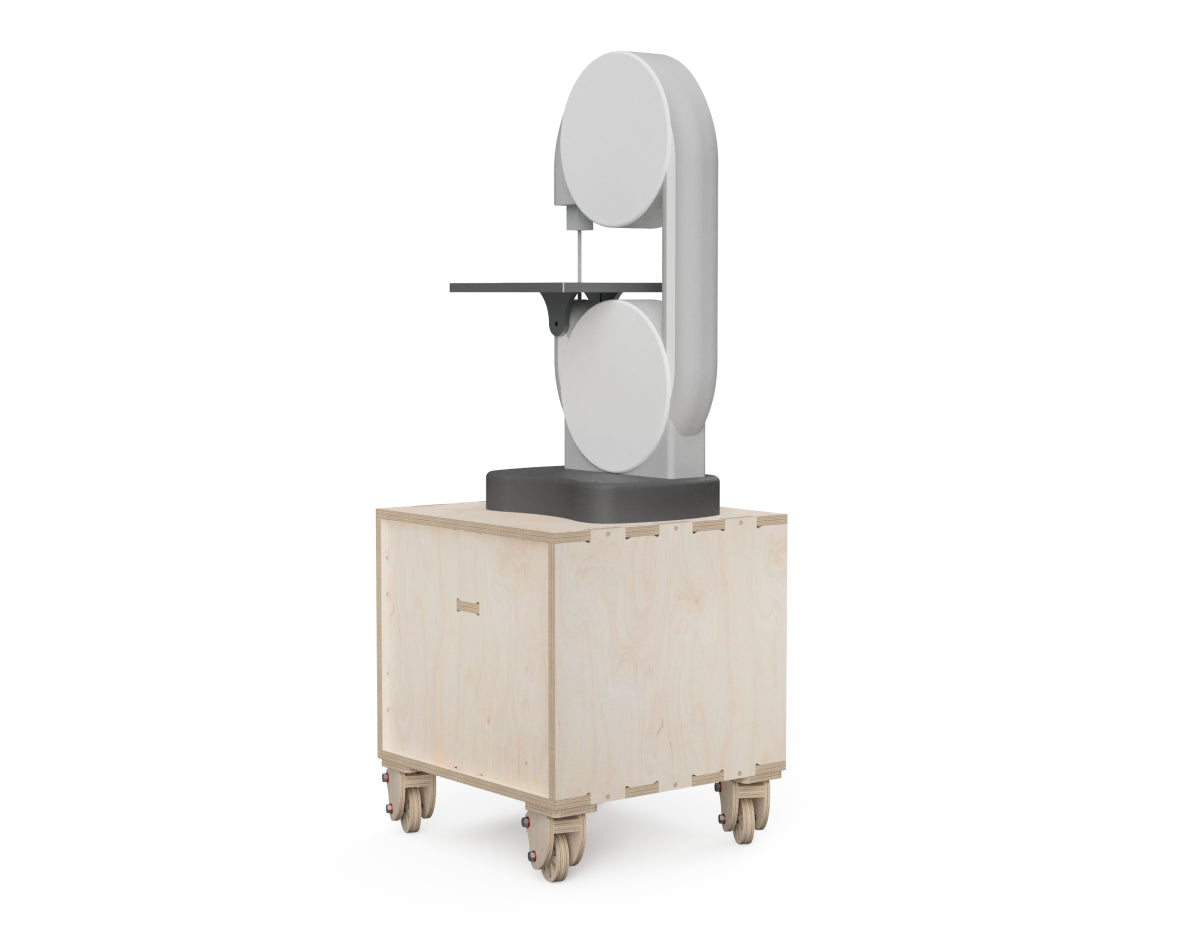

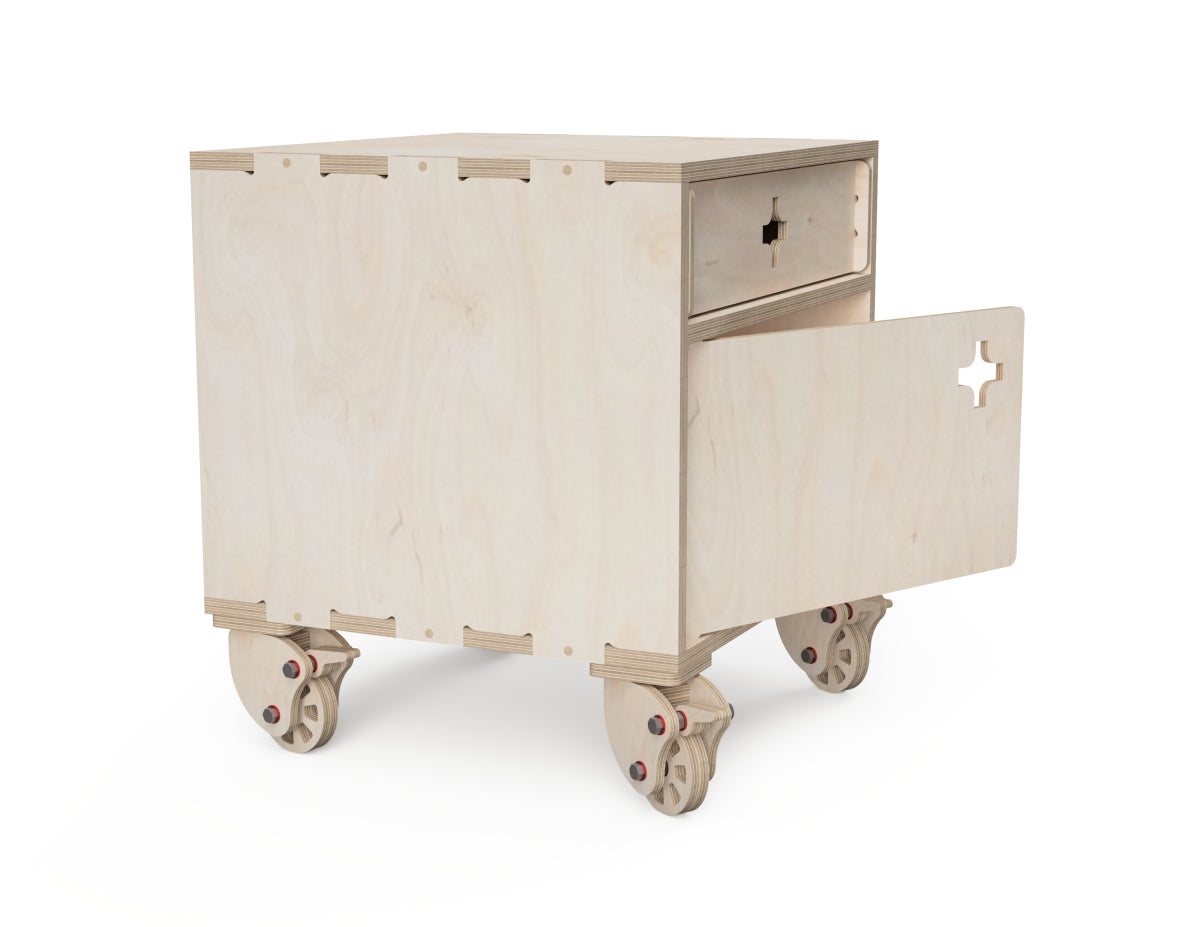

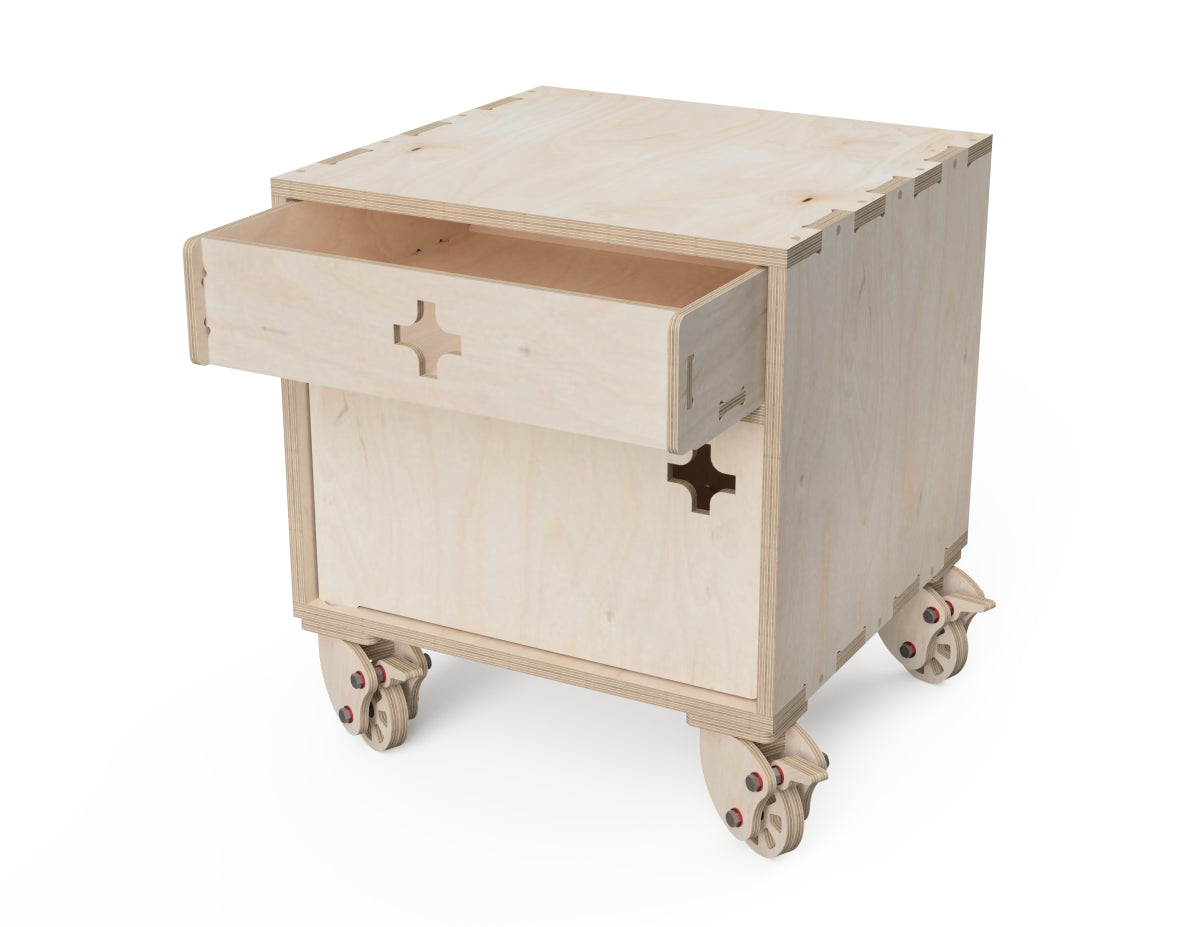

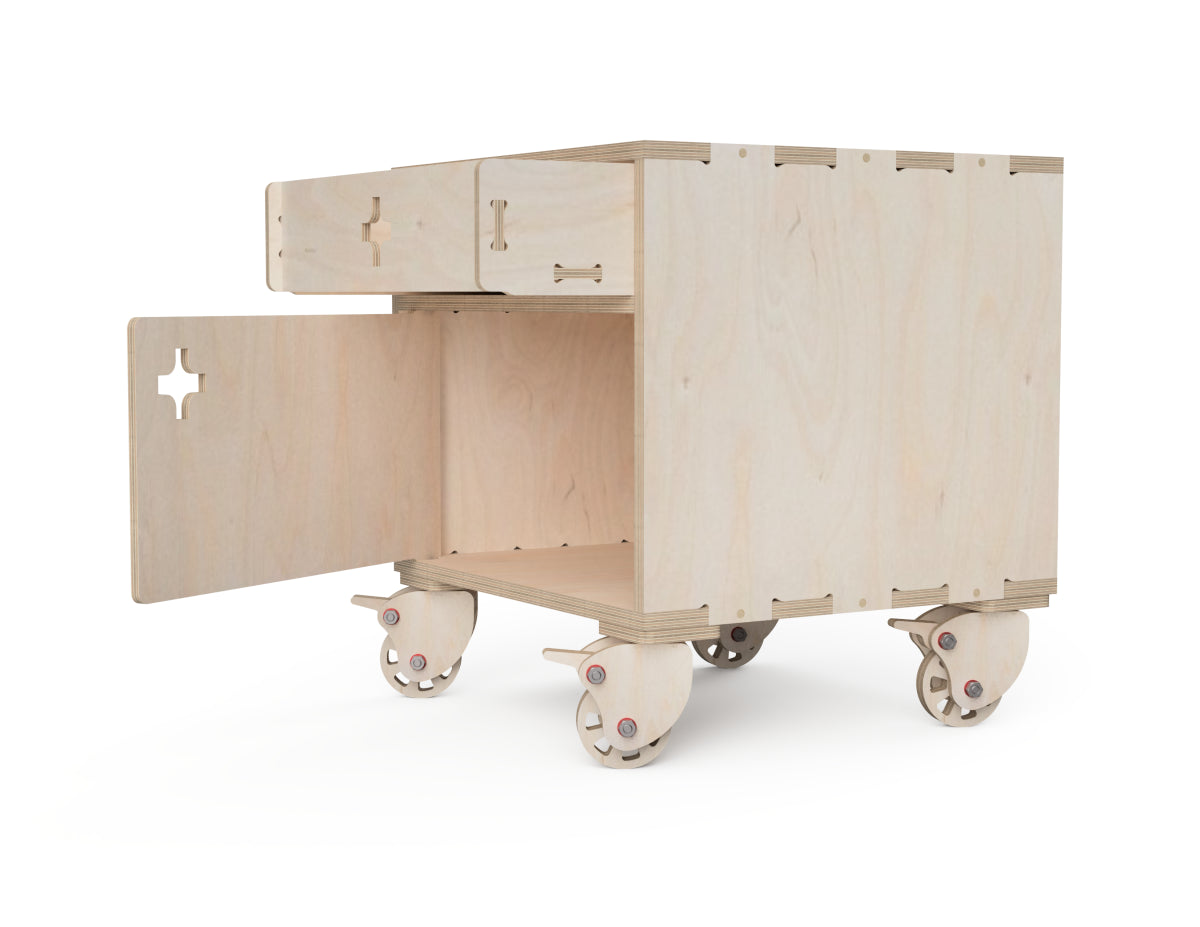

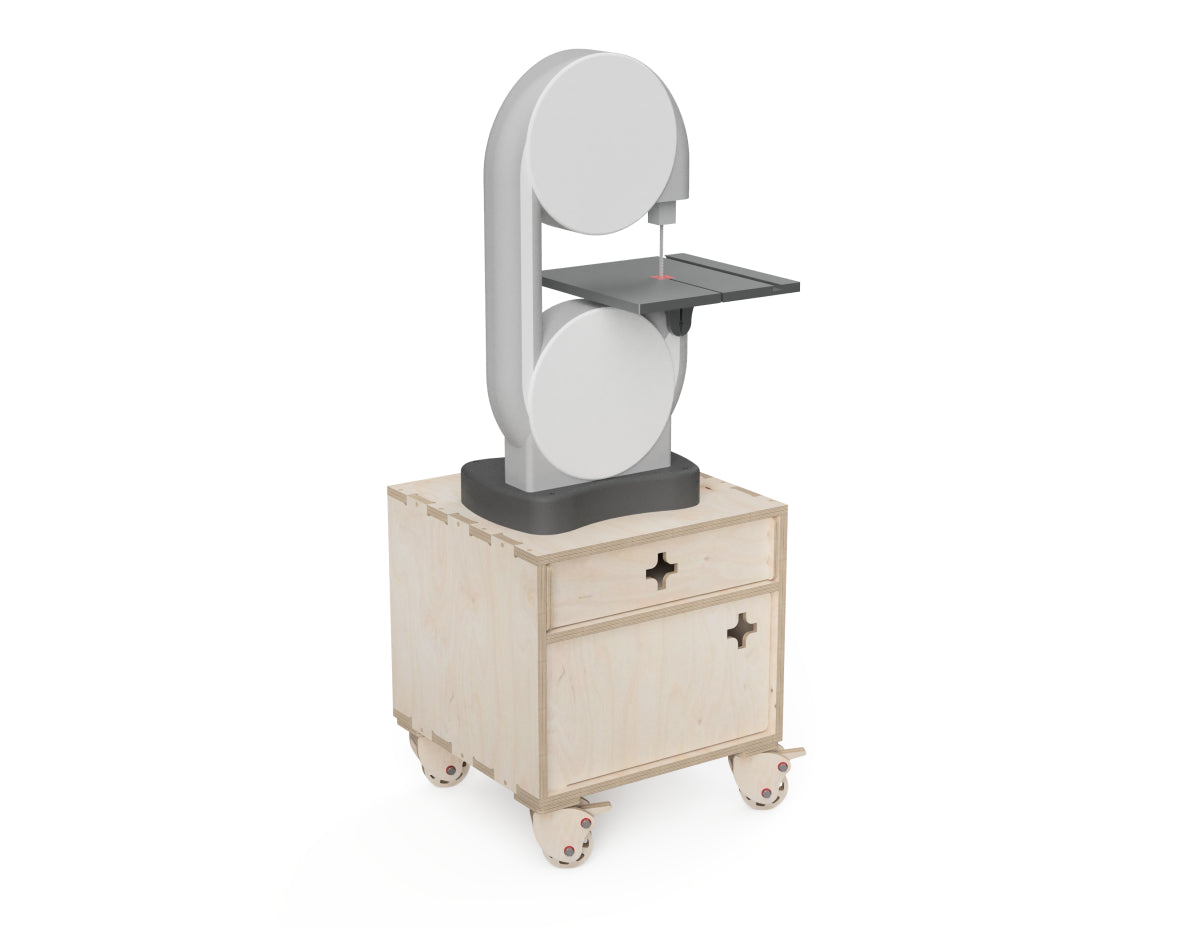

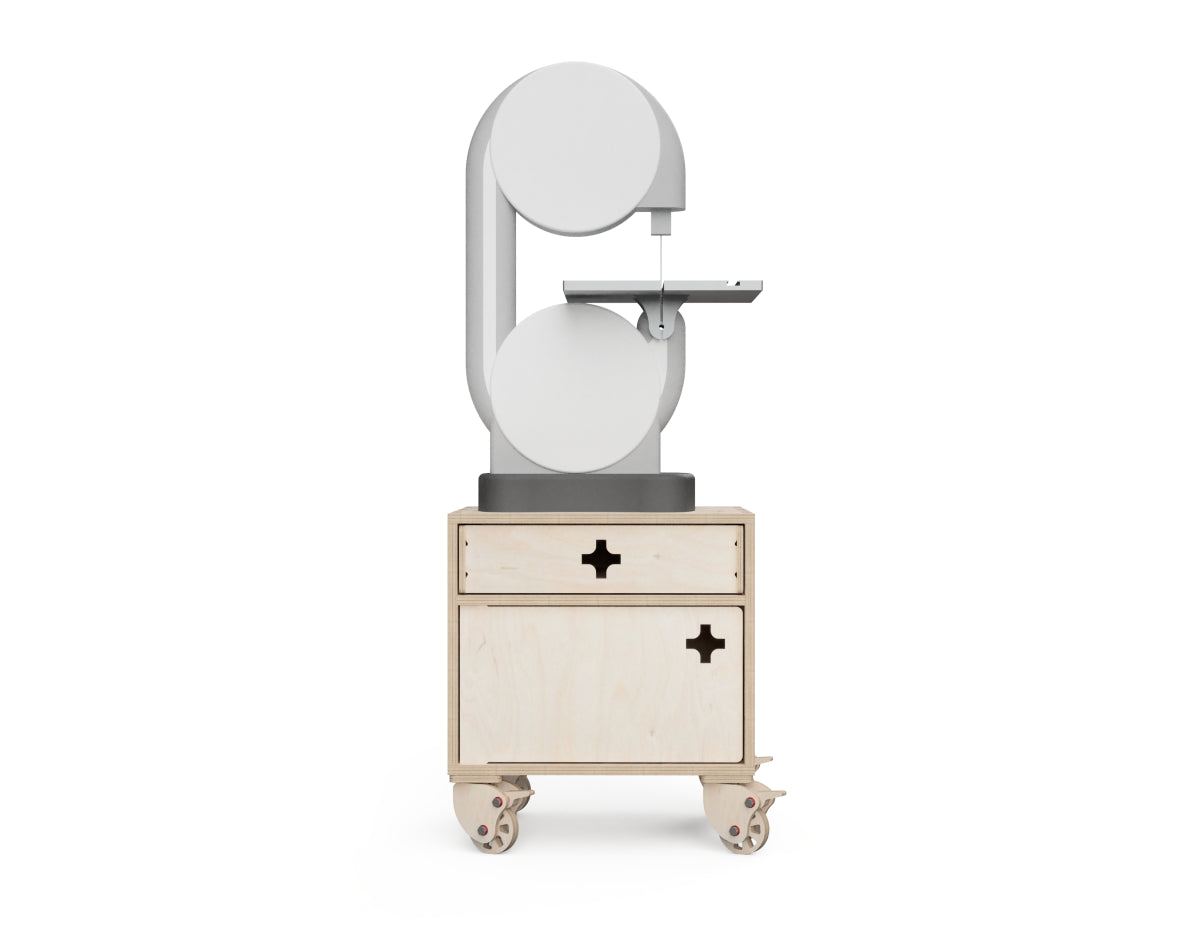

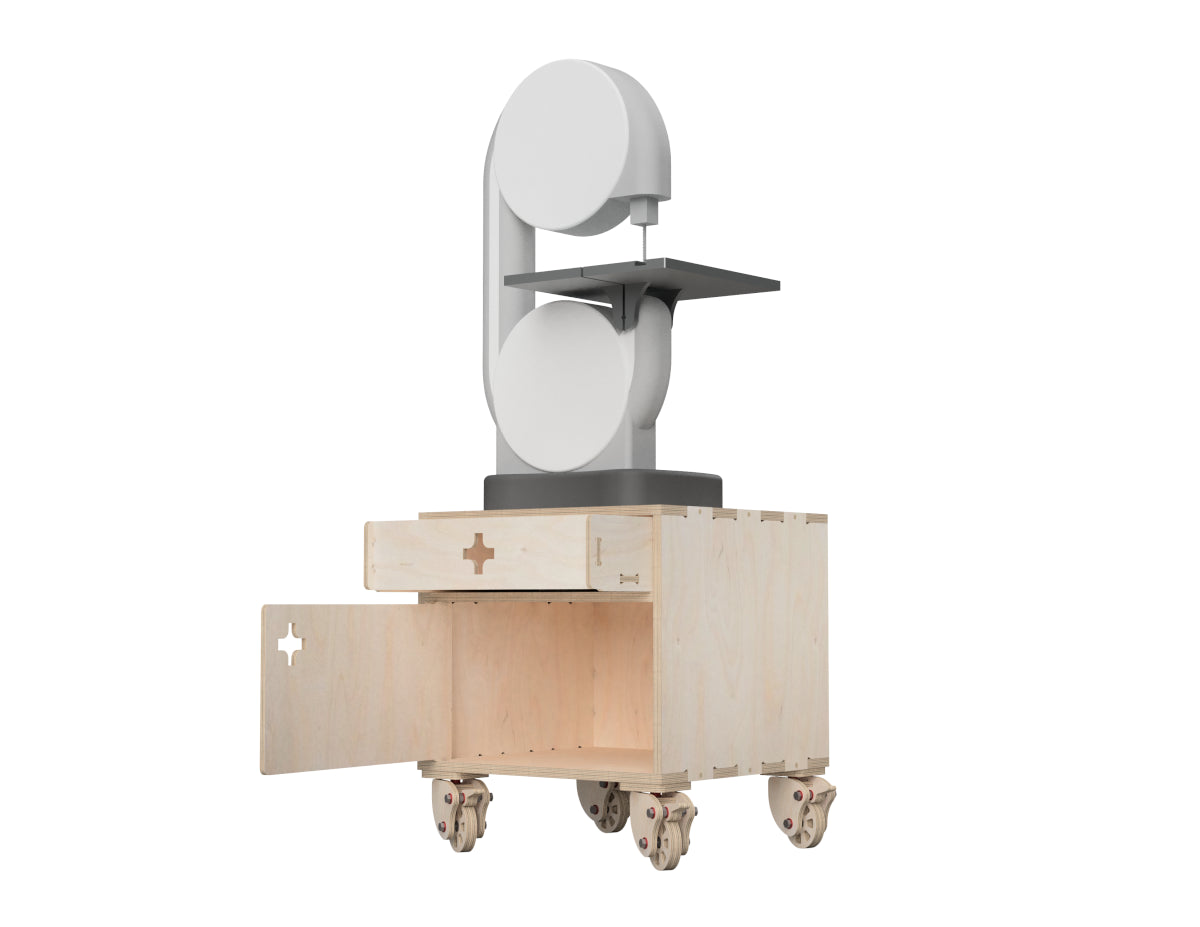

Build Your Own Band Saw Cabinet - CNC DXF Files for an Ergonomic Bandsaw Setup



Upgrade your workshop with our Band Saw Cabinet DXF Files, designed to help you build a custom cabinet that raises your benchtop bandsaw to the perfect working height. Ideal for hobbyists and professional woodworkers alike, this digital download is compatible with CNC routers and laser cutters.



These CNC-cut plans ensure a clean, sturdy build and a streamlined woodworking setup. Need adjustments? Our design team can tailor the cabinet dimensions to perfectly fit your specific bandsaw model.



✅ Ergonomic working height
✅ Customizable to your tools
✅ Instant digital download (DXF format)
✅ Perfect for CNC woodworking projects



Say goodbye to awkward setups and hello to smooth, comfortable cutting. Download the Band Saw Cabinet DXF files today and take your shop to the next level!

Supported CNC sizes

The project can be made on a 600 x 900 mm (2 x 3 ft) CNC router and bigger.

Dimensions

Width Length Height
470 mm 450 mm 400 mm
18½ inch 17¾ inch 15¾ inch

Required materials

For an 600 x 900 (2 x 3 ft) CNC router
- 1 sheet of 900 x 600 x 9 mm (35.5 x 23.65 x 0.375 inches) Plywood
- 1 sheet of 500 x 450 x 9 mm (20 x 22 x 0.375 inches) Plywood
- 2 sheets of 900 x 550 x 15 mm (35.5 x 22 x 0.625 inches) Plywood
- 1 sheet of 500 x 500 x 15 mm (20 x 20 x 0.625 inches) Plywood
- 8 mm (0.315 inch) dowels
For an 800 x 1200 (2.6 x 4 ft) CNC router
- 1 sheet of 950 x 820 x 9 mm (37.5 x 32 x 0.375 inches) Plywood
- 2 sheets of 925 x 500 x 18 mm (36.5 x 20 x 0.625 inches) Plywood
- 1 sheet of 500 x 500 x 18 mm (20 x 20 x 0.625 inches) Plywood
- 8 mm (0.315 inch) dowels
For an 900 x 1200 (3 x 4 ft) CNC router
- 1 sheet of 950 x 820 x 9 mm (37.5 x 32 x 0.375 inches) Plywood
- 1 sheet of 1000 x 900 x 18 mm (40 x 36 x 0.625 inches) Plywood
- 1 sheet of 500 x 500 x 18 mm (20 x 20 x 0.625 inches) Plywood
- 8 mm (0.315 inch) dowels
For an 1200 x 1200 (4 x 4 ft) CNC router
- 1 sheet of 950 x 820 x 9 mm (37.5 x 32 x 0.375 inches) Plywood
- 1 sheet of 1000 x 950 x 18 mm (40 x 37.5 x 0.625 inches) Plywood
- 1 sheet of 500 x 500 x 18 mm (20 x 20 x 0.625 inches) Plywood
- 8 mm (0.315 inch) dowels
For an 1220 x 2440 (4 x 8 ft) CNC router
- 1 sheet of 950 x 820 x 9 mm (37.5 x 32 x 0.375 inches) Plywood
- 1 sheet of 2300 x 500 x 18 mm (90.5 x 20 x 0.625 inches) Plywood
- 8 mm (0.315 inch) dowels

Assembling time

30 minutes
The product may differ from the representative images when cut and assembled. We hope you will enjoy your purchase from Aribabox!
