4 - Drawer Cabinet - French Cleat Attachment - DXF Files
4 - Drawer Cabinet - French Cleat Attachment - DXF Files
Regular price
$7.65 USD
Regular price
$7.65 USD
Sale price
$7.65 USD
Unit price
/
per
Taxes included.
Couldn't load pickup availability

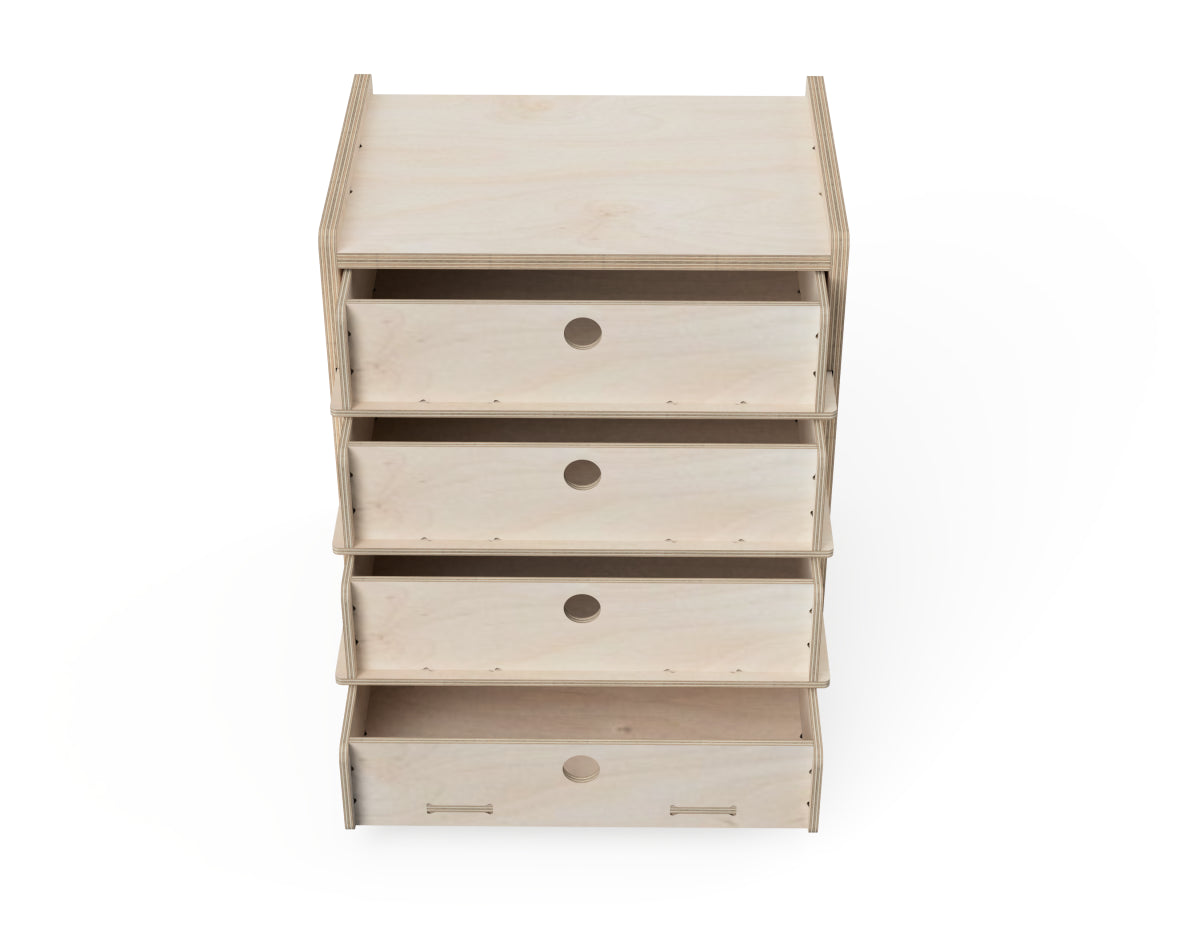

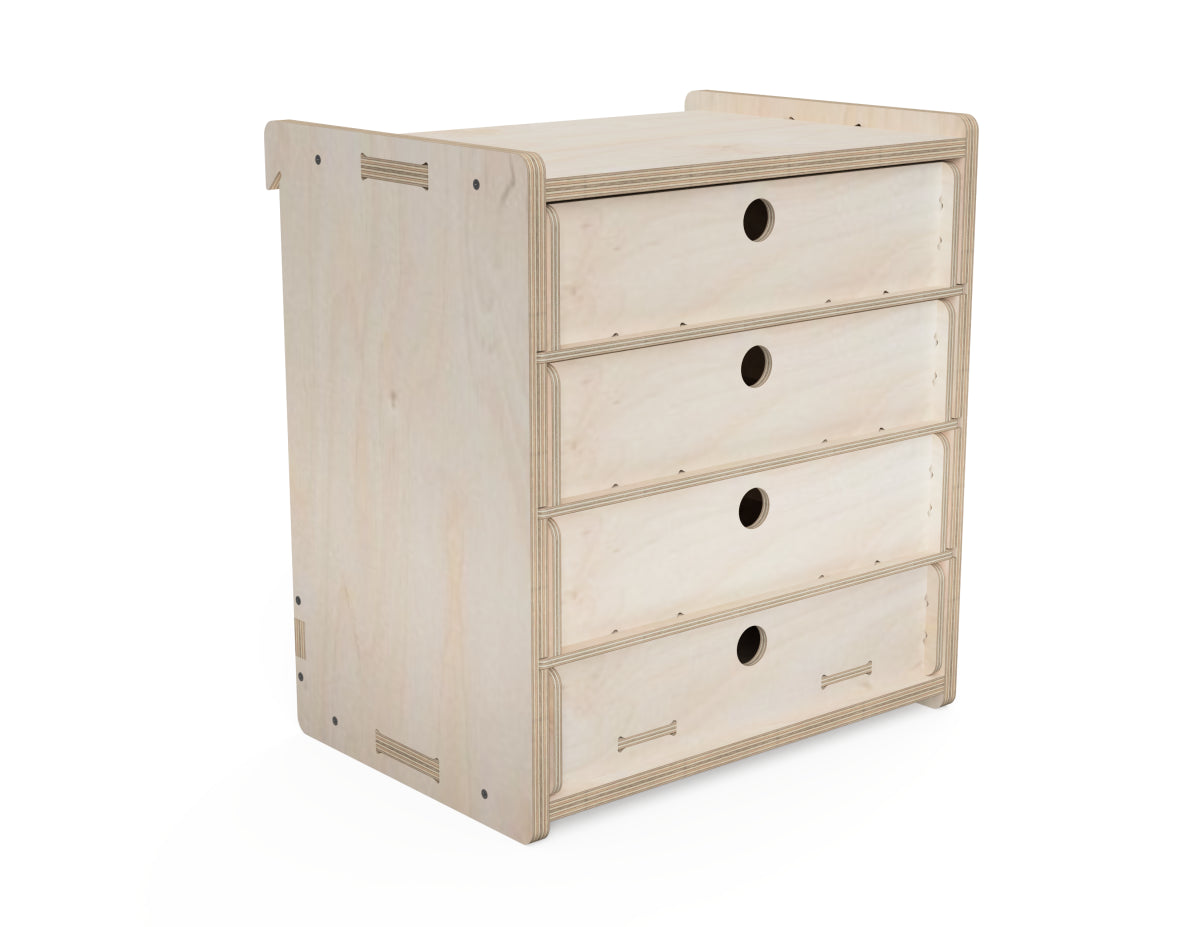

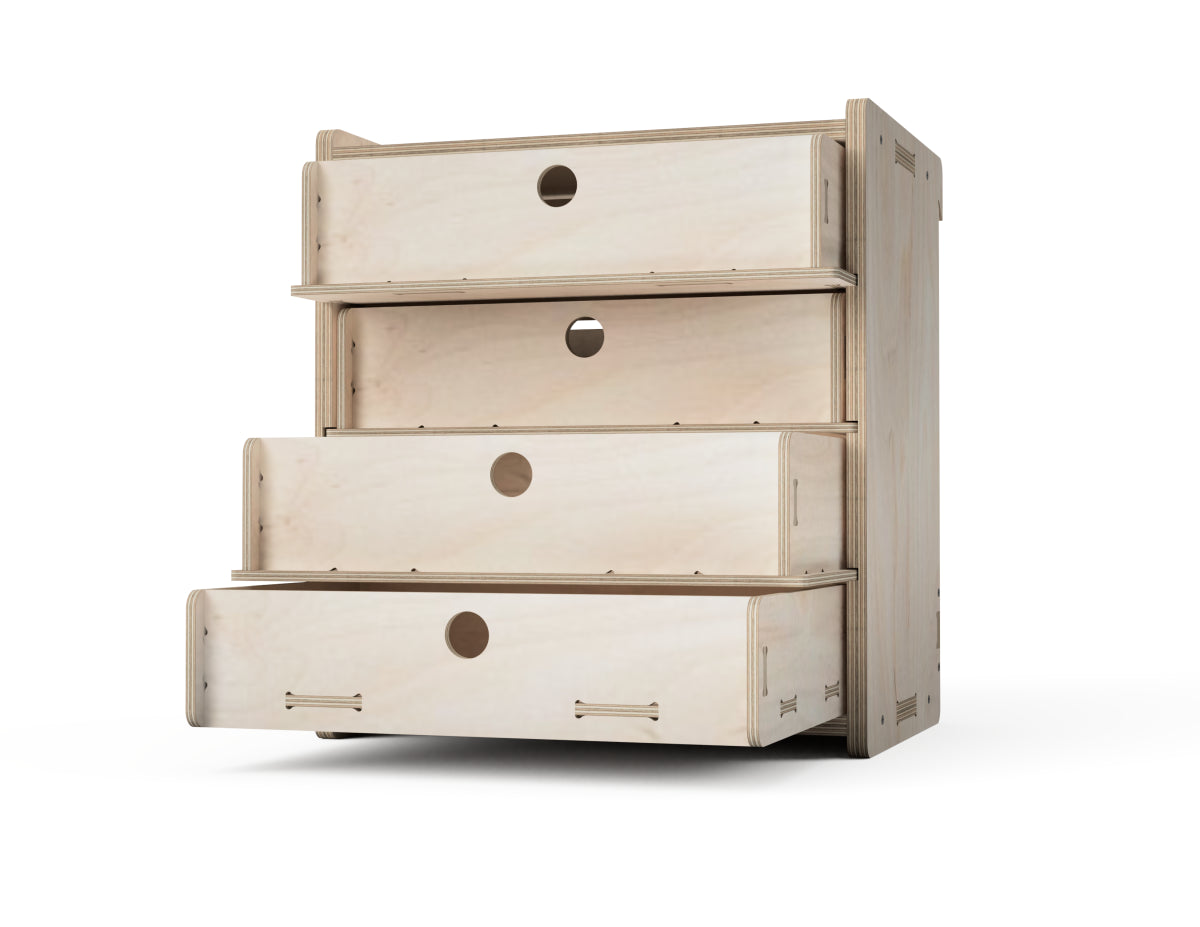

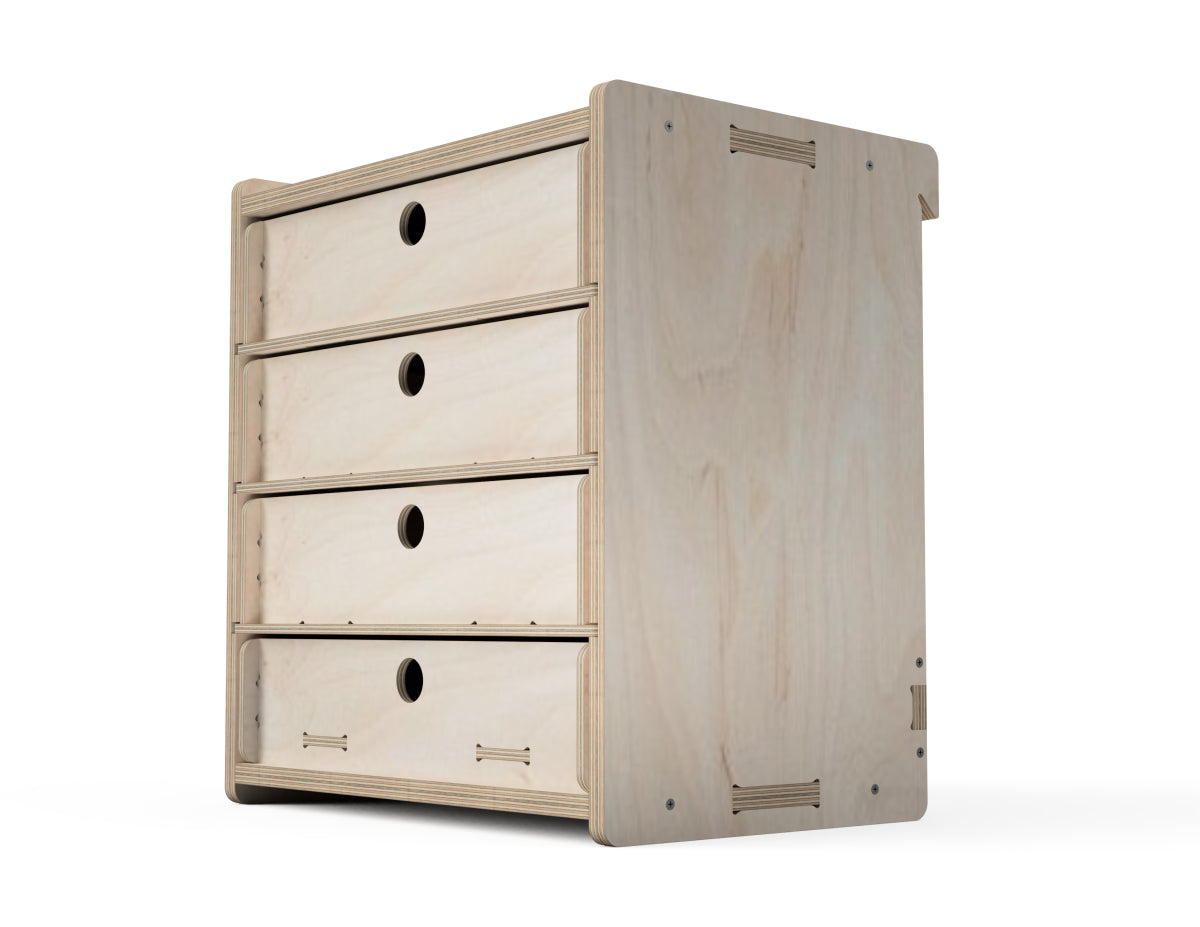

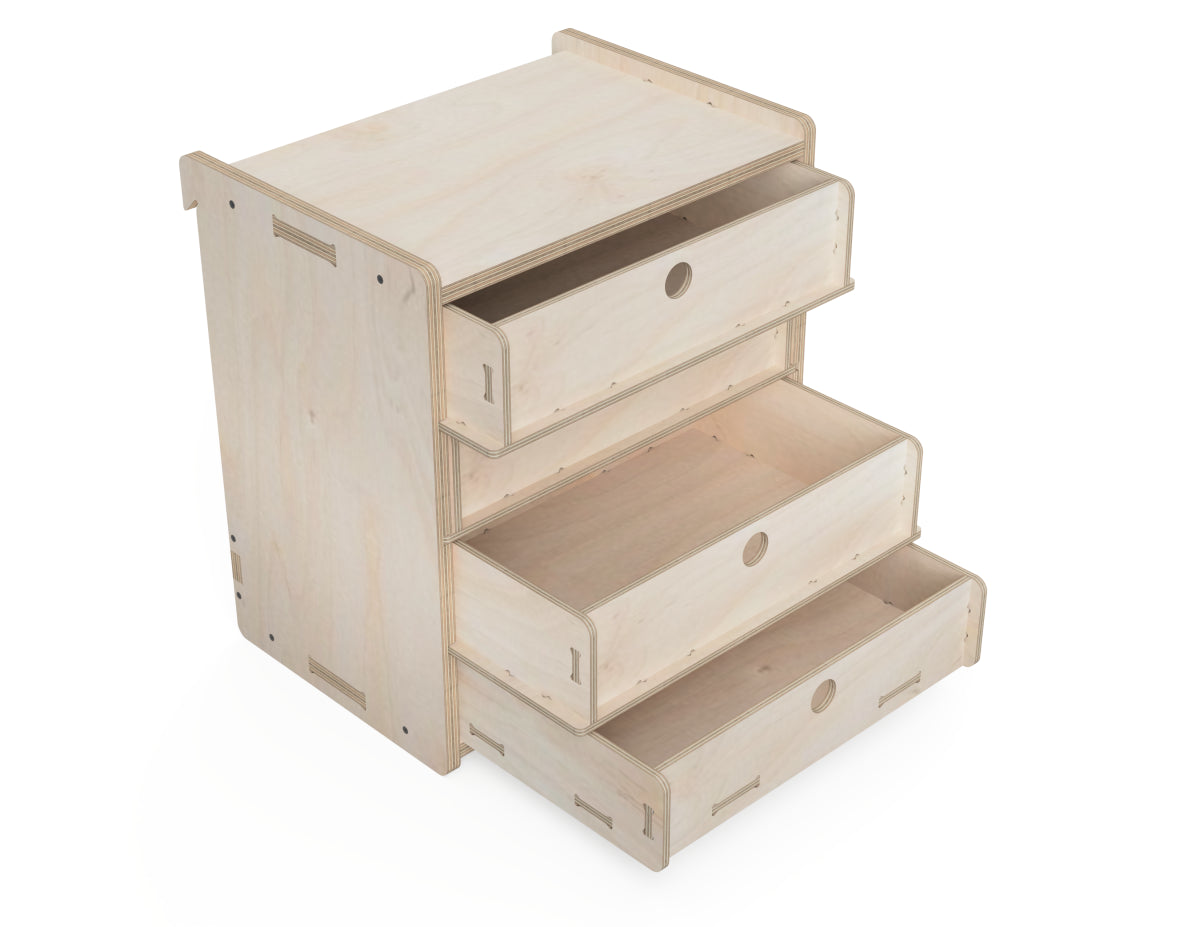

Introducing our 4-drawer Cabinet with French Cleat Attachment – the perfect CNC project for your workshop!

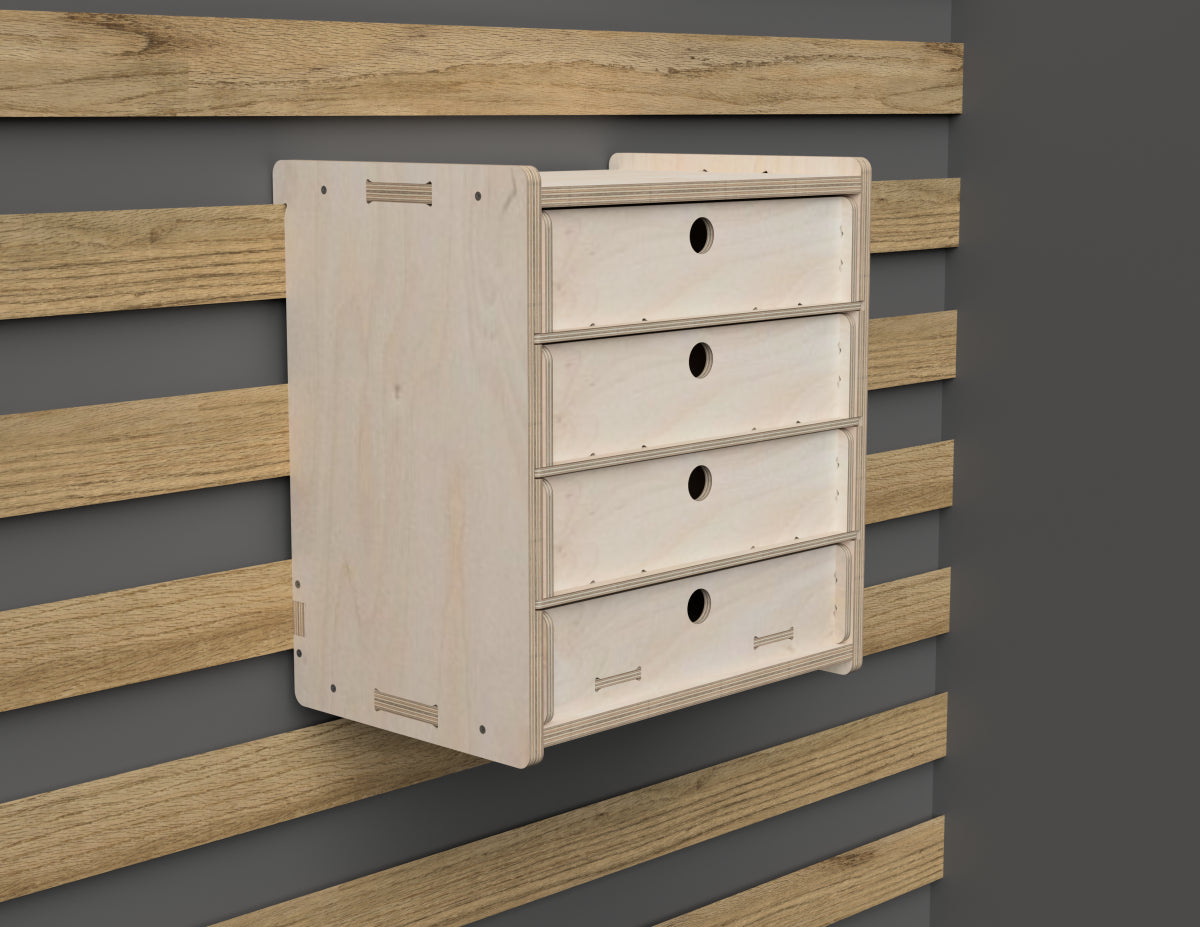

These DXF files allow you to easily create a sturdy, space-saving cabinet that seamlessly mounts to your French cleat wall. Featuring four spacious drawers, it’s ideal for organizing tools, screws, and other essential items.
Designed for cleats at least 12 mm thick, this cabinet attachment ensures a strong and secure fit. Elevate your workshop storage with this functional, easy-to-build solution.
Download the CNC files today and get started! Perfect for DIY enthusiasts and woodworkers.
Supported CNC sizes
Supported CNC sizes
The project can be made on a
600 x 900 mm (2 x 3 ft) CNC
router and bigger.
Max single piece size
Max single piece size
The biggest component is
350
x
385
mm (13.78
x
15.16
inches).
So if it can fit on your CNC router, you can build this project
So if it can fit on your CNC router, you can build this project
Dimensions
Dimensions
| Width | Length | Height |
|---|---|---|
| 350 mm | 240 mm | 385 mm |
| 13¾ inch | 9½ inch | 15⅛ inch |
Required materials
Required materials
For a 600 x 900 mm (2 x 3 ft) CNC
For a 600 x 900 mm (2 x 3 ft) CNC
- 1 sheet of 820 x 600 x 12 mm (30 x 24 x 1/2 inches) plywood
- 1 sheet of 900 x 600 x 6 mm (36 x 24 x 1/4 inches) plywood
- 1 sheet of 900 x 400 x 6 mm (36 x 16 x 1/4 inches) plywood
- 3 mm (1/8 inch) router bit
- 12 wood screws (optional)
For a 820 x 1220 mm (2.6 x 4 ft) CNC and bigger
For a 820 x 1220 mm (2.6 x 4 ft) CNC and bigger
- 1 sheet of 820 x 600 x 12 mm (30 x 24 x 1/2 inches) plywood
- 1 sheet of 1220 x 750 x 6 mm (48 x 30 x 1/4 inches) plywood
- 3 mm (1/8 inch) router bit
- 12 wood screws (optional)
Approximate CNC time
Approximate CNC time
45 minutes
Assembling time
Assembling time
25 minutes
The product may differ from the representative images when cut and assembled. We hope you will enjoy your purchase from Aribabox!
