3 - Drawer Cabinet - French Cleat Attachment - DXF Files
3 - Drawer Cabinet - French Cleat Attachment - DXF Files
Couldn't load pickup availability

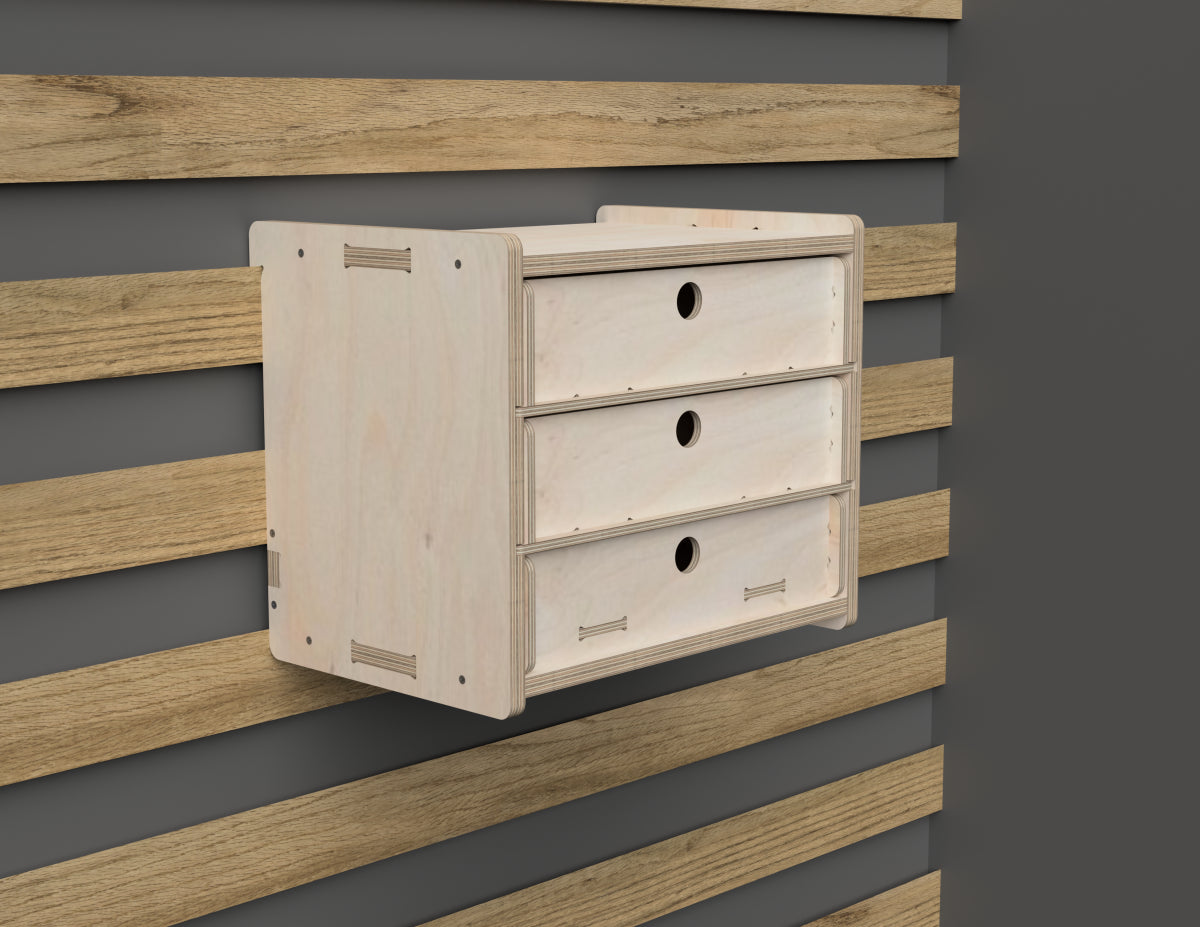

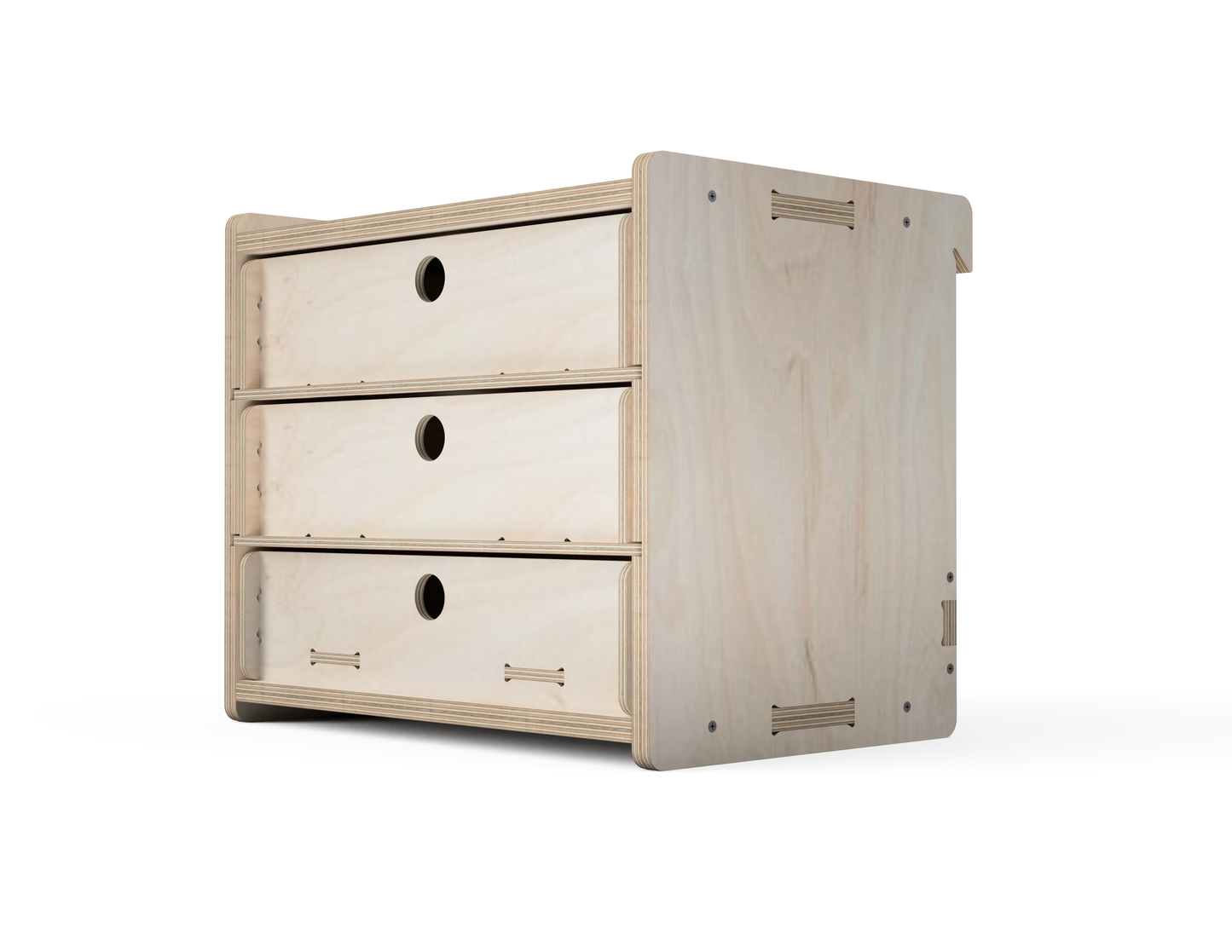

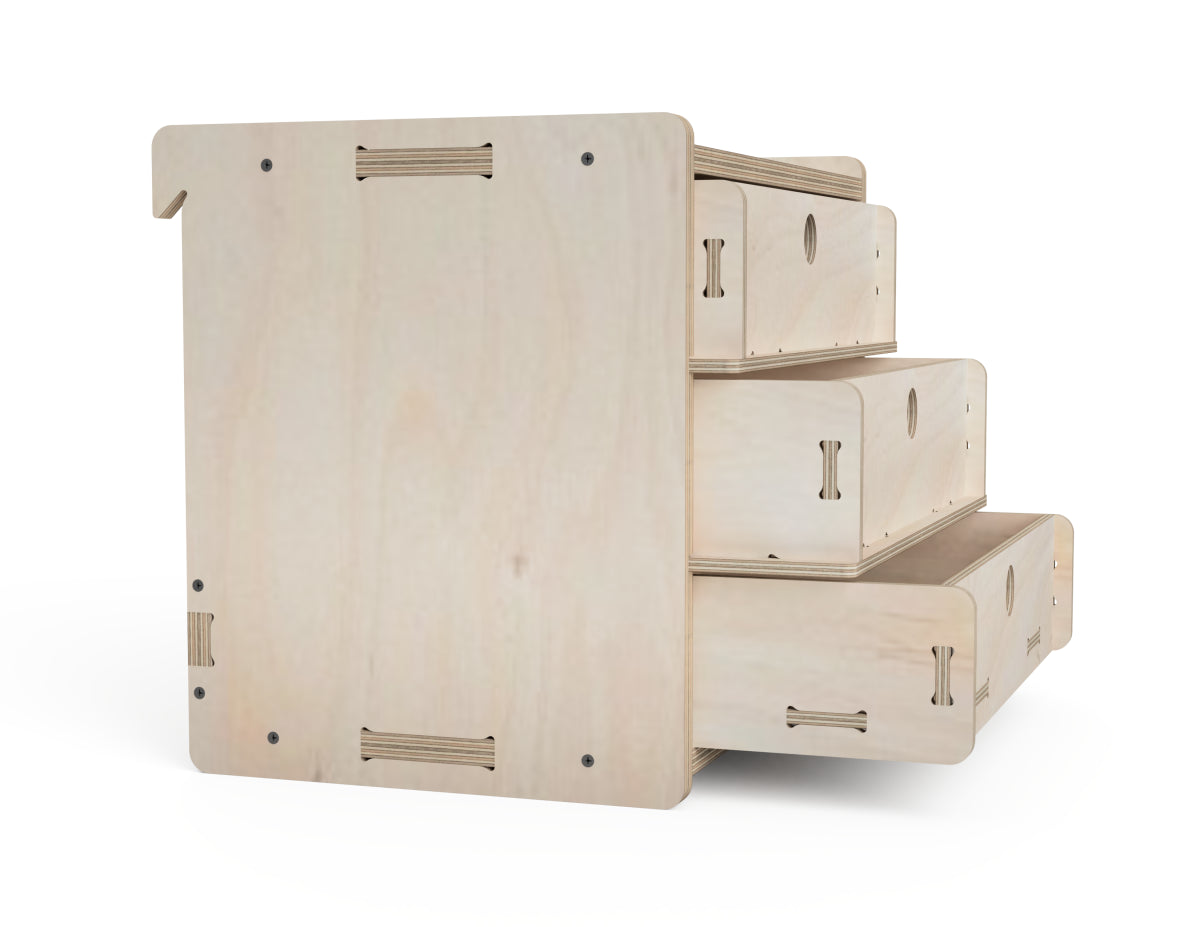

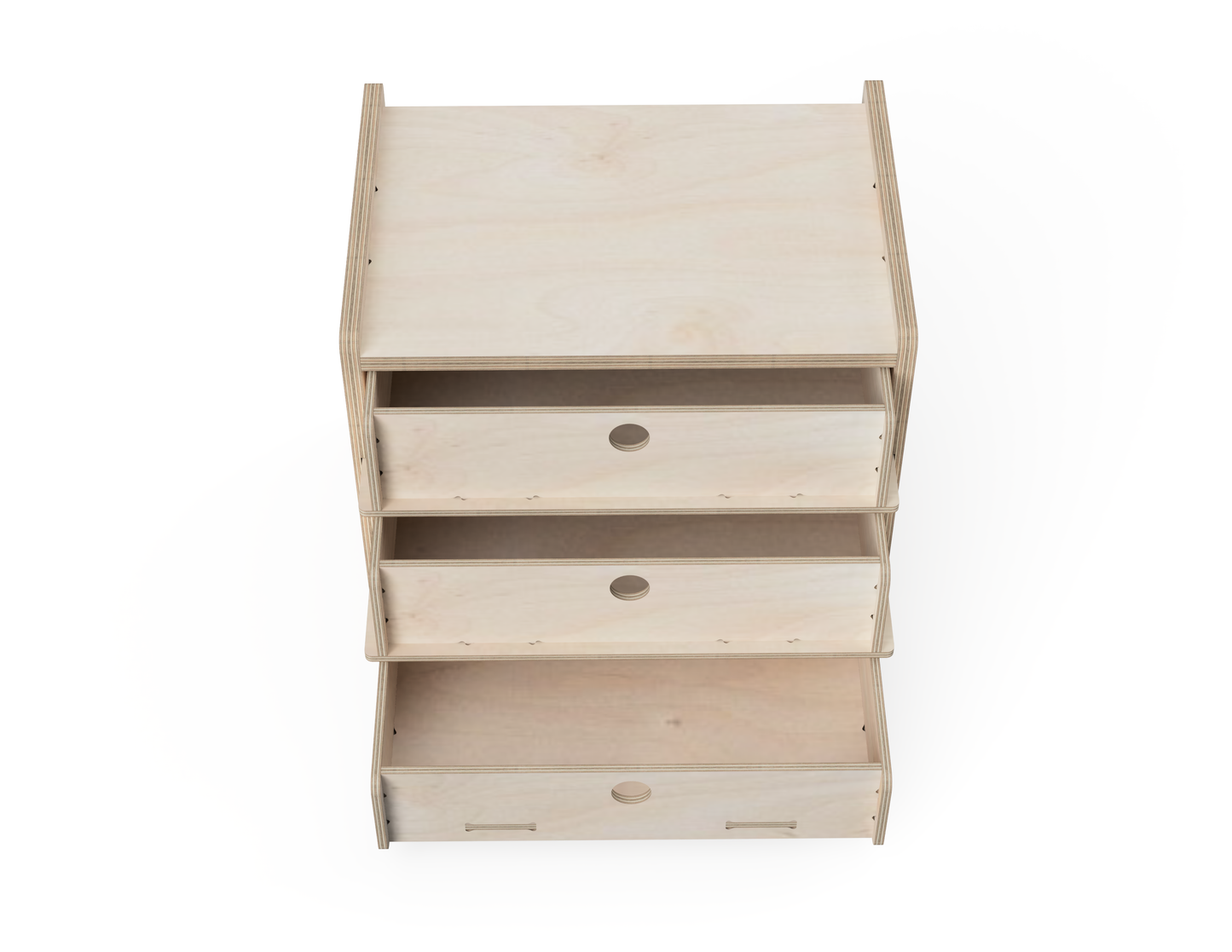

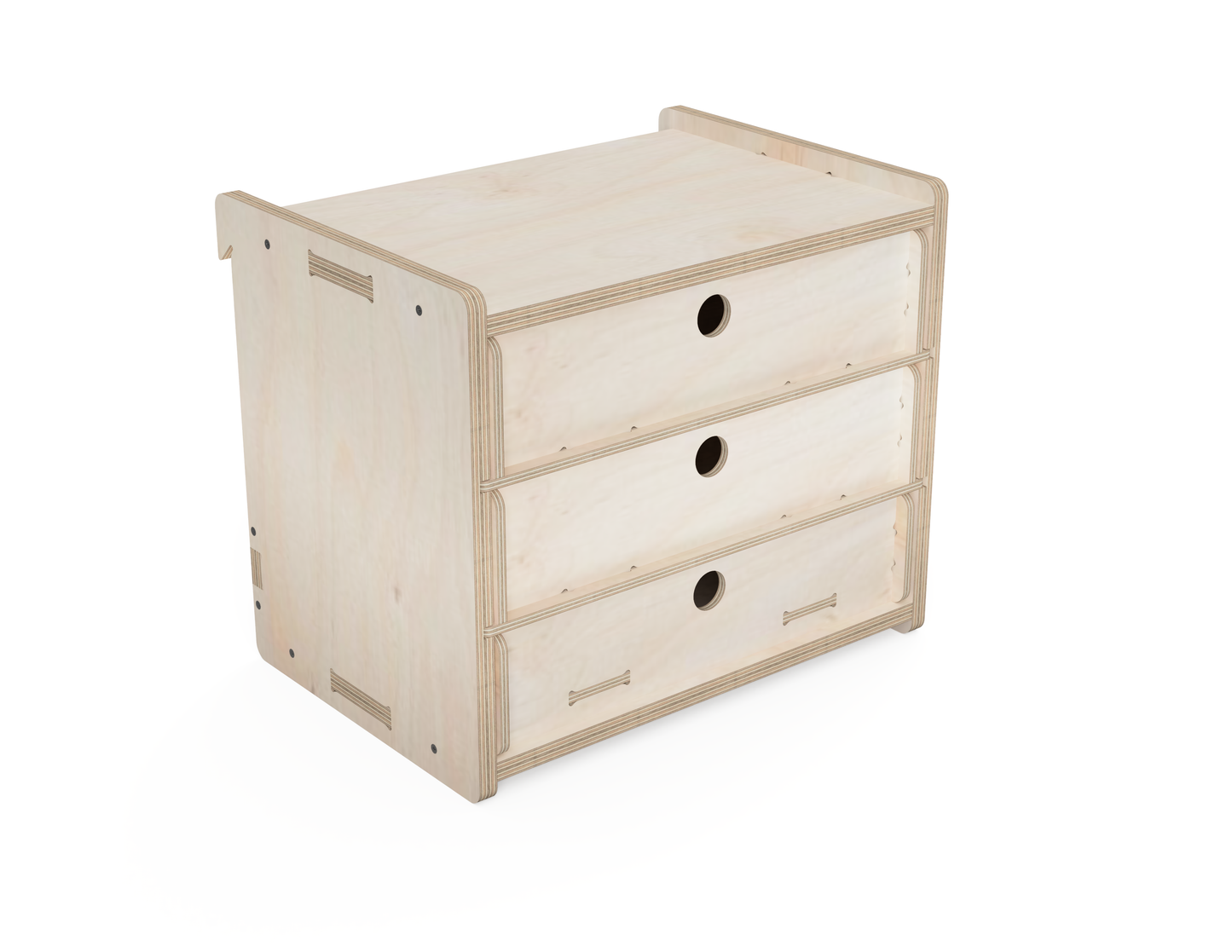

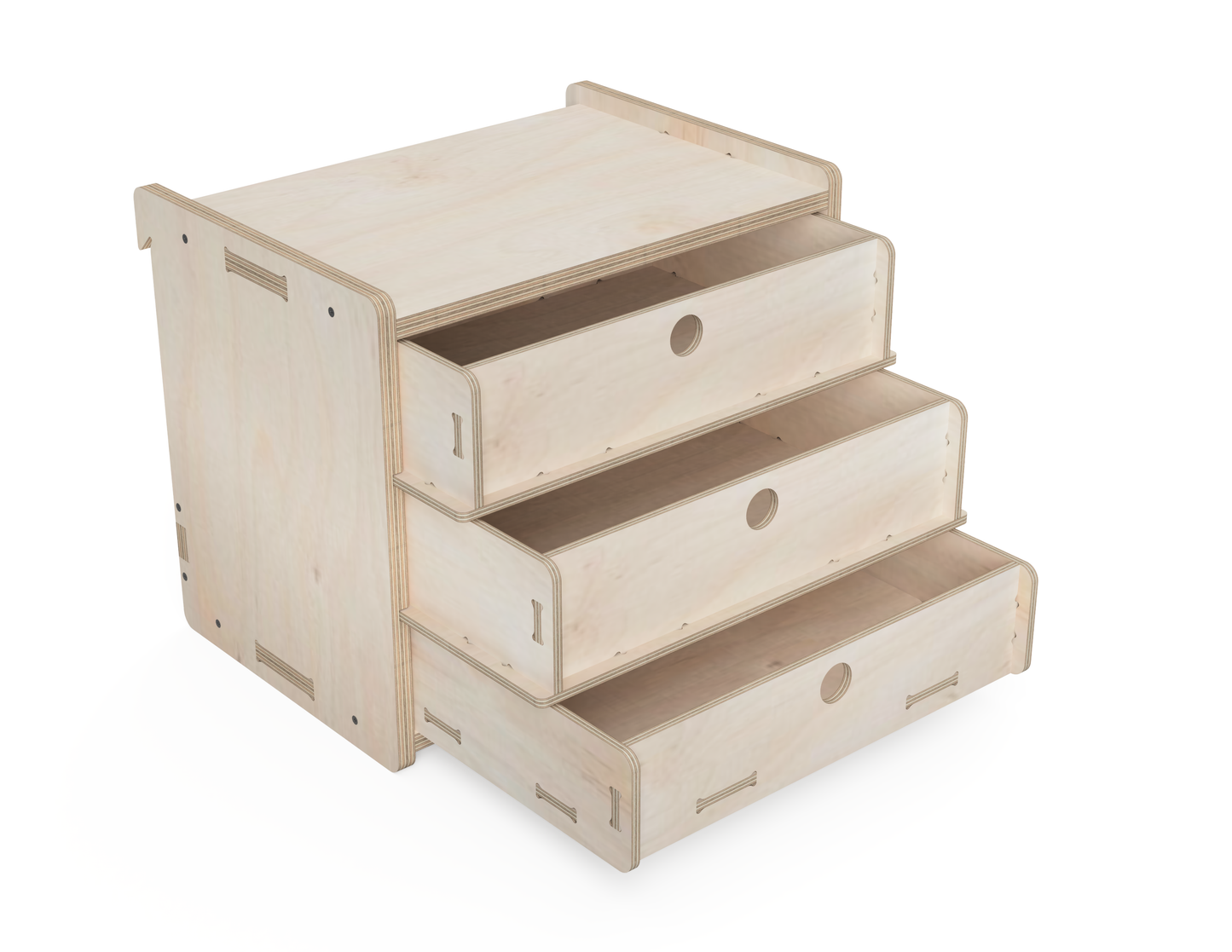

Introducing our 3-drawer Cabinet with French Cleat Attachment – the perfect CNC project for your workshop!
These DXF files allow you to easily create a sturdy, space-saving cabinet that seamlessly mounts to your French cleat wall. Featuring three spacious drawers, it’s ideal for organizing tools, screws, and other essential items.
Designed for cleats at least 12 mm thick, this cabinet attachment ensures a strong and secure fit.
Elevate your workshop storage with this functional, easy-to-build solution. Download the CNC files today and get started! Perfect for DIY enthusiasts and woodworkers.
Supported CNC sizes
Supported CNC sizes
Max single piece size
Max single piece size
So if it can fit on your CNC router, you can build this project
Dimensions
Dimensions
| Width | Length | Height |
|---|---|---|
| 350 mm | 240 mm | 300 mm |
| 13¾ inch | 9½ inch | 11¾ inch |
Required materials
Required materials
For a 600 x 900 mm (2 x 3 ft) CNC
- 1 sheet of 750 x 600 x 12 mm (30 x 24 x 1/2 inches) plywood
- 1 sheet of 900 x 600 x 6 mm (36 x 24 x 1/4 inches) plywood
- 1 sheet of 500 x 300 x 6 mm (20 x 12 x 1/4 inches) plywood
- 3 mm (1/8 inch) router bit
- 12 wood screws (optional)
For a 820 x 1220 mm (2.6 x 4 ft) CNC and bigger
- 1 sheet of 1220 x 820 x 12 mm (48 x 33 x 1/2 inches) plywood
- 1 sheet of 1220 x 600 x 6 mm (48 x 24 x 1/4 inches) plywood
- 3 mm (1/8 inch) router bit
- 12 wood screws (optional)
Approximate CNC time
Approximate CNC time
Assembling time
Assembling time
